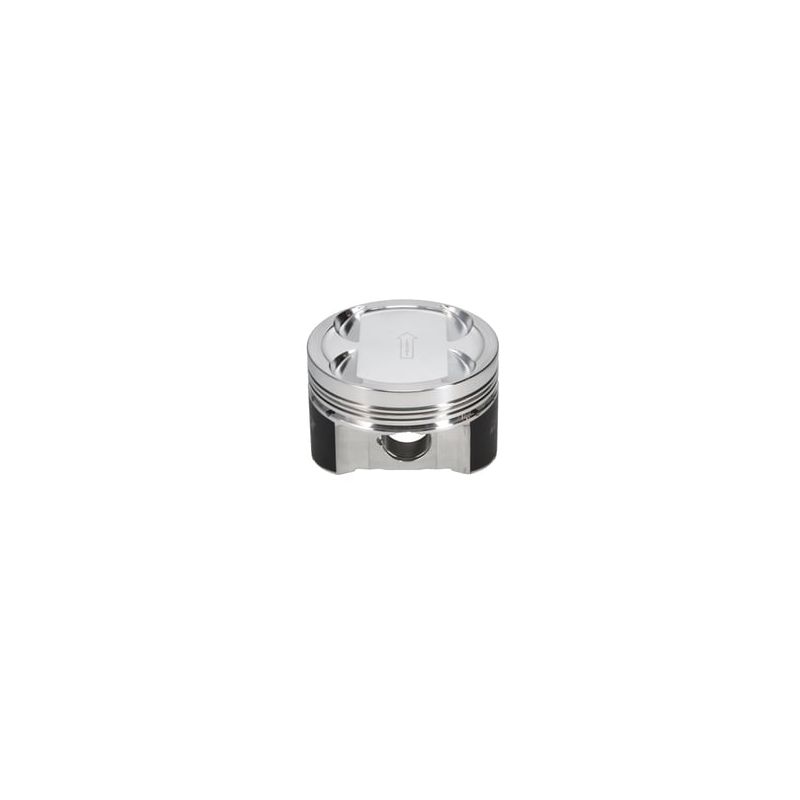

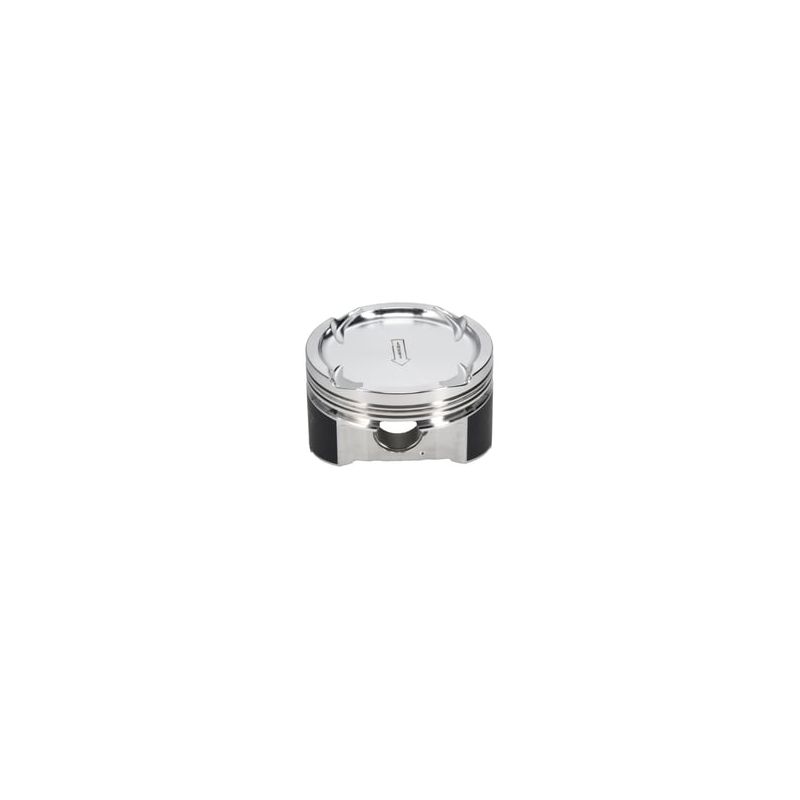

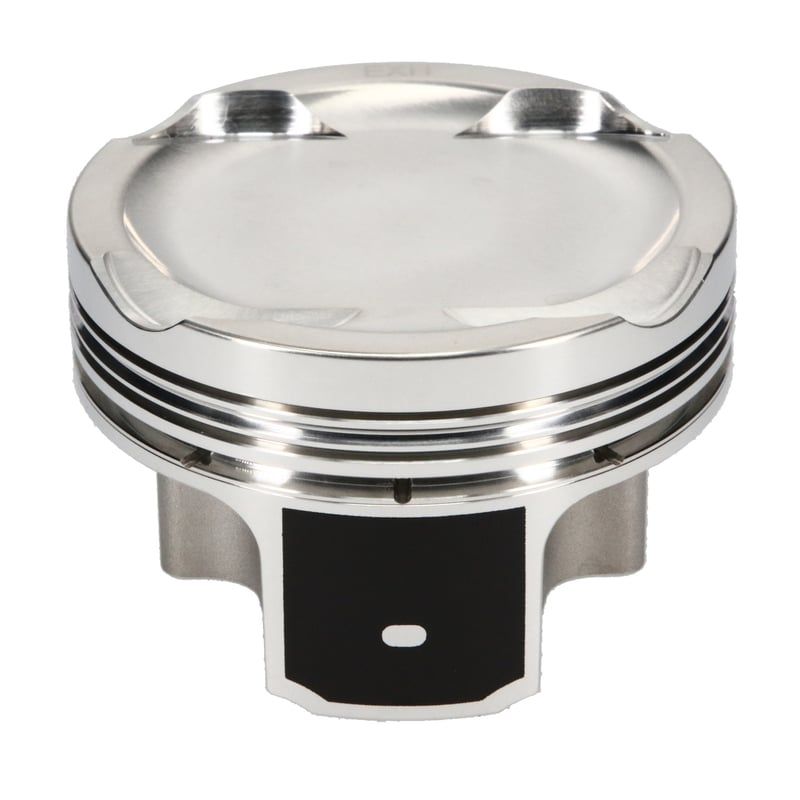

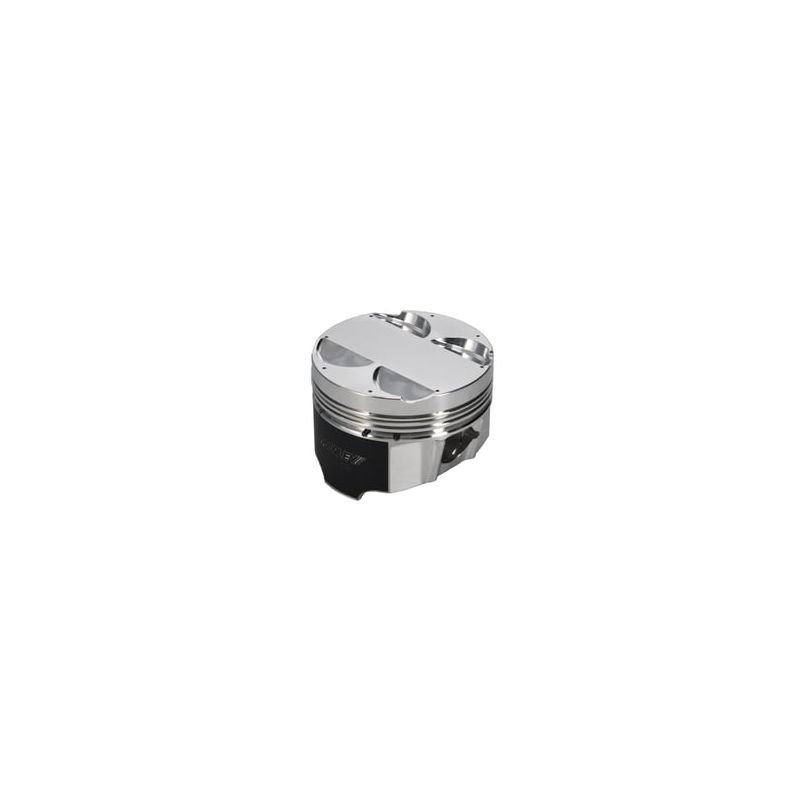

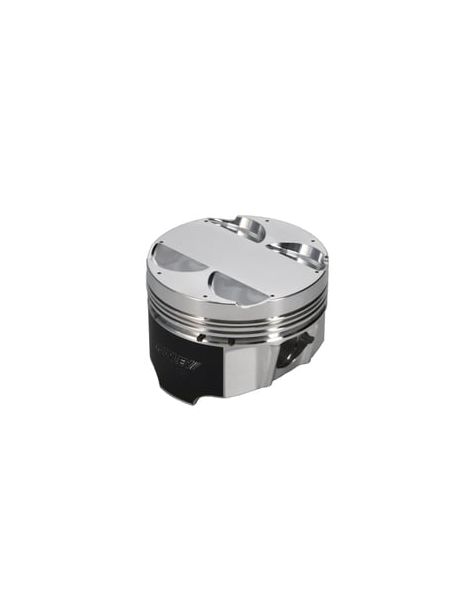

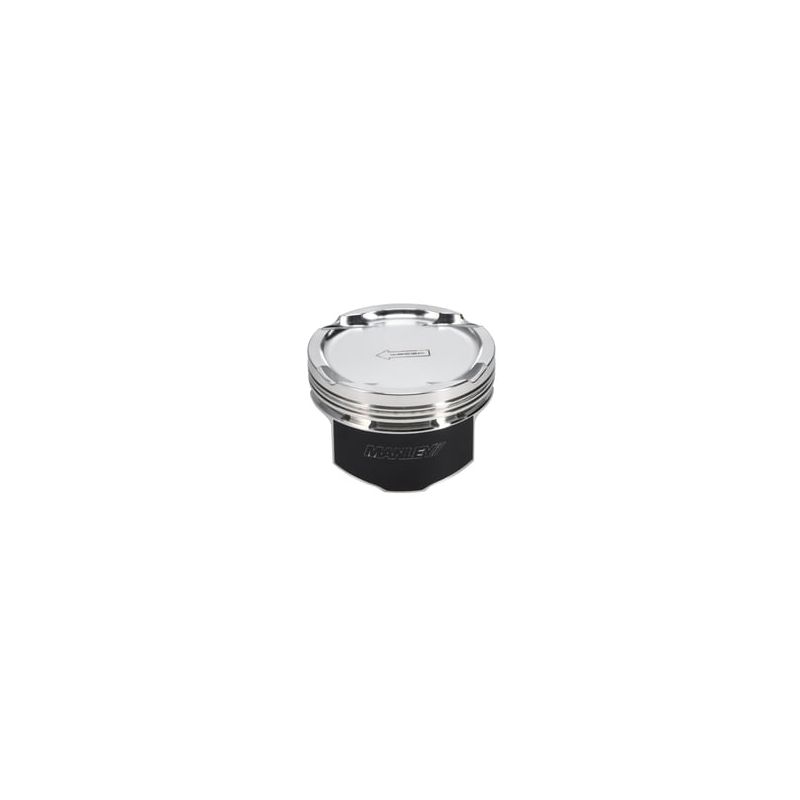

Forged pistons 4G63 7-bolt conversion 2.1-2.2 L (vilo 94 mm) bores 85-86 mm, 8.5:1 / 9:1 / 10.5:1, axle 22 mm, CH 31.7 mm. JE FSR 2618 and Manley 4032/2618 ranges. Eclipse GS-T/GSX, Talon TSi compatible.
Characteristics of the forged pistons offered by NSB Concept for conversion 2.1-2.2L (4G63 7-bolt + crankshaft 94mm ):
| ReferencePiston | Bore (mm) | VR | Axis (mm) | Axis Height (mm) | Range | Aluminum | Treatment | Forging | Dome (cc) | Weight (g) | rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-297478 | 85 | 8.5:1 | 22 | 31.7 | JE FSR | 2618 | N/A | FSR | -17.1 | 294 | N/A |
| 618000C-4 | 85 | 9:1 | N/A | 31.7 | Manley | 4032 | Skirt | N/A | -17 | 311 | N/A |
| 618000CE-4 | 85 | 9:1 | N/A | 31.7 | Manley HD | 2618 | Skirt | N/A | -17 | 311 | N/A |
| 618200C-4 | 85 | 10.5:1 | N/A | 31.7 | Manley | 4032 | Skirt | N/A | -8 | 322 | N/A |
| 618200CE-4 | 85 | 10.5:1 | N/A | 31.7 | Manley HD | 2618 | Skirt | N/A | -8 | 322 | N/A |
| JE-297479 | 85.5 | 8.5:1 | 22 | 31.7 | JE FSR | 2618 | N/A | FSR | -17.9 | 303 | N/A |
| 618005C-4 | 85.5 | 9:1 | N/A | 31.7 | Manley | 4032 | Skirt | N/A | -17 | 319 | N/A |
| 618005CE-4 | 85.5 | 9:1 | N/A | 31.7 | Manley HD | 2618 | Skirt | N/A | -17 | 319 | N/A |
| 618205C-4 | 85.5 | 10.5:1 | N/A | 31.7 | Manley | 4032 | Skirt | N/A | -8 | 328 | N/A |
| 618205CE-4 | 85.5 | 10.5:1 | N/A | 31.7 | Manley HD | 2618 | Skirt | N/A | -8 | 328 | N/A |
| JE-297480 | 86 | 8.5:1 | 22 | 31.7 | JE FSR | 2618 | N/A | FSR | -18.6 | 305 | N/A |
| 618010C-4 | 86 | 9:1 | N/A | 31.7 | Manley | 4032 | Skirt | N/A | -17 | 327 | N/A |
| 618010CE-4 | 86 | 9:1 | N/A | 31.7 | Manley HD | 2618 | Skirt | N/A | -17 | 327 | N/A |
| 618210C-4 | 86 | 10.5:1 | N/A | 31.7 | Manley | 4032 | Skirt | N/A | -8 | 342 | N/A |
| 618210CE-4 | 86 | 10.5:1 | N/A | 31.7 | Manley HD | 2618 | Skirt | N/A | -8 | 342 | N/A |
Engine compatibility:
2.0L 16v - 4G63 7-bolt
| Brand | Model | Chassis | Engine Code | Power (hp) | Years |
|---|---|---|---|---|---|
| Mitsubishi | Eclipse GS-T | DSM 2G | 4G63T (7-bolt) | 210 | 1995-1999 |
| Mitsubishi | Eclipse GSX | DSM 2G | 4G63T (7-bolt) | 210 | 1995-1999 |
| Mitsubishi | Eclipse Spyder GS-T | D38A/D39A | 4G63T (7-bolt) | 210 | 1996-1999 |
| Eagle | Talon TSi / TSi AWD | DSM 2G | 4G63T (7-bolt) | 210 | 1995-1998 |
Piston Manufacturer Reference (OEM):
Original Mitsubishi references for pistons
PISTON & PIN ASSY
sort A/B/C (STD) and corresponding ring sets:
| Reference | Size | Details | Applications (vehicles in the table) |
|---|---|---|---|
| MD307819 | STD (Grade A) | Piston & pin assembled | Eclipse GS-T/GSX 95-99, Talon TSi 95-98 |
| MD307820 | STD (Grade B) | Piston & pin assembled | Eclipse GS-T/GSX 95-99, Talon TSi 95-98 |
| MD307821 | STD (Grade C) | Piston & pin assembled | Eclipse GS-T/GSX 95-99, Talon TSi 95-98 |
| MD313405 | ring set (STD) | Piston rings | 4G63 1995-1999 (Eclipse/Talon 2G) |
Attention:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
