2.0L 16v - 4G63 7-bolt
Manufacturers
2.0L 16v - 4G63 7-bolt
Warning: Last items in stock!
New product

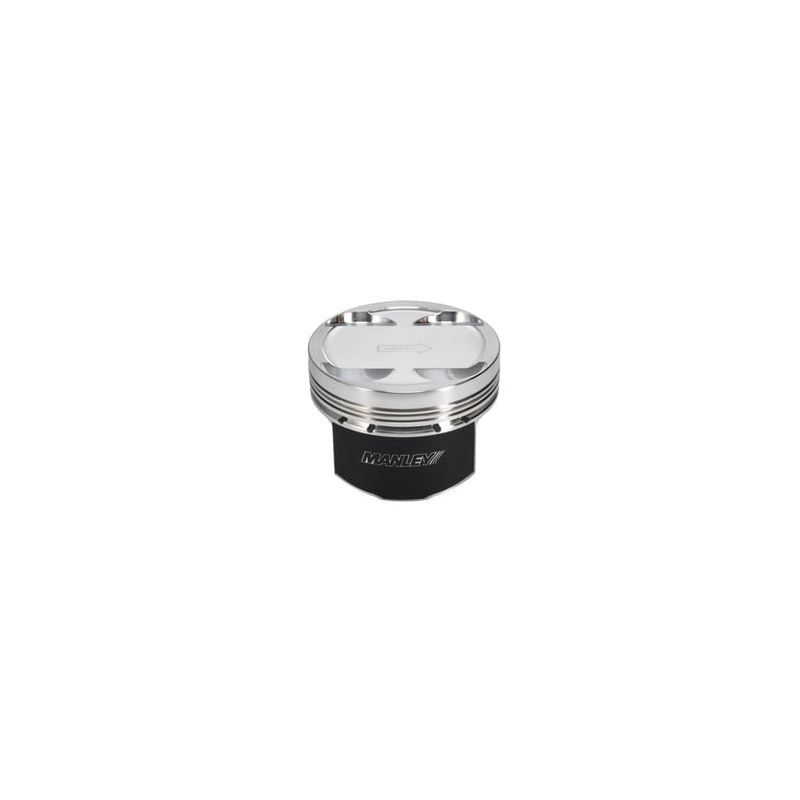

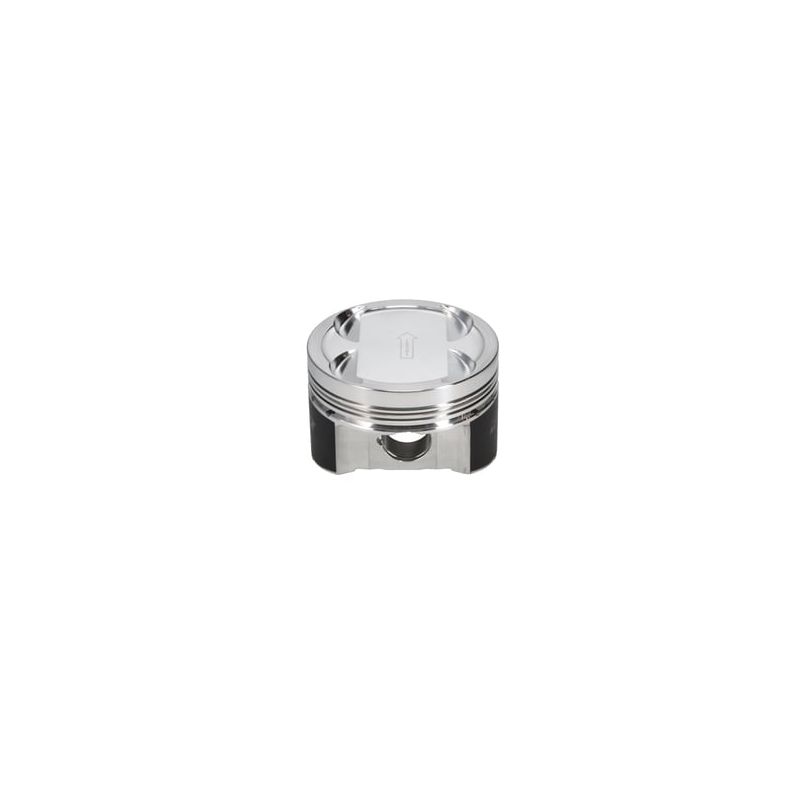

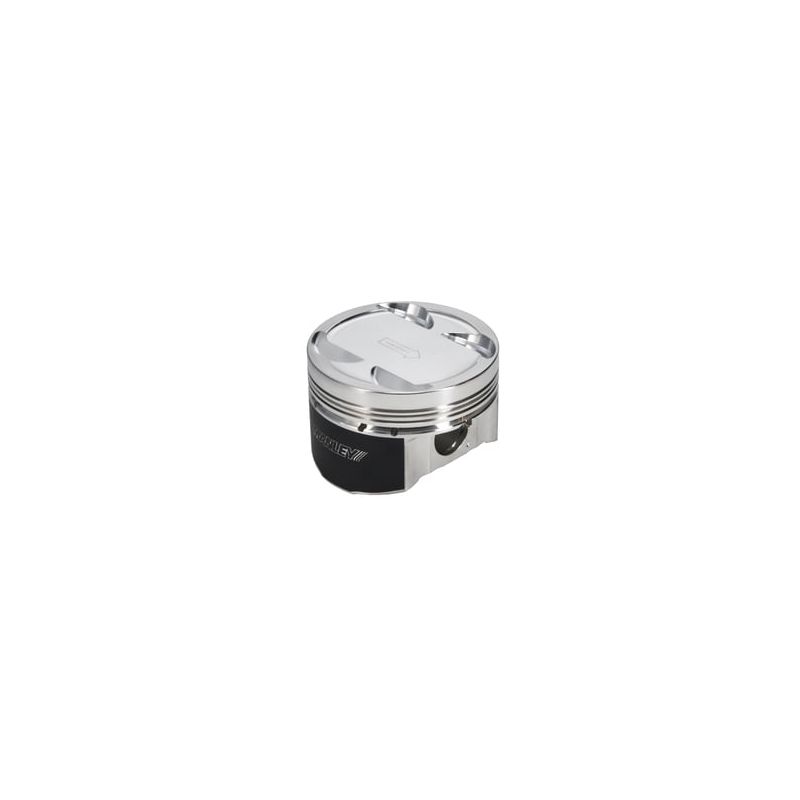

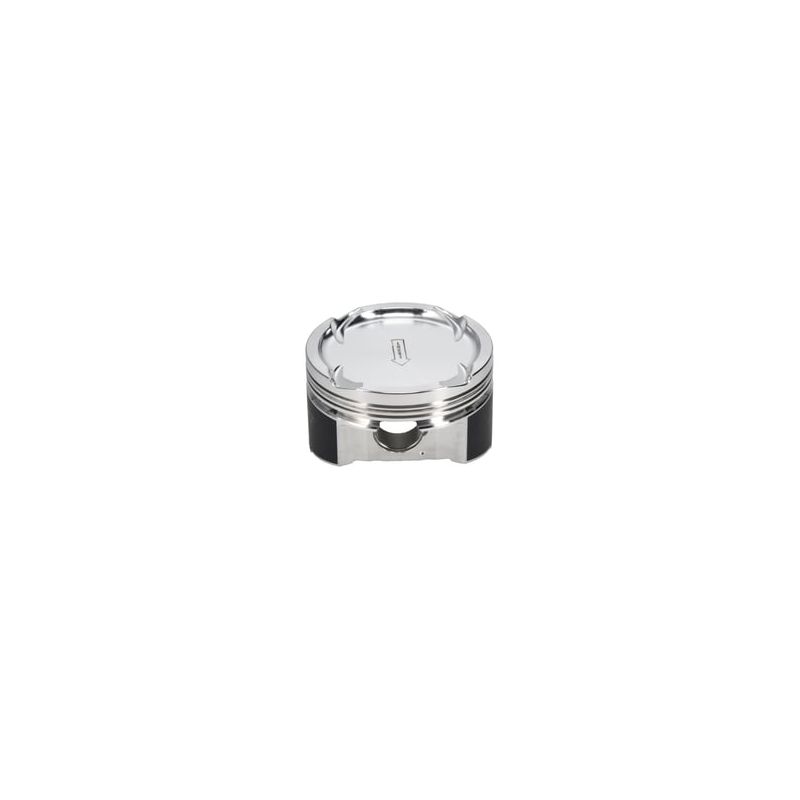

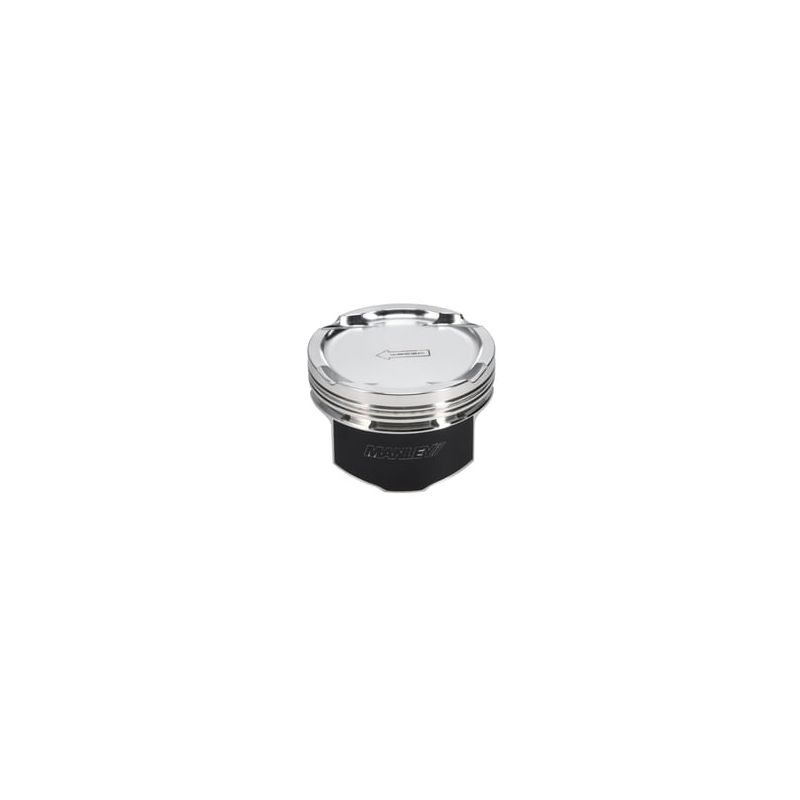

Forged pistons 4G63 7-bolt 2.1-2.2 L (94 mm rod, 156 mm connecting rods) bores 85-86 mm, 9:1 / 10.5:1, CH 25.7 mm, dome -17/-8 cc. Manley 4032 / Manley HD 2618 ranges. compatible with Eclipse GS-T/GSX, Talon TSi, Laser RS Turbo.
Characteristics of the forged pistons offered by NSB Concept for conversion
2.1-2.2L
(4G63 7-bolt + crankshaft
94mm
and connecting rods
156mm
):
| ReferencePiston | Bore (mm) | VR | Axis (mm) | Axis Height (mm) | Range | Aluminum | Treatment | Forging | Dome (cc) | Weight (g) | rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 619000C-4 | 85 | 9:1 | N/A | 25.7 | Manley | 4032 | Skirt | N/A | -17 | 272 | N/A |
| 619000CE-4 | 85 | 9:1 | N/A | 25.7 | Manley HD | 2618 | Skirt | N/A | -17 | 272 | N/A |
| 619200C-4 | 85 | 10.5:1 | N/A | 25.7 | Manley | 4032 | Skirt | N/A | -8 | 283 | N/A |
| 619200CE-4 | 85 | 10.5:1 | N/A | 25.7 | Manley HD | 2618 | Skirt | N/A | -8 | 283 | N/A |
| 619005C-4 | 85.5 | 9:1 | N/A | 25.7 | Manley | 4032 | Skirt | N/A | -17 | 277 | N/A |
| 619005CE-4 | 85.5 | 9:1 | N/A | 25.7 | Manley HD | 2618 | Skirt | N/A | -17 | 277 | N/A |
| 619205C-4 | 85.5 | 10.5:1 | N/A | 25.7 | Manley | 4032 | Skirt | N/A | -8 | 290 | N/A |
| 619205CE-4 | 85.5 | 10.5:1 | N/A | 25.7 | Manley HD | 2618 | Skirt | N/A | -8 | 290 | N/A |
| 619010C-4 | 86 | 9:1 | N/A | 25.7 | Manley | 4032 | Skirt | N/A | -17 | 287 | N/A |
| 619010CE-4 | 86 | 9:1 | N/A | 25.7 | Manley HD | 2618 | Skirt | N/A | -17 | 287 | N/A |
| 619210C-4 | 86 | 10.5:1 | N/A | 25.7 | Manley | 4032 | Skirt | N/A | -8 | 293 | N/A |
| 619210CE-4 | 86 | 10.5:1 | N/A | 25.7 | Manley HD | 2618 | Skirt | N/A | -8 | 293 | N/A |
Engine compatibility:
2.0L 16v 4G63 7-bolt (conversion
2.1/2.2L
via 94 mm crankshaft and 156 mm connecting rods)
| Brand | Model | Chassis | Power (hp) | Years |
|---|---|---|---|---|
| Eagle | Talon TSi / TSi AWD | DSM 2G | 210 | 1995-1998 |
| Mitsubishi | Eclipse GS-T | DSM 2G | 210 | 1995-1999 |
| Mitsubishi | Eclipse GSX | DSM 2G | 210 | 1995-1999 |
| Plymouth | Laser RS Turbo | DSM 1G (late) | 195 | 1993-1994 |
Attention:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
