2.4L 16v - 4G64
Manufacturers
2.4L 16v - 4G64
Warning: Last items in stock!
New product

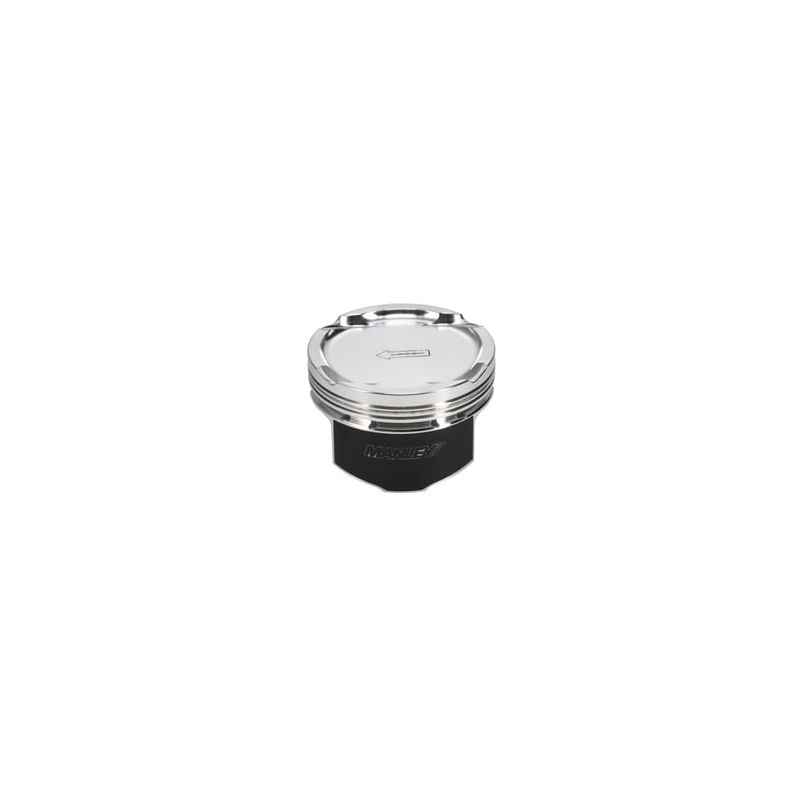

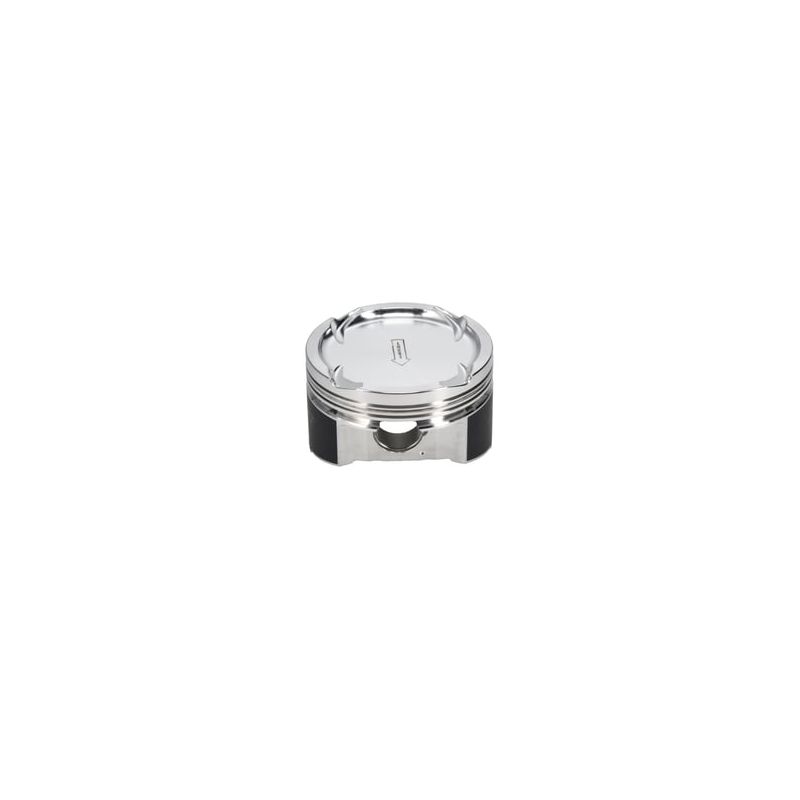

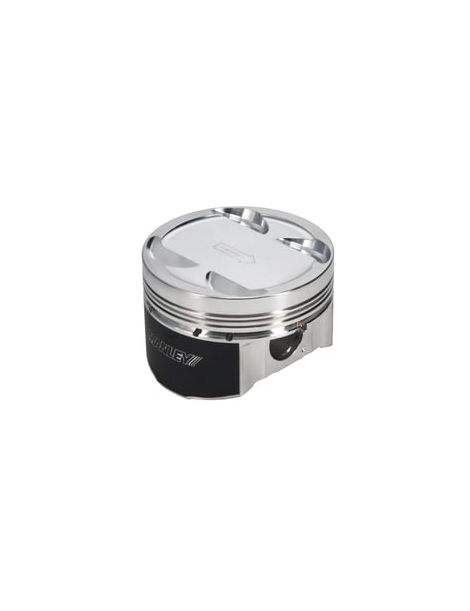

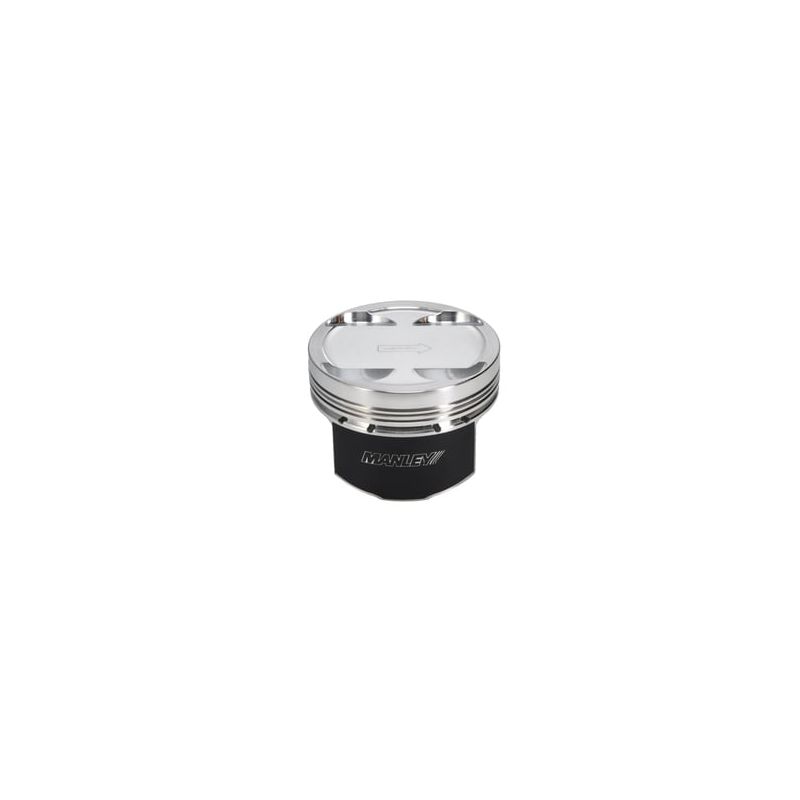

High-quality Forged pistons 2.4L 16v 4G64 equipped with 94mm crankshaft and 162mm connecting rods Mitsubishi (Forged pistons 2.4L 16v 4G64 equipped 94mm crankshaft) for reliable fitment and performance.
Specifications of the forged pistons offered by NSB Concept for 4G64 2,4 L 16v configured with crankshaft 94 mm and connecting rods 162 mm :
| Reference piston | Bore (mm)OEM 86,5 | CROEM 9 :1 | pin (mm)OEM NC | Height pin (mm)OEM 25,7 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 619015C-4 | 86,5 | 9 :1 | NC | 25,7 | Manley | 4032 | Skirt | NC | -17 | 289 | NC |
| 619015CE-4 | 86,5 | 9 :1 | NC | 25,7 | Manley HD | 2618 | Skirt | NC | -17 | 289 | NC |
| 619215C-4 | 86,5 | 10,5 :1 | NC | 25,7 | Manley | 4032 | Skirt | NC | -8 | 295 | NC |
| 619215CE-4 | 86,5 | 10,5 :1 | NC | 25,7 | Manley HD | 2618 | Skirt | NC | -8 | 295 | NC |
| 619020C-4 | 87 | 9 :1 | NC | 25,7 | Manley | 4032 | Skirt | NC | -17 | 296 | NC |
| 619020CE-4 | 87 | 9 :1 | NC | 25,7 | Manley HD | 2618 | Skirt | NC | -17 | 296 | NC |
| 619220C-4 | 87 | 10,5 :1 | NC | 25,7 | Manley | 4032 | Skirt | NC | -8 | 302 | NC |
| 619220CE-4 | 87 | 10,5 :1 | NC | 25,7 | Manley HD | 2618 | Skirt | NC | -8 | 302 | NC |
Compatibility engine :
| Brand | Model | Chassis | Engine code | Power (ch) | Years |
|---|---|---|---|---|---|
| Mitsubishi | Chariot Grandis / Space Wagon | N8xW | 4G64 16v (GDI/MPFI) | 160–165 | 1997 – 2003 |
| Mitsubishi | Eclipse RS / GS / GS Spyder (3G) | D52A/D53A | 4G64 16v SOHC | 154 | 2000 – 2005 |
| Mitsubishi | Galant (8ᵉ Gen. US) | DJ/DM (US) | 4G64 16v SOHC | 140 | 1999 – 2003 |
| Mitsubishi | Outlander (1ʳᵉ Gen.) | CU (Airtrek JP) | 4G64 16v SOHC | 140 | 2003 – 2006 |
Manufacturer piston references (OEM):
| Reference OEM | Taille | Details | Applications (vehicles of the table) |
|---|---|---|---|
| MD357066 | STD (grade A) | piston & pin assembled | Eclipse 2.4 2000–2005, Galant 2.4 1999–2003, Outlander 2.4 2003–2006 |
| MD357067 | STD (grade B) | piston & pin assembled | Eclipse 2.4 2000–2005, Galant 2.4 1999–2003, Outlander 2.4 2003–2006 |
| MD357068 | STD (grade C) | piston & pin assembled | Eclipse 2.4 2000–2005, Galant 2.4 1999–2003, Outlander 2.4 2003–2006 |
| MD195828 | set de rings (STD) | RING Set | 4G64 2.4 16v (applications ci-dessus) |
| MD194597 | set de rings (alt.) | RING Set | 4G64 2.4 16v (applications ci-dessus) |
Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
