2.0L 16v - 4G63 6 pernos
Marcas
2.0L 16v - 4G63 6 pernos
Advertencia: ¡Últimos artículos en inventario!
Nuevo producto

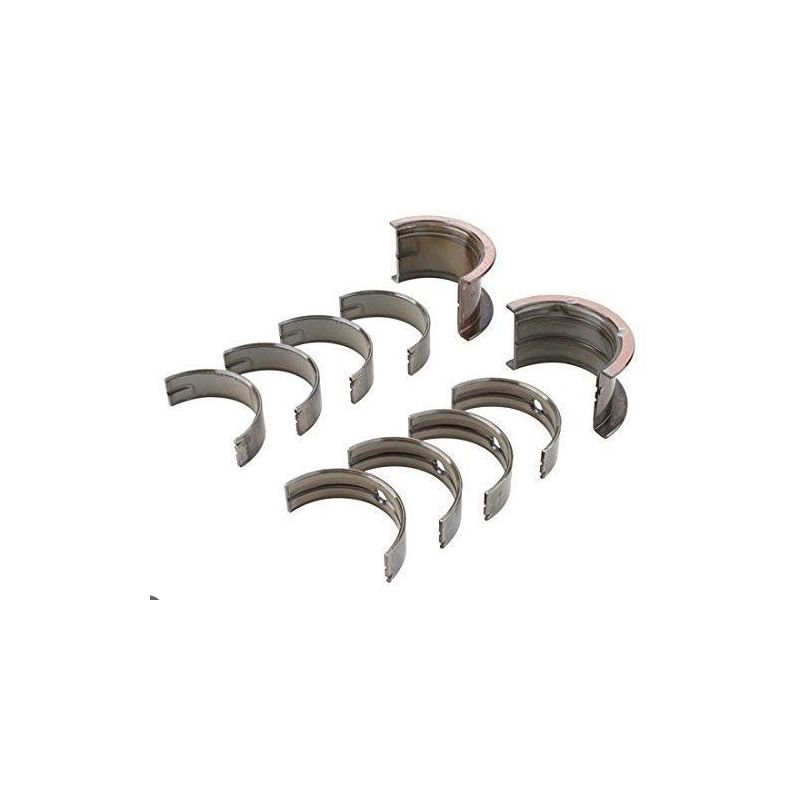

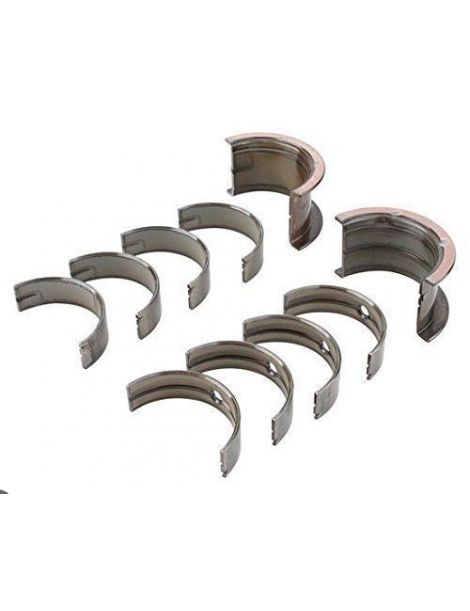

Juego de 10 semicojinetes de bancada trimetal para las cinco bancadas de los motores Mitsubishi 4G / Hyundai G4C (Ø 56.98 mm).
ACL publica el juego de cojinetes de bancada 5M1144H para los cuatro cilindros de gasolina Mitsubishi 4G32, 4G33, 4G36, 4G37, 4G61, 4G61-T, 4G62, 4G63, 4G63-T, 4G64, G31B, G32B, G37B, G62B, G63B, G64B y para los Hyundai G4CN, G4CR, G4CS. Comparten el mismo diámetro del apoyo de bancada del cigüeñal: un único juego de cojinetes de bancada cubre toda la familia.
El cigüeñal de estos motores se apoya en cinco bancadas. Cada apoyo de bancada gira entre dos semicojinetes, uno alojado en el bloque y otro en el sombrerete de bancada: son ellos los que sostienen el cigüeñal. El juego de cojinetes trimetal ACL Race Series presentado aquí los sustituye en los motores preparados.
Un cojinete trimetálico superpone tres capas: un dorso de acero, una capa intermedia de cobre-plomo de alta capacidad de carga y una capa de deslizamiento antifricción que protege el apoyo de bancada. El juego completo cubre las cinco bancadas del cigüeñal. Los semicojinetes superiores e inferiores son diferentes: cada uno se monta en su lugar.
Un bimetal de aluminio soporta unos 8 000 psi, un trimetal de rendimiento hasta 12 000 psi, un 50 % más. De ahí una mayor resistencia y una mayor durabilidad en motores turbo, con compresor y de altas revoluciones.
| Cojinetes ACL Ø apoyo de bancada 56.98 / 57.00 mm Ø alojamiento 61.00 / 61.02 mm Anchura 23 mm (28.95 mm en la bancada 3) |
Nota del fabricante: Juego de cojinetes con media ranura. Pestañas de ancho estándar para todas las medidas de reparación.
| Referencia | Marca y tratamiento | Medida | Espesor de pared (mm) |
|---|---|---|---|
| 5M1144H-STD | ACL Race - Sin tratamiento | Estándar | 1.99 |
| 5M1144HX-STD | ACL Race - Sin tratamiento | Std, juego aumentado (HX) | 1.977 |
| 5M1144H-.025 | ACL Race - Sin tratamiento | +0.025 | 2.0025 |
| 5M1144H-.25 | ACL Race - Sin tratamiento | +0.25 | 2.115 |
El juego de funcionamiento es el espacio entre el cojinete y el apoyo de bancada por donde circula la película de aceite.
En funcionamiento, el apoyo de bancada no roza contra el cojinete: gira sobre esta película de aceite, que soporta la carga. La holgura determina el espesor de esta película: demasiado ajustada, el aceite circula mal, sube la temperatura y aumenta el riesgo de gripaje; demasiado amplia, el aceite se escapa, la película pierde sustentación y cae la presión de aceite. La holgura correcta es el equilibrio entre una lubricación suficiente y una película bien mantenida.
| Medida / versión | Cuándo elegirla | ACL Race Series |
|---|---|---|
| Estándar (STD) | Apoyo de bancada de origen, no rectificado | 0.059 a 0.070 mm |
| Juego aumentado (HX) | Juego más amplio: alto caudal de aceite, alto régimen | 0.084 a 0.095 mm |
| +0.025 mm | Apoyo de bancada pulido | 0.059 a 0.070 mm |
| +0.25 mm | Apoyo de bancada rectificado a 0.25 mm | 0.059 a 0.070 mm |
Control en el montaje: coloque un hilo calibrado (Plastigauge) sobre el apoyo de bancada, apriete el sombrerete de bancada al par prescrito y compare el aplastamiento del hilo con la regla para leer el juego.
Los cojinetes de bancada ACL aquí presentados son cojinetes trimetal, diseñados para la preparación de motores y la competición. Frente a un cojinete original, soportan cargas mucho más elevadas: aguantan el aumento de potencia, el alto régimen o la incorporación de un turbo o un compresor, donde un cojinete de serie alcanza rápidamente su límite.
 | ACL Bearing Company, fabricante australiano de cojinetes de motor de alto rendimiento desde 1949, ofrece con su gama Race Series cojinetes trimetálicos precisos, disponibles en numerosas medidas y probados en motores preparados de todo el mundo. |
Este juego de cojinetes de bancada es apto para los siguientes vehículos, según el código de motor:
| Marca | Modelo (chasis) | Código de motor | Potencia | Años |
|---|---|---|---|---|
| Fiat | Fullback Pick-up (502_, 503_) | 4G64 | 132 CV | 2016– |
| Hyundai | Grandeur | G4CS | 123 CV | 1987–1992 |
| Hyundai | Grandeur | 4G64 | 130 CV | 1987–1990 |
| Hyundai | Grandeur (LX) | G4CS | 123 CV | 1992–1999 |
| Hyundai | Grandeur (TG) | G4CS | 144 CV | 2006–2011 |
| Hyundai | Lantra I (J-1) | G4CR | 106 CV | 1990–1995 |
| Hyundai | Lantra I (J-1) | G4CR | 114 CV | 1990–1995 |
| Hyundai | Lantra I (J-1) | G4CN | 127 CV | 1990–1995 |
| Hyundai | Lantra II (J-2) | G4CN | 132 CV | 1997–1998 |
| Hyundai | Marcia | G62B | 95 CV | 1993–1996 |
| Hyundai | Pony | 4G33 | 68 CV | 1977–1985 |
| Hyundai | Pony Wagon | 4G33 | 68 CV | 1978–1986 |
| Hyundai | Sonata II (Y-2) | G4CS | 113 CV | 1988–1991 |
| Hyundai | Sonata II (Y-2) | G4CS | 118 CV | 1988–1991 |
| Hyundai | Sonata III (Y-3) | G4CN | 135 CV | 1994–1998 |
| Hyundai | Sonata IV (EF) | G4CN | 133 CV | 1998–2001 |
| Hyundai | Stellar (F31_, SF2_) | G32B | 76 CV | 1983–1991 |
| Hyundai | Stellar (F31_, SF2_) | 4G33 | 68 CV | 1983–1986 |
| Hyundai | Stellar (F31_, SF2_) | 4G63 | 83 CV | 1986–1989 |
| Hyundai | Stellar (F31_, SF2_) | 4G63 | 90 CV | 1984–1986 |
| Hyundai | Stellar (F31_, SF2_) | 4G63 | 101 CV | 1986–1989 |
| Hyundai | Stellar (F31_, SF2_) | 4G63 | 92 CV | 1986–1987 |
| Mitsubishi | Carisma Sedán (DA_) | 4G63-T/C (DOHC 16V) | 280 CV | 1999–2006 |
| Mitsubishi | Colt II (C1_A) | 4G33 | 73 CV | 1982–1986 |
| Mitsubishi | Colt II (C1_A) | 4G32 (SOHC 8V) | 80 CV | 1982–1986 |
| Mitsubishi | Colt III (C5_A) | 4G61 (DOHC 16V) | 124 CV | 1988–1990 |
| Mitsubishi | Colt III (C5_A) | 4G33 | 76 CV | 1986–1990 |
| Mitsubishi | Colt III (C5_A) | 4G32 (SOHC 8V) | 80 CV | 1986–1990 |
| Mitsubishi | Cordia (A21_A, AB, AC) | 4G32 (SOHC 8V) | 75 CV | 1982–1986 |
| Mitsubishi | Cordia (A21_A, AB, AC) | 4G37 | 90 CV | 1986–1989 |
| Mitsubishi | Cordia (A21_A, AB, AC) | 4G37 | 95 CV | 1984–1989 |
| Mitsubishi | Cordia (A21_A, AB, AC) | 4G63 (SOHC 8V) | 90 CV | 1984–1988 |
| Mitsubishi | Cordia (A21_A, AB, AC) | 4G62 (SOHC 8V) | 83 CV | 1982–1983 |
| Mitsubishi | Cordia (A21_A, AB, AC) | 4G37 | 84 CV | 1984–1989 |
| Mitsubishi | Dion Monospace (CR_W) | 4G63 (DOHC 16V) | 135 CV | 1999–2005 |
| Mitsubishi | Eclipse Descapotable | 4G37 | 92 CV | 1989–1994 |
| Mitsubishi | Eclipse Descapotable | 4G63-T/C (DOHC 16V) | 214 CV | 1995–1999 |
| Mitsubishi | Eclipse Descapotable | 4G64 (SOHC 16V) | 143 CV | 1995–1999 |
| Mitsubishi | Eclipse Descapotable | 4G63-T/C (DOHC 16V) | 208 CV | 1996–1999 |
| Mitsubishi | Eclipse Descapotable (D5_A) | 4G64 (SOHC 16V) | 144 CV | 1999–2005 |
| Mitsubishi | Eclipse Descapotable (D5_A) | 4G64 (SOHC 16V) | 150 CV | 1999–2005 |
| Mitsubishi | Eclipse I (D2_A) | 4G63 (DOHC 16V) | 150 CV | 1991–1995 |
| Mitsubishi | Eclipse I (D2_A) | 4G63-T/C (DOHC 16V) | 200 CV | 1989–1994 |
| Mitsubishi | Eclipse I (D2_A) | 4G63-T/C (DOHC 16V) | 214 CV | 1989–1994 |
| Mitsubishi | Eclipse I (D2_A) | 4G37 | 92 CV | 1989–1994 |
| Mitsubishi | Eclipse I (D2_A) | 4G63-T/C (DOHC 16V) | 182 CV | 1989–1992 |
| Mitsubishi | Eclipse I (D2_A) | 4G63 (DOHC 16V) | 136 CV | 1989–1994 |
| Mitsubishi | Eclipse I (D2_A) | 4G63-T/C (DOHC 16V) | 192 CV | 1989–1994 |
| Mitsubishi | Eclipse I (D2_A) | 4G63-T/C (DOHC 16V) | 197 CV | 1989–1994 |
| Mitsubishi | Eclipse I (D2_A) | 4G63-T/C (DOHC 16V) | 193 CV | 1992–1994 |
| Mitsubishi | Eclipse II (D3_A) | 4G63 (DOHC 16V) | 146 CV | 1995–1999 |
| Mitsubishi | Eclipse II (D3_A) | 4G63-T/C (DOHC 16V) | 214 CV | 1995–1999 |
| Mitsubishi | Eclipse II (D3_A) | 4G63-T/C (DOHC 16V) | 200 CV | 1994–1999 |
| Mitsubishi | Eclipse II (D3_A) | 4G63-T/C (DOHC 16V) | 208 CV | 1994–1999 |
| Mitsubishi | Eclipse II (D3_A) | 4G64 (SOHC 16V) | 143 CV | 1995–1999 |
| Mitsubishi | Eclipse II (D3_A) | 4G63-T/C (DOHC 16V) | 230 CV | 1995–1999 |
| Mitsubishi | Eclipse III (D5_A) | 4G64 (SOHC 16V) | 150 CV | 1999–2005 |
| Mitsubishi | Eclipse III (D5_A) | 4G64 (SOHC 16V) | 144 CV | 1999–2005 |
| Mitsubishi | Eclipse III (D5_A) | 4G64 (SOHC 16V) | 147 CV | 1999–2000 |
| Mitsubishi | Eclipse III (D5_A) | 4G64 (SOHC 16V) | 156 CV | 2000–2005 |
| Mitsubishi | Expo LRV Station Wagon | 4G64 (SOHC 16V) | 137 CV | 1992–1994 |
| Mitsubishi | Expo Station Wagon | 4G64 (SOHC 8V) | 118 CV | 1991–1992 |
| Mitsubishi | Expo Station Wagon | 4G64 (SOHC 16V) | 137 CV | 1992–1995 |
| Mitsubishi | Expo Station Wagon | 4G64 (SOHC 16V) | 158 CV | 1992–1996 |
| Mitsubishi | Freeca | 4G63 (SOHC 16V) | 114 CV | 1998–2010 |
| Mitsubishi | Galant III (A12_) | 4G32 (SOHC 8V) | 75 CV | 1977–1980 |
| Mitsubishi | Galant III Station Wagon (A12_V) | 4G32 (SOHC 8V) | 75 CV | 1979–1980 |
| Mitsubishi | Galant IV (A16_) | 4G32 (SOHC 8V) | 75 CV | 1980–1984 |
| Mitsubishi | Galant IV (A16_) | 4G63 (SOHC 8V) | 102 CV | 1980–1984 |
| Mitsubishi | Galant IV (A16_) | 4G63-T (SOHC 8V ECI) | 170 CV | 1982–1984 |
| Mitsubishi | Galant IV Station Wagon (A16_V) | 4G32 (SOHC 8V) | 75 CV | 1980–1984 |
| Mitsubishi | Galant IV Station Wagon (A16_V) | 4G63 (SOHC 8V) | 102 CV | 1980–1983 |
| Mitsubishi | Galant V (E1_A) | 4G32 (SOHC 8V) | 75 CV | 1984–1990 |
| Mitsubishi | Galant V (E1_A) | G63B | 90 CV | 1986–1990 |
| Mitsubishi | Galant V (E1_A) | 4G63 (SOHC 8V) | 102 CV | 1984–1990 |
| Mitsubishi | Galant V (E1_A) | 4G63-T (SOHC 8V) | 150 CV | 1984–1990 |
| Mitsubishi | Galant V (E1_A) | G64B | 112 CV | 1985–1990 |
| Mitsubishi | Galant V (E1_A) | 4G64 (SOHC 8V) | 125 CV | 1985–1990 |
| Mitsubishi | Galant V (E1_A) | 4G64 (SOHC 8V) | 102 CV | 1984–1985 |
| Mitsubishi | Galant V (E1_A) | 4G37 | 86 CV | 1984–1990 |
| Mitsubishi | Galant VI (E3_A) | 4G37 | 90 CV | 1988–1992 |
| Mitsubishi | Galant VI (E3_A) | 4G63 (SOHC 8V) | 109 CV | 1989–1992 |
| Mitsubishi | Galant VI (E3_A) | 4G63 (DOHC 16V) | 144 CV | 1988–1992 |
| Mitsubishi | Galant VI (E3_A) | 4G63 (DOHC 16V) | 146 CV | 1988–1992 |
| Mitsubishi | Galant VI (E3_A) | 4G63 (SOHC 8V) | 105 CV | 1989–1992 |
| Mitsubishi | Galant VI (E3_A) | 4G37 | 86 CV | 1988–1992 |
| Mitsubishi | Galant VI (E3_A) | 4G63 (DOHC 16V) | 145 CV | 1988–1992 |
| Mitsubishi | Galant VI Sedán (E3_A) | 4G37 | 86 CV | 1987–1990 |
| Mitsubishi | Galant VI Sedán (E3_A) | 4G63 (DOHC 16V) | 144 CV | 1987–1992 |
| Mitsubishi | Galant VI Sedán (E3_A) | 4G37 | 90 CV | 1987–1992 |
| Mitsubishi | Galant VI Sedán (E3_A) | 4G63 (SOHC 8V) | 109 CV | 1987–1992 |
| Mitsubishi | Galant VI Sedán (E3_A) | 4G63 (DOHC 16V) | 150 CV | 1991–1992 |
| Mitsubishi | Galant VI Sedán (E3_A) | 4G63 (DOHC 16V) | 145 CV | 1988–1992 |
| Mitsubishi | Galant VI Sedán (E3_A) | 4G32 (SOHC 8V) | 75 CV | 1988–1992 |
| Mitsubishi | Galant VI Sedán (E3_A) | 4G63 (SOHC 8V) | 105 CV | 1989–1992 |
| Mitsubishi | Galant VI Sedán (E3_A) | 4G63-T/C (DOHC 16V) | 201 CV | 1990–1993 |
| Mitsubishi | Galant VI Sedán (E3_A) | 4G63 (SOHC 8V) | 103 CV | 1988–1993 |
| Mitsubishi | Galant VI Sedán (E3_A) | 4G63-T/C (DOHC 16V) | 137 CV | 1988–1992 |
| Mitsubishi | Galant VI Sedán (E3_A) | 4G63 (DOHC 16V) | 170 CV | 1988–1992 |
| Mitsubishi | Galant VI Sedán (E3_A) | 4G37 | 94 CV | 1987–1993 |
| Mitsubishi | Galant VII (E5_A, E7_A, E8_A) | 4G63 (SOHC 16V) | 137 CV | 1992–1996 |
| Mitsubishi | Galant VII (E5_A, E7_A, E8_A) | 4G63 (SOHC 16V) | 122 CV | 1993–1995 |
| Mitsubishi | Galant VII Sedán (E5_A, E7_A, E8_A) | 4G63 (SOHC 16V) | 137 CV | 1992–1996 |
| Mitsubishi | Galant VII Sedán (E5_A, E7_A, E8_A) | 4G63 (SOHC 16V) | 136 CV | 1992–1996 |
| Mitsubishi | Galant VII Sedán (E5_A, E7_A, E8_A) | 4G64 (SOHC 16V) | 143 CV | 1993–1998 |
| Mitsubishi | Galant VIII (EA_) | 4G63 (SOHC 16V) | 136 CV | 1996–2000 |
| Mitsubishi | Galant VIII (EA_) | 4G64 (DOHC 16V GDI) | 150 CV | 1999–2000 |
| Mitsubishi | Galant VIII (EA_) | 4G63 (SOHC 16V) | 133 CV | 2000–2004 |
| Mitsubishi | Galant VIII (EA_) | 4G64 (DOHC 16V GDI) | 144 CV | 2000–2004 |
| Mitsubishi | Galant VIII (EA_) | 4G64 (SOHC 16V) | 147 CV | 1998–2001 |
| Mitsubishi | Galant VIII (EA_) | 4G64 (DOHC 16V GDI) | 165 CV | 1998–2004 |
| Mitsubishi | Galant VIII Familiar (EA_, EC_) | 4G63 (SOHC 16V) | 136 CV | 1996–2000 |
| Mitsubishi | Galant VIII Familiar (EA_, EC_) | 4G64 (DOHC 16V GDI) | 150 CV | 1999–2003 |
| Mitsubishi | Galant VIII Familiar (EA_, EC_) | 4G63 (SOHC 16V) | 133 CV | 2000–2003 |
| Mitsubishi | Galant VIII Familiar (EA_, EC_) | 4G64 (DOHC 16V GDI) | 144 CV | 2000–2003 |
| Mitsubishi | Galant VIII Familiar (EA_, EC_) | 4G64 (DOHC 16V GDI) | 165 CV | 1998–2002 |
| Mitsubishi | Grandis (N9_, N8_) | 4G64 (DOHC 16V GDI) | 150 CV | 1997–2000 |
| Mitsubishi | Grandis (N9_, N8_) | 4G64 (DOHC 16V GDI) | 147 CV | 2000–2003 |
| Mitsubishi | Grandis (N9_, N8_) | 4G64 (DOHC 16V GDI) | 165 CV | 1997–2000 |
| Mitsubishi | L200 | 4G32 (SOHC 8V) | 82 CV | 1980–1986 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 4G63 (SOHC 8V) | 102 CV | 1986–1996 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 4G32 (SOHC 8V) | 82 CV | 1987–1996 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 4G64 (SOHC 8V) | 124 CV | 1986–1996 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 4G63 (SOHC 8V) | 94 CV | 1987–1990 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 4G63 (SOHC 8V) | 91 CV | 1986–1994 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 4G64 (SOHC 8V) | 117 CV | 1989–1996 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 4G63 (SOHC 8V) | 86 CV | 1987–1994 |
| Mitsubishi | L200 (K7_T, K6_T, K5_T) | 4G63 (SOHC 16V) | 122 CV | 1996–2007 |
| Mitsubishi | L200 (K7_T, K6_T, K5_T) | 4G64 (SOHC 16V) | 132 CV | 1996–2007 |
| Mitsubishi | L200 / Triton (KA_T, KB_T) | 4G64 (SOHC 16V) | 128 CV | 2005–2015 |
| Mitsubishi | L200 / Triton (KA_T, KB_T) | 4G64 (SOHC 16V) | 132 CV | 2007–2015 |
| Mitsubishi | L200 / Triton (KA_T, KB_T) | 4G64 (SOHC 16V) | 142 CV | 2013–2018 |
| Mitsubishi | L200 / Triton (KJ_, KK_, KL_) | 4G64 (SOHC 16V) | 128 CV | 2014– |
| Mitsubishi | L200 / Triton (KJ_, KK_, KL_) | 4G64 (SOHC 16V) | 131 CV | 2014– |
| Mitsubishi | L200 / Triton (KJ_, KK_, KL_) | 4G64 (SOHC 16V) | 132 CV | 2014– |
| Mitsubishi | L200 / Triton (KJ_, KK_, KL_) | 4G64 (SOHC 16V) | 126 CV | 2014– |
| Mitsubishi | L200 / Triton Pick-up | 4G64 (SOHC 16V) | 128 CV | 2023– |
| Mitsubishi | Lancer Celeste Coupé (A7_) | 4G32 (SOHC 8V) | 73 CV | 1977–1981 |
| Mitsubishi | Lancer F (A15_) | 4G33 | 73 CV | 1984–1986 |
| Mitsubishi | Lancer F (A15_) | 4G32 (SOHC 8V) | 80 CV | 1984–1986 |
| Mitsubishi | Lancer I (A7_) | 4G36 | 55 CV | 1978–1979 |
| Mitsubishi | Lancer I (A7_) | 4G33 | 68 CV | 1978–1979 |
| Mitsubishi | Lancer I (A7_) | 4G32 (SOHC 8V) | 82 CV | 1978–1979 |
| Mitsubishi | Lancer I (A7_) | 4G36 | 58 CV | 1975–1977 |
| Mitsubishi | Lancer I Station Wagon (A7_V) | 4G33 | 68 CV | 1978–1979 |
| Mitsubishi | Lancer II (A17_) | 4G32 (SOHC 8V) | 82 CV | 1979–1983 |
| Mitsubishi | Lancer II (A17_) | 4G32 (SOHC 8V) | 84 CV | 1981–1983 |
| Mitsubishi | Lancer II (A17_) | 4G63-T (SOHC 8V) | 170 CV | 1981–1983 |
| Mitsubishi | Lancer III (C1_A, C6_A) | 4G33 | 76 CV | 1986–1990 |
| Mitsubishi | Lancer III (C1_A, C6_A) | 4G32 (SOHC 8V) | 80 CV | 1986–1990 |
| Mitsubishi | Lancer III Station Wagon (C1_V, C3_V) | G37B | 83 CV | 1987–1989 |
| Mitsubishi | Lancer III Station Wagon (C1_V, C3_V) | 4G37 | 90 CV | 1987 |
| Mitsubishi | Lancer III Station Wagon (C1_V, C3_V) | 4G37 | 86 CV | 1989–1990 |
| Mitsubishi | Lancer III Station Wagon (C1_V, C3_V) | 4G37 | 94 CV | 1990–1992 |
| Mitsubishi | Lancer IV (C6_A, C7_A) | 4G61 (DOHC 16V) | 124 CV | 1988–1992 |
| Mitsubishi | Lancer IV (C6_A, C7_A) | 4G61-T (DOHC 16V) | 146 CV | 1988–1991 |
| Mitsubishi | Lancer IV (C6_A, C7_A) | 4G63-T/C (DOHC 16V) | 280 CV | 1996–1997 |
| Mitsubishi | Lancer IV Hatchback (C6_A, C7_A) | 4G37 | 97 CV | 1989–1992 |
| Mitsubishi | Lancer IV Hatchback (C6_A, C7_A) | 4G61 (DOHC 16V) | 124 CV | 1988–1990 |
| Mitsubishi | Lancer IV Hatchback (C6_A, C7_A) | 4G37 | 95 CV | 1992–1993 |
| Mitsubishi | Lancer IV Hatchback (C6_A, C7_A) | 4G61 (DOHC 16V) | 122 CV | 1990–1992 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | 4G37 | 95 CV | 1992–1993 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | 4G63-T/C (DOHC 16V) | 250 CV | 1992–1993 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | 4G63-T/C (DOHC 16V) | 269 CV | 1995–1996 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | 4G63-T/C (DOHC 16V) | 261 CV | 1994–1995 |
| Mitsubishi | Lancer VI (CJ_, CP_, CK_) | 4G63-T/C (DOHC 16V) | 280 CV | 1998–2001 |
| Mitsubishi | Lancer VI (CJ_, CP_, CK_) | 4G64 (DOHC 16V GDI) | 147 CV | 1995–2003 |
| Mitsubishi | Lancer VI (CJ_, CP_, CK_) | 4G63-T/C (DOHC 16V) | 456 CV | 1998 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 265 CV | 2004–2005 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63 (DOHC 16V) | 135 CV | 2003–2013 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 280 CV | 2001–2007 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 290 CV | 2005–2006 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63 (DOHC 16V) | 116 CV | 2003–2013 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G64 (DOHC 16V GDI) | 147 CV | 2003–2013 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 275 CV | 2003–2005 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 272 CV | 2001–2003 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 305 CV | 2003–2004 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 309 CV | 2003–2006 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 330 CV | 2004–2006 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 334 CV | 2003–2006 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 347 CV | 2004–2005 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 411 CV | 2004–2006 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 350 CV | 2005–2007 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 371 CV | 2006–2007 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 366 CV | 2006–2008 |
| Mitsubishi | Lancer VII Familiar (CS_W, CT_W) | 4G63 (DOHC 16V) | 135 CV | 2003–2007 |
| Mitsubishi | Lancer VII Familiar (CS_W, CT_W) | 4G64 (DOHC 16V GDI) | 133 CV | 2003–2008 |
| Mitsubishi | Lancer VII Familiar (CS_W, CT_W) | 4G63-T/C (DOHC 16V) | 272 CV | 2005–2007 |
| Mitsubishi | Lancer VII Familiar (CS_W, CT_W) | 4G63-T/C (DOHC 16V) | 280 CV | 2005–2007 |
| Mitsubishi | Magna Sedán (TE) | 4G64 (SOHC 16V) | 143 CV | 1996–1997 |
| Mitsubishi | Magna Sedán (TF) | 4G64 (SOHC 16V) | 143 CV | 1997–1999 |
| Mitsubishi | Magna Familiar (TE) | 4G64 (SOHC 16V) | 143 CV | 1996–1997 |
| Mitsubishi | Magna Familiar (TF) | 4G64 (SOHC 16V) | 143 CV | 1997–1999 |
| Mitsubishi | Mirage I Sedán (A15_) | G32B, 4G32 (SOHC 8V) | 88 CV | 1979–1983 |
| Mitsubishi | Mirage II Sedán (C10) | G31B | 71 CV | 1986–1988 |
| Mitsubishi | Mirage II Hatchback (C10) | G31B | 71 CV | 1986–1988 |
| Mitsubishi | Mirage III Hatchback (C5_ - C8_) | 4G61 (DOHC 16V) | 125 CV | 1988–1991 |
| Mitsubishi | Mirage III Hatchback (C5_ - C8_) | 4G61-T (DOHC 16V) | 145 CV | 1988–1991 |
| Mitsubishi | Mirage III Hatchback (C5_ - C8_) | 4G61-T (DOHC 16V) | 137 CV | 1988–1989 |
| Mitsubishi | Mirage III Station Wagon | G37B | 90 CV | 1986–1988 |
| Mitsubishi | Mirage III Station Wagon | G31B | 71 CV | 1986–1988 |
| Mitsubishi | Outlander I (CU_W) | 4G63 (DOHC 16V) | 136 CV | 2003–2006 |
| Mitsubishi | Outlander I (CU_W) | 4G63-T/C (DOHC 16V) | 201 CV | 2004–2006 |
| Mitsubishi | Outlander I (CU_W) | 4G63-T/C (DOHC 16V) | 241 CV | 2002–2006 |
| Mitsubishi | Outlander I (CU_W) | 4G64 (SOHC 16V) | 139 CV | 2003–2006 |
| Mitsubishi | Outlander I (CU_W) | 4G64 (SOHC 16V) | 147 CV | 2002–2003 |
| Mitsubishi | Outlander I (CU_W) | 4G63 (SOHC 16V) | 126 CV | 2001–2006 |
| Mitsubishi | Outlander I (CU_W) | 4G64 (DOHC 16V GDI) | 139 CV | 2001–2004 |
| Mitsubishi | Outlander I (CU_W) | 4G64 (SOHC 16V) | 133 CV | 2001–2004 |
| Mitsubishi | Outlander I (CU_W) | 4G63 (DOHC 16V) | 126 CV | 2001–2005 |
| Mitsubishi | Pajero I (L04_G, L14_G) | G63B | 110 CV | 1983–1991 |
| Mitsubishi | Pajero I (L04_G, L14_G) | 4G63-T (SOHC 8V) | 145 CV | 1984–1991 |
| Mitsubishi | Pajero II (V3_W) | 4G64 (SOHC 12V) | 112 CV | 2001–2007 |
| Mitsubishi | Pajero II (V3_W, V2_W, V4_W, V5_W) | 4G64 (SOHC 8V) | 112 CV | 1991–1999 |
| Mitsubishi | Pajero II (V3_W, V2_W, V4_W, V5_W) | 4G64 (SOHC 16V) | 145 CV | 1996–1999 |
| Mitsubishi | Pajero II Canvas Top (V2_C, V4_C) | 4G64 (SOHC 8V) | 112 CV | 1991–2000 |
| Mitsubishi | Pajero Sport I (K7_, K9_) | 4G64 (SOHC 12V) | 118 CV | 1999–2001 |
| Mitsubishi | Pajero Sport I (K7_, K9_) | 4G64 (SOHC 16V) | 135 CV | 1996–1998 |
| Mitsubishi | Pajero Sport II (KH_, KG_) | 4G64 (SOHC 16V) | 128 CV | 2008–2015 |
| Mitsubishi | Santamo (UG) | 4G63 (DOHC 16V) | 139 CV | 1999–2004 |
| Mitsubishi | Sapporo I (A12_) | 4G32 (SOHC 8V) | 75 CV | 1978–1980 |
| Mitsubishi | Sapporo II (A16_A) | 4G32 (SOHC 8V) | 75 CV | 1980–1984 |
| Mitsubishi | Sapporo II (A16_A) | 4G63 (SOHC 8V) | 102 CV | 1980–1983 |
| Mitsubishi | Sapporo II (A16_A) | 4G63 (SOHC 8V) | 112 CV | 1980–1984 |
| Mitsubishi | Sapporo II (A16_A) | 4G63-T (SOHC 8V ECI) | 170 CV | 1982–1983 |
| Mitsubishi | Sapporo III (E16A) | 4G64 (SOHC 8V) | 124 CV | 1987–1990 |
| Mitsubishi | Sigma (GE) | 4G32 (SOHC 8V) | 76 CV | 1977–1980 |
| Mitsubishi | Sigma (GJ, GK, GN) | 4G32 (SOHC 8V) | 82 CV | 1982–1985 |
| Mitsubishi | Sigma Familiar (GJ, GK, GN) | 4G32 (SOHC 8V) | 82 CV | 1982–1985 |
| Mitsubishi | Space Runner (N6_W, N7_W) | 4G64 (DOHC 16V GDI) | 150 CV | 1999–2003 |
| Mitsubishi | Space Runner (N6_W, N7_W) | 4G63 (SOHC 16V) | 136 CV | 1999–2002 |
| Mitsubishi | Space Runner (N6_W, N7_W) | 4G63 (SOHC 16V) | 133 CV | 2000–2002 |
| Mitsubishi | Space Runner (N6_W, N7_W) | 4G64 (DOHC 16V GDI) | 147 CV | 1999–2002 |
| Mitsubishi | Space Runner (N6_W, N7_W) | 4G64 (DOHC 16V GDI) | 165 CV | 1997–2003 |
| Mitsubishi | Space Runner (N6_W, N7_W) | 4G63 (DOHC 16V) | 230 CV | 1997–2002 |
| Mitsubishi | Space Runner Monospace (N1_W, N2_W) | 4G63 (DOHC 16V) | 133 CV | 1993–1997 |
| Mitsubishi | Space Runner Monospace (N1_W, N2_W) | 4G63 (DOHC 16V) | 160 CV | 1992–1999 |
| Mitsubishi | Space Wagon (D0_V/W) | 4G37 | 90 CV | 1984–1988 |
| Mitsubishi | Space Wagon (D0_V/W) | G63B | 84 CV | 1986–1988 |
| Mitsubishi | Space Wagon (D0_V/W) | 4G63 (SOHC 8V) | 101 CV | 1988–1991 |
| Mitsubishi | Space Wagon (D0_V/W) | 4G63 (SOHC 8V) | 102 CV | 1985–1991 |
| Mitsubishi | Space Wagon (D0_V/W) | G37B | 84 CV | 1988–1991 |
| Mitsubishi | Space Wagon (D0_V/W) | 4G63 (SOHC 8V) | 110 CV | 1985–1988 |
| Mitsubishi | Space Wagon (D0_V/W) | 4G63 (SOHC 8V) | 95 CV | 1987–1992 |
| Mitsubishi | Space Wagon (D0_V/W) | 4G37 | 95 CV | 1984–1985 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 4G63 (SOHC 16V) | 133 CV | 1992–1998 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 4G64 (SOHC 16V) | 139 CV | 1992–1998 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 4G64 (SOHC 16V) | 120 CV | 1991–1997 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 4G64 (SOHC 16V) | 117 CV | 1991–1997 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 4G64 (SOHC 16V) | 116 CV | 1992–1995 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 4G63 (SOHC 8V) | 105 CV | 1991–1997 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 4G64 (SOHC 8V) | 117 CV | 1991–1992 |
| Mitsubishi | Space Wagon (N9_W, N8_W) | 4G64 (DOHC 16V GDI) | 150 CV | 1998–2004 |
| Mitsubishi | Space Wagon (N9_W, N8_W) | 4G64 (DOHC 16V GDI) | 147 CV | 2000–2004 |
| Mitsubishi | Space Wagon (N9_W, N8_W) | 4G63 (SOHC 16V) | 133 CV | 1998–2004 |
| Mitsubishi | Space Wagon (N9_W, N8_W) | 4G63 (SOHC 16V) | 109 CV | 1998–2002 |
| Mitsubishi | Space Wagon (N9_W, N8_W) | 4G64 (SOHC 16V) | 131 CV | 1998–2004 |
| Mitsubishi | Starion (A18_A) | 4G63-T (SOHC 8V ECI) | 170 CV | 1982–1985 |
| Mitsubishi | Starion (A18_A) | 4G63-T/C (SOHC 8V) | 180 CV | 1985–1987 |
| Mitsubishi | Starion (A18_A) | 4G63-T (SOHC 8V) | 150 CV | 1985–1987 |
| Mitsubishi | Tredia (A21_) | 4G32 (SOHC 8V) | 75 CV | 1982–1987 |
| Mitsubishi | Tredia (A21_) | 4G37 | 90 CV | 1984–1986 |
| Mitsubishi | Tredia (A21_) | G62B | 136 CV | 1984–1986 |
| Mitsubishi | Tredia (A21_) | G62B | 118 CV | 1984–1988 |
| Mitsubishi | Tredia (A21_) | G63B | 90 CV | 1983–1988 |
| Mitsubishi | Tredia (A21_) | 4G62 (SOHC 8V) | 83 CV | 1983–1986 |
| Mitsubishi | Tredia (A21_) | 4G63 (SOHC 8V) | 101 CV | 1986–1988 |
| Mitsubishi | Zinger Monospace (KB0_A) | 4G64 (SOHC 16V) | 128 CV | 2005– |
| Mitsubishi | Zinger Monospace (KB0_A) | 4G64 (SOHC 16V) | 136 CV | 2005– |
