2.3L 16v - Duratec
Marcas
2.3L 16v - Duratec
Advertencia: ¡Últimos artículos en inventario!
Nuevo producto

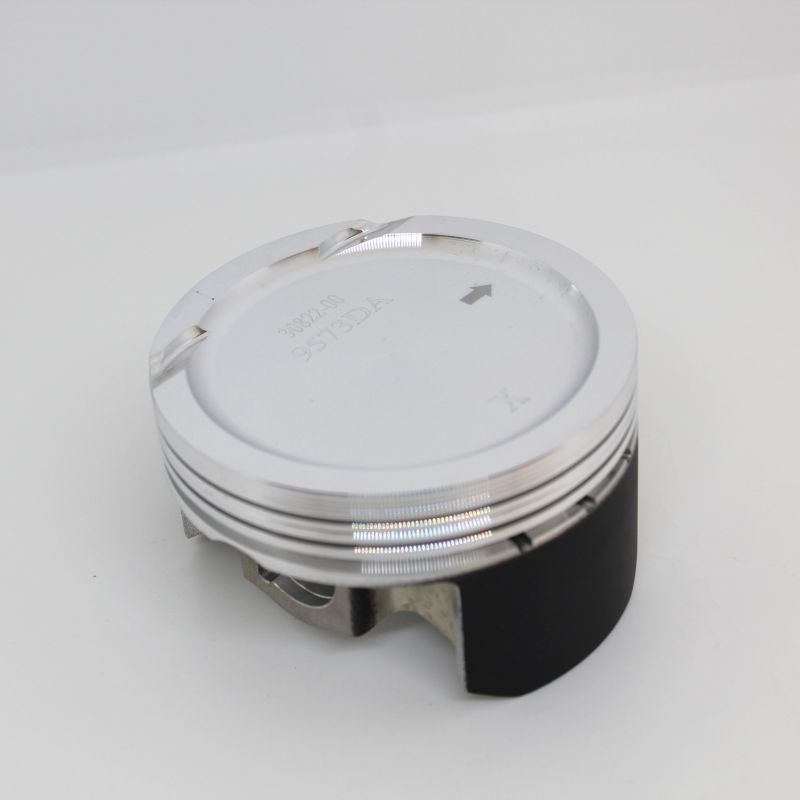

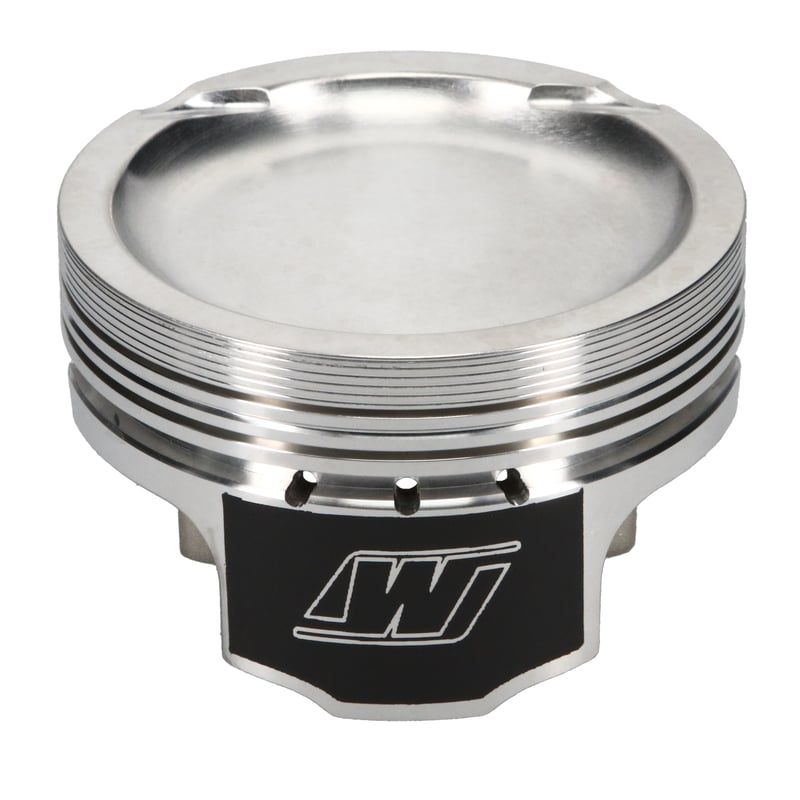

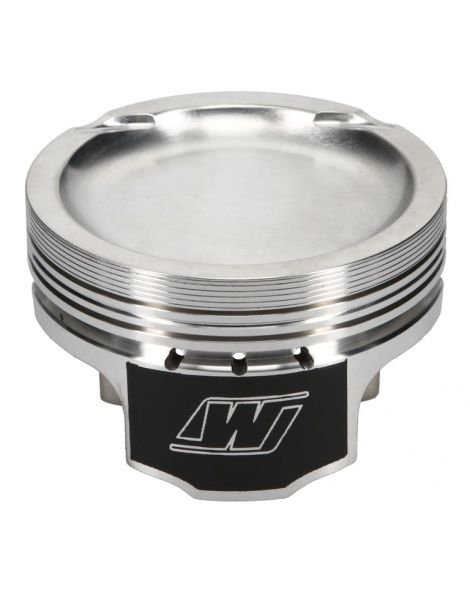

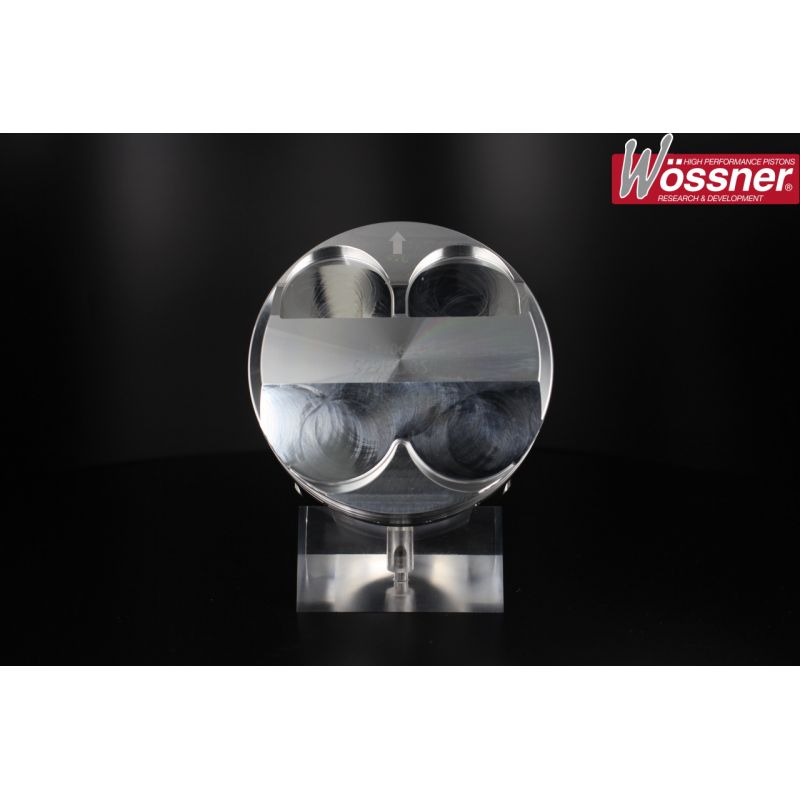

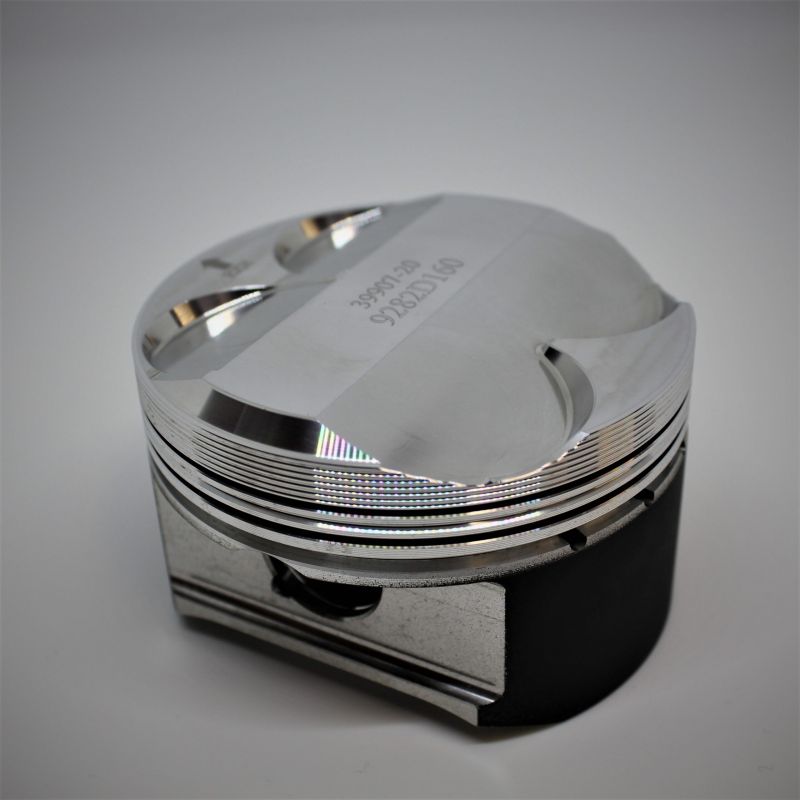

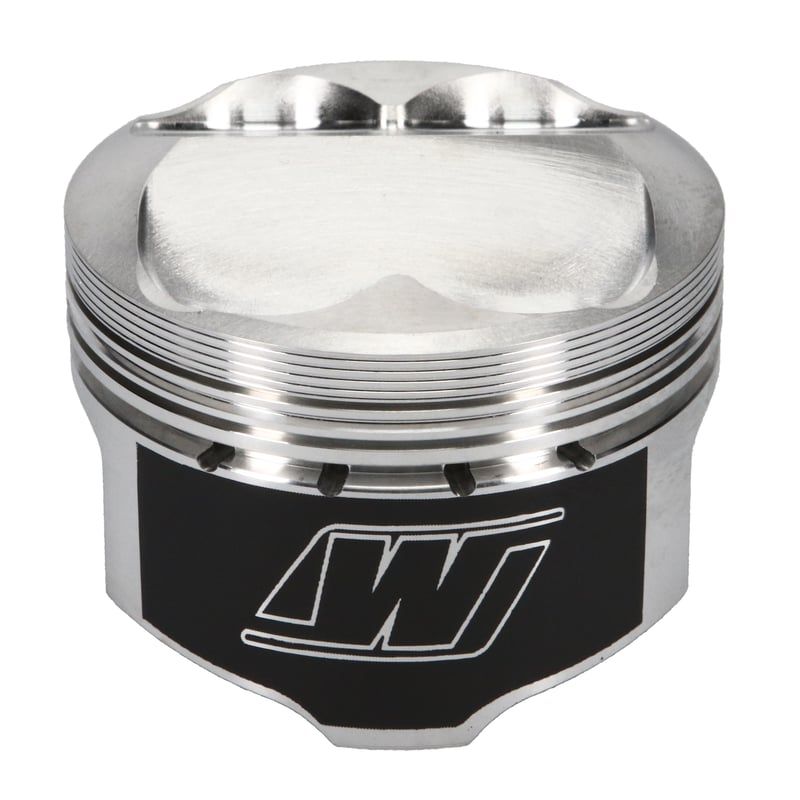

pistones forjados 2.3 Duratec / Mazda MZR orificios 87-90 mm, RV 8-14.6:1, eje 21 mm. Gamas Supertech, Wiseco, Wossner. Aplicaciones: Mazdaspeed3/6, CX-7, Ford Fusion, Escape, Ranger.
Caracteristicas de los pistones forjados que ofrece NSB Concept para 2,3 L 16 v Duratec / Mazda MZR:
| piston de referencia | Diametro interior (mm) | realidad virtual | Eje (mm) | Altura del eje (mm) | Rango | Aluminio | Tratamiento | Forja | Cupula (cc) | Peso (gramos) | segmentoooos |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P4-DU875-N2-4 | 87 | 11.6:1 | 21 | 28,5 | Supertecnologia | 4032 | Cabeza + Falda | N/A | -2 | 300 | W8700XX |
| K9272DA | 87,5 | 8.5:1 | 21 | 28 | Wossner | N/A | N/A | Zapatillas | -17,8 | N/A | 875XPY |
| WK628M875 | 87,5 | 8.8:1 | 21 | 28,5 | Wiseco | 2618 | Falda del piston | N/A | -23 | N/A | 8750XX |
| P4-DU875-N20-4 | 87,5 | 9:1 | 21 | 28,5 | Supertecnologia | 4032 | Cabeza + Falda | N/A | -20 | 277 | W8750XX |
| K9283D010 | 87,5 | 9:1 | 21 | 28,65 | Wossner | N/A | N/A | Zapatillas | 5 | N/A | 875XTY |
| K9573DA | 87,5 | 9:1 | 21 | 28.4 | Wossner | N/A | N/A | Zapatillas | -12.1 | N/A | 87,50 francos suizos |
| K9439DA | 87,5 | 9:1 | 21 | 28.4 | Wossner | N/A | N/A | Rounda | -12.1 | N/A | 875XPY |
| WK629M875 | 87,5 | 10:1 | 21 | 28,5 | Wiseco | 2618 | Falda del piston | N/A | -7 | N/A | 8750XX |
| P4-DU875-N6-4 | 87,5 | 10.9:1 | 21 | 28,5 | Supertecnologia | 4032 | Cabeza + Falda | N/A | -6 | 300 | W8750XX |
| WKE257M875 | 87,5 | 11.1:1 | 21 | 28,5 | Wiseco | 2618 | Falda del piston | N/A | 0 | N/A | 8750XX |
| P4-DU875-P1-4 | 87,5 | 12.5:1 | 21 | 28,5 | Supertecnologia | 4032 | Cabeza + Falda | N/A | 1.5 | 303 | W8750XX |
| K9220DA | 87,5 | 12.5:1 | 21 | 28,65 | Wossner | N/A | N/A | Zapatillas | 5.28 | N/A | 875XSY |
| P4-DU875-P7-4 | 87,5 | 13.6:1 | 21 | 28,5 | Supertecnologia | 4032 | Cabeza + Falda | N/A | 6.1 | 295 | W8750XX |
| K9282D010 | 87,5 | 14.1:1 | 21 | 28,65 | Wossner | N/A | N/A | Zapatillas | 5 | N/A | 875XSY |
| WK628M88 | 88 | 8:1 | 21 | 28,5 | Wiseco | 2618 | Falda del piston | N/A | -23 | N/A | 8800XX |
| K9272D050 | 88 | 8.6:1 | 21 | 28 | Wossner | N/A | N/A | Zapatillas | -17,8 | N/A | 880XPY |
| P4-DU88-N20-4 | 88 | 9.1:1 | 21 | 28,5 | Supertecnologia | 4032 | Cabeza + Falda | N/A | -20 | 283 | W8800XX |
| K9573D050 | 88 | 9.1:1 | 21 | 28.4 | Wossner | N/A | N/A | Zapatillas | -12.1 | N/A | 88,00 GNH |
| K9439D050 | 88 | 9.1:1 | 21 | 28.4 | Wossner | N/A | N/A | Rounda | -12.1 | N/A | 880XPY |
| K9283D060 | 88 | 9.2:1 | 21 | 28,65 | Wossner | N/A | N/A | Zapatillas | 5 | N/A | 880XTY |
| WK629M88 | 88 | 10:1 | 21 | 28,5 | Wiseco | 2618 | Falda del piston | N/A | -7 | N/A | 8800XX |
| P4-DU88-N6-4 | 88 | 11:1 | 21 | 28,5 | Supertecnologia | 4032 | Cabeza + Falda | N/A | -6 | 303 | W8800XX |
| WKE257M88 | 88 | 11.1:1 | 21 | 28,5 | Wiseco | 2618 | Falda del piston | N/A | 0 | N/A | 8800XX |
| P4-DU88-N2-4 | 88 | 11.6:1 | 21 | 28,5 | Supertecnologia | 4032 | Cabeza + Falda | N/A | -2 | 283 | W8800XX |
| P4-DU88-P1-4 | 88 | 12.5:1 | 21 | 28,5 | Supertecnologia | 4032 | Cabeza + Falda | N/A | 1.5 | 308 | W8800XX |
| K9220D050 | 88 | 12.6:1 | 21 | 28,65 | Wossner | N/A | N/A | Zapatillas | 5.28 | N/A | 880XSY |
| P4-DU88-P7-4 | 88 | 13.7:1 | 21 | 28,5 | Supertecnologia | 4032 | Cabeza + Falda | N/A | 6 | 303 | W8800XX |
| K9282D060 | 88 | 14.3:1 | 21 | 28,65 | Wossner | N/A | N/A | Zapatillas | 5 | N/A | 880XSY |
| K9272D100 | 88,5 | 8.7:1 | 21 | 28 | Wossner | N/A | N/A | Zapatillas | -17,8 | N/A | 885XPY |
| K9439D100 | 88,5 | 9.2:1 | 21 | 28.4 | Wossner | N/A | N/A | Rounda | -12.1 | N/A | 885XPY |
| K9283D110 | 88,5 | 9.3:1 | 21 | 28,65 | Wossner | N/A | N/A | Zapatillas | 5 | N/A | 885XTY |
| P4-DU8850-N7-4 | 88,5 | 11:1 | 21 | 28,5 | Supertecnologia | 4032 | Cabeza + Falda | N/A | 1 | 303 | W8850XX |
| P4-DU8850-P1-4 | 88,5 | 12.5:1 | 21 | 28,5 | Supertecnologia | 4032 | Cabeza + Falda | N/A | 0,5 | 308 | W8850XX |
| WKE237M885 | 88,5 | 12.5:1 | 21 | 28,5 | Wiseco | N/A | Falda del piston | N/A | 5 | N/A | 8850XX |
| WKE237M885 | 88,5 | 12.5:1 | 21 | 28,5 | Wiseco | N/A | Falda del piston | N/A | 5 |
