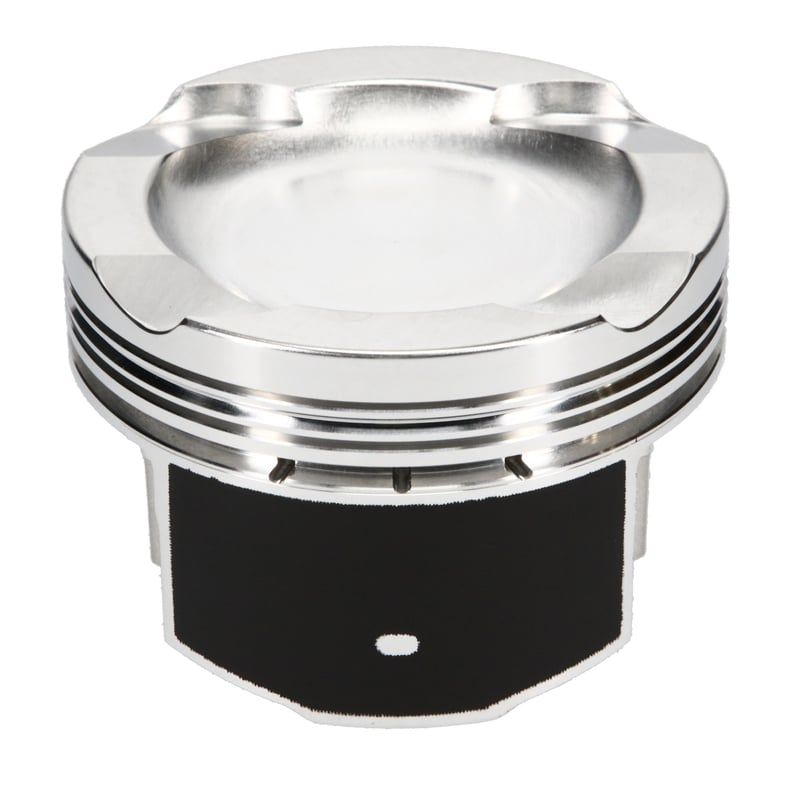

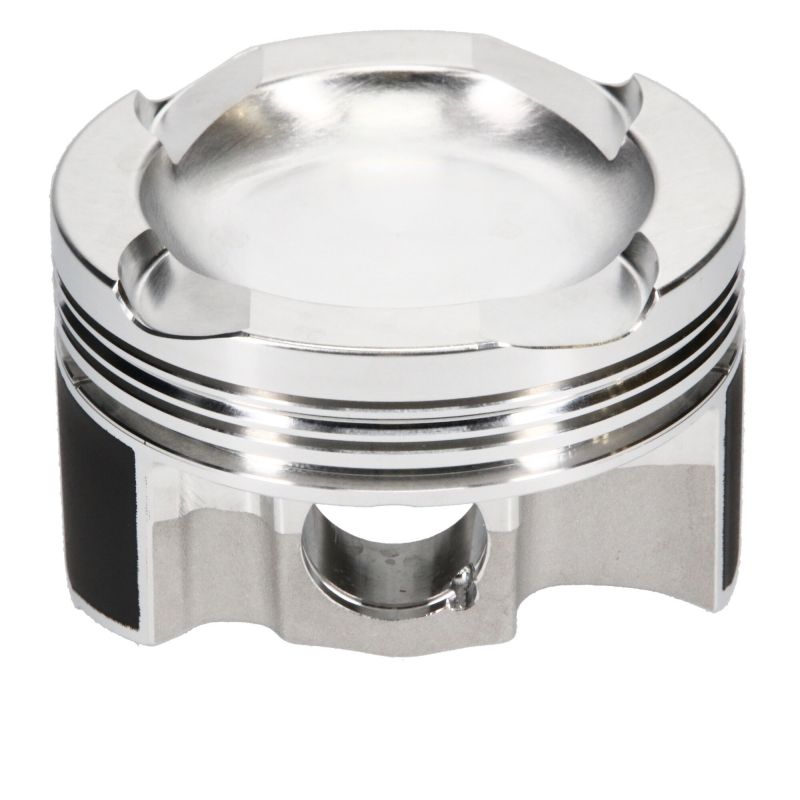

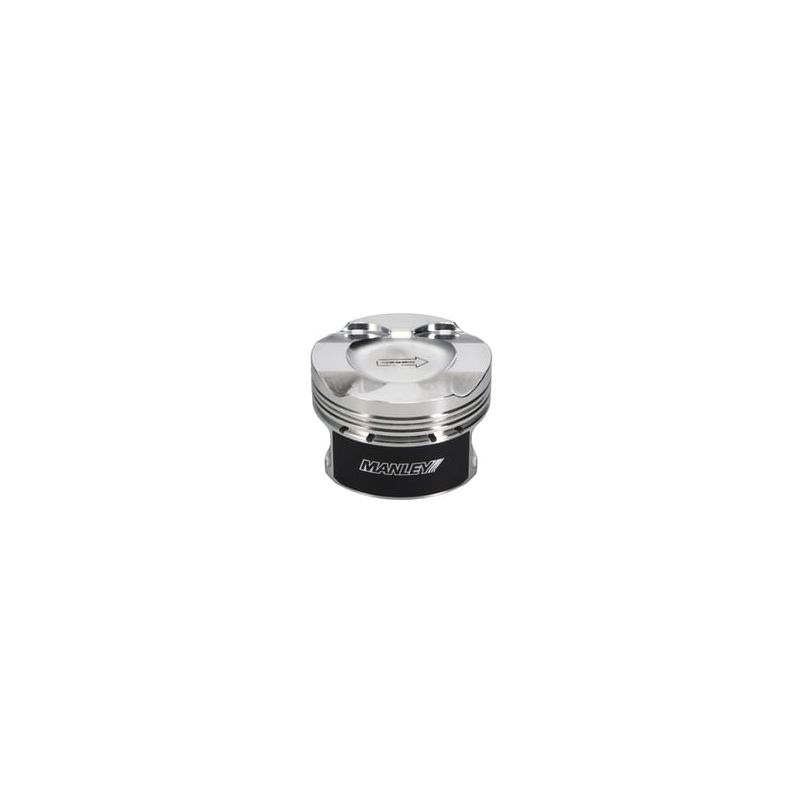

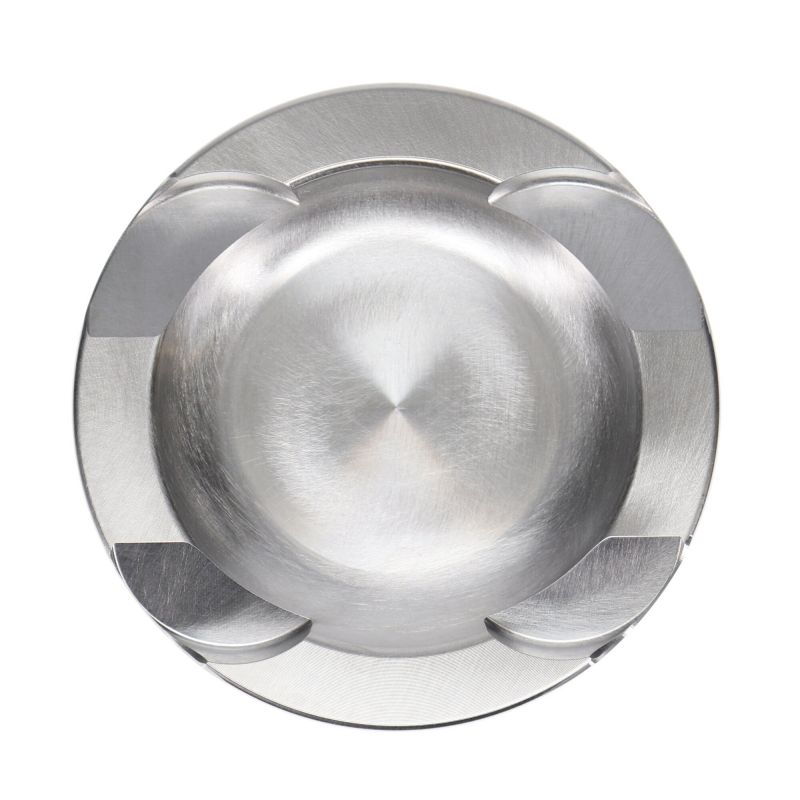

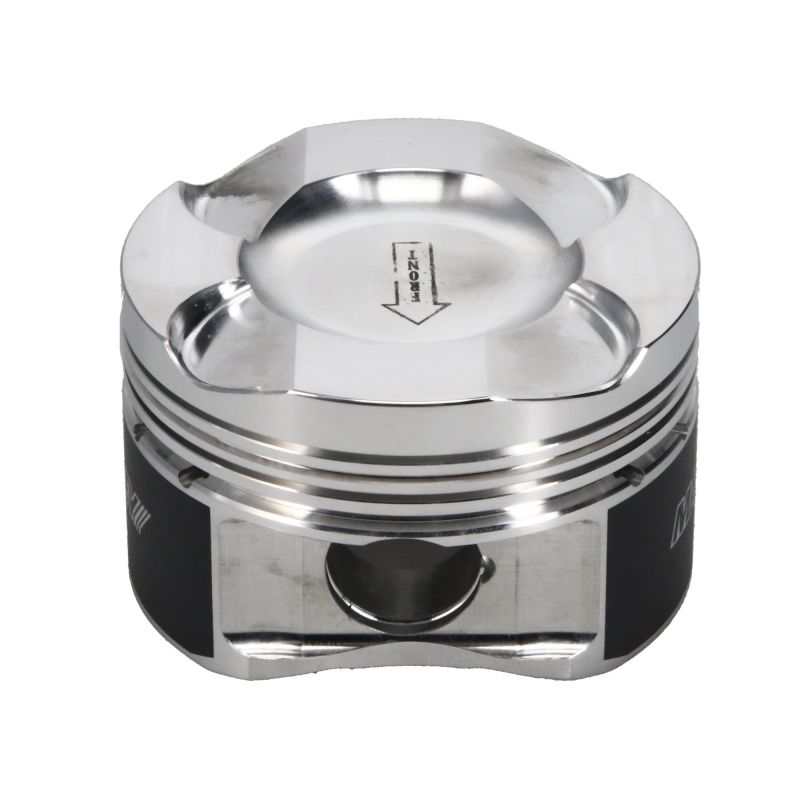

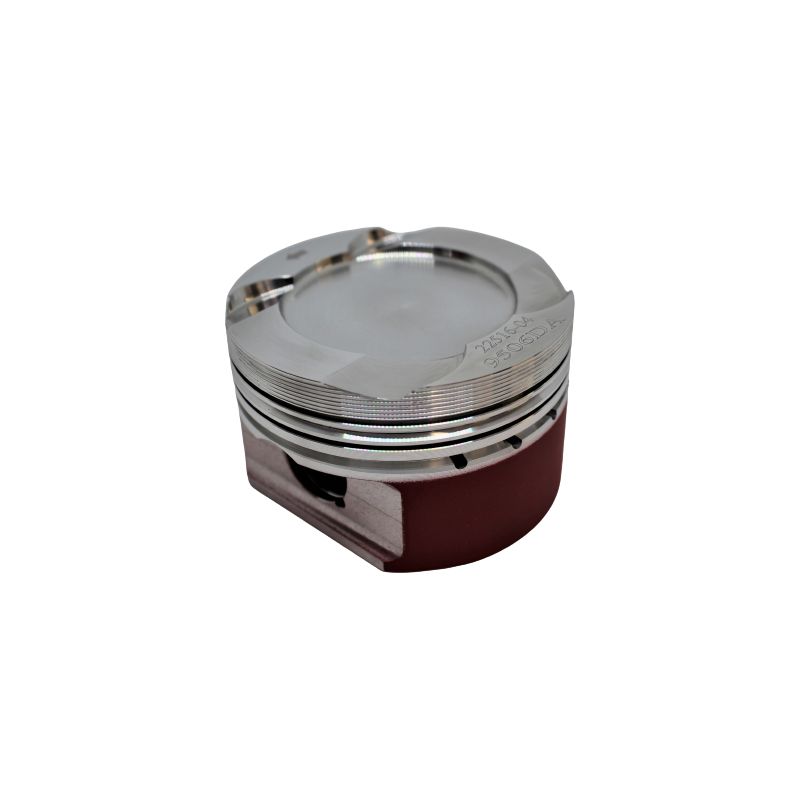

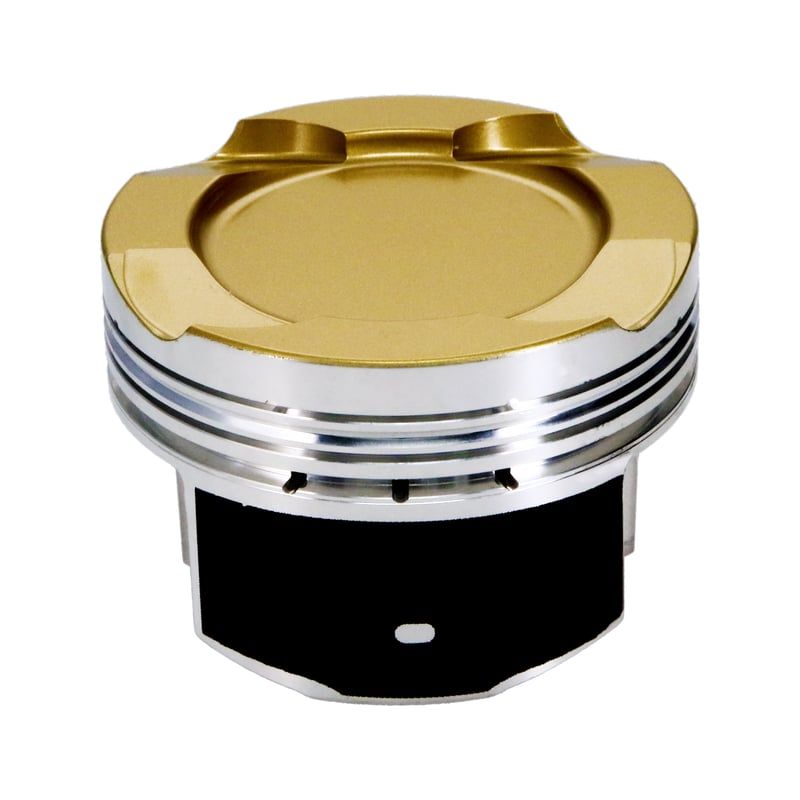

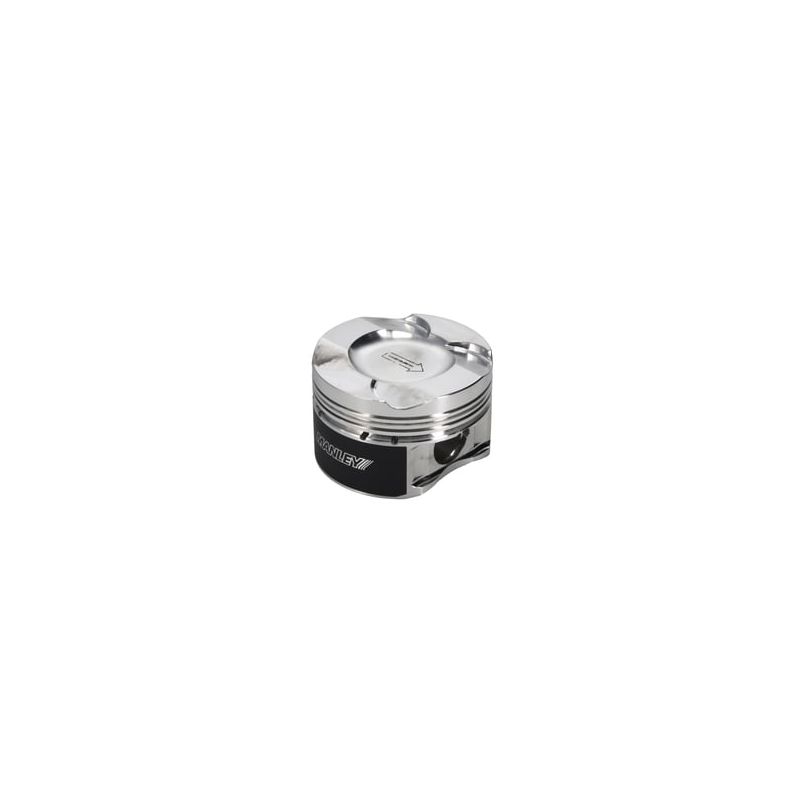

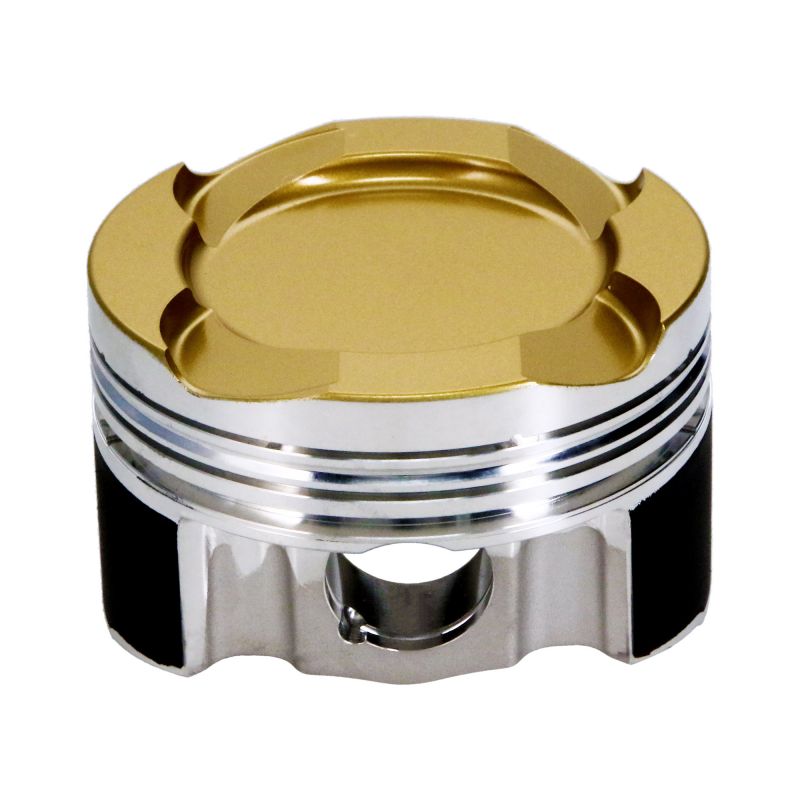

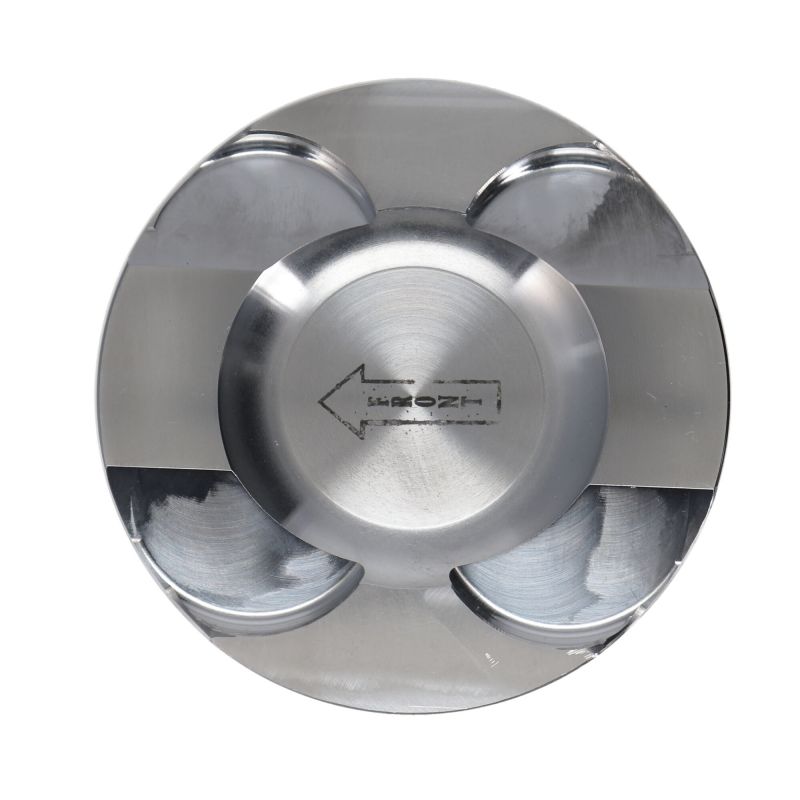

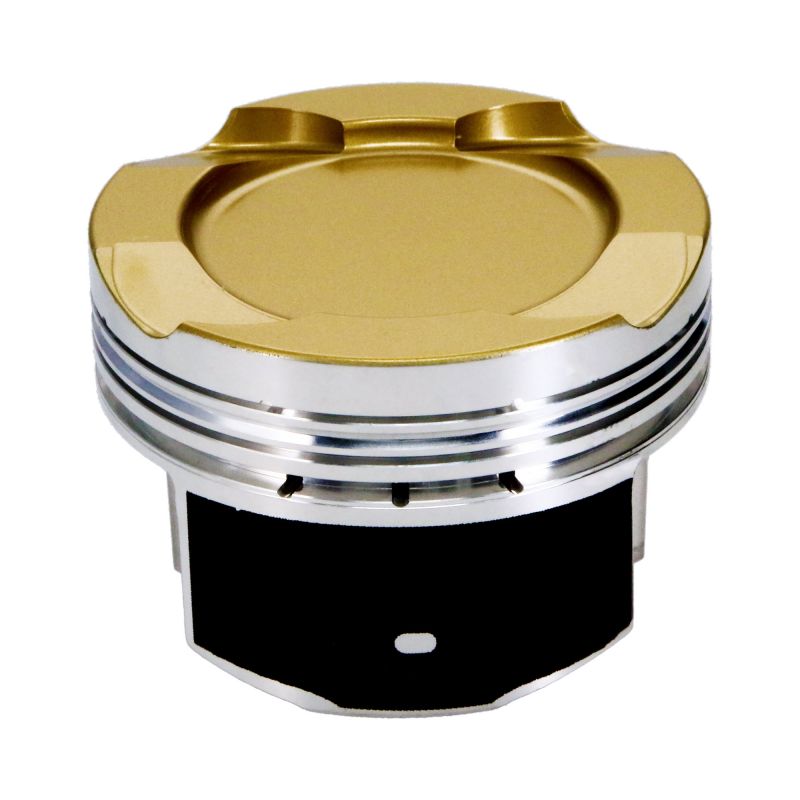

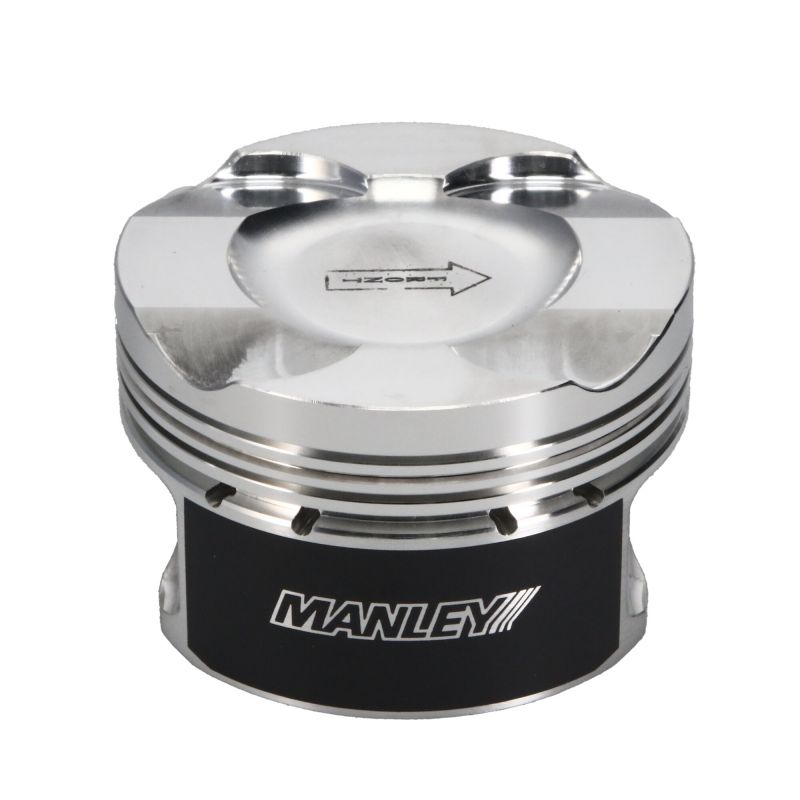

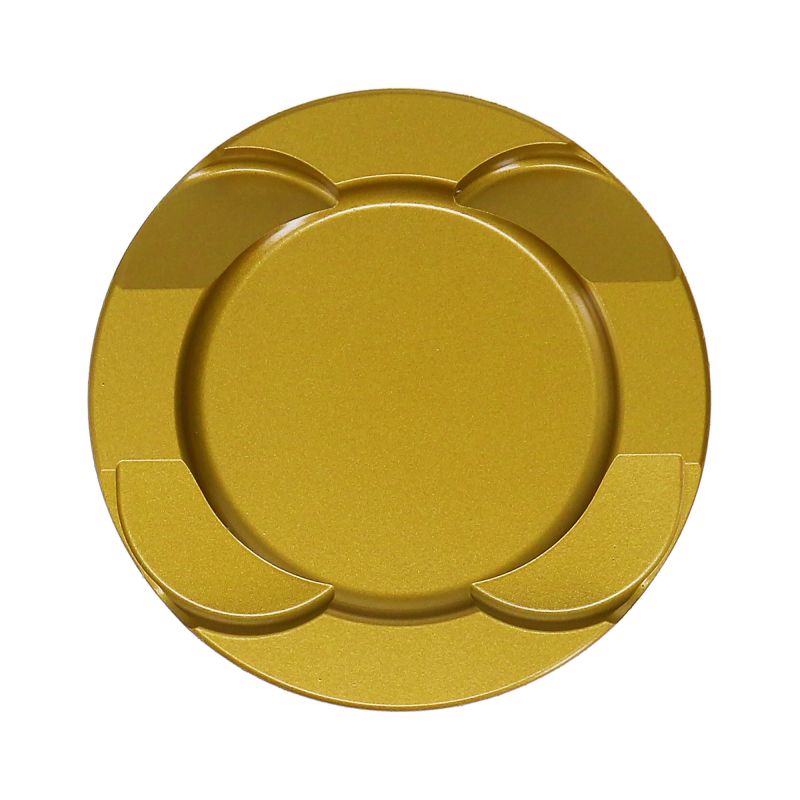

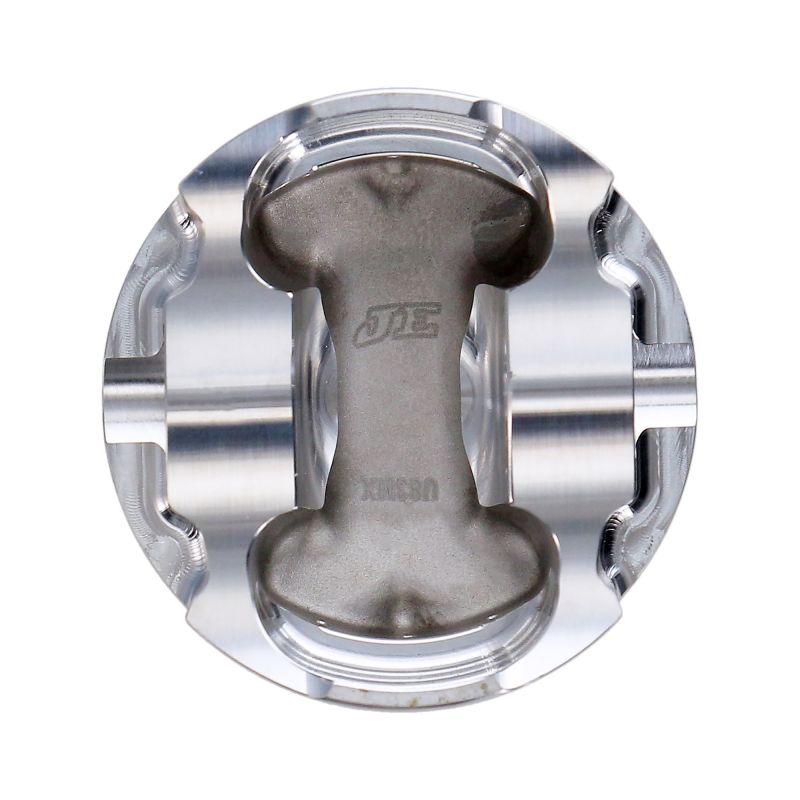

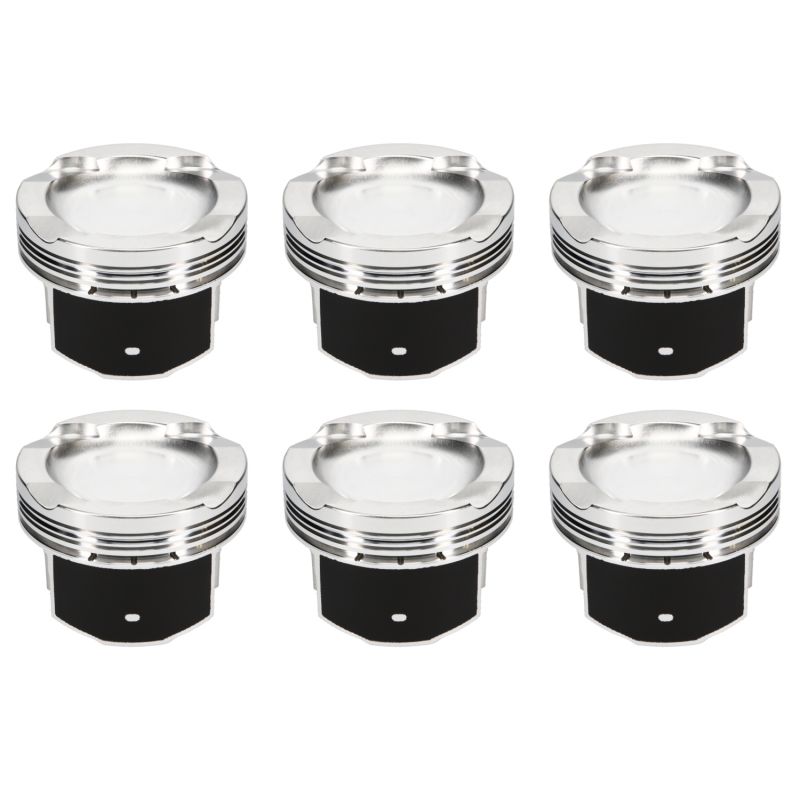

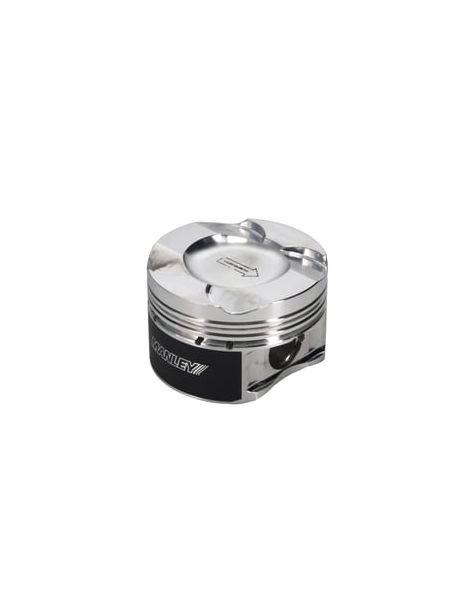

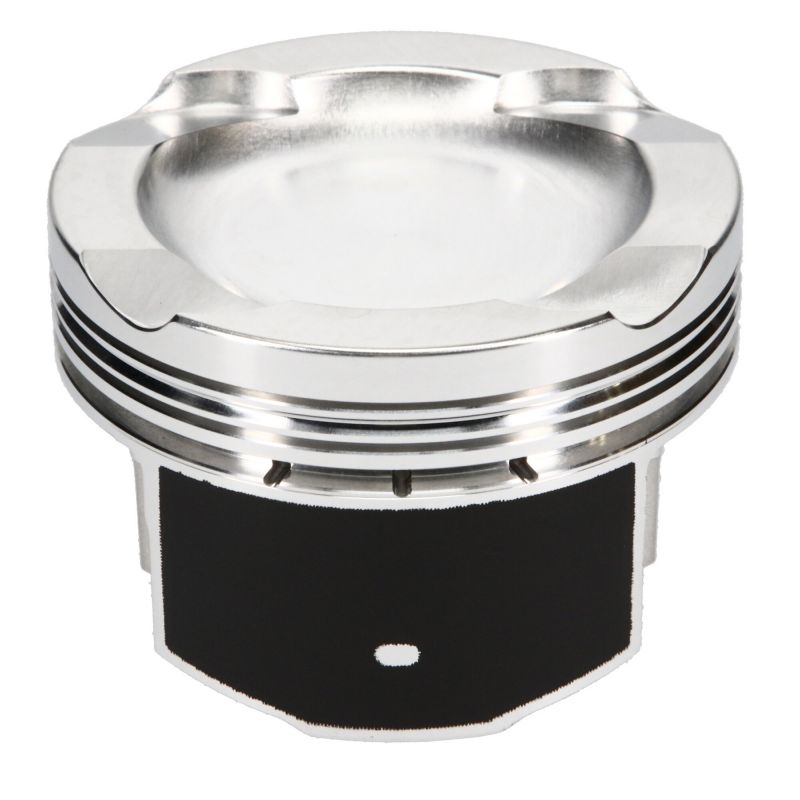

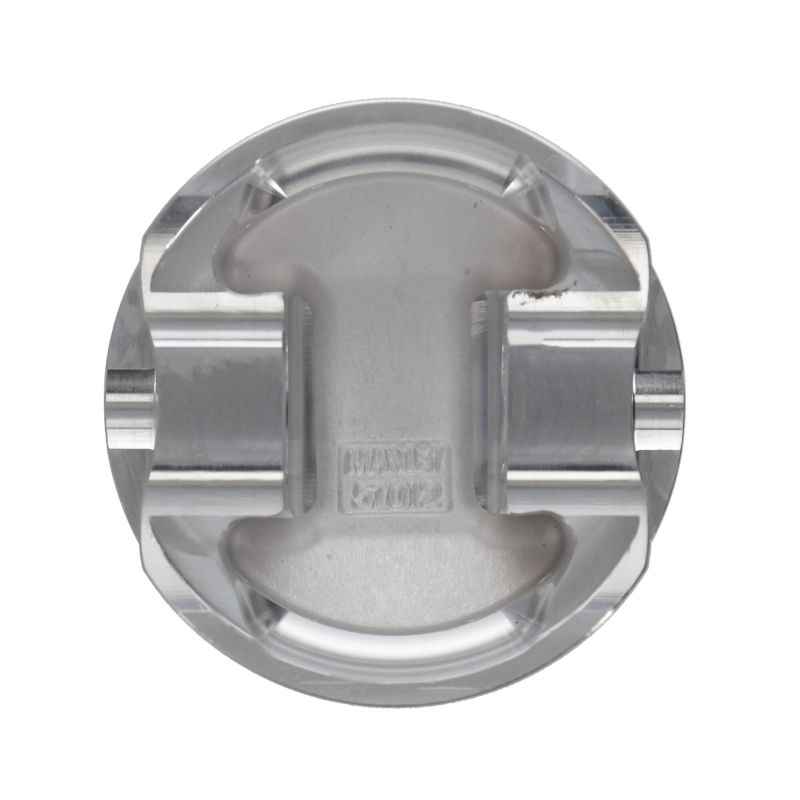

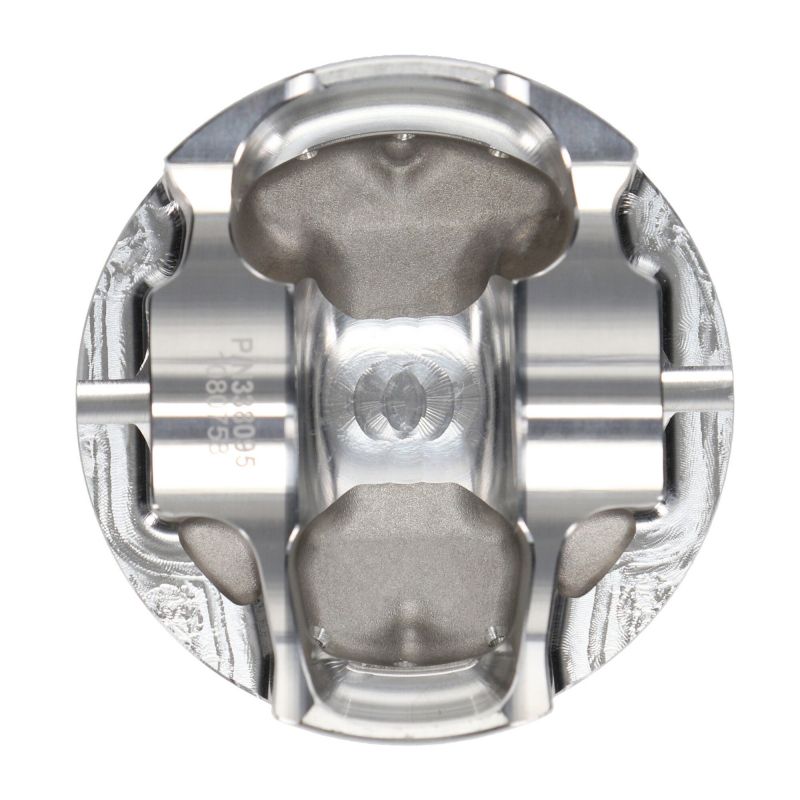

Pistones forjados 3.0L 24v N55B30 S55B30 BMW
928,33 €
(impuestos inc.)
1.326,18 €
(impuestos inc.)
-30%
Pistones forjados JE, Manley, Wössner, Diamond : diámetros 84-85 mm, RV 9,0-10,5 :1, bulón 22 mm. Especificaciones detalladas, compatibilidades N55/S55 & vehículos BMW, referencias OEM incluidas.
Características de los pistones forjados propuestos por NSB Concept para BMW 3.0 L 24 v N55B30 / S55B30 :
| Referencia Pistón |
Diámetro (mm) OEM: 84,00 |
RC OEM: 10,2 :1 |
Bulón (mm) OEM: 22 |
Altura de compresión (mm) OEM: 32,4 |
Gama | Aluminio | Tratamiento | Forja | Cúpula (cc) | Peso (g) | Segmentos |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 647000C-6 | 84 | 10.2:1 | 22 | 32.41 | Manley | 4032 | Falda | NC | -10.5 | 357 | NC |
| 647000CE-6 | 84 | 10.2:1 | 22 | 32.41 | Manley HD | 2618 | Falda | NC | -10.5 | 357 | NC |
| JE-362259C*6 | 84 | 10.3:1 | 22 | 31.55 | JE | NC | NC | NC | -7.1 | NC | NC |
| JE-369928C*6 | 84 | 9:1 | 22 | 31.55 | JE | NC | NC | NC | -15.3 | NC | NC |
| K9506DA-6 | 84 | 9.5:1 | 22 | 32.50 | Wössner | NC | NC | NC | -11.38 | NC | 840XPY |
| P6-BMN55-84-T-6 | 84 | 10.2:1 | 22 | 32.40 | Supertech | 4032 | Cabeza + Falda | NC | -10.4 | NC | W8400XX |
| JE-338096 | 84 | 9.6:1 | 22 | 32.40 | JE FSR | 2618 | NC | FSR | -14.7 | NC | NC |
| JE-367879 | 84 | 9.6:1 | 22 | 32.40 | JE Ultra Series | 2618 | Cabeza + Falda | FSR | -14.7 | 337 | NC |
| K9506DC-6 | 84.02 | 10.2:1 | 22 | 32.50 | Wössner | NC | NC | NC | -11.38 | NC | 840XPY |
| 647005C-6 | 84.5 | 10.2:1 | 22 | 32.41 | Manley | 4032 | Falda | NC | -10.5 | 357 | NC |
| 647005CE-6 | 84.5 | 10.2:1 | 22 | 32.41 | Manley HD | 2618 | Falda | NC | -10.5 | 357 | NC |
| K9506D050-6 | 84.5 | 9.5:1 | 22 | 32.50 | Wössner | NC | NC | NC | -11.38 | NC | 845XPY |
| JE-338097 | 84.5 | 9.6:1 | 22 | 32.40 | JE FSR | 2618 | NC | FSR | -14.7 | NC | NC |
| JE-367880 | 84.5 | 9.6:1 | 22 | 32.40 | JE Ultra Series | 2618 | Cabeza + Falda | FSR | -14.7 | 337 | NC |
Compatibilidad con motor :
- N55B30
- S55B30
| Marca | Modelo | chasis | Potencia (CV) | Años |
|---|---|---|---|---|
| BMW | 135i | E82/E88 | 306 | 2011–2013 |
| BMW | M135i | F20/F21 | 320 | 2012–2015 |
| BMW | 235i | F22 | 326 | 2014–2016 |
| BMW | 335i | F30/F31/F34 | 306 | 2011–2015 |
| BMW | 435i | F32/F33/F36 | 306 | 2013–2016 |
| BMW | 535i | F10/F11 | 306 | 2010–2016 |
| BMW | X3 xDrive35i | F25 | 306 | 2010–2017 |
| BMW | X4 xDrive35i | F26 | 306 | 2014–2018 |
| BMW | X5 xDrive35i | F15 | 306 | 2013–2018 |
| BMW | X6 xDrive35i | F16 | 306 | 2014–2019 |
| BMW | M3 | F80 | 431 | 2014–2018 |
| BMW | M4 | F82/F83 | 431 | 2014–2020 |
| BMW | M2 Competition | F87 | 410 | 2018–2021 |
| BMW | M2 CS | F87 | 450 | 2020–2021 |
Referencias pistón fabricante (OEM) :
- 11257642450 (reemplaza 11257583661) – N55B30
- 11257604245 – S55B30
-
Marca
-
Referencia647005C-6
