JE, Manley, Wossner, Diamond forged pistons: bores 84-85 mm, RV 9.0-10.5:1, pin 22 mm. Detailed specs, N55/S55 & BMW vehicle compatibility, OEM references included.

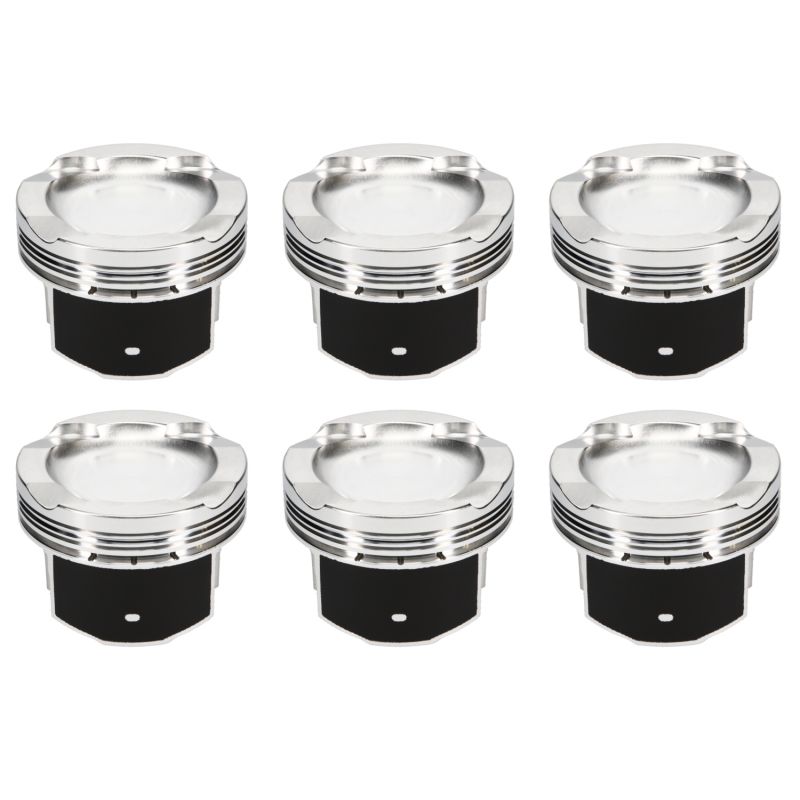

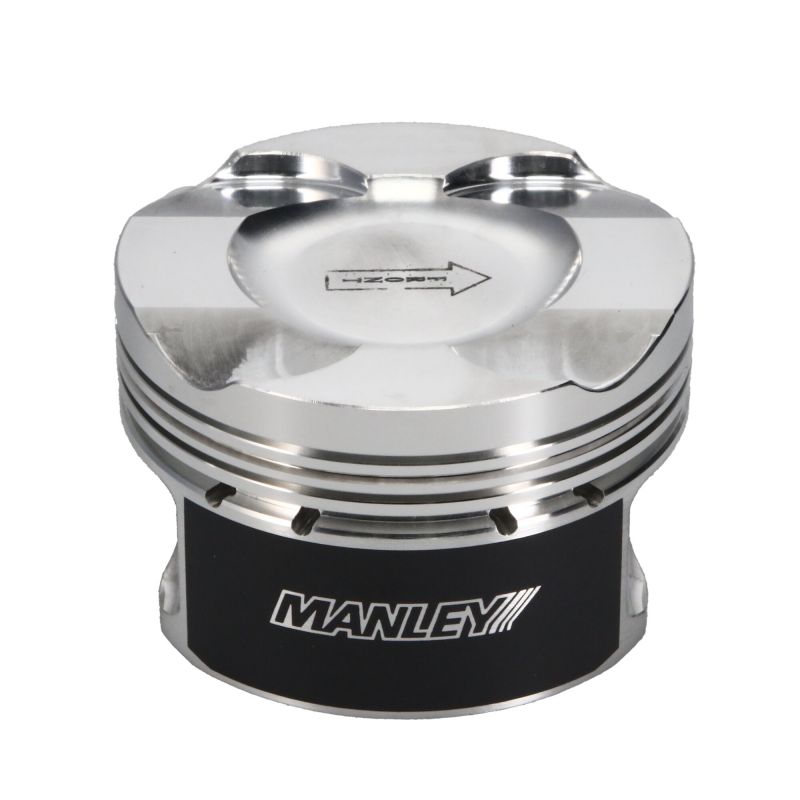

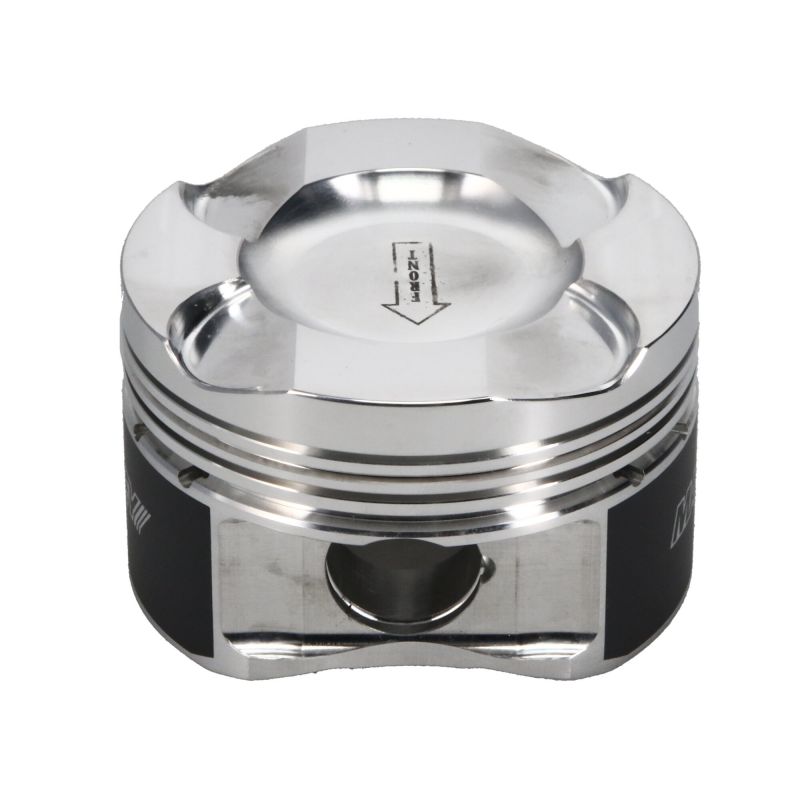

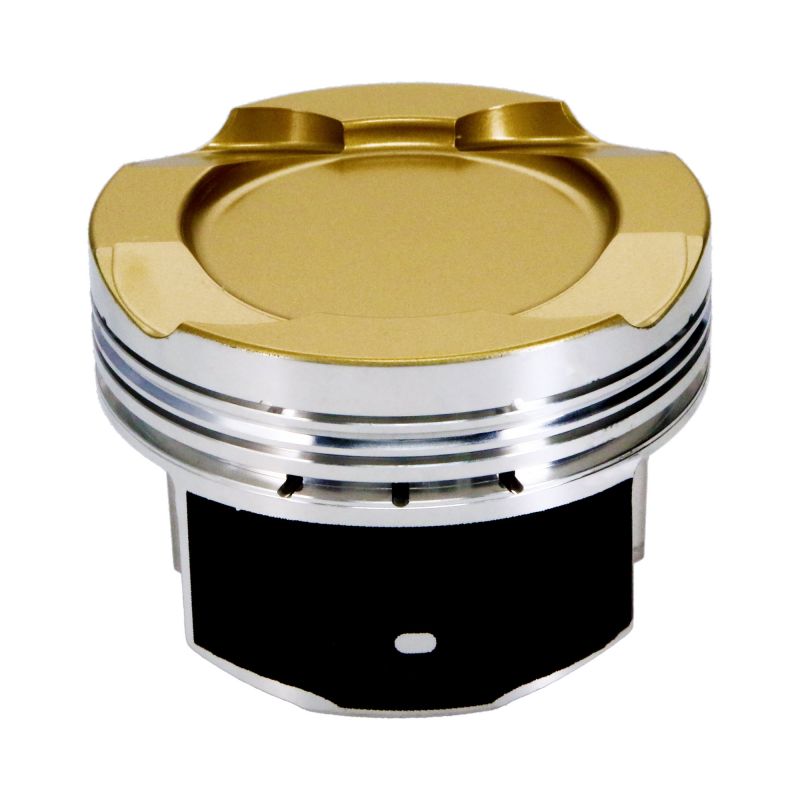

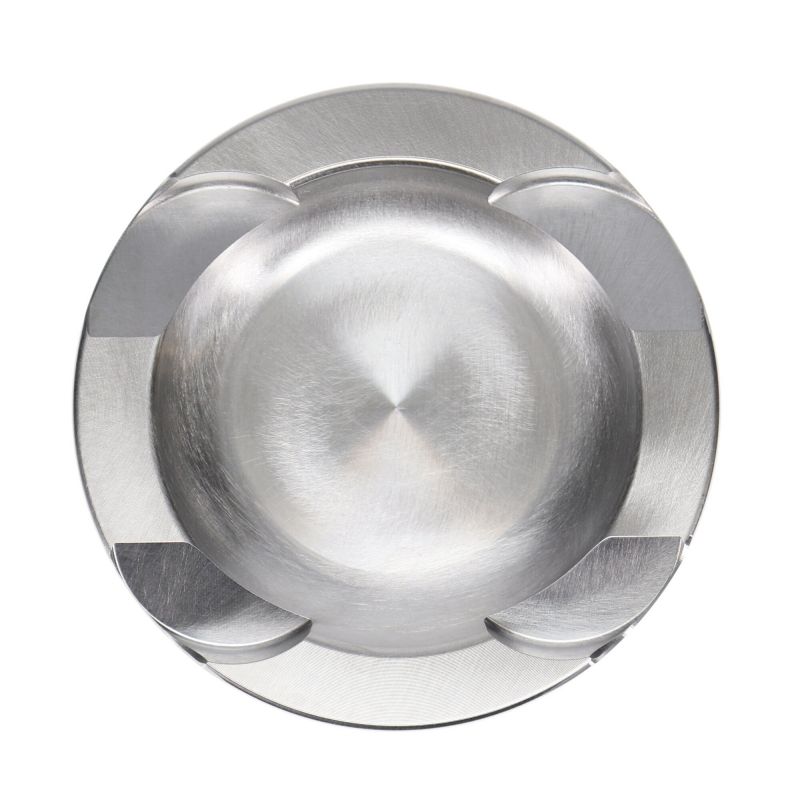

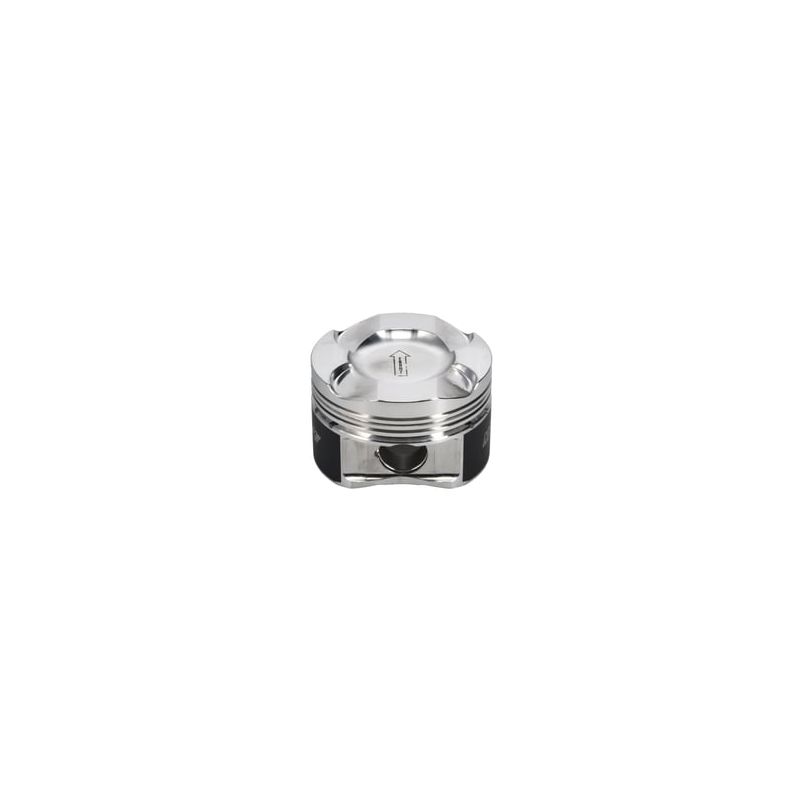

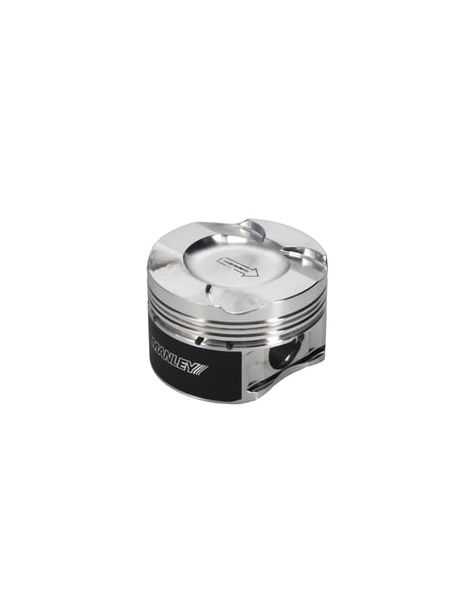

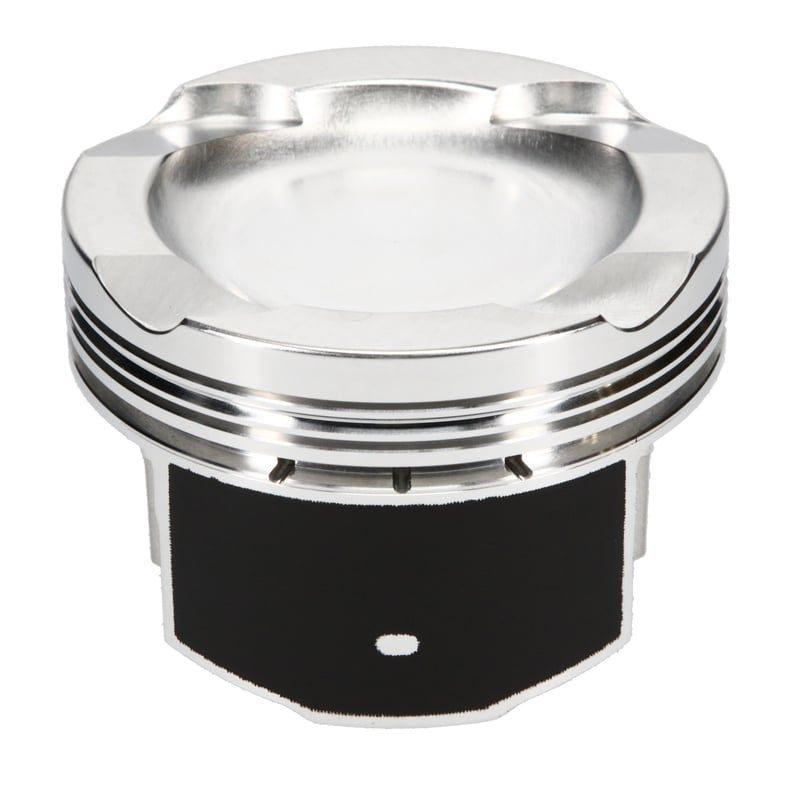

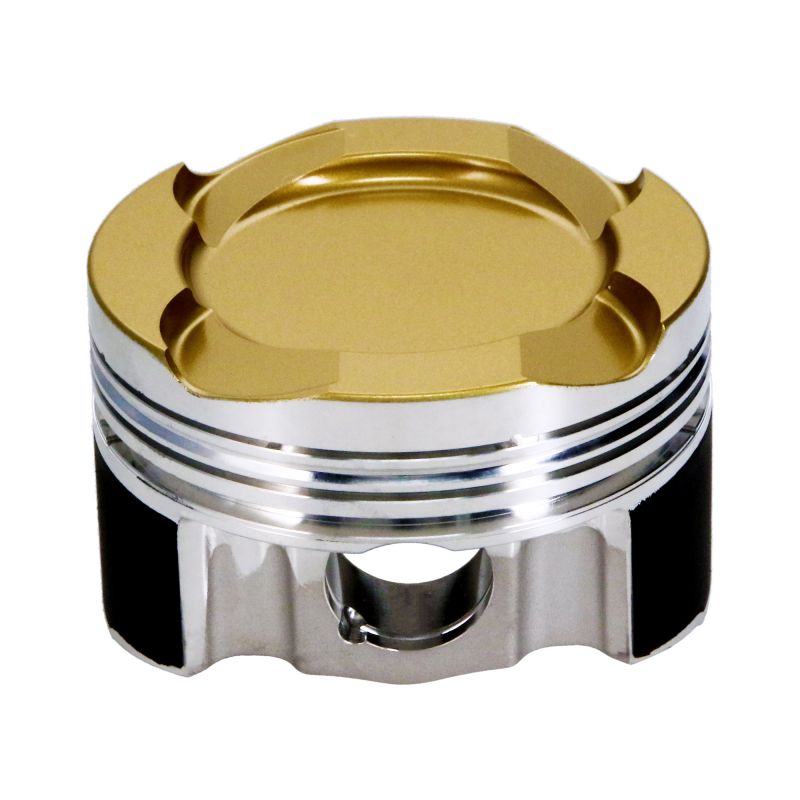

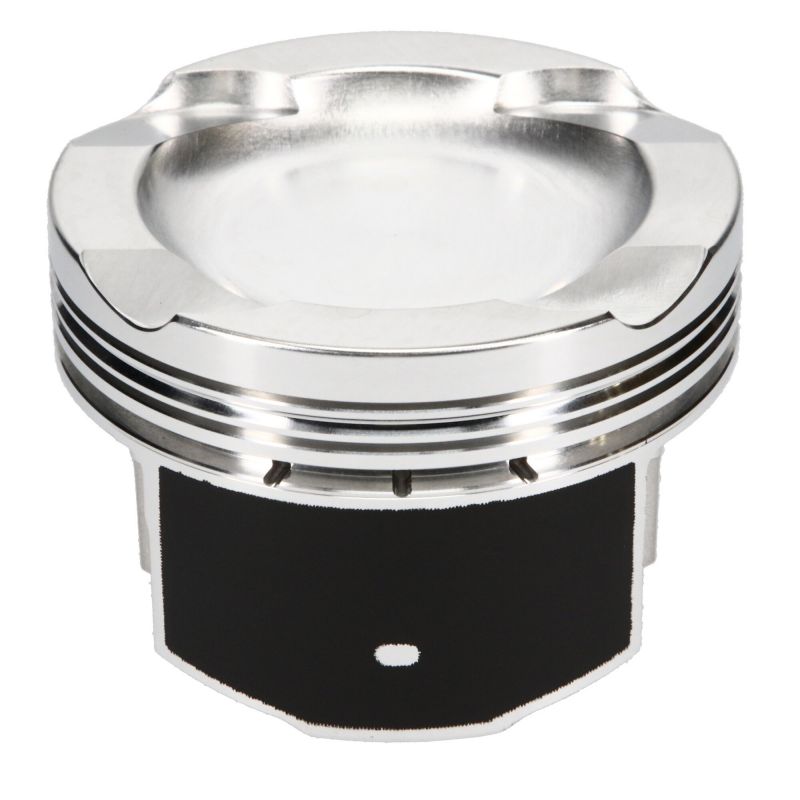

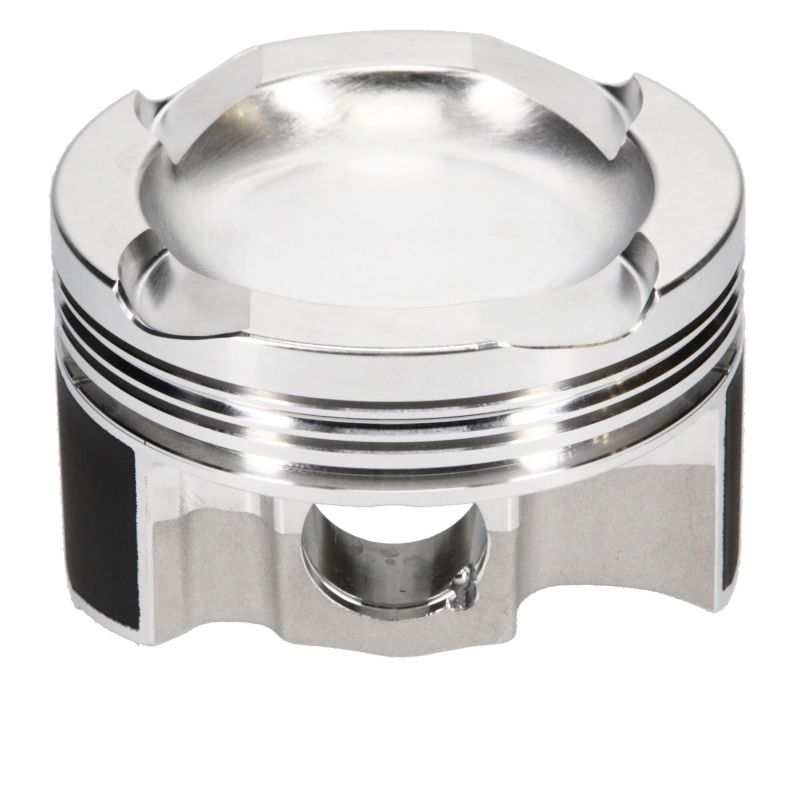

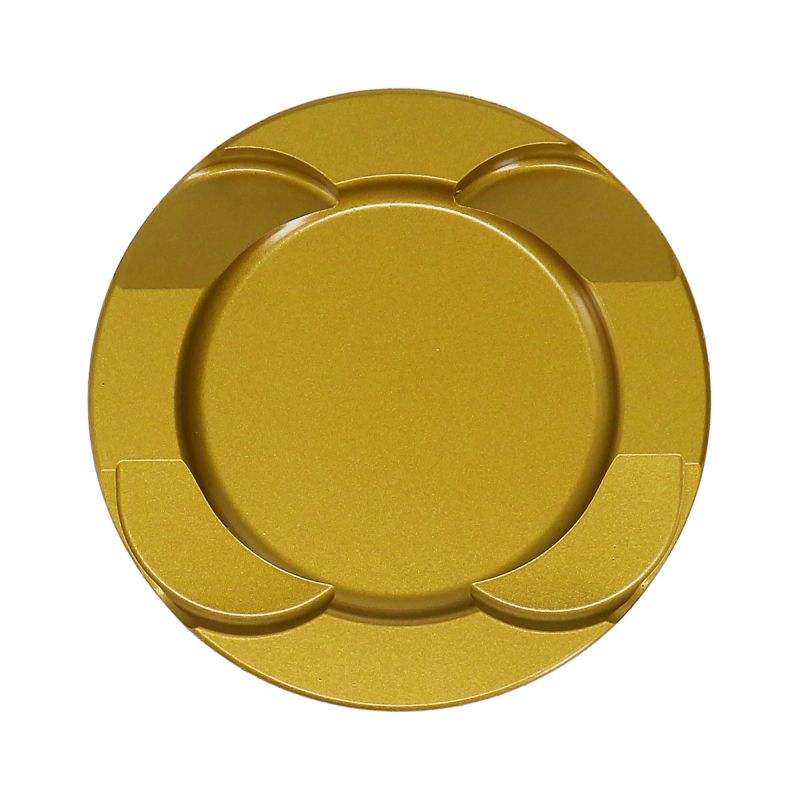

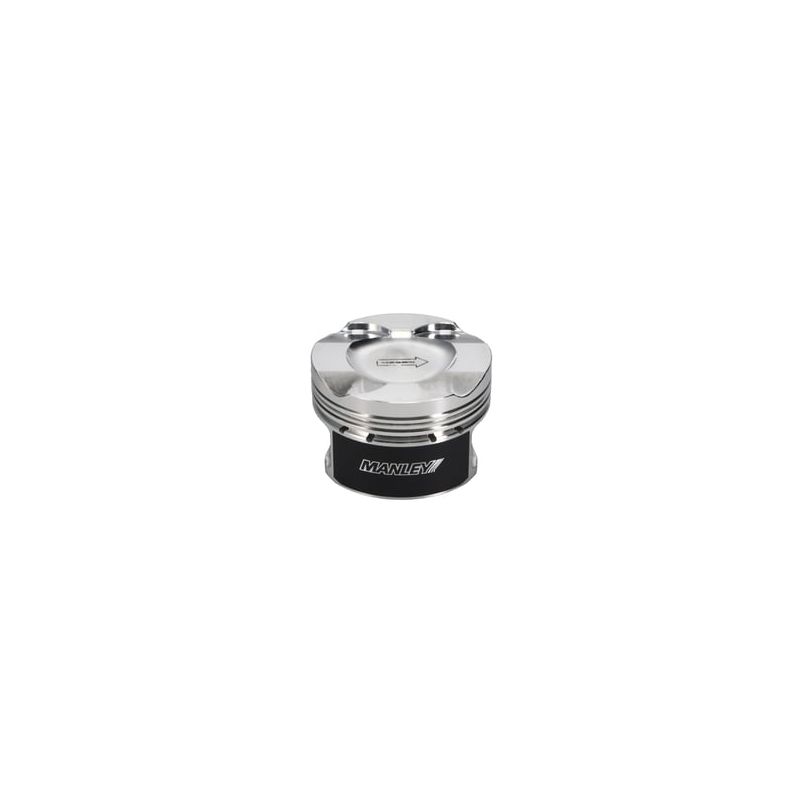

Characteristics of the forged pistons offered by NSB Concept for BMW 3.0 L 24 v N55B30 / S55B30:
| ReferencePiston | Bore (mm) | VR | Axis (mm) | Axis Height (mm) | Range | Aluminum | Treatment | Forging | Dome (cc) | Weight (g) | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|

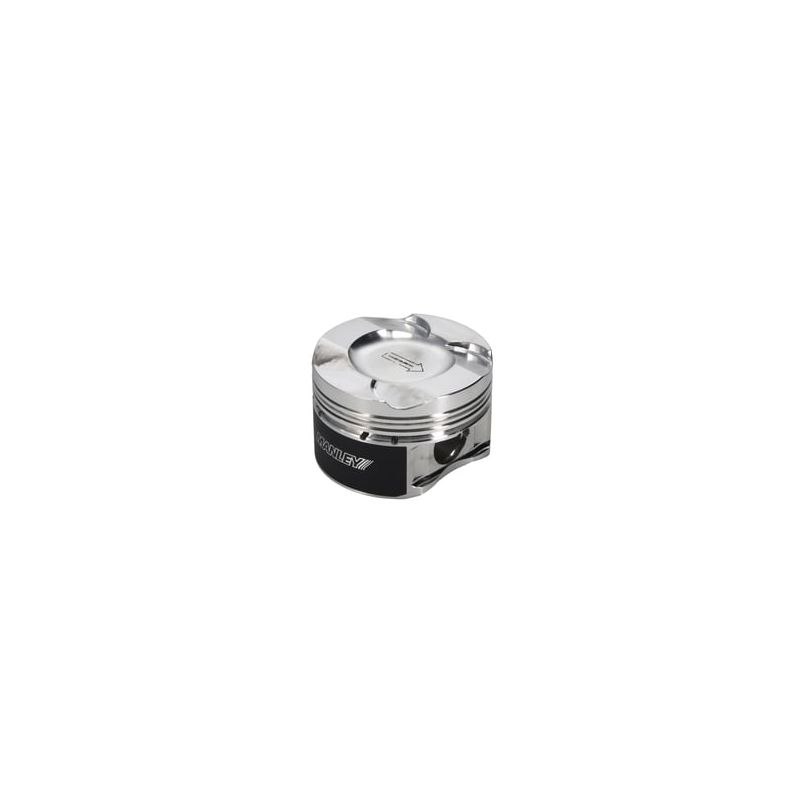

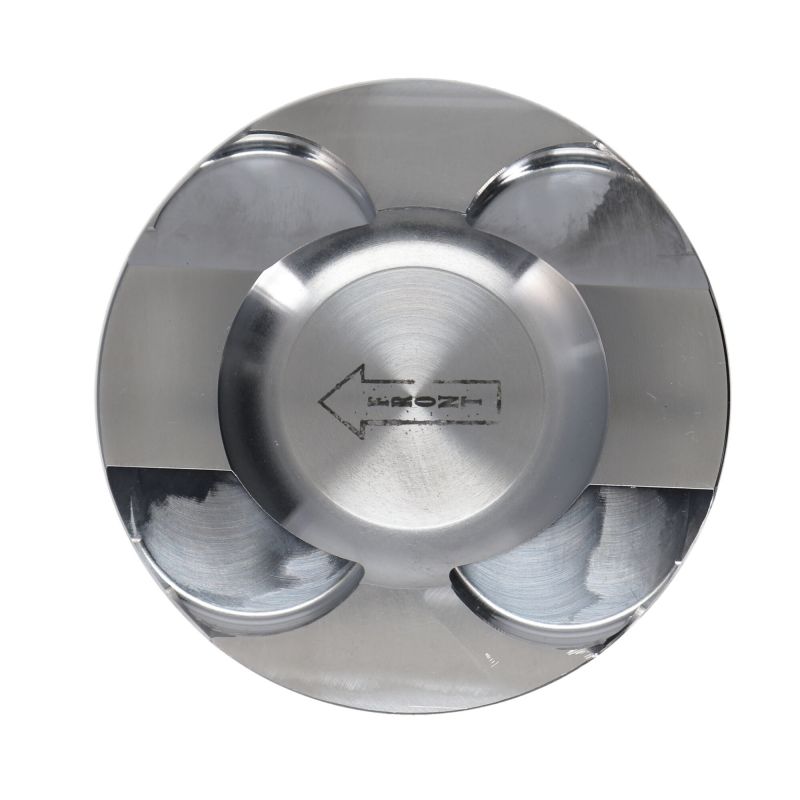

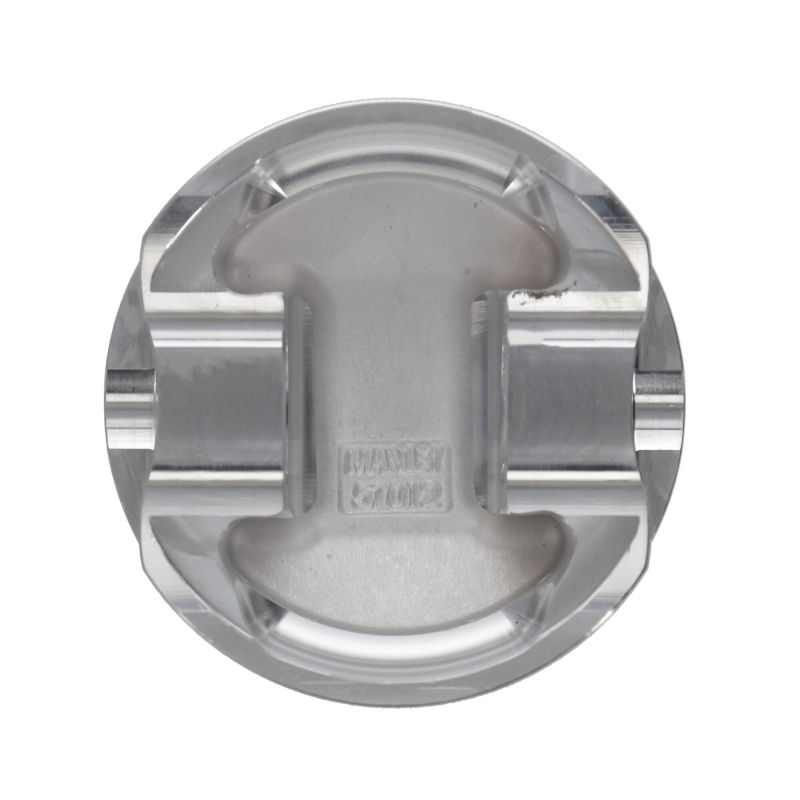

| 647000C-6 | 84 | 10.2:1 | 22 | 32.41 | Manley | 4032 | Skirt | N/A | -10.5 | 357 | N/A |
| 647000CE-6 | 84 | 10.2:1 | 22 | 32.41 | Manley HD | 2618 | Skirt | N/A | -10.5 | 357 | N/A |

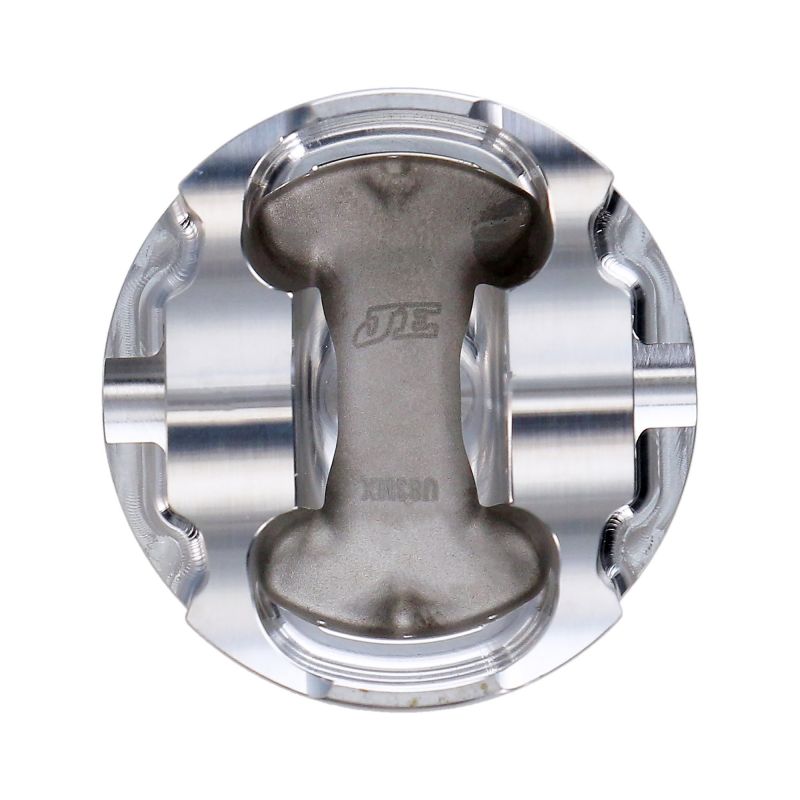

| JE-362259C*6 | 84 | 10.3:1 | 22 | 31.55 | JE | N/A | N/A | N/A | -7.1 | N/A | N/A |
| JE-369928C*6 | 84 | 9:1 | 22 | 31.55 | JE | N/A | N/A | N/A | -15.3 | N/A | N/A |

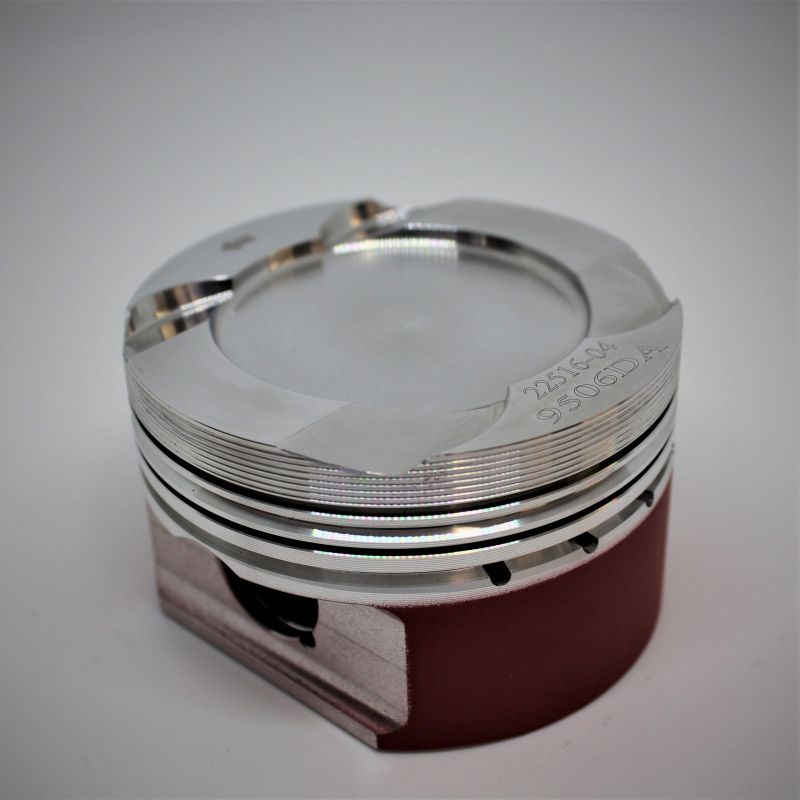

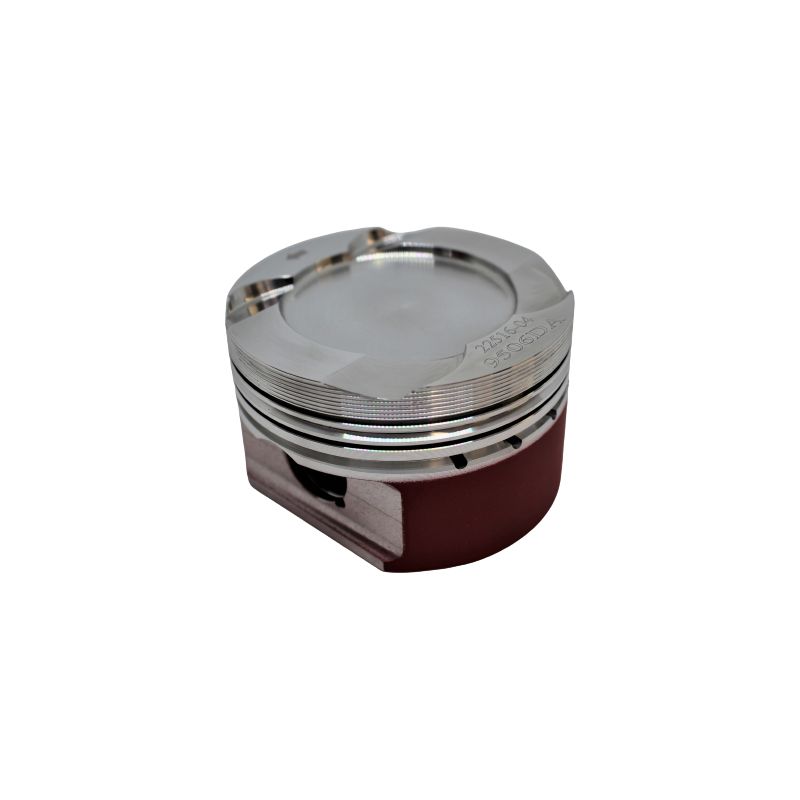

| K9506DA-6 | 84 | 9.5:1 | 22 | 32.50 | Wossner | N/A | N/A | N/A | -11.38 | N/A | 840XPY |
| P6-BMN55-84-T-6 | 84 | 10.2:1 | 22 | 32.40 | Supertech | 4032 | Head + Skirt | N/A | -10.4 | N/A | W8400XX |

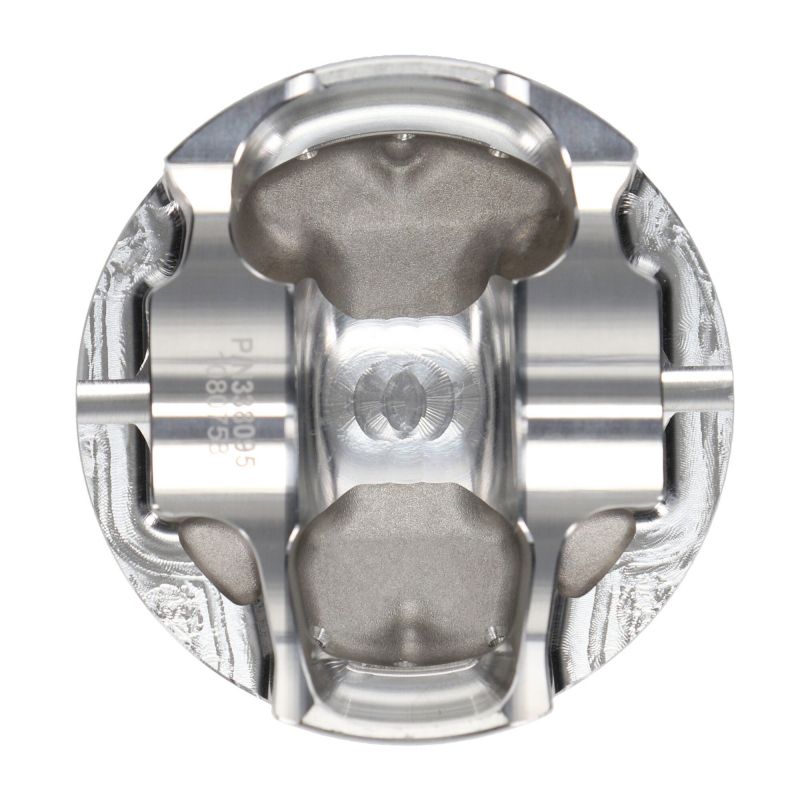

| JE-338096 | 84 | 9.6:1 | 22 | 32.40 | JE FSR | 2618 | N/A | FSR | -14.7 | N/A | N/A |
| JE-367879 | 84 | 9.6:1 | 22 | 32.40 | JE Ultra Series | 2618 | Head + Skirt | FSR | -14.7 | 337 | N/A |
| K9506DC-6 | 84.02 | 10.2:1 | 22 | 32.50 | Wossner | N/A | N/A | N/A | -11.38 | N/A | 840XPY |
| 647005C-6 | 84.5 | 10.2:1 | 22 | 32.41 | Manley | 4032 | Skirt | N/A | -10.5 | 357 | N/A |
| 647005CE-6 | 84.5 | 10.2:1 | 22 | 32.41 | Manley HD | 2618 | Skirt | N/A | -10.5 | 357 | N/A |
| K9506D050-6 | 84.5 | 9.5:1 | 22 | 32.50 | Wossner | N/A | N/A | N/A | -11.38 | N/A | 845XPY |
| JE-338097 | 84.5 | 9.6:1 | 22 | 32.40 | JE FSR | 2618 | N/A | FSR | -14.7 | N/A | N/A |
| JE-367880 | 84.5 | 9.6:1 | 22 | 32.40 | JE Ultra Series | 2618 | Head + Skirt | FSR | -14.7 | 337 | N/A |
Engine compatibility:
N55B30
S55B30
| Brand | Model | Chassis | Power (hp) | Years |
|---|---|---|---|---|
| BMW | 135i | E82/E88 | 306 | 2011.2013 |
| BMW | M135i | F20/F21 | 320 | 2012.2015 |
| BMW | 235i | F22 | 326 | 2014.2016 |
| BMW | 335i | F30/F31/F34 | 306 | 2011.2015 |
| BMW | 435i | F32/F33/F36 | 306 | 2013.2016 |
| BMW | 535i | F10/F11 | 306 | 2010.2016 |
| BMW | X3 xDrive35i | F25 | 306 | 2010.2017 |
| BMW | X4 xDrive35i | F26 | 306 | 2014.2018 |
| BMW | X5 xDrive35i | F15 | 306 | 2013.2018 |
| BMW | X6 xDrive35i | F16 | 306 | 2014.2019 |
| BMW | M3 | F80 | 431 | 2014.2018 |
| BMW | M4 | F82/F83 | 431 | 2014.2020 |
| BMW | M2 Competition | F87 | 410 | 2018.2021 |
| BMW | M2 CS | F87 | 450 | 2020.2021 |
Piston manufacturer references (OEM):
11257642450 (replaces 11257583661) N55B30
11257604245 S55B30
