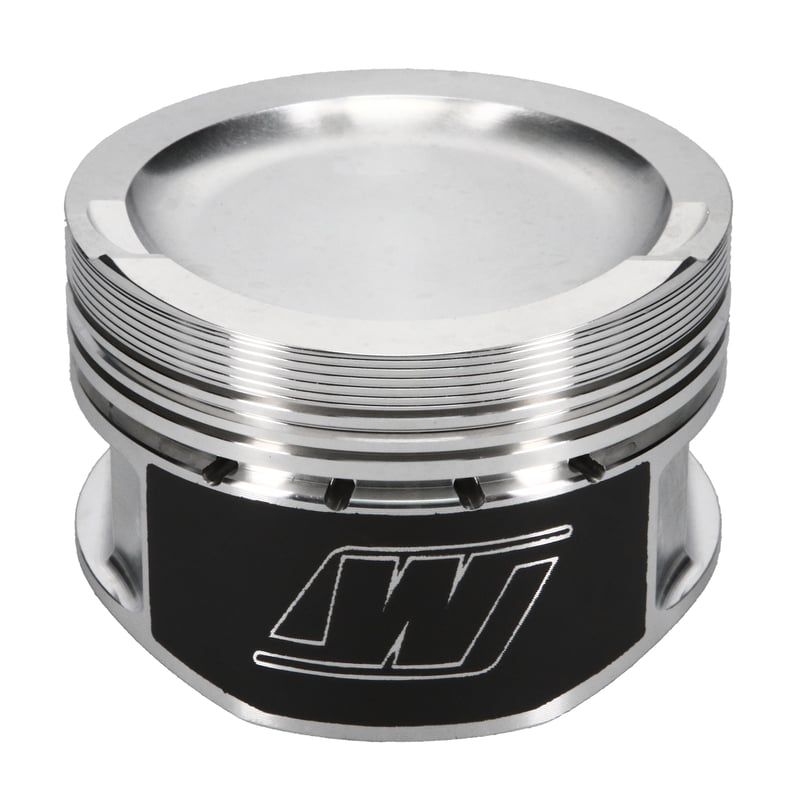

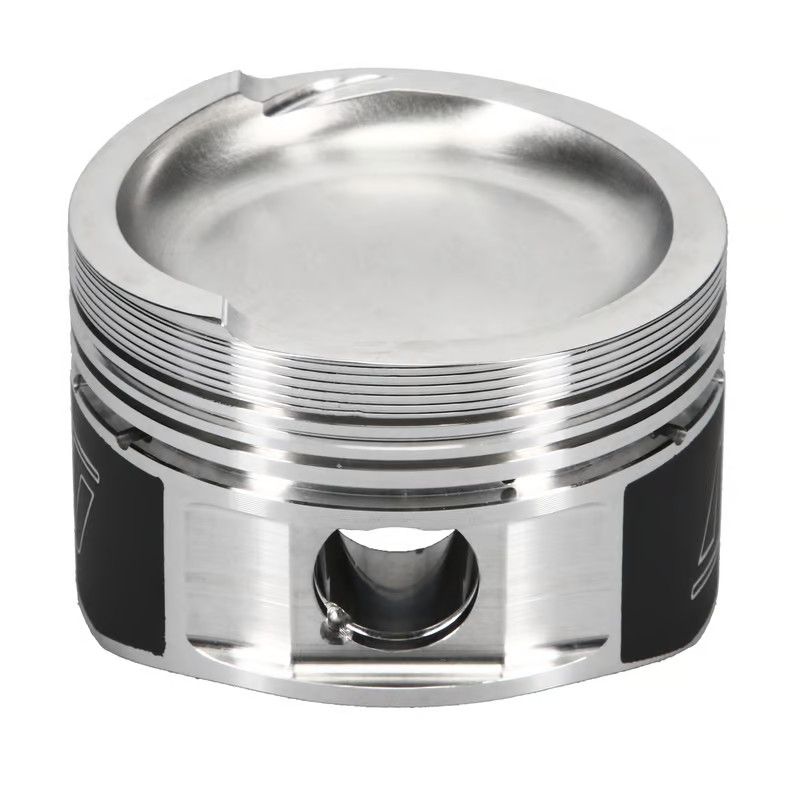

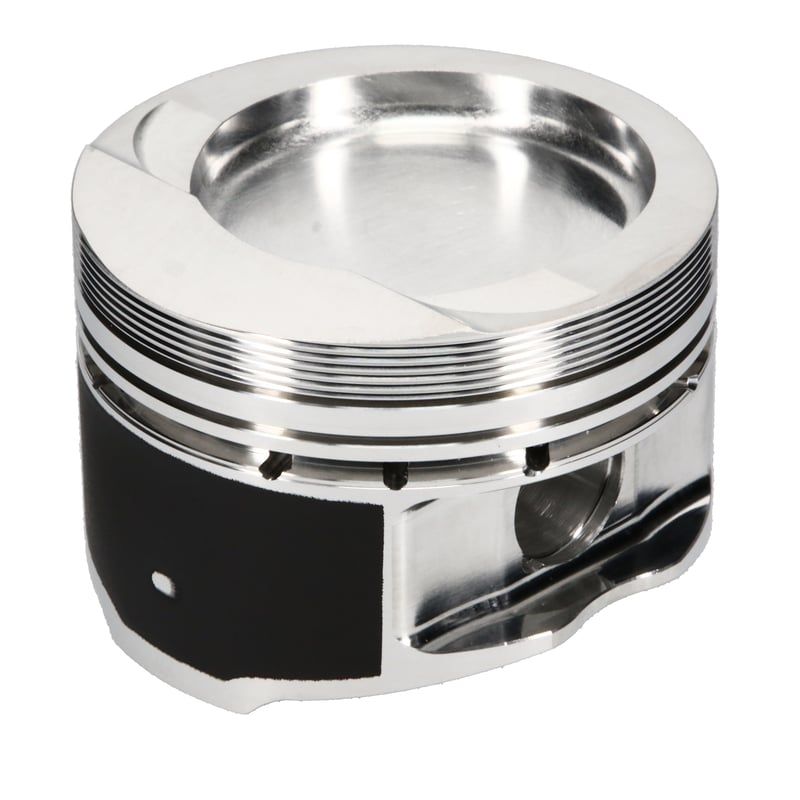

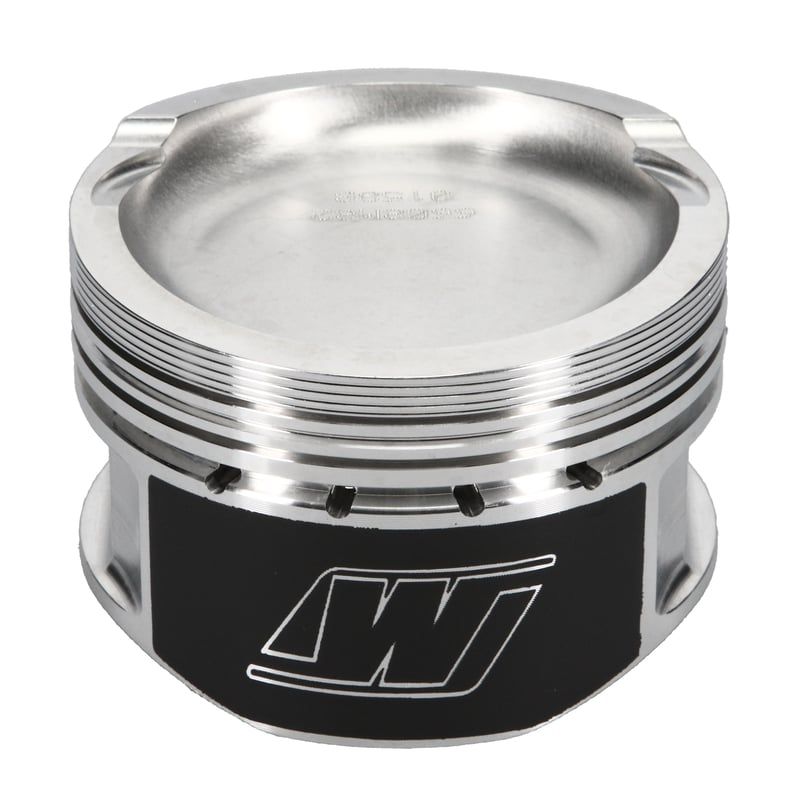

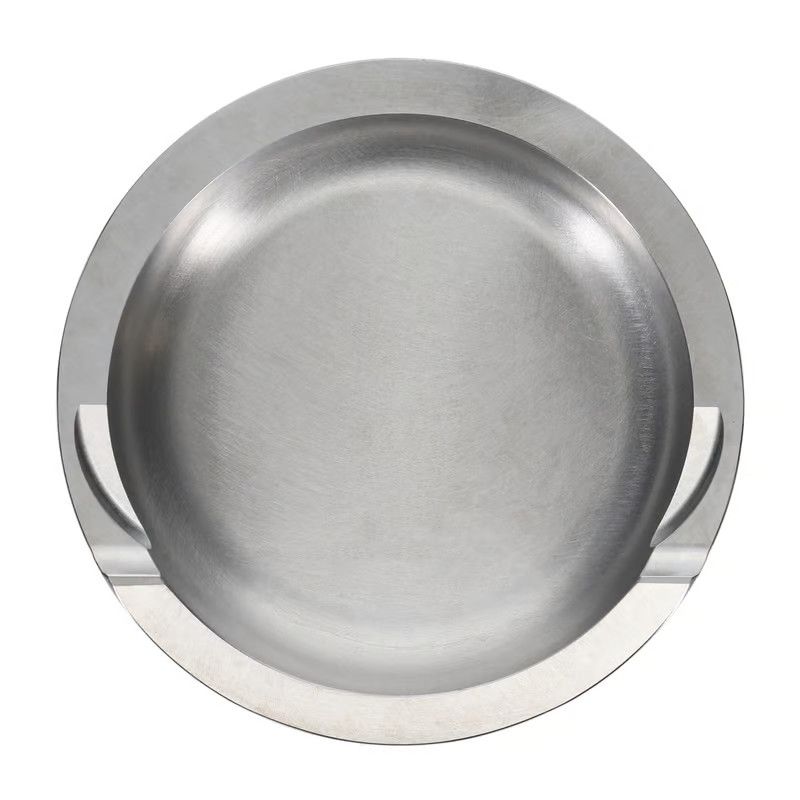

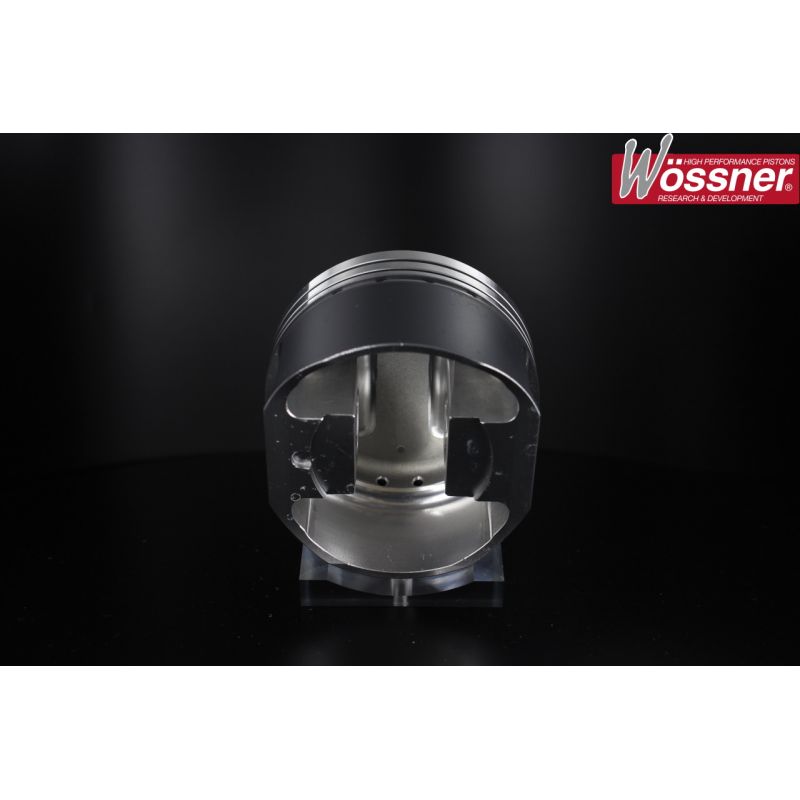

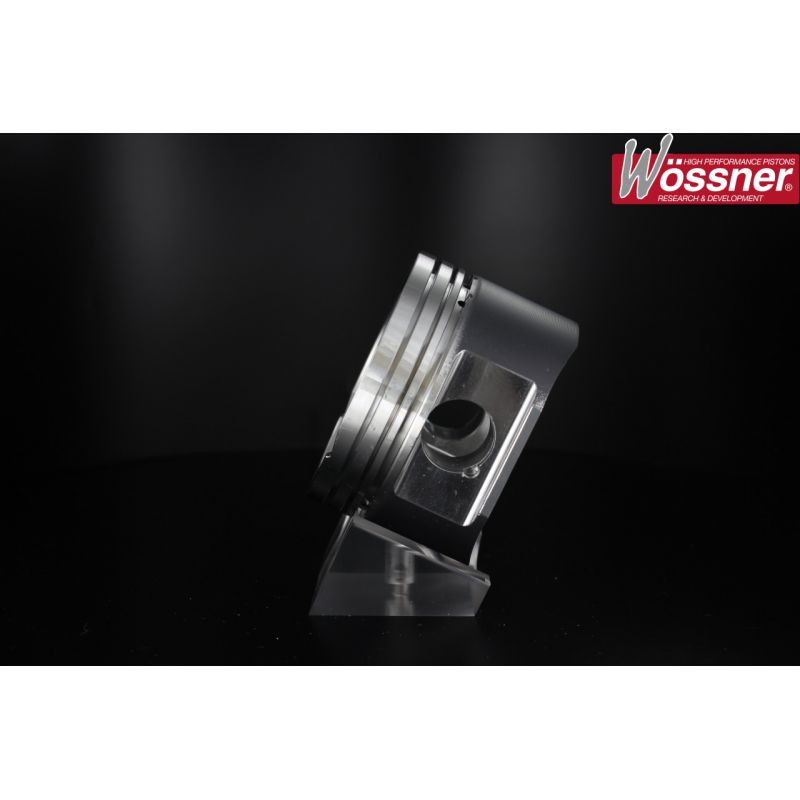

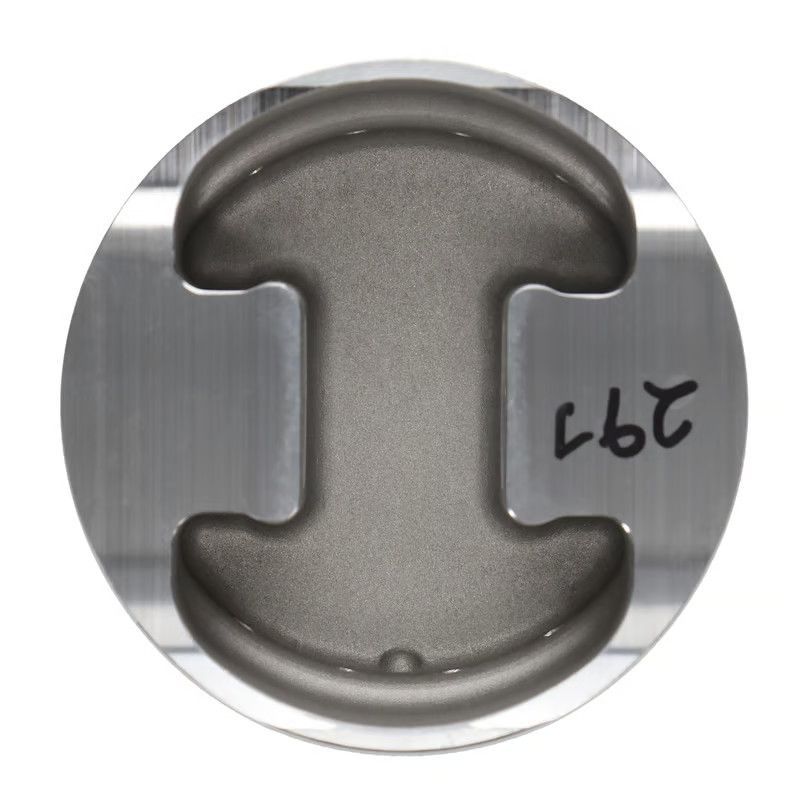

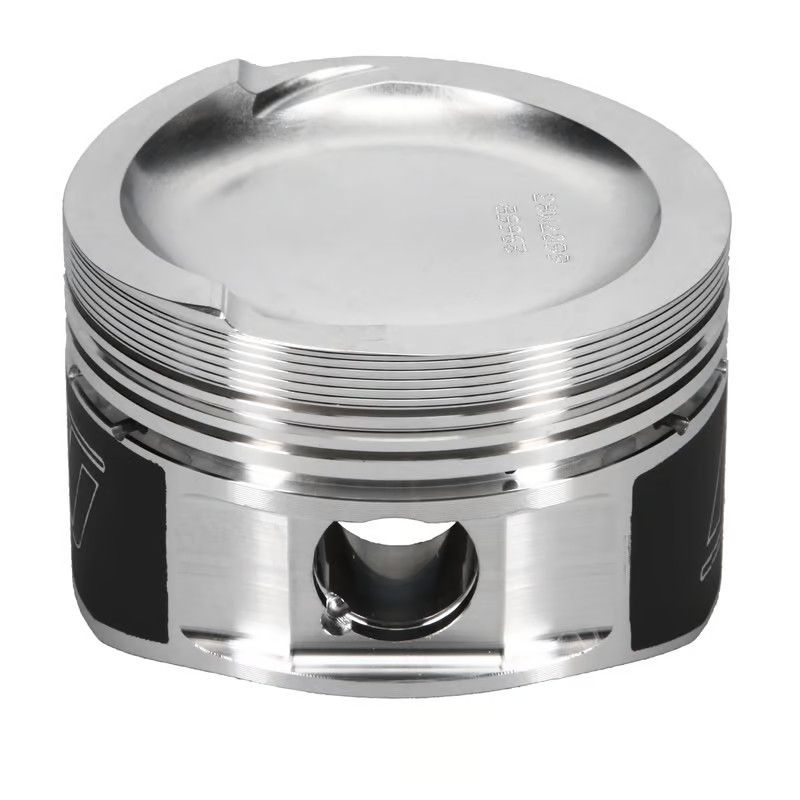

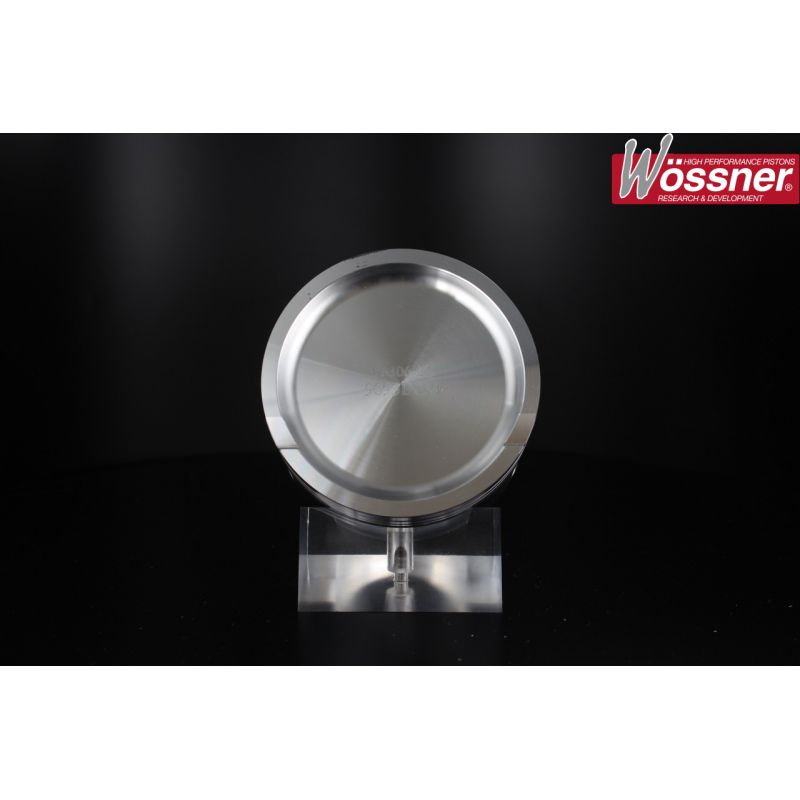

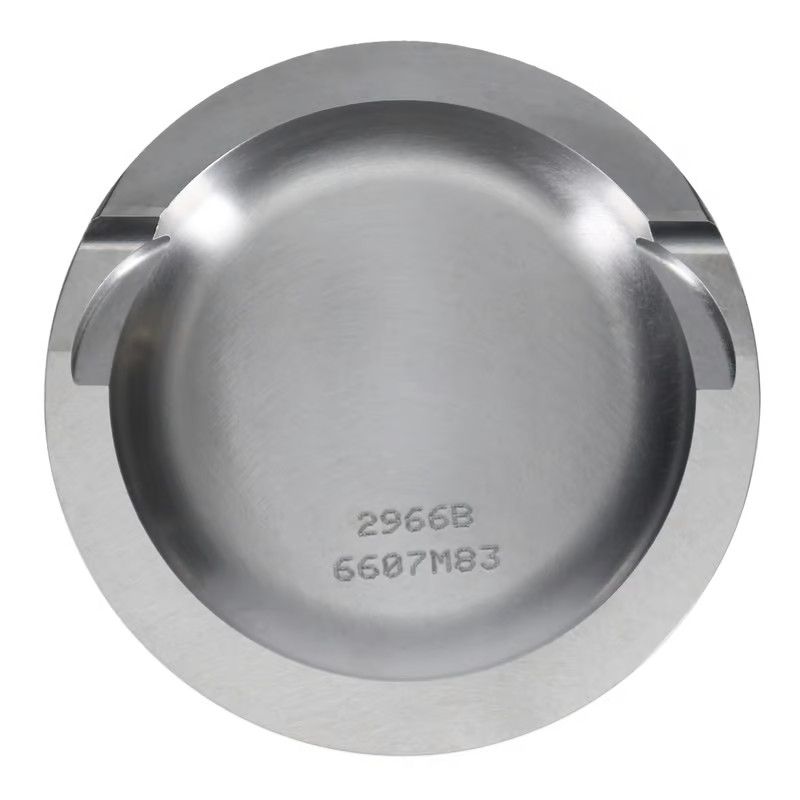

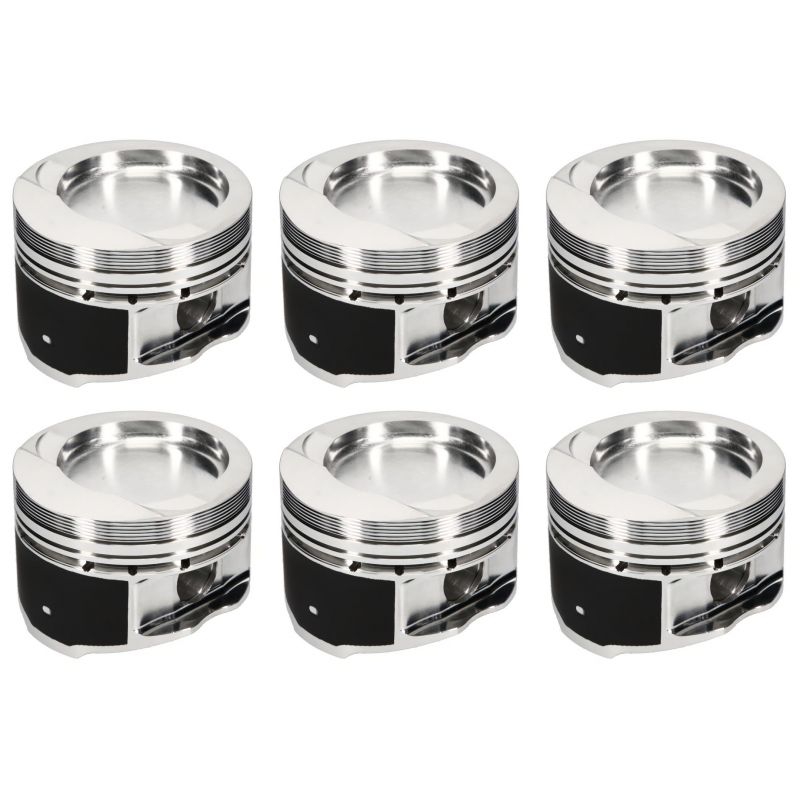

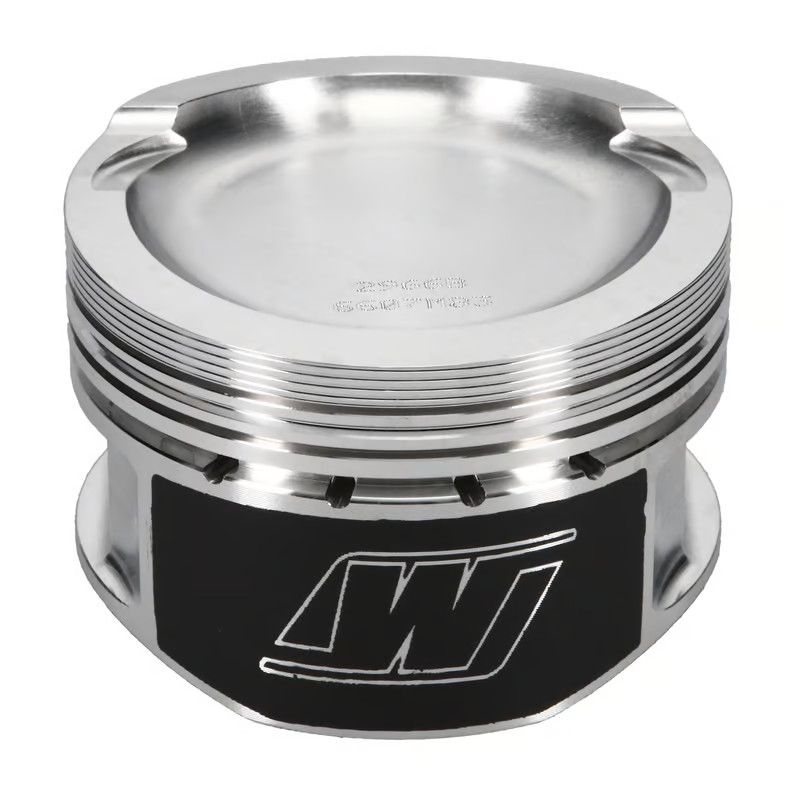

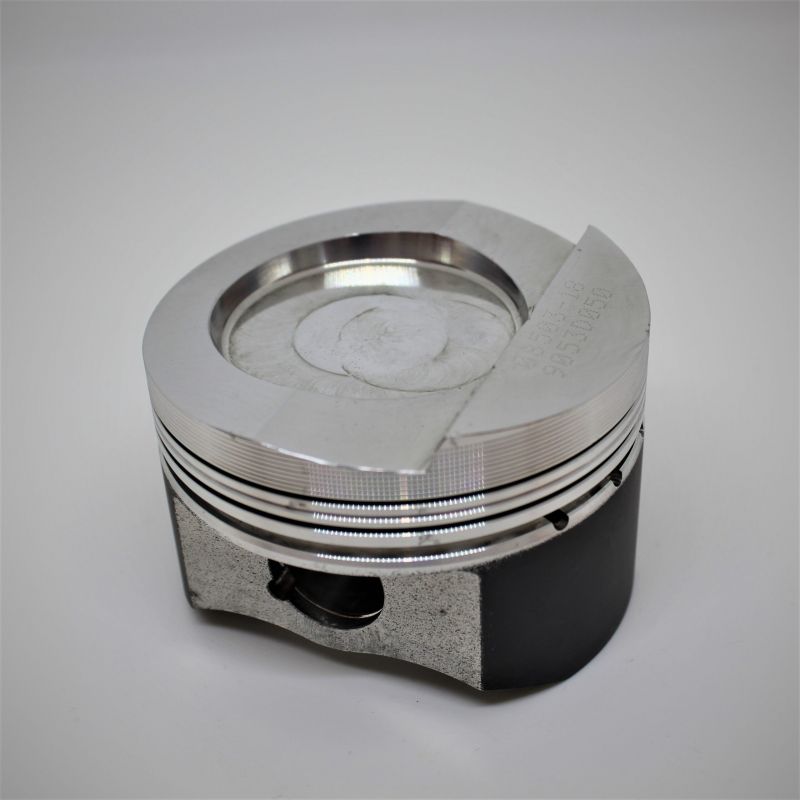

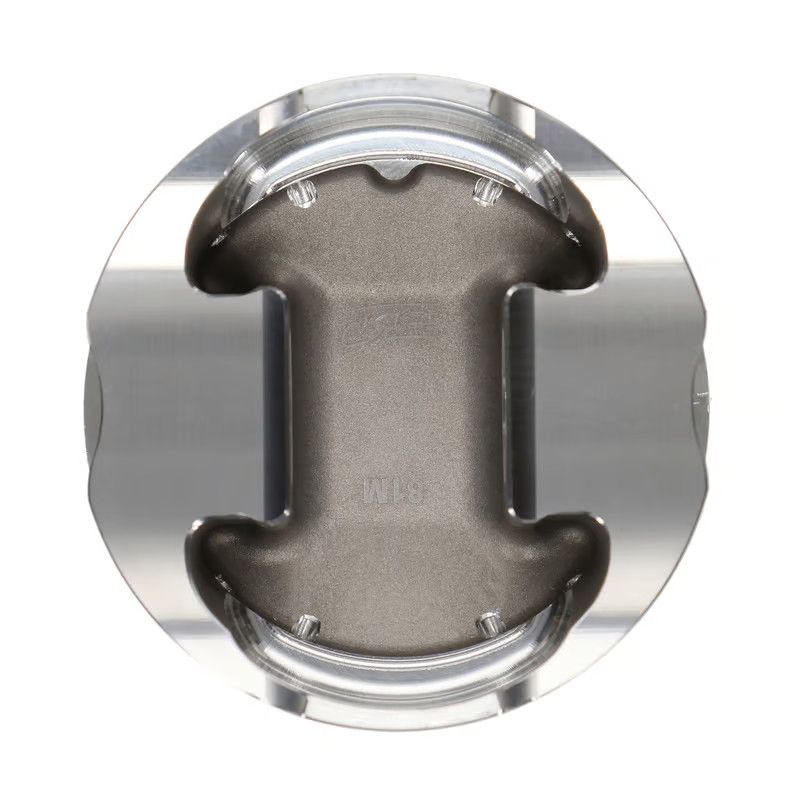

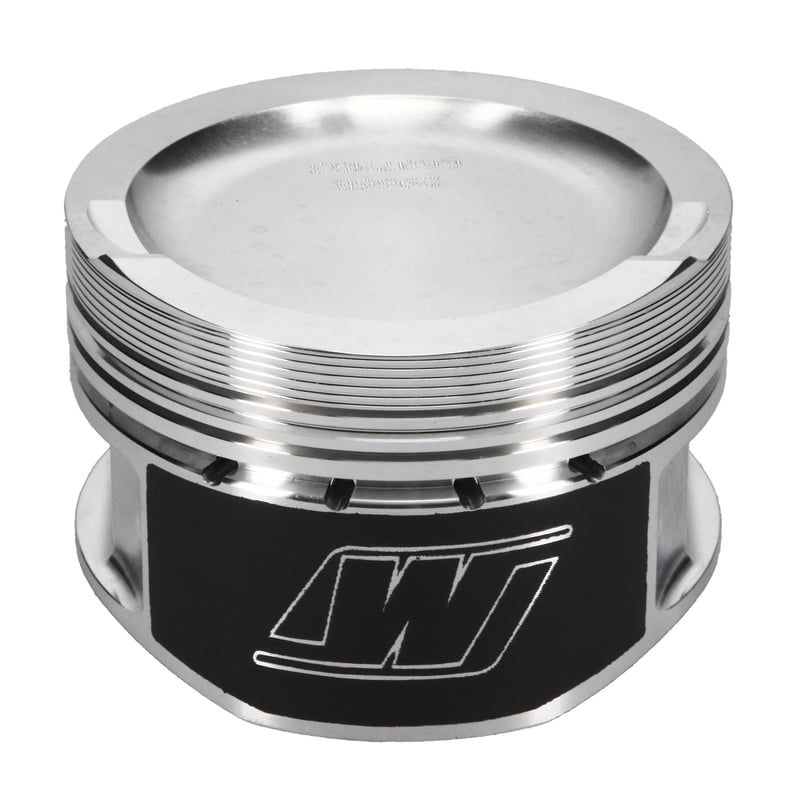

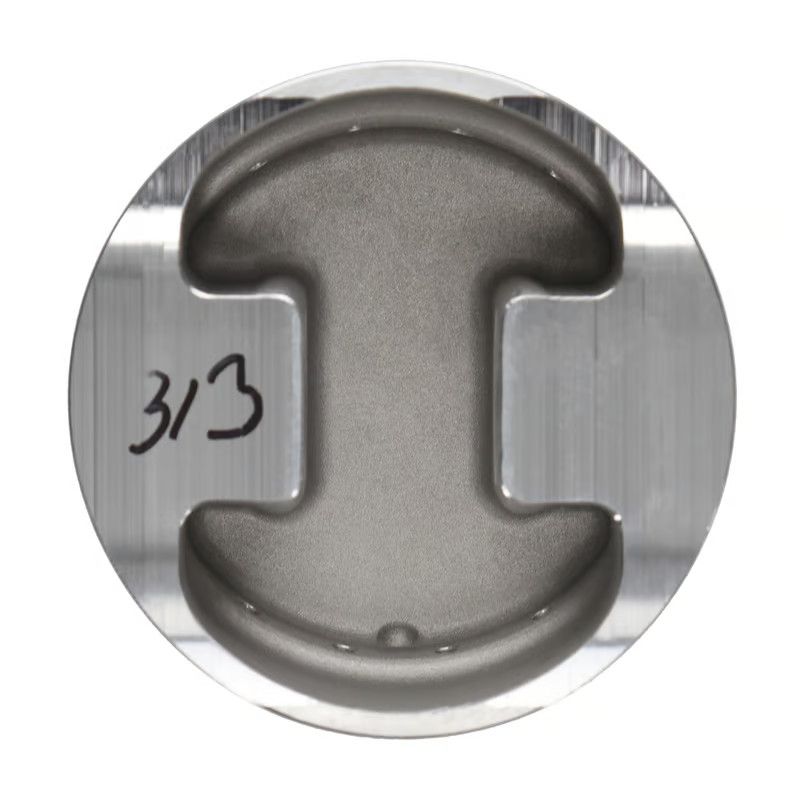

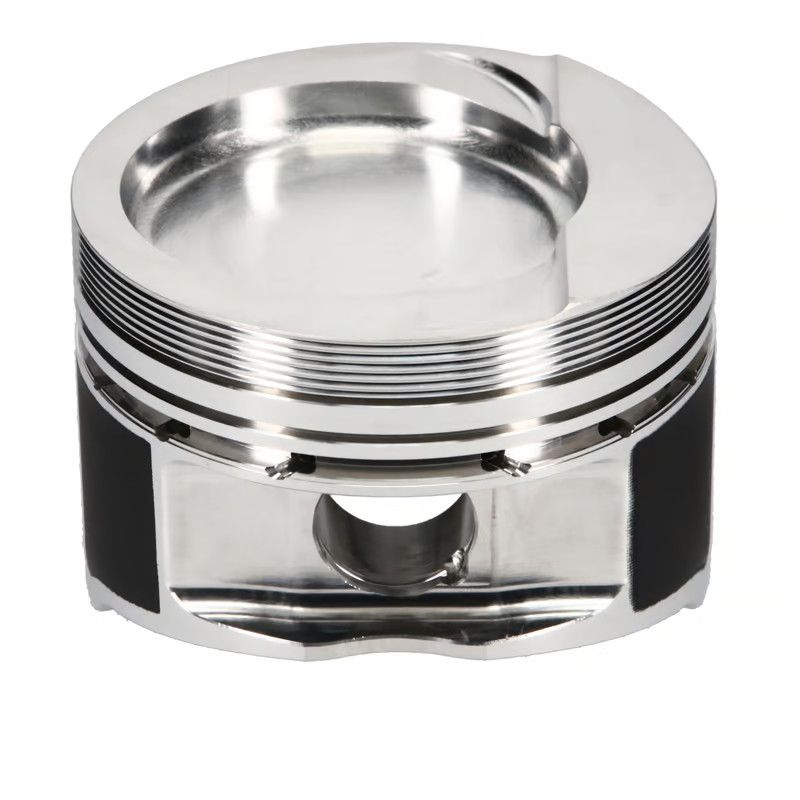

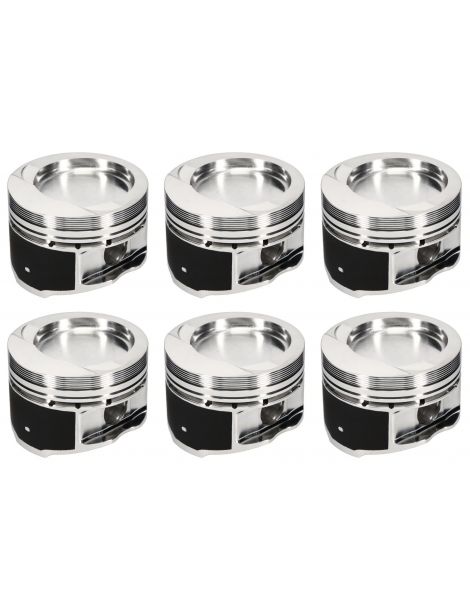

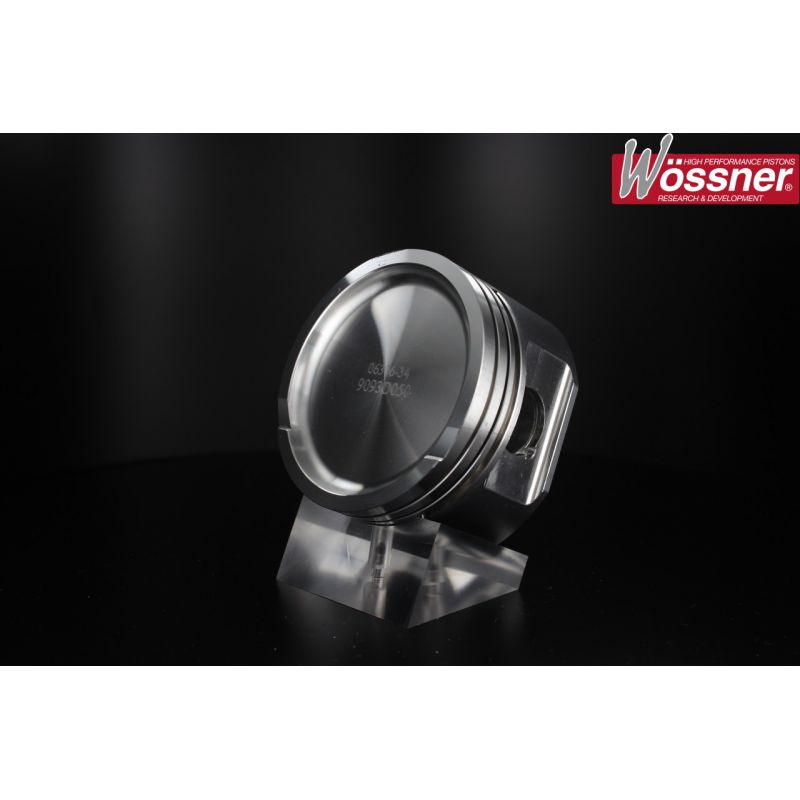

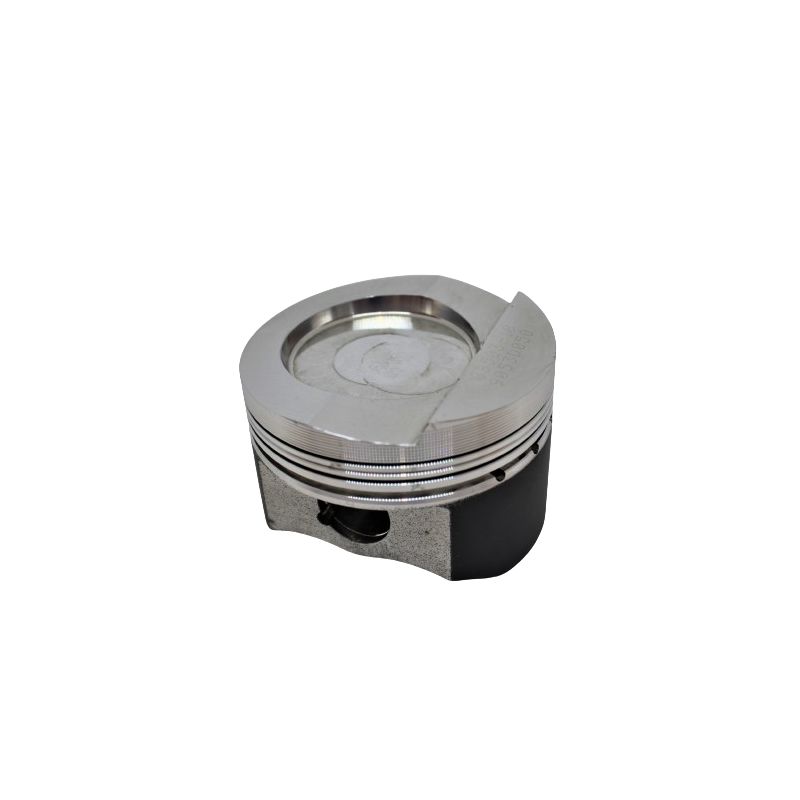

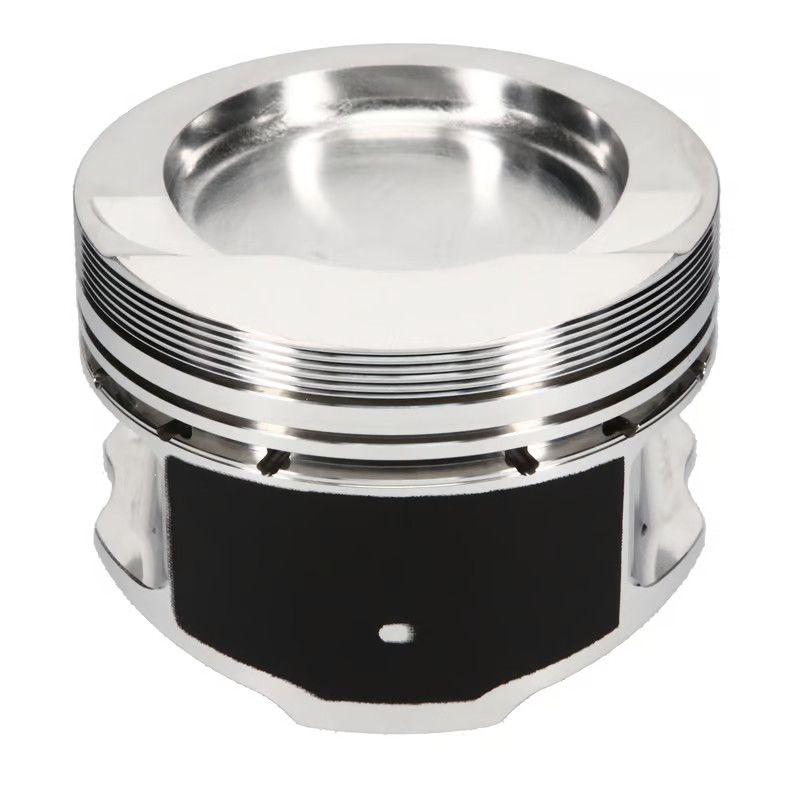

Pistones forjados 2.8/2.9L 12v VR6 VW
Pistones forjados VR6 12v 2.8/2.9: segmentos incluidos, diámetros OEM/sobremedida, bulón 20 mm, CH 31,60 mm. Compatibilidades Corrado 2.9 ABV, Golf 3 VR6, Vento/Jetta 3, Passat B4, Golf 4 (US) VR6 12v.
Características de los pistones forjados propuestos por NSB Concept para Volkswagen VR6 12 V 2.8 / 2.9 :
| Referencia | Diámetro OEM 81,00 / 82,00 mm |
RC OEM 10,0 :1 | Bulón OEM 20 mm |
Altura de compresión OEM 31,60 mm |
Gama | Tratamiento | Aluminio | Forja | Cúpula | Peso | Segmentos |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9093DA | 81.0 | 8:1 | 20.0 | 30.3 | Wossner | NC | NC | Redonda | -17.8 | NC | GNH81.00 |
| JE-369549C*6 | 81.0 | 9:1 | 20.0 | 32.39 | JE | NC | NC | NC | -26.2 | NC | NC |
| K9053DA | 81.0 | 11:1 | 20.0 | 30.3 | Wossner | NC | NC | Redonda | -2.4 | NC | GNH81.00 |
| K9093D050 | 81.5 | 8.1:1 | 20.0 | 30.3 | Wossner | NC | NC | Redonda | -17.8 | NC | GNH81.50 |
| K9053D050 | 81.5 | 11.1:1 | 20.0 | 30.3 | Wossner | NC | NC | Redonda | -2.4 | NC | GNH81.50 |
| K9093D100 | 82.0 | 8.2:1 | 20.0 | 30.3 | Wossner | NC | NC | Redonda | -17.8 | NC | GNH82.00 |
| JE-186235 | 82.0 | 9:1 | 20.0 | 32.39 | JE Round | NC | 2618 | Redonda | -26.2 | 304.0 | NC |
| WK608M82 | 82.0 | 9:1 | 0.04 | 32.38 | Wiseco | Falda | 2618 | NC | -26.2 | NC | 8200XX |
| JE-186237 | 82.0 | 10:1 | 20.0 | 32.39 | JE Round | NC | 2618 | Redonda | -17.3 | 296.0 | NC |
| WK607M82 | 82.0 | 10.5:1 | 0.04 | 32.38 | Wiseco | Falda | 2618 | NC | -17.3 | NC | 8200XX |
| K9053D100 | 82.0 | 11.2:1 | 20.0 | 30.3 | Wossner | NC | NC | Redonda | -2.4 | NC | GNH82.00 |
| K9093D150 | 82.5 | 8.3:1 | 20.0 | 30.3 | Wossner | NC | NC | Redonda | -17.8 | NC | GNH82.50 |
| WK608M825 | 82.5 | 9:1 | 0.06 | 32.38 | Wiseco | Falda | 2618 | NC | -26.2 | NC | 8250XX |
| WK607M825 | 82.5 | 10.5:1 | 0.06 | 32.38 | Wiseco | Falda | 2618 | NC | -17.3 | NC | 8250XX |
| K9053D150 | 82.5 | 11.4:1 | 20.0 | 30.3 | Wossner | NC | NC | Redonda | -2.4 | NC | GNH82.50 |
| K9093D200 | 83.0 | 8.4:1 | 20.0 | 30.3 | Wossner | NC | NC | Redonda | -17.8 | NC | GNH83.00 |
| JE-186236 | 83.0 | 9:1 | 20.0 | 32.39 | JE Round | NC | 2618 | Redonda | -26.2 | 306.0 | NC |
| WK608M83 | 83.0 | 9:1 | 0.08 | 32.38 | Wiseco | Falda | 2618 | NC | -26.2 | NC | 8300XX |
| JE-186238 | 83.0 | 10:1 | 20.0 | 32.39 | JE Round | NC | 2618 | Redonda | -17.3 | 306.0 | NC |
| WK607M83 | 83.0 | 10.5:1 | 0.08 | 32.38 | Wiseco | Falda | 2618 | NC | -17.3 | NC | 8300XX |
| K9053D200 | 83.0 | 11.5:1 | 20.0 | 30.3 | Wossner | NC | NC | Redonda | -2.4 | NC | GNH83.00 |
| K9093D250 | 83.5 | 8.4:1 | 20.0 | 30.3 | Wossner | NC | NC | Redonda | -17.8 | NC | GNH83.50 |
| K9053D250 | 83.5 | 11.6:1 | 20.0 | 30.3 | Wossner | NC | NC | Redonda | -2.4 | NC | GNH83.50 |
Compatibilidades (códigos de motor) :
- VR6 2.8 12v : AAA (Golf/Jetta/Passat), AFP (US Mk4)
- VR6 2.9 12v : ABV (Corrado)
Vehículos de origen equipados con los VR6 12v 2.8 / 2.9 :
| Marca | Modelo | Código de motor | Potencia | Años |
|---|---|---|---|---|
| Volkswagen | Corrado VR6 2.9 | ABV | 190 CV | 1991 – 1995 |
| Volkswagen | Golf III (1H) VR6 2.8 | AAA | 174 CV | 1991 – 1997 |
| Volkswagen | Golf IV (US) VR6 2.8 12v | AFP | 172–174 CV | 1999 – 2002 |
| Volkswagen | Jetta III / Vento VR6 2.8 | AAA | 174 CV | 1992 – 1998 |
| Volkswagen | Passat B4 (3A/35i) VR6 2.8 | AAA | 174 CV | 1993 – 1997 |
Referencias de pistones OEM :
- Volkswagen VR6 2.8 12v (AAA/AFP) – pistones OEM : 021 107 065 xx (familia 021).
- Volkswagen VR6 2.9 12v (ABV) – pistones OEM : 021 107 065 xx (diámetro 82,00 mm).
Atención: Antes de cualquier montaje, compruebe obligatoriamente la integridad y conformidad de cada componente del kit de pistones, así como la conformidad del ensamblaje en el motor; cualquier garantía eventual se limita estrictamente a las piezas del kit de pistones.
