2.5L 24v - 1JZ-GTE
Marcas
2.5L 24v - 1JZ-GTE
Advertencia: ¡Últimos artículos en inventario!
Nuevo producto

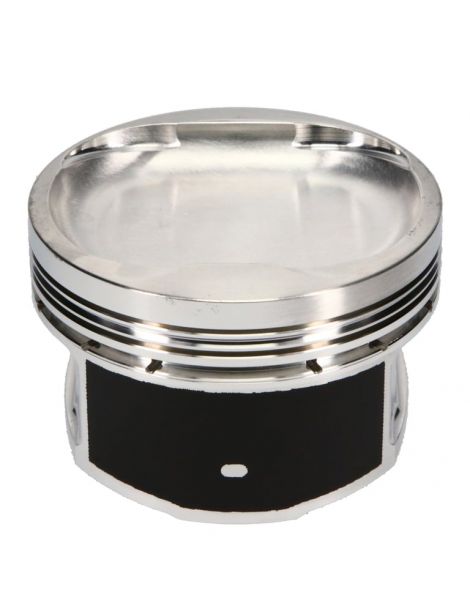

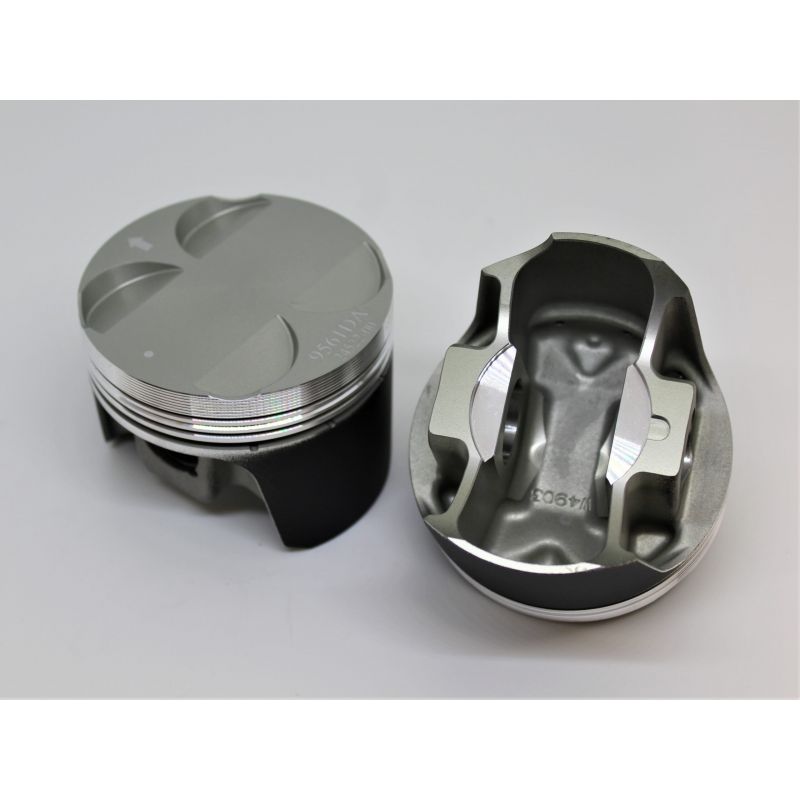

pistones forjados Toyota 1JZ-GTE 2.5L: O86 (opciones), Bulon 22 mm, CH 34,0 mm. Tabla ordenada, compatibilidades y vehiculos JZA70, JZX90/100/110, JZZ30, JZS171. Refs originales incluidas.
Caracteristicas de los pistones forjados que ofrece NSB Concept para Toyota 2.5 L 24 V 1JZ GTE:
| Referencia | OEM del diametro 86,00 mm | Relacion volumetrica de origen 8,5 9.0:1 | OEM Bulon 22mm | Altura Bulon OEM 34,0 mm | Gama | Tratamiento | Aluminio | Forja | Cupula | Peso | segmentoooos |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9291DA | 86.00 | 7.9:1 | 22.0 | 34 | Wossner | NC | NC | Round | -9,8 | NC | 860XPY |
| K9560DA | 86.00 | 8:1 | NC | 34 | Wossner | NC | NC | Slipper | -9,8 | NC | 86,00 GNH |
| JE-361451 | 86.00 | 9:1 | 22.0 | 34 | JE FSR | NC | 2618 | FSR | -3.2 | NC | NC |
| K9561DA | 86.00 | 9:1 | NC | 34 | Wossner | NC | NC | Slipper | -4.4 | NC | 86,00 GNH |
| JE-361452 | 86.25 | 9:1 | 22.0 | 34 | JE FSR | NC | 2618 | FSR | -3.5 | NC | NC |
| K9291D050 | 86.50 | 7.9:1 | 22.0 | 34 | Wossner | NC | NC | Round | -9,8 | NC | 865XPY |
| K9560D050 | 86.50 | 8.1:1 | NC | 34 | Wossner | NC | NC | Slipper | -9,8 | NC | 86,50 GNH |
| JE-361453 | 86.50 | 9:1 | 22.0 | 34 | JE FSR | NC | 2618 | FSR | -3.7 | NC | NC |
| K9561D050 | 86.50 | 9.1:1 | NC | 34 | Wossner | NC | NC | Slipper | -4.4 | NC | 86,50 GNH |
| K9291D100 | 87.00 | 8:1 | 22.0 | 34 | Wossner | NC | NC | Round | -9,8 | NC | 870XPY |
| K9560D100 | 87.00 | 8.2:1 | NC | 34 | Wossner | NC | NC | Slipper | -9,8 | NC | 87,00 GNH |
| JE-361454 | 87.00 | 9:1 | 22.0 | 34 | JE FSR | NC | 2618 | FSR | -4.2 | NC | NC |
| K9561D100 | 87.00 | 9.2:1 | NC | 34 | Wossner | NC | NC | Slipper | -4.4 | NC | 87,00 GNH |
COMPATIBILIDADES (codigos de motor):
Vehiculos originales equipados con 1JZ GTE:
| Marca | Modelo | codigo de motor | Potencia | Anos |
|---|---|---|---|---|
| Toyota | Chaser Tourer V (JZX100) | 1JZ GTE (VVT i) | 280 CV | 1996 2001 |
| Toyota | Chaser Tourer V (JZX90) | 1JZ GTE | 280 CV | 1992 1996 |
| Toyota | Cresta GT Twin turbo / Tourer V (JZX90/JZX100) | 1JZ GTE | 280 CV | 1992 2001 |
| Toyota | Atleta de la Corona V (JZS171/JZS171W) | 1JZ GTE (VVT i) | 280 CV | 1999 2003 (vagon hasta 2003) |
| Toyota | Mark II Blit iR V (JZX110W) | 1JZ GTE (VVT i) | 280 CV | 2002 2006 |
| Toyota | Mark II Tourer V (JZX100) | 1JZ GTE (VVT i) | 280 CV | 1996 2000 |
| Toyota | Mark II Tourer V (JZX90) | 1JZ GTE | 280 CV | 1992 1996 |
| Toyota | Soarer 2.5 GT Twinturbo (JZZ30) | 1JZ GTE | 280 CV | 1991 2000 |
| Toyota | Supra 2.5 Doble turbo (JZA70) | 1JZ GTE | 280 CV | 1990 1993 |
| Toyota | VeRossa VR25 (JZX110) | 1JZ GTE (VVT i) | 280 CV | 2001 2004 |
Referencias del fabricante del piston (OEM):
Referencias a confirmar via EPC segun VIN, anada, calificacion (A/B/C) y posible correccion.
Atencion :antes de cualquier montaje, comprobar la integridad y la conformidad de cada componente del kit de pistones, asi como la conformidad del conjunto en el motor; cualquier garantia posible esta estrictamente limitada unilevante a las piezas del kit de piston.
