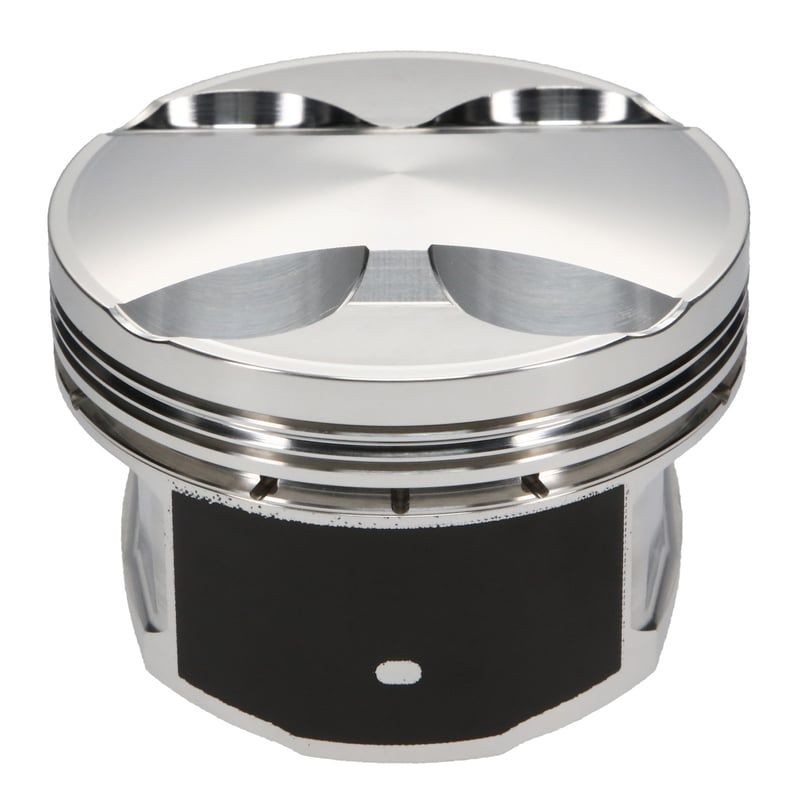

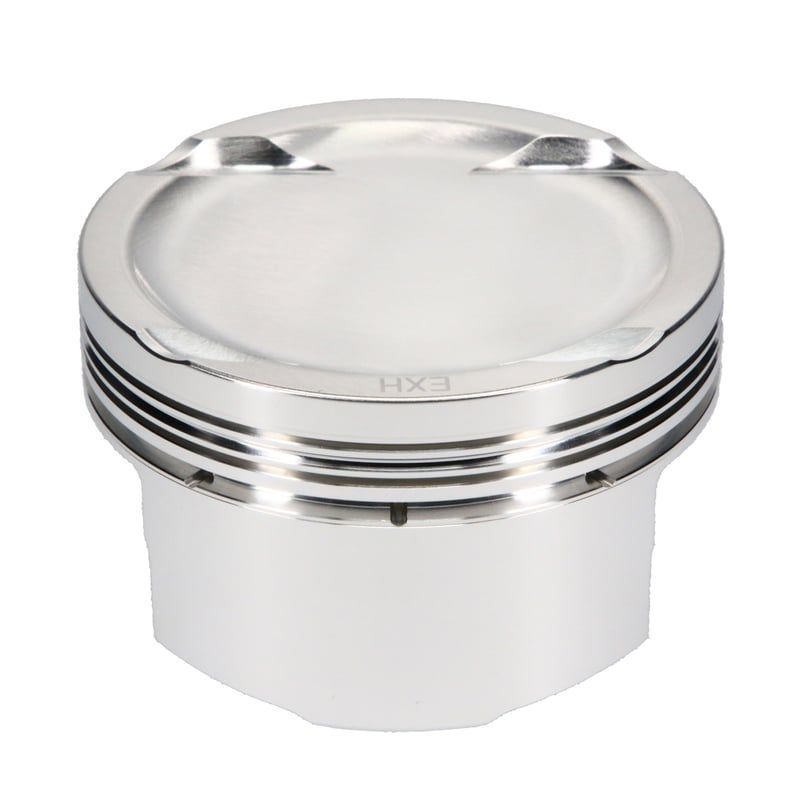

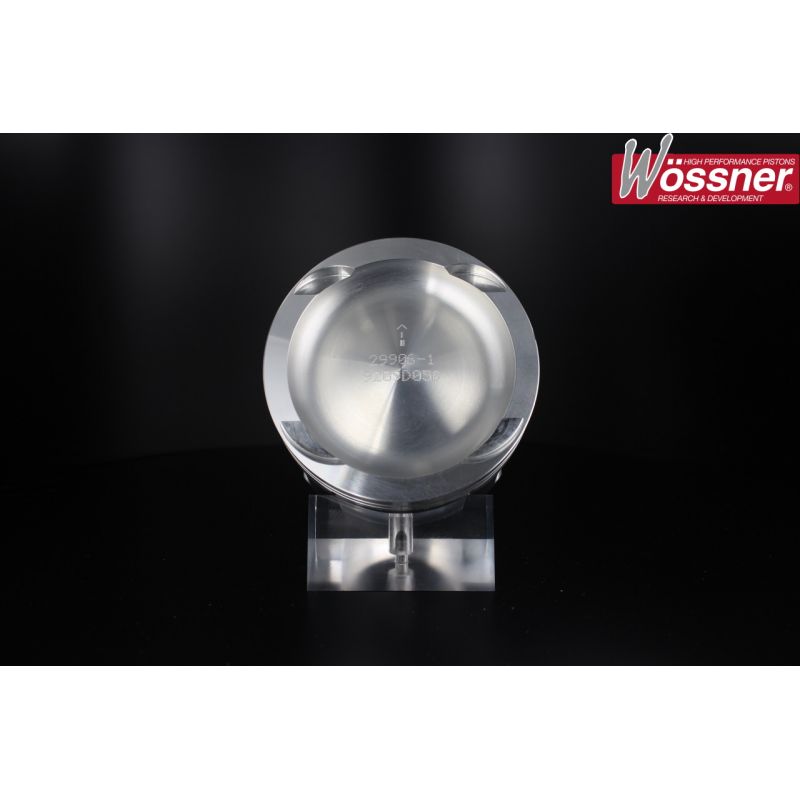

Pistones forjados Honda F20C 2,0 L (S2000 AP1) - diámetros 87-90 mm, RV 8,5-12,6:1, bulón 23 mm. Gamas JE FSR, JE Round, Wiseco, Wiseco AP, Wössner. Datos técnicos, compatibilidades y referencias OEM.
Características de los pistones forjados propuestos por NSB Concept para Honda 2.0 L 16 v F20C :
| Referencia Pistón | Diámetro (mm) OEM: 87,5 | RC OEM: 8,5 :1 | Bulón (mm) OEM: 23 | Altura de compresión (mm) OEM: 30 | Gama | Aluminio | Tratamiento | Forja | Cúpula (cc) | Peso (g) | Segmentos |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-296910 | 87 | 8,5 :1 | 23 | 30 | JE FSR | 2618 | NC | FSR | -15,4 | 300 | NC |
| WK632M87 | 87 | 8,5 :1 | 23 | 28,98 | Wiseco | 2618 | Falda | NC | -10 | NC | 8700XX |
| K9209DA | 87 | 8,5 :1 | 23 | 30 | Wossner | NC | NC | Redonda | -13,7 | NC | 870XTY |
| K9562DA | 87 | 8,5 :1 | 23 | 30 | Wossner | NC | NC | Slipper | -10 | NC | GNH87.00 |
| JE-296908 | 87 | 9 :1 | 23 | 30 | JE FSR | 2618 | NC | FSR | -10,3 | 305 | NC |
| K9435DA | 87 | 9 :1 | 23 | 30 | Wossner | NC | NC | Redonda | -9,4 | NC | 870XPY |
| JE-252607 | 87 | 11,5 :1 | 23 | 30 | JE Round | 2618 | NC | Redonda | 5,5 | 320 | NC |
| K9208DA | 87 | 11,7 :1 | 23 | 30 | Wossner | NC | NC | Redonda | 9,4 | NC | 870XSY |
| K9563DA | 87 | 12 :1 | 23 | 30 | Wossner | NC | NC | Slipper | 7 | NC | GNH87.00 |
| JE-361361 | 87 | 12,6 :1 | 23 | 30 | JE FSR | 2618 | NC | FSR | 8,9 | NC | NC |
| JE-296911 | 87,5 | 8,5 :1 | 23 | 30 | JE FSR | 2618 | NC | FSR | -16,1 | 304 | NC |
| WK632M875 | 87,5 | 8,5 :1 | 23 | 28,98 | Wiseco | 2618 | Falda | NC | -10 | NC | 8750XX |
| K9209D050 | 87,5 | 8,5 :1 | 23 | 30 | Wossner | NC | NC | Redonda | -13,7 | NC | 875XTY |
| K9562D050 | 87,5 | 8,6 :1 | 23 | 30 | Wossner | NC | NC | Slipper | -10 | NC | GNH87.50 |
| JE-296909 | 87,5 | 9 :1 | 23 | 30 | JE FSR | 2618 | NC | FSR | -11 | 309 | NC |
| K9435D050 | 87,5 | 9,1 :1 | 23 | 30 | Wossner | NC | NC | Redonda | -9,4 | NC | 875XPY |
| WK682M875 | 87,5 | 11 :1 | 23 | 28,98 | Wiseco | 2618 | Falda | NC | 7 | NC | 8750XX |
| WK682M875AP | 87,5 | 11 :1 | 23 | 28,98 | Wiseco AP | 2618 | Falda | NC | 7 | NC | 8750XX |
| K9208D050 | 87,5 | 11,8 :1 | 23 | 30 | Wossner | NC | NC | Redonda | 9,4 | NC | 875XSY |
| K9563D050 | 87,5 | 12,1 :1 | 23 | 30 | Wossner | NC | NC | Slipper | 7 | NC | GNH87.50 |
| JE-361362 | 87,5 | 12,6 :1 | 23 | 30 | JE FSR | 2618 | NC | FSR | 8,4 | NC | NC |
| JE-317754 | 88 | 8,5 :1 | 23 | 30 | JE FSR | 2618 | NC | FSR | -16,9 | 311 | NC |
| K9209D100 | 88 | 8,5 :1 | 23 | 30 | Wossner | NC | NC | Redonda | -13,7 | NC | 880XTY |
| K9562D100 | 88 | 8,7 :1 | 23 | 30 | Wossner | NC | NC | Slipper | -10 | NC | GNH88.00 |
| JE-317750 | 88 | 9 :1 | 23 | 30 | JE FSR | 2618 | NC | FSR | -11,8 | 312 | NC |
| K9435D100 | 88 | 9,2 :1 | 23 | 30 | Wossner | NC | NC | Redonda | -9,4 | NC | 880XPY |
| K9208D100 | 88 | 12 :1 | 23 | 30 | Wossner | NC | NC | Redonda | 9,4 | NC | 880XSY |
| K9563D100 | 88 | 12,2 :1 | 23 | 30 | Wossner | NC | NC | Slipper | 7 | NC | GNH88.00 |
| JE-361363 | 88 | 12,6 :1 | 23 | 30 | JE FSR | 2618 | NC | FSR | 7,9 | NC | NC |
| JE-317755 | 89 | 8,5 :1 | 23 | 30 | JE FSR | 2618 | NC | FSR | -18,4 | 314 | NC |
| WK632M89 | 89 | 8,5 :1 | 23 | 28,98 | Wiseco | 2618 | Falda | NC | -10 | NC | 8900XX |
| K9209D200 | 89 | 8,5 :1 | 23 | 30 | Wossner | NC | NC | Redonda | -13,7 | NC | 890XTY |
| K9562D200 | 89 | 8,8 :1 | 23 | 30 | Wossner | NC | NC | Slipper | -10 | NC | GNH89.00 |
| JE-317751 | 89 | 9 :1 | 23 | 30 | JE FSR | 2618 | NC | FSR | -13,2 | 318 | NC |
| K9435D200 | 89 | 9,4 :1 | 23 | 30 | Wossner | NC | NC | Redonda | -9,4 | NC | 890XPY |
| WK682M89 | 89 | 11 :1 | 23 | 28,98 | Wiseco | 2618 | Falda | NC | 7 | NC | 8900XX |
| WK682M89AP | 89 | 11 :1 | 23 | 28,98 | Wiseco AP | 2618 | Falda | NC | 7 | NC | 8900XX |
| JE-361364 | 89 | 12,6 :1 | 23 | 30 | JE FSR | 2618 | NC | FSR | 7 | NC | NC |
| JE-317756 | 90 | 8,5 :1 | 23 | 30 | JE FSR | 2618 | NC | FSR | -20 | 333 | NC |
| K9209D300 | 90 | 8,5 :1 | 23 | 30 | Wossner | NC | NC | Redonda | -13,7 | NC | 900XTY |
| K9562D300 | 90 | 8,9 :1 | 23 | 30 | Wossner | NC | NC | Slipper | -10 | NC | GNH90.00 |
| JE-317752 | 90 | 9 :1 | 23 | 30 | JE FSR | 2618 | NC | FSR | -14,6 | 324 | NC |
| K9435D300 | 90 | 9,6 :1 | 23 | 30 | Wossner | NC | NC | Redonda | -9,4 | NC | 900XPY |
| JE-361365 | 90 | 12,6 :1 | 23 | 30 | JE FSR | 2618 | NC | FSR | 6 | NC | NC |
Compatibilidades motor :
| Marca | Modelo | chasis | Código de motor | Potencia (CV) | Años |
|---|---|---|---|---|---|
| Honda | S2000 (AP1 – EU/JP) | AP1 | F20C | 240 | 1999 – 2003 |
| Honda | S2000 (AP1 – US) | AP1 | F20C | 237 | 2000 – 2003 |
Referencias pistones fabricantes (OEM) :
Atención: Antes de cualquier montaje, compruebe obligatoriamente la integridad y conformidad de cada componente del kit de pistones, así como la conformidad del ensamblaje en el motor; cualquier garantía eventual se limita estrictamente a las piezas del kit de pistones.
