2,0 l 16V - Cosworth YB N5
Hersteller
2,0 l 16V - Cosworth YB N5
Achtung: Letzte verfügbare Teile!
Neuer Artikel

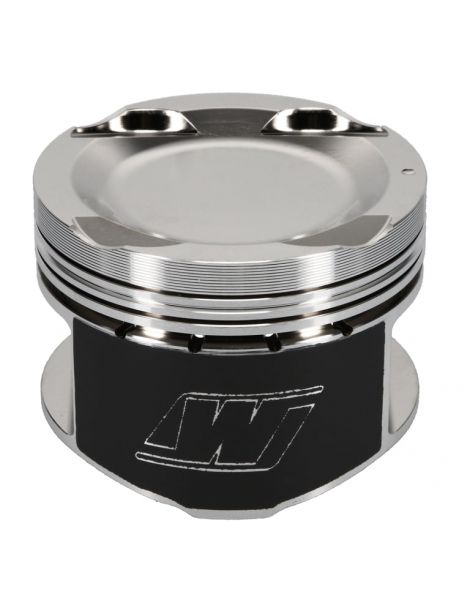

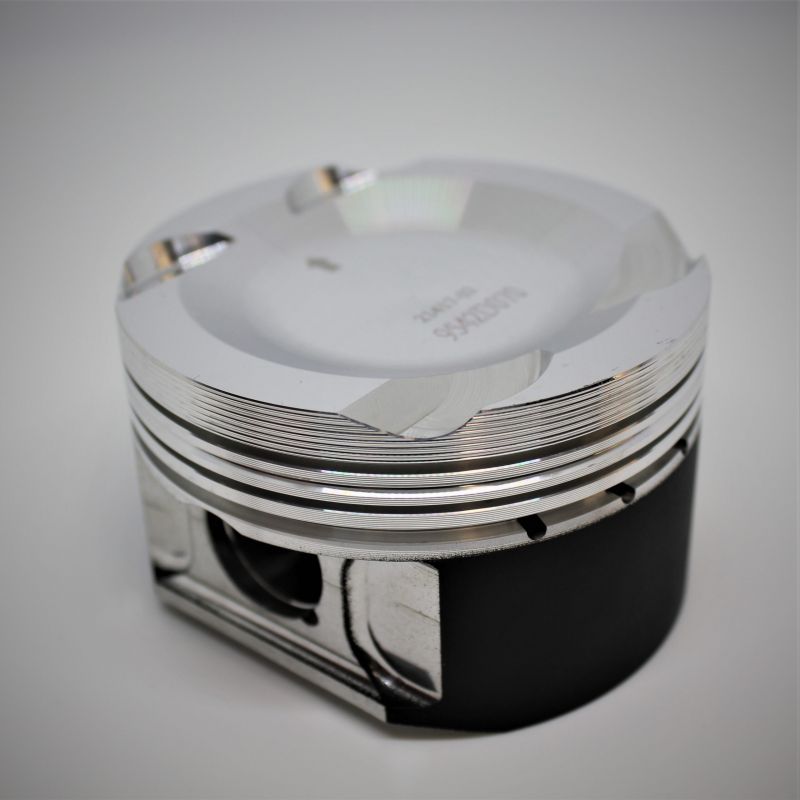

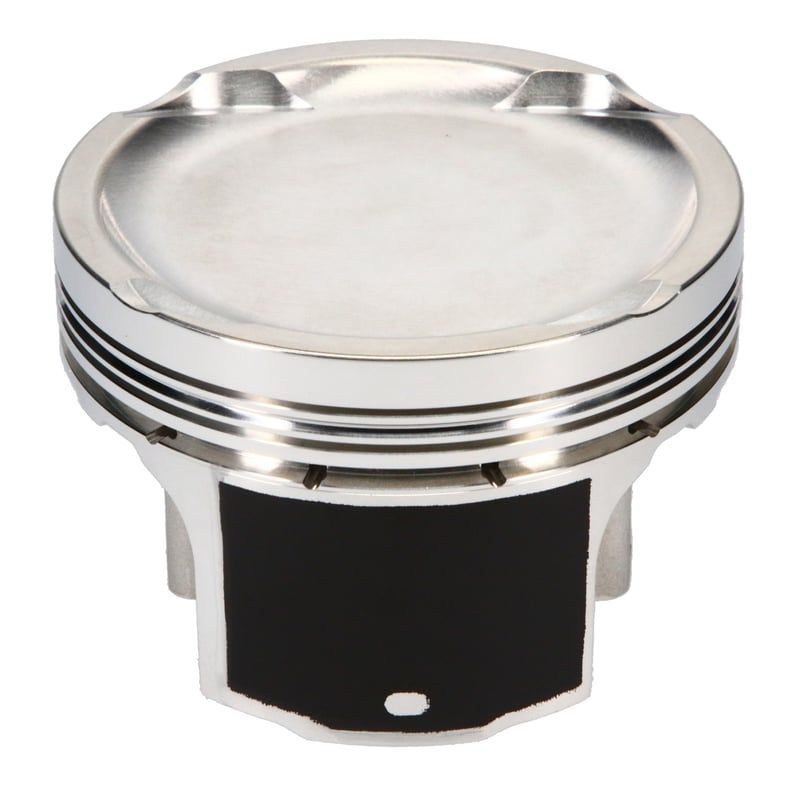

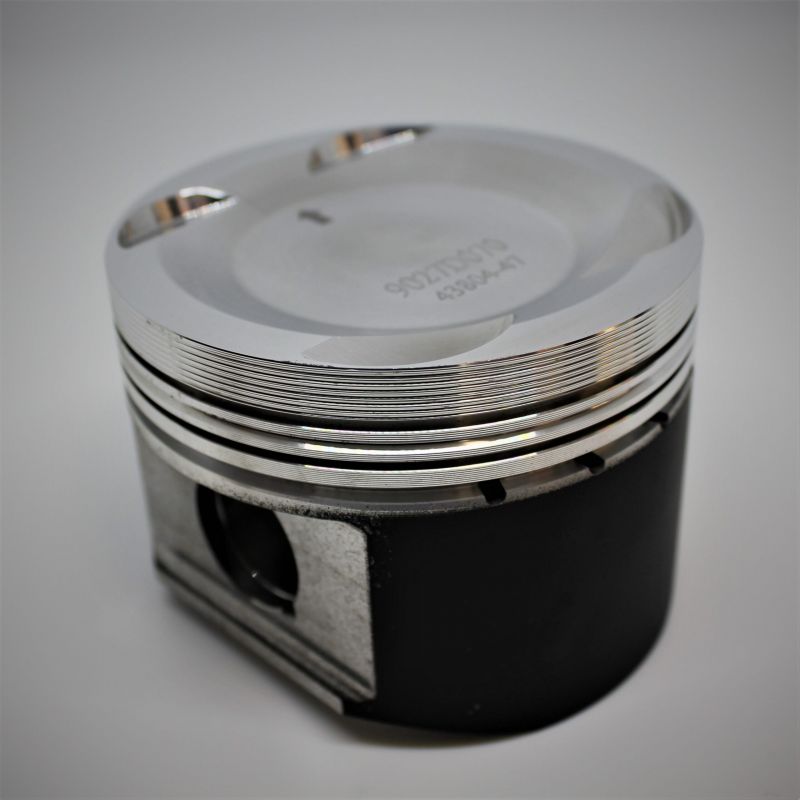

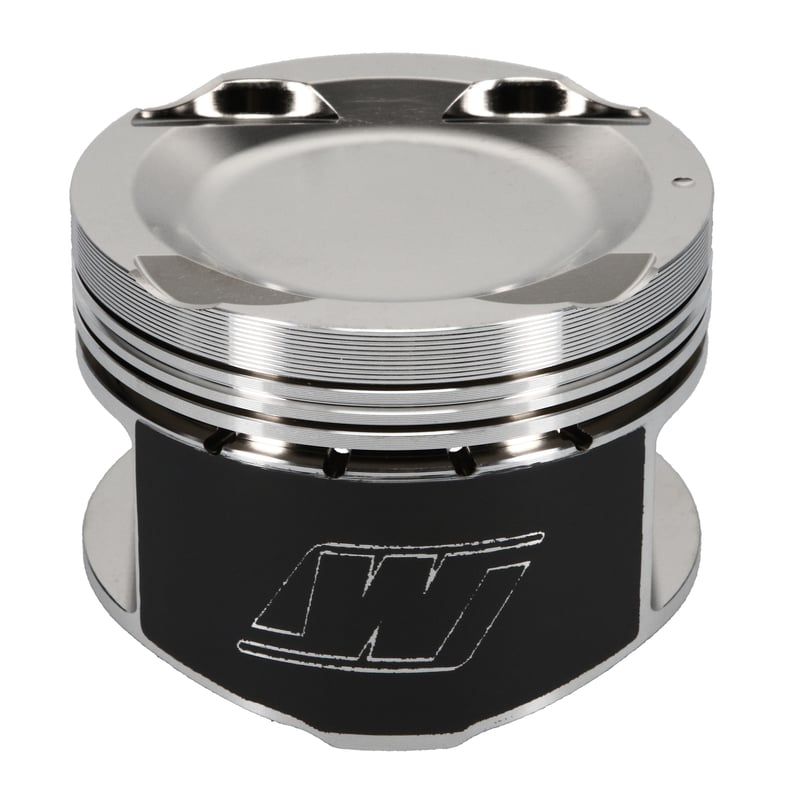

Satz 4 Schmiedekolben JE, Wiseco & Wössner für Ford Cosworth YB 2.0 L 16 v turbo : Bohrungen 90,82 - 94,00 mm, RV 8,0 - 13,0 :1, Bolzen 24 mm, Kolbenringe mitgeliefert auf kits Wiseco/Wössner.
Eigenschaften der Schmiedekolben angeboten von NSB Concept für Motoren Ford Cosworth YB 2,0 L 16 v turbo :
| Referenz | Bohrung (mm) | Verdichtung | Kolbenbolzen (mm) | Kompressionshöhe (mm) | Produktlinie | Beschichtung | Aluminium | Forging | Volume Dom (cc) | Gewicht (g) | Kolbenringe |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-322459 | 90.82 | 8:1 | 24 | 40.75 | JE FSR | NC | 2618 | FSR | -20 | 378 | NC |

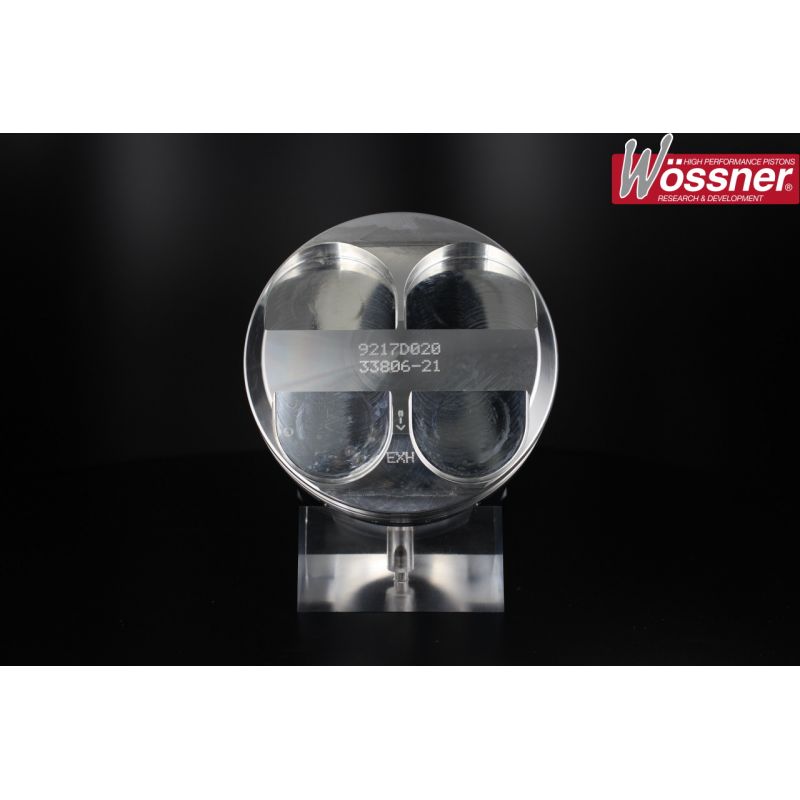

| K9217D020 | 91 | 12.5:1 | 24 | 40.5 | Wossner | NC | NC | Round | 11.6 | NC | 910XSY |
| K9393D020 | 91 | 12.5:1 | 24 | 33 | Wossner | NC | NC | Round | 11.6 | NC | 910XSY |
| JE-322460 | 91 | 8:1 | 24 | 40.75 | JE FSR | NC | 2618 | FSR | -20 | 378 | NC |
| WKE103M91AP | 91 | 8:1 | 24 | 40.8 | Wiseco AP | Hemd | 2618 | NC | -20.2 | NC | 9100XX |
| JE-322461 | 91.25 | 8:1 | 24 | 40.75 | JE FSR | NC | 2618 | FSR | -20 | 380 | NC |
| WKE103M9125AP | 91.25 | 8:1 | 24 | 40.8 | Wiseco AP | Hemd | 2618 | NC | -20.2 | NC | 9125XX |
| K9217D045 | 91.25 | 12.6:1 | 24 | 40.5 | Wossner | NC | NC | Round | 11.6 | NC | 912XPY |
| K9393D045 | 91.25 | 12.6:1 | 24 | 33 | Wossner | NC | NC | Round | 11.6 | NC | 912XPY |
| JE-312408 | 91.25 | 8:1 | 24 | 40.75 | JE Round | NC | 2618 | Round | NC | 413 | NC |
| JE-322462 | 91.5 | 8:1 | 24 | 40.75 | JE FSR | NC | 2618 | FSR | -20 | 383 | NC |
| WKE103M915AP | 91.5 | 8:1 | 24 | 40.8 | Wiseco AP | Hemd | 2618 | NC | -20.2 | NC | 9150XX |
| K9009D070 | 91.5 | 8:1 | 24 | 40.75 | Wossner | NC | NC | Round | -17.5 | NC | 915XPY |
| K9027D070 | 91.5 | 8.2:1 | 24 | 40.75 | Wossner | NC | NC | Round | -17.5 | NC | 915XPY |
| JE-322463 | 91.8 | 8:1 | 24 | 40.75 | JE FSR | NC | 2618 | FSR | -20 | 387 | NC |
| WKE103M918AP | 91.8 | 8:1 | 24 | 40.8 | Wiseco AP | Hemd | 2618 | NC | -20.2 | NC | 9180XX |
| K9009D100 | 91.8 | 8:1 | 24 | 40.75 | Wossner | NC | NC | Round | -20.1 | NC | 918XPY |
| K9027D100 | 91.8 | 8.2:1 | 24 | 40.75 | Wossner | NC | NC | Round | -20.1 | NC | 918XPY |
| JE-322462 | 92 | 8:1 | 24 | 40.75 | JE FSR | NC | 2618 | FSR | -20 | 386 | NC |
| WKE103M92AP | 92 | 8:1 | 24 | 40.8 | Wiseco AP | Hemd | 2618 | NC | -20.2 | NC | 9200XX |
| K9009D120 | 92 | 8:1 | 24 | 40.75 | Wossner | NC | NC | Round | -20.1 | NC | 920XPY |
| K9027D120 | 92 | 8.2:1 | 24 | 40.75 | Wossner | NC | NC | Round | -20.1 | NC | 920XPY |
| JE-322463 | 92.2 | 8:1 | 24 | 40.75 | JE FSR | NC | 2618 | FSR | -20 | 388 | NC |
| WKE103M922AP | 92.2 | 8:1 | 24 | 40.8 | Wiseco AP | Hemd | 2618 | NC | -20.2 | NC | 9220XX |
| K9009D140 | 92.2 | 8:1 | 24 | 40.75 | Wossner | NC | NC | Round | -20.1 | NC | 922XPY |
| K9027D140 | 92.2 | 8.2:1 | 24 | 40.75 | Wossner | NC | NC | Round | -20.1 | NC | 922XPY |
| JE-322463 | 92.5 | 8:1 | 24 | 40.75 | JE FSR | NC | 2618 | FSR | -20 | 390 | NC |
| WKE103M925AP | 92.5 | 8:1 | 24 | 40.8 | Wiseco AP | Hemd | 2618 | NC | -20.2 | NC | 9250XX |

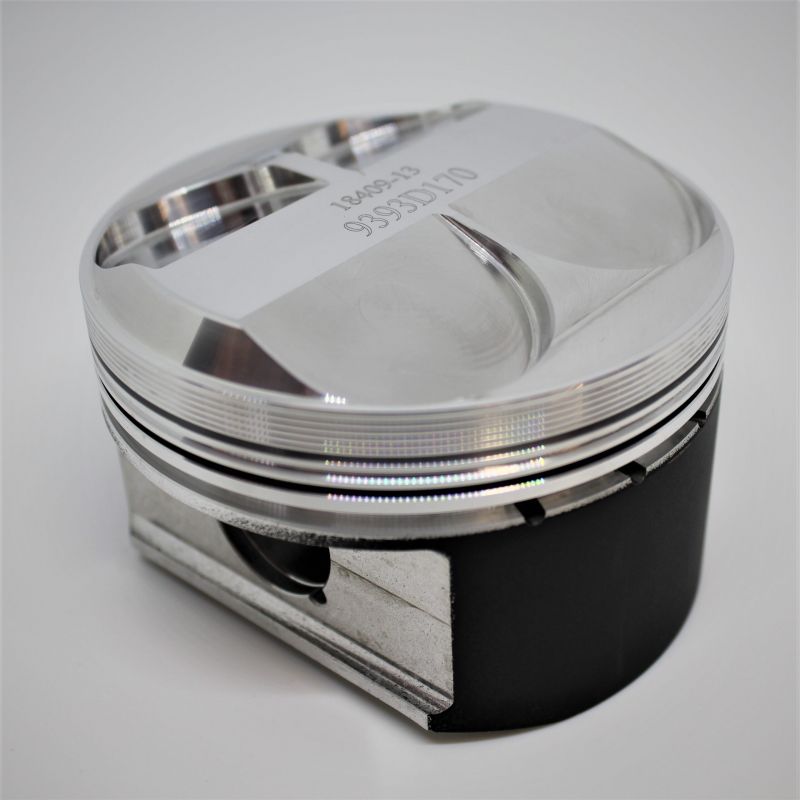

| K9009D170 | 92.5 | 8:1 | 24 | 40.75 | Wossner | NC | NC | Round | -20.1 | NC | 925XPY |
| K9027D170 | 92.5 | 8.2:1 | 24 | 40.75 | Wossner | NC | NC | Round | -20.1 | NC | 925XPY |
| K9217D220 | 93 | 13:1 | 24 | 40.5 | Wossner | NC | NC | Round | 11.6 | NC | 930XSY |
| K9393D220 | 93 | 13:1 | 24 | 33 | Wossner | NC | NC | Round | 11.6 | NC | 930XSY |
| JE-322464 | 93 | 8:1 | 24 | 40.75 | JE FSR | NC | 2618 | FSR | -20 | 393 | NC |

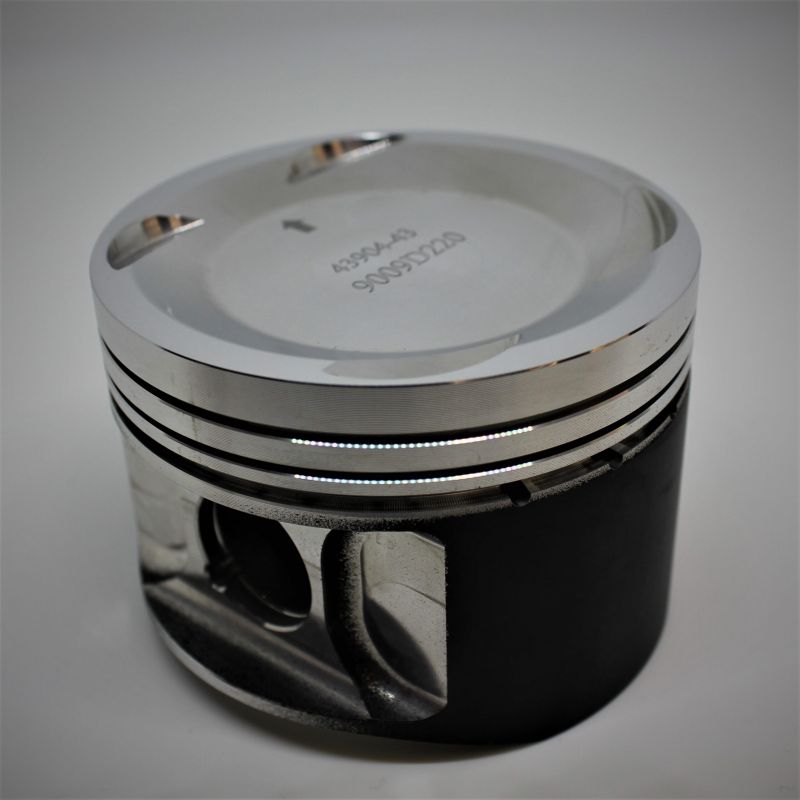

| K9009D220 | 93 | 8:1 | 24 | 40.75 | Wossner | NC | NC | Round | -20.1 | NC | 930XPY |
| JE-322465 | 93.5 | 8:1 | 24 | 40.75 | JE FSR | NC | 2618 | FSR | -20 | 396 | NC |
| JE-322466 | 94 | 8:1 | 24 | 40.75 | JE FSR | NC | 2618 | FSR | -20 | 400 | NC |
Kompatibilitäten :
Originalfahrzeuge ausgestattet mit dem Cosworth YB :
| Marke | Modell | Leistung | Baujahre |
|---|---|---|---|
| Ford | Sierra RS Cosworth 3-door | 204 PS | 1986 – 1987 |
| Ford | Sierra Sapphire RS Cosworth 4×4 | 220 PS | 1988 – 1992 |
| Ford | Escort RS Cosworth | 227 PS | 1992 – 1996 |
Achtung : Bitte überprüfen Sie vor der Montage zwingend die Unversehrtheit und Konformität jedes Bauteils des Kolben-Kits sowie die korrekte Montage im Motor; jegliche Garantie ist strikt auf die Teile des Kolben-Kits beschränkt.
