2.0L 16v - Cosworth YB N5
Manufacturers
2.0L 16v - Cosworth YB N5
Warning: Last items in stock!
New product

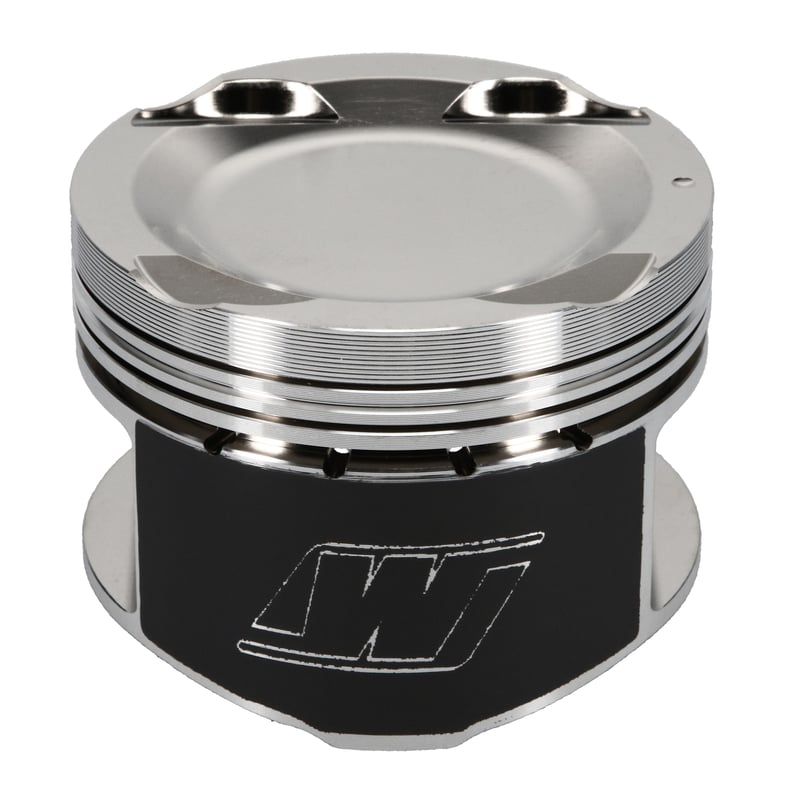

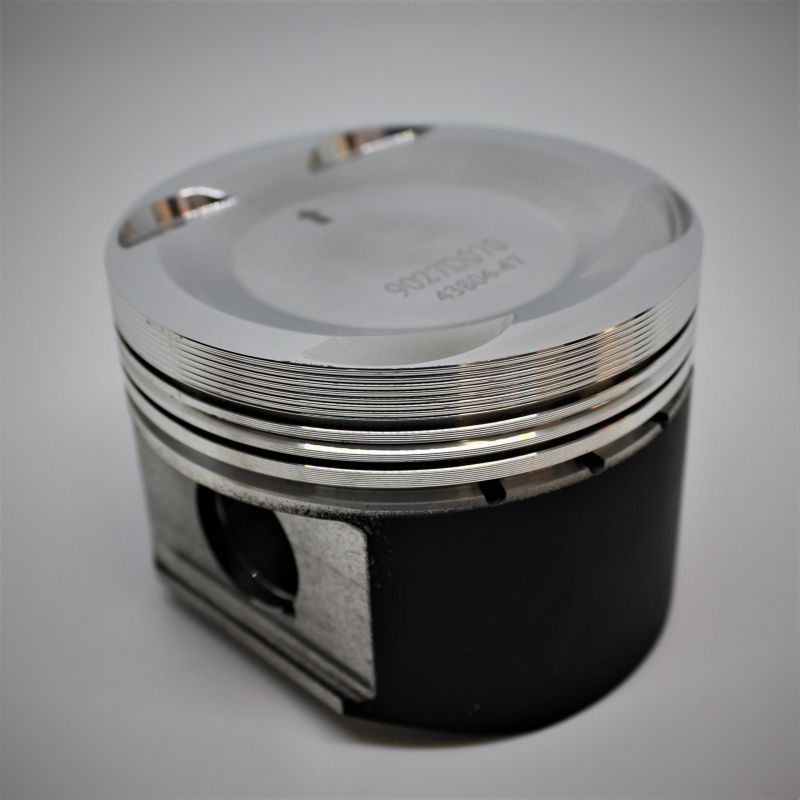

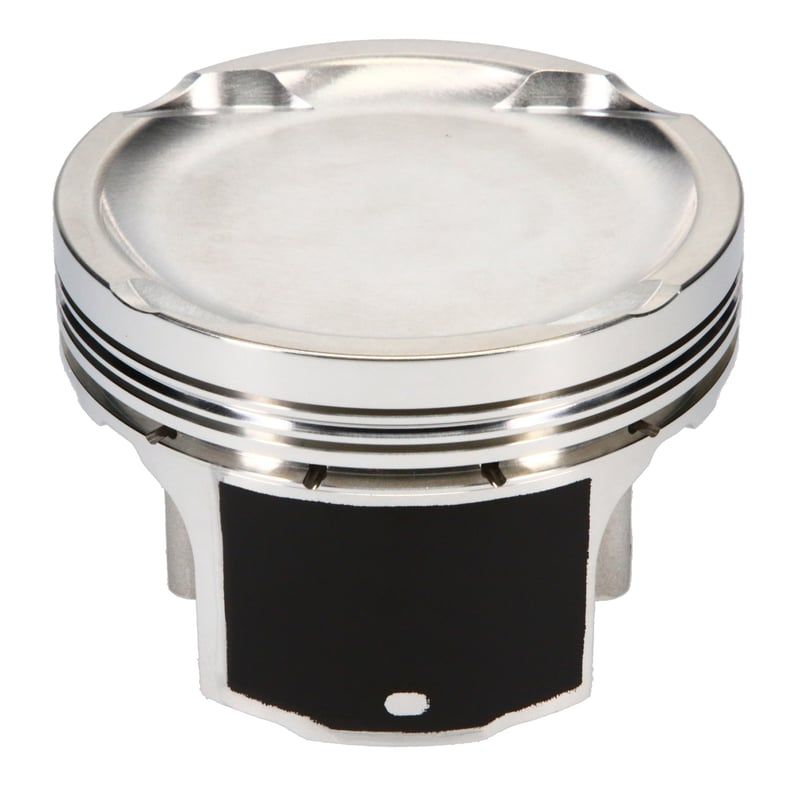

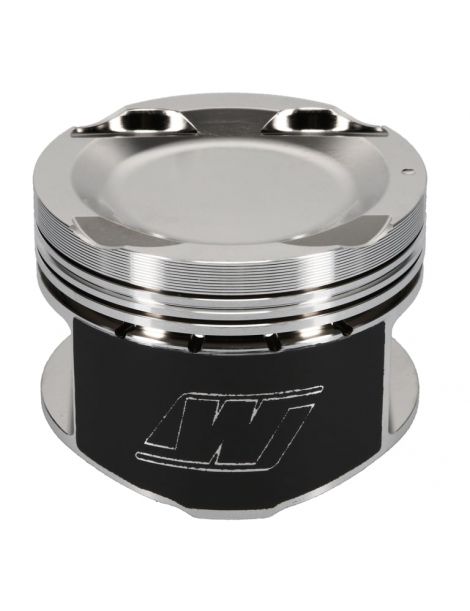

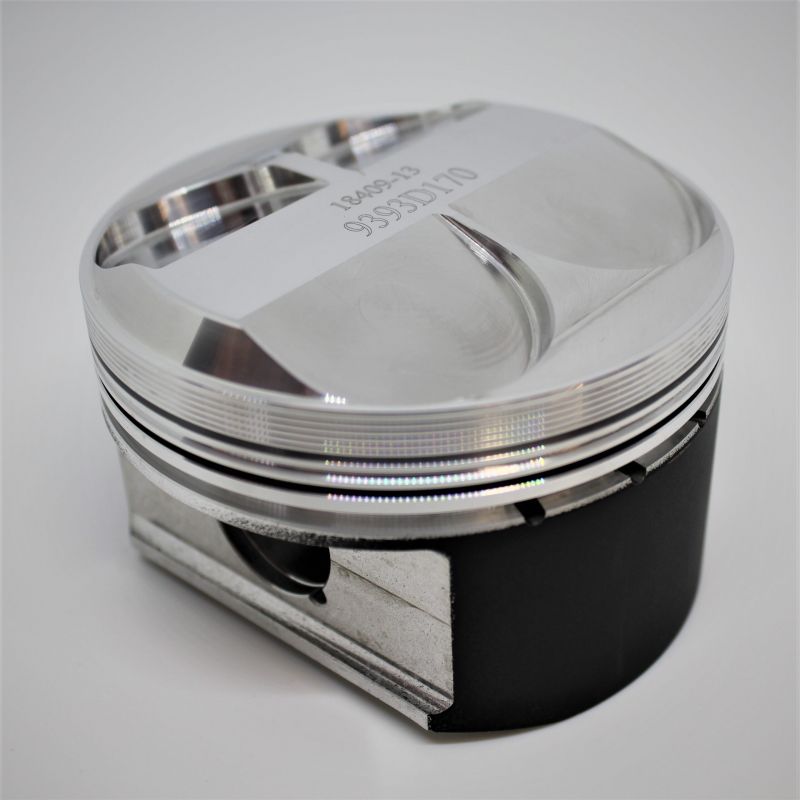

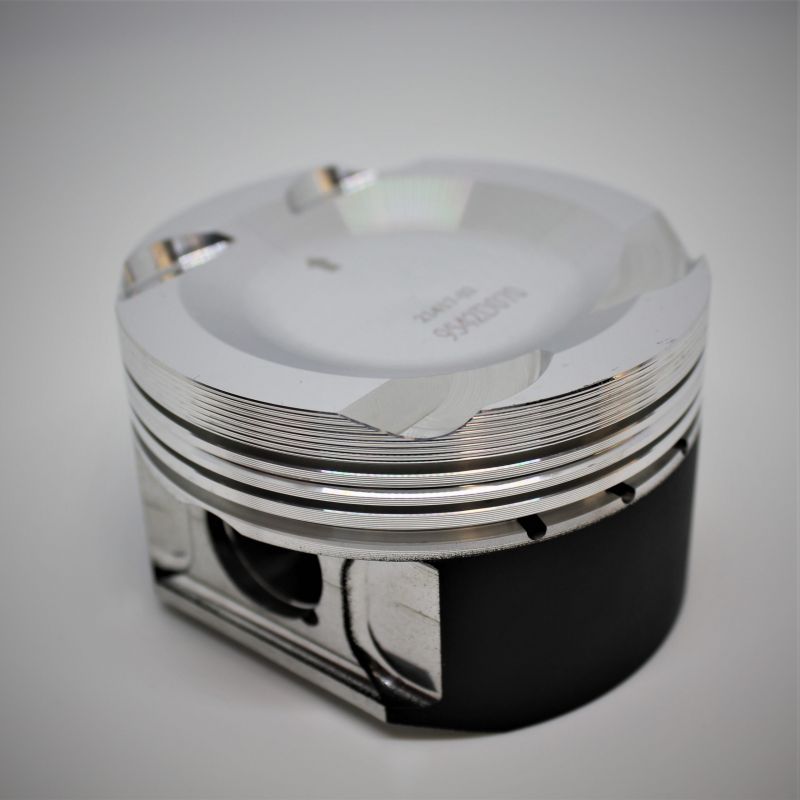

Set of 4 JE, Wiseco & Wossner forged pistons for Ford Cosworth YB 2.0 L 16 v turbo: bores 90.82-94.00 mm, RV 8.0-13.0:1, 24 mm axle, segments supplied on Wiseco/Wossner kits.
Characteristics of the forged pistons offered by NSB Concept for Ford Cosworth YB 2.0 L 16 v turbo engines:
| Reference (click) | Bore (mm) | VR | Axis (mm) | Axis height (mm) | Range | Treatment | Aluminum | Forging | Dome volume (cc) | Weight (g) | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-322459 | 90.82 | 8:1 | 24 | 40.75 | JE FSR | N/A | 2618 | FSR | -20 | 378 | N/A |

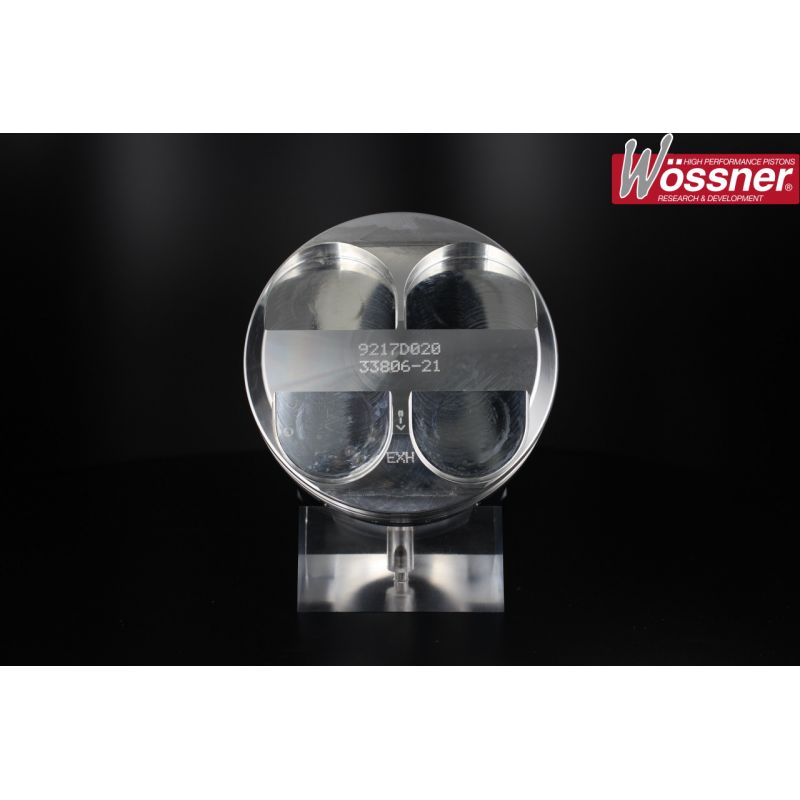

| K9217D020 | 91 | 12.5:1 | 24 | 40.5 | Wossner | N/A | N/A | Round | 11.6 | N/A | 910XSY |
| K9393D020 | 91 | 12.5:1 | 24 | 33 | Wossner | N/A | N/A | Round | 11.6 | N/A | 910XSY |
| JE-322460 | 91 | 8:1 | 24 | 40.75 | JE FSR | N/A | 2618 | FSR | -20 | 378 | N/A |
| WKE103M91AP | 91 | 8:1 | 24 | 40.8 | Wiseco AP | Skirt | 2618 | N/A | -20.2 | N/A | 9100XX |
| JE-322461 | 91.25 | 8:1 | 24 | 40.75 | JE FSR | N/A | 2618 | FSR | -20 | 380 | N/A |
| WKE103M9125AP | 91.25 | 8:1 | 24 | 40.8 | Wiseco AP | Skirt | 2618 | N/A | -20.2 | N/A | 9125XX |
| K9217D045 | 91.25 | 12.6:1 | 24 | 40.5 | Wossner | N/A | N/A | Round | 11.6 | N/A | 912XPY |
| K9393D045 | 91.25 | 12.6:1 | 24 | 33 | Wossner | N/A | N/A | Round | 11.6 | N/A | 912XPY |
| JE-312408 | 91.25 | 8:1 | 24 | 40.75 | Round | N/A | 2618 | Round | N/A | 413 | N/A |
| JE-322462 | 91.5 | 8:1 | 24 | 40.75 | JE FSR | N/A | 2618 | FSR | -20 | 383 | N/A |
| WKE103M915AP | 91.5 | 8:1 | 24 | 40.8 | Wiseco AP | Skirt | 2618 | N/A | -20.2 | N/A | 9150XX |
| K9009D070 | 91.5 | 8:1 | 24 | 40.75 | Wossner | N/A | N/A | Round | -17.5 | N/A | 915XPY |
| K9027D070 | 91.5 | 8.2:1 | 24 | 40.75 | Wossner | N/A | N/A | Round | -17.5 | N/A | 915XPY |
| JE-322463 | 91.8 | 8:1 | 24 | 40.75 | JE FSR | N/A | 2618 | FSR | -20 | 387 | N/A |
| WKE103M918AP | 91.8 | 8:1 | 24 | 40.8 | Wiseco AP | Skirt | 2618 | N/A | -20.2 | N/A | 9180XX |
| K9009D100 | 91.8 | 8:1 | 24 | 40.75 | Wossner | N/A | N/A | Round | -20.1 | N/A | 918XPY |
| K9027D100 | 91.8 | 8.2:1 | 24 | 40.75 | Wossner | N/A | N/A | Round | -20.1 | N/A | 918XPY |
| JE-322462 | 92 | 8:1 | 24 | 40.75 | JE FSR | N/A | 2618 | FSR | -20 | 386 | N/A |
| WKE103M92AP | 92 | 8:1 | 24 | 40.8 | Wiseco AP | Skirt | 2618 | N/A | -20.2 | N/A | 9200XX |
| K9009D120 | 92 | 8:1 | 24 | 40.75 | Wossner | N/A | N/A | Round | -20.1 | N/A | 920XPY |
| K9027D120 | 92 | 8.2:1 | 24 | 40.75 | Wossner | N/A | N/A | Round | -20.1 | N/A | 920XPY |
| JE-322463 | 92.2 | 8:1 | 24 | 40.75 | JE FSR | N/A | 2618 | FSR | -20 | 388 | N/A |
| WKE103M922AP | 92.2 | 8:1 | 24 | 40.8 | Wiseco AP | Skirt | 2618 | N/A | -20.2 | N/A | 9220XX |
| K9009D140 | 92.2 | 8:1 | 24 | 40.75 | Wossner | N/A | N/A | Round | -20.1 | N/A | 922XPY |
| K9027D140 | 92.2 | 8.2:1 | 24 | 40.75 | Wossner | N/A | N/A | Round | -20.1 | N/A | 922XPY |
| JE-322463 | 92.5 | 8:1 | 24 | 40.75 | JE FSR | N/A | 2618 | FSR | -20 | 390 | N/A |
| WKE103M925AP | 92.5 | 8:1 | 24 | 40.8 | Wiseco AP | Skirt | 2618 | N/A | -20.2 | N/A | 9250XX |
| K9009D170 | 92.5 | 8:1 | 24 | 40.75 | Wossner | N/A | N/A | Round | -20.1 | N/A | 925XPY |
| K9027D170 | 92.5 | 8.2:1 | 24 | 40.75 | Wossner | N/A | N/A | Round | -20.1 | N/A | 925XPY |
| K9217D220 | 93 | 13:1 | 24 | 40.5 | Wossner | N/A | N/A | Round | 11.6 | N/A | 930XSY |
| K9393D220 | 93 | 13:1 | 24 | 33 | Wossner | N/A | N/A | Round | 11.6 | N/A | 930XSY |
| JE-322464 | 93 | 8:1 | 24 | 40.75 | JE FSR | N/A | 2618 | FSR | -20 | 393 | N/A |

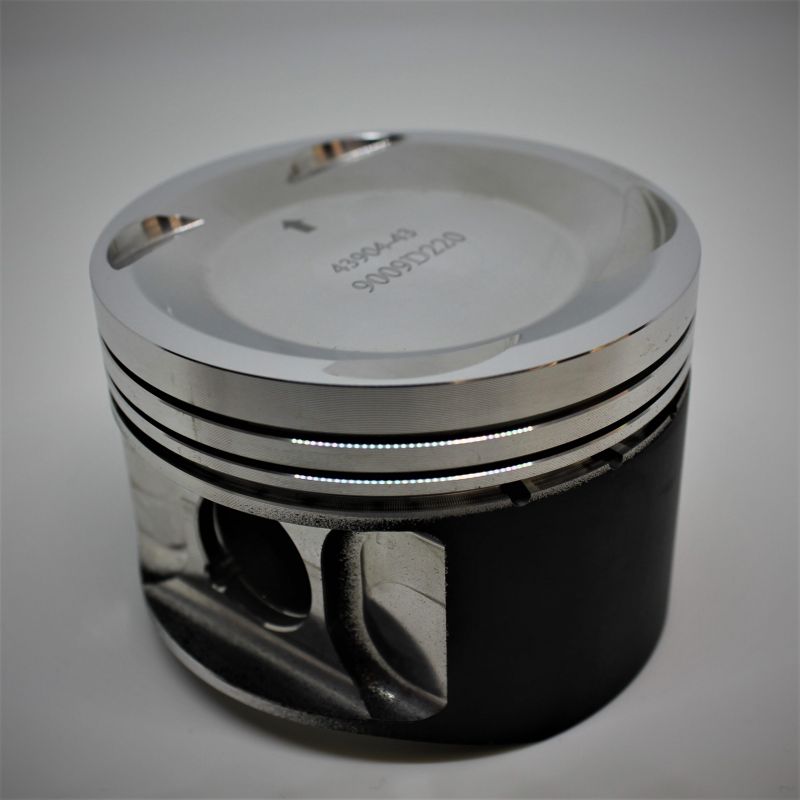

| K9009D220 | 93 | 8:1 | 24 | 40.75 | Wossner | N/A | N/A | Round | -20.1 | N/A | 930XPY |
| JE-322465 | 93.5 | 8:1 | 24 | 40.75 | JE FSR | N/A | 2618 | FSR | -20 | 396 | N/A |
| JE-322466 | 94 | 8:1 | 24 | 40.75 | JE FSR | N/A | 2618 | FSR | -20 | 400 | N/A |
Compatibilities:
Ford Cosworth YB 1,993 cc engine standard and "long rod" configurations.
Crankshaft stroke: 76.95 mm, 77 mm Connecting rod center distance: 128.5 mm, 136 mm.
Original vehicles equipped with the Cosworth YB:
| Brand | Model | Power | Years |
|---|---|---|---|
| Ford | Sierra RS Cosworth 3-door | 204 hp | 1986-1987 |
| Ford | Sierra Sapphire RS Cosworth 4x4 | 220 hp | 1988-1992 |
| Ford | Escort RS Cosworth | 227 hp | 1992-1996 |
Warning: before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
