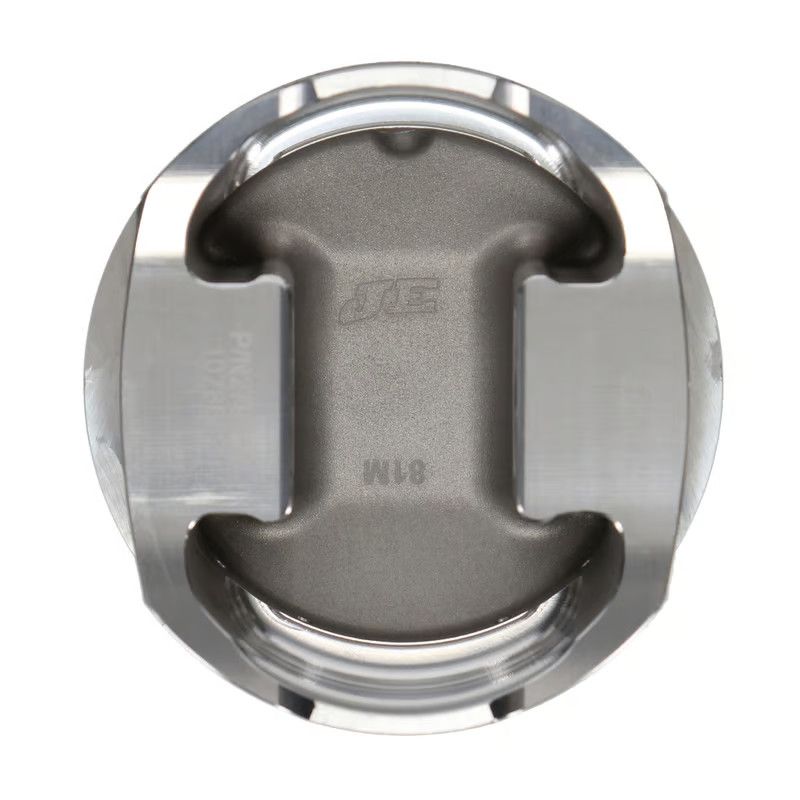

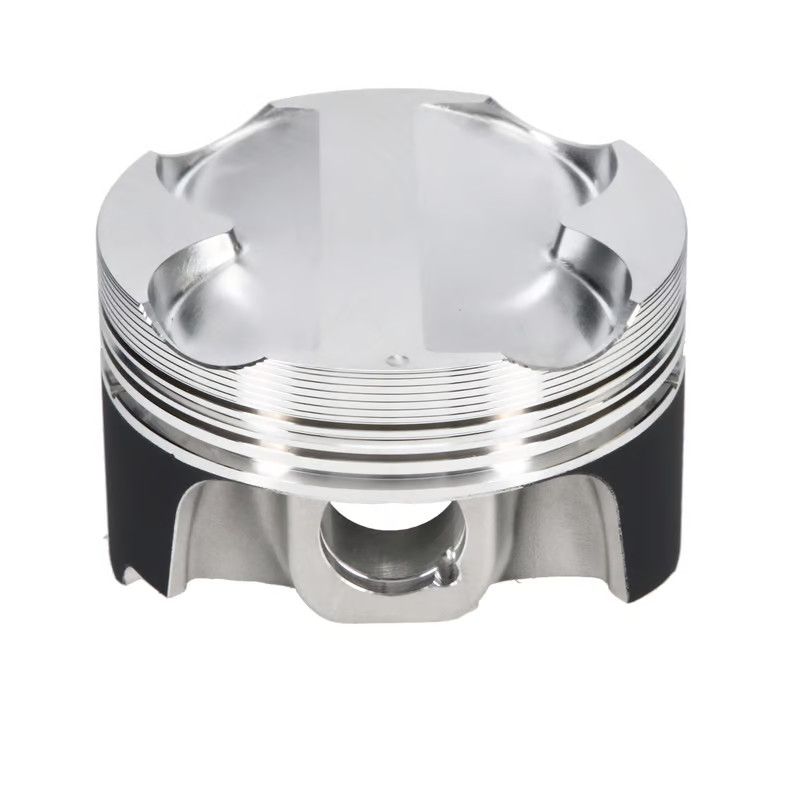

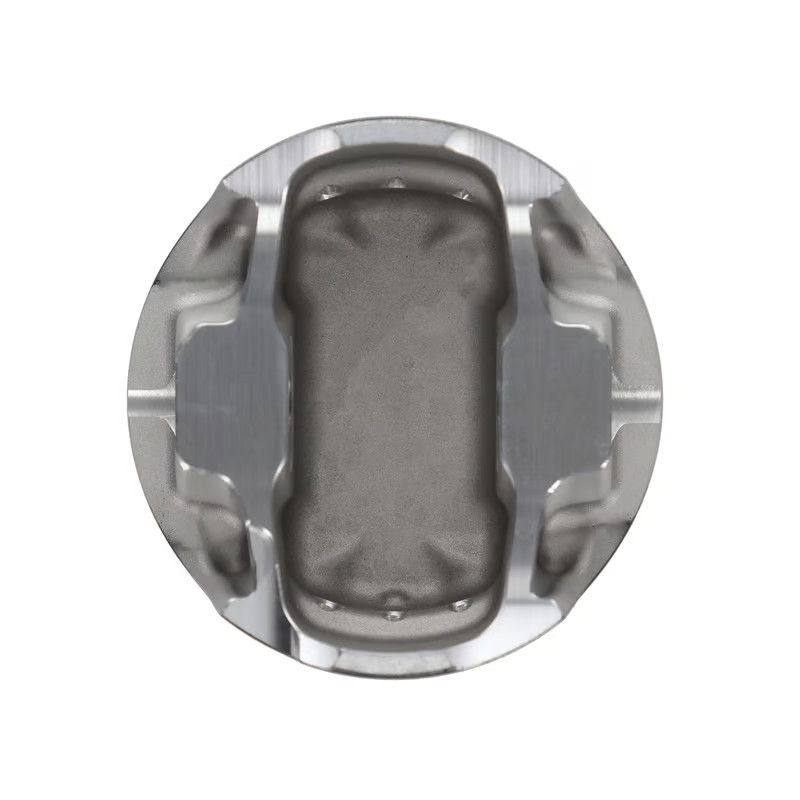

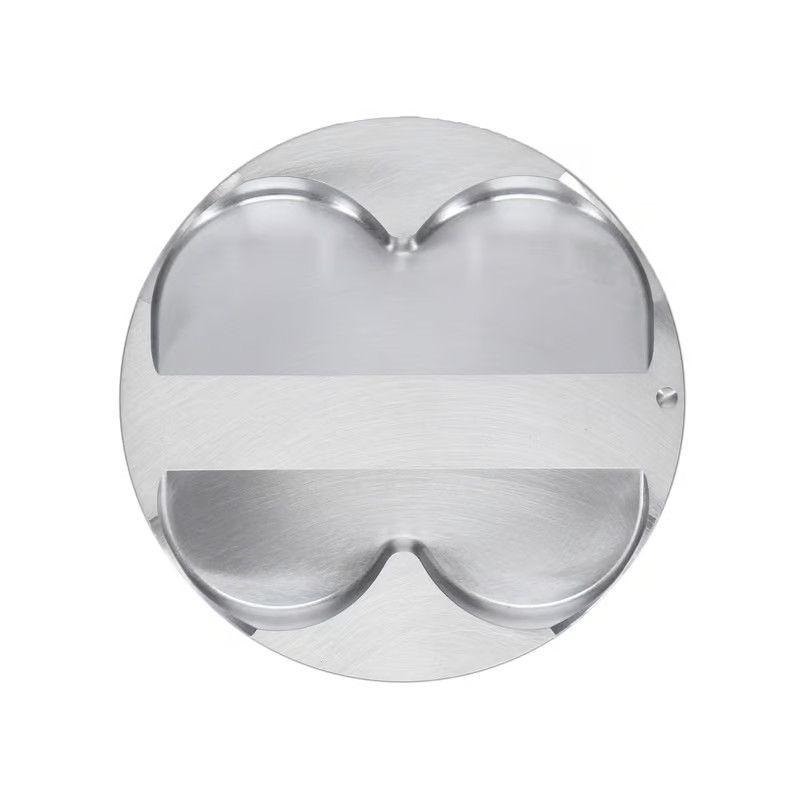

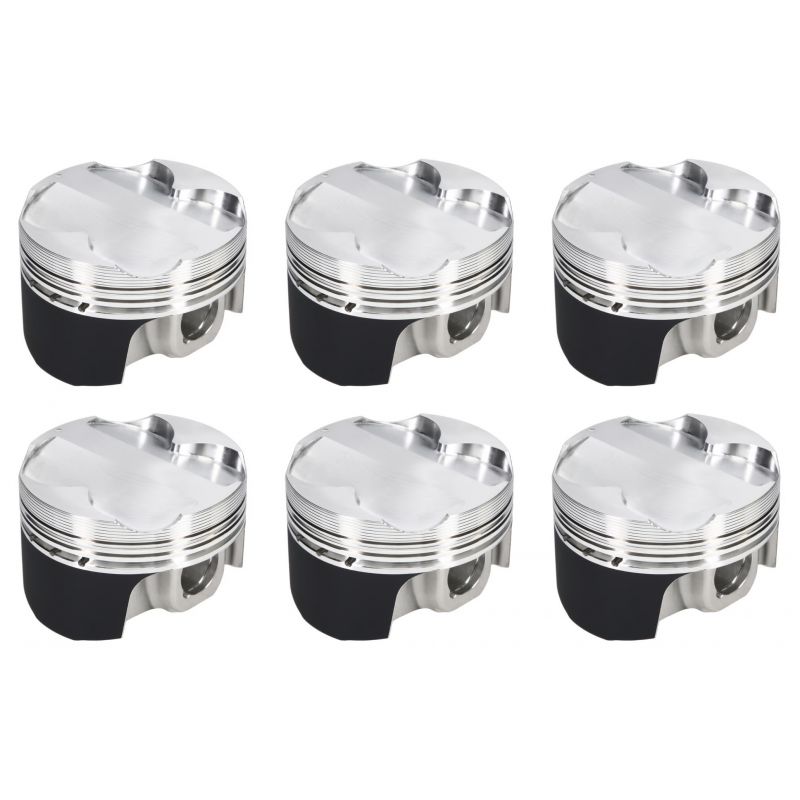

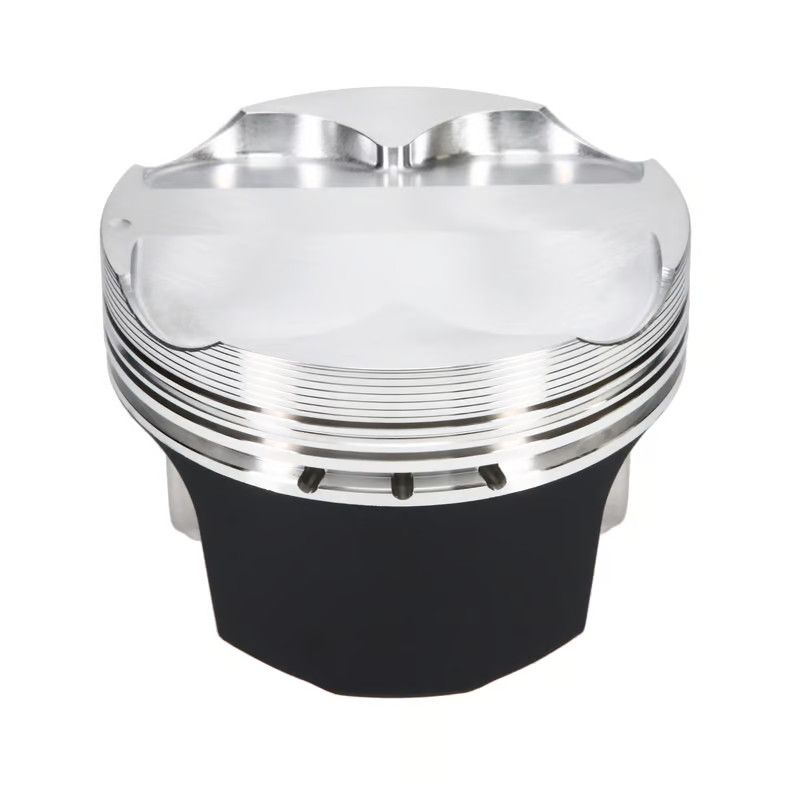

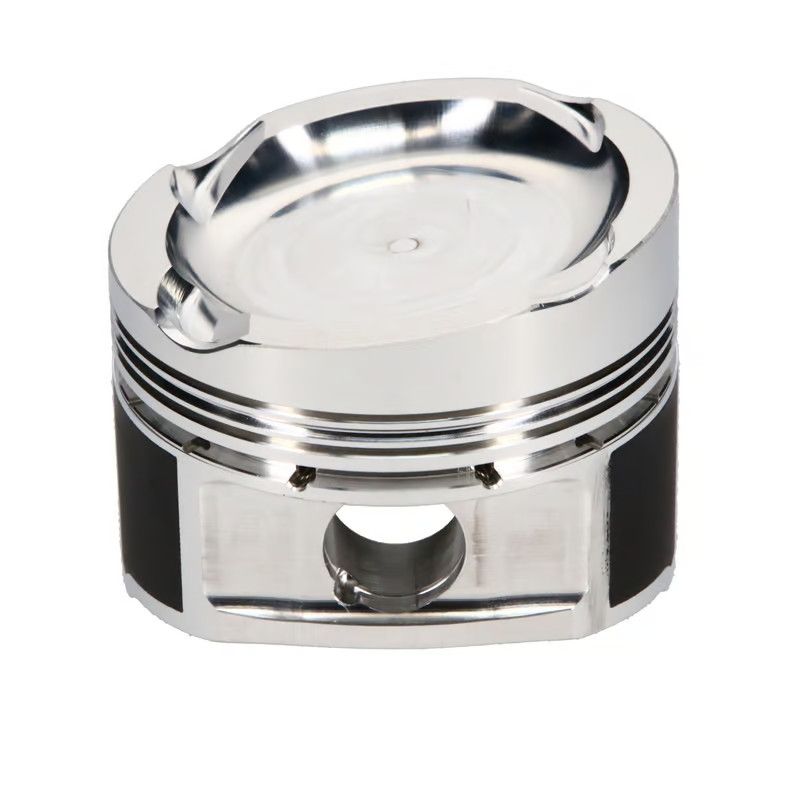

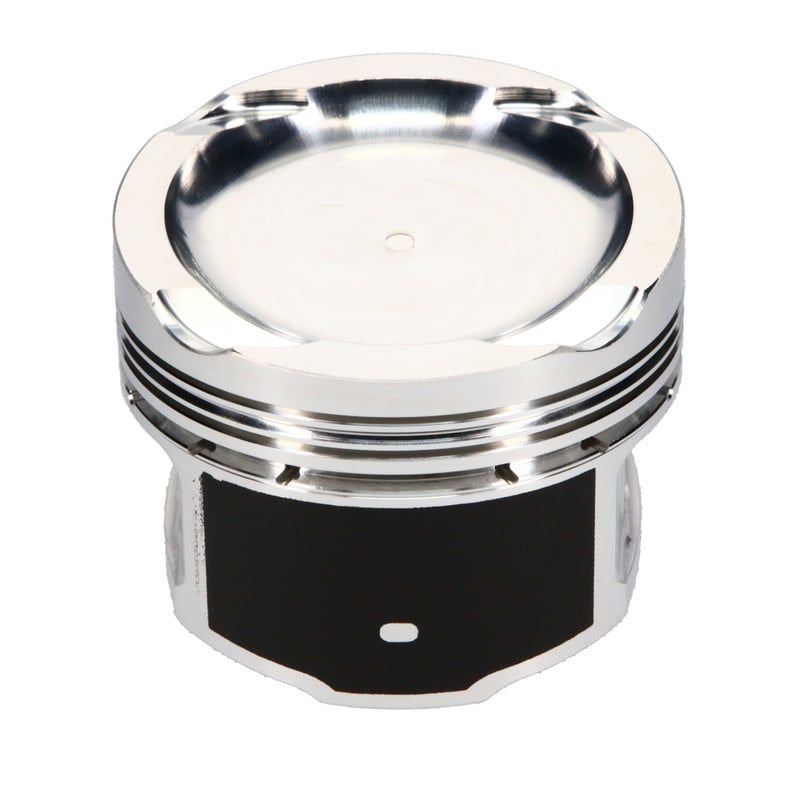

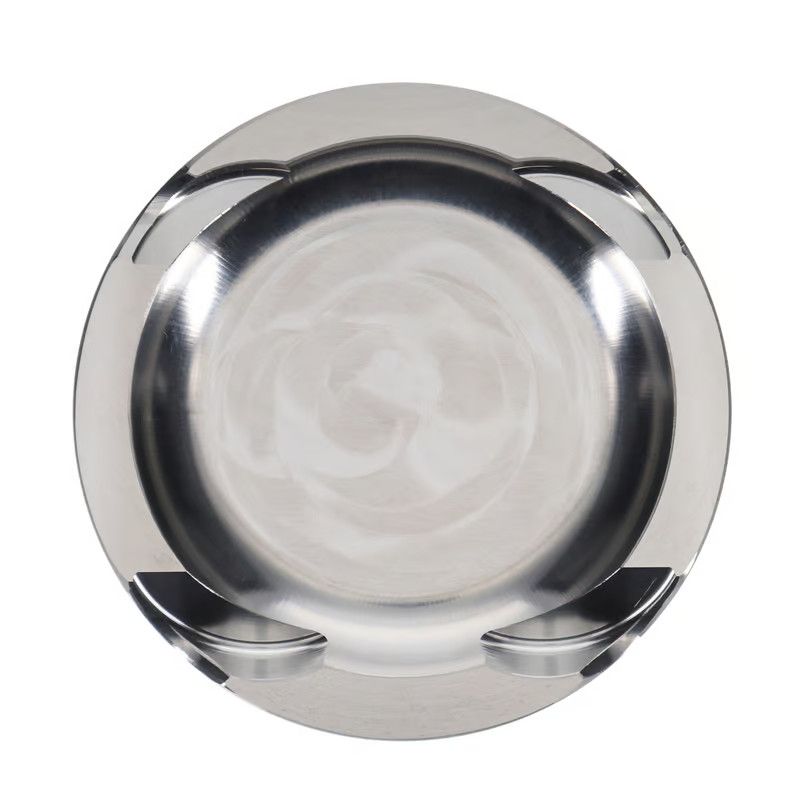

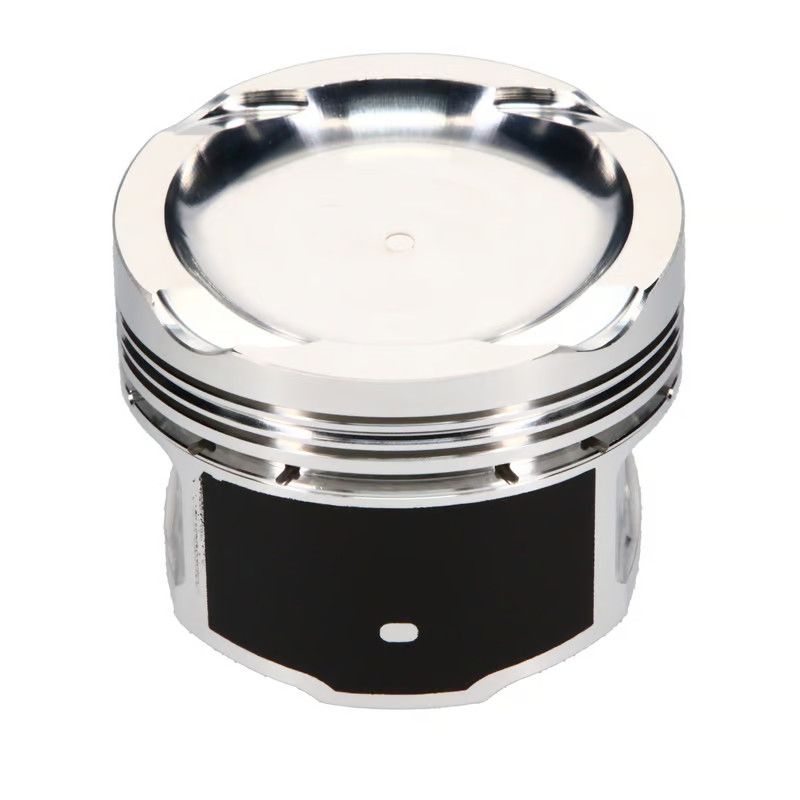

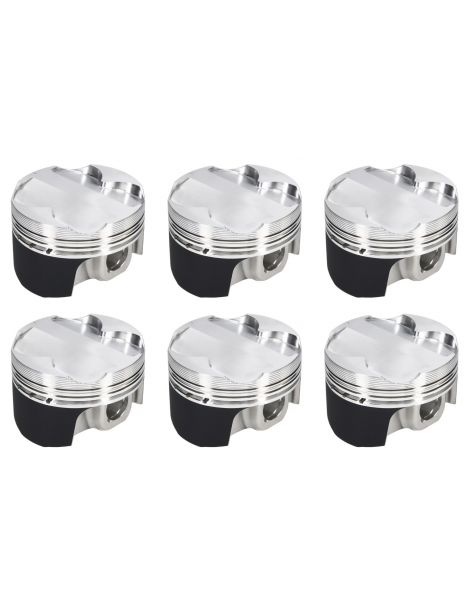

Pistoni forgiati 2.8L 24v VR6 VW
Pistoni forgiati VR6 2.8 24v (VW/Seat) : alesaggio 81,0 mm, spinotto 20 mm, CH 37,10 mm. Fasce elastiche incluse. Compatibilità Golf IV, Bora/Jetta IV, Leon Cupra 4, Sharan, Eurovan.
Caratteristiche dei pistoni forgiati proposti da NSB Concept per Volkswagen 2.8 L 24 V VR6 :
| Riferimento | Alesaggio (mm) OEM: 81,00 |
RC OEM: 10,0 :1 |
Spinotto (mm) OEM: 2 |
Altezza Spinotto (mm) OEM: 37,10 |
Linea | Trattamento | Alluminio | Forgiatura | Cupola | Peso | Fasce elastiche |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-279953 | 81.0 | 8.5:1 | 20 | 37.1 | JE Round | NC | 2618 | Round | -19.5 | 333.0 | NC |
| WKE191M81 | 81.0 | 8.5:1 | 20 | 37.1 | Wiseco | Mantello | 2618 | NC | -20.2 | NC | 8100XX |
| JE-279956 | 81.0 | 10.2:1 | 20 | 37.1 | JE Round | NC | 2618 | Round | -3.5 | 346.0 | NC |

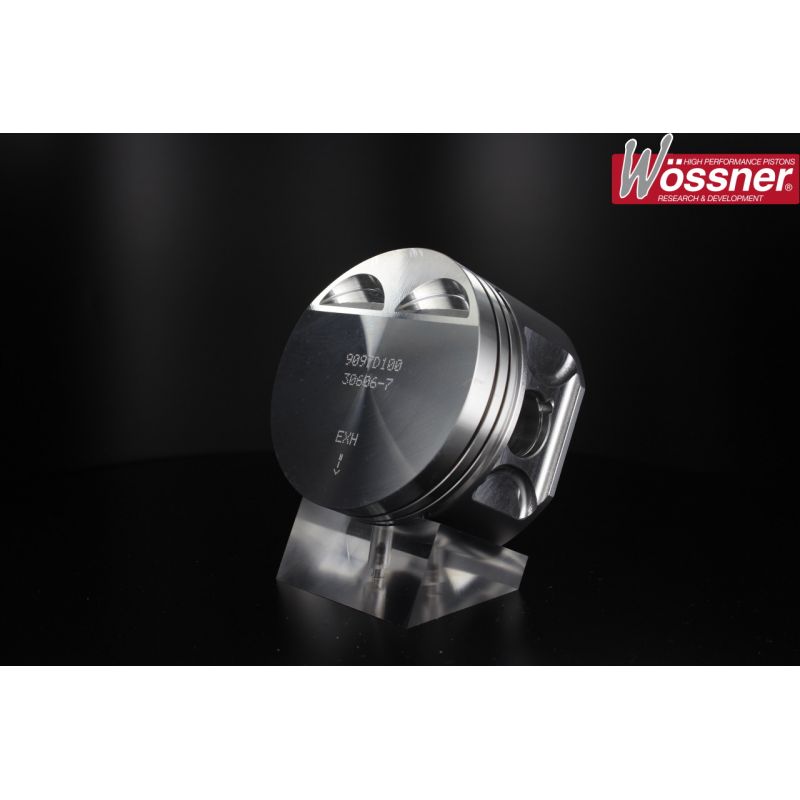

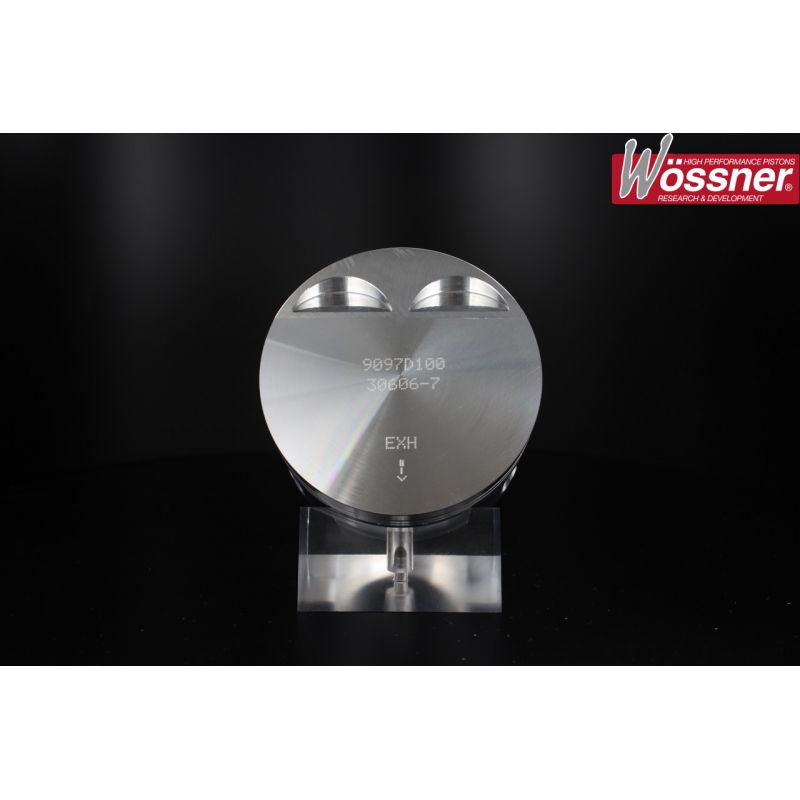

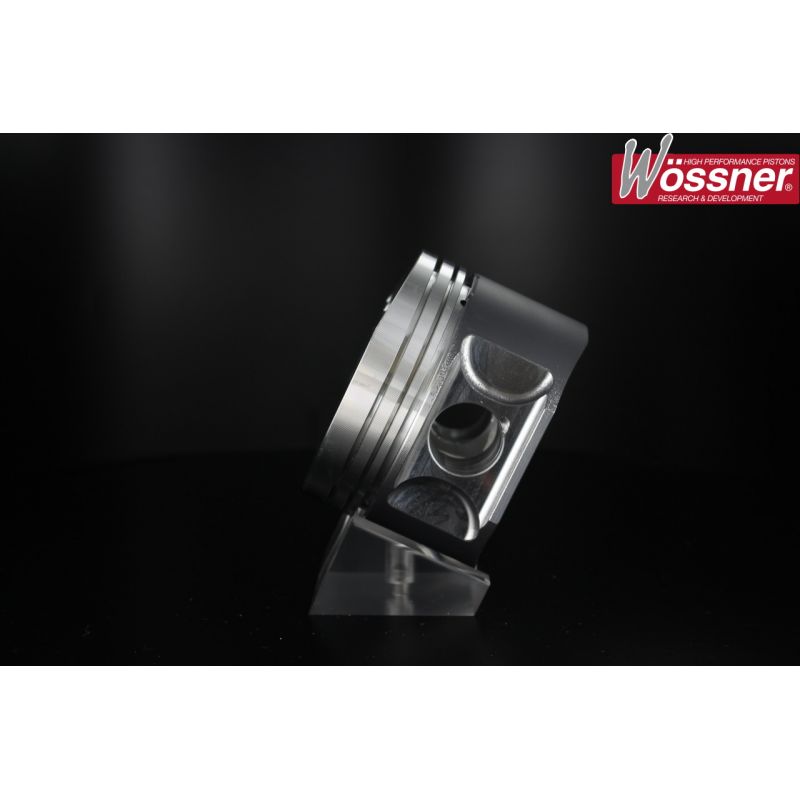

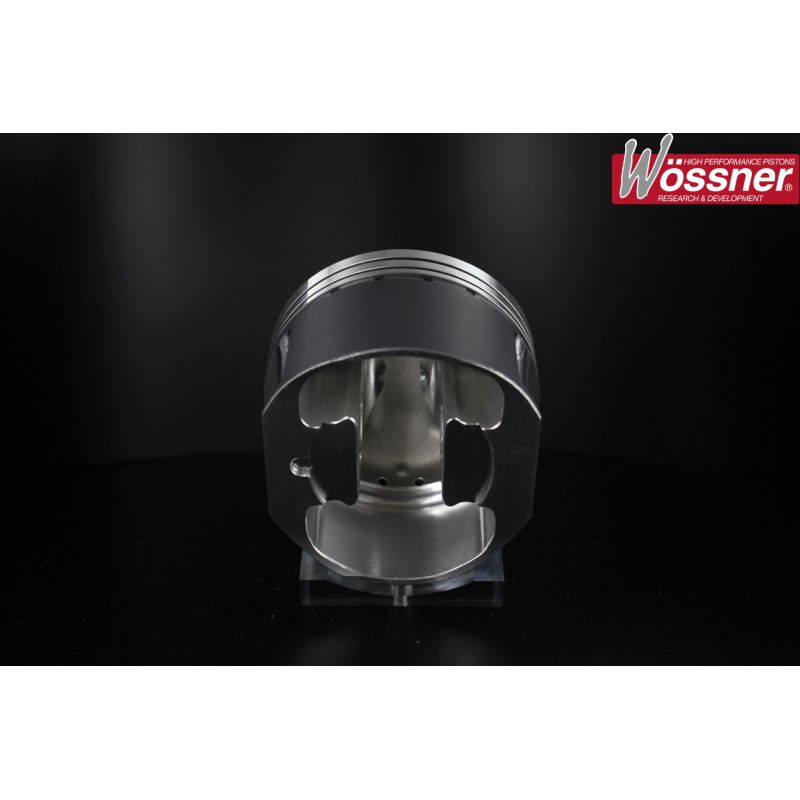

| K9097DA-6 | 81.0 | 10.8:1 | 20 | 35.1 | Wossner | NC | NC | NC | 2.45 | NC | 810XPY |
| WKE191M8125 | 81.25 | 8.5:1 | 20 | 37.1 | Wiseco | Mantello | NC | NC | -20.2 | NC | 8125XX |
| JE-279954 | 81.5 | 8.5:1 | 20 | 37.1 | JE Round | NC | 2618 | Round | -20.2 | 330.0 | NC |
| WKE191M815 | 81.5 | 8.5:1 | 20 | 37.1 | Wiseco | Mantello | 2618 | NC | -20.2 | NC | 8150XX |
| JE-279957 | 81.5 | 10.2:1 | 20 | 37.1 | JE Round | NC | 2618 | Round | -3.5 | 355.0 | NC |
| K9097D050-6 | 81.5 | 10.8:1 | 20 | 35.1 | Wossner | NC | NC | NC | 2.45 | NC | 815XPY |
| JE-279955 | 82.0 | 8.5:1 | 20 | 37.1 | JE Round | NC | 2618 | Round | -20.9 | 333.0 | NC |
| WKE191M82 | 82.0 | 8.5:1 | 20 | 37.1 | Wiseco | Mantello | 2618 | NC | -20.2 | NC | 8200XX |
| JE-279958 | 82.0 | 10.2:1 | 20 | 37.1 | JE Round | NC | 2618 | Round | -3.5 | 358.0 | NC |
| K9097D100-6 | 82.0 | 10.8:1 | 20 | 35.1 | Wossner | NC | NC | NC | 2.45 | NC | 820XPY |
| K9097D150-6 | 82.5 | 10.8:1 | 20 | 35.1 | Wossner | NC | NC | NC | 2.45 | NC | 825XPY |
| K9097D200-6 | 83.0 | 10.8:1 | 20 | 35.1 | Wossner | NC | NC | NC | 2.45 | NC | 830XPY |
Compatibilità (codici motore) :
- VR6 2.8 24v — AQP
- VR6 2.8 24v — AUE
- VR6 2.8 24v — BDE
- VR6 2.8 24v — BDF
- VR6 2.8 24v — AYL
- VR6 2.8 24v — AMV
- VR6 2.8 24v — AXK
Veicoli originali equipaggiati con il VR6 2.8 24v :
| Marca | Modello | Codice motore | Potenza | Anni |
|---|---|---|---|---|
| Seat | Alhambra I 2.8 V6 24V | AYL | 204 CV | 2000 – 2010 |
| Seat | Leon I (1M) Cupra 4 2.8 V6 24V | AUE / BDE | 204 CV | 2000 – 2004 |
| Volkswagen | Bora / Jetta IV 2.8 VR6 24V | AQP / AUE / BDE | 204 CV | 2001 – 2004 |
| Volkswagen | Golf IV 2.8 V6 4Motion | AQP / AUE / BDE | 204 CV | 1999 – 2003 |
| Volkswagen | Jetta IV / Golf IV 2.8 VR6 24V (NA) | BDF | 200 CV | 2002 – 2004 |
| Volkswagen | Sharan I (Fase 1.5) 2.8 VR6 24V | AYL | 204 CV | 2000 – 2004 |
| Volkswagen | Transporter T4 / Eurovan 2.8 VR6 24V | AMV / AXK | 201 CV | 2000 – 2003 |
Riferimenti pistoni costruttore (OEM) :
- VR6 2.8 24v (Golf IV/Jetta IV/Bora/Eurovan/Transporter T4) : 022 107 065 G — pistone STD Ø81,00 mm (con spinotto e fasce elastiche).
Attenzione : Prima di qualsiasi montaggio, verificare tassativamente l'integrità e la conformità di ogni componente del kit pistoni, nonché la conformità dell'assemblaggio nel motore; l'eventuale garanzia è strettamente limitata alle sole parti del kit pistoni.
Pistoni forgiati VR6 2.8 24v (VW/Seat) : alesaggio 81,0 mm, spinotto 20 mm, CH 37,10 mm. Fasce elastiche incluse. Compatibilità Golf IV, Bora/Jetta IV, Leon Cupra 4, Sharan, Eurovan.
