2.8L 24v - VR6
Manufacturers
2.8L 24v - VR6
Warning: Last items in stock!
New product

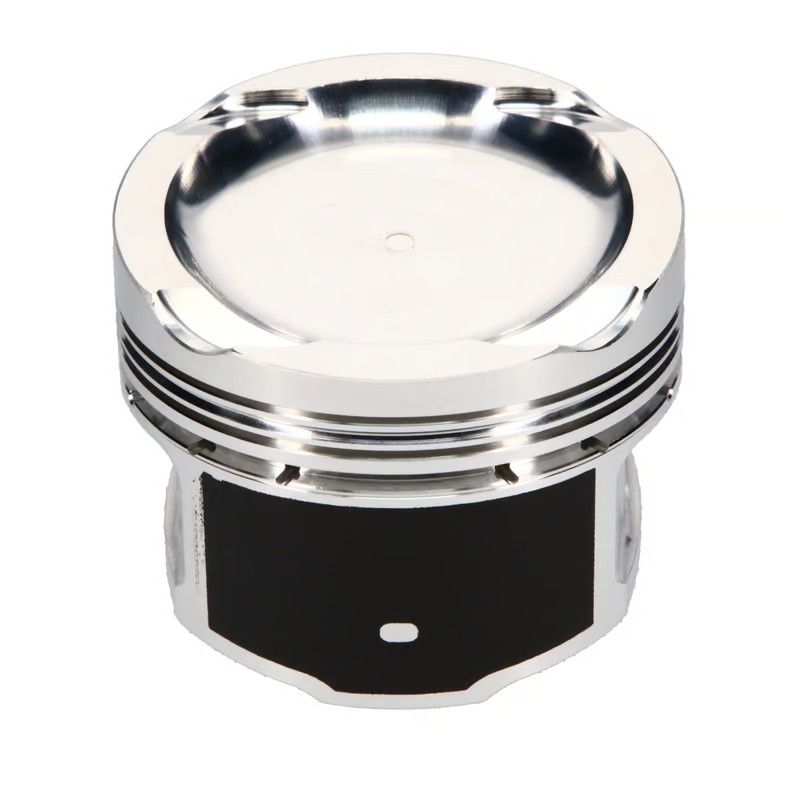

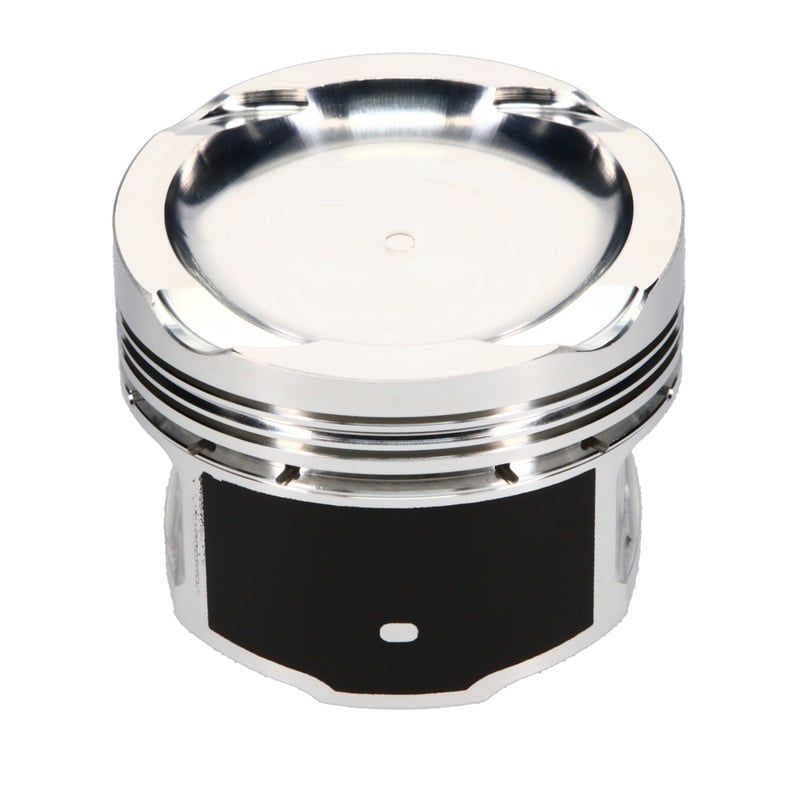

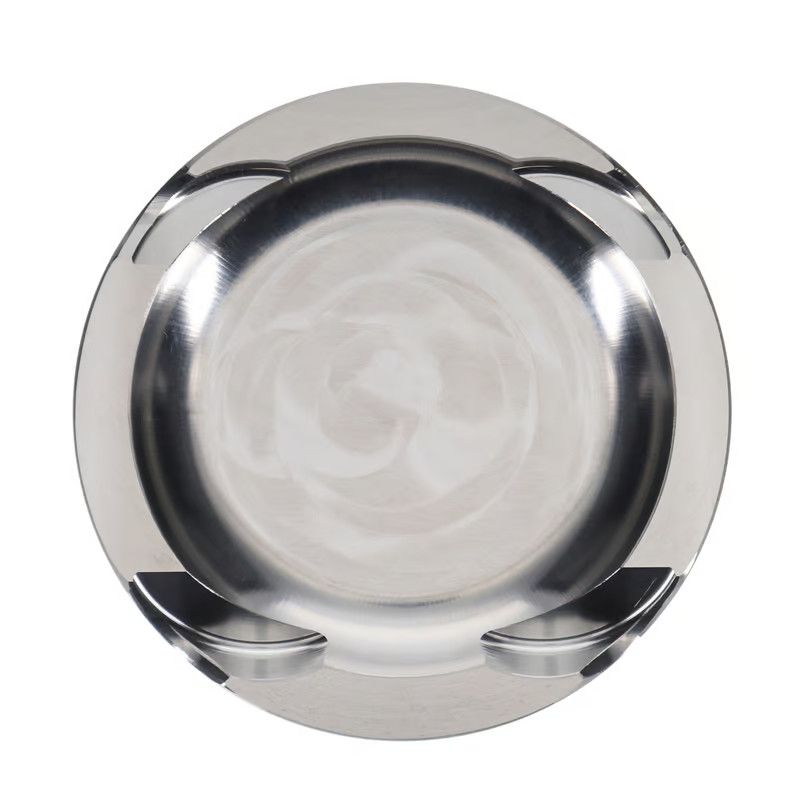

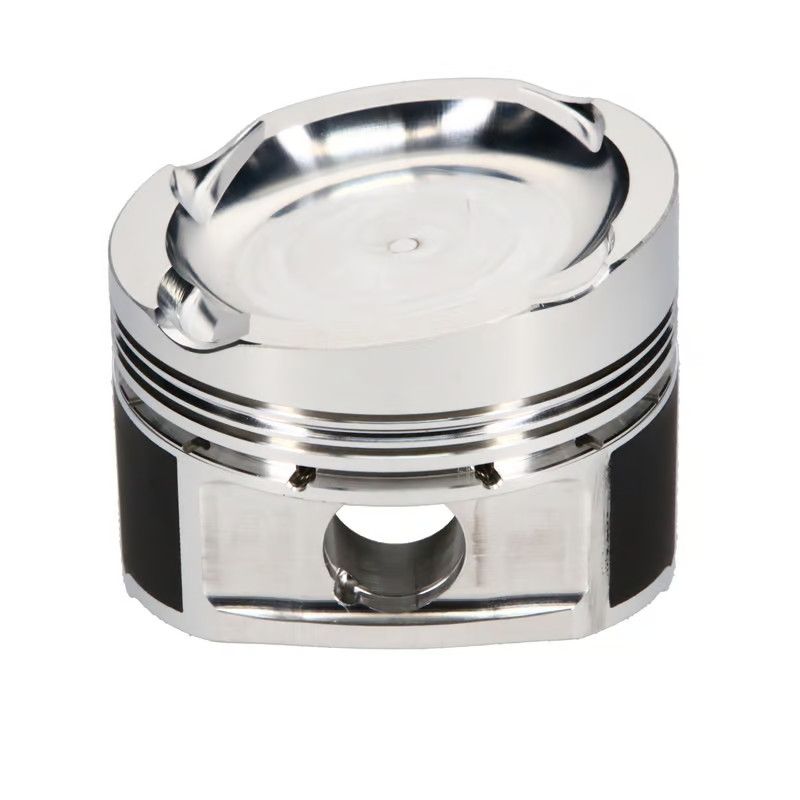

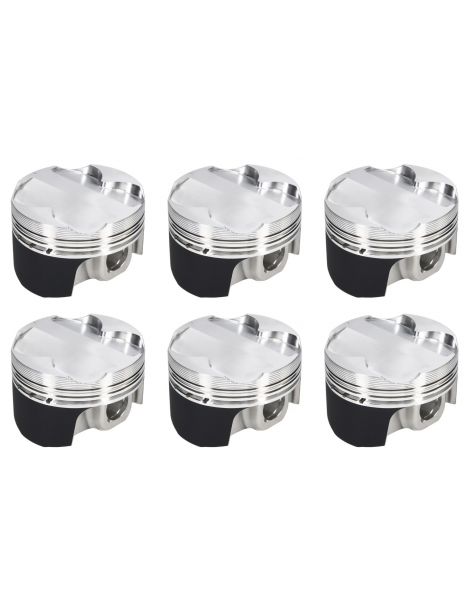

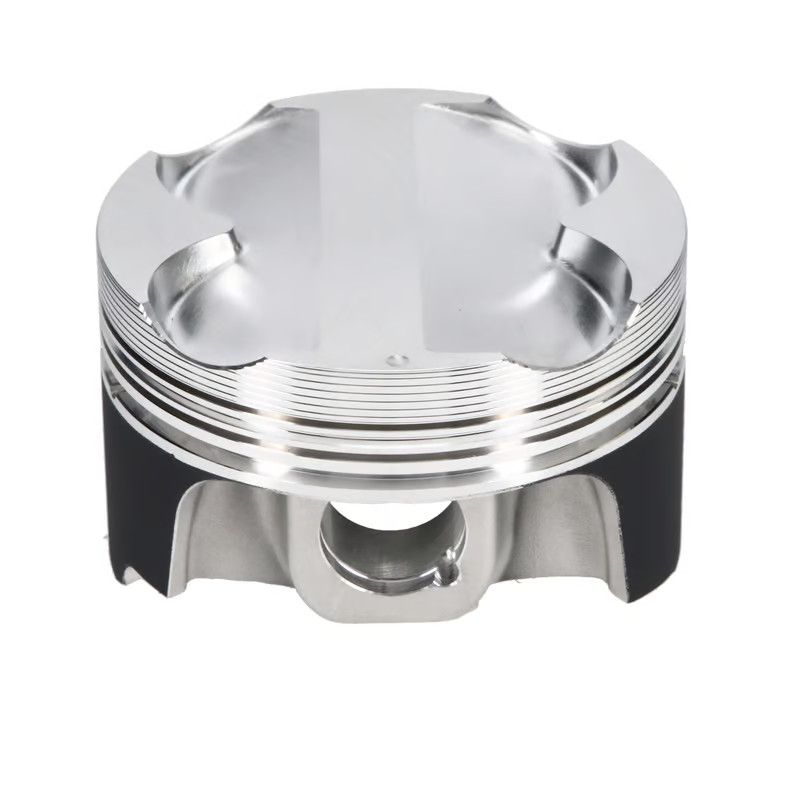

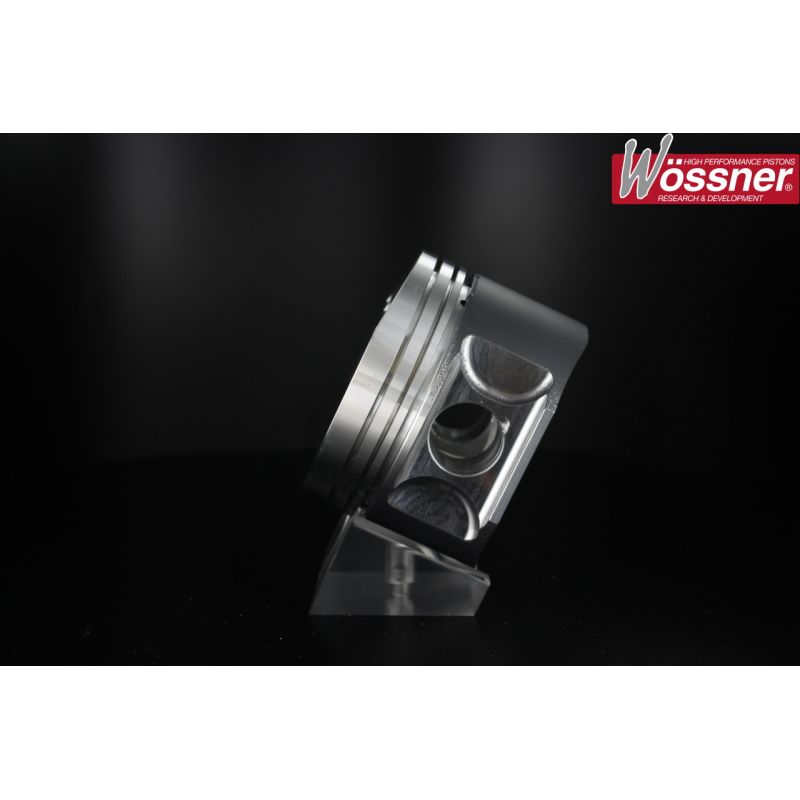

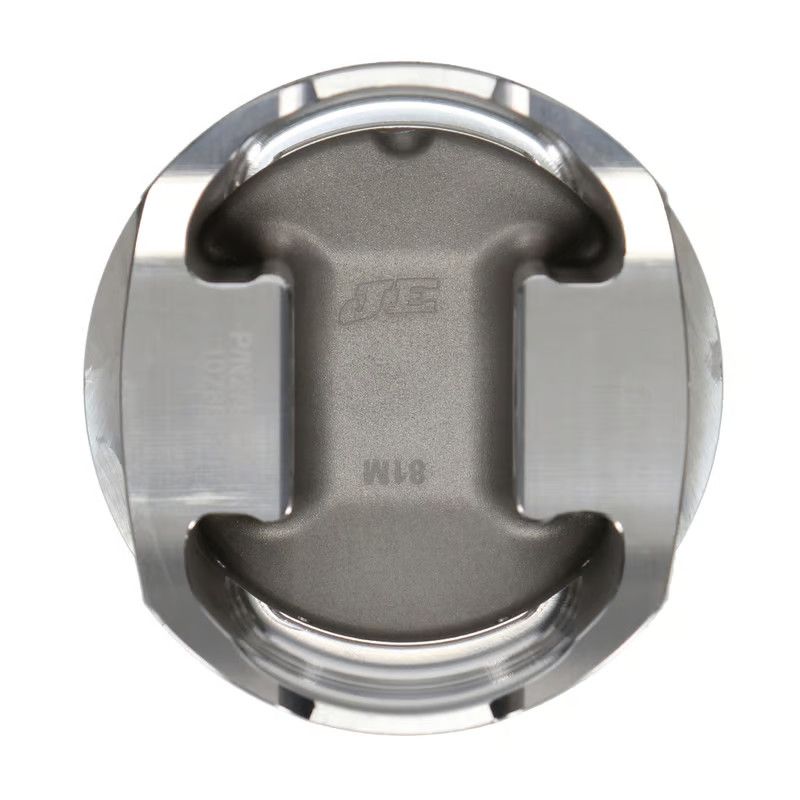

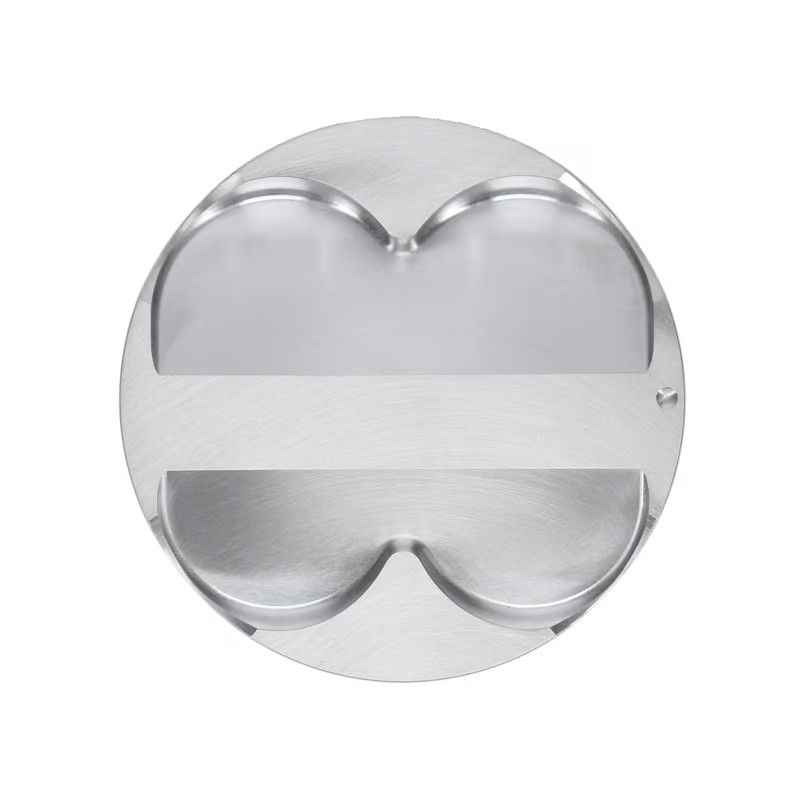

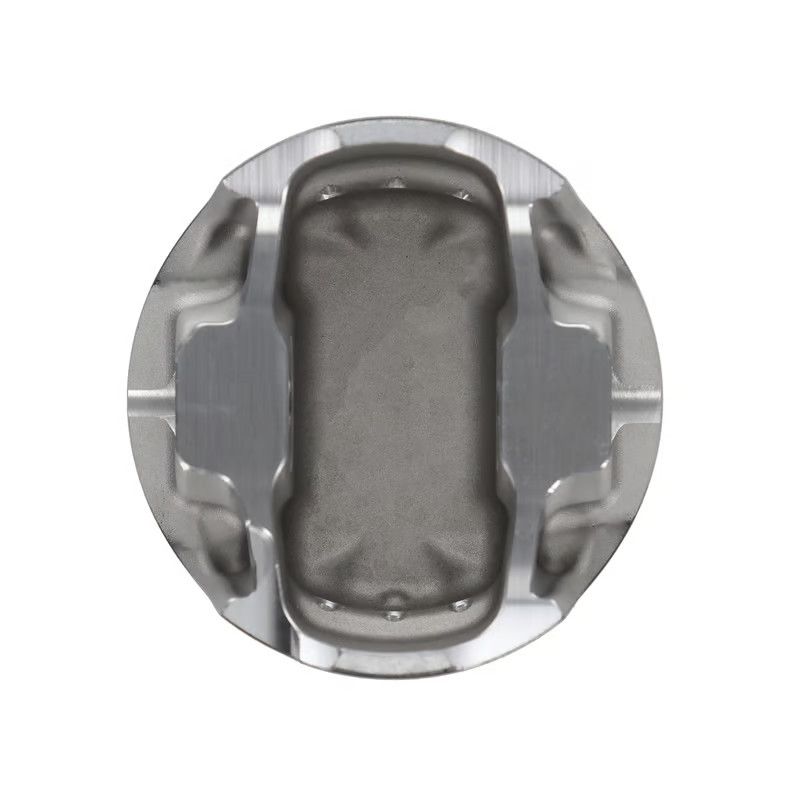

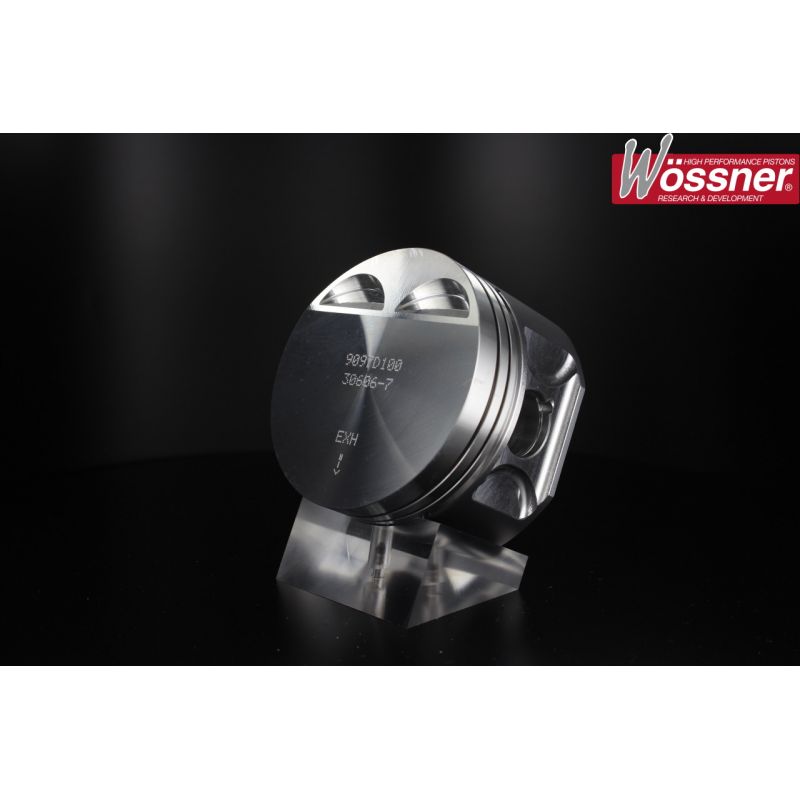

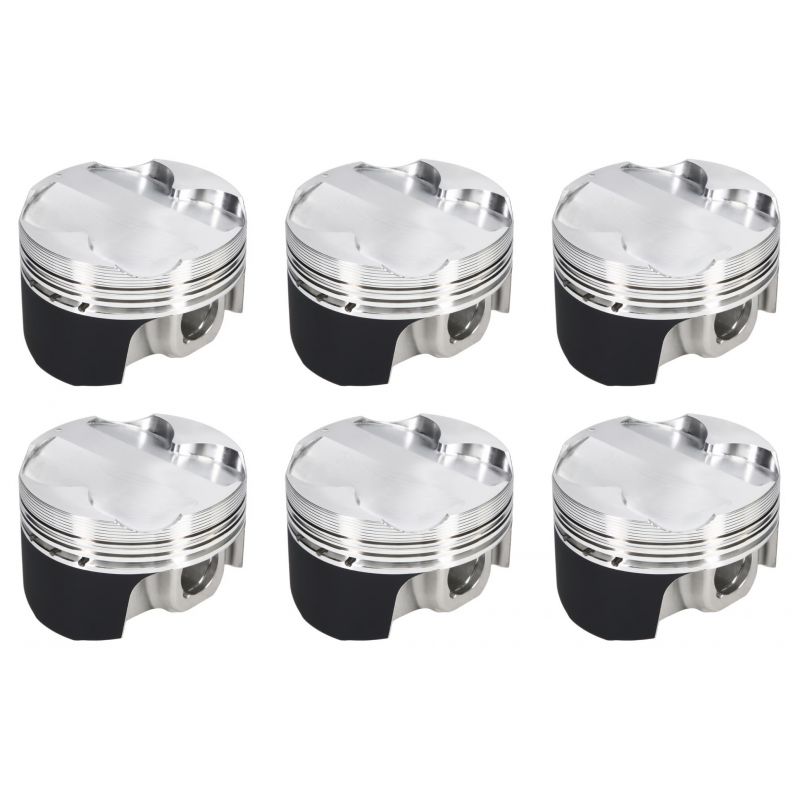

Forged pistons VR6 2.8 24v (VW/Seat): Bore 81.0 mm, Pin 20 mm, CH 37.10 mm. Rings included. COMPatibilities Golf IV, Bora/JEtta IV, Leon Cupra 4, Sharan, Eurovan.
Specifications of the forged pistons offered by NSB Concept for Volkswagen 2.8 L 24 V VR6 :
| Reference | OEM Bore 81,00 mm | OEM CR 10,0 :1 | OEM Pin 2 mm | Height OEM Pin 37,10 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-279953 | 81.0 | 8.5:1 | 20 | 37.1 | JE Round | NC | 2618 | Round | -19.5 | 333.0 | NC |

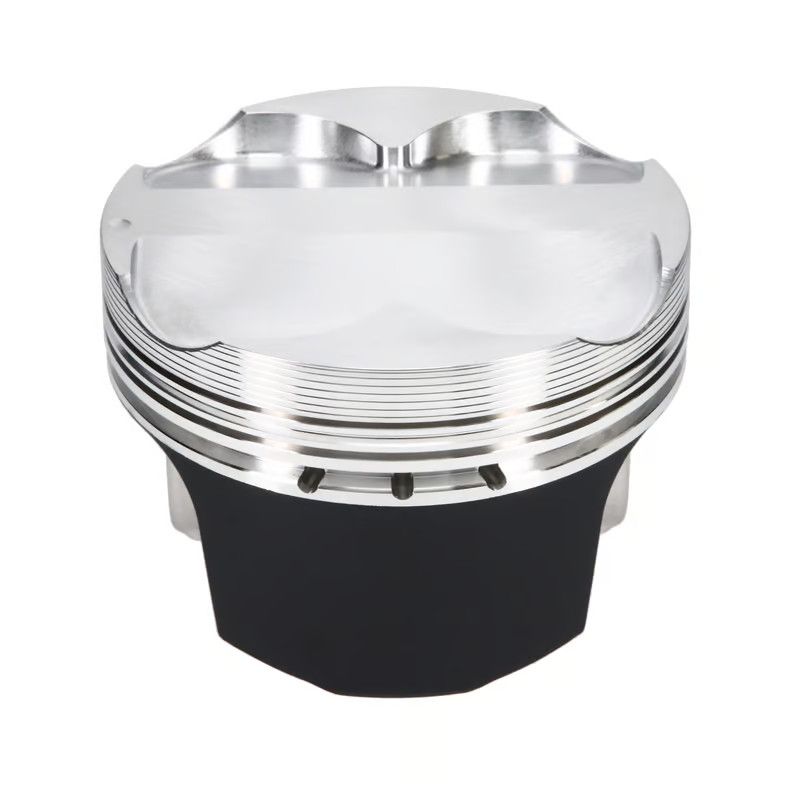

| WKE191M81 | 81.0 | 8.5:1 | 20 | 37.1 | Wiseco | Skirt | 2618 | NC | -20.2 | NC | 8100XX |
| JE-279956 | 81.0 | 10.2:1 | 20 | 37.1 | JE Round | NC | 2618 | Round | -3.5 | 346.0 | NC |

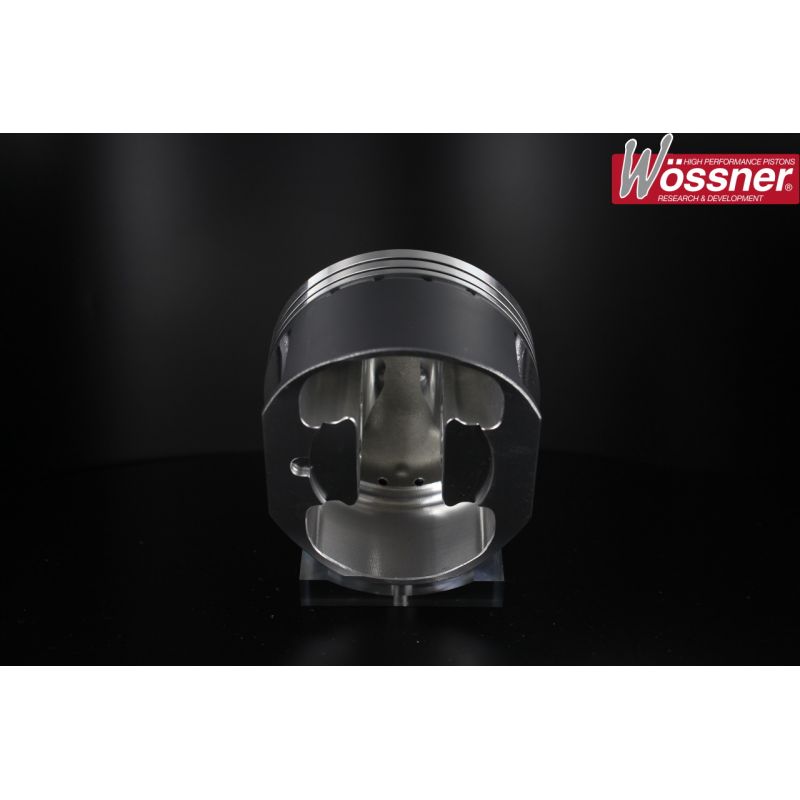

| K9097DA-6 | 81.0 | 10.8:1 | 20 | 35.1 | Wossner | NC | NC | NC | 2.45 | NC | 810XPY |
| WKE191M8125 | 81.25 | 8.5:1 | 20 | 37.1 | Wiseco | Skirt | NC | NC | -20.2 | NC | 8125XX |
| JE-279954 | 81.5 | 8.5:1 | 20 | 37.1 | JE Round | NC | 2618 | Round | -20.2 | 330.0 | NC |
| WKE191M815 | 81.5 | 8.5:1 | 20 | 37.1 | Wiseco | Skirt | 2618 | NC | -20.2 | NC | 8150XX |
| JE-279957 | 81.5 | 10.2:1 | 20 | 37.1 | JE Round | NC | 2618 | Round | -3.5 | 355.0 | NC |
| K9097D050-6 | 81.5 | 10.8:1 | 20 | 35.1 | Wossner | NC | NC | NC | 2.45 | NC | 815XPY |
| JE-279955 | 82.0 | 8.5:1 | 20 | 37.1 | JE Round | NC | 2618 | Round | -20.9 | 333.0 | NC |
| WKE191M82 | 82.0 | 8.5:1 | 20 | 37.1 | Wiseco | Skirt | 2618 | NC | -20.2 | NC | 8200XX |
| JE-279958 | 82.0 | 10.2:1 | 20 | 37.1 | JE Round | NC | 2618 | Round | -3.5 | 358.0 | NC |

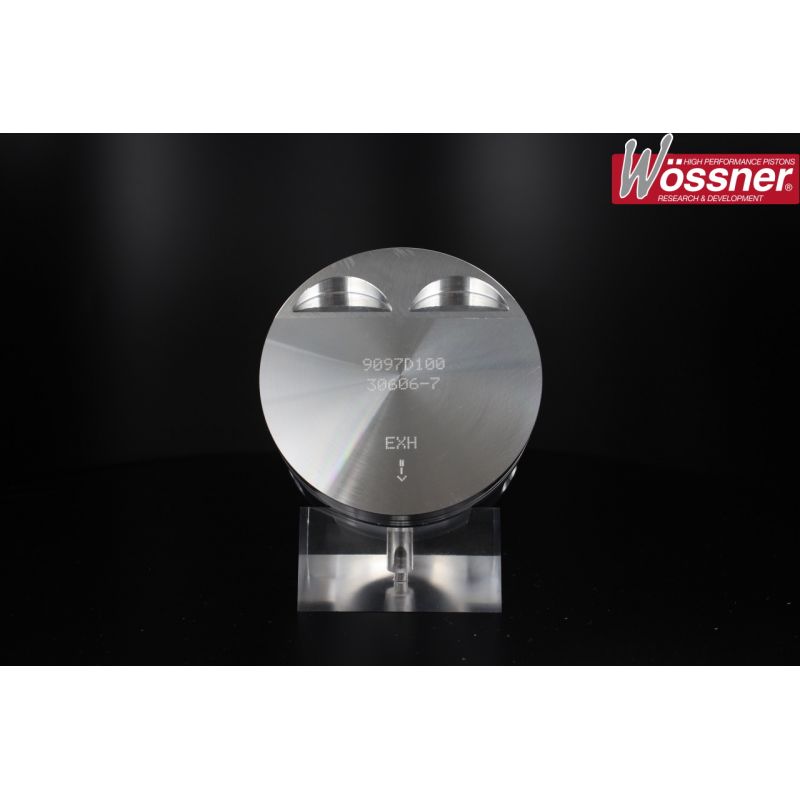

| K9097D100-6 | 82.0 | 10.8:1 | 20 | 35.1 | Wossner | NC | NC | NC | 2.45 | NC | 820XPY |
| K9097D150-6 | 82.5 | 10.8:1 | 20 | 35.1 | Wossner | NC | NC | NC | 2.45 | NC | 825XPY |
| K9097D200-6 | 83.0 | 10.8:1 | 20 | 35.1 | Wossner | NC | NC | NC | 2.45 | NC | 830XPY |
Compatibility (engine codes):
Original vehicles equipped with the VR6 2.8 24v :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Seat | Alhambra I 2.8 V6 24V | AYL | 204 hp | 2000 – 2010 |
| Seat | Leon I (1M) Cupra 4 2.8 V6 24V | AUE / BDE | 204 hp | 2000 – 2004 |
| Volkswagen | Bora / Jetta IV 2.8 VR6 24V | AQP / AUE / BDE | 204 hp | 2001 – 2004 |
| Volkswagen | Golf IV 2.8 V6 4Motion | AQP / AUE / BDE | 204 hp | 1999 – 2003 |
| Volkswagen | Jetta IV / Golf IV 2.8 VR6 24V (NA) | BDF | 200 hp | 2002 – 2004 |
| Volkswagen | Sharan I (Phase 1.5) 2.8 VR6 24V | AYL | 204 hp | 2000 – 2004 |
| Volkswagen | Transporter T4 / Eurovan 2.8 VR6 24V | AMV / AXK | 201 hp | 2000 – 2003 |
OEM piston references :
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
Forged pistons VR6 2.8 24v (VW/Seat) : bore 81,0 mm, pin 20 mm, CH 37,10 mm. Rings included. Compatibility Golf IV, Bora/Jetta IV, Leon Cupra 4, Sharan, Eurovan.
