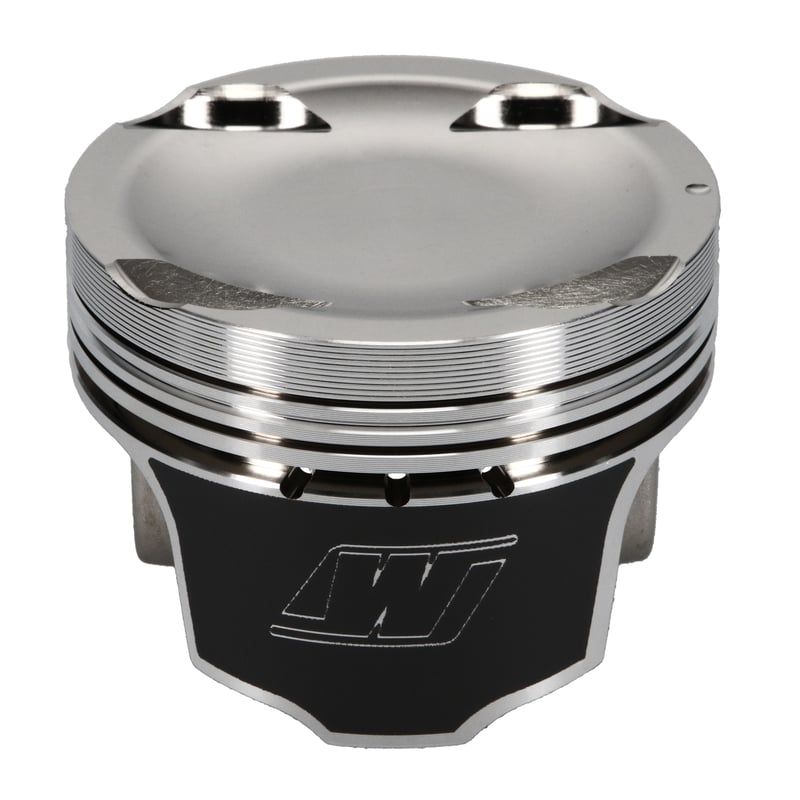

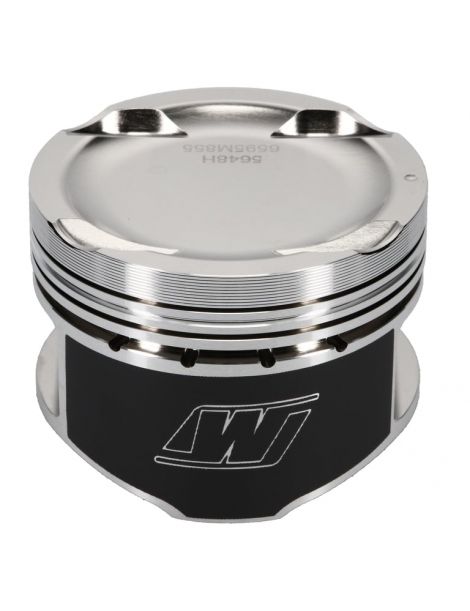

Pistoni forgiati 2.0L 16v 4G63 7-bolt Mitsubishi
Pistoni forgiati 4G63 7-bolt ordinati per alesaggio/RV con specs OEM (85,00 mm, 8,5:1, spinotto 22 mm, CH 34,9 mm). Compatibilità DSM 2G & Lancer Evo IV-IX, più riferimenti pistoni costruttore.
Caratteristiche dei pistoni forgiati proposti da NSB Concept per Mitsubishi 2.0 L 16 V 4G63 (7-bolt) :
Valori d'origine costruttore indicativi : secondo versioni DSM/Evo.
| Riferimento (Clicca) |
Alesaggio (mm) OEM: 85,00 |
RC OEM: 8,5 :1 |
Spinotto (mm) OEM: 22 |
Altezza Spinotto (mm) OEM: 34,9 |
Linea | Trattamento | Alluminio | Forgiatura | Cupola | Peso | Segmenti |
|---|---|---|---|---|---|---|---|---|---|---|---|

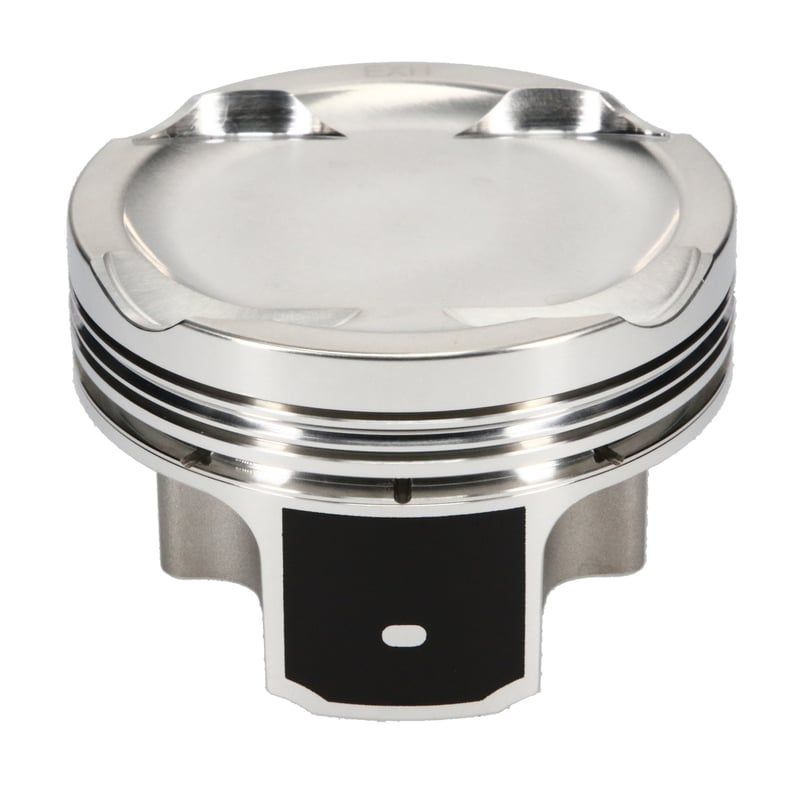

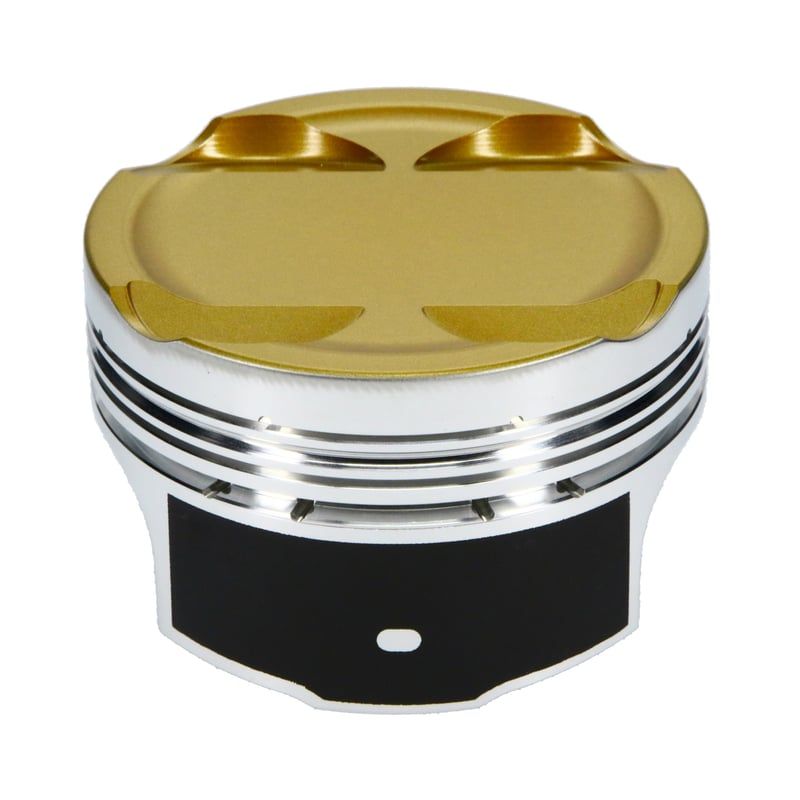

| JE297052 | 85 | 8:1 | 22 | 34.93 | JE Lite | Nessuno | 2618 | Round | -14.6 | NC | GNH85.00 |

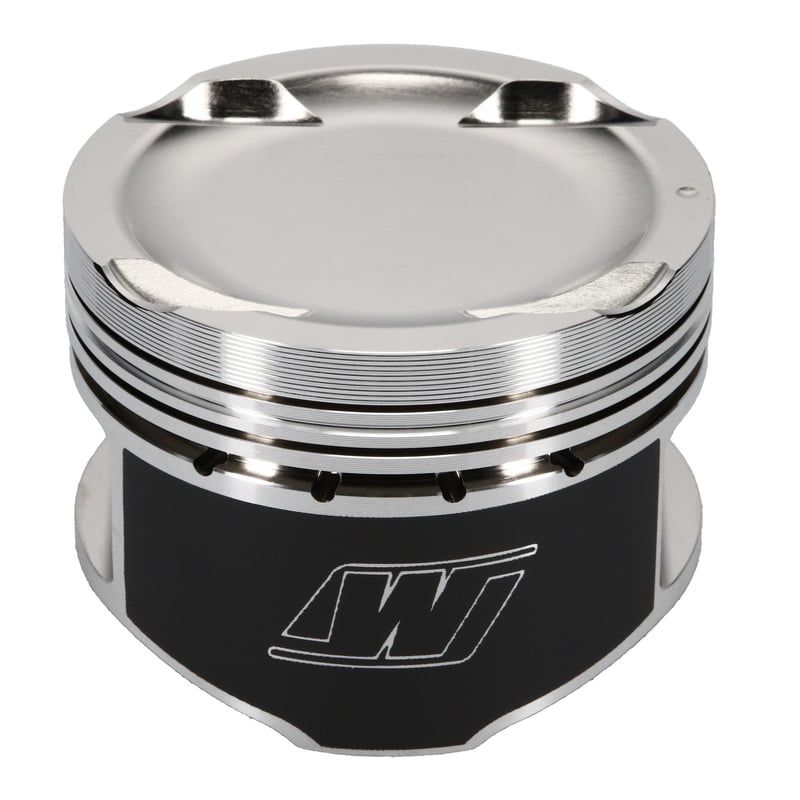

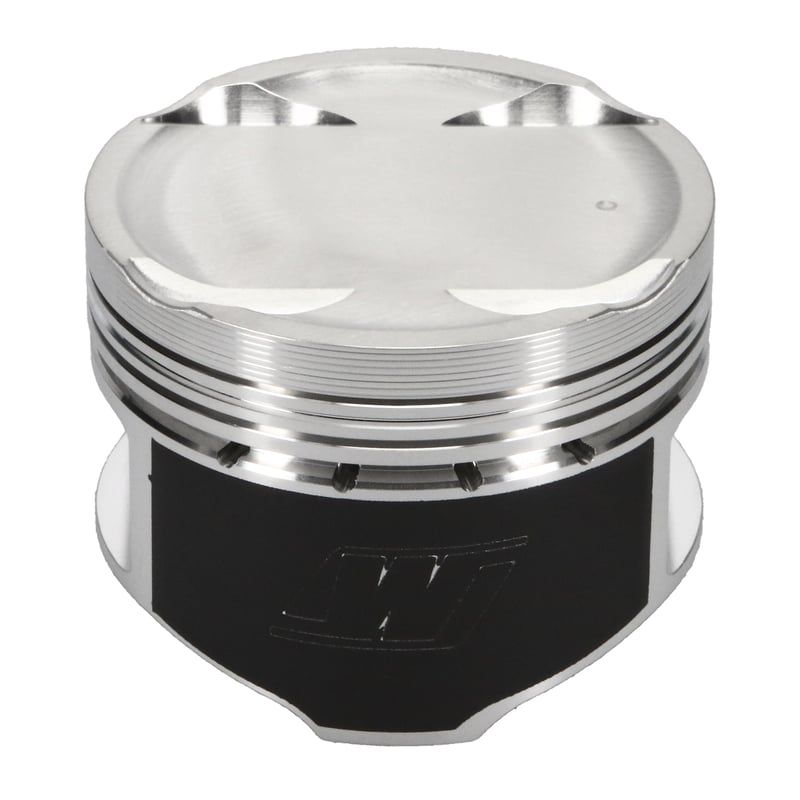

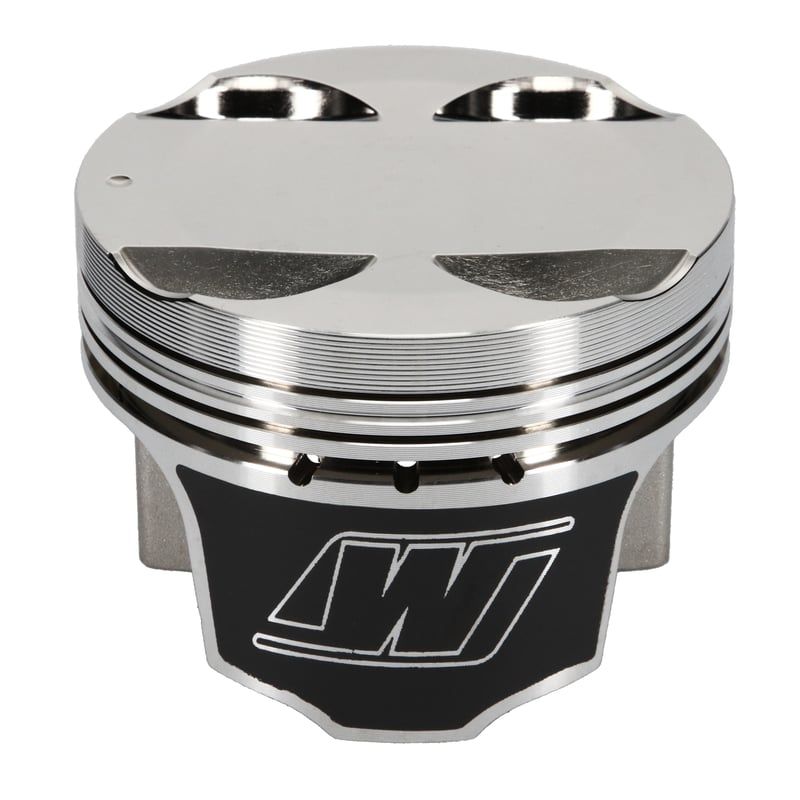

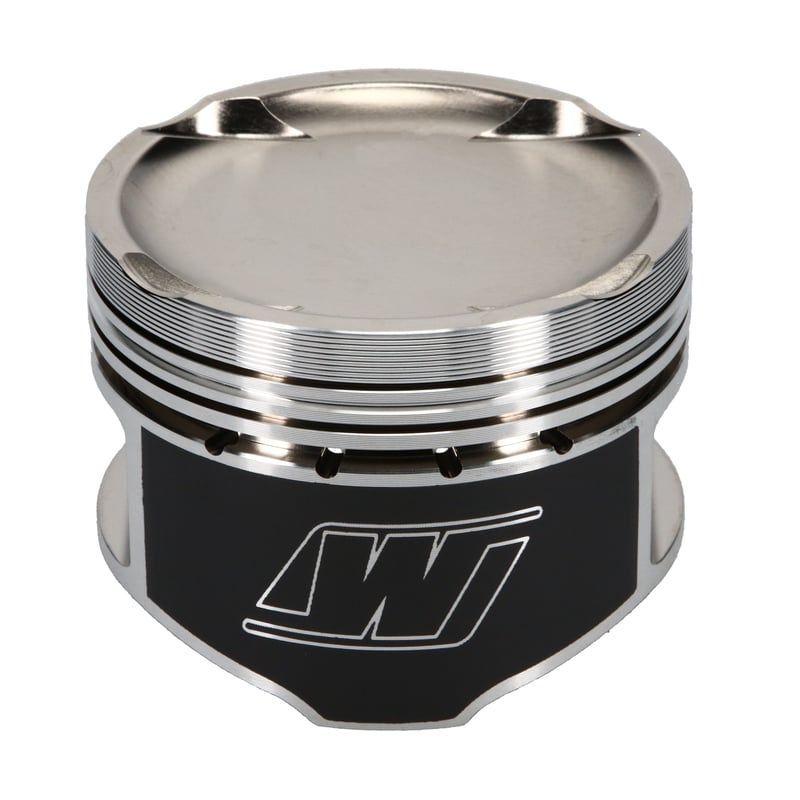

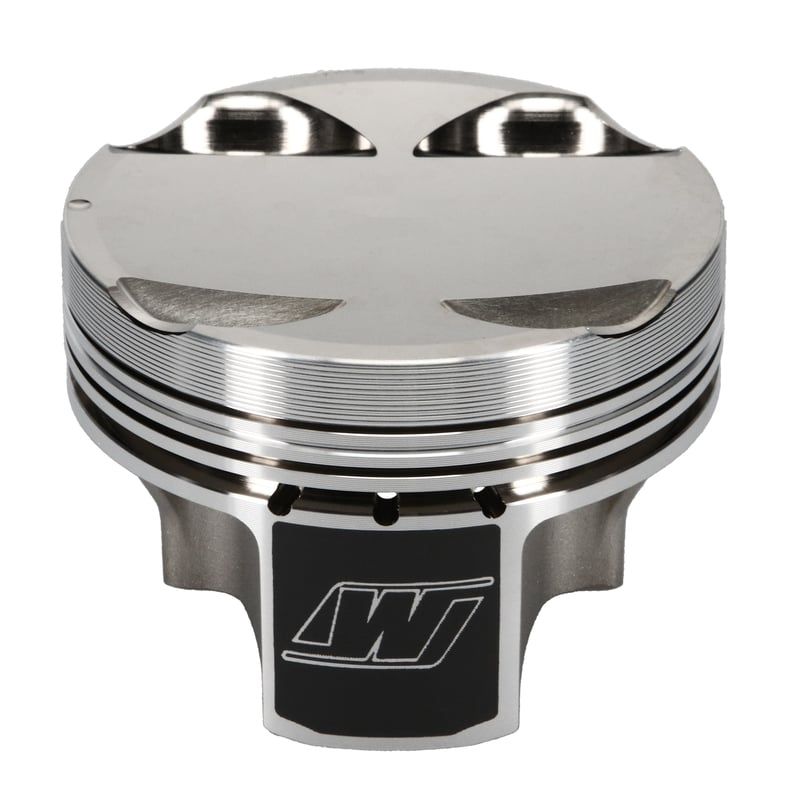

| 6548M85AP | 85 | 8:1 | 22 | 34.87 | Wiseco AP | Mantello | 4032 | Round | -13.0 | NC | 8500WX |

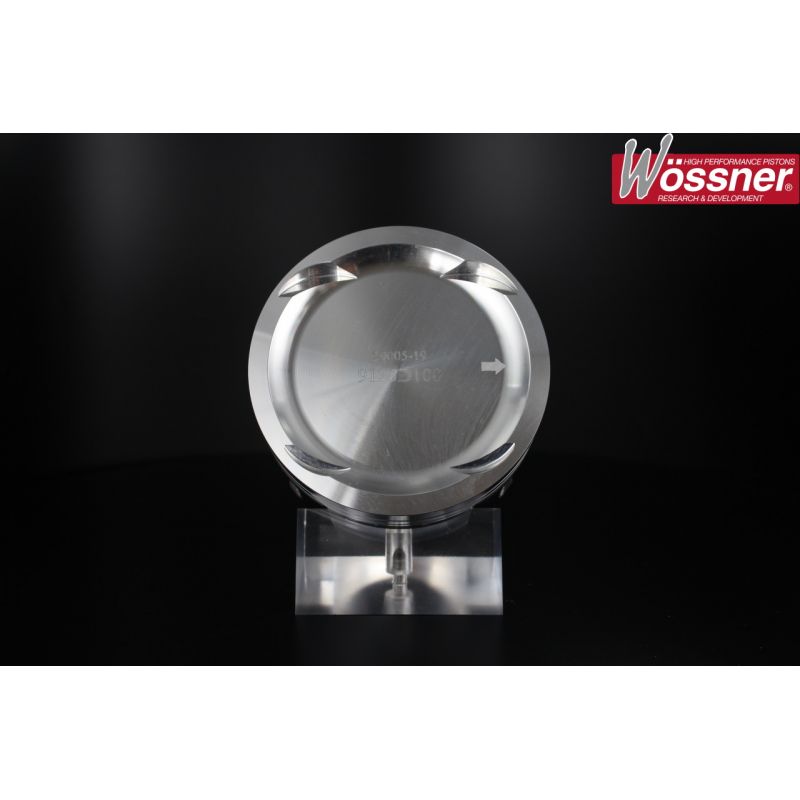

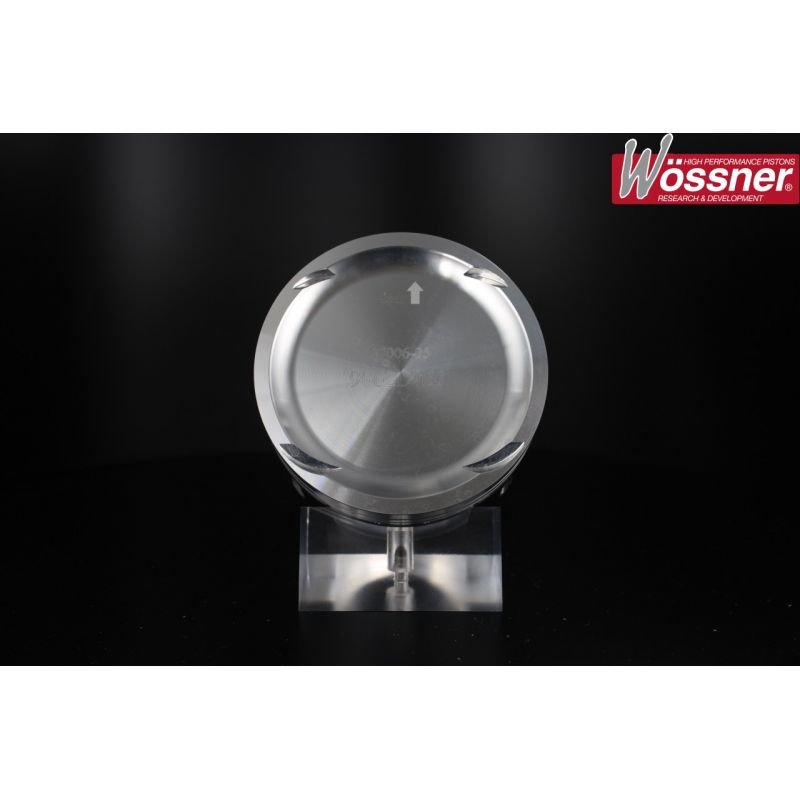

| K9601DA | 85 | 8:1 | 22 | 34.90 | Wössner | Mantello | 4032 | Round | -12.0 | NC | 8500WZ |
| JE297053 | 85 | 8.5:1 | 22 | 34.93 | JE Lite | Nessuno | 2618 | Round | -12.1 | NC | GNH85.01 |
| K597M85AP | 85 | 8.5:1 | 22 | 34.87 | Wiseco AP | Mantello | 4032 | Round | -12.6 | NC | 8500WX2 |
| K9602DA | 85 | 8.5:1 | 22 | 34.90 | Wössner | Mantello | 4032 | Round | -11.0 | NC | 8500WZ2 |
| K598M85AP | 85 | 9:1 | 22 | 34.87 | Wiseco AP | Mantello | 4032 | Round | -10.2 | NC | 8500WX3 |
| K9603DA | 85 | 9:1 | 22 | 34.90 | Wössner | Mantello | 4032 | Round | -9.8 | NC | 8500WZ3 |
| 6669M8525AP | 85.25 | 8:1 | 22 | 34.87 | Wiseco AP | Mantello | 4032 | Round | -12.5 | NC | 8525WX |
| K597M8525AP | 85.25 | 8.5:1 | 22 | 34.87 | Wiseco AP | Mantello | 4032 | Round | -12.0 | NC | 8525WX2 |
| JE297054 | 85.50 | 8:1 | 22 | 34.93 | JE Lite | Nessuno | 2618 | Round | -14.6 | NC | GNH85.50 |
| 6548M855AP | 85.50 | 8:1 | 22 | 34.87 | Wiseco AP | Mantello | 4032 | Round | -13.0 | NC | 8550WX |
| K597M855AP | 85.50 | 8.5:1 | 22 | 34.87 | Wiseco AP | Mantello | 4032 | Round | -12.6 | NC | 8550WX2 |
| JE297055 | 86 | 8:1 | 22 | 34.93 | JE Lite | Nessuno | 2618 | Round | -14.6 | NC | GNH86.00 |
| 6548M86AP | 86 | 8:1 | 22 | 34.87 | Wiseco AP | Mantello | 4032 | Round | -13.0 | NC | 8600WX |
| K597M86AP | 86 | 8.5:1 | 22 | 34.87 | Wiseco AP | Mantello | 4032 | Round | -12.6 | NC | 8600WX2 |
| 6669M865AP | 86.50 | 8:1 | 22 | 34.87 | Wiseco AP | Mantello | 4032 | Round | -12.5 | NC | 8650WX |
| K597M865AP | 86.50 | 8.5:1 | 22 | 34.87 | Wiseco AP | Mantello | 4032 | Round | -12.0 | NC | 8650WX2 |
| 6669M87AP | 87 | 8:1 | 22 | 34.87 | Wiseco AP | Mantello | 4032 | Round | -12.5 | NC | 8700WX |
Compatibilità (codici motore) :
- Mitsubishi 4G63T (7-bolt) – DSM 2G : Eclipse GS-T / GSX (1995–1999), Eagle Talon TSi (1995–1998)
- Mitsubishi 4G63T (7-bolt) – Lancer Evolution IV, V, VI, VII, VIII, IX (1996–2007)
Veicoli originali equipaggiati con il motore Mitsubishi 2.0L 4G63 16V (7-bolt) :
| Marca | Modello | Codice motore | Potenza | Anni |
|---|---|---|---|---|
| Eagle | Talon TSi | 4G63T (7-bolt) | 210 CV (BVM) / 205 CV (BVA) | 1995 – 1998 |
| Mitsubishi | Eclipse 2G GS-T | 4G63T (7-bolt) | 210 CV | 1995 – 1999 |
| Mitsubishi | Eclipse 2G GSX | 4G63T (7-bolt) | 210 CV | 1995 – 1999 |
| Mitsubishi | Lancer Evolution IV (CN9A) | 4G63T (7-bolt) | ~280 CV (JDM) | 1996 – 1998 |
| Mitsubishi | Lancer Evolution V (CP9A) | 4G63T (7-bolt) | ~280 CV (JDM) | 1998 – 1999 |
| Mitsubishi | Lancer Evolution VI (CP9A) | 4G63T (7-bolt) | ~280 CV (JDM) | 1999 – 2001 |
| Mitsubishi | Lancer Evolution VII (CT9A) | 4G63T (7-bolt) | ~280 CV (JDM) | 2001 – 2003 |
| Mitsubishi | Lancer Evolution VIII (CT9A) | 4G63T (7-bolt) | ~280 CV (JDM) | 2003 – 2005 |
| Mitsubishi | Lancer Evolution IX (CT9A) | 4G63T (7-bolt) | 280–291 CV (secondo mercato) | 2005 – 2007 |
Riferimenti pistone costruttore (OEM) :
- Mitsubishi Eclipse / Eagle Talon 2G 4G63T (1995–1999) : MD307820 (STD). Varianti correnti : MD307826 (0,25 mm), MD307828 (0,50 mm).
- Mitsubishi Lancer Evolution VII / VIII (2001–2005) : MN176908 (pistone & spinotto).
- Mitsubishi Lancer Evolution IX (2005–2007) : 1110B073 (STD A), 1110B074 (STD B), 1110B076 (0,50 mm oversize).
Attenzione : Prima di qualsiasi montaggio, verificare tassativamente l'integrità e la conformità di ogni componente del kit pistoni, nonché la conformità dell'assemblaggio nel motore; l'eventuale garanzia è strettamente limitata alle sole parti del kit pistoni.
-
