2.0L 16v - 175A1
Marcas
2.0L 16v - 175A1
Advertencia: ¡Últimos artículos en inventario!
Nuevo producto

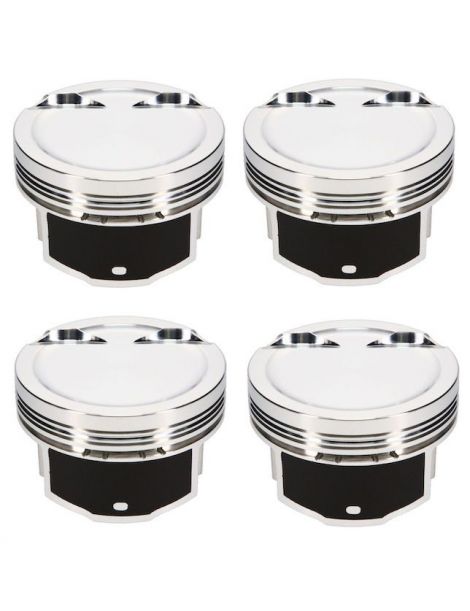

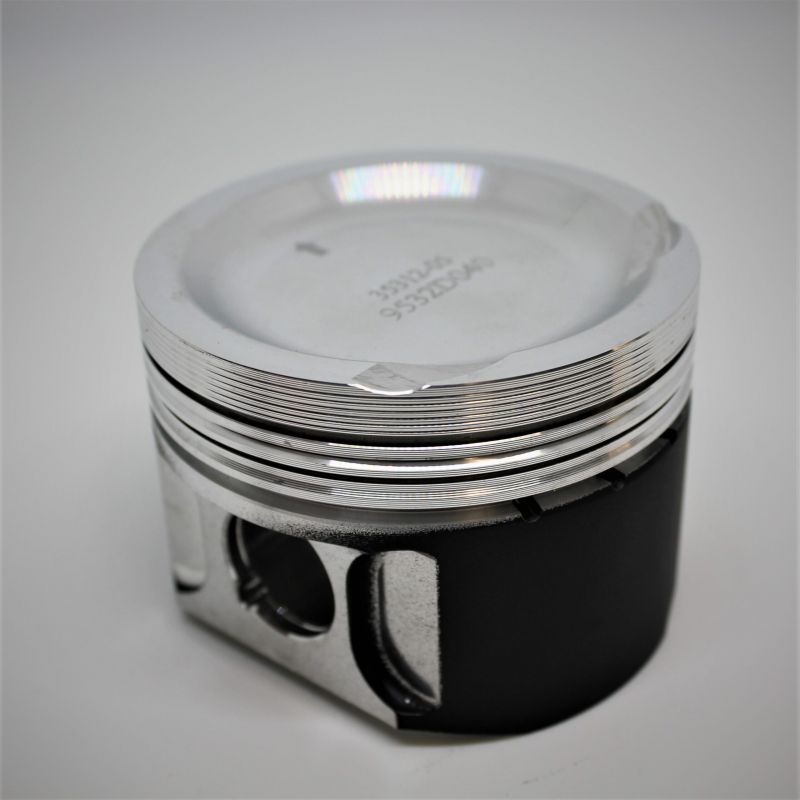

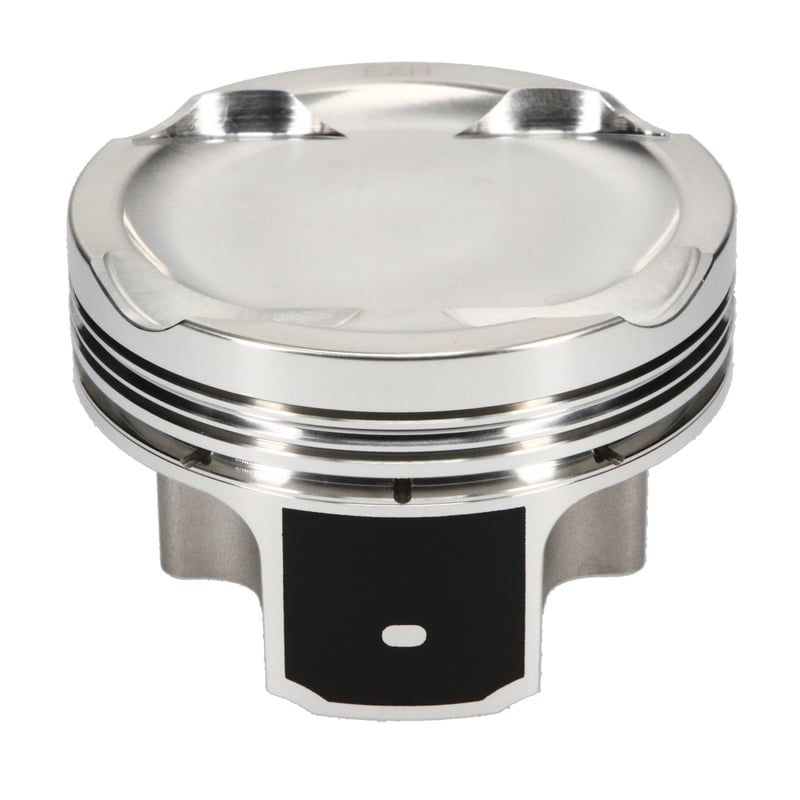

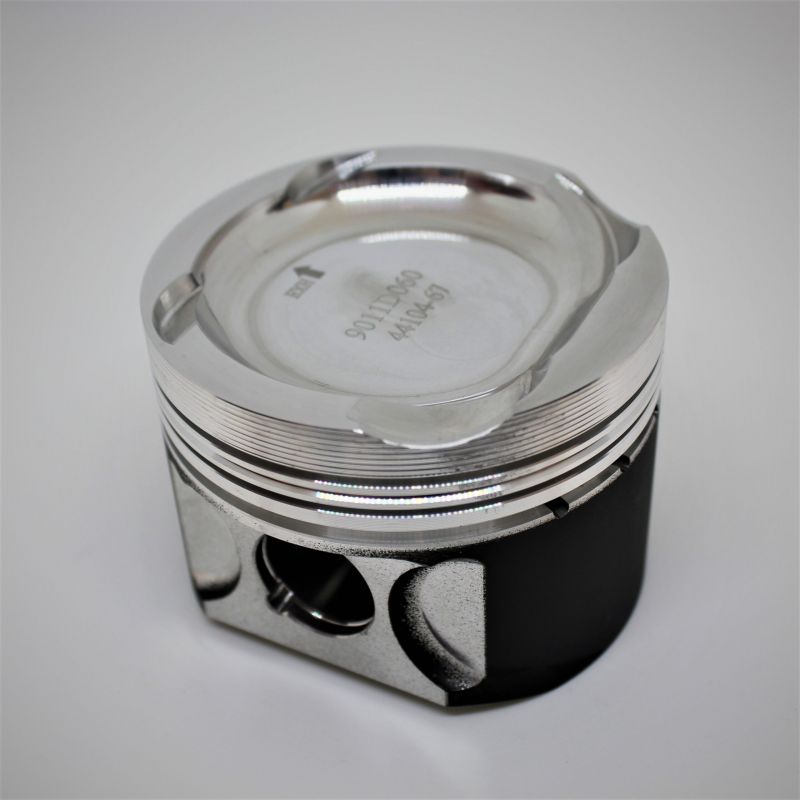

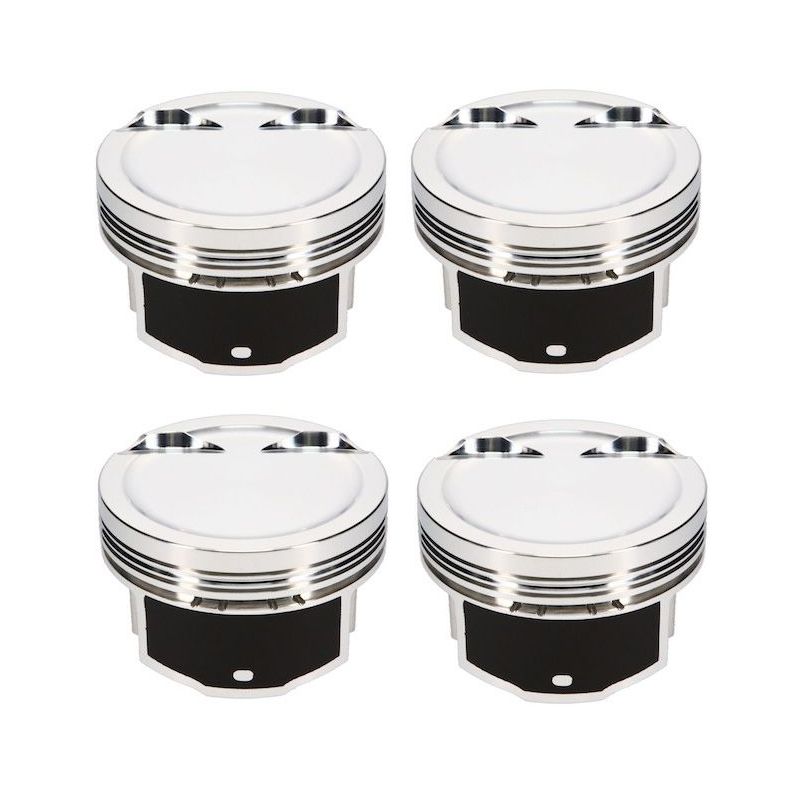

Juego de 4 pistones forjados JE, Wiseco & Wössner para Fiat/Lancia 2.0 L 16 v turbo 175A1 & 836A : diámetros 84,0 - 85,5 mm, RV 7,4 - 12,0 :1, bulón 22 mm, segmentos incluidos en kits Wiseco/Wössner.
Características de los pistones forjados propuestos por NSB Concept para Fiat / Lancia 2,0 L 16 v turbo (motores 175A1 & 836A) :
| Referencia | Diámetro (mm) | RC | Bulón (mm) | Altura de compresión (mm) | Gama | Tratamiento | Aluminio | Forja | Volume cúpula (cc) | Peso (g) | Segmentos |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE141M84 | 84 | 12:1 | 22 | 39.75 | Wiseco | Falda | NC | NC | 4.5 | NC | 8400XX |
| K9011DA | 84 | 7.4:1 | 22 | 39.65 | Wössner | NC | NC | Redonda | -25.2 | NC | 840XPY |
| WKE218M84 | 84 | 7.5:1 | 22 | 38.94 | Wiseco | Falda | 2618 | NC | -20.5 | NC | 8400XX |
| K9532DA | 84 | 7.9:1 | 22 | 39 | Wössner | NC | NC | Redonda | -19 | NC | 840XPY |
| JE-312418 | 84 | 8:1 | 22 | 39.65 | JE FSR | NC | 2618 | FSR | -25.3 | 338 | NC |
| WKE219M84 | 84 | 8.5:1 | 22 | 38.94 | Wiseco | Falda | 2618 | NC | -10 | NC | 8400XX |
| JE-326411 | 84 | 9:1 | 22 | 39.65 | JE FSR | NC | 2618 | FSR | -14.3 | 359 | NC |
| K9011D020 | 84.2 | 7.4:1 | 22 | 39.65 | Wössner | NC | NC | Redonda | -25.2 | NC | 842XPY |
| JE-312419 | 84.2 | 8:1 | 22 | 39.65 | JE FSR | NC | 2618 | FSR | -25.3 | 344 | NC |
| K9532D020 | 84.2 | 8:1 | 22 | 39 | Wössner | NC | NC | Redonda | -19 | NC | 842XPY |
| WKE218M8425 | 84.25 | 7.5:1 | 22 | 38.94 | Wiseco | Falda | 2618 | NC | -20.5 | NC | 8425XX |
| WKE219M8425 | 84.25 | 8.5:1 | 22 | 38.94 | Wiseco | Falda | 2618 | NC | -10 | NC | 8425XX |
| K9011D040 | 84.4 | 7.4:1 | 22 | 39.65 | Wössner | NC | NC | Redonda | -25.2 | NC | 844XPY |
| WKE218M844 | 84.4 | 7.5:1 | 22 | 38.94 | Wiseco | Falda | 2618 | NC | -20.5 | NC | 8440XX |
| JE-312420 | 84.4 | 8:1 | 22 | 39.65 | JE FSR | NC | 2618 | FSR | -25.3 | 350 | NC |
| K9532D040 | 84.4 | 8:1 | 22 | 39 | Wössner | NC | NC | Redonda | -19 | NC | 844XPY |
| WKE141M845 | 84.5 | 12:1 | 22 | 39.75 | Wiseco | Falda | NC | NC | 4.5 | NC | 8450XX |
| K9011D050 | 84.5 | 7.4:1 | 22 | 39.65 | Wössner | NC | NC | Redonda | -25.2 | NC | 845XPY |
| JE-326412 | 84.5 | 9:1 | 22 | 39.65 | JE FSR | NC | 2618 | FSR | -14.3 | 365 | NC |
| WKE218M845 | 84.5 | 7.5:1 | 22 | 38.94 | Wiseco | Falda | 2618 | NC | -20.5 | NC | 8450XX |
| WKE219M845 | 84.5 | 8.5:1 | 22 | 38.94 | Wiseco | Falda | 2618 | NC | -10 | NC | 8450XX |
| K9532D050 | 84.5 | 8:1 | 22 | 39 | Wössner | NC | NC | Redonda | -19 | NC | 845XPY |
| K9011D070 | 84.7 | 7.4:1 | 22 | 39.65 | Wössner | NC | NC | Redonda | -25.2 | NC | 847XPY |
| WKE218M847 | 84.7 | 7.5:1 | 22 | 38.94 | Wiseco | Falda | 2618 | NC | -20.5 | NC | 8470XX |
| WKE219M847 | 84.7 | 8.5:1 | 22 | 38.94 | Wiseco | Falda | 2618 | NC | -10 | NC | 8470XX |
| K9532D070 | 84.7 | 8:1 | 22 | 39 | Wössner | NC | NC | Redonda | -19 | NC | 847XPY |
| K9011D090 | 84.9 | 7.4:1 | 22 | 39.65 | Wössner | NC | NC | Redonda | -25.2 | NC | 849XPY |
| WKE218M849 | 84.9 | 7.5:1 | 22 | 38.94 | Wiseco | Falda | 2618 | NC | -20.5 | NC | 8490XX |
| WKE219M849 | 84.9 | 8.5:1 | 22 | 38.94 | Wiseco | Falda | 2618 | NC | -10 | NC | 8490XX |
| K9532D090 | 84.9 | 8:1 | 22 | 39 | Wössner | NC | NC | Redonda | -19 | NC | 849XPY |
| K9011D100 | 85 | 7.4:1 | 22 | 39.65 | Wössner | NC | NC | Redonda | -25.2 | NC | 850XPY |
| WKE218M85 | 85 | 7.5:1 | 22 | 38.94 | Wiseco | Falda | 2618 | NC | -20.5 | NC | 8500XX |
| WKE219M85 | 85 | 8.5:1 | 22 | 38.94 | Wiseco | Falda | 2618 | NC | -10 | NC | 8500XX |
| K9532D100 | 85 | 8:1 | 22 | 39 | Wössner | NC | NC | Redonda | -19 | NC | 850XPY |
| K9011D110 | 85.1 | 7.4:1 | 22 | 39.65 | Wössner | NC | NC | Redonda | -25.2 | NC | 851XPY |
| K9532D110 | 85.1 | 8:1 | 22 | 39 | Wössner | NC | NC | Redonda | -19 | NC | 851XPY |
| WKE218M851 | 85.1 | 7.5:1 | 22 | 38.94 | Wiseco | Falda | 2618 | NC | -20.5 | NC | 8510XX |
| WKE219M851 | 85.1 | 8.5:1 | 22 | 38.94 | Wiseco | Falda | 2618 | NC | -10 | NC | 8510XX |
| K9011D130 | 85.3 | 7.4:1 | 22 | 39.65 | Wössner | NC | NC | Redonda | -25.2 | NC | 853XPY |
| K9532D130 | 85.3 | 8:1 | 22 | 39 | Wössner | NC | NC | Redonda | -19 | NC | 853XPY |
| K9011D150 | 85.5 | 7.4:1 | 22 | 39.65 | Wössner | NC | NC | Redonda | -25.2 | NC | 855XPY |
| K9532D150 | 85.5 | 8:1 | 22 | 39 | Wössner | NC | NC | Redonda | -19 | NC | 855XPY |
Compatibilidades :
Vehículos de origen equipados con el motor 2.0 L 16 v turbo 175A1 / 836A :
| Marca | Modelo | Código de motor | Potencia | Años |
|---|---|---|---|---|
| Fiat | Coupé 2.0 16 v Turbo | 175A1.000 | 190 CV | 1993 – 1996 |
| Lancia | Delta HF Integrale 16 v / Evo | 836A | 185 – 215 CV | 1991 – 1995 |
Referencias pistón fabricante (OEM) :
Atención: Antes de cualquier montaje, compruebe obligatoriamente la integridad y conformidad de cada componente del kit de pistones, así como la conformidad del ensamblaje en el motor; cualquier garantía eventual se limita estrictamente a las piezas del kit de pistones.
