1.6L 16v - Z16LER Z16LET
Marcas
1.6L 16v - Z16LER Z16LET
Advertencia: ¡Últimos artículos en inventario!
Nuevo producto

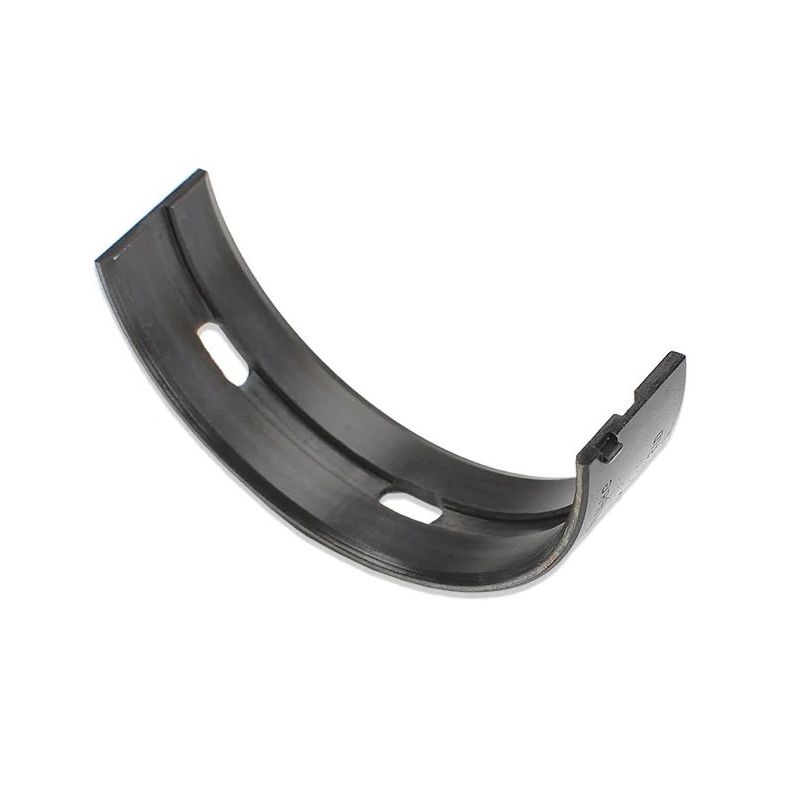

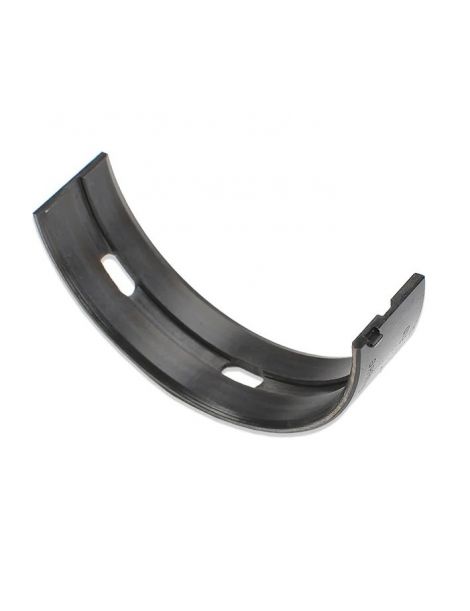

Juego de 10 semicojinetes de bancada trimetal para los cinco apoyos de los motores de gasolina Opel de 1.2 a 1.8 litros (Ø 54.972 a 54.985 mm).
ACL publica el juego de cojinetes de bancada 5M1338H para los motores de gasolina de cuatro cilindros Opel de 1.2 a 1.8 litros, en particular las familias 12, 13, 14, 16 y 18: 12NV, 14NV, C14NZ, C16NZ, X16XEL, Z16XE, Z16XER, Z18XE, Z18XER, además de los Z16LER, Z16LET y A16LER. Comparten el mismo diámetro de apoyo de bancada del cigüeñal: un único juego cubre toda esta gama.
El cigüeñal de estos motores se apoya en cinco bancadas. Cada apoyo de bancada gira entre dos semicojinetes, uno alojado en el bloque y otro en el sombrerete de bancada: son ellos los que sostienen el cigüeñal. El juego de cojinetes trimetal ACL Race Series presentado aquí los sustituye en los motores preparados.
Un cojinete trimetálico superpone tres capas: un dorso de acero, una capa intermedia de cobre-plomo de alta capacidad de carga y una capa de deslizamiento antifricción que protege el apoyo de bancada. El juego completo cubre las cinco bancadas del cigüeñal. Los semicojinetes superiores e inferiores son diferentes: cada uno se monta en su lugar.
Un bimetal de aluminio soporta unos 8 000 psi, un trimetal de rendimiento hasta 12 000 psi, un 50 % más. De ahí una mayor resistencia y una mayor durabilidad en motores turbo, con compresor y de altas revoluciones.
| Cojinetes ACL Ø apoyo de bancada 54.972 / 54.985 mm Ø alojamiento 59.000 / 59.013 mm Anchura 19.5 mm |
Nota del fabricante (ACL 5M1338H): pestañas de mayor anchura para las cotas reducidas: STD = STD, 0.25 mm = STD + 0.20 mm.
| Referencia | Marca y tratamiento | Medida | Espesor de pared (mm) |
|---|---|---|---|
| 5M1338H-STD | ACL Race - Sin tratamiento | Estándar | 1.998 |
| 5M1338HX-STD | ACL Race - Sin tratamiento | Std, juego aumentado (HX) | 1.985 |
| 5M1338H-.025 | ACL Race - Sin tratamiento | +0.025 | 2.0105 |
| 5M1338H-.25 | ACL Race - Sin tratamiento | +0.25 | 2.123 |
El juego de funcionamiento es el espacio entre el cojinete y el apoyo de bancada por donde circula la película de aceite.
En funcionamiento, el apoyo de bancada no roza contra el cojinete: gira sobre esta película de aceite, que soporta la carga. La holgura determina el espesor de esta película: demasiado ajustada, el aceite circula mal, sube la temperatura y aumenta el riesgo de gripaje; demasiado amplia, el aceite se escapa, la película pierde sustentación y cae la presión de aceite. La holgura correcta es el equilibrio entre una lubricación suficiente y una película bien mantenida.
| Medida / versión | Cuándo elegirla | ACL Race Series |
|---|---|---|
| Estándar (STD) | Apoyo de bancada de origen, no rectificado | 0.057 a 0.068 mm |
| Juego aumentado (HX) | Juego más amplio: alto caudal de aceite, alto régimen | 0.082 a 0.093 mm |
| +0.025 mm | Apoyo de bancada pulido | 0.057 a 0.068 mm |
| +0.25 mm | Apoyo de bancada rectificado a 0.25 mm | 0.057 a 0.068 mm |
Control en el montaje: coloque un hilo calibrado (Plastigauge) sobre el apoyo de bancada, apriete el sombrerete de bancada al par prescrito y compare el aplastamiento del hilo con la regla para leer el juego.
Los cojinetes de bancada ACL aquí presentados son cojinetes trimetal, diseñados para la preparación de motores y la competición. Frente a un cojinete original, soportan cargas mucho más elevadas: aguantan el aumento de potencia, el alto régimen o la incorporación de un turbo o un compresor, donde un cojinete de serie alcanza rápidamente su límite.
 | ACL Bearing Company, fabricante australiano de cojinetes de motor de alto rendimiento desde 1949, ofrece con su gama Race Series cojinetes trimetálicos precisos, disponibles en numerosas medidas y probados en motores preparados de todo el mundo. |
Este juego de cojinetes de bancada es apto para los siguientes vehículos, según el código de motor:
| Marca | Modelo (chasis) | Código de motor | Potencia | Años |
|---|---|---|---|---|
| Opel | Ascona B (81_, 86_, 87_, 88_) | 13 S | 75 CV | 1979–1981 |
| Opel | Ascona B (81_, 86_, 87_, 88_) | 13 N | 60 CV | 1979–1981 |
| Opel | Ascona C (J82) | 13 N | 60 CV | 1981–1986 |
| Opel | Ascona C (J82) | 13 S | 75 CV | 1981–1988 |
| Opel | Ascona C (J82) | 16 SV | 82 CV | 1986–1988 |
| Opel | Ascona C (J82) | E 16 NZ | 75 CV | 1987–1988 |
| Opel | Ascona C (J82) | C 16 LZ, C 16 NZ | 75 CV | 1986–1988 |
| Opel | Ascona C Hatchback (J82) | 13 N | 60 CV | 1981–1986 |
| Opel | Ascona C Hatchback (J82) | 13 S | 75 CV | 1981–1988 |
| Opel | Ascona C Hatchback (J82) | 16 SV | 82 CV | 1986–1988 |
| Opel | Ascona C Hatchback (J82) | E 16 NZ | 75 CV | 1987–1988 |
| Opel | Ascona C Hatchback (J82) | C 16 LZ, C 16 NZ | 75 CV | 1986–1988 |
| Opel | Astra F Sedán (T92) | X 14 NZ, C 14 NZ | 60 CV | 1991–1998 |
| Opel | Astra F Sedán (T92) | C 14 SE | 82 CV | 1992–1998 |
| Opel | Astra F Sedán (T92) | X 16 SZ | 71 CV | 1993–1996 |
| Opel | Astra F Sedán (T92) | C 16 NZ, X 16 SZR | 75 CV | 1992–1998 |
| Opel | Astra F Sedán (T92) | C 16 SE | 100 CV | 1992–1994 |
| Opel | Astra F Sedán (T92) | X 14 XE | 90 CV | 1996–1998 |
| Opel | Astra F Sedán (T92) | X 16 XEL | 100 CV | 1994–1998 |
| Opel | Astra F Sedán (T92) | 14 NV | 75 CV | 1991–1993 |
| Opel | Astra F Sedán (T92) | 14 SE | 82 CV | 1992–1998 |
| Opel | Astra F Sedán (T92) | 16 NZR | 75 CV | 1995–1998 |
| Opel | Astra F Hatchback (T92) | X 14 NZ, C 14 NZ | 60 CV | 1991–1998 |
| Opel | Astra F Hatchback (T92) | C 14 SE | 82 CV | 1992–1998 |
| Opel | Astra F Hatchback (T92) | X 16 SZ | 71 CV | 1993–1996 |
| Opel | Astra F Hatchback (T92) | C 16 NZ, X 16 SZR | 75 CV | 1991–1998 |
| Opel | Astra F Hatchback (T92) | C 16 SE | 101 CV | 1992–1994 |
| Opel | Astra F Hatchback (T92) | X 14 XE | 90 CV | 1996–1998 |
| Opel | Astra F Hatchback (T92) | X 16 XEL | 100 CV | 1994–1998 |
| Opel | Astra F Hatchback (T92) | 14 NV | 75 CV | 1991–1993 |
| Opel | Astra F Hatchback (T92) | 14 SE | 82 CV | 1992–1998 |
| Opel | Astra F Hatchback (T92) | 16 NZR | 75 CV | 1995–1998 |
| Opel | Astra F Familiar (T92) | X 14 NZ, C 14 NZ | 60 CV | 1991–1998 |
| Opel | Astra F Familiar (T92) | C 14 SE | 82 CV | 1992–1998 |
| Opel | Astra F Familiar (T92) | X 16 SZ | 71 CV | 1993–1996 |
| Opel | Astra F Familiar (T92) | C 16 NZ, X 16 SZR | 75 CV | 1991–1998 |
| Opel | Astra F Familiar (T92) | C 16 SE | 101 CV | 1992–1994 |
| Opel | Astra F Familiar (T92) | X 14 XE | 90 CV | 1996–1998 |
| Opel | Astra F Familiar (T92) | X 16 XEL | 100 CV | 1994–1998 |
| Opel | Astra F Familiar (T92) | 14 NV | 75 CV | 1991–1993 |
| Opel | Astra F Familiar (T92) | 14 SE | 82 CV | 1992–1998 |
| Opel | Astra F Familiar (T92) | 16 NZR | 75 CV | 1995–1998 |
| Opel | Astra F Classic Sedán (T92) | X 14 NZ | 60 CV | 1998–2002 |
| Opel | Astra F Classic Sedán (T92) | X 16 SZR | 75 CV | 1998–2002 |
| Opel | Astra F Classic Sedán (T92) | X 16 XEL | 101 CV | 1998–2002 |
| Opel | Astra F Classic Hatchback (T92) | X 14 NZ | 60 CV | 1998–2002 |
| Opel | Astra F Classic Hatchback (T92) | X 16 SZR | 75 CV | 1998–2002 |
| Opel | Astra F Classic Hatchback (T92) | X 16 XEL | 101 CV | 1998–2002 |
| Opel | Astra F Classic Familiar (T92) | X 14 NZ | 60 CV | 1998–2005 |
| Opel | Astra F Classic Familiar (T92) | X 16 SZR | 75 CV | 1998–2005 |
| Opel | Astra F Classic Familiar (T92) | X 16 XEL | 101 CV | 1998–2005 |
| Opel | Astra F Descapotable (T92) | X 16 SZ | 71 CV | 1993–1996 |
| Opel | Astra F Descapotable (T92) | C 14 SE | 82 CV | 1993–2001 |
| Opel | Astra F Descapotable (T92) | X 14 XE | 90 CV | 1996–2001 |
| Opel | Astra F Descapotable (T92) | X 16 SZR | 75 CV | 1996–2001 |
| Opel | Astra G Sedán (T98) | X 16 SZR | 75 CV | 1998–2000 |
| Opel | Astra G Sedán (T98) | X 16 XEL, Z 16 XE | 101 CV | 1998–2005 |
| Opel | Astra G Sedán (T98) | X 18 XE1 | 116 CV | 1998–2000 |
| Opel | Astra G Sedán (T98) | Z 14 XE, X 14 XE | 90 CV | 1998–2005 |
| Opel | Astra G Sedán (T98) | Z 16 SE | 84 CV | 2000–2005 |
| Opel | Astra G Sedán (T98) | Z 18 XE | 125 CV | 2000–2005 |
| Opel | Astra G Sedán (T98) | Z 16 XEP | 103 CV | 2002–2009 |
| Opel | Astra G Sedán (T98) | Z 18 XEL | 110 CV | 2003–2005 |
| Opel | Astra G Hatchback (T98) | X 16 SZR | 75 CV | 1998–2005 |
| Opel | Astra G Hatchback (T98) | X 16 XEL, C 16 SEL, Z 16 XE | 101 CV | 1998–2005 |
| Opel | Astra G Hatchback (T98) | X 18 XE1 | 116 CV | 1998–2000 |
| Opel | Astra G Hatchback (T98) | Z 14 XE, X 14 XE | 90 CV | 1998–2005 |
| Opel | Astra G Hatchback (T98) | Z 16 SE | 84 CV | 1998–2005 |
| Opel | Astra G Hatchback (T98) | Z 18 XE | 125 CV | 2000–2005 |
| Opel | Astra G Hatchback (T98) | Z 16 XEP | 103 CV | 2002–2007 |
| Opel | Astra G Hatchback (T98) | Z 18 XEL | 110 CV | 2003–2004 |
| Opel | Astra G Hatchback (T98) | X 16 XEL, Z 16 XE | 101 CV | 1998–2005 |
| Opel | Astra G Familiar (T98) | X 16 SZR | 75 CV | 1998–2000 |
| Opel | Astra G Familiar (T98) | X 16 XEL, Z 16 XE | 101 CV | 1998–2004 |
| Opel | Astra G Familiar (T98) | X 18 XE1 | 116 CV | 1998–2000 |
| Opel | Astra G Familiar (T98) | Z 14 XE, X 14 XE | 90 CV | 1998–2004 |
| Opel | Astra G Familiar (T98) | Z 16 SE | 84 CV | 2000–2004 |
| Opel | Astra G Familiar (T98) | Z 18 XE | 125 CV | 2000–2004 |
| Opel | Astra G Familiar (T98) | Z 16 YNG | 97 CV | 2003–2004 |
| Opel | Astra G Familiar (T98) | Z 16 XEP | 103 CV | 2002–2004 |
| Opel | Astra G Classic (T98) | Z 14 XE | 90 CV | 2004–2009 |
| Opel | Astra G Classic (T98) | Z 16 XE | 101 CV | 2004–2006 |
| Opel | Astra G Classic (T98) | Z 16 XEP | 103 CV | 2006–2008 |
| Opel | Astra G Classic Sedán (T98) | Z 16 XE | 101 CV | 2004–2008 |
| Opel | Astra G Classic Sedán (T98) | Z 14 XE | 90 CV | 2004–2009 |
| Opel | Astra G Classic Caravan (F35) | Z 14 XE | 90 CV | 2004–2007 |
| Opel | Astra G Classic Caravan (F35) | Z 16 XEP | 103 CV | 2006–2009 |
| Opel | Astra G Classic Caravan (F35) | Z 16 XE | 101 CV | 2004–2006 |
| Opel | Astra G Coupé (T98) | Z 16 XE | 101 CV | 2000–2005 |
| Opel | Astra G Coupé (T98) | X 18 XE1 | 116 CV | 2000 |
| Opel | Astra G Coupé (T98) | Z 18 XE | 125 CV | 2000–2005 |
| Opel | Astra G Coupé (T98) | Z 16 XEP | 103 CV | 2000–2005 |
| Opel | Astra G Descapotable (T98) | Z 16 XE | 101 CV | 2001–2005 |
| Opel | Astra G Descapotable (T98) | Z 18 XE | 125 CV | 2001–2005 |
| Opel | Astra G Descapotable (T98) | Z 16 XEP | 103 CV | 2003–2005 |
| Opel | Astra H (A04) | Z 16 XEP | 105 CV | 2004–2010 |
| Opel | Astra H (A04) | Z 18 XE | 125 CV | 2004–2010 |
| Opel | Astra H (A04) | Z 18 XER | 140 CV | 2006–2010 |
| Opel | Astra H (A04) | Z 16 LET, A 16 LET | 180 CV | 2007–2010 |
| Opel | Astra H (A04) | Z 16 XER | 116 CV | 2006–2009 |
| Opel | Astra H Sedán (A04) | Z 16 XER | 116 CV | 2008–2010 |
| Opel | Astra H Sedán (A04) | Z 18 XER | 140 CV | 2007–2010 |
| Opel | Astra H Sedán (A04) | Z 16 XEP | 105 CV | 2007–2010 |
| Opel | Astra H Familiar (A04) | Z 16 XER | 116 CV | 2009–2010 |
| Opel | Astra H Familiar (A04) | Z 16 XEP | 105 CV | 2004–2010 |
| Opel | Astra H Familiar (A04) | Z 18 XE | 125 CV | 2004–2010 |
| Opel | Astra H Familiar (A04) | Z 18 XER | 140 CV | 2005–2010 |
| Opel | Astra H Familiar (A04) | Z 16 LET, A 16 LET | 180 CV | 2007–2010 |
| Opel | Astra H Familiar (A04) | Z 16 XER | 116 CV | 2006–2010 |
| Opel | Astra H Classic Sedán (A04) | Z 16 XER | 116 CV | 2009–2014 |
| Opel | Astra H Classic Sedán (A04) | Z 18 XER | 140 CV | 2009–2012 |
| Opel | Astra H Classic Hatchback (A04) | Z 16 XER | 116 CV | 2009–2014 |
| Opel | Astra H Classic Hatchback (A04) | Z 18 XER | 140 CV | 2013–2014 |
| Opel | Astra H Classic Familiar (A04) | Z 16 XER | 116 CV | 2009–2014 |
| Opel | Astra H Classic Familiar (A04) | Z 18 XER | 140 CV | 2012–2014 |
| Opel | Astra H GTC (A04) | Z 16 XEP | 105 CV | 2005–2010 |
| Opel | Astra H GTC (A04) | Z 18 XE | 125 CV | 2005–2010 |
| Opel | Astra H GTC (A04) | Z 18 XER | 140 CV | 2006–2010 |
| Opel | Astra H GTC (A04) | Z 16 LET, A 16 LET | 180 CV | 2007–2010 |
| Opel | Astra H GTC (A04) | Z 16 XER | 116 CV | 2006–2010 |
| Opel | Astra H TwinTop (A04) | Z 16 XEP | 105 CV | 2005–2010 |
| Opel | Astra H TwinTop (A04) | Z 18 XE | 125 CV | 2005–2010 |
| Opel | Astra H TwinTop (A04) | Z 18 XER | 140 CV | 2005–2010 |
| Opel | Astra H TwinTop (A04) | Z 16 LET, A 16 LET | 180 CV | 2007–2010 |
| Opel | Astra H TwinTop (A04) | Z 16 XER | 116 CV | 2006–2010 |
| Opel | Astra J (P10) | A 16 LET | 180 CV | 2009–2015 |
| Opel | Astra J Sedán | A 16 LET | 180 CV | 2012–2013 |
| Opel | Astra J GTC | A 16 LET | 180 CV | 2011–2013 |
| Opel | Astra J Sports Tourer (P10) | A 16 LET | 180 CV | 2010–2015 |
| Opel | Combo Tour | Z 16 SE | 87 CV | 2001–2006 |
| Opel | Combo Tour | Z 16 YNG | 94 CV | 2006–2011 |
| Opel | Combo Tour | Z 16 SE | 84 CV | 2001–2006 |
| Opel | Combo Tour | Z 16 YNG | 97 CV | 2005–2011 |
| Opel | Corsa A Hatchback (S83) | 12 ST | 55 CV | 1982–1990 |
| Opel | Corsa A Hatchback (S83) | 14 NV | 72 CV | 1990–1993 |
| Opel | Corsa A Hatchback (S83) | C 13 N | 60 CV | 1986–1990 |
| Opel | Corsa A Hatchback (S83) | C 14 NZ | 60 CV | 1990–1993 |
| Opel | Corsa A Hatchback (S83) | C 14 SE | 82 CV | 1991–1993 |
| Opel | Corsa A Hatchback (S83) | C 16 SEI | 98 CV | 1989–1993 |
| Opel | Corsa A Hatchback (S83) | E 16 SE | 100 CV | 1988–1992 |
| Opel | Corsa A Hatchback (S83) | C 12 NZ | 45 CV | 1989–1993 |
| Opel | Corsa A Hatchback (S83) | 12 NV | 52 CV | 1990–1993 |
| Opel | Corsa A Hatchback (S83) | 13 NB | 60 CV | 1985–1989 |
| Opel | Corsa A Hatchback (S83) | C 16 SE | 101 CV | 1992–1993 |
| Opel | Corsa A Hatchback (S83) | C 14 NZ | 54 CV | 1985–1993 |
| Opel | Corsa A Hatchback (S83) | C 16 NZ | 75 CV | 1988–1992 |
| Opel | Corsa A Hatchback (S83) | C 16 NZ | 82 CV | 1988–1990 |
| Opel | Corsa A TR (S83) | 12 ST | 55 CV | 1982–1993 |
| Opel | Corsa A TR (S83) | 13 NB, C 13 N | 60 CV | 1985–1987 |
| Opel | Corsa A TR (S83) | C 14 NZ | 60 CV | 1989–1993 |
| Opel | Corsa A TR (S83) | 14 NV | 72 CV | 1989–1993 |
| Opel | Corsa A TR (S83) | C 12 NZ | 45 CV | 1989–1993 |
| Opel | Corsa B (S93) | X 12 SZ, C 12 NZ | 45 CV | 1993–2000 |
| Opel | Corsa B (S93) | C 14 NZ | 60 CV | 1993–2000 |
| Opel | Corsa B (S93) | C 14 SE | 82 CV | 1993–2000 |
| Opel | Corsa B (S93) | C 16 XE | 109 CV | 1993–2000 |
| Opel | Corsa B (S93) | X 14 XE | 90 CV | 1994–2000 |
| Opel | Corsa B (S93) | X 16 XE | 106 CV | 1994–2000 |
| Opel | Corsa B (S93) | 12 NZ | 45 CV | 1993–2000 |
| Opel | Corsa B (S93) | C 14 SEL | 86 CV | 1997–2000 |
| Opel | Corsa B (S93) | C 16 SEL | 100 CV | 1997–2000 |
| Opel | Corsa B (S93) | C 14 SE | 73 CV | 1993–1994 |
| Opel | Corsa B (S93) | C 14 NZ | 54 CV | 1993–2000 |
| Opel | Corsa B (S93) | 13 NB | 60 CV | 1996–2002 |
| Opel | Corsa B (S93) | C 16 SE | 102 CV | 1998–2004 |
| Opel | Corsa B Familiar (S93) | X 14 XE | 90 CV | 1999–2002 |
| Opel | Corsa C (X01) | Z 16 SE | 92 CV | 2003–2007 |
| Opel | Corsa C (X01) | Z 18 XE | 125 CV | 2000–2009 |
| Opel | Corsa C (X01) | Z 14 XE | 90 CV | 2000–2009 |
| Opel | Corsa C (X01) | Z 18 XEL | 107 CV | 2002–2009 |
| Opel | Corsa C (X01) | 14 SE | 82 CV | 2002–2009 |
| Opel | Corsa C (X01) | Z 16 SE | 84 CV | 2000–2009 |
| Opel | Corsa C (X01) | C 14 SE | 90 CV | 2002–2008 |
| Opel | Corsa C (X01) | C 16 SE | 102 CV | 2002–2008 |
| Opel | Corsa Classic B Sedán | C 14 NZ | 60 CV | 1994–2002 |
| Opel | Corsa Classic B Sedán | Z 14 XE | 90 CV | 2000–2001 |
| Opel | Corsa Classic B Sedán | C 16 SE | 102 CV | 1998–2004 |
| Opel | Corsa Classic C Sedán (X01) | Z 16 SE | 94 CV | 2003–2007 |
| Opel | Corsa Classic C Sedán (X01) | C 14 SE | 90 CV | 2002–2008 |
| Opel | Corsa Classic C Sedán (X01) | C 16 SE | 102 CV | 2002–2008 |
| Opel | Corsa D (S07) | A 16 LES | 211 CV | 2011–2014 |
| Opel | Corsa D (S07) | A 16 LER, B 16 LER, Z 16 LER | 192 CV | 2006–2014 |
| Opel | Corsa D (S07) | A 16 LEL, Z 16 LEL | 150 CV | 2007–2014 |
| Opel | Corsa E (X15) | B 16 LER | 207 CV | 2015–2019 |
| Opel | Corsa Utility C Pick-up | C 14 SE | 90 CV | 2004–2010 |
| Opel | Insignia A (G09) | A 16 LET | 180 CV | 2008–2017 |
| Opel | Insignia A Sedán (G09) | A 16 LET | 180 CV | 2008–2017 |
| Opel | Insignia A Sports Tourer (G09) | A 16 LET | 180 CV | 2009–2013 |
| Opel | Kadett D (31_-34_, 41_-44_) | 12 ST | 55 CV | 1982–1984 |
| Opel | Kadett D (31_-34_, 41_-44_) | 13 N | 60 CV | 1979–1984 |
| Opel | Kadett D (31_-34_, 41_-44_) | 13 S | 75 CV | 1979–1984 |
| Opel | Kadett D (32_,37_,39, _42) | C 13 N | 60 CV | 1979–1984 |
| Opel | Kadett D (32_,37_,39, _42) | 13 S | 75 CV | 1979–1984 |
| Opel | Kadett D Familiar (35_, 36_, 45_, 46_) | 13 N | 60 CV | 1979–1984 |
| Opel | Kadett D Familiar (35_, 36_, 45_, 46_) | 13 S | 75 CV | 1979–1984 |
| Opel | Kadett E (T85) | 13 N, 13 NB | 60 CV | 1984–1989 |
| Opel | Kadett E (T85) | 13 S | 75 CV | 1984–1987 |
| Opel | Kadett E (T85) | 14 NV | 75 CV | 1990–1991 |
| Opel | Kadett E (T85) | E 16 NZ | 75 CV | 1986–1991 |
| Opel | Kadett E (T85) | 16 SV | 82 CV | 1986–1991 |
| Opel | Kadett E (T85) | C 14 NZ | 60 CV | 1990–1991 |
| Opel | Kadett E (T85) | C 13 N | 60 CV | 1985–1991 |
| Opel | Kadett E (T85) | C 16 LZ, C 16 NZ | 75 CV | 1986–1991 |
| Opel | Kadett E (T85) | E 16 SE | 102 CV | 1987–1991 |
| Opel | Kadett E Hatchback (T85) | 13 N, 13 NB | 60 CV | 1984–1991 |
| Opel | Kadett E Hatchback (T85) | 13 S | 75 CV | 1984–1987 |
| Opel | Kadett E Hatchback (T85) | 14 NV | 75 CV | 1990–1991 |
| Opel | Kadett E Hatchback (T85) | E 16 NZ | 75 CV | 1986–1991 |
| Opel | Kadett E Hatchback (T85) | 16 SV | 82 CV | 1986–1991 |
| Opel | Kadett E Hatchback (T85) | C 14 NZ | 60 CV | 1990–1991 |
| Opel | Kadett E Hatchback (T85) | C 13 N | 60 CV | 1985–1991 |
| Opel | Kadett E Hatchback (T85) | C 16 LZ, C 16 NZ | 75 CV | 1986–1991 |
| Opel | Kadett E Hatchback (T85) | C 14 SE | 82 CV | 1989–1991 |
| Opel | Kadett E Hatchback (T85) | 13 S | 68 CV | 1985–1987 |
| Opel | Kadett E Familiar (T85) | 13 N, 13 NB | 60 CV | 1984–1991 |
| Opel | Kadett E Familiar (T85) | 13 S | 75 CV | 1984–1987 |
| Opel | Kadett E Familiar (T85) | 14 NV | 75 CV | 1990–1991 |
| Opel | Kadett E Familiar (T85) | E 16 NZ | 75 CV | 1986–1991 |
| Opel | Kadett E Familiar (T85) | 16 SV | 82 CV | 1986–1991 |
| Opel | Kadett E Familiar (T85) | C 14 NZ | 60 CV | 1990–1991 |
| Opel | Kadett E Familiar (T85) | C 13 N | 60 CV | 1985–1991 |
| Opel | Kadett E Familiar (T85) | C 16 LZ, C 16 NZ | 75 CV | 1986–1991 |
| Opel | Kadett E Familiar (T85) | 13 S | 68 CV | 1985–1987 |
| Opel | Kadett E Descapotable (T85) | C 16 NZ, E 16 NZ | 75 CV | 1986–1993 |
| Opel | Kadett E Descapotable (T85) | 16 SV | 82 CV | 1989–1993 |
| Opel | Kadett E Descapotable (T85) | 13 S | 75 CV | 1987–1993 |
| Opel | Kadett E Descapotable (T85) | C 16 LZ, C 16 NZ | 75 CV | 1987–1993 |
| Opel | Kadett E Descapotable (T85) | C 14 NZ | 60 CV | 1990–1991 |
| Opel | Kadett E Descapotable (T85) | 14 NV | 75 CV | 1990–1993 |
| Opel | Manta B (58_, 59_) | 13 N | 60 CV | 1979–1980 |
| Opel | Manta B (58_, 59_) | 13 S | 75 CV | 1981–1986 |
| Opel | Manta B CC (53_, 55_) | 13 N | 60 CV | 1979–1980 |
| Opel | Manta B CC (53_, 55_) | 13 S | 75 CV | 1979–1986 |
| Opel | Meriva A Monospace (X03) | Z 18 XE | 125 CV | 2003–2010 |
| Opel | Meriva A Monospace (X03) | Z 16 SE | 87 CV | 2003–2010 |
| Opel | Meriva A Monospace (X03) | Z 16 XE | 100 CV | 2003–2006 |
| Opel | Meriva A Monospace (X03) | Z 16 XEP | 105 CV | 2006–2010 |
| Opel | Meriva A Monospace (X03) | Z 16 LET | 180 CV | 2005–2010 |
| Opel | Signum Hatchback (Z03) | Z 18 XE | 122 CV | 2003–2005 |
| Opel | Signum Hatchback (Z03) | Z 18 XER | 140 CV | 2005–2008 |
| Opel | Tigra (S93) | X 14 XE | 90 CV | 1994–2000 |
| Opel | Tigra (S93) | X 16 XE | 106 CV | 1994–1998 |
| Opel | Tigra (S93) | X 14 XE | 86 CV | 1997–2000 |
| Opel | Tigra (S93) | C 16 SEL | 100 CV | 1997–1998 |
| Opel | Tigra TwinTop (X04) | Z 18 XE | 125 CV | 2004–2010 |
| Opel | Vectra A (J89) | C 16 NZ, E 16 NZ | 75 CV | 1988–1995 |
| Opel | Vectra A (J89) | 16 SV | 82 CV | 1988–1993 |
| Opel | Vectra A (J89) | X 16 SZ | 71 CV | 1993–1995 |
| Opel | Vectra A (J89) | 14 NV | 75 CV | 1988–1992 |
| Opel | Vectra A Hatchback (J89) | X 16 SZ | 71 CV | 1993–1995 |
| Opel | Vectra A Hatchback (J89) | C 16 NZ | 75 CV | 1988–1995 |
| Opel | Vectra A Hatchback (J89) | 16 SV | 82 CV | 1988–1993 |
| Opel | Vectra A Hatchback (J89) | 14 NV | 75 CV | 1988–1992 |
| Opel | Vectra A Hatchback (J89) | E 16 NZ | 88 CV | 1988–1994 |
| Opel | Vectra B (J96) | X 16 SZR | 75 CV | 1995–2002 |
| Opel | Vectra B (J96) | X 16 XEL, Y 16 XE, Z 16 XE | 100 CV | 1995–2002 |
| Opel | Vectra B (J96) | X 18 XE1, Z 18 XEL | 115 CV | 1995–2000 |
| Opel | Vectra B (J96) | Z 18 XE | 125 CV | 2000–2002 |
| Opel | Vectra B (J96) | 16 SV | 82 CV | 1995–1996 |
| Opel | Vectra B Hatchback (J96) | X 16 SZR | 75 CV | 1995–2003 |
| Opel | Vectra B Hatchback (J96) | X 16 XEL, Y 16 XE, Z 16 XE | 101 CV | 1995–2002 |
| Opel | Vectra B Hatchback (J96) | Z 18 XEL, X 18 XE1 | 116 CV | 1995–2000 |
| Opel | Vectra B Hatchback (J96) | Z 18 XE | 125 CV | 2000–2003 |
| Opel | Vectra B Familiar (J96) | X 16 SZR | 75 CV | 1996–2000 |
| Opel | Vectra B Familiar (J96) | X 16 XEL, Y 16 XE, Z 16 XE | 100 CV | 1996–2002 |
| Opel | Vectra B Familiar (J96) | X 18 XE1, Z 18 XEL | 115 CV | 1996–2000 |
| Opel | Vectra B Familiar (J96) | Z 18 XE | 125 CV | 2000–2003 |
| Opel | Vectra C (Z02) | Z 18 XE | 122 CV | 2002–2008 |
| Opel | Vectra C (Z02) | Z 16 XE | 100 CV | 2002–2005 |
| Opel | Vectra C (Z02) | Z 18 XEL | 110 CV | 2002–2008 |
| Opel | Vectra C (Z02) | Z 16 XEP | 105 CV | 2005–2008 |
| Opel | Vectra C (Z02) | Z 18 XER | 140 CV | 2005–2008 |
| Opel | Vectra C Familiar (Z02) | Z 18 XE | 122 CV | 2003–2006 |
| Opel | Vectra C Familiar (Z02) | Z 18 XER | 140 CV | 2005–2008 |
| Opel | Vectra C Familiar (Z02) | Z 16 XEP | 105 CV | 2005–2008 |
| Opel | Vectra C GTS (Z02) | Z 18 XE | 122 CV | 2002–2008 |
| Opel | Vectra C GTS (Z02) | Z 16 XE | 100 CV | 2005–2008 |
| Opel | Vectra C GTS (Z02) | Z 18 XER | 140 CV | 2005–2008 |
| Opel | Vectra C GTS (Z02) | Z 16 XEP | 105 CV | 2006–2008 |
| Opel | Vectra C GTS (Z02) | Z 18 XEL | 110 CV | 2002–2006 |
| Opel | Zafira / Zafira Family B (A05) | Z 16 XEP | 105 CV | 2005–2012 |
| Opel | Zafira / Zafira Family B (A05) | Z 18 XER | 140 CV | 2005–2015 |
| Opel | Zafira / Zafira Family B (A05) | Z 16 YNG | 94 CV | 2005–2015 |
| Opel | Zafira / Zafira Family B (A05) | Z 16 XER | 115 CV | 2008–2015 |
| Opel | Zafira / Zafira Family B (A05) | Z 18 XER | 140 CV | 2009–2015 |
| Opel | Zafira / Zafira Family B (A05) | Z 16 XER | 116 CV | 2008–2012 |
| Opel | Zafira A Monospace (T98) | X 16 XEL, Z 16 XE | 101 CV | 1999–2005 |
| Opel | Zafira A Monospace (T98) | X 18 XE1 | 116 CV | 1999–2000 |
| Opel | Zafira A Monospace (T98) | Z 18 XE | 125 CV | 2000–2005 |
| Opel | Zafira A Monospace (T98) | Z 16 YNG | 97 CV | 2001–2005 |
| Opel | Zafira A Monospace (T98) | Z 16 XE | 103 CV | 2003–2005 |
| Opel | Zafira A Monospace (T98) | Z 16 XEP | 103 CV | 2003–2005 |
