1.8L 16v - F7P
Marcas
1.8L 16v - F7P
Advertencia: ¡Últimos artículos en inventario!
Nuevo producto
Tabla de las pistones forjados para Renault 1.8 16v F7P : diámetros, RV, bulón 21 mm, CH 35,50 mm, gamas, cúpula y peso. Compatibilidades F7P 700/704/720/722, vehículos y refs OEM.

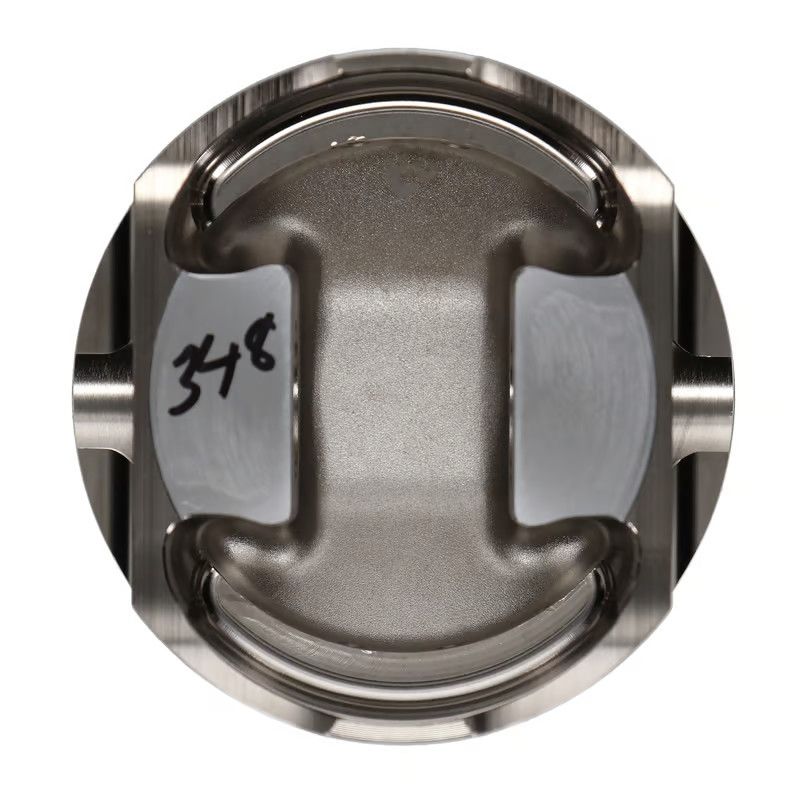

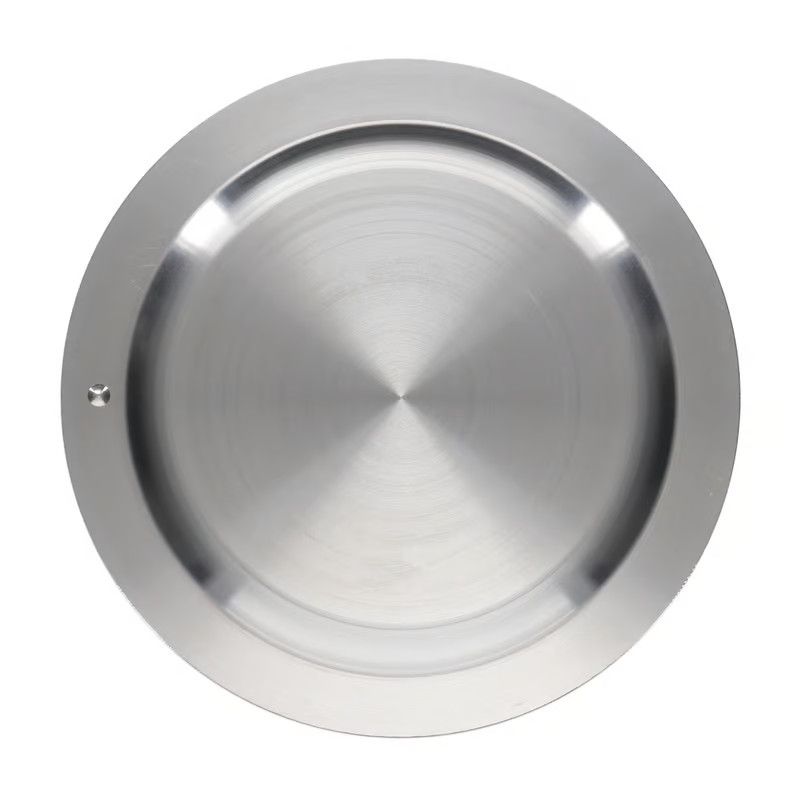

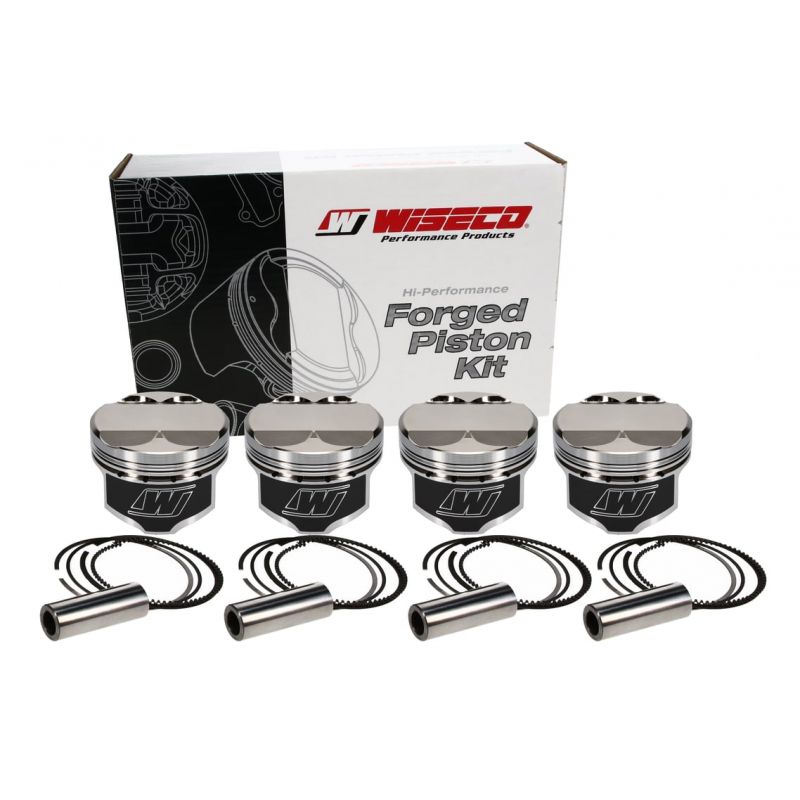

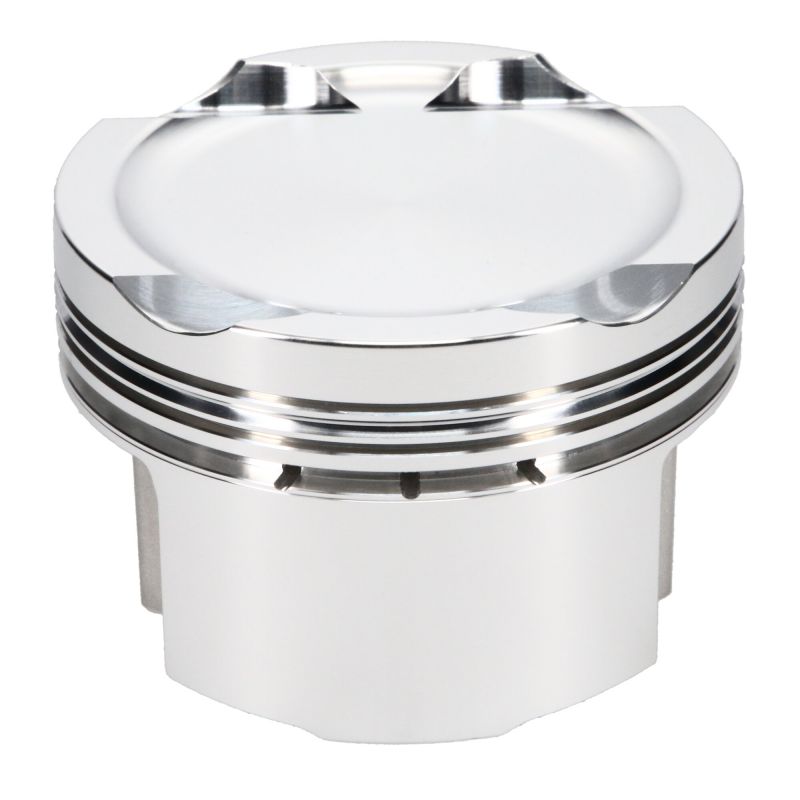

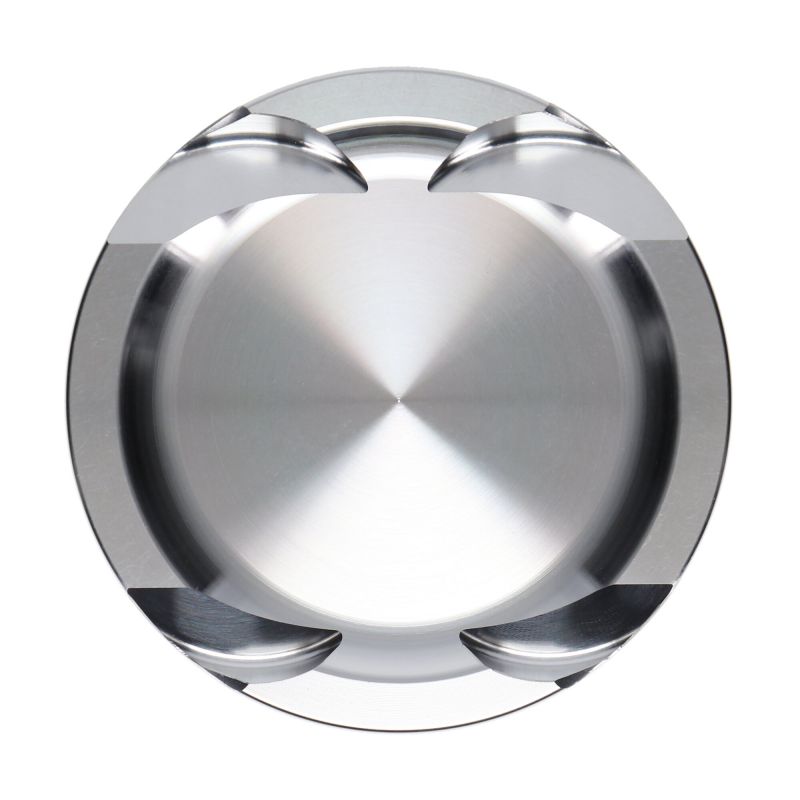

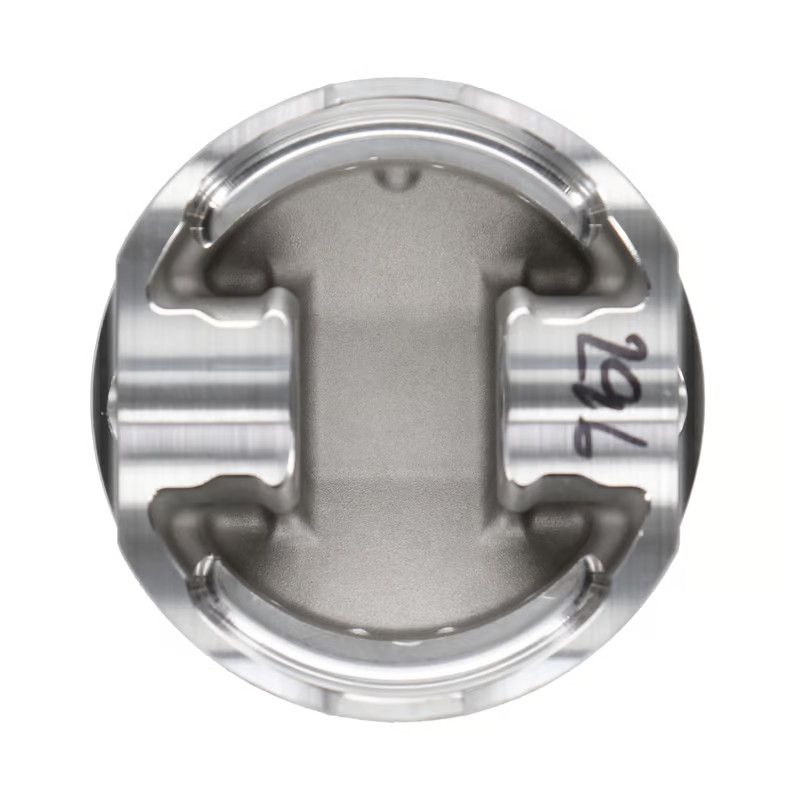

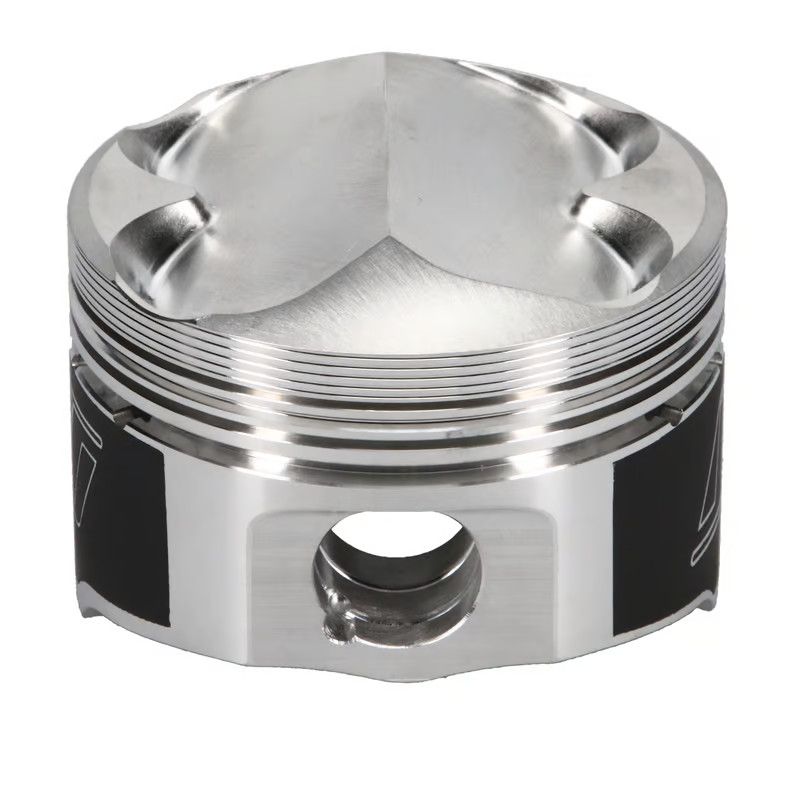

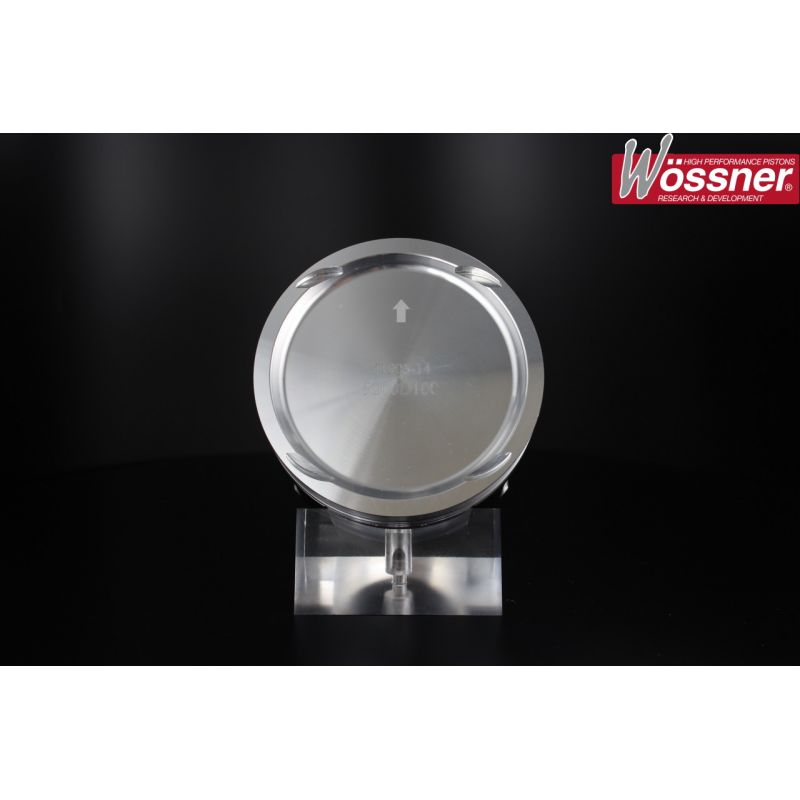

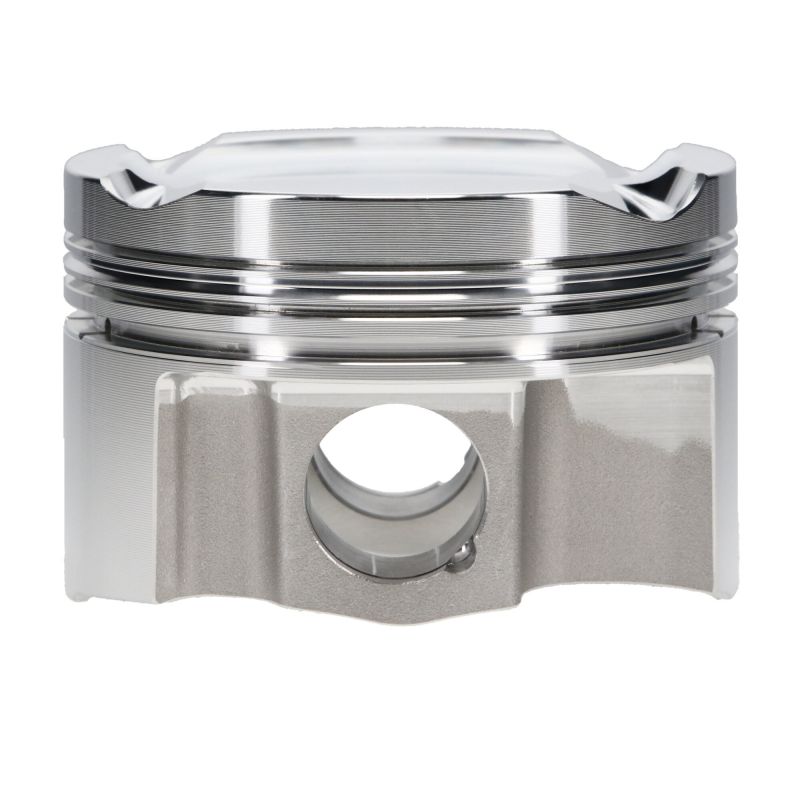

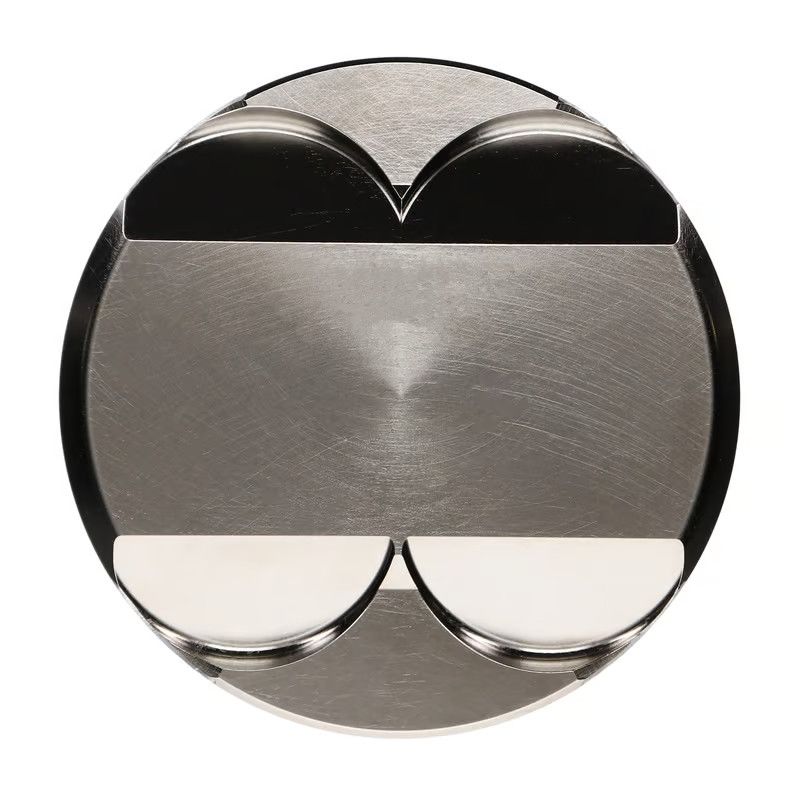

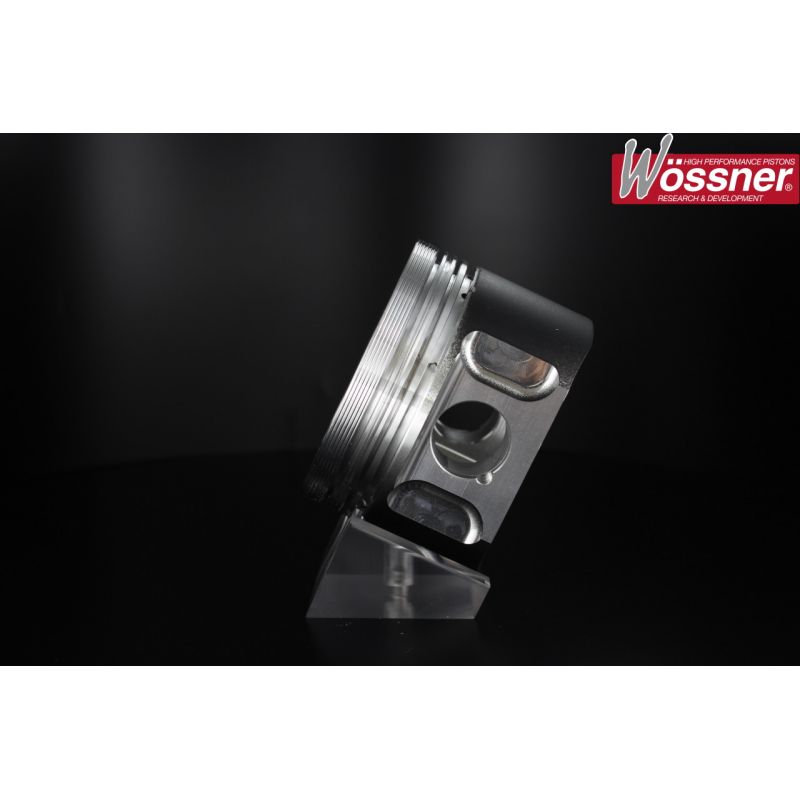

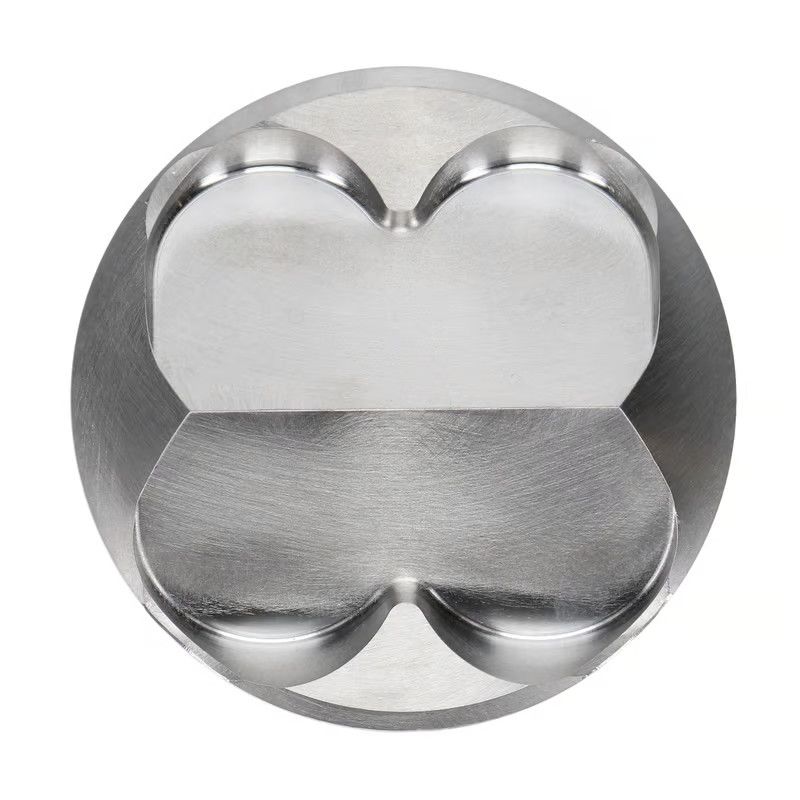

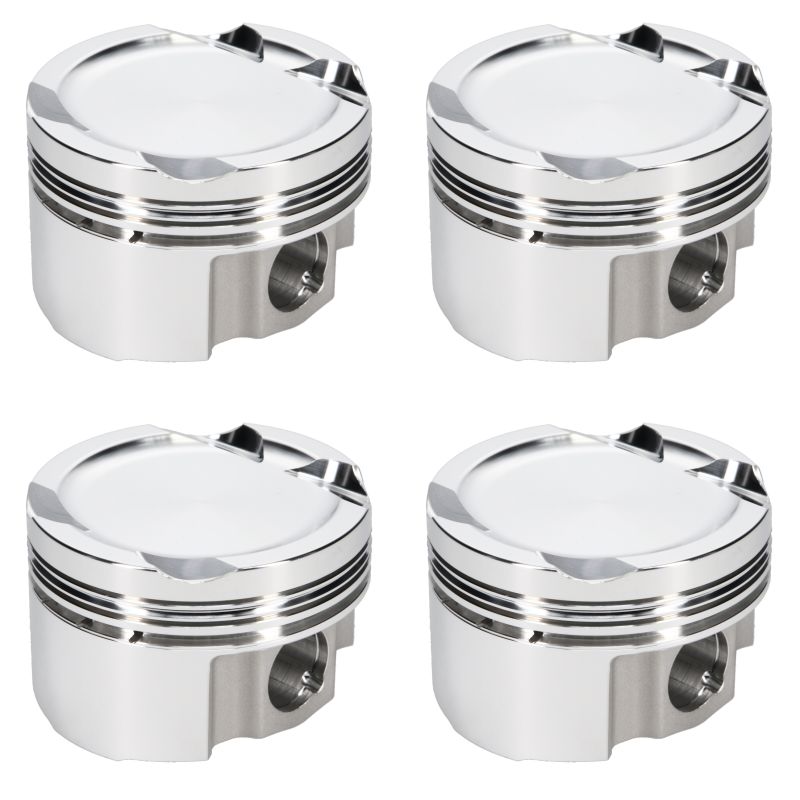

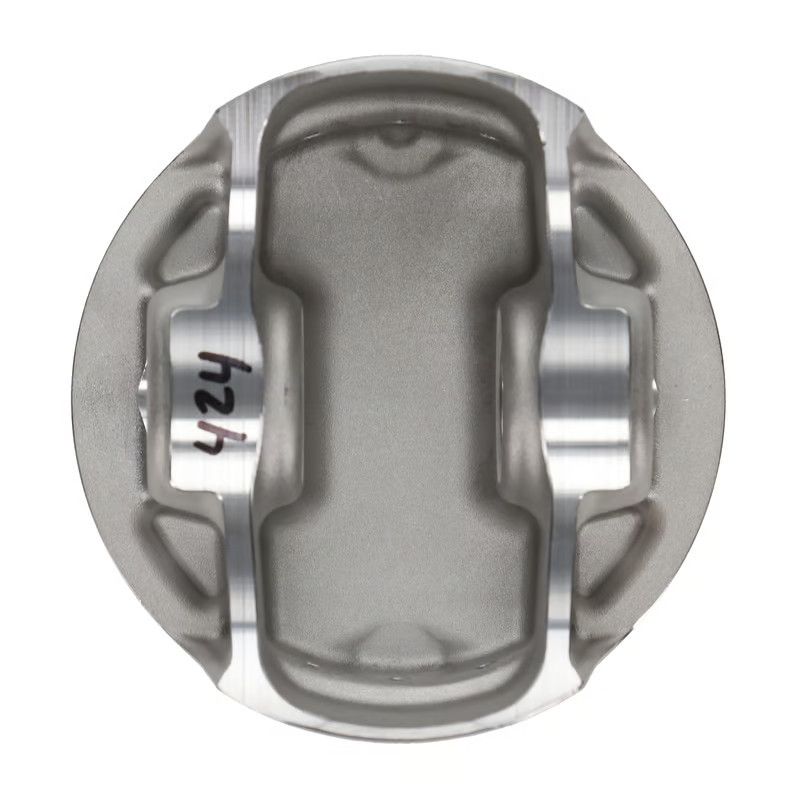

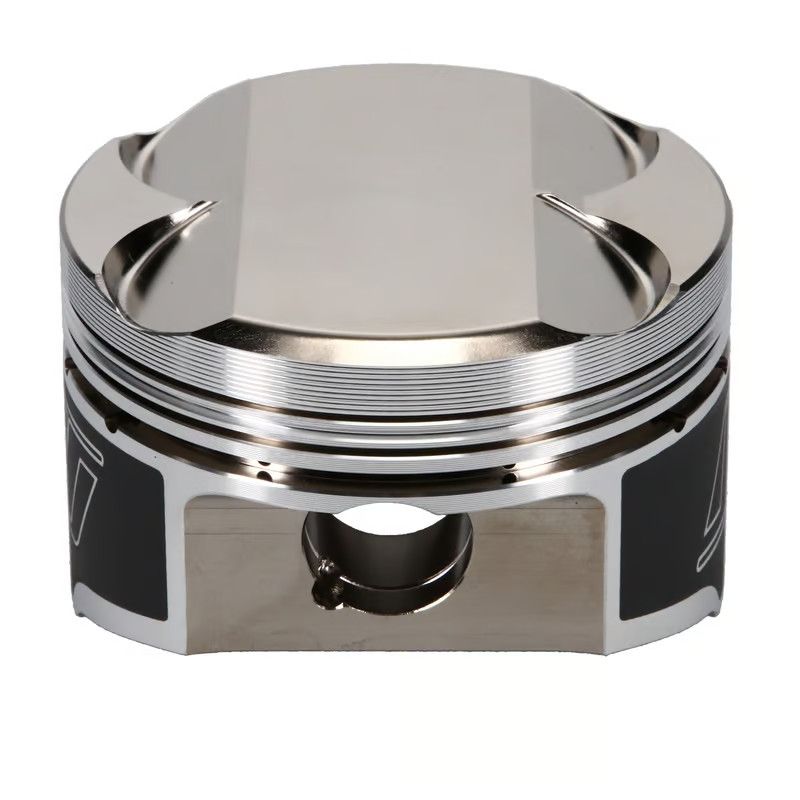

Características de los pistones forjados propuestos por NSB Concept para Renault 1.8 L 16 V F7P :
| Referencia | Diámetro OEM 82,00 mm | RC OEM 10,0 :1 | Bulón OEM 21 mm | Altura de compresión OEM 35,50 mm | Gama | Tratamiento | Aluminio | Forja | Cúpula | Peso | Segmentos |
|---|---|---|---|---|---|---|---|---|---|---|---|

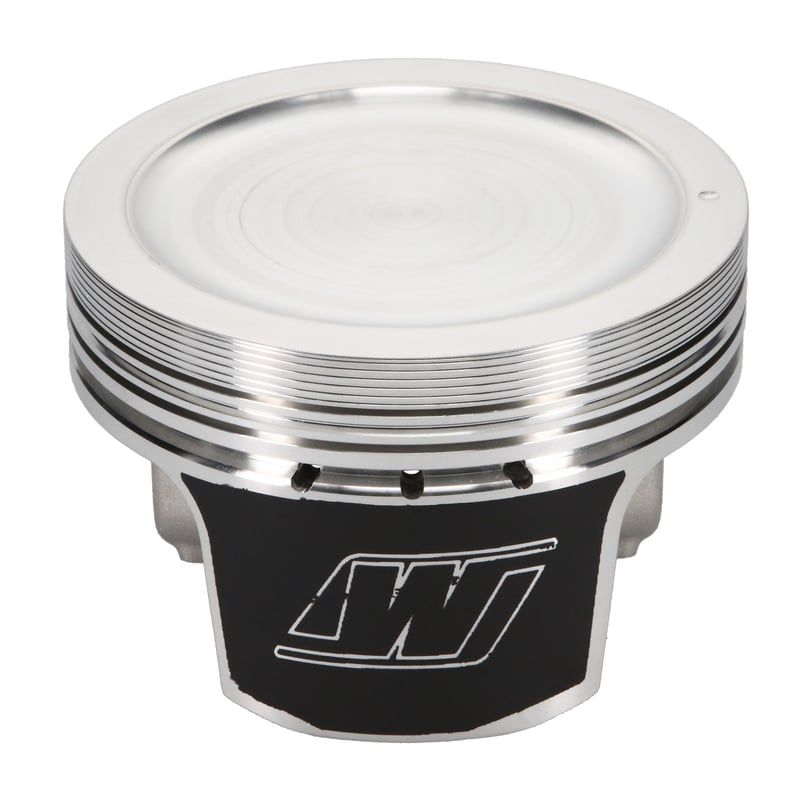

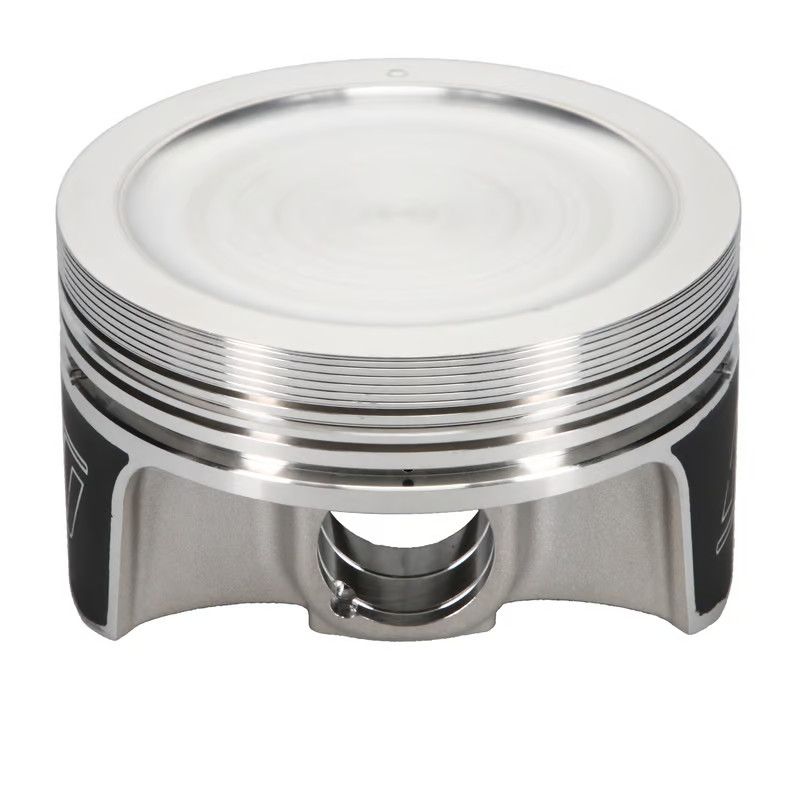

| WKE173M82 | 82.0 | 8:1 | 21 | 35.5 | Wiseco | Falda | 2618 | NC | -14.0 | NC | 8200XX |

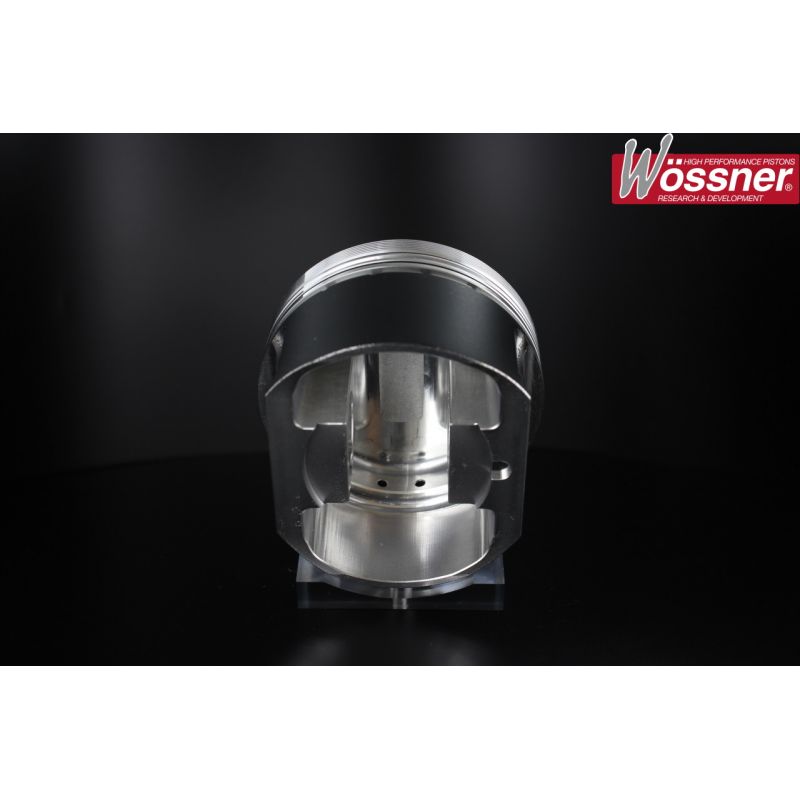

| K9200DA | 82.0 | 8:1 | 21 | 35.5 | Wossner | NC | NC | Redonda | -15.84 | NC | 820XPY |

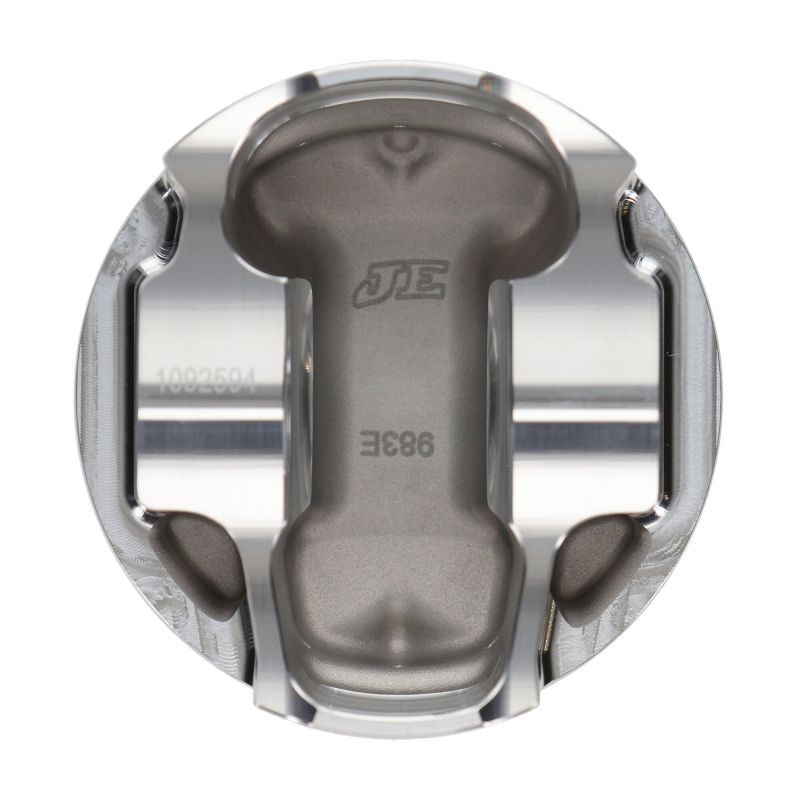

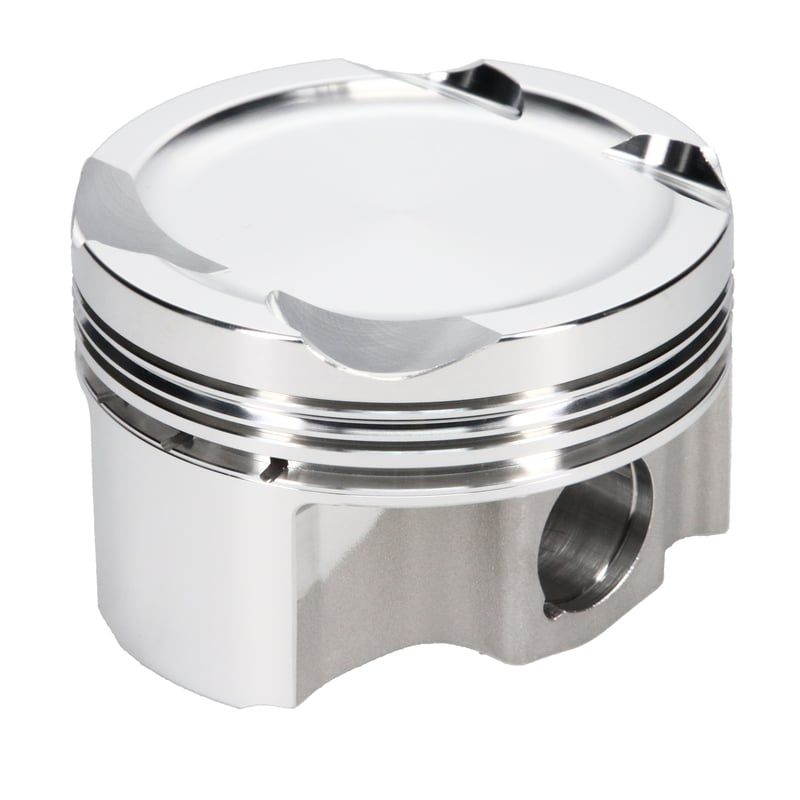

| JE-312449 | 82.0 | 8.3:1 | 21 | 35.5 | JE FSR | NC | 2618 | FSR | -11.0 | 307.0 | NC |
| WKE172M82 | 82.0 | 10:1 | 21 | 35.5 | Wiseco | Falda | 2618 | NC | 0 FT | NC | 8200XX |
| K9104DA | 82.0 | 12:1 | 21 | 35.5 | Wossner | NC | NC | Slipper | 8.6 | NC | 820XSY |

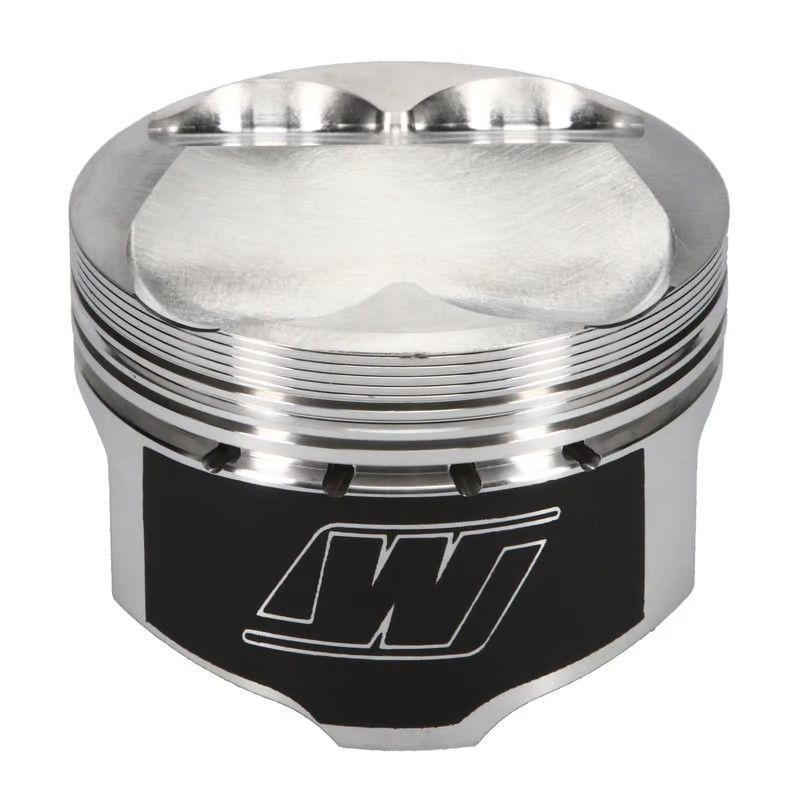

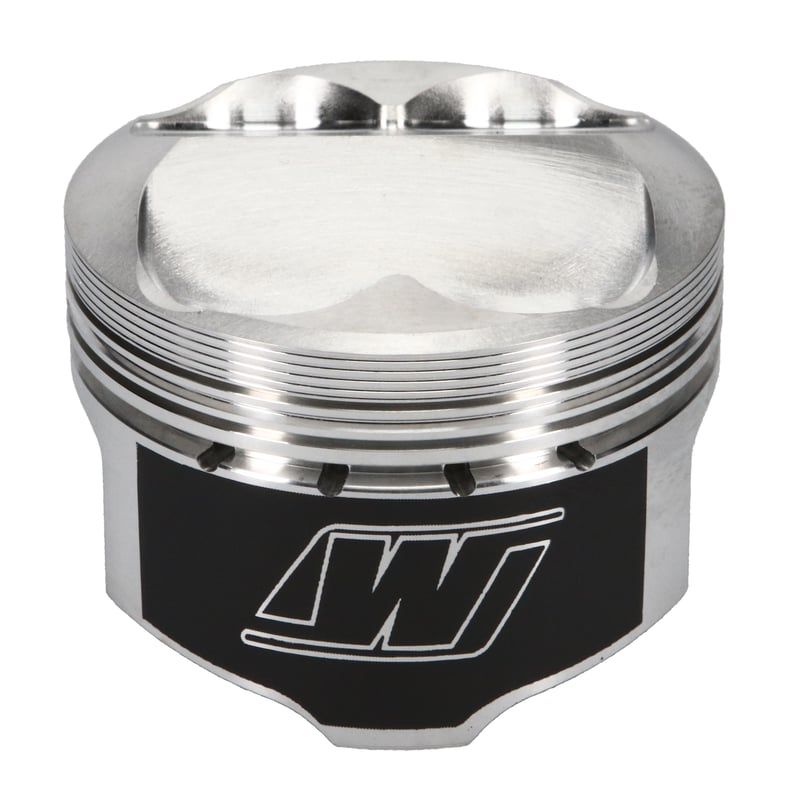

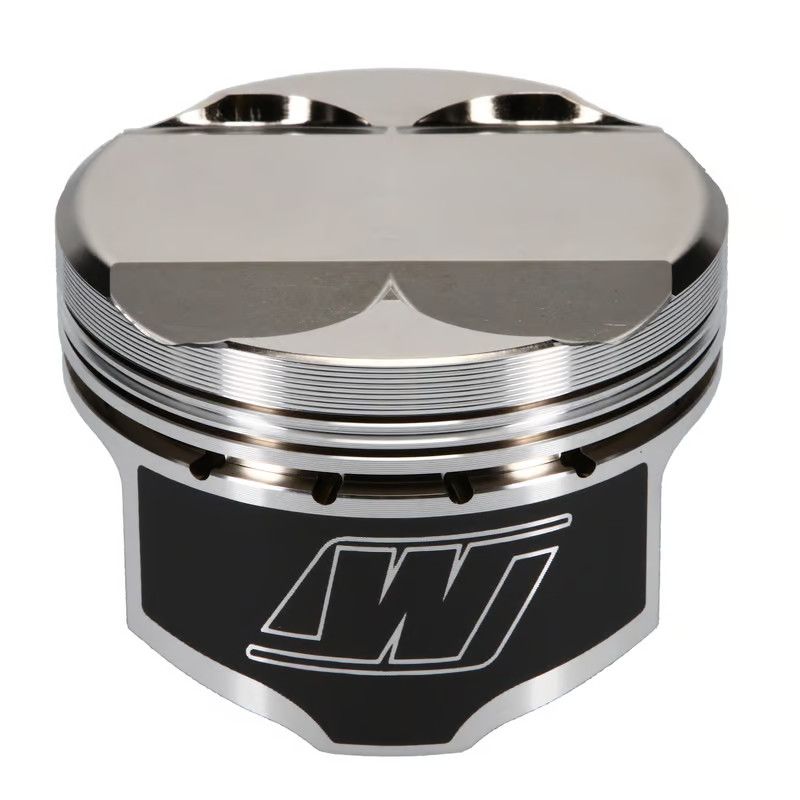

| WKE174M82 | 82.0 | 12.3:1 | 21 | 35.5 | Wiseco | Falda | NC | NC | 10.0 | NC | 8200XX |
| WKE173M825 | 82.5 | 8:1 | 21 | 35.5 | Wiseco | Falda | 2618 | NC | -14.0 | NC | 8250XX |
| K9200D050 | 82.5 | 8.1:1 | 21 | 35.5 | Wossner | NC | NC | Redonda | -15.84 | NC | 825XPY |
| JE-312450 | 82.5 | 8.3:1 | 21 | 35.5 | JE FSR | NC | 2618 | FSR | -11.5 | 312.0 | NC |
| JE-328421C*4 | 82.5 | 10:1 | 21 | 35.5 | JE | NC | NC | NC | 0.0 | NC | NC |
| WKE172M825 | 82.5 | 10:1 | 21 | 35.5 | Wiseco | Falda | 2618 | NC | 0 FT | NC | 8250XX |
| K9104D050 | 82.5 | 12:1 | 21 | 35.5 | Wossner | NC | NC | Slipper | 8.6 | NC | 825XSY |
| WKE174M825 | 82.5 | 12.3:1 | 21 | 35.5 | Wiseco | Falda | 2618 | NC | 10.0 | NC | 8250XX |
| WKE173M83 | 83.0 | 8:1 | 21 | 35.5 | Wiseco | Falda | 2618 | NC | -14.0 | NC | 8300XX |

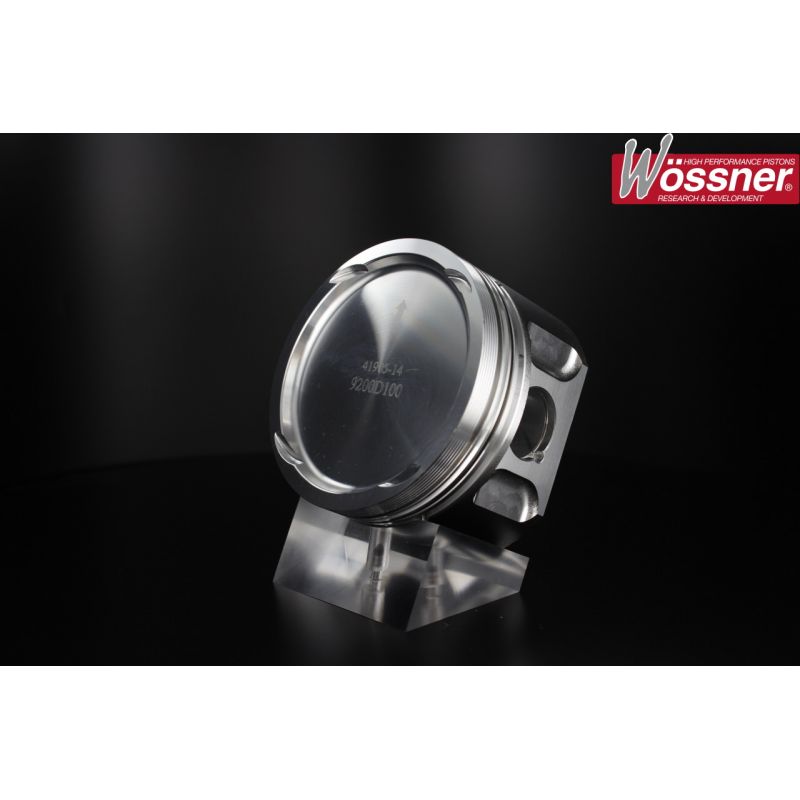

| K9200D100 | 83.0 | 8.2:1 | 21 | 35.5 | Wossner | NC | NC | Redonda | -15.84 | NC | 830XPY |
| JE-312451 | 83.0 | 8.3:1 | 21 | 35.5 | JE FSR | NC | 2618 | FSR | -12.0 | 314.0 | NC |
| JE-349865C*4 | 83.0 | 9.5:1 | 21 | 35.5 | JE | NC | NC | NC | -4.0 | NC | NC |
| WKE172M83 | 83.0 | 10:1 | 21 | 35.5 | Wiseco | Falda | 2618 | NC | 0 FT | NC | 8300XX |
| K9104D100 | 83.0 | 12:1 | 21 | 35.5 | Wossner | NC | NC | Slipper | 8.6 | NC | 830XSY |
| WKE174M83 | 83.0 | 12.3:1 | 21 | 35.5 | Wiseco | Falda | NC | NC | 10.0 | NC | 8300XX |
| WKE172M835 | 83.5 | 10:1 | 21 | 35.5 | Wiseco | Falda | 2618 | NC | 0 FT | NC | 8350XX |
Compatibilidades (códigos de motor) :
Vehículos de origen equipados con el F7P 1.8 16v :
| Marca | Modelo | Código de motor | Potencia | Años |
|---|---|---|---|---|
| Renault | 19 16S (fases I) | F7P 700 | 140 CV | 1990 – 1992 |
| Renault | 19 16S (fases II) | F7P 704 | 137–140 CV | 1992 – 1996 |
| Renault | Clio I 16S / 16V | F7P 720 / 722 | 137–140 CV | 1991 – 1995 |
Referencias de pistones OEM :
Atención: Antes de cualquier montaje, compruebe obligatoriamente la integridad y conformidad de cada componente del kit de pistones, así como la conformidad del ensamblaje en el motor; cualquier garantía eventual se limita estrictamente a las piezas del kit de pistones.
