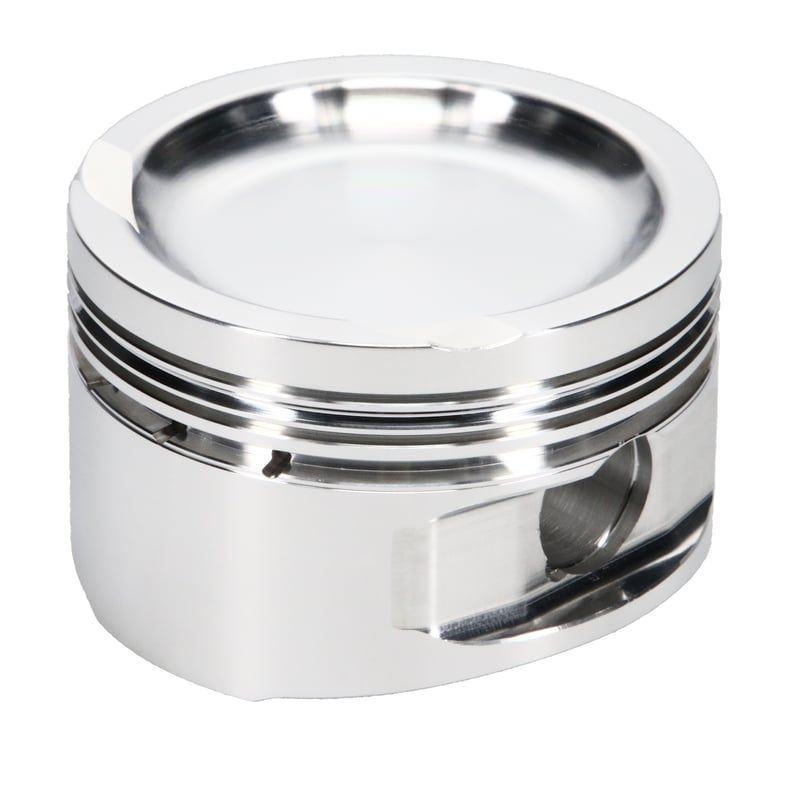

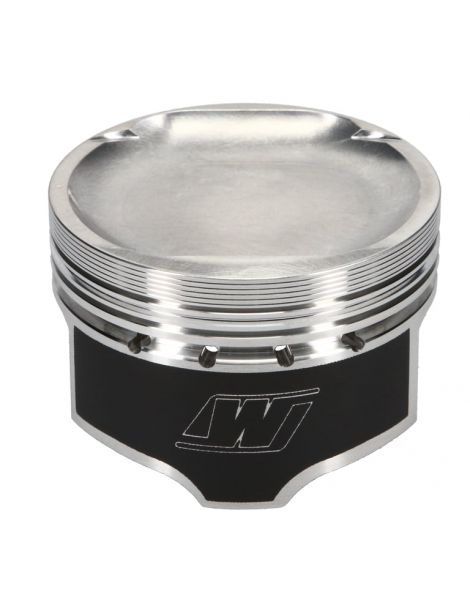

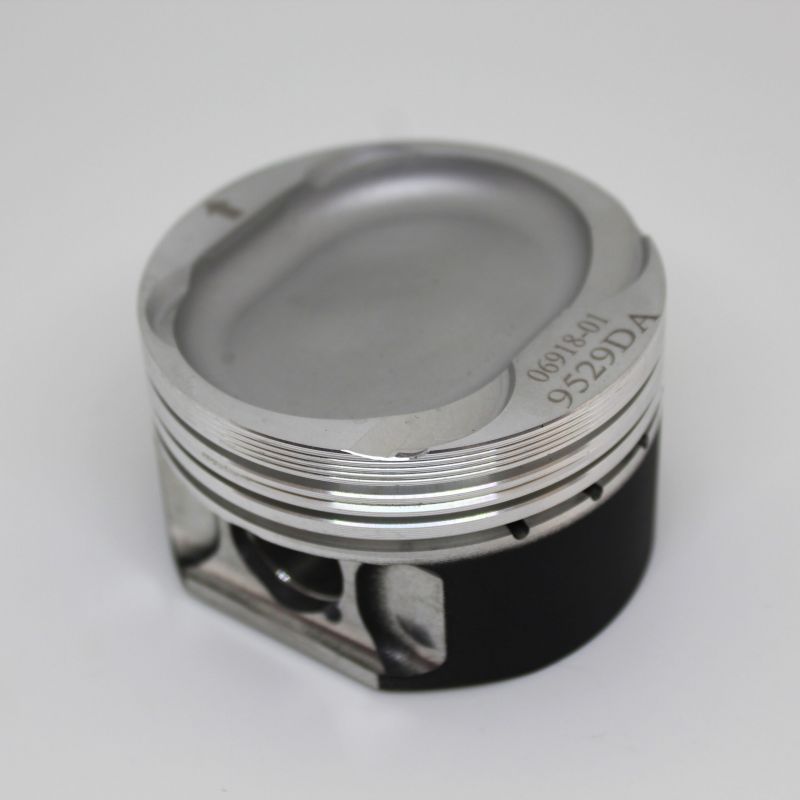

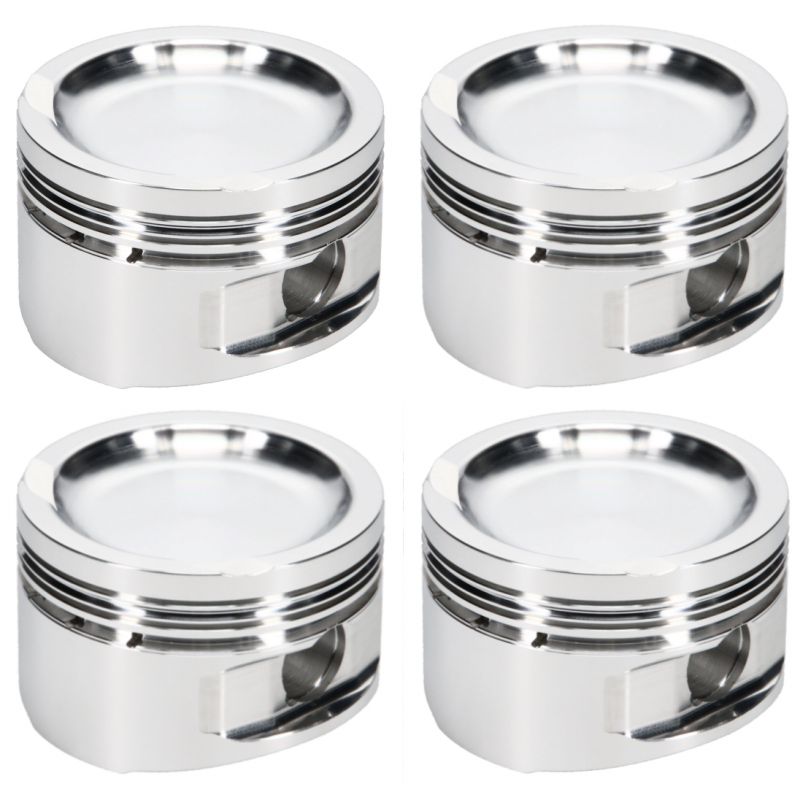

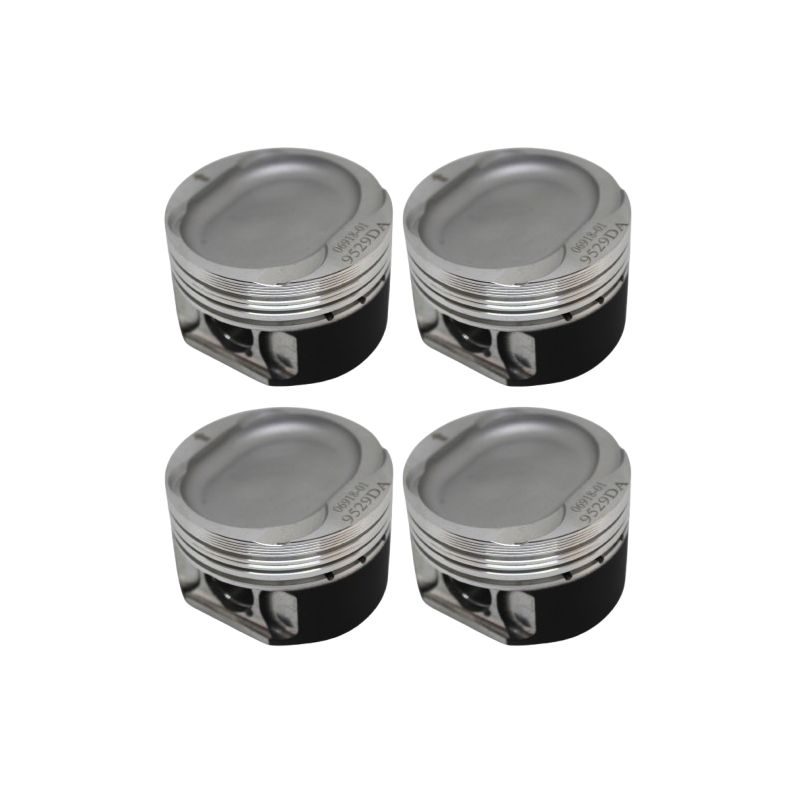

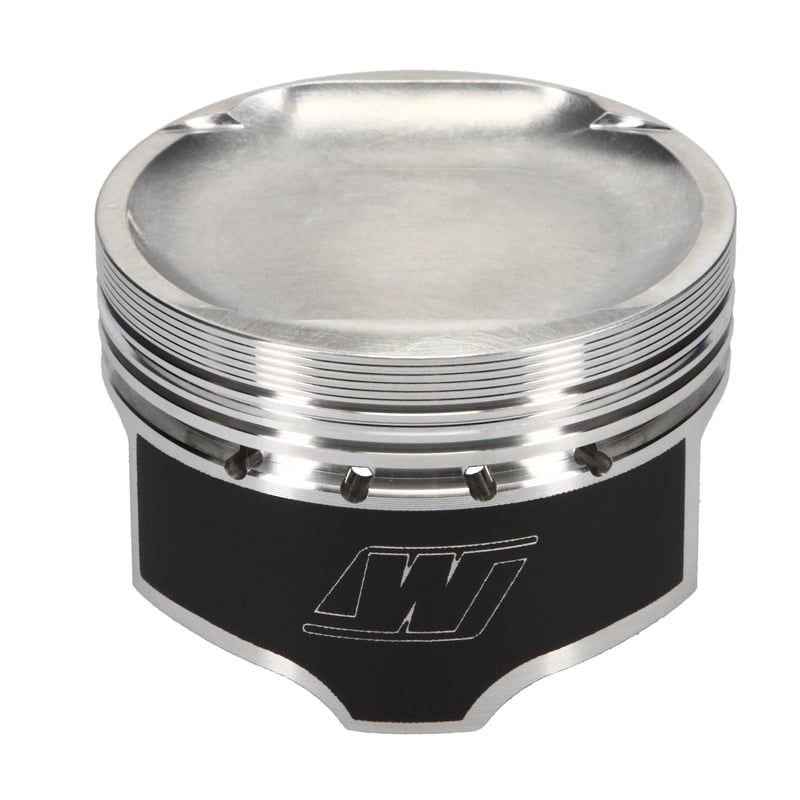

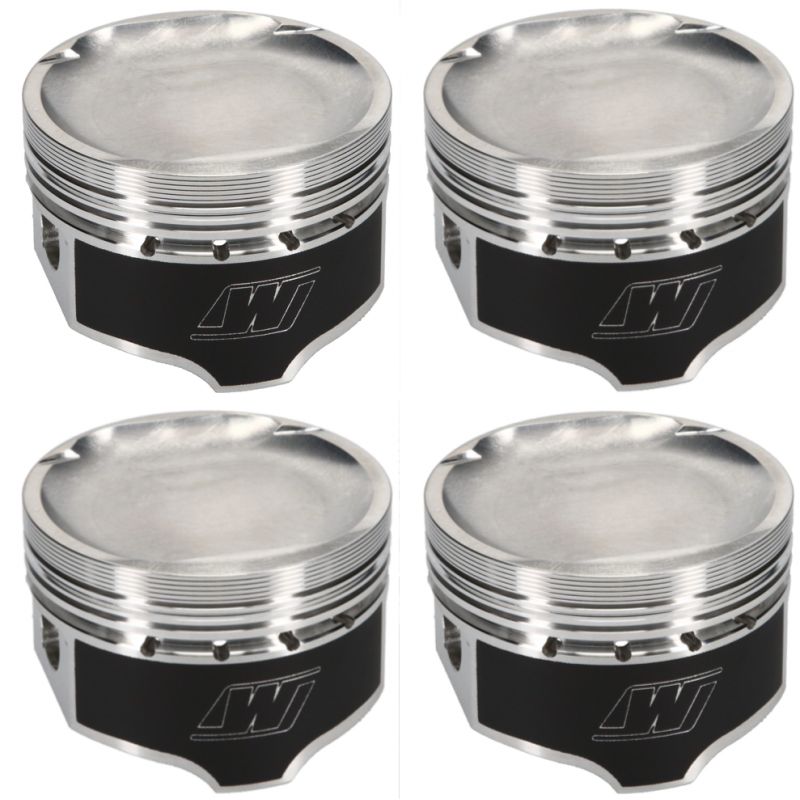

Pistoni forgiati Honda Jazz 1.5 L L15A, 73-73,5 mm Pistoni forgiati Honda Jazz 1.5 L L15A, 73-73,5 mm

Pistoni forgiati 1.5L 16v L15A Honda

682,86 € (Tasse incl.)
910,48 € (Tasse incl.) -25%

Pistoni forgiati Honda Jazz 1.5 L L15A - alesaggi 73-73,5 mm, RV 9-12,5 :1, spinotto 18 mm. Lega 2618, gamma JE / Wiseco / Wössner.

WK637M73
0 disponibili in magazzino Francia
ORDINA OGGI, SPEDIAMO IN 5 - 15 GIORNI
Paga a rate

Caratteristiche dei pistoni forgiati proposti da NSB Concept per Honda 1.5 L 16 v L15A :

Riferimento
Piston
Alesaggio (mm)
OEM: 73
RC
OEM: 9 :1
Spinotto (mm)
OEM: 18
Altezza Spinotto (mm)
OEM: 26,1
Linea Alluminio Trattamento Forgiatura Cupola (cc) Peso (g) Segmenti
JE-295751 73 9 :1 18 26,1 JE Round 2618 NC Round -15 206 NC
K9529DA 73 9,5 :1 19,96 28,6 Wossner NC NC NC -17,05 NC 730XPY
WK637M73 73 9,8 :1 18 26,16 Wiseco 2618 Mantello NC -11,5 NC 2874XC
JE-325563 73 11,5 :1 18 26,1 JE Round 2618 NC Round -4,4 210 NC
JE-325565 73 12,5 :1 18 26,1 JE Round 2618 NC Round -1,3 209 NC
JE-325562 73,5 9 :1 18 26,1 JE Round 2618 NC Round -16,1 207 NC
K9529D050 73,5 9,5 :1 19,96 28,6 Wossner NC NC NC -17,05 NC 735XPY
JE-325564 73,5 11,5 :1 18 26,1 JE Round 2618 NC Round -4,8 212 NC
JE-325566 73,5 12,5 :1 18 26,1 JE Round 2618 NC Round -1,7 211 NC

Compatibilità motore :

  • Honda L15A (SOHC 16v)
  • Honda L15A7 (i‑VTEC)
Marca Modello Telaio Codice motore Potenza (CV) Anni
Honda Jazz (1re gén.) GD3 L15A1 109 2007 – 2008
Honda Jazz (2e gén.) GE8 L15A7 117 2009 – 2013

Riferimenti pistoni constructeurs (OEM) :

  • Jazz 2007–2008 (L15A1, GD3) — Piston set (Std) : 13010‑PWC‑J01 ; Piston set (O/S 0,25) : 13020‑PWC‑J01.
  • Jazz 2009–2013 (L15A7, GE8) — Piston set (Std) : 13010‑RB1‑000 ; Ring set (Std) : 13011‑RB7‑Z01 ; Ring set (O/S 0,25) : 13021‑RB7‑Z02.

Attenzione : Prima di qualsiasi montaggio, verificare tassativamente l'integrità e la conformità di ogni componente del kit pistoni, nonché la conformità dell'assemblaggio nel motore; l'eventuale garanzia è strettamente limitata alle sole parti del kit pistoni.
