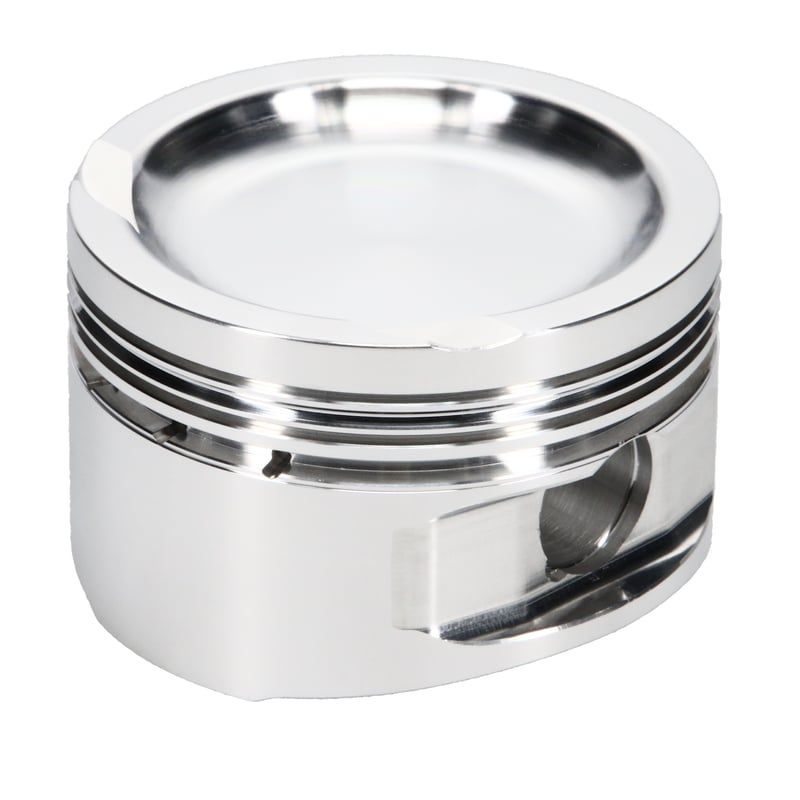

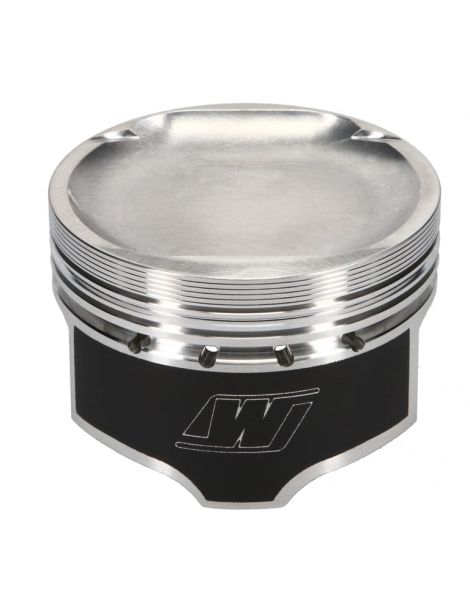

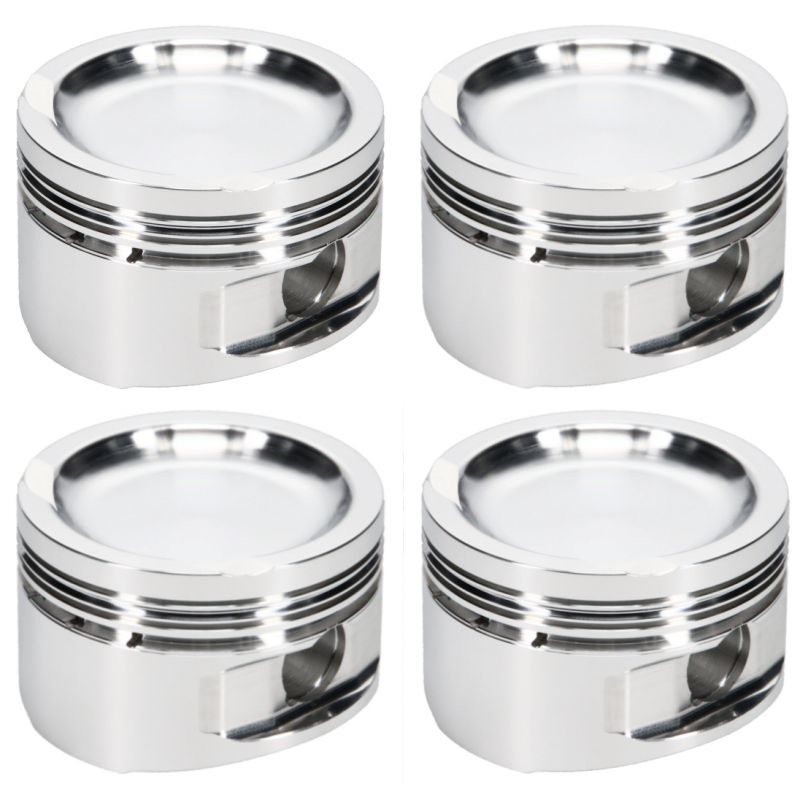

Forged pistons Honda Jazz 1.5L L15A Bores 73 73.5mm, CR OEM 9 12.5:1, Pin 18mm. Alloy 2618, ranges JE / Wiseco / Wossner.
Specifications of the forged pistons offered by NSB Concept for Honda 1.5 L 16 v L15A :
| Reference piston | Bore (mm)OEM 73 | CROEM 9 :1 | pin (mm)OEM 18 | Height pin (mm)OEM 26,1 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-295751 | 73 | 9 :1 | 18 | 26,1 | JE Round | 2618 | NC | Round | -15 | 206 | NC |

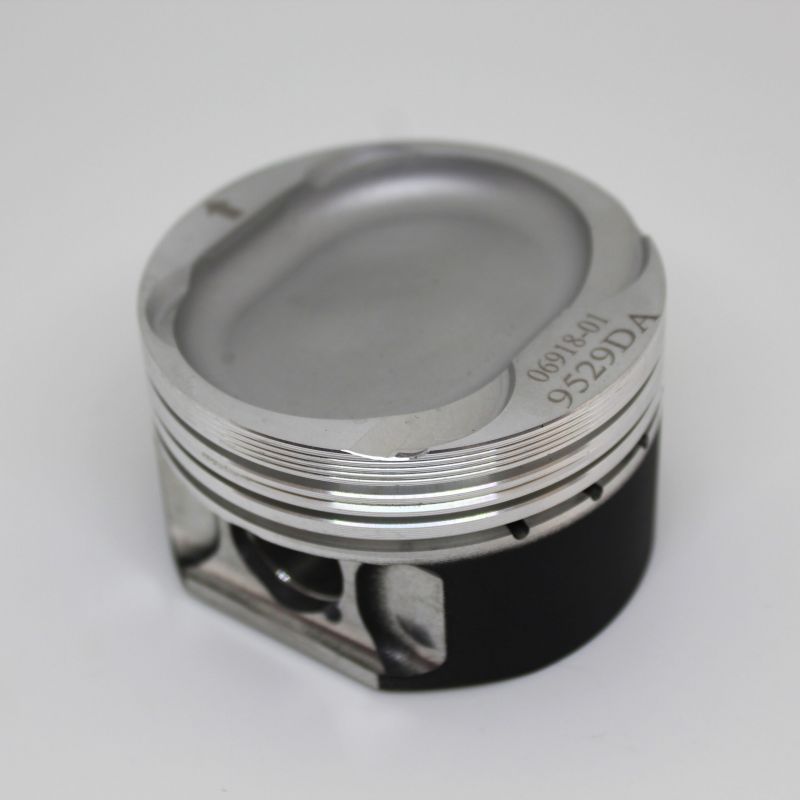

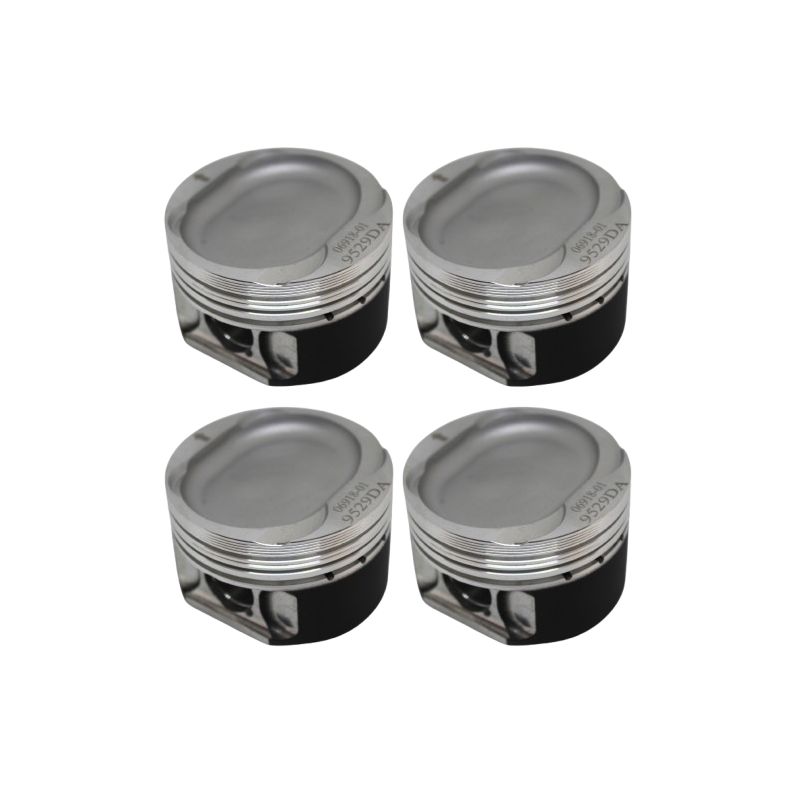

| K9529DA | 73 | 9,5 :1 | 19,96 | 28,6 | Wossner | NC | NC | NC | -17,05 | NC | 730XPY |

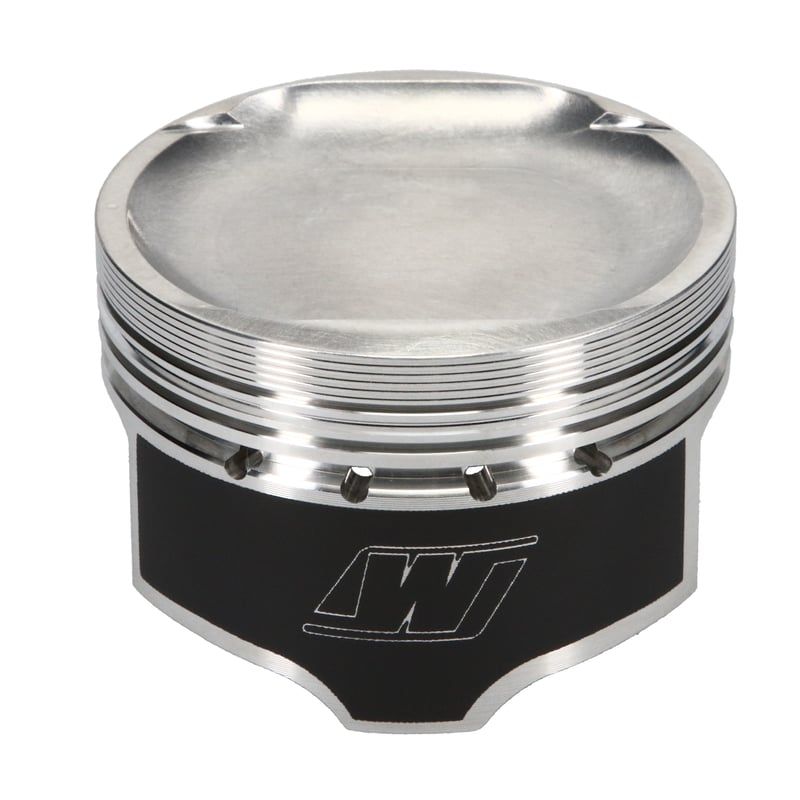

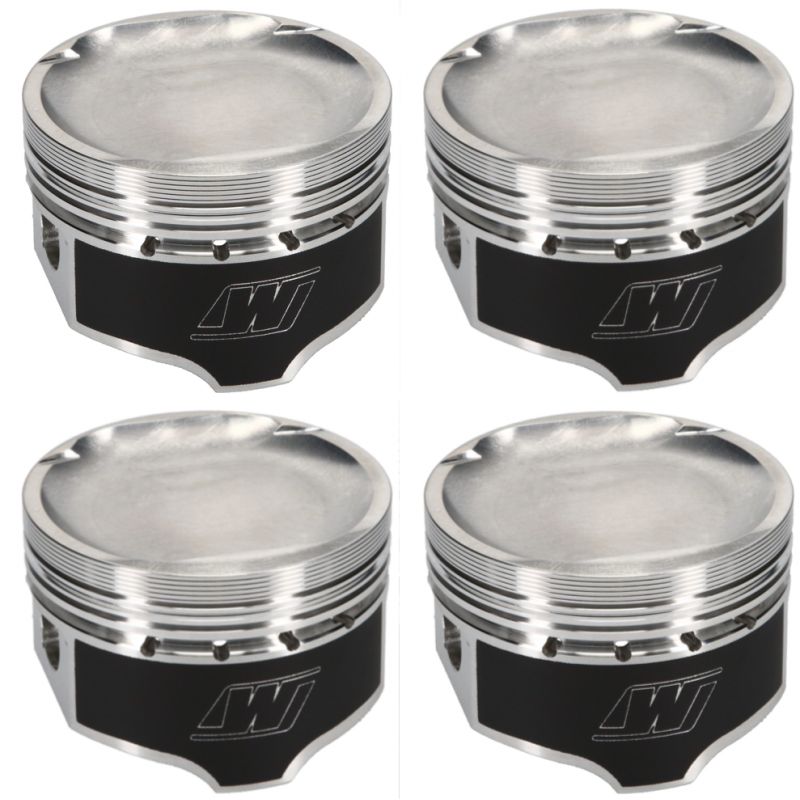

| WK637M73 | 73 | 9,8 :1 | 18 | 26,16 | Wiseco | 2618 | Skirt | NC | -11,5 | NC | 2874XC |
| JE-325563 | 73 | 11,5 :1 | 18 | 26,1 | JE Round | 2618 | NC | Round | -4,4 | 210 | NC |
| JE-325565 | 73 | 12,5 :1 | 18 | 26,1 | JE Round | 2618 | NC | Round | -1,3 | 209 | NC |
| JE-325562 | 73,5 | 9 :1 | 18 | 26,1 | JE Round | 2618 | NC | Round | -16,1 | 207 | NC |
| K9529D050 | 73,5 | 9,5 :1 | 19,96 | 28,6 | Wossner | NC | NC | NC | -17,05 | NC | 735XPY |
| JE-325564 | 73,5 | 11,5 :1 | 18 | 26,1 | JE Round | 2618 | NC | Round | -4,8 | 212 | NC |
| JE-325566 | 73,5 | 12,5 :1 | 18 | 26,1 | JE Round | 2618 | NC | Round | -1,7 | 211 | NC |
Compatibility engine :
| Brand | Model | Chassis | Engine code | Power (hp) | Years |
|---|---|---|---|---|---|
| Honda | Jazz (1re Gen.) | GD3 | L15A1 | 109 | 2007 – 2008 |
| Honda | Jazz (2e Gen.) | GE8 | L15A7 | 117 | 2009 – 2013 |
Manufacturer piston references (OEM):
13010‑PWC‑J01 ; piston set (O/S 0,25) : 13020‑PWC‑J01.13010‑RB1‑000 ; Ring set (Std) : 13011‑RB7‑Z01 ; Ring set (O/S 0,25) : 13021‑RB7‑Z02.Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
