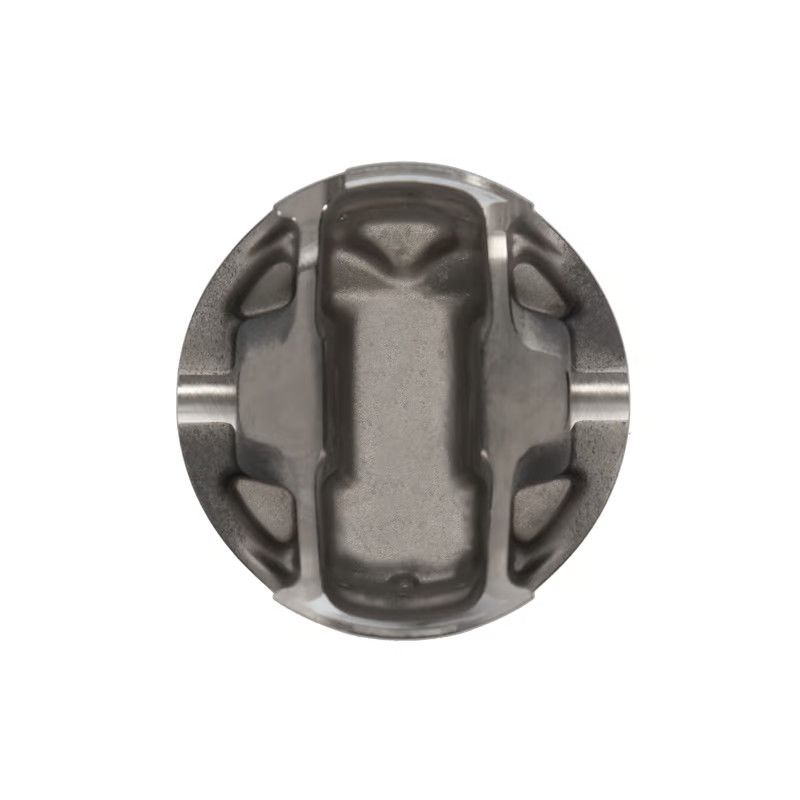

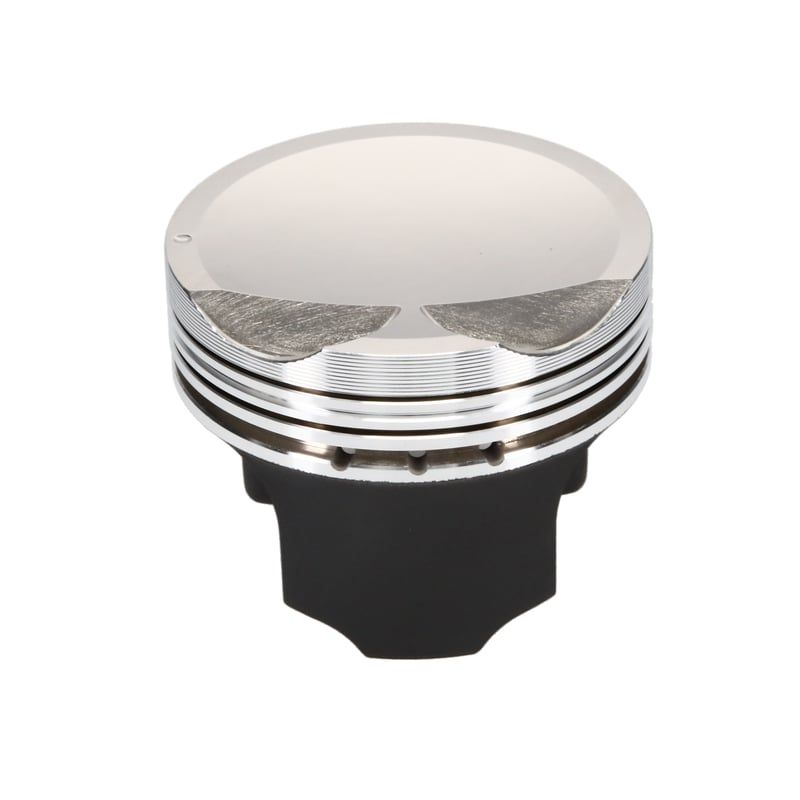

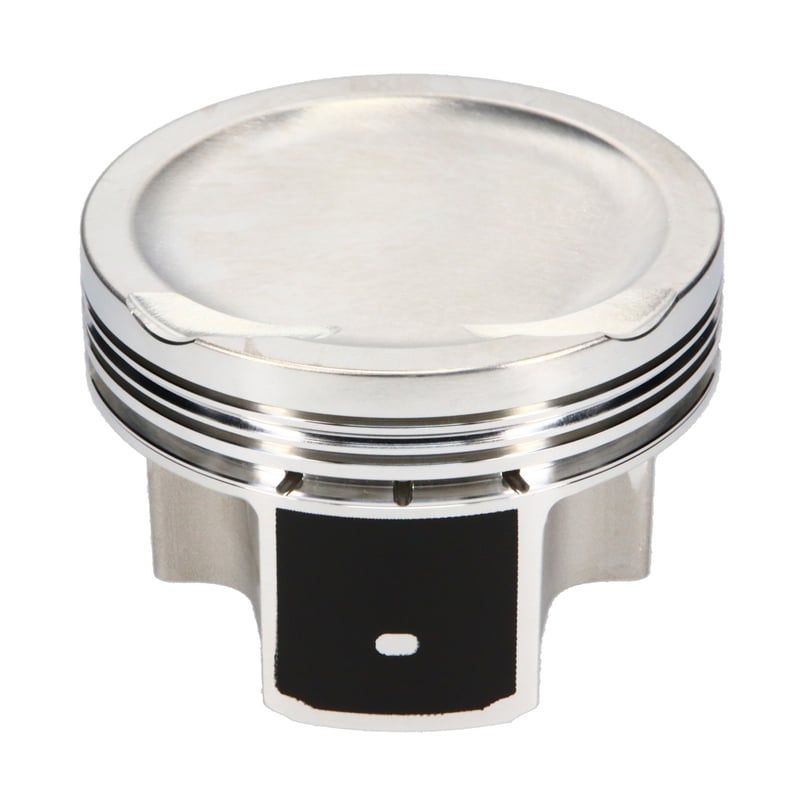

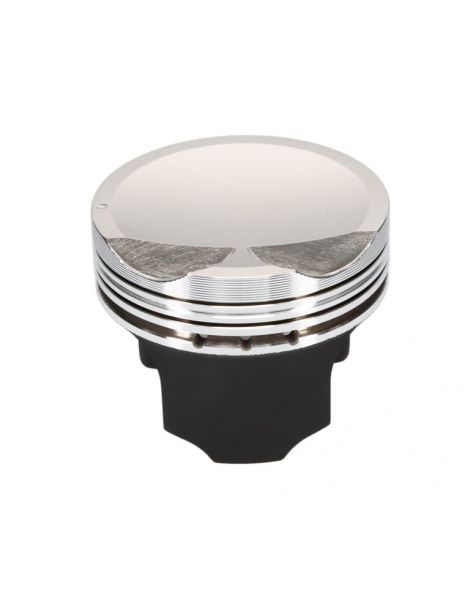

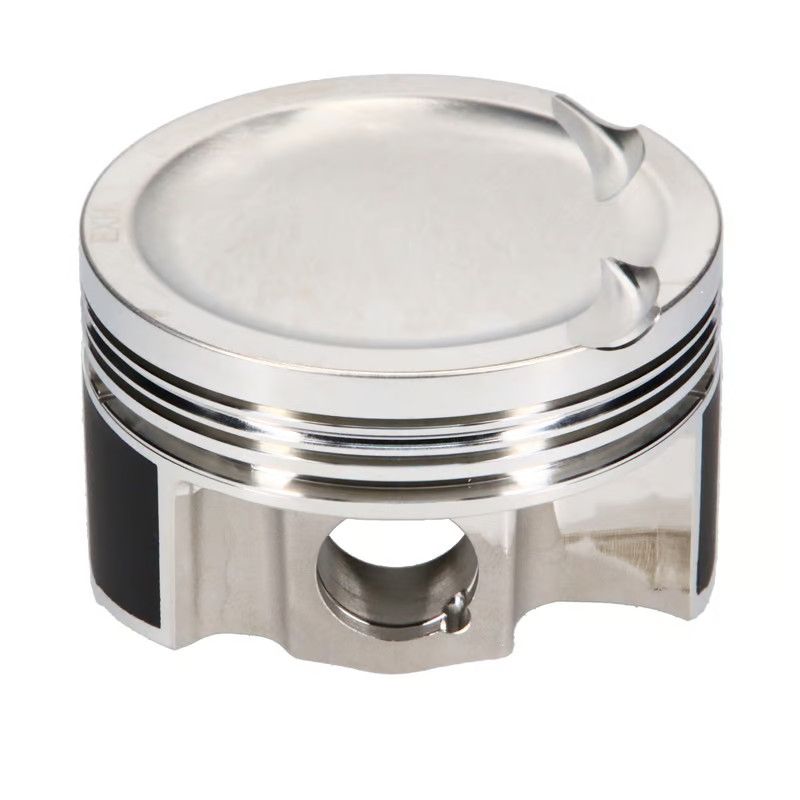

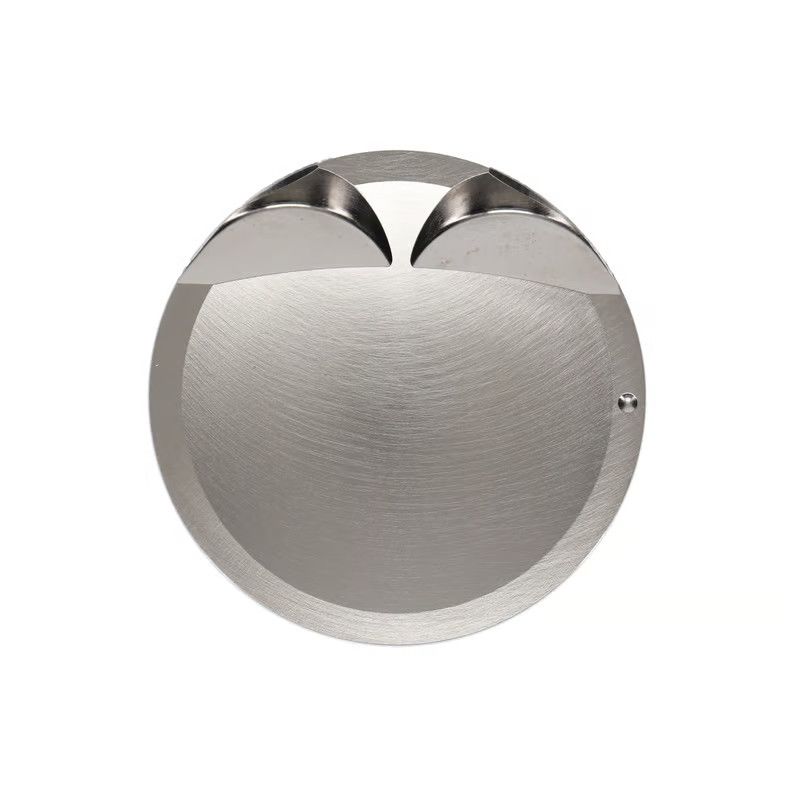

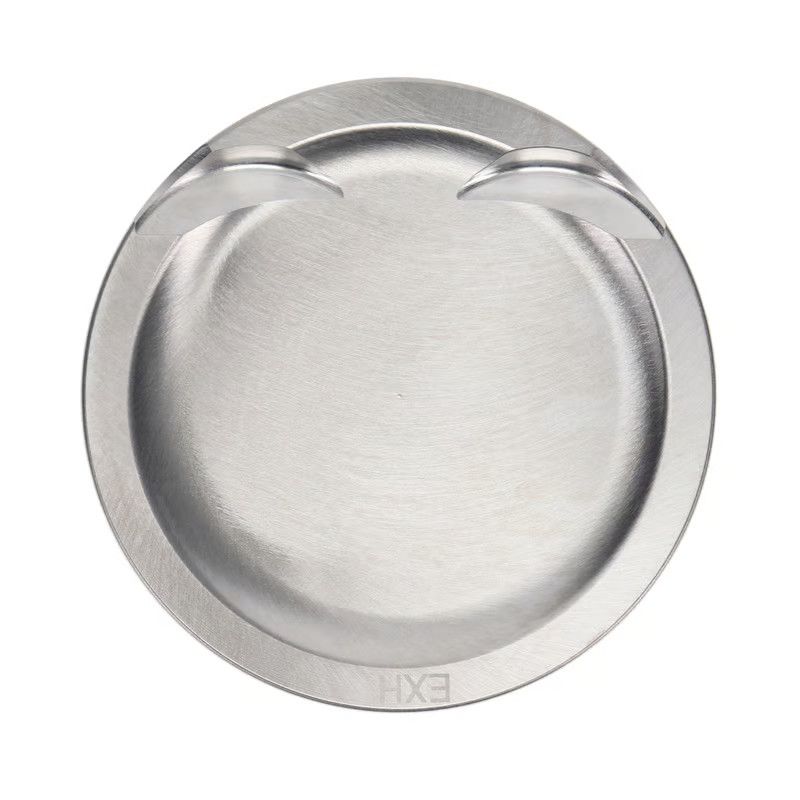

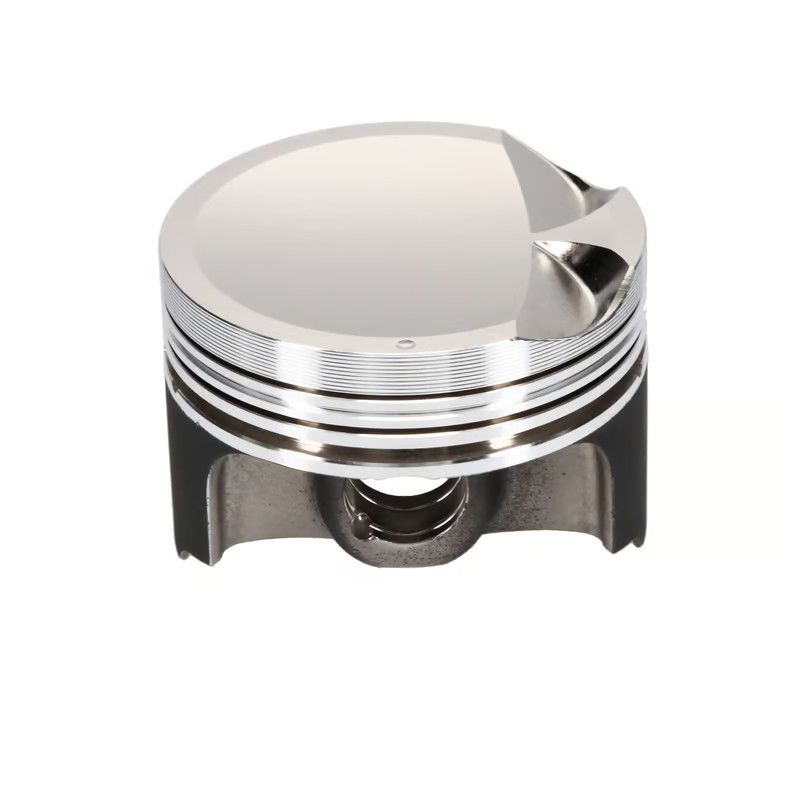

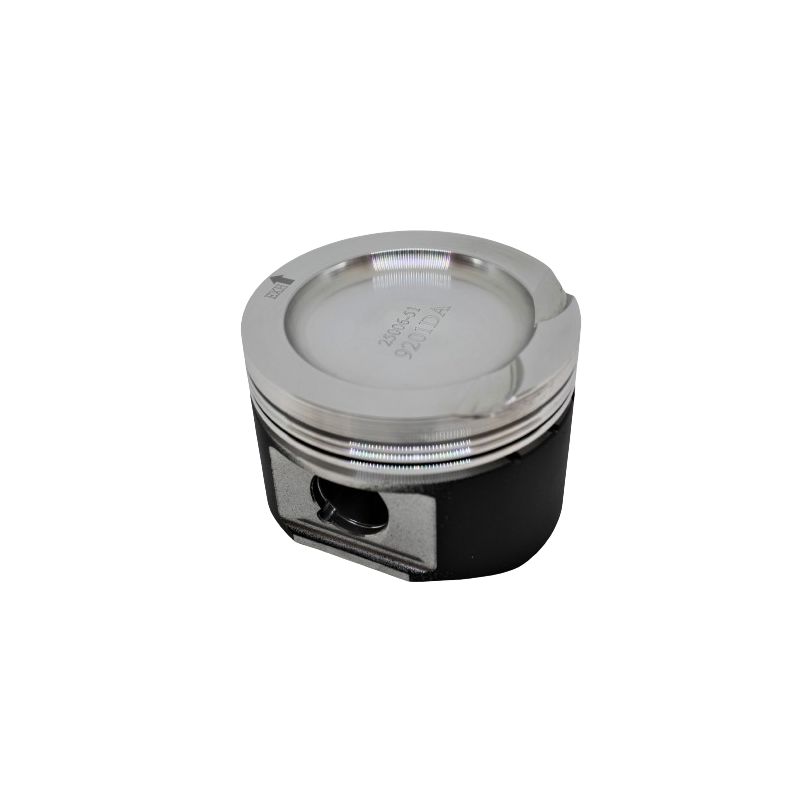

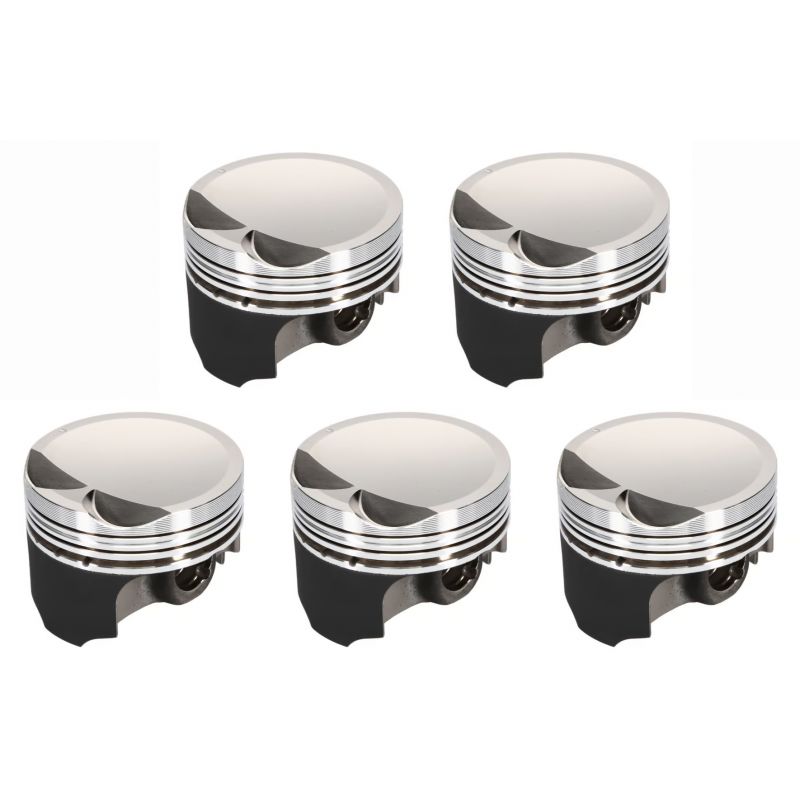

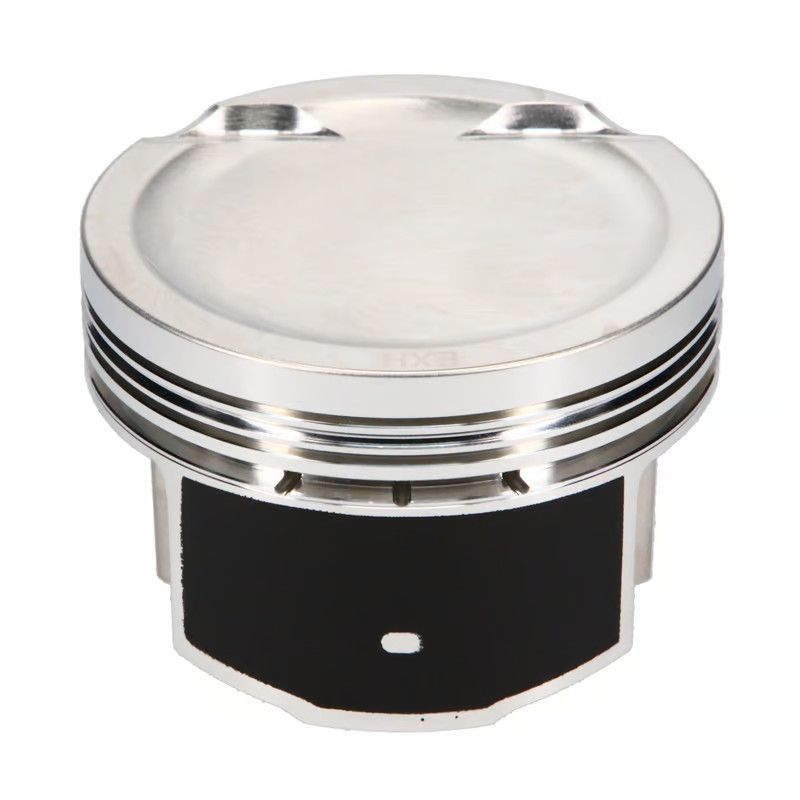

Pistoni forgiati Audi RS2 2.2 20V (ADU) : alesaggio 81,0 mm, spinotto 20 mm, CH 32,8 mm. Tabella dei riferimenti, compatibilità, veicolo di serie e riferimenti OEM.
Caratteristiche dei pistoni forgiati proposti da NSB Concept per Audi 2.2 L 20 V RS2 (codice motore ADU) :
| Riferimento | Alesaggio (mm) OEM: 81,00 | RC OEM 9,0–9,3 :1 | Spinotto (mm) OEM: 20 | Altezza Spinotto (mm) OEM: 32,80 | Linea | Trattamento | Alluminio | Forgiatura | Cupola | Peso | Segmenti |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE222M81 | 81.0 | 7.2:1 | 20 | 32.8 | Wiseco | Mantello | 2618.0 | NC | -21.0 | NC | 8100XX |

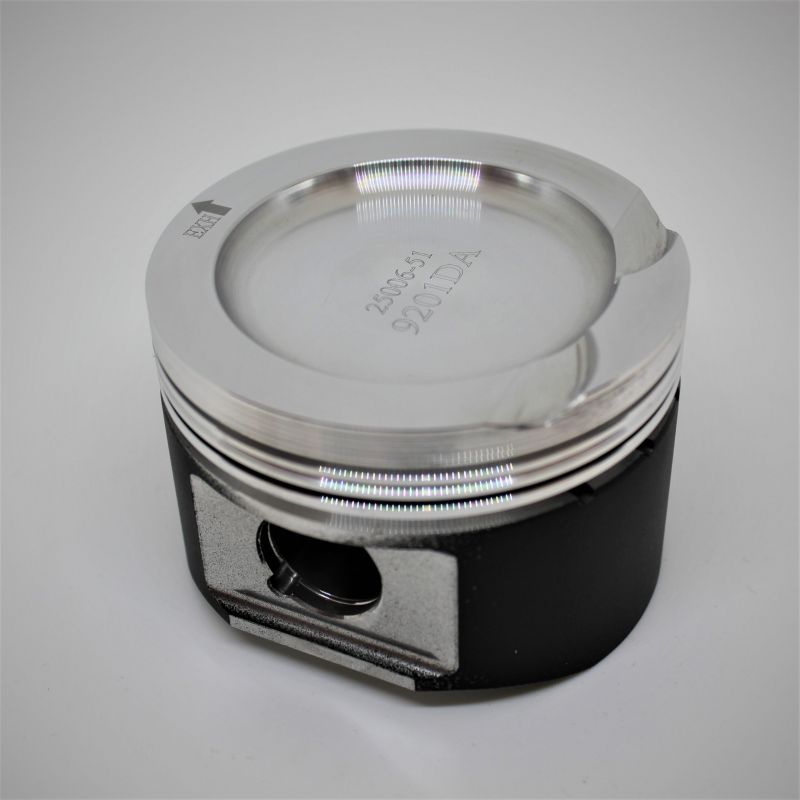

| K9201DA-5 | 81.0 | 8:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 | NC | 810XPY |
| WKE295M81AP | 81.0 | 8.1:1 | 20 | 32.65 | Wiseco AP | Mantello | NC | NC | -7.4 | NC | 8100XX |

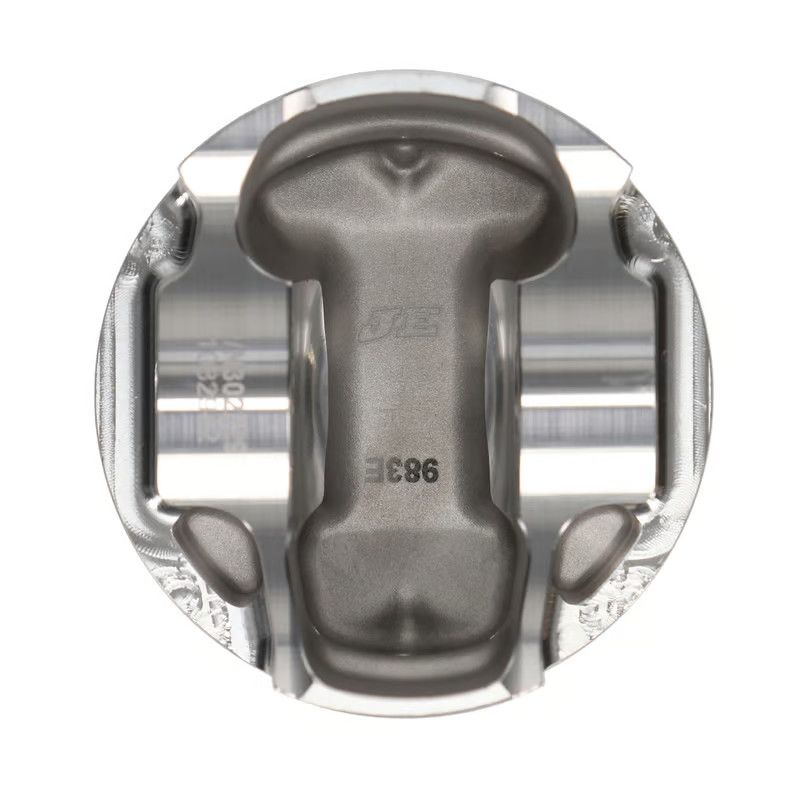

| JE-302228 | 81.0 | 8.5:1 | 20 | 32.8 | JE FSR | NC | 2618.0 | FSR | -7.6 | 279.0 | NC |
| WKE296M81AP | 81.0 | 9:1 | 20 | 32.65 | Wiseco AP | Mantello | NC | NC | -0.6 | NC | 8100XX |
| JE-374693C*5 | 81.0 | 9.5:1 | 20 | 32.8 | JE | NC | NC | NC | NC | NC | NC |
| WKE295M8125AP | 81.25 | 8.1:1 | 20 | 32.65 | Wiseco AP | Mantello | NC | NC | -7.4 | NC | 8125XX |
| WKE222M815 | 81.5 | 7.2:1 | 20 | 32.8 | Wiseco | Mantello | 2618.0 | NC | -21.0 | NC | 8150XX |
| WKE322M815 | 81.5 | 7.2:1 | 20 | 32.8 | Wiseco | Mantello | 2618.0 | NC | -21.0 | NC | 8150XX |
| WKE295M815AP | 81.5 | 8.1:1 | 20 | 32.65 | Wiseco AP | Mantello | 2618.0 | NC | -7.4 | NC | 8150XX |
| K9201D050-5 | 81.5 | 8.1:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 | NC | 815XPY |
| JE-302229 | 81.5 | 8.5:1 | 20 | 32.8 | JE FSR | NC | 2618.0 | FSR | -8.3 | 285.0 | NC |
| WKE296M815AP | 81.5 | 9:1 | 20 | 32.65 | Wiseco AP | Mantello | NC | NC | -0.6 | NC | 8150XX |
| JE-330085C*5 | 81.5 | 9.5:1 | 20 | 32.8 | JE | NC | NC | NC | -0.9 | NC | NC |
| WKE222M82 | 82.0 | 7.2:1 | 20 | 32.8 | Wiseco | Mantello | 2618.0 | NC | -21.0 | NC | 8200XX |
| WKE322M82 | 82.0 | 7.2:1 | 20 | 32.8 | Wiseco | Mantello | NC | NC | -21.0 | NC | 8200XX |
| WKE295M82AP | 82.0 | 8.1:1 | 20 | 32.65 | Wiseco AP | Mantello | 2618.0 | NC | -7.4 | NC | 8200XX |
| K9201D100-5 | 82.0 | 8.2:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 | NC | 820XPY |
| WKE296M82AP | 82.0 | 9:1 | 20 | 32.65 | Wiseco AP | Mantello | NC | NC | -1.3 | NC | 8200XX |
| JE-338992C*5 | 82.0 | 9.5:1 | 20 | 32.8 | JE | NC | NC | NC | -1.2 | NC | NC |
| WKE295M825AP | 82.5 | 8.1:1 | 20 | 32.65 | Wiseco AP | Mantello | 2618.0 | NC | -7.4 | NC | 8250XX |
| K9201D150-5 | 82.5 | 8.3:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 | NC | 825XPY |
| WKE296M825AP | 82.5 | 9:1 | 20 | 32.65 | Wiseco AP | Mantello | NC | NC | -1.3 | NC | 8250XX |
| WKE222M83 | 83.0 | 7.2:1 | 20 | 32.8 | Wiseco | Mantello | 2618.0 | NC | -21.0 | NC | 8300XX |
| WKE295M83AP | 83.0 | 8.1:1 | 20 | 32.65 | Wiseco AP | Mantello | 2618.0 | NC | -7.4 | NC | 8300XX |
| K9201D200-5 | 83.0 | 8.4:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 | NC | 830XPY |
| K9201D250-5 | 83.5 | 8.4:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 | NC | 835XPY |
Compatibilità (codici motore) :
Veicoli originali equipaggiati con il 2.2 20V (RS2) :
| Marca | Modello | Codice motore | Potenza | Anni |
|---|---|---|---|---|
| Audi | RS2 Avant (B4) | ADU | 315 CV | 1994 – 1995 |
Riferimenti pistoni costruttore (OEM) :
Attenzione : Prima di qualsiasi montaggio, verificare tassativamente l'integrità e la conformità di ogni componente del kit pistoni, nonché la conformità dell'assemblaggio nel motore; l'eventuale garanzia è strettamente limitata alle sole parti del kit pistoni.
