2.2L 20v - RS2
Fabricants
2.2L 20v - RS2
Attention : dernières pièces disponibles !
Neuf

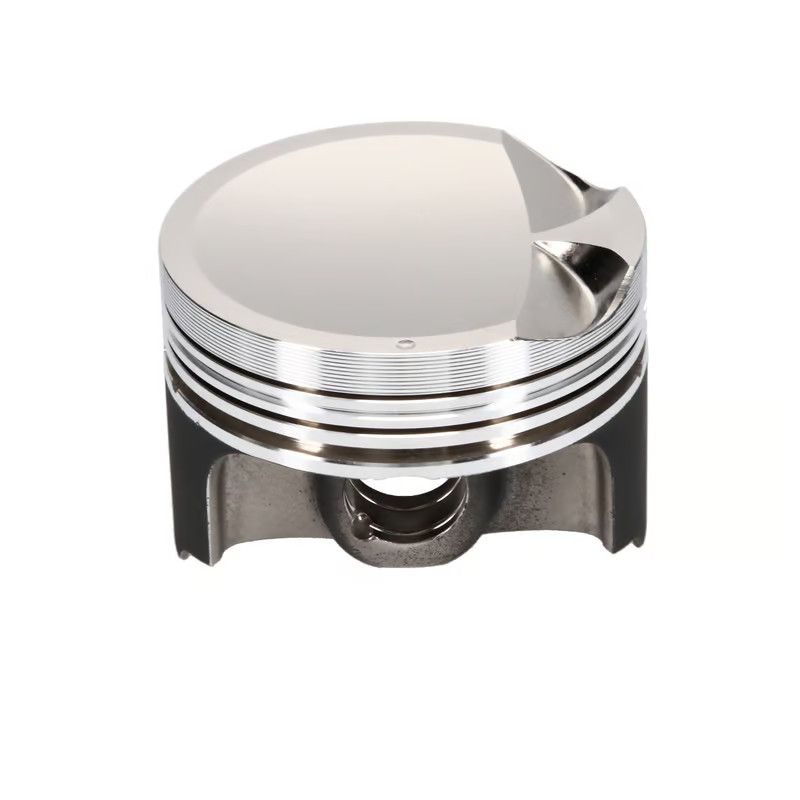

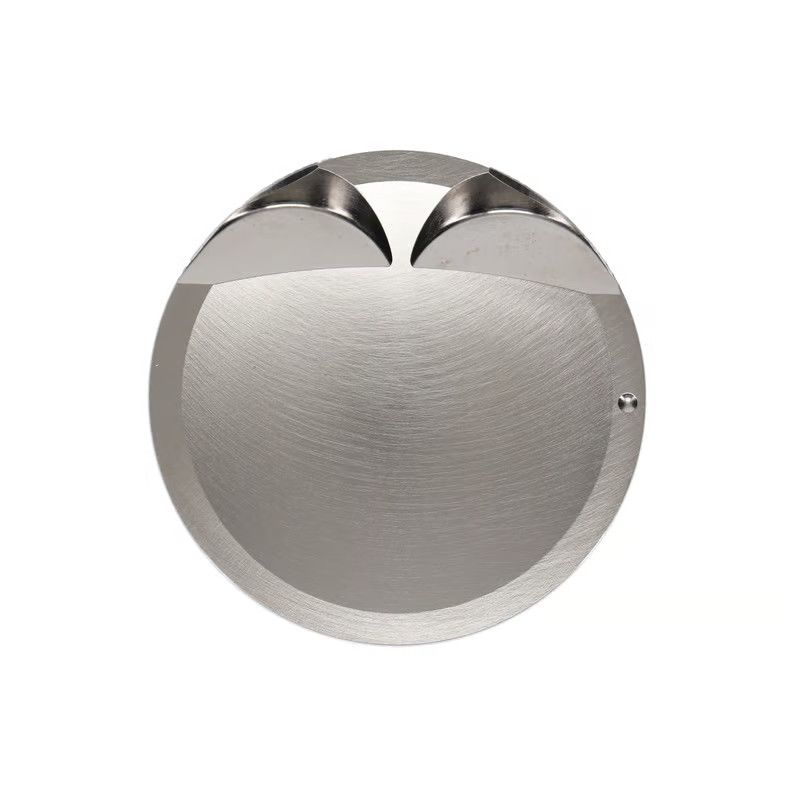

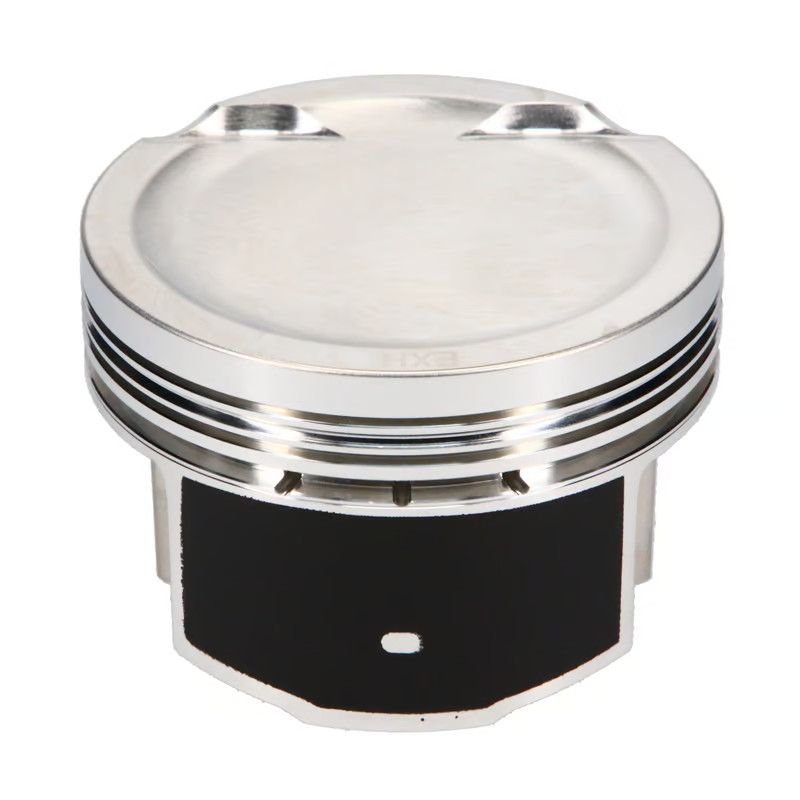

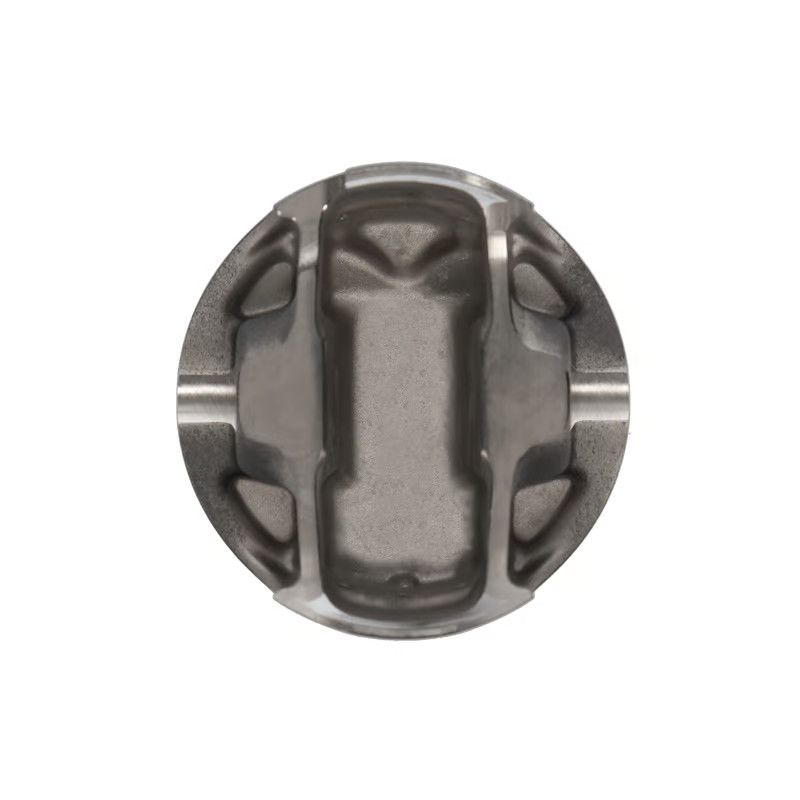

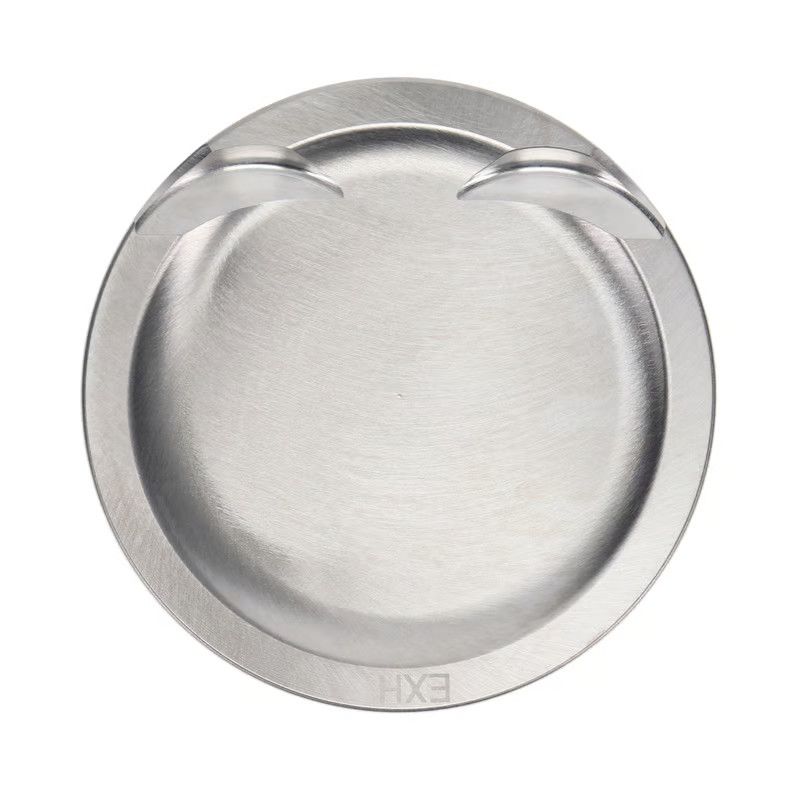

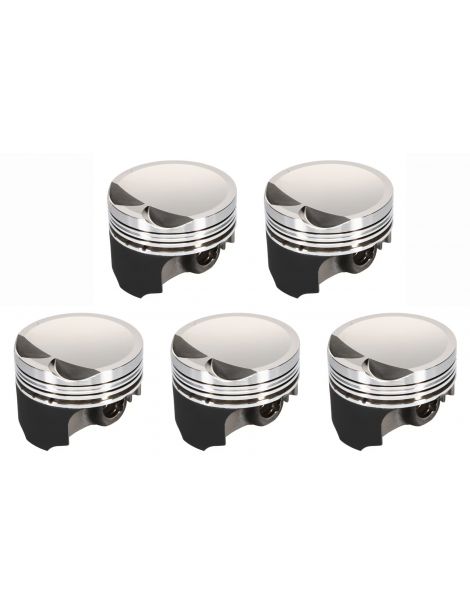

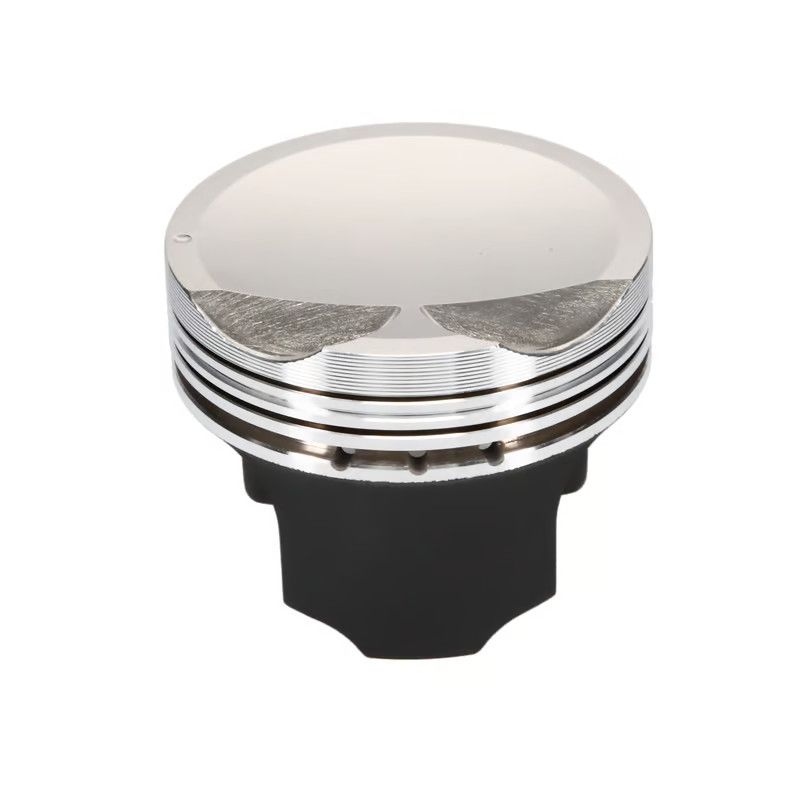

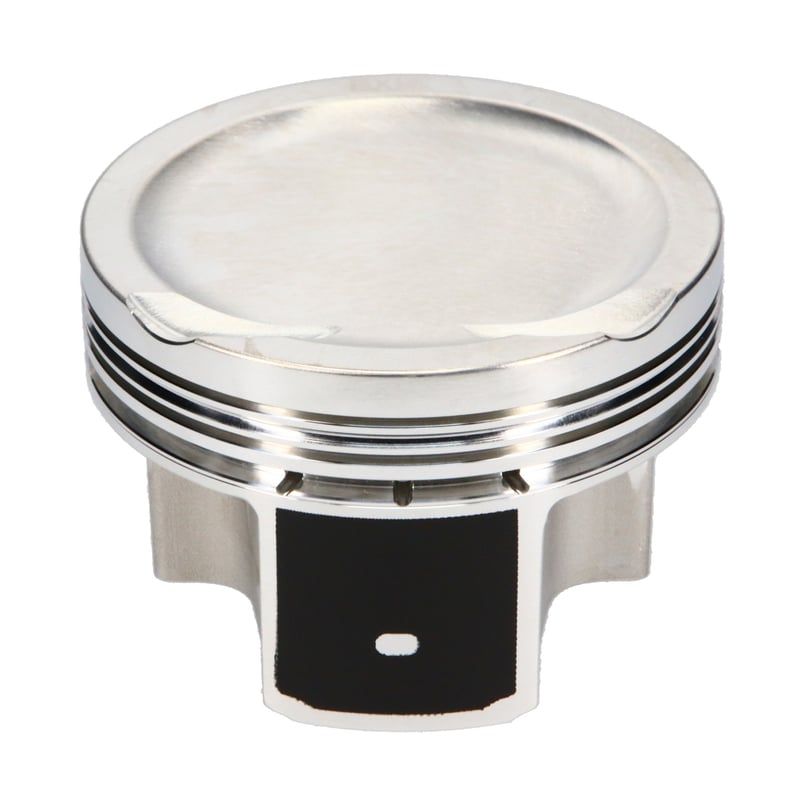

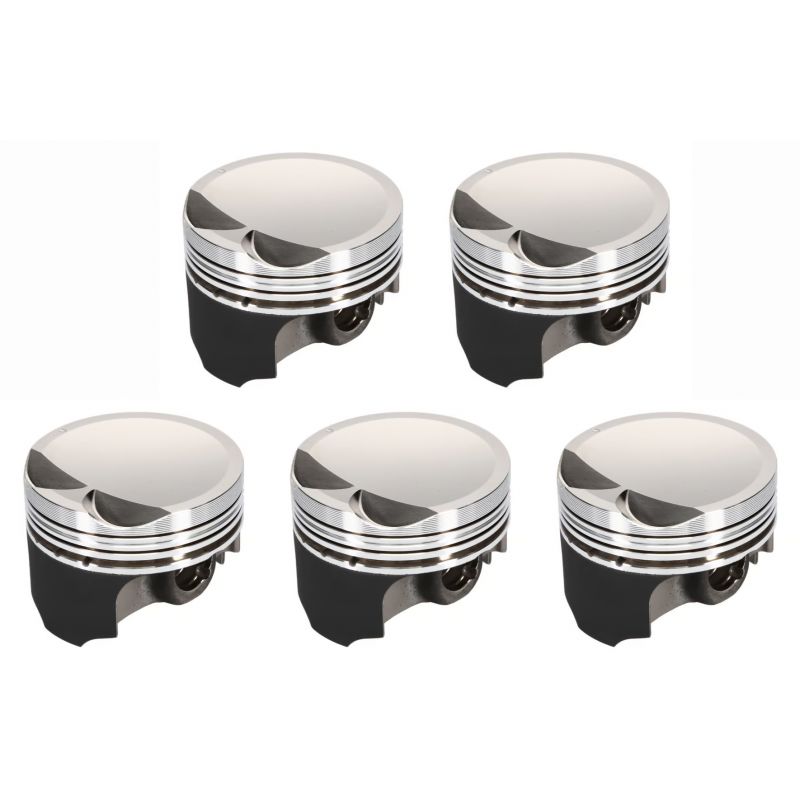

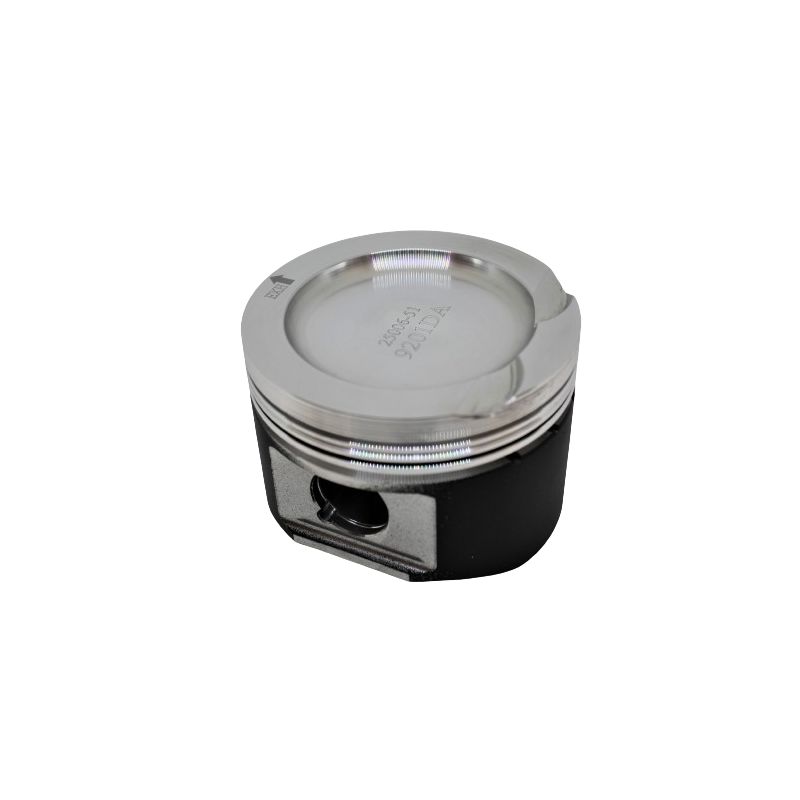

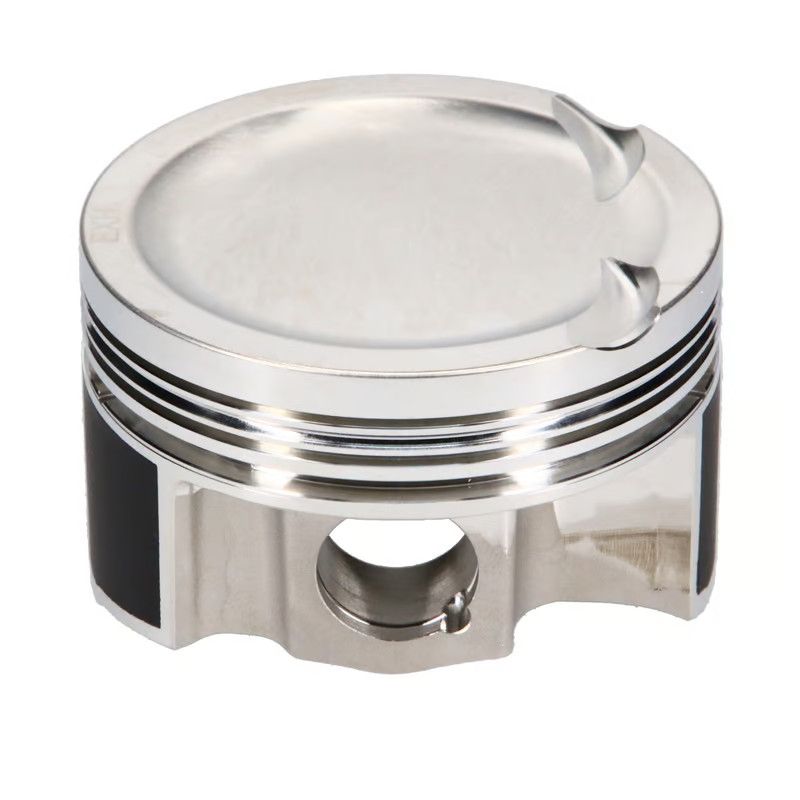

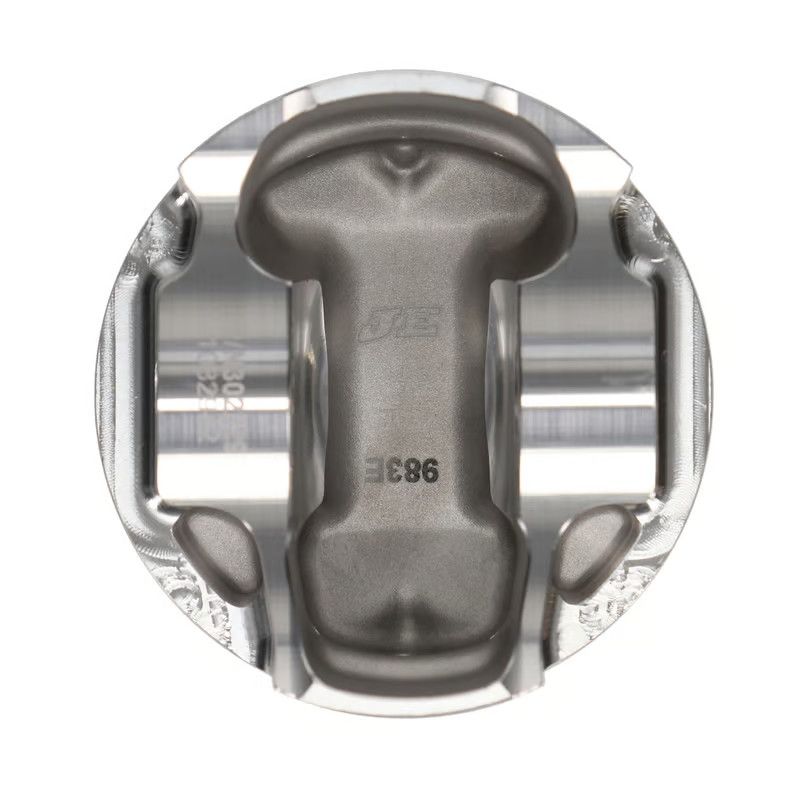

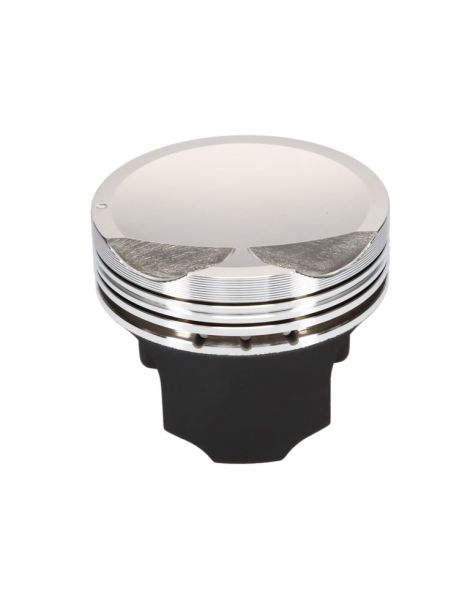

Kit 5 pistons forgés JE PISTONS / WISECO / WOSSNER pour moteur AUDI 2.2 20V 3B AAN ABY ADU :
Caractéristiques des pistons forgés VW‑Audi 2.2 L 20 V (RS2/S2) – axe 20 mm :
| Référence (Cliquez) | Alésage OEM 81,00 mm | RV OEM 9,0 :1 | Axe OEM 20 mm | Hauteur Axe OEM 29,45 mm | Gamme | Traitement | Aluminium | Forging | Dôme | Poids | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE222M81 | 81.0 | 7.2:1 | 20 | 32.8 | Wiseco | Jupe | 2618.0 | NC | -21.0 | NC | 8100XX |

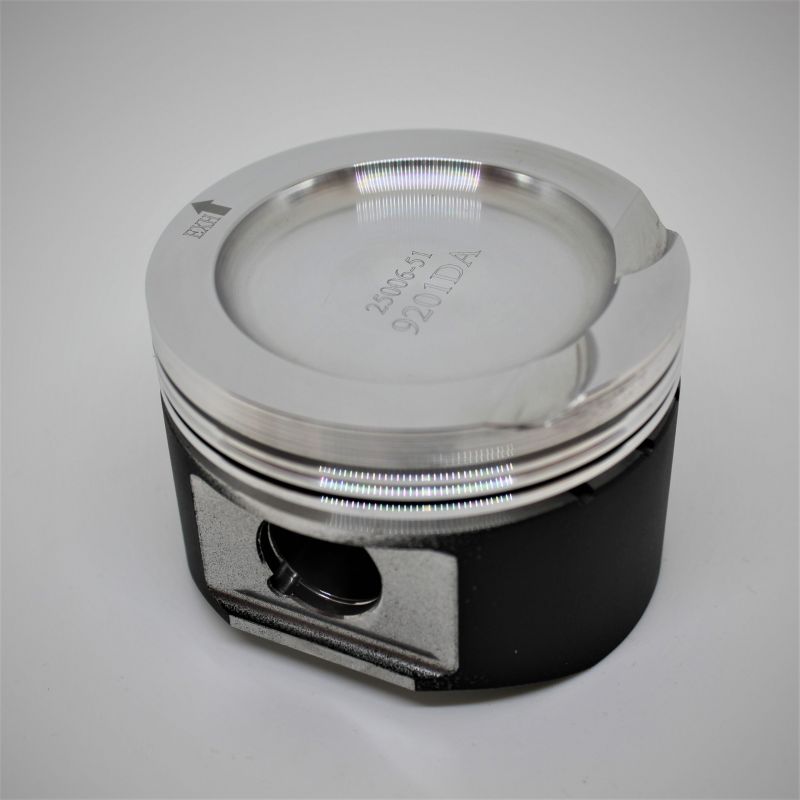

| K9201DA-5 | 81.0 | 8:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 | NC | 810XPY |
| WKE295M81AP | 81.0 | 8.1:1 | 20 | 32.65 | Wiseco AP | Jupe | NC | NC | -7.4 | NC | 8100XX |
| JE-302228 | 81.0 | 8.5:1 | 20 | 32.8 | JE FSR | NC | 2618.0 | FSR | -7.6 | 279.0 | NC |
| WKE296M81AP | 81.0 | 9:1 | 20 | 32.65 | Wiseco AP | Jupe | NC | NC | -0.6 | NC | 8100XX |
| JE-374693C*5 | 81.0 | 9.5:1 | 20 | 32.8 | JE | NC | NC | NC | NC | NC | NC |
| WKE295M8125AP | 81.25 | 8.1:1 | 20 | 32.65 | Wiseco AP | Jupe | NC | NC | -7.4 | NC | 8125XX |
| WKE222M815 | 81.5 | 7.2:1 | 20 | 32.8 | Wiseco | Jupe | 2618.0 | NC | -21.0 | NC | 8150XX |
| WKE322M815 | 81.5 | 7.2:1 | 20 | 32.8 | Wiseco | Jupe | 2618.0 | NC | -21.0 | NC | 8150XX |
| WKE295M815AP | 81.5 | 8.1:1 | 20 | 32.65 | Wiseco AP | Jupe | 2618.0 | NC | -7.4 | NC | 8150XX |
| K9201D050-5 | 81.5 | 8.1:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 | NC | 815XPY |
| JE-302229 | 81.5 | 8.5:1 | 20 | 32.8 | JE FSR | NC | 2618.0 | FSR | -8.3 | 285.0 | NC |
| WKE296M815AP | 81.5 | 9:1 | 20 | 32.65 | Wiseco AP | Jupe | NC | NC | -0.6 | NC | 8150XX |
| JE-330085C*5 | 81.5 | 9.5:1 | 20 | 32.8 | JE | NC | NC | NC | -0.9 | NC | NC |
| WKE222M82 | 82.0 | 7.2:1 | 20 | 32.8 | Wiseco | Jupe | 2618.0 | NC | -21.0 | NC | 8200XX |
| WKE322M82 | 82.0 | 7.2:1 | 20 | 32.8 | Wiseco | Jupe | NC | NC | -21.0 | NC | 8200XX |
| WKE295M82AP | 82.0 | 8.1:1 | 20 | 32.65 | Wiseco AP | Jupe | 2618.0 | NC | -7.4 | NC | 8200XX |
| K9201D100-5 | 82.0 | 8.2:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 | NC | 820XPY |
| WKE296M82AP | 82.0 | 9:1 | 20 | 32.65 | Wiseco AP | Jupe | NC | NC | -1.3 | NC | 8200XX |
| JE-338992C*5 | 82.0 | 9.5:1 | 20 | 32.8 | JE | NC | NC | NC | -1.2 | NC | NC |
| WKE295M825AP | 82.5 | 8.1:1 | 20 | 32.65 | Wiseco AP | Jupe | 2618.0 | NC | -7.4 | NC | 8250XX |
| K9201D150-5 | 82.5 | 8.3:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 | NC | 825XPY |
| WKE296M825AP | 82.5 | 9:1 | 20 | 32.65 | Wiseco AP | Jupe | NC | NC | -1.3 | NC | 8250XX |
| WKE222M83 | 83.0 | 7.2:1 | 20 | 32.8 | Wiseco | Jupe | 2618.0 | NC | -21.0 | NC | 8300XX |
| WKE295M83AP | 83.0 | 8.1:1 | 20 | 32.65 | Wiseco AP | Jupe | 2618.0 | NC | -7.4 | NC | 8300XX |
| K9201D200-5 | 83.0 | 8.4:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 | NC | 830XPY |
| K9201D250-5 | 83.5 | 8.4:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 | NC | 835XPY |
Compatibilités moteurs :
Véhicules équipés du 2.2 L 20 V turbo (3B / ABY / ADU / AAN) :
| Marque | Modèle | Code moteur | Puissance | Années |
|---|---|---|---|---|
| Audi | RS2 Avant | ADU | 315 ch | 1994 – 1995 |
| Audi | S2 Avant | ABY | 230 ch | 1993 – 1995 |
| Audi | S2 Coupe | 3B | 220 ch | 1990 – 1992 |
| Audi | S2 Coupe | ABY | 230 ch | 1993 – 1996 |
| Audi | S2 Sedan | ABY | 230 ch | 1993 – 1994 |
| Audi | S4 C4 | AAN | 230 ch | 1991 – 1994 |
| Audi | S6 C4 | AAN | 230 ch | 1994 – 1997 |
