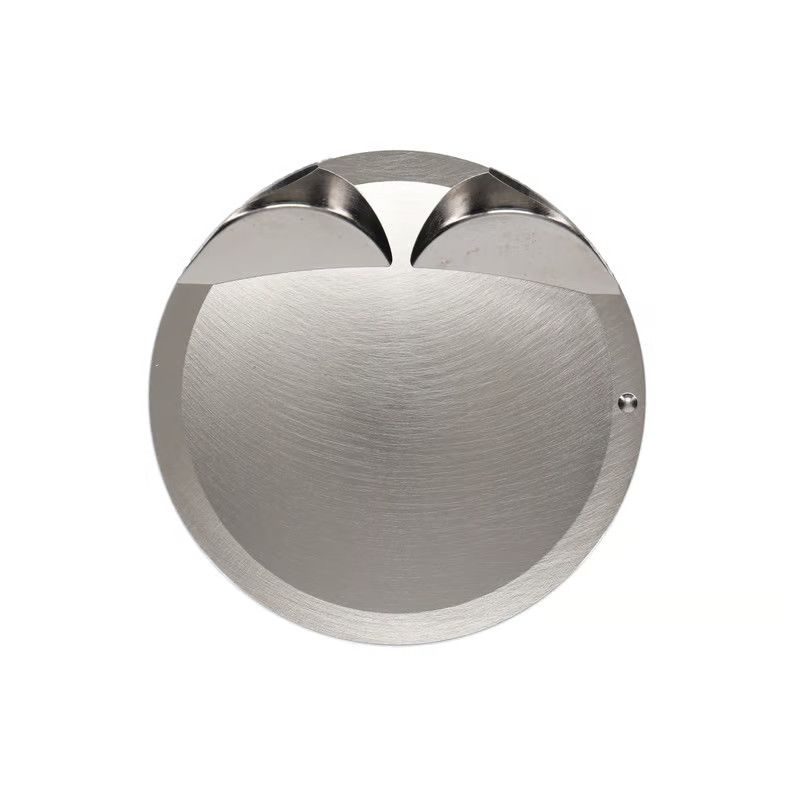

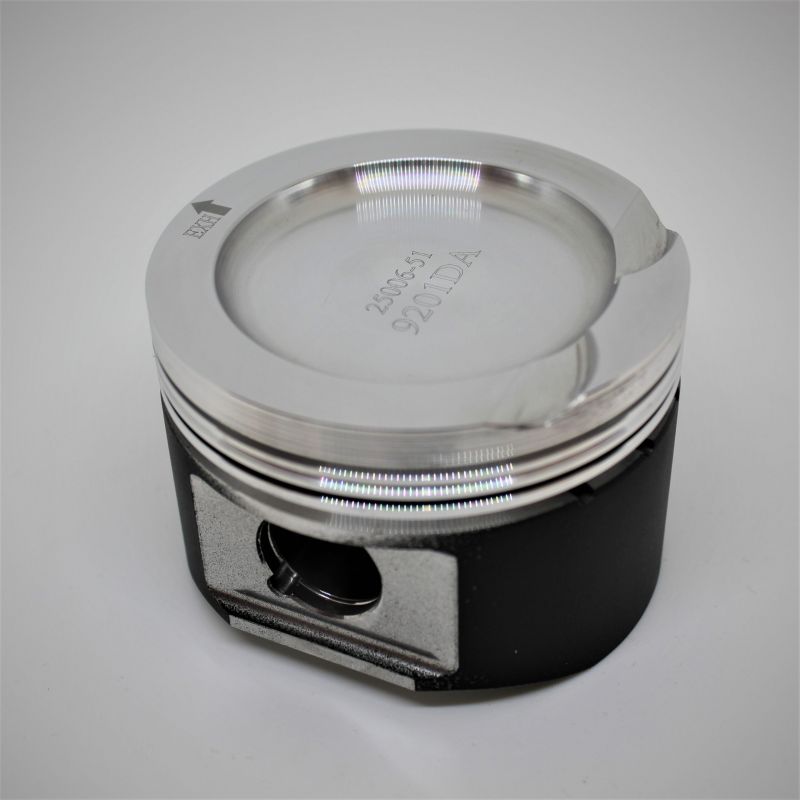

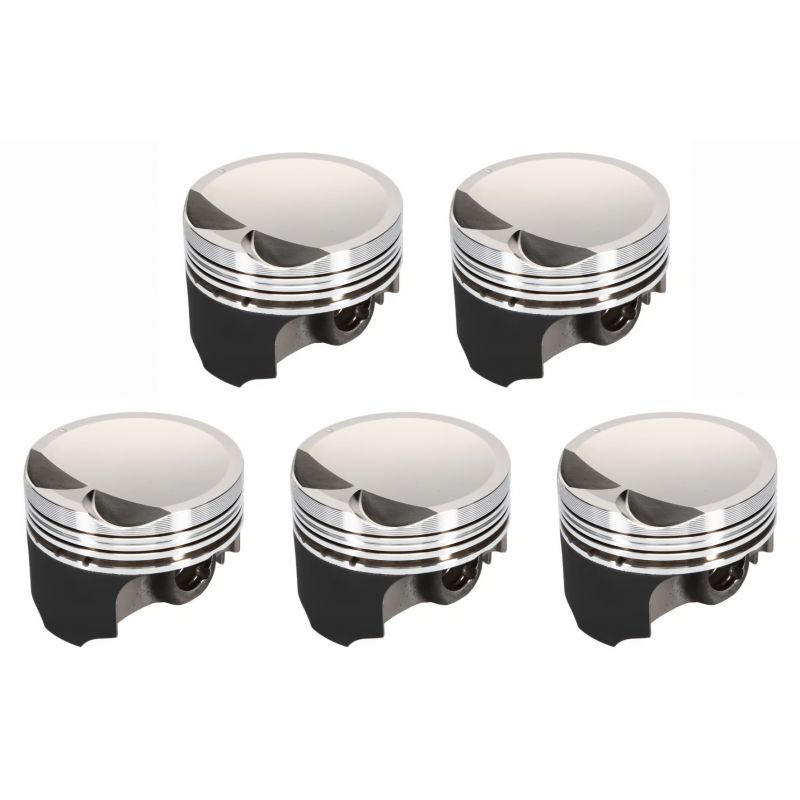

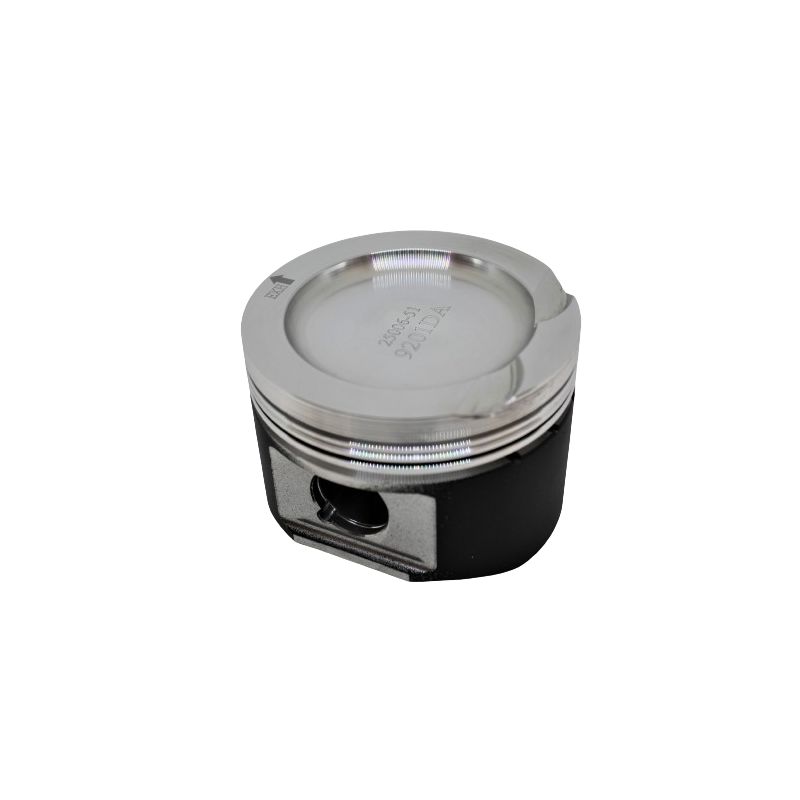

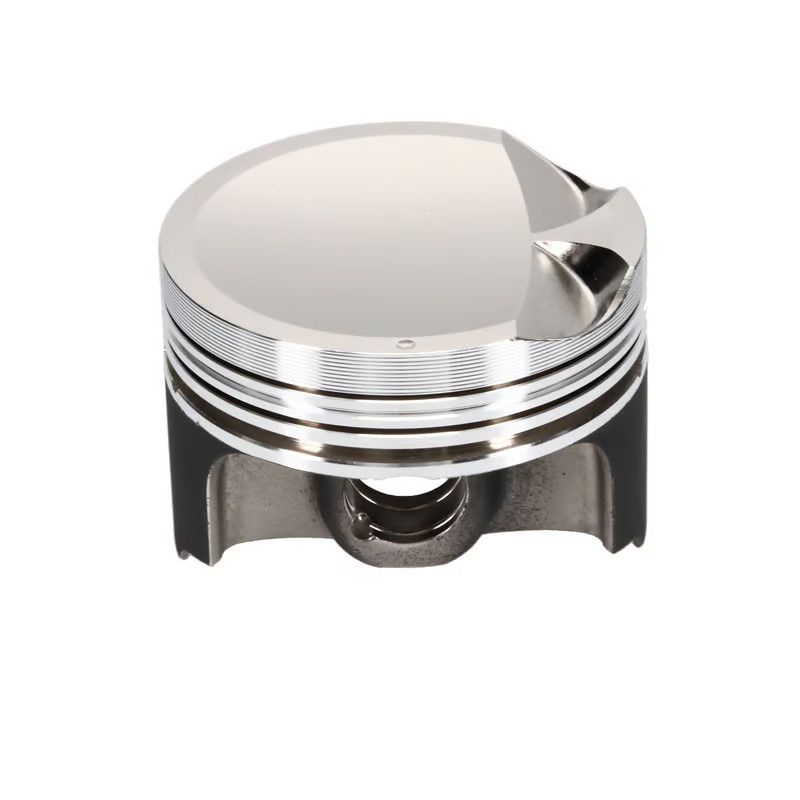

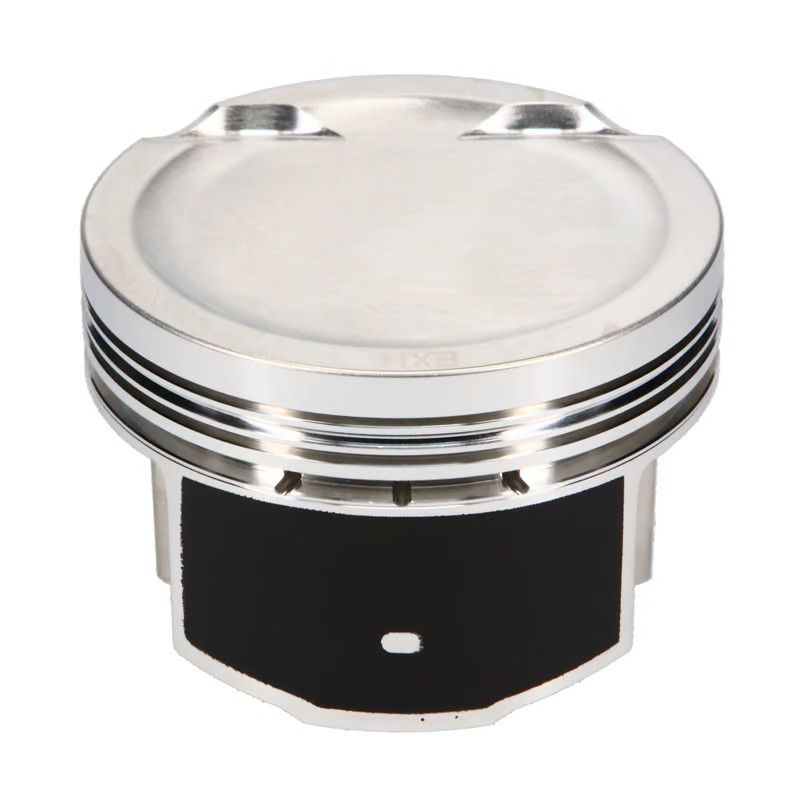

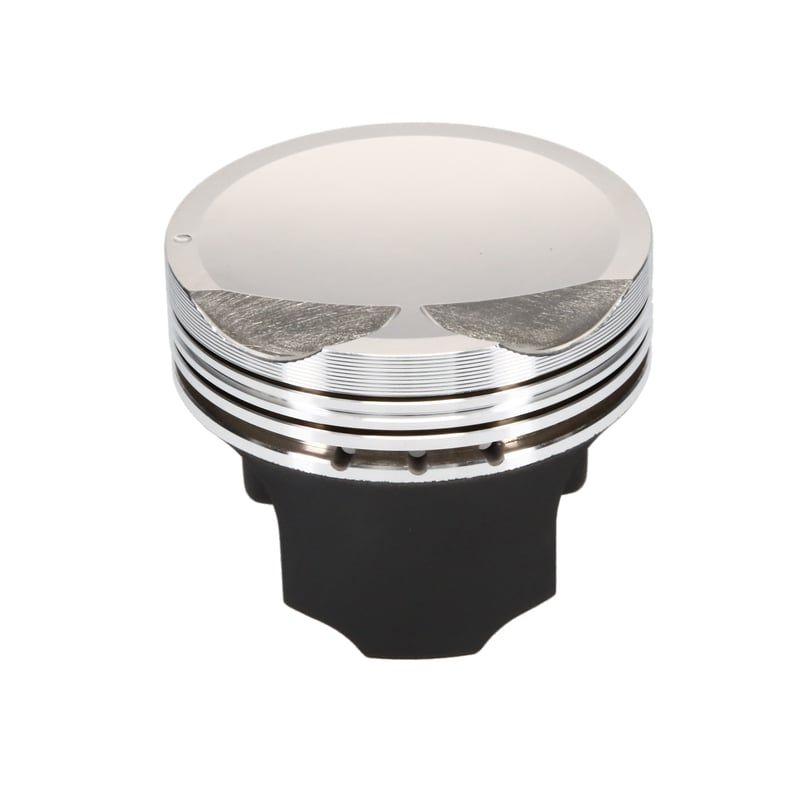

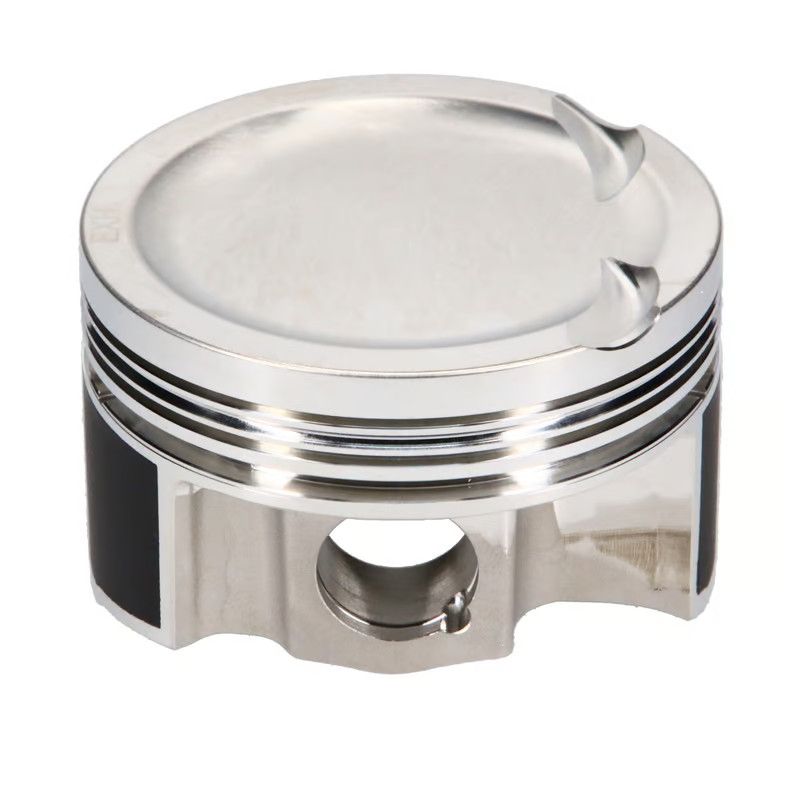

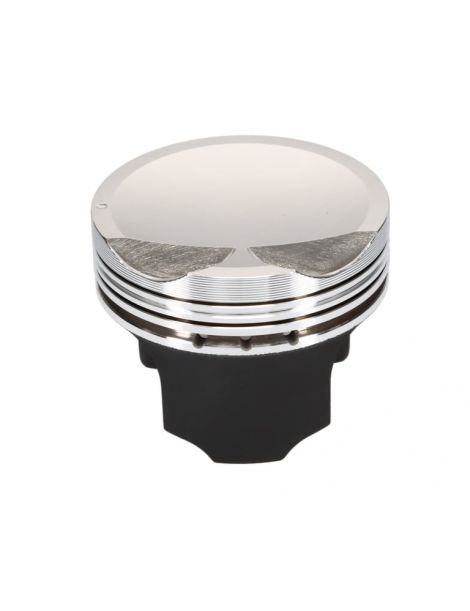

Audi RS2 2.2 20V (ADU) forged pistons: Bore 81.0 mm, Pin 20 mm, CH 32.8 mm. Table of references, compatibility, original vehicle and OEM references.

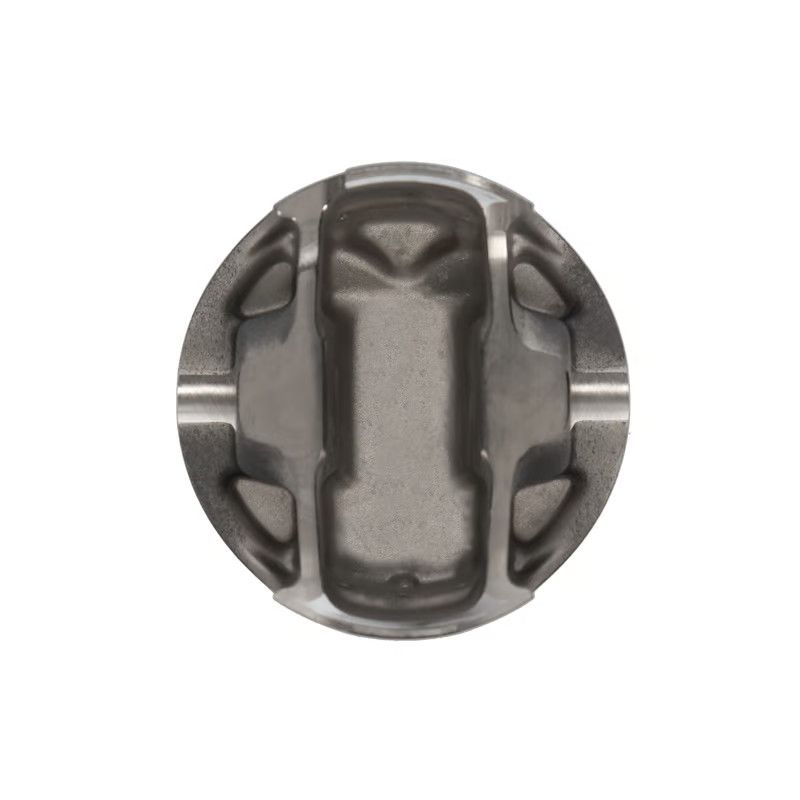

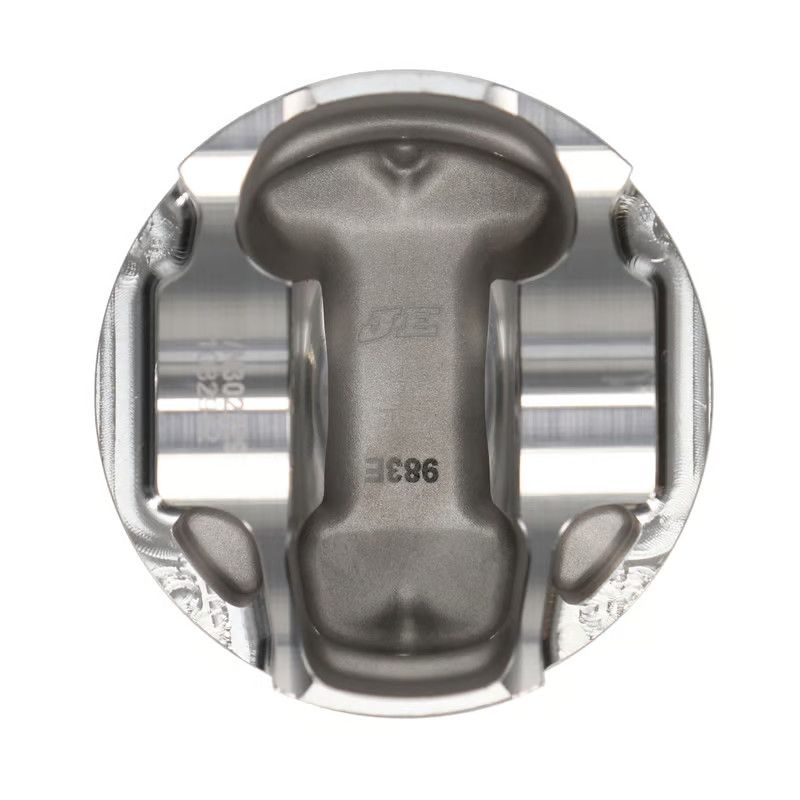

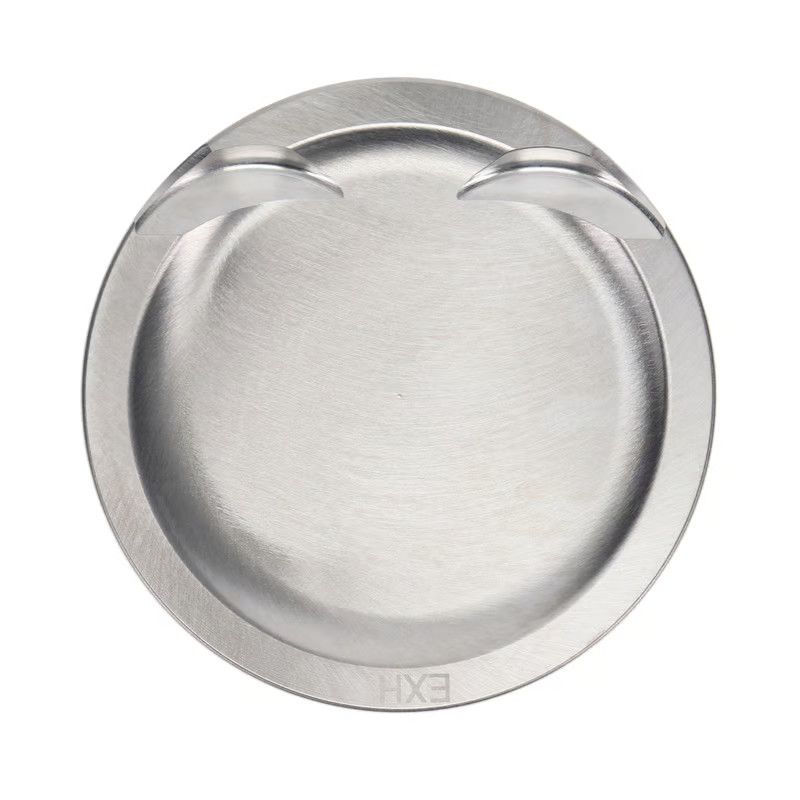

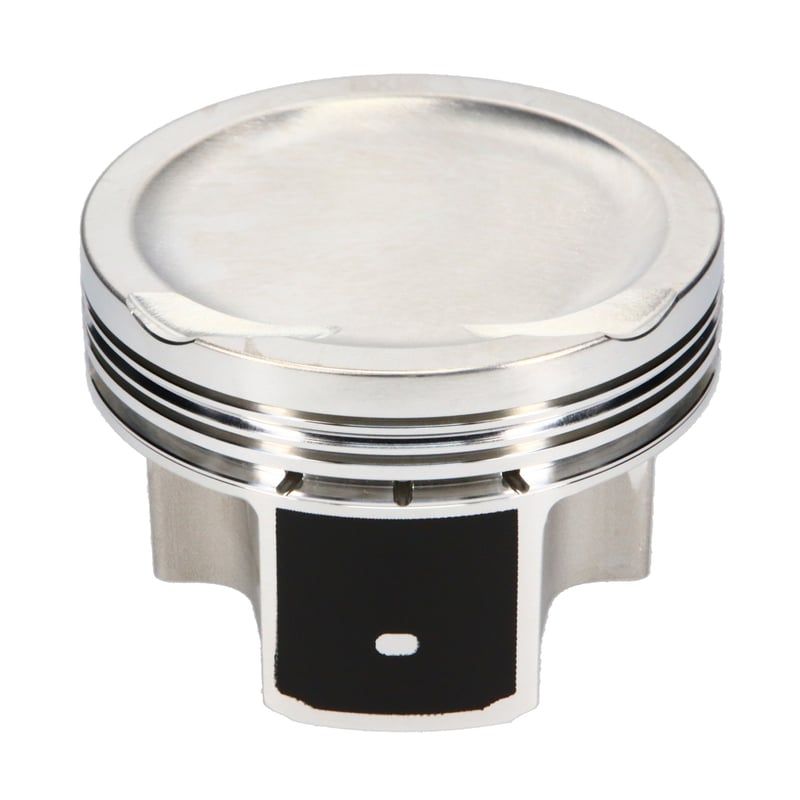

Characteristics of the forged pistons offered by NSB Concept for Audi 2.2 L 20 V RS2 (engine code ADU):
| Reference | Bore | VR | Pin | Axis Height | Range | Treatment | Aluminum | Forging | Dome | Weight | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE222M81 | 81.0 | 7.2:1 | 20 | 32.8 | Wiseco | Skirt | 2618.0 | N/A | -21.0 | N/A | 8100XX |
| K9201DA-5 | 81.0 | 8:1 | 20 | 33.4 | Wossner | N/A | N/A | N/A | -12.3 | N/A | 810XPY |
| WKE295M81AP | 81.0 | 8.1:1 | 20 | 32.65 | Wiseco AP | Skirt | N/A | N/A | -7.4 | N/A | 8100XX |
| JE-302228 | 81.0 | 8.5:1 | 20 | 32.8 | JE FSR | N/A | 2618.0 | FSR | -7.6 | 279.0 | N/A |
| WKE296M81AP | 81.0 | 9:1 | 20 | 32.65 | Wiseco AP | Skirt | N/A | N/A | -0.6 | N/A | 8100XX |
| JE-374693C*5 | 81.0 | 9.5:1 | 20 | 32.8 | JE | N/A | N/A | N/A | N/A | N/A | N/A |
| WKE295M8125AP | 81.25 | 8.1:1 | 20 | 32.65 | Wiseco AP | Skirt | N/A | N/A | -7.4 | N/A | 8125XX |
| WKE222M815 | 81.5 | 7.2:1 | 20 | 32.8 | Wiseco | Skirt | 2618.0 | N/A | -21.0 | N/A | 8150XX |
| WKE322M815 | 81.5 | 7.2:1 | 20 | 32.8 | Wiseco | Skirt | 2618.0 | N/A | -21.0 | N/A | 8150XX |
| WKE295M815AP | 81.5 | 8.1:1 | 20 | 32.65 | Wiseco AP | Skirt | 2618.0 | N/A | -7.4 | N/A | 8150XX |
| K9201D050-5 | 81.5 | 8.1:1 | 20 | 33.4 | Wossner | N/A | N/A | N/A | -12.3 | N/A | 815XPY |
| JE-302229 | 81.5 | 8.5:1 | 20 | 32.8 | JE FSR | N/A | 2618.0 | FSR | -8.3 | 285.0 | N/A |
| WKE296M815AP | 81.5 | 9:1 | 20 | 32.65 | Wiseco AP | Skirt | N/A | N/A | -0.6 | N/A | 8150XX |
| JE-330085C*5 | 81.5 | 9.5:1 | 20 | 32.8 | JE | N/A | N/A | N/A | -0.9 | N/A | N/A |
| WKE222M82 | 82.0 | 7.2:1 | 20 | 32.8 | Wiseco | Skirt | 2618.0 | N/A | -21.0 | N/A | 8200XX |
| WKE322M82 | 82.0 | 7.2:1 | 20 | 32.8 | Wiseco | Skirt | N/A | N/A | -21.0 | N/A | 8200XX |
| WKE295M82AP | 82.0 | 8.1:1 | 20 | 32.65 | Wiseco AP | Skirt | 2618.0 | N/A | -7.4 | N/A | 8200XX |
| K9201D100-5 | 82.0 | 8.2:1 | 20 | 33.4 | Wossner | N/A | N/A | N/A | -12.3 | N/A | 820XPY |
| WKE296M82AP | 82.0 | 9:1 | 20 | 32.65 | Wiseco AP | Skirt | N/A | N/A | -1.3 | N/A | 8200XX |
| JE-338992C*5 | 82.0 | 9.5:1 | 20 | 32.8 | JE | N/A | N/A | N/A | -1.2 | N/A | N/A |
| WKE295M825AP | 82.5 | 8.1:1 | 20 | 32.65 | Wiseco AP | Skirt | 2618.0 | N/A | -7.4 | N/A | 8250XX |
| K9201D150-5 | 82.5 | 8.3:1 | 20 | 33.4 | Wossner | N/A | N/A | N/A | -12.3 | N/A | 825XPY |
| WKE296M825AP | 82.5 | 9:1 | 20 | 32.65 | Wiseco AP | Skirt | N/A | N/A | -1.3 | N/A | 8250XX |
| WKE222M83 | 83.0 | 7.2:1 | 20 | 32.8 | Wiseco | Skirt | 2618.0 | N/A | -21.0 | N/A | 8300XX |
| WKE295M83AP | 83.0 | 8.1:1 | 20 | 32.65 | Wiseco AP | Skirt | 2618.0 | N/A | -7.4 | N/A | 8300XX |
| K9201D200-5 | 83.0 | 8.4:1 | 20 | 33.4 | Wossner | N/A | N/A | N/A | -12.3 | N/A | 830XPY |
| K9201D250-5 | 83.5 | 8.4:1 | 20 | 33.4 | Wossner | N/A | N/A | N/A | -12.3 | N/A | 835XPY |
Compatibilities (engine codes):
ADU Audi RS2 Avant 2.2 20v turbo
Original vehicles equipped with 2.2 20V (RS2):
| Brand | Model | Engine Code | Power | Years |
|---|---|---|---|---|
| Audi | RS2 Avant (B4) | ADU | 315 hp | 1994 1995 |
Piston manufacturer references (OEM):
Audi RS2 (ADU)
: 034 107 065 M (complete piston 81.00 mm); 034 107 065 C (old reference observed, according to revision).
Warning:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
