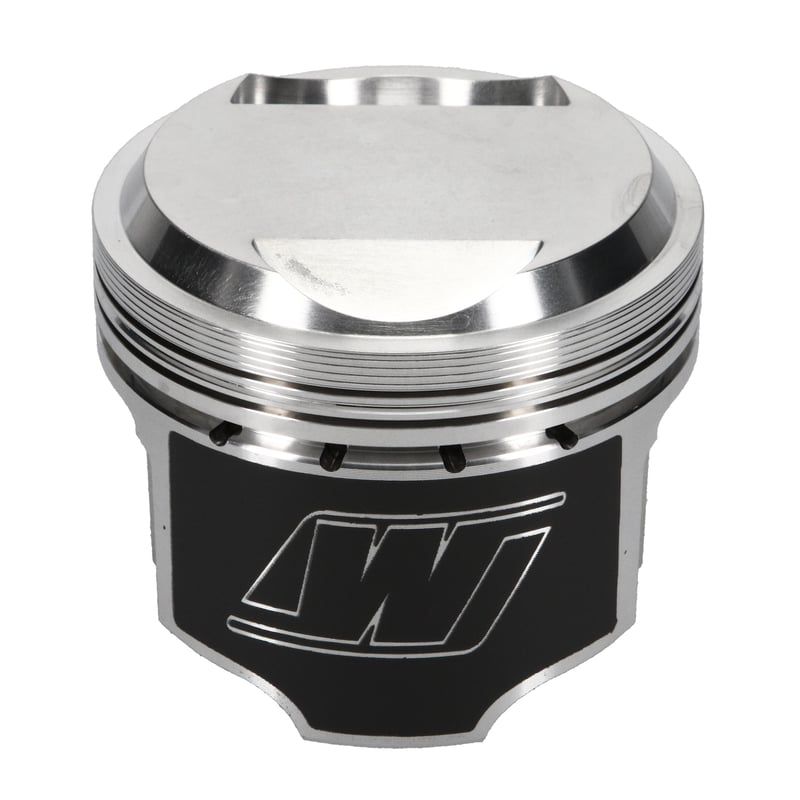

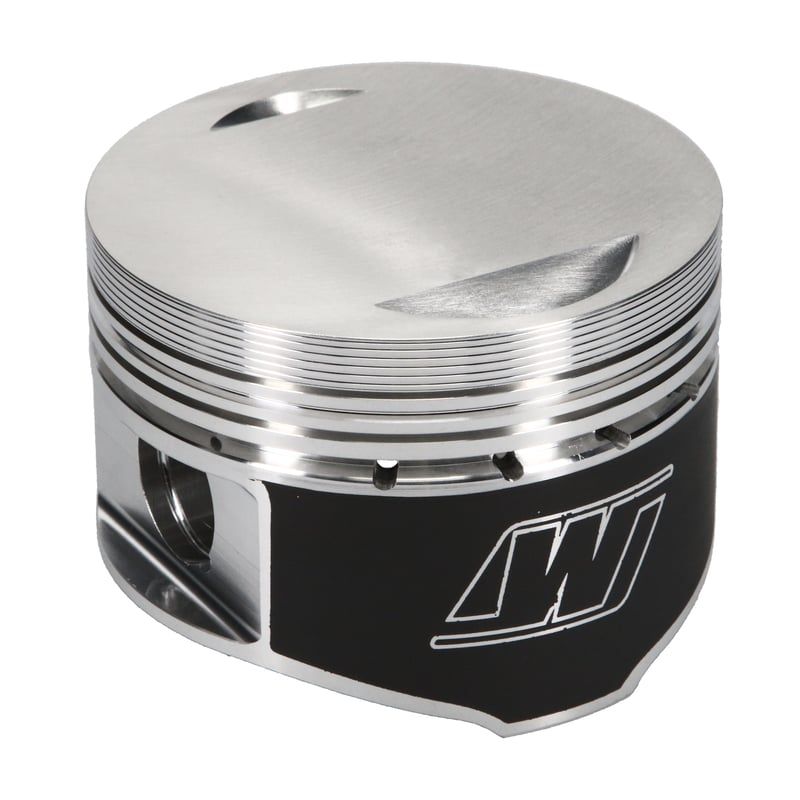

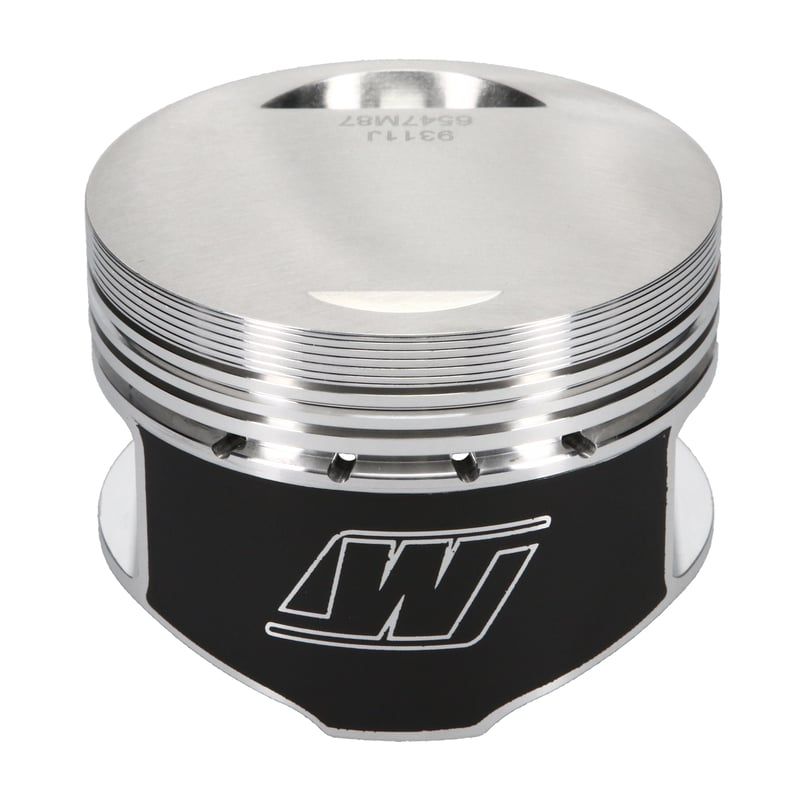

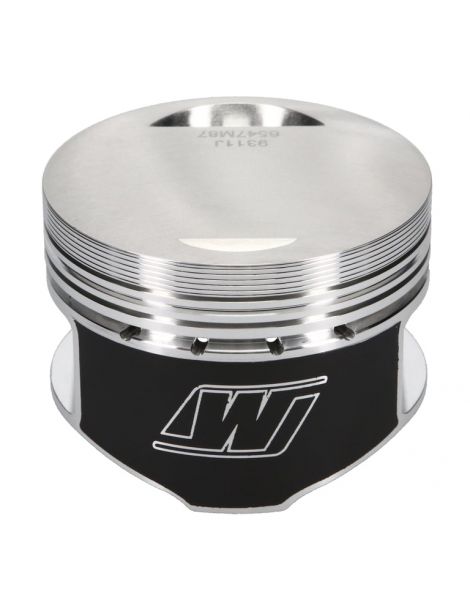

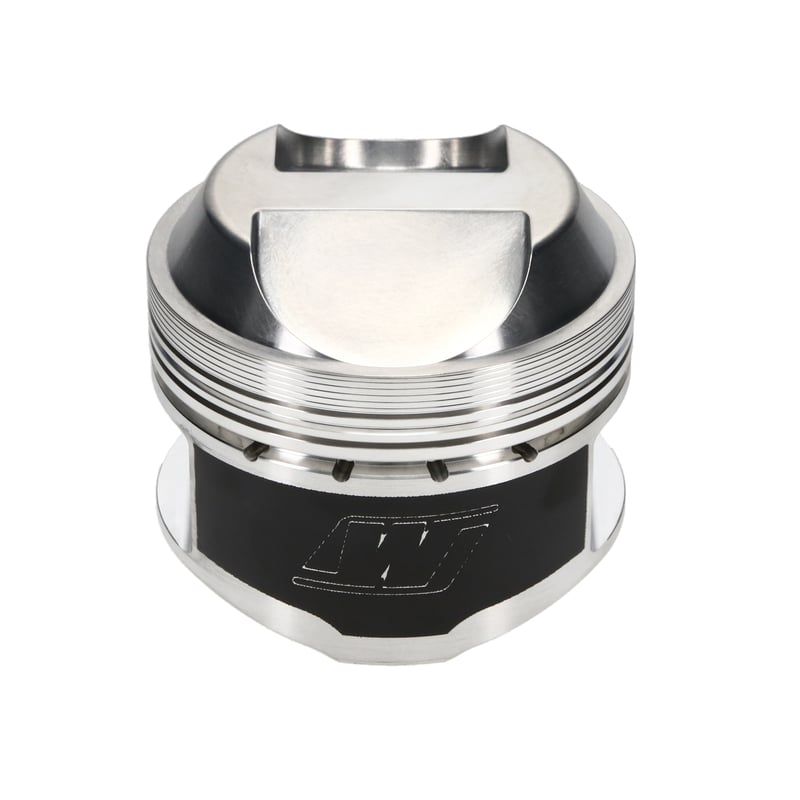

Forged pistons 1.8L 8v 3TC Toyota

Condition: New product

Wiseco Toyota 1.8 8v 3T-C forged pistons: table, bores 86-89 mm, pin 22 mm, CH 34.92 mm, domes 20.6 to 33.5 cc, rings included. Corolla TE72 1980-1982 compatibility.

More details

More info
Avis (0)

Specifications of the forged pistons offered by NSB Concept for Toyota 1.8 L 8 V 3T-C :

Reference	OEM Bore 85.00 mm	OEM CR 9,0 :1	OEM Pin 22 mm	Height OEM Pin 34.92 mm	Range	Coating	Aluminium	Forging	Dome	Weight	Rings
WK508M86	86	10.5:1	22	34.92	Wiseco	Skirt	4032	NC	20.6	NC	8600XX
WK686M86	86	13.5:1	22	34.92	Wiseco	Skirt	2618	NC	-2 FT	NC	8600XX
WK508M87	87	10.4:1	22	34.92	Wiseco	Skirt	4032	NC	20.6	NC	8700XX
WK686M87	87	13.8:1	22	34.92	Wiseco	Skirt	2618	NC	-2 FT	NC	8700XX
WK508M88	88	10.5:1	22	34.92	Wiseco	Skirt	4032	NC	20.6	NC	8800XX
WK686M88	88	13.9:1	22	34.92	Wiseco	Skirt	2618	NC	-2 FT	NC	8800XX
WK508M89	89	10.77:1	22	34.92	Wiseco	Skirt	4032	NC	20.6	NC	8900XX
WK686M89	89	14.2:1	22	34.92	Wiseco	Skirt	2618	NC	33.50	NC	8900XX

Compatibility (engine codes):

3T-C (carburateur) — applications TE72 depending on markets.

Original vehicles equipped with the 3T-C :

Brand	Model	Engine code	Power	Years
Toyota	Corolla E70 (TE72)	3T-C	75 hp	1980 – 1982
Toyota	T-18 Liftback (TE72, Australie)	3T-C	75 hp (56 kW)	1979 – 1981

OEM piston references :

Toyota Corolla TE72 3T-C : 13101-28010 (STD), 13103-28010 (O/S 0.50), 13104-28010 (O/S 0.75), 13105-28010 (O/S 1.00) — depending on selection/rectification.

Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
