1.6 L12v - G16E-GTS
Manufacturers
1.6 L12v - G16E-GTS
Warning: Last items in stock!
New product

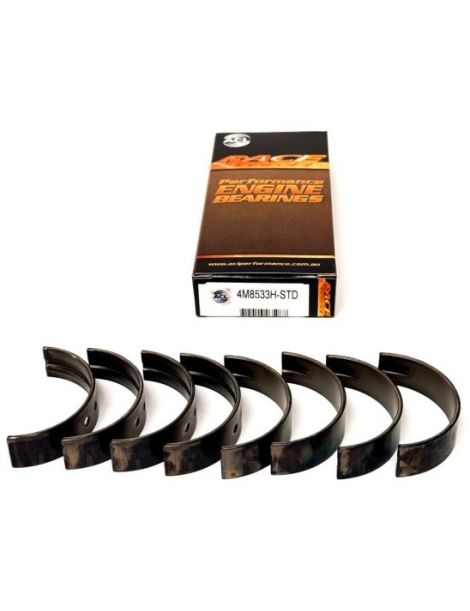

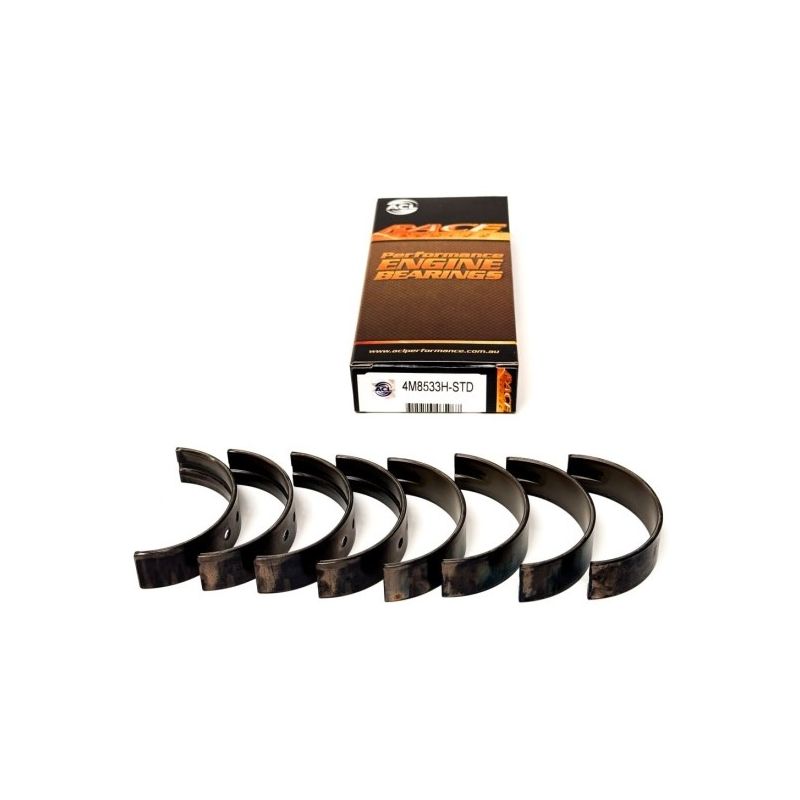

Set of tri-metal crankshaft main bearing half shells for the four main bearings of the Toyota G16E-GTS engine (GR Yaris, GR Corolla).
The G16E-GTS is Toyota's 1.6 litre turbocharged three-cylinder, fitted to the GR Yaris and GR Corolla. The crankshaft journal and housing dimensions are those of the ACL bearing set shown here, for four main bearings.
The crankshaft of this engine runs on four main bearings. Each journal turns between two half shells, one seated in the block and the other in the main bearing cap: they carry the crankshaft. The ACL Race Series tri-metal set shown here replaces them on built engines.
A tri-metal bearing stacks three layers: a steel back, a copper-lead intermediate layer with high load capacity and an anti-friction running surface that protects the journal. The complete set covers the four main bearings of the crankshaft. The upper and lower half shells are different: each goes in its own position.
An aluminium bi-metal takes around 8,000 psi, a performance tri-metal up to 12,000 psi, 50% more. Hence better resistance and better durability on turbocharged, supercharged and high-revving engines.
| ACL bearings Crankshaft journal Ø 55.988 / 56.000 mm Housing bore Ø 60.000 / 60.016 mm Width 17.25 mm |
| Reference | Brand and treatment | Size | Wall thickness (mm) |
|---|---|---|---|
| 4M8533H-STD | ACL Race - Untreated | Standard | 2.002 |
| 4M8533HX-STD | ACL Race - Untreated | Std, increased clearance (HX) | |
| 4M8533H-.025 | ACL Race - Untreated | +0.025 | 2.0145 |
| 4M8533H-.25 | ACL Race - Untreated | +0.25 | 2.127 |
The running clearance is the gap between the bearing and the journal where the oil film flows.
In operation, the crankshaft journal does not rub against the bearing: it rides on this oil film, which carries the load. Clearance sets the thickness of this film: too tight, oil flows poorly, temperature rises and the risk of seizure increases; too loose, oil escapes, the film loses load-carrying capacity and oil pressure drops. The right clearance is the balance between adequate lubrication and a well-maintained oil film.
| Size / grade | When to choose it | ACL Race Series |
|---|---|---|
| Standard (STD) | Standard journal, not reground | 0.058 to 0.069 mm |
| Increased clearance (HX) | Wider clearance: high oil flow, high rpm | 0.083 to 0.094 mm |
| +0.025 mm | Polished journal | 0.058 to 0.069 mm |
| +0.25 mm | Journal reground to 0.25 mm | 0.058 to 0.069 mm |
Checking on assembly: lay a calibrated strip (Plastigauge) on the journal, torque the main cap to spec, then compare the crushed strip against the gauge to read the clearance.
The ACL main bearings shown here are trimetal bearings, designed for engine building and racing. Compared with an original bearing, they handle far higher loads: they cope with increased power, high rpm or the addition of a turbo or supercharger, where a standard bearing quickly reaches its limit.
 | ACL Bearing Company, an Australian manufacturer of high-performance engine bearings since 1949, offers with its Race Series precise trimetal bearings, available in many sizes and proven on built engines worldwide. |
This main bearing set fits the G16E-GTS engine of the following Toyota models:
| Brand | Model (chassis) | Engine code | Power | Years |
|---|---|---|---|---|
| TOYOTA | YARIS (P21, PA1, PH1) 1.6 GR 4WD (GXPA16) | G16E-GTS | 261–305 hp | 2020– |
| TOYOTA | COROLLA Hatchback (E21, EA1, EH1) 1.6 GR 4WD (GZEA14) | G16E-GTS | 286–305 hp | 2023– |
