1.3L 16v - 4E-FTE
Manufacturers
1.3L 16v - 4E-FTE
Warning: Last items in stock!
New product

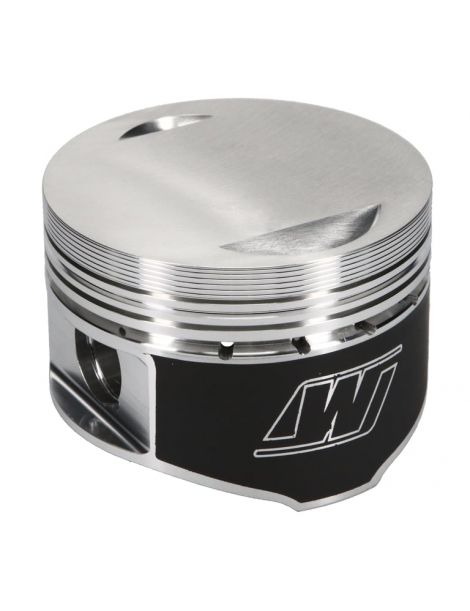

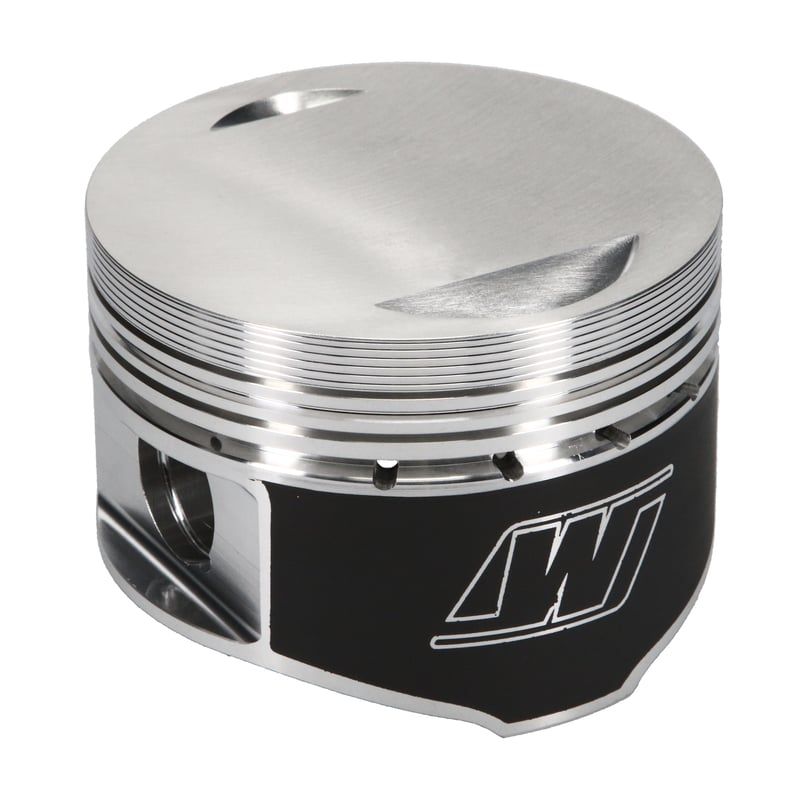

Forged pistons Toyota 4E-FTE 1.3 16v: O74-75 mm, Pin 18 mm, CH 29.9-30.0 mm. COMPatibilities Starlet GT Turbo EP82 & Glanza V EP91. Sorted table + OEM references.
Specifications of the forged pistons offered by NSB Concept for Toyota 1.3 L 16 V 4E-FTE (Starlet GT Turbo / Glanza V) :
| Reference | OEM Bore 74,00 mm | OEM CR 8,5 :1 | OEM Pin 18 mm | Height OEM Pin ≈ 29,9 – 30,0 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|

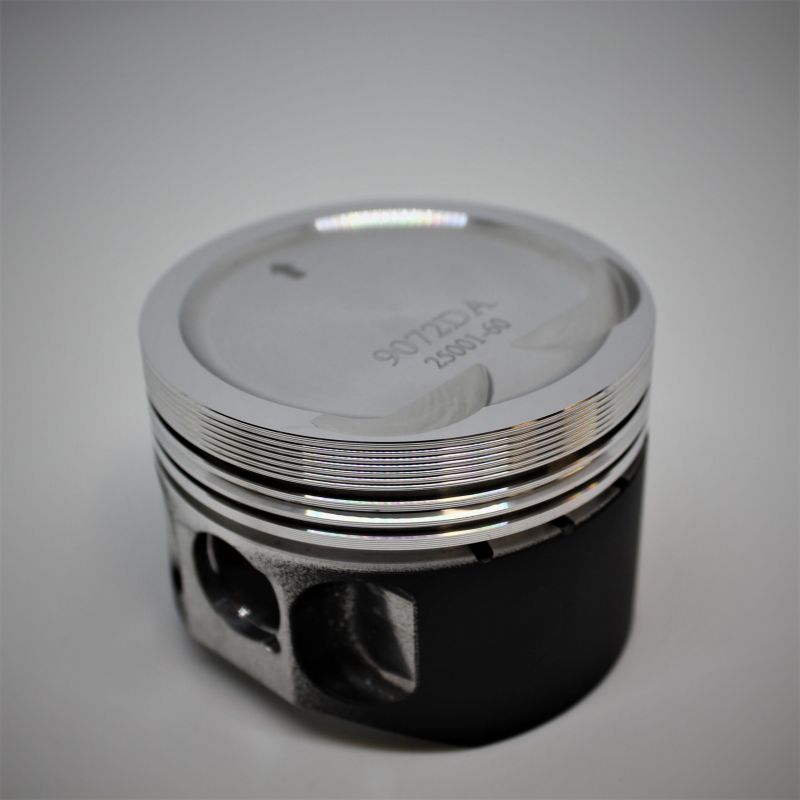

| K9072DA | 74.0 | 7.5:1 | 18 | 30.0 | Wossner | NC | NC | Round | -6.2 | NC | 740XPZ |
| K9533DA | 74.0 | 8:1 | 18 | 30.0 | Wossner | NC | NC | NC | -1.36 | NC | 740XPZ |
| K9072D050 | 74.5 | 7.6:1 | 18 | 30.0 | Wossner | NC | NC | Round | -6.2 | NC | 745XPZ |
| K9533D050 | 74.5 | 8.1:1 | 18 | 30.0 | Wossner | NC | NC | NC | -1.36 | NC | 745XPZ |
| WK687M745 | 74.5 | 9.2:1 | 18 | 29.9 | Wiseco | Skirt | 2618 | NC | -2.5 | NC | 2933XC |
| K9072D100 | 75.0 | 7.7:1 | 18 | 30.0 | Wossner | NC | NC | Round | -6.2 | NC | 750XPZ |
| K9533D100 | 75.0 | 8.2:1 | 18 | 30.0 | Wossner | NC | NC | NC | -1.36 | NC | 750XPZ |
| WK687M75 | 75.0 | 9.3:1 | 18 | 29.9 | Wiseco | Skirt | 2618 | NC | -2.5 | NC | 2953XC |
Compatibility (engine codes):
Original vehicles equipped with the 4E-FTE :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Toyota | Starlet EP82 GT Turbo | 4E-FTE | 133–135 PS (JIS) | 1990 – 1995 |
| Toyota | Starlet EP91 Glanza V | 4E-FTE | 133–135 PS (JIS) | 1996 – 1999 |
OEM piston references :
Reference data is indicative only; to be checked depending on VIN, grade (Mark 1/2/3), market JDM and possible rectification..
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
