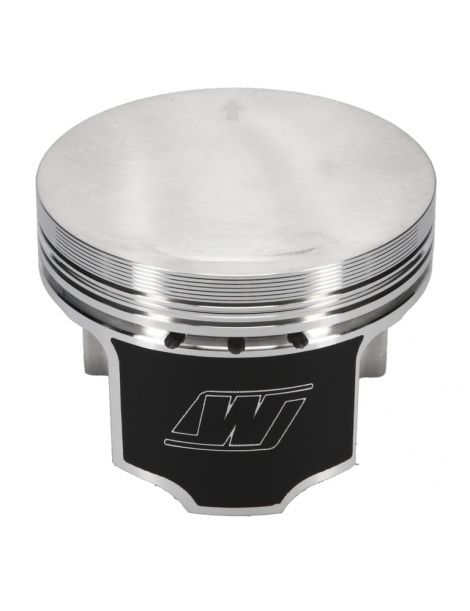

Reduced price! Pistons forgés 2.4L 8v 22R Toyota View larger

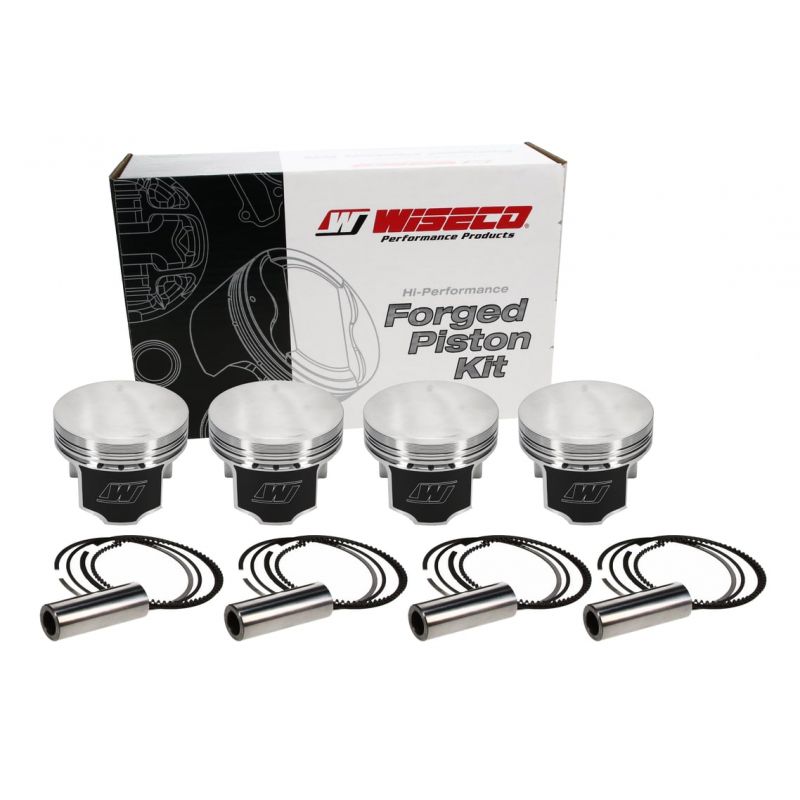

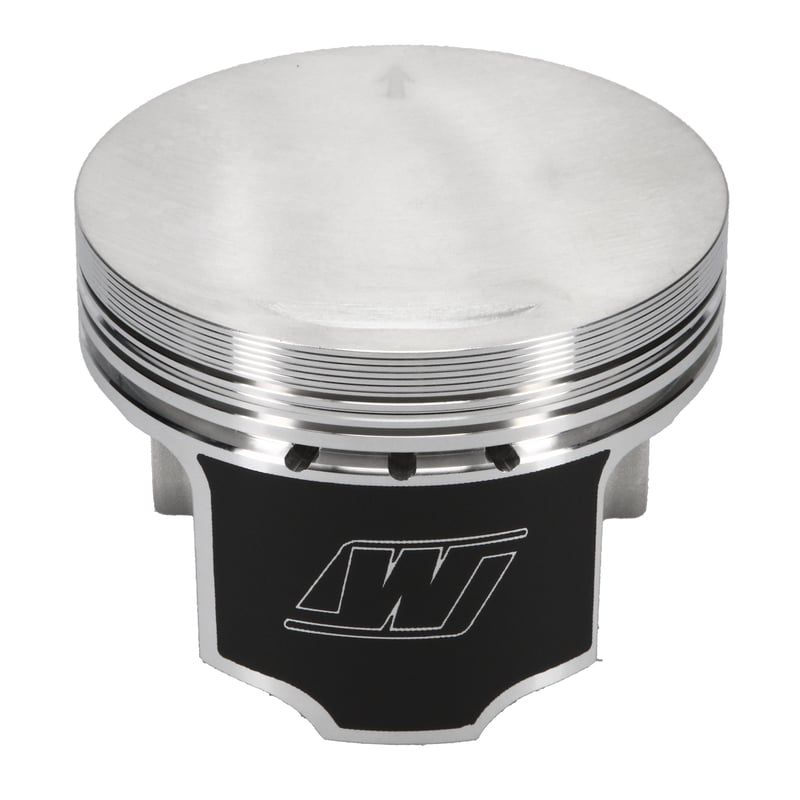

Forged pistons 2.4L 8v 22R Toyota

New product

Toyota 22R 2.4 8v forged pistons: dimension table (O92-94), RV, axle O22, CH-38.9, dome 24.7 cc, segments. Compatibilities, vehicles and OEM references.

More details

602,24 € tax incl.

-25%

802,98 € tax incl.

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

  • Specifications of the forged pistons offered by NSB Concept for Toyota 2.4 L 8 V 22R :

    ReferenceOEM Bore
    92,00 mm    		OEM CR 9,0 :1 (versions carb.)OEM Pin
    22 mm    		Height OEM Pin
    ≈ 38,9 mm    		RangeCoatingAluminiumForgingDomeWeightRings
    WK509M92592.5010:12238.95WisecoSkirt4032NC24.7NC3642XC
    WK509M9494.0010:12238.95WisecoSkirt4032NC24.7NC3701XC


    Compatibility (engine codes):

    • 2.4L 8v - 22R


    Original vehicles equipped with the 22R :

    BrandModelEngine codePowerYears
    Toyota4Runner N60 (1ʳᵉ Gen.)22R≈102–109 hp1984 – 1986
    ToyotaCelica A60 (RA64/RA65)22R / 22R‑E≈97–116 hp1982 – 1985
    ToyotaHilux / Pickup (N50/N60)22R≈97–110 hp1981 – 1986
    ToyotaLand Cruiser II (Bundera)22R≈97–110 hp1984 – 1989


    OEM piston references :

    • Pickup/Hilux (1982–1984) – 22R : 13101-35020 (STD), 13103-35030 (0.50), 13105-35030 (1.00)
    • Pickup/Hilux (1984–1985) – 22R : 13101-35030 (STD), 13101-35031 (ref. following)
    • Applications 22R diverses (mi‑80s à 90s) : 13101-35031, 13101-35032

    references to be confirmed via EPC depending on VIN, year, grade (A/B/C) and rectification.

    Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
