3.0L 24v - 7M-GTE
Manufacturers
3.0L 24v - 7M-GTE
Warning: Last items in stock!
New product
Toyota 7M-GTE 3.0 L forged pistons: O83 mm, Pin 22 mm, CH 33 mm. Sorted table (Bore/Volume ratio/range), compatibilities, vehicles (Supra A70, Soarer Z20) and OEM references.

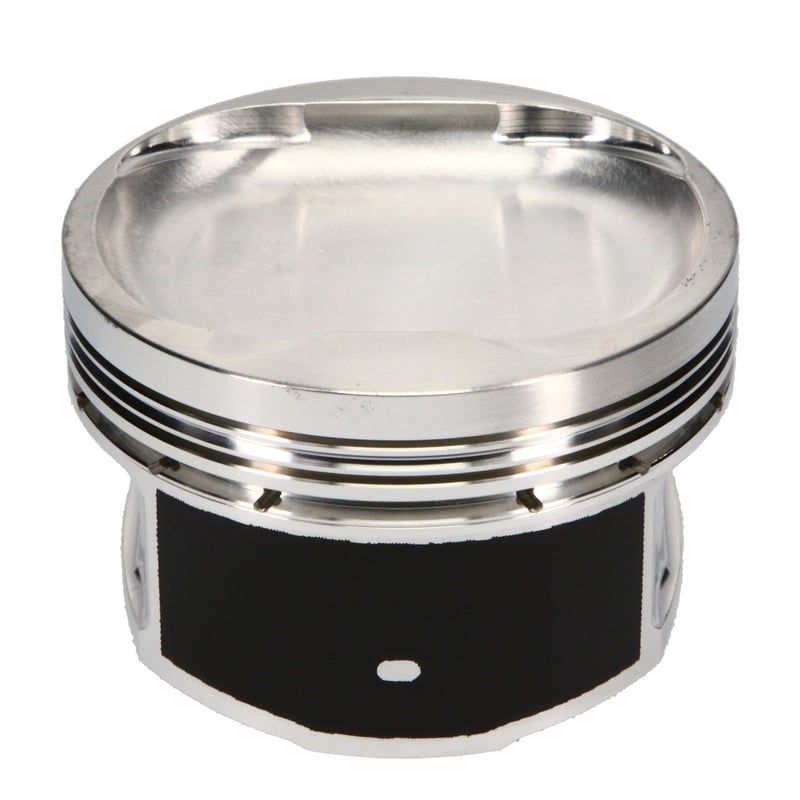

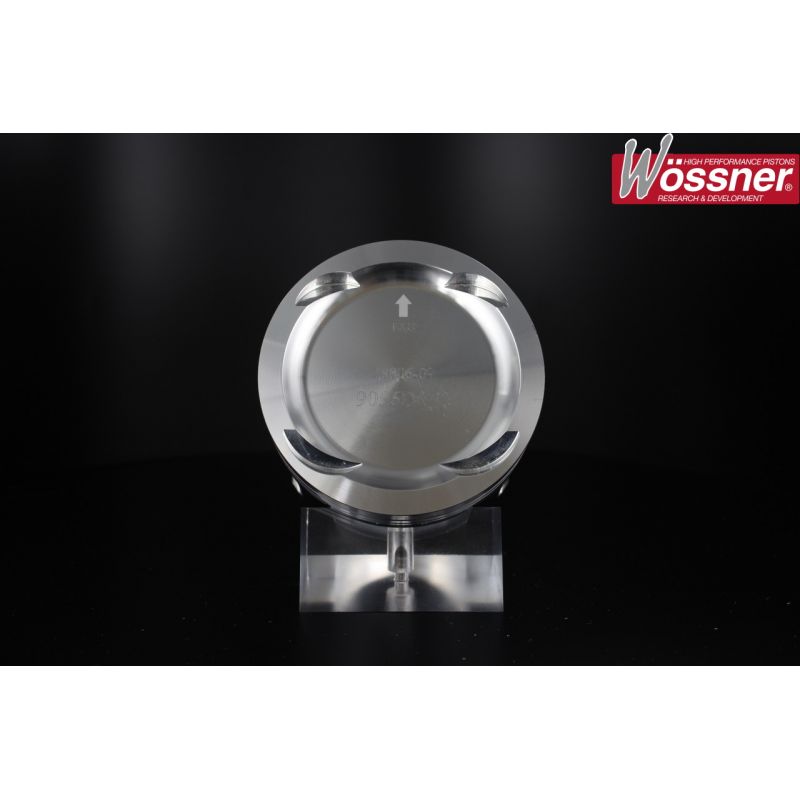

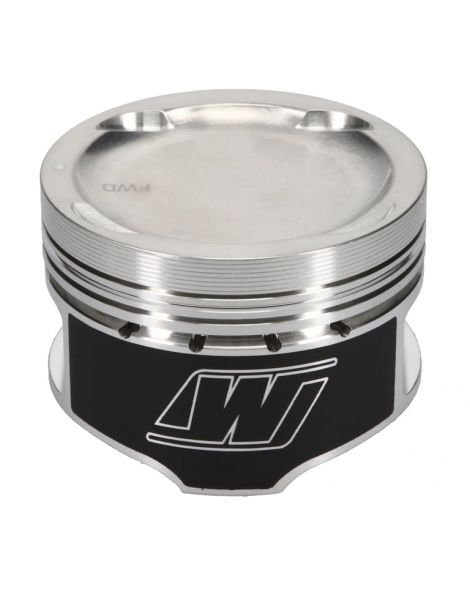

Specifications of the forged pistons offered by NSB Concept for Toyota 3.0 L 24 V 7M‑GTE :
| Reference | OEM Bore 83,00 mm | OEM CR 8,4 :1 | OEM Pin 22 mm | Height OEM Pin ≈ 33,0 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WK613M83 | 83.00 | 9:1 | 22 | 33.0 | Wiseco | Skirt | 2618 | NC | -16.0 | NC | 8300XX |
| K9056DA | 83.00 | 9:1 | 22 | 33.0 | Wossner | NC | NC | Round | -14.5 | NC | 830XPY |
| JE-302000 | 83.50 | 9:1 | 22 | 32.75 | JE FSR | NC | 2618 | FSR | -16.2 | 292.0 | NC |
| WK613M835 | 83.50 | 9:1 | 22 | 33.0 | Wiseco | Skirt | 2618 | NC | -16.0 | NC | 8350XX |
| K9056D050 | 83.50 | 9.1:1 | 22 | 33.0 | Wossner | NC | NC | Round | -14.5 | NC | 835XPY |
| JE-302001 | 84.00 | 9:1 | 22 | 32.75 | JE FSR | NC | 2618 | FSR | -16.9 | 296.0 | NC |
| WK613M84 | 84.00 | 9:1 | 22 | 33.0 | Wiseco | Skirt | 2618 | NC | -16.0 | NC | 8400XX |
| K9056D100 | 84.00 | 9.2:1 | 22 | 33.0 | Wossner | NC | NC | Round | -14.5 | NC | 840XPY |
| WK613M845 | 84.50 | 9:1 | 22 | 33.0 | Wiseco | Skirt | 2618 | NC | -16.0 | NC | 8450XX |
Compatibility (engine codes):
Original vehicles equipped with the 7M‑GTE :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Toyota | Soarer 3.0GT Turbo (Z20/MZ20/MZ21) | 7M-GTEU | 230 PS (JDM) | 1986 – 1991 |
| Toyota | Supra Turbo (A70/MA70) | 7M-GTE | 230 PS (JDM) / 232 hp (US) | 1986 – 1992 |
OEM piston references :
Always confirm via EPC with the VIN, the grade (A/B/C) and the rectification (STD/0.50/1.00).
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
