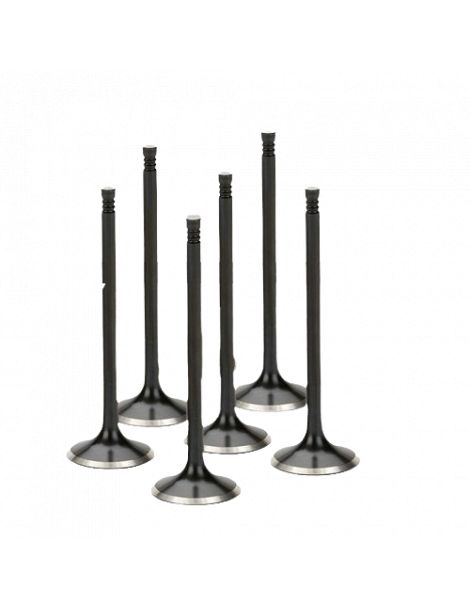

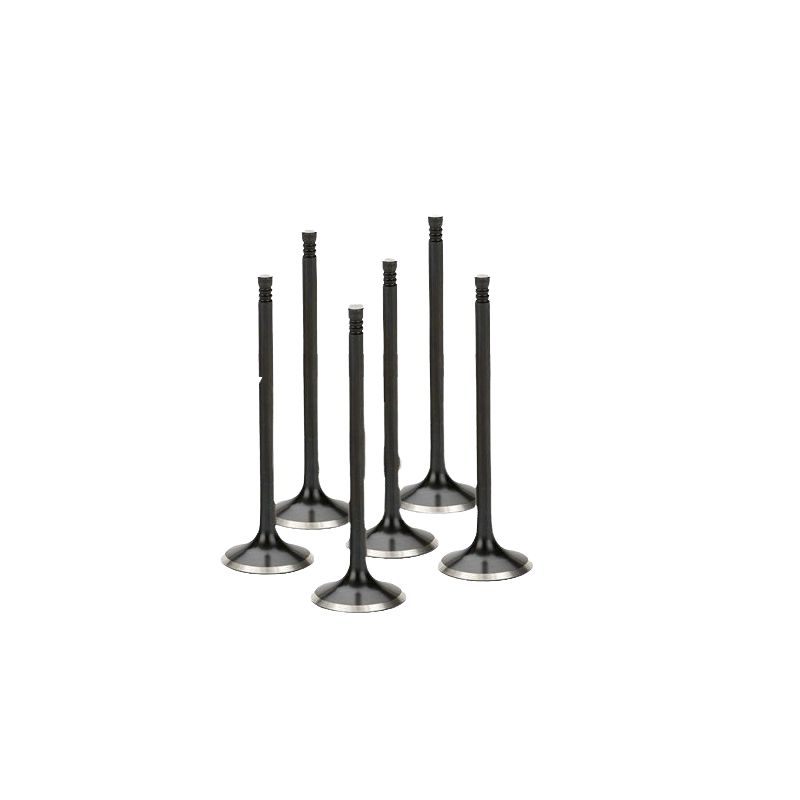

Reinforced inlet valves TOYOTA GR Yaris GR Corolla G16E-GTS

TOYOTA engines covered

The G16E-GTS is Toyota's 1.6 litre, 12-valve turbocharged three-cylinder, with finger followers and hydraulic lash adjusters. It has powered the GR Yaris since 2020, from 261 to 305 hp, and the GR Corolla, from 286 to 305 hp.

Its 6 original inlet valves, Toyota 13711-18010, have a 5.470 to 5.485 mm stem and a 113.63 mm length; collets 90913-03028 hold them. More boost, a bigger turbo or track sessions expose them to more heat and impact.

SUPERTECH and FERREA reinforced inlet valves

Behind the turbo, the inlet valve lets the compressed air through, slams shut on its seat and slides constantly in its guide, at 400 to 550 °C. In that zone the chrome-silicon steel of everyday valves drops from 500 MPa at 500 °C to 250 MPa at 600 °C: it loses 50 % of its strength.

The SUPERTECH TIVN-2033-6, black nitrided EV8 stainless with a dished head, keeps 650 MPa at 500 °C and 550 MPa at 600 °C, 30 % and then 120 % more than that steel. The FERREA F2459P, from the Competition Plus range in stainless with a chrome-plated stem, adds 20 % hot and fatigue strength and extends seat life by 25 %.

Inlet valve technical specification

Fitting details

Both sets keep the standard size: they fit reconditioned seats with no machining to a new size.

FERREA pairs this engine with its K10121 collets and its VG1123 inlet guide.

Clearance is taken up hydraulically: no adjustment is needed after the valves are replaced.

Technical guide

The brands offered

	Based in Florida since 1978, FERREA Racing Components starts from one-piece forged bars that it then machines on CNC equipment. Its valves are found in NASCAR as well as in drag racing engines.
	A Californian racing valvetrain specialist for more than thirty years, SUPERTECH Performance makes valves, springs and guides and checks every batch by ultrasound, X-ray and laser.

How to choose

Both sets keep the standard size; they differ in material and finish:

When reinforced valves become necessary

• Higher boost pressure or bigger turbo
• Higher-lift camshafts or stiffer springs
• Raised rev limit
• Cylinder head rebuilt for track or rally
• Marked or worn original valves

Compatible vehicles

OEM part number (inlet valve): 13711-18010

Related products

With the head off, replace the 6 exhaust valves of the G16E-GTS as well:
