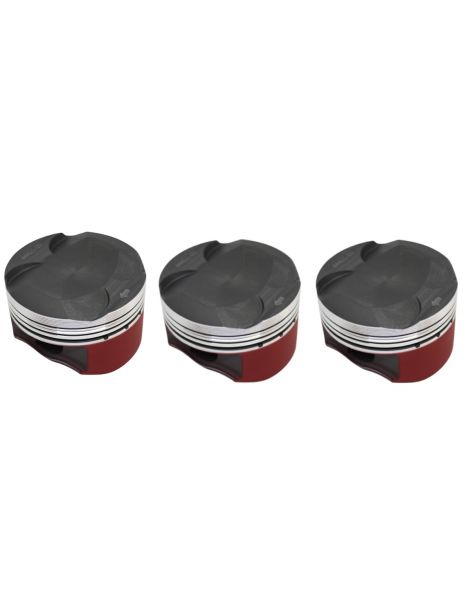

Reduced price! Pistons forgés TOYOTA G16E-GTS Yaris GR View larger

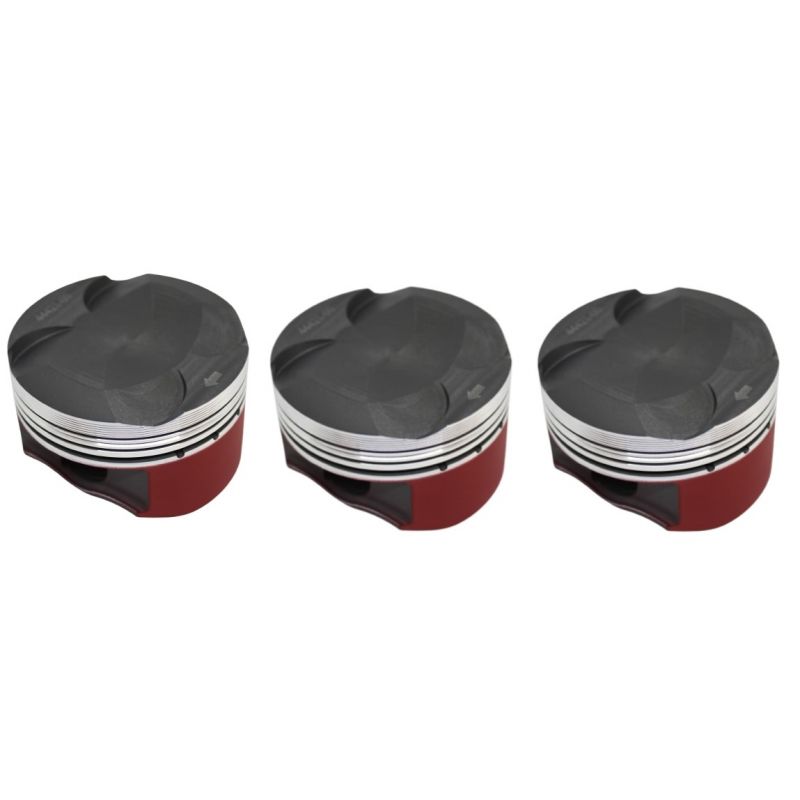

Forged Pistons 1.6L 12v G16E-GTS Toyota

New product

Toyota 1.6 12v G16E-GTS forged pistons: O87.5 mm (STD), Pin 24 mm, CH 33.9 mm. COMPatibilities GR Yaris & GR Corolla & Lexus LBX. Sorted table + refs OEM.

More details

998,99 € tax incl.

-25%

1 331,99 € tax incl.

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

  • Specifications of the forged pistons offered by NSB Concept for Toyota 1.6 L 12 V G16E‑GTS (GR Yaris / GR Corolla) :

    ReferenceOEM Bore
    87,50 mm    		OEM CR 10,5 :1OEM Pin
    24 mm    		Height OEM Pin
    ≈ 33,9 mm    		RangeCoatingAluminiumForgingDomeWeightRings
    K9555DA87.510.5:124NCWOSSNERNC2618NCNCNCNC


    Compatibility (engine codes):

    • 1.6L 12v G16E-GTS


    Original vehicles equipped with the G16E‑GTS :

    BrandModelEngine codePowerYears
    LexusLBX Morizo RRG16E-GTS≈ 280–300 hp2024 – present
    ToyotaGR Corolla (GZEA14)G16E-GTS≈ 295–304 hp2022 – present
    ToyotaGR Yaris (GXPA16)G16E-GTS≈ 261–280 hp2020 – present


    OEM piston references :

    • Toyota GR Yaris (GXPA16) – early model years: 13101-18030 (piston sub-assy, ​​STD).
      Toyota GR Corolla (GZEA14): 13101-18040 (2023–2024); 13101-18050 (2025+).
      Lexus LBX Morizo ​​RR: ref. to be confirmed via EPC (engine G16E-GTS, Toyota common base).

    indicative references; to check via EPC depending on VIN/grade and model year. the ring references may be common (ex. 13011-18040) depending on model years.

    Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
