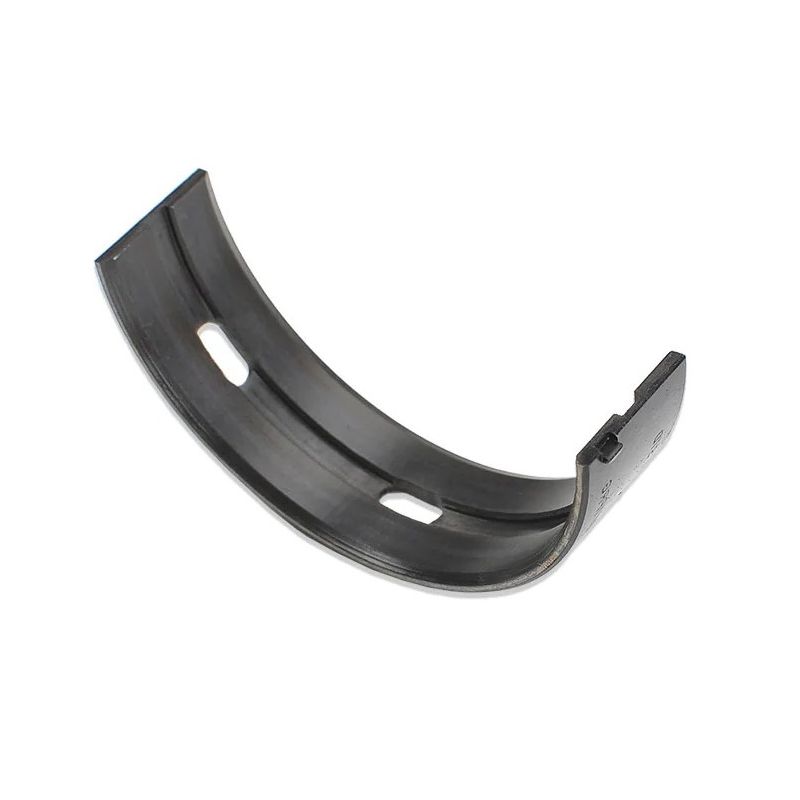

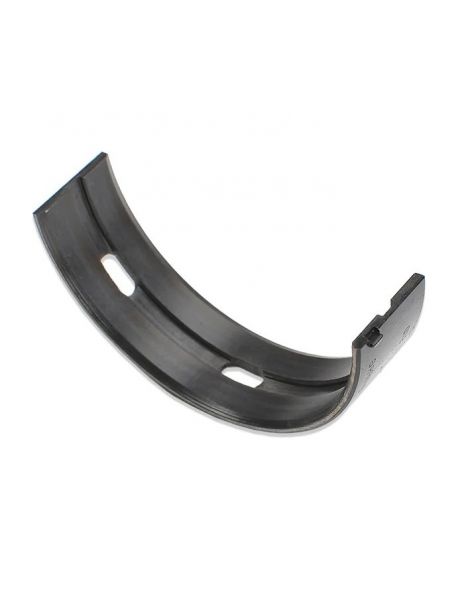

Set of 10 tri-metal crankshaft main bearing shells for VAG 2.0 TFSI EA113.
The 2.0 TFSI of the EA113 family is the Volkswagen Group's 2.0 litre four-cylinder with turbocharger and direct injection. It powers the Audi A3, S3, A4, TT and TTS, the Volkswagen Golf GTI and Golf R, the Scirocco R, the Seat Leon Cupra R and the Skoda Octavia II, among others. ACL and King list a main bearing set for this engine. The compatibility table also lists the group's 1.8 T 20-valve engines, which take the same bearing set.
The crankshaft of this engine runs on five main bearings. Each journal turns between two half shells, one seated in the block and the other in the main bearing cap: they carry the crankshaft. The ACL Race Series and KING RACING tri-metal sets shown here replace them on built engines.

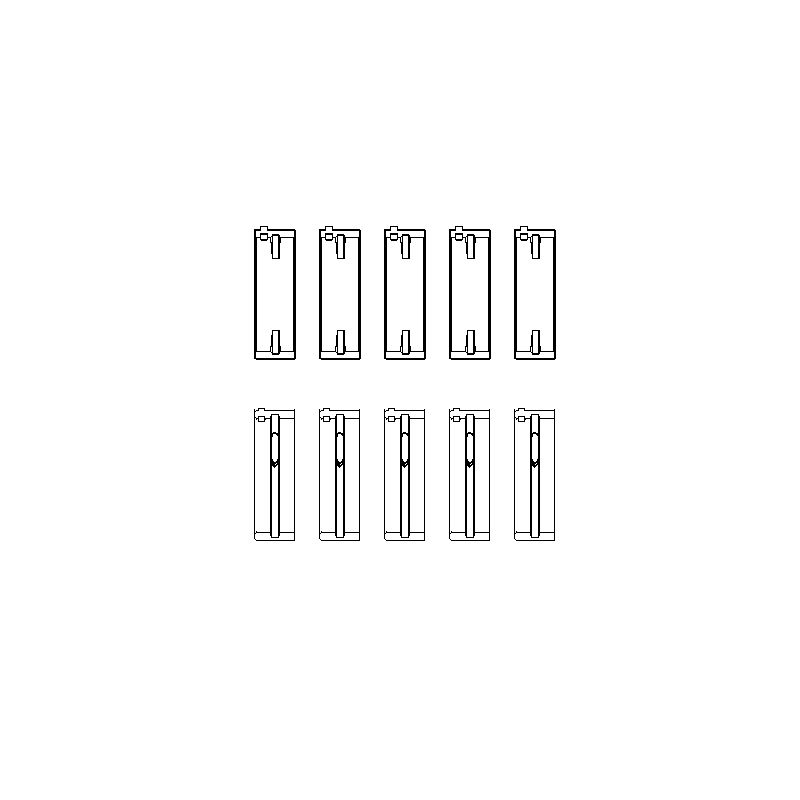

A tri-metal bearing stacks three layers: a steel back, a copper-lead intermediate layer with high load capacity and an anti-friction running surface that protects the journal. The complete set contains 10 half shells, five pairs for five main bearings. The upper and lower half shells are different: each goes in its own position. ACL specifies that the full groove is only on position 4 and that this set requires thrust washers.
An aluminium bi-metal takes around 8,000 psi, a performance tri-metal up to 12,000 psi, 50% more. Hence better resistance and better durability on turbocharged, supercharged and high-revving engines.
| ACL bearings Crankshaft journal Ø 53.958 / 53.978 mm Housing bore Ø 59.000 / 59.019 mm Width 18.49 mm | King bearings Crankshaft journal Ø 53.96 / 53.98 mm Housing bore Ø 59.00 / 59.02 mm Width 18.4 mm |
Manufacturer's note (ACL 5M1644H): full groove on position #4 only. Requires thrust washers.
| Reference | Brand and treatment | Size | Wall thickness (mm) |
|---|---|---|---|
| 5M1644H-STD | ACL Race - Untreated | Standard | 2.502 |
| 5M1644HX-STD | ACL Race - Untreated | Std, increased clearance (HX) | 2.502 |
| 5M1644H-.025 | ACL Race - Untreated | +0.025 | 2.5145 |
| 5M1644H-.25 | ACL Race - Untreated | +0.25 | 2.627 |
| 5M1644H-.50 | ACL Race - Untreated | +0.50 | 2.752 |
| 5M1644HC-STD | ACL Race - Calico | Standard | 2.502 |
| 5M1644HXC-STD | ACL Race - Calico | Std, increased clearance (HX) | 2.502 |
| 5M1644HC-.25 | ACL Race - Calico | +0.25 | 2.627 |
| MB5661XP | King Racing - Untreated | Standard | 2.508 |
| MB5661XP STDX | King Racing - Untreated | Std, increased clearance (STDX) | 2.495 |
| MB5661XP.026 | King Racing - Untreated | +0.026 | 2.521 |
| MB5661XP0.25 | King Racing - Untreated | +0.25 | 2.635 |
| MB5661XP0.5 | King Racing - Untreated | +0.50 | 2.762 |
The running clearance is the gap between the bearing and the journal where the oil film flows.
In operation, the crankshaft journal does not rub against the bearing: it rides on this oil film, which carries the load. Clearance sets the thickness of this film: too tight, oil flows poorly, temperature rises and the risk of seizure increases; too loose, oil escapes, the film loses load-carrying capacity and oil pressure drops. The right clearance is the balance between adequate lubrication and a well-maintained oil film.
| Size / grade | When to choose it | ACL Race Series | King XP |
|---|---|---|---|
| Standard (STD) | Standard journal, not reground | 0.056 to 0.067 mm | 0.054 mm - 0.067 mm |
| Increased clearance (HX / STDX) | Wider clearance: high oil flow, high rpm | 0.081 to 0.092 mm | 0.079 mm - 0.092 mm |
| +0.025 / +0.026 mm | Polished journal | 0.056 to 0.067 mm | 0.054 mm - 0.067 mm |
| +0.25 mm | Journal reground to 0.25 mm | 0.056 to 0.067 mm | 0.054 mm - 0.067 mm |
| +0.50 mm | Journal reground to 0.50 mm | 0.056 to 0.067 mm | 0.054 mm - 0.067 mm |
Check at assembly: lay a calibrated strip (Plastigauge) on the journal, tighten the main cap following the manufacturer's procedure, then compare the width of the crushed strip with the gauge to read the clearance.
The ACL and King main bearings shown here are trimetal bearings, designed for engine building and racing. Compared with an original bearing, they handle far higher loads: they cope with increased power, high rpm or the addition of a turbo or supercharger, where a standard bearing quickly reaches its limit.
 | ACL Bearing Company, an Australian manufacturer of high-performance engine bearings since 1949, offers with its Race Series precise tri-metal bearings, available in many sizes and proven on built engines worldwide. |
 | King Engine Bearings, an Israeli manufacturer of high-performance engine bearings since the 1960s, offers with its pMax Black tri-metal alloy bearings designed for heavy loads. |
| Criterion | ACL Race Series | King Racing |
| Cross-section |  |  |
| Type | High-performance trimetal bearing | High-performance trimetal bearing |
| Country of manufacture | Australia | Israel |
| Construction | Trimetal: steel back, copper layer, soft surface | Trimetal: steel back, copper layer, soft surface |
| Alloy | Race Series (copper-lead) | pMax Black (hardened copper-lead) |
| Protective coating | Calico CT-1 (HC and HXC versions): thin dry-film lubricant that reduces friction and wear. No coating on the H and HX versions. | No |
| Available sizes | Standard to +0.50 mm (+ increased clearance HX) ; Calico: standard, HXC and +0.25 mm | Standard to +0.50 mm (+ increased clearance STDX) |
This main bearing set fits the VAG 2.0 TFSI EA113 and 1.8 T 20V four-cylinder engines of the following vehicles:
| Brand | Model (chassis) | Engine code | Power | Years |
|---|---|---|---|---|
| AUDI | A3 (8L1) 1.8 T Quattro / S3 Quattro / 1.8 T | AGU, AJQ, AMK, APP, APY, AQA, ARX, ARY, ARZ, AUM, AUQ, BAM | 150–224 hp | 1996–2003 |
| AUDI | A3 (8P1) 2.0 TFSI / 2.0 TFSI Quattro / S3 Quattro | AXX, BWA, CDLA, CDLC | 200–265 hp | 2004–2012 |
| AUDI | A3 Sportback (8PA) 2.0 TFSI / 2.0 TFSI Quattro / S3 Quattro | AXX, BPY, BWA, CDLA, CDLC | 200–265 hp | 2004–2013 |
| AUDI | A4 B5 (8D2) 1.8 T Quattro / 1.8 T | AJL, ANB, APU, AWT | 150–180 hp | 1995–2000 |
| AUDI | A4 B5 Avant (8D5) 1.8 T Quattro / 1.8 T | AJL, ANB, APU, AWT | 150–180 hp | 1996–2001 |
| AUDI | A4 B6 (8E2) 1.8 T Quattro / 1.8 T | AVJ, BEX, BFB | 150–190 hp | 2000–2004 |
| AUDI | A4 B6 Avant (8E5) 1.8 T / 1.8 T Quattro | AVJ, BEX, BFB | 150–190 hp | 2001–2004 |
| AUDI | A4 B6 Convertible (8H7) 1.8 T / 1.8 T Quattro | BFB | 163 hp | 2002–2005 |
| AUDI | A4 B7 (8EC) 2.0 TFSI / 2.0 TFSI Quattro | BGB, BPG, BPJ, BUL, BWE, BWT, BYK | 170–220 hp | 2004–2008 |
| AUDI | A4 B7 (8EC) 1.8 T / 1.8 T Quattro | BFB | 163 hp | 2004–2008 |
| AUDI | A4 B7 Avant (8ED) 2.0 TFSI / 2.0 TFSI Quattro | BGB, BPG, BPJ, BUL, BWE, BWT, BYK | 170–220 hp | 2004–2008 |
| AUDI | A4 B7 Avant (8ED) 1.8 T Quattro / 1.8 T | BFB | 163 hp | 2004–2008 |
| AUDI | A4 B7 Convertible (8HE) 2.0 TFSI / 2.0 TFSI Quattro | BWE, BWT | 200 hp | 2006–2009 |
| AUDI | A4 B7 Convertible (8HE) 1.8 T | BFB | 163 hp | 2006–2009 |
| AUDI | A6 C5 (4B2) 1.8 T / 1.8 T Quattro | AJL, ANB, APU, AWT | 150–180 hp | 1997–2005 |
| AUDI | A6 C5 Avant (4B5) 1.8 T Quattro / 1.8 T | AJL, ANB, APU, AWT | 150–180 hp | 1997–2005 |
| AUDI | A6 C6 (4F2) 2.0 TFSI | BPJ, BYK | 170 hp | 2005–2011 |
| AUDI | A6 C6 Avant (4F5) 2.0 TFSI | BPJ | 170 hp | 2005–2011 |
| AUDI | TT (8J3) 2.0 TFSI / 2.0 TTS Quattro | BPY, BWA, CDLA | 200–265 hp | 2006–2014 |
| AUDI | TT (8N3) 1.8 T Quattro / 1.8 T | AJQ, APP, APX, ARY, AUM, AUQ, BAM | 150–224 hp | 1998–2006 |
| AUDI | TT Roadster (8J9) 2.0 TFSI / 2.0 TTS Quattro | BPY, BWA, CDLA | 200–265 hp | 2007–2014 |
| AUDI | TT Roadster (8N9) 1.8 T Quattro / 1.8 T | AJQ, APP, APX, ARY, AUM, AUQ, BAM | 150–224 hp | 1999–2006 |
| SEAT | Altea (5P1) 2.0 TFSI | BWA | 200 hp | 2006–2009 |
| SEAT | Altea XL (5P5, 5P8) 2.0 TFSI / 2.0 TFSI 4x4 | BWA | 200 hp | 2006–2009 |
| SEAT | Cordoba (6K1, 6K2) 1.8 T 20V Cupra | AQX, AYP | 156 hp | 2000–2002 |
| SEAT | Exeo (3R2) 2.0 TFSI | BWE | 200 hp | 2009–2013 |
| SEAT | Exeo ST (3R5) 2.0 TFSI | BWE | 200 hp | 2009–2013 |
| SEAT | Ibiza II (6K1) 1.8 T 20V Cupra / 1.8 T 20V Cupra R | AQX, AYP | 156–180 hp | 2000–2002 |
| SEAT | Ibiza III (6L1) 1.8 T Cupra R / 1.8 T FR | BBU, BJX | 150–180 hp | 2003–2008 |
| SEAT | Leon (1M1) 1.8 T Cupra R / 1.8 T | AJQ, AMK, APP, ARY, AUQ, BAM | 180–225 hp | 1999–2006 |
| SEAT | Leon (1P1) 2.0 TFSI / 2.0 Cupra R | BWA, CDLA | 185–265 hp | 2005–2012 |
| SEAT | Toledo II (1M2) 1.8 T | APP, ARY, AUQ | 180 hp | 2000–2004 |
| SEAT | Toledo III (5P2) 2.0 TFSI | BWA | 200 hp | 2005–2009 |
| SKODA | Octavia I (1U2) 1.8 T / 1.8 T 4x4 / RS 1.8 T | AGU, ARX, ARZ, AUM, AUQ | 150–180 hp | 1997–2010 |
| SKODA | Octavia I Combi (1U5) 1.8 T / 1.8 T 4x4 / RS 1.8 T | AGU, ARX, ARZ, AUM, AUQ | 150–180 hp | 1998–2010 |
| SKODA | Octavia II (1Z3) 2.0 TFSI | BWA | 200 hp | 2005–2013 |
| SKODA | Octavia II Combi (1Z5) 2.0 TFSI | BWA | 200 hp | 2005–2013 |
| SKODA | Superb I (3U4) 1.8 T | AWT | 150 hp | 2001–2008 |
| VW | Bora (9M2) 1.8 T | AUQ, AWP | 179 hp | 2005–2014 |
| VW | Bora I (1J2) 1.8 T | AGU, ARX, AUM, AUQ, AWP | 150–180 hp | 2000–2005 |
| VW | Bora Variant (1J6) 1.8 T | AGU, ARX, AUM, AUQ, AWP | 150–180 hp | 2000–2005 |
| VW | Eos (1F7, 1F8) 2.0 TFSI | BPY, BWA | 200 hp | 2006–2015 |
| VW | Golf IV (1J1) 1.8 T / 1.8 T GTI | AGU, ARZ, AUM, AUQ, AWP | 150–180 hp | 1997–2005 |
| VW | Golf IV (9B3) 1.8 T GTI | AUQ | 179–193 hp | 2007–2010 |
| VW | Golf IV Variant (1J5) 1.8 T | AGU, ARZ, AUM, AUQ | 150–180 hp | 2000–2006 |
| VW | Golf V (1K1) 2.0 GTI | AXX, BPY, BWA | 200 hp | 2004–2009 |
| VW | Golf V Variant (1K5) 2.0 TFSI | BWA | 200 hp | 2007–2009 |
| VW | Golf VI (5K1) 2.0 R 4motion | CDLA, CDLC | 256–265 hp | 2009–2013 |
| VW | Golf VI Convertible (517) 2.0 R | CDLA | 265 hp | 2013–2016 |
| VW | Jetta III (1K2) 2.0 TFSI | AXX, BPY, BWA | 200 hp | 2005–2010 |
| VW | New Beetle (9C1, 1C1) 1.8 T | AGU, AWP, AWV | 150–180 hp | 1999–2010 |
| VW | New Beetle Convertible (1Y7) 1.8 T | AWV | 150 hp | 2003–2010 |
| VW | Passat B5 (3B2) 1.8 T | ANB, APU | 150 hp | 1996–2000 |
| VW | Passat B5 Variant (3B5) 1.8 T | ANB, APU | 150 hp | 1997–2000 |
| VW | Passat B5.5 (3B3) 1.8 T | AWT | 150 hp | 2000–2005 |
| VW | Passat B5.5 Variant (3B6) 1.8 T | AWT | 150 hp | 2000–2005 |
| VW | Passat B6 (3C2) 2.0 TFSI | AXX, BPY, BWA | 200 hp | 2005–2010 |
| VW | Passat B6 Variant (3C5) 2.0 TFSI | AXX, BPY, BWA | 200 hp | 2005–2010 |
| VW | Polo (9N_, 9A_) 1.8 GTi Cup Edition / 1.8 GTI | BBU, BJX | 150–180 hp | 2005–2009 |
| VW | Scirocco III (137, 138) 2.0 R | CDLA, CDLC | 256–265 hp | 2009–2017 |
