Reinforced ARP cylinder head studs VAG 1.8 2.0 8V

The engines concerned

This page covers Volkswagen's 8-valve four-cylinder 1.8 and 2.0-litre engines: the naturally aspirated 1.8 8V (codes DX, GX, HT, JH, PF, RD and RV), the supercharged 1.8 8V G60 (code PG) and the 2.0 8V ABA. They sit under the bonnet of the Golf 1, 2 and 3, the Corrado G60 and the Scirocco 2.

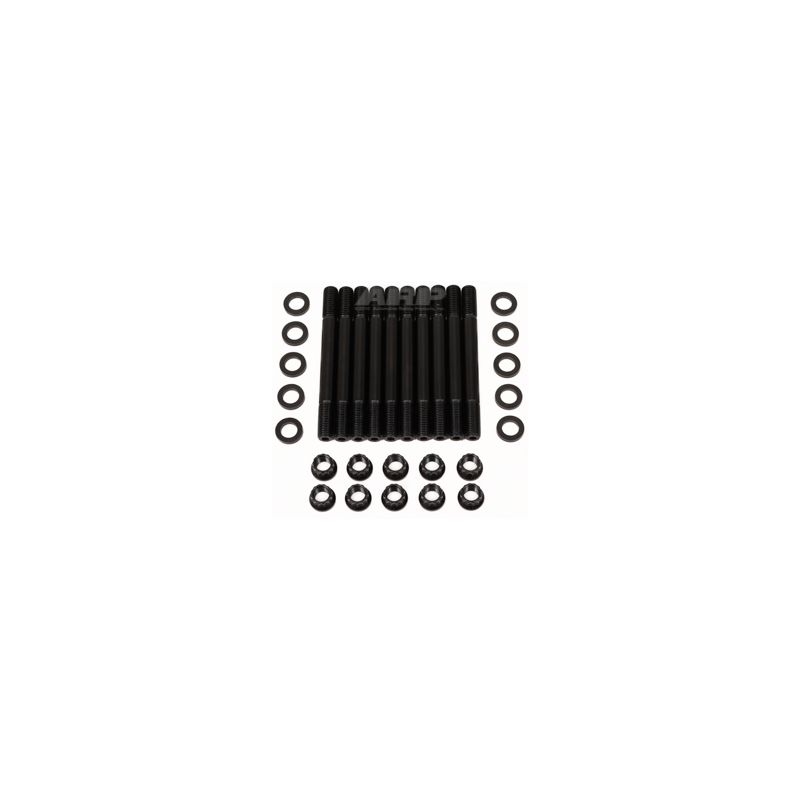

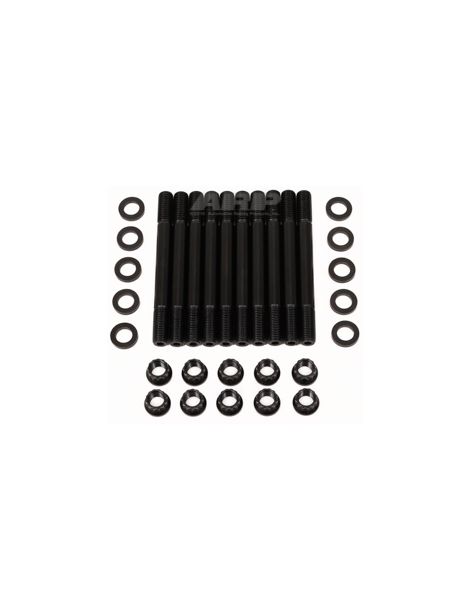

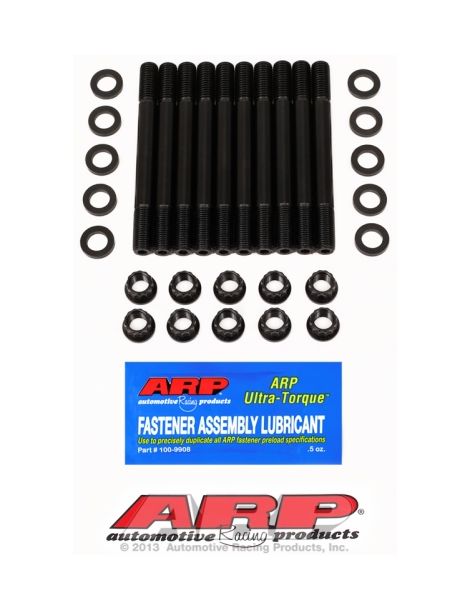

These 8-valve engines leave the factory with a cylinder head held by head bolts; ARP replaces them with 7/16 inch 8740 studs (kits 204-4203 and 204-4701), supplied with their 12-point nuts.

Reinforced ARP cylinder head studs

The job of the head fasteners is to keep the cylinder head locked to the block despite the pressure inside the combustion chambers. They keep the gasket compressed; as soon as their clamping force drops, leaks appear between head and block.

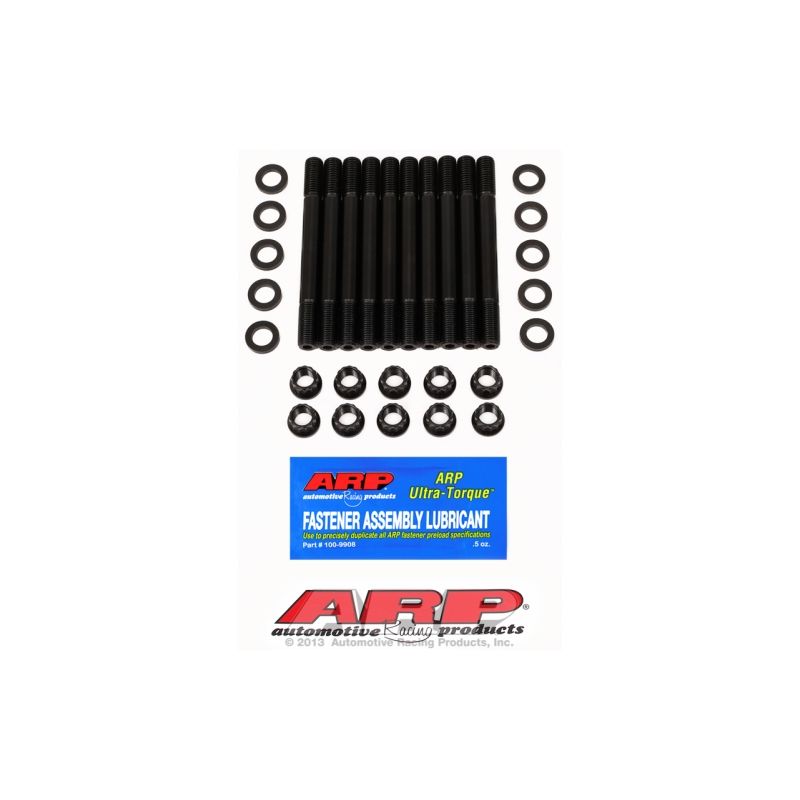

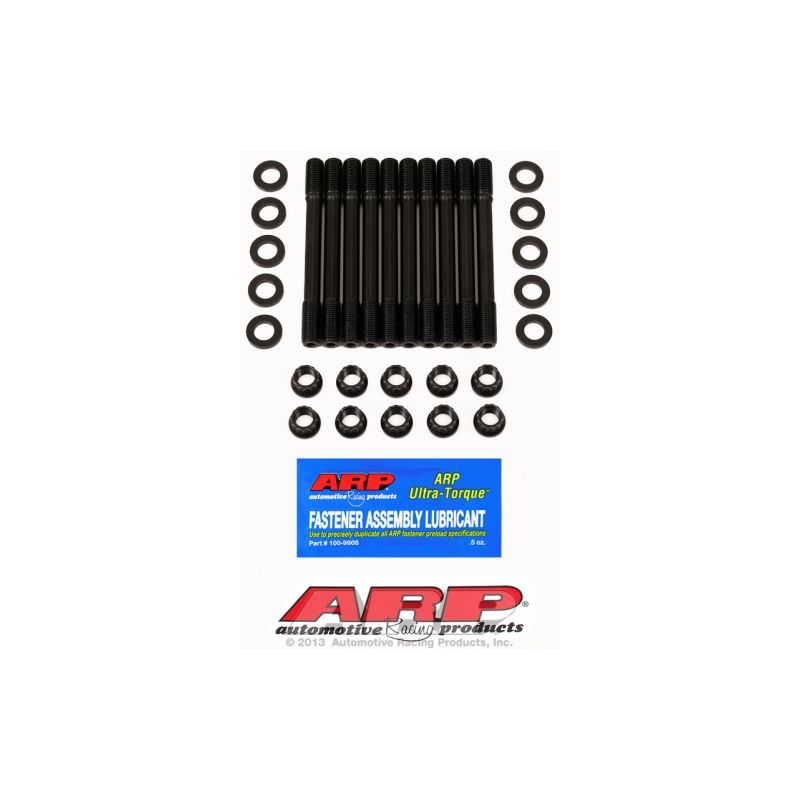

Two ARP kits fit these engines: the 204-4203 studs and the 204-4701 studs, the latter in the « undercut » version according to the 2026 ARP list. Per their instruction sheets, the studs are screwed into the block hand tight before the head is fitted, then the 12-point nuts are tightened in three equal stages. ARP makes these fasteners in 8740, a chrome-molybdenum steel whose tensile strength reaches 200,000 psi. To put this figure in context, original engine fasteners generally belong to classes 10.9 and 12.9, whose minimum ranges from 150,800 to 176,900 psi. In 7/16 in, the 8740 studs hold up to 600 hp on this four-cylinder engine (calculated estimate).

Technical specifications

Tightening torque

For both kits: no torque is applied to the studs as they go into the block: they are screwed in by hand. The instruction sheet leaves the option of thread locker to mount them permanently, provided tightening is done before the product hardens.

Studs 204-4203 and 204-4701: if the studs run through into a water jacket, the instruction sheets call for ARP sealant on the block-side threads.

Final tightening is done in three successive stages, following the manufacturer's tightening sequence; these torque figures only hold with ARP assembly lubricant on the threads and under the nuts.

According to the instruction sheet, ARP lubricant is also applied to the washers, as on the threads.

These values follow ARP instruction sheets 204-4203 and 204-4701; if in doubt, the current official sheet prevails, with the full procedure and the manufacturer's tightening order. Read the ARP 204-4203 instruction sheet; Read the ARP 204-4701 instruction sheet

Technical guide

The stated tightening torques only make sense with ARP assembly grease, applied to the threads and under the nuts.

ARP undercut studs

On an undercut stud, ARP reduces the shank between the two threads. The studs then stretch more evenly from one to the next: the clamping force becomes more consistent and compensates for head gasket compression at installation, which reduces the risk of a blown gasket.

The ARP brand

ARP (Automotive Racing Products) was born in the early 1970s from the initiative of Gary Holzapfel, an engineer from the aerospace industry, determined to eliminate engine failures caused by weak fasteners in motorsport. The company designs and manufactures thousands of parts in California, in several material grades suited to each use.

Advantages over the original bolts

Criterion	Original head bolts	Reinforced ARP studs
Block threads	Stressed at every tightening	Preserved (studs fitted hand tight)

When studs become necessary

The original fasteners are sized for the engine as it leaves the factory. They need to be reinforced when:

• DX, GX, HT, JH, PF, RD, RV, PG and ABA: higher boost pressure on the 1.8 8V G60, or a turbo fitted to a naturally aspirated 1.8 or 2.0 8V
• The compression ratio rises as the build progresses
• The original gasket is replaced by a reinforced MLS gasket, which requires a high and uniform preload
• The engine has already suffered a lifted head or a gasket leak
• Competition use imposes severe heat cycles and regular head removals

Vehicle compatibility

Why is it the most cost-effective solution?

Built for stock output, the original fasteners reach their limits quickly as cylinder pressure rises, and the head gasket is the first to suffer. With reinforced 8740 ARP studs, the head stays clamped more firmly under heavy load, which lowers the risk of a blown gasket or a broken bolt, and of a rebuild costing far more than the kit.

Consider a reinforced head gasket

Reinforced fasteners are only fully worthwhile with a head gasket able to resist the same pressure. We offer the following part for this engine:
