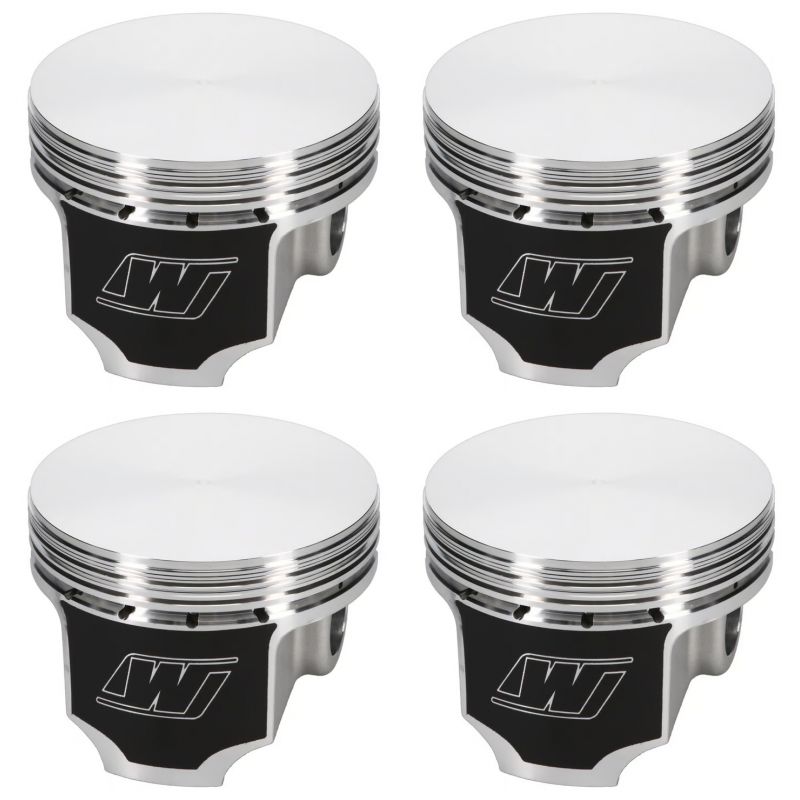

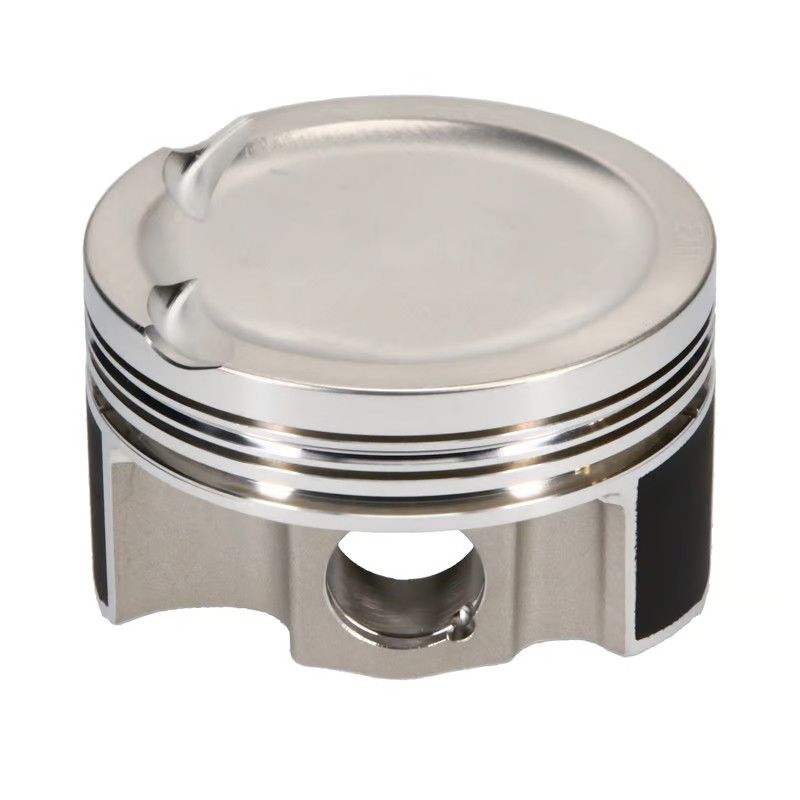

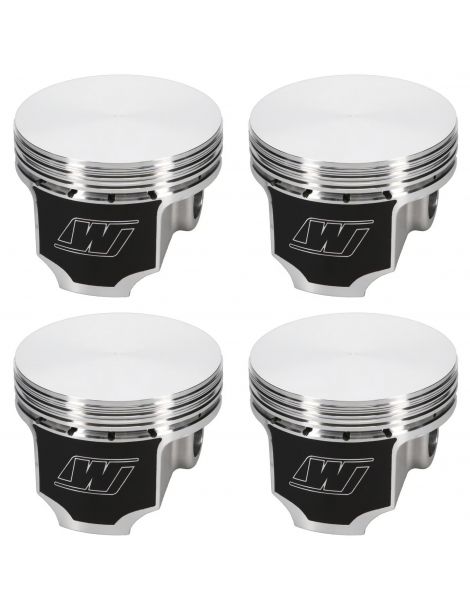

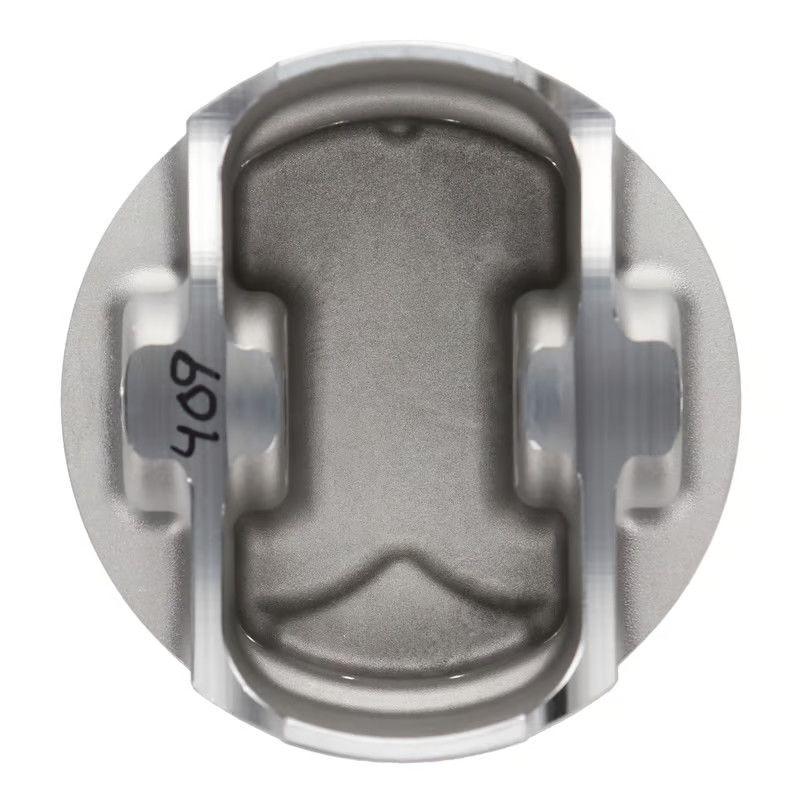

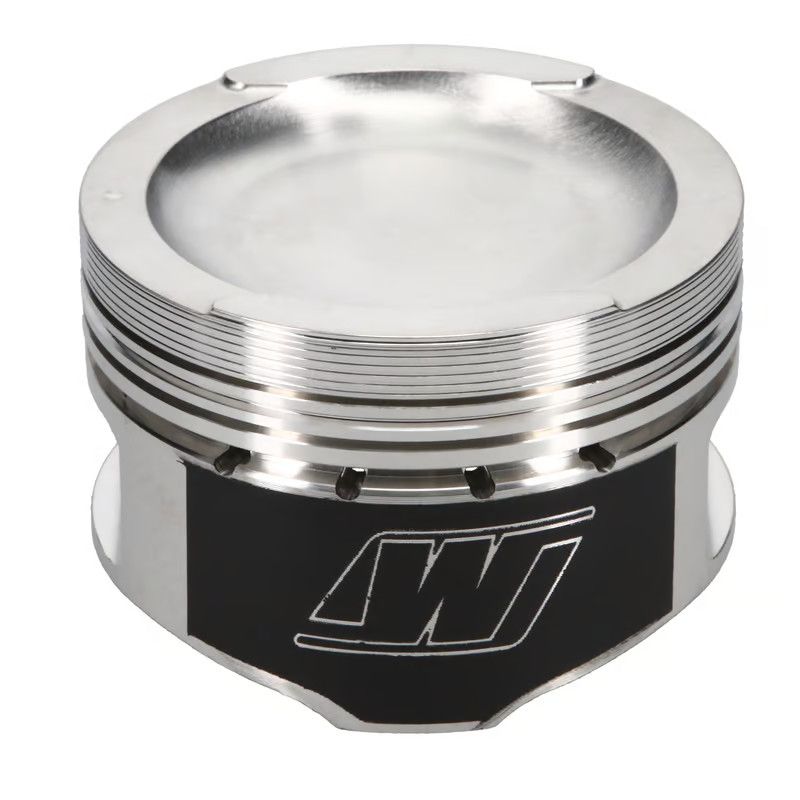

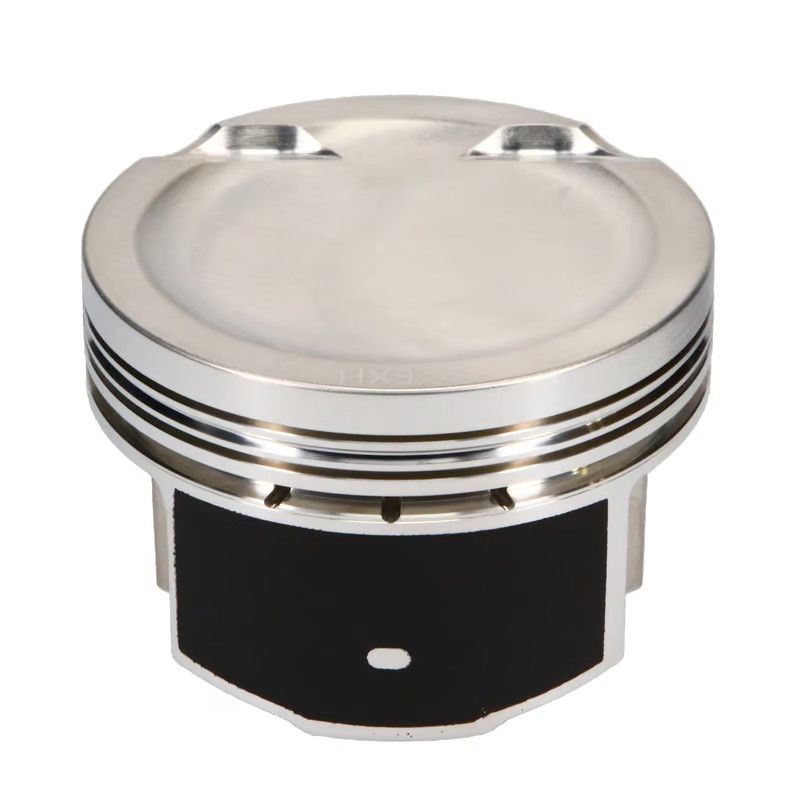

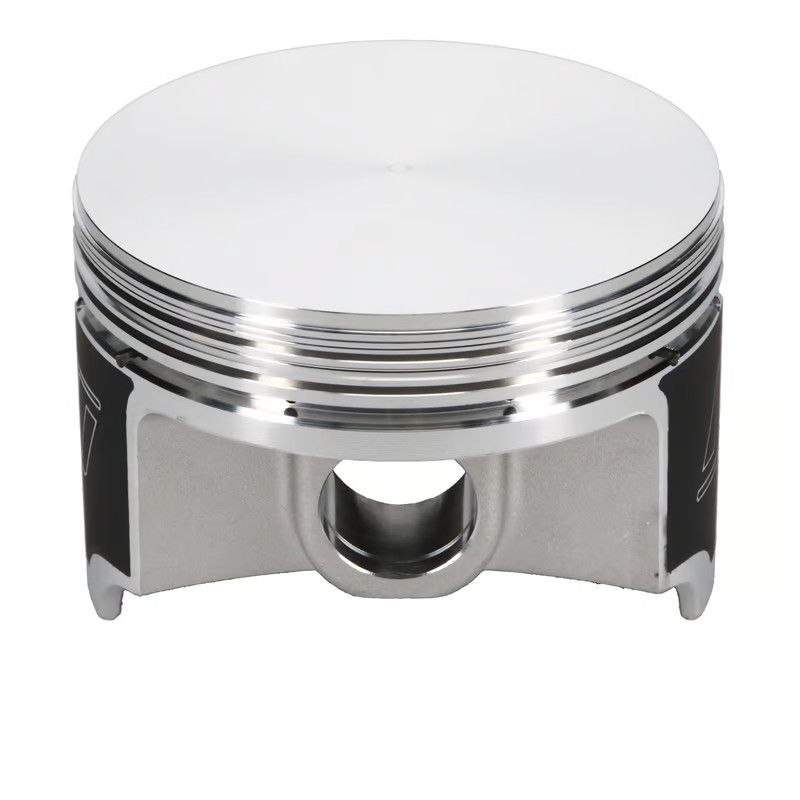

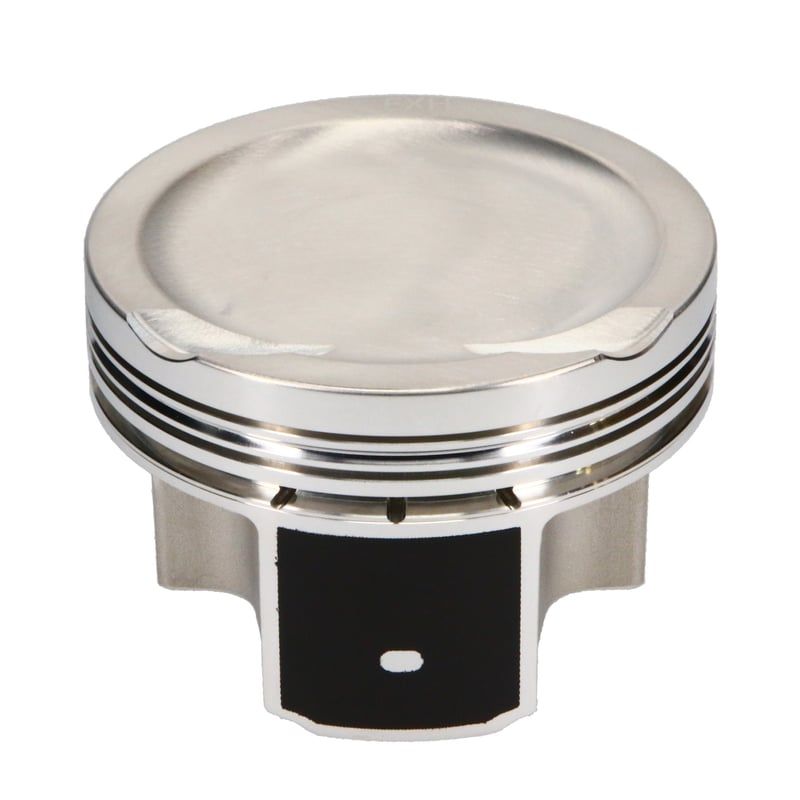

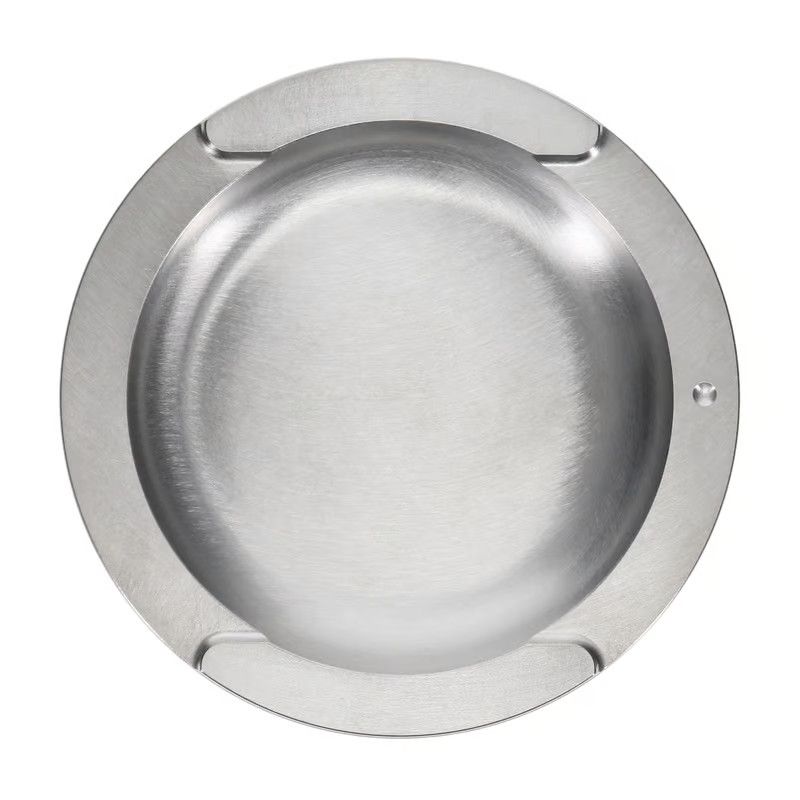

Forged pistons for VW 1.8 16V KR engines: Bore 81.0, Pin 20 mm, Volume ratio OEM 10.0:1. Table of References, Domes/Weight and compatibility Golf II, Passat B3 and Corrado.
Specifications of the forged pistons offered by NSB Concept for Volkswagen 1.8 L 16 V KR (EA827) :
| Reference | OEM Bore 81,00 mm | OEM CR 10,0 :1 | OEM Pin 20 mm | Height OEM Pin 34,10 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|

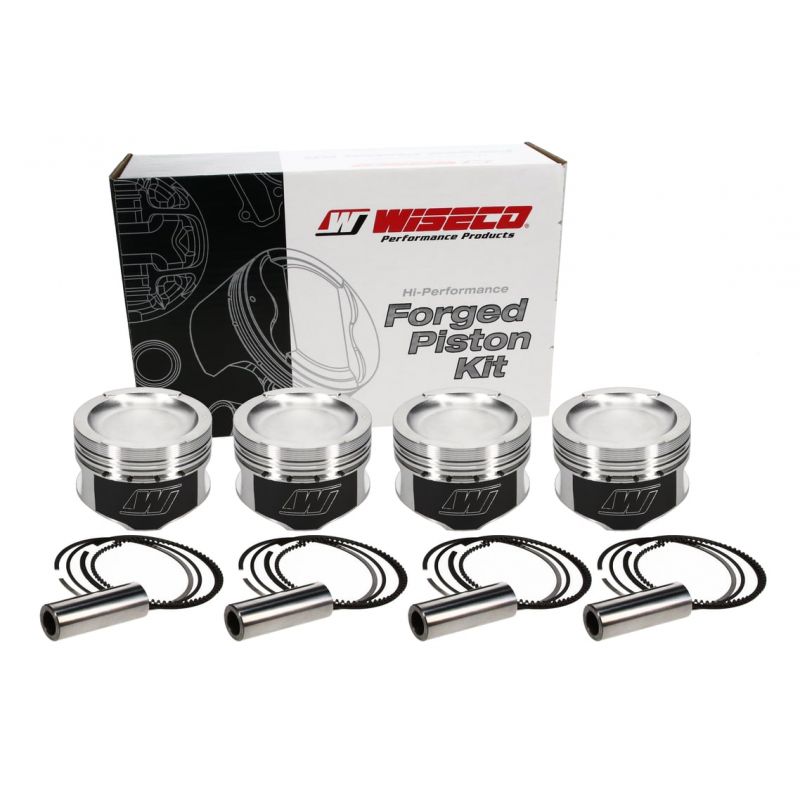

| WKE294M81AP | 81.0 | 8:1 | 20 | 32.65 | Wiseco AP | Skirt | 2618 | NC | -7.4 cc | NC | 8100XX |

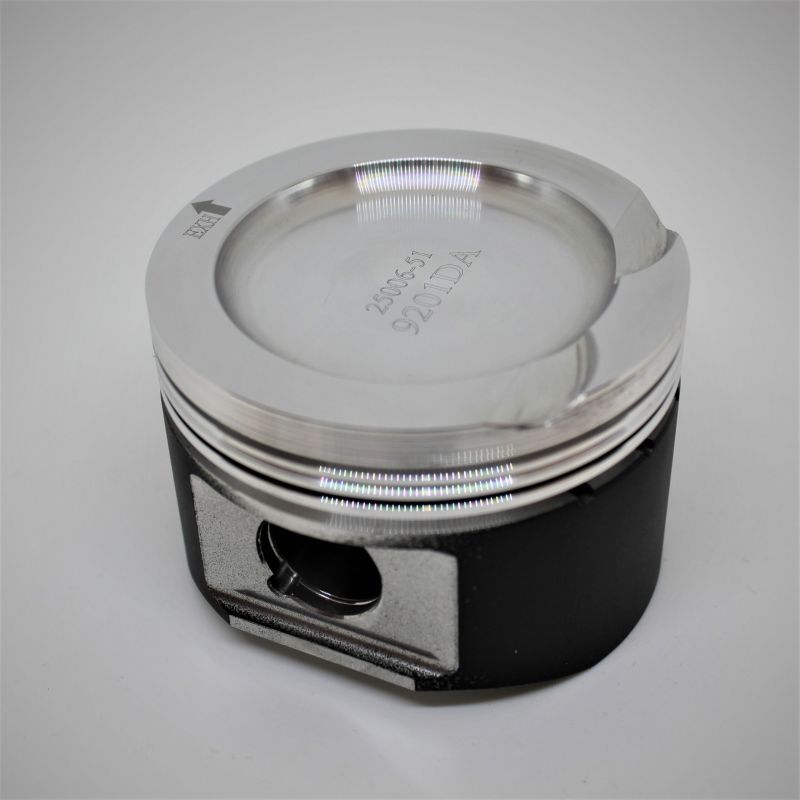

| K9201DA | 81.0 | 8:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 cc | NC | 810XPY |
| JE-302353 | 81.0 | 8.5:1 | 20 | 32.8 | JE FSR | NC | 2618 | FSR | -7.6 cc | 280 | NC |
| WKE186M81 | 81.0 | 8.8:1 | 20 | 32.65 | Wiseco | Skirt | 2618 | NC | -1 cc | NC | 8100XX |
| JE-302354 | 81.0 | 10.5:1 | 20 | 32.8 | JE FSR | NC | 2618 | FSR | 4.8 cc | 295 | NC |
| WKE187M81 | 81.0 | 11:1 | 20 | 32.65 | Wiseco | Skirt | 2618 | NC | 10.5 cc | NC | 8100XX |
| JE-302355 | 81.0 | 11.5:1 | 20 | 32.8 | JE FSR | NC | 2618 | FSR | 9.3 cc | 307 | NC |

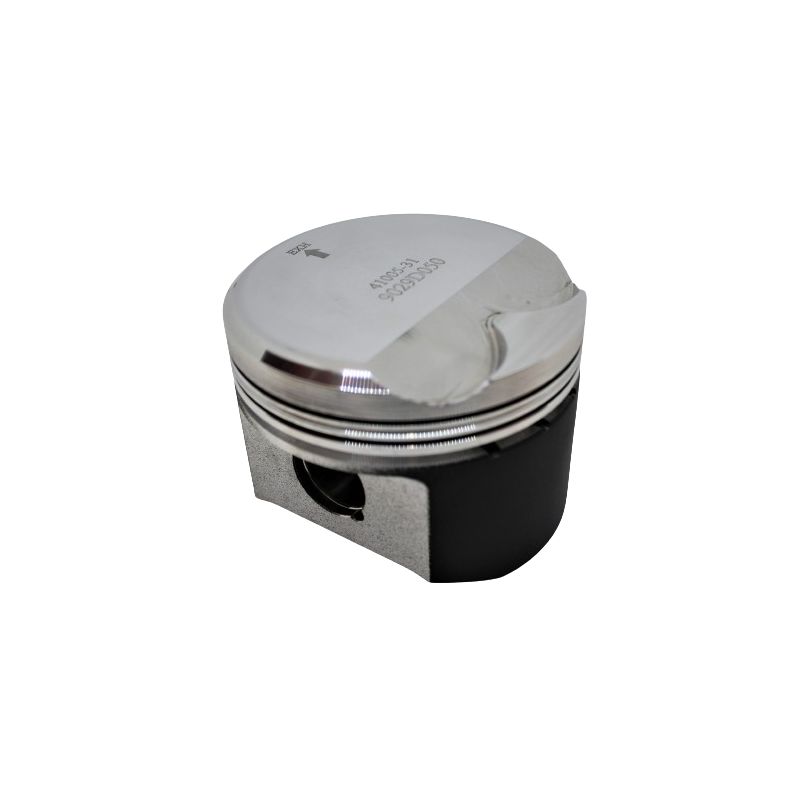

| K9029DA | 81.0 | 12.7:1 | 20 | 33.4 | Wossner | NC | NC | Round | 11 cc | NC | 810XSY |
| WKE294M8125AP | 81.25 | 8:1 | 20 | 32.65 | Wiseco AP | Skirt | NC | NC | -7.4 cc | NC | 8125XX |
| WKE187M8125 | 81.25 | 11:1 | 20 | 32.65 | Wiseco | Skirt | NC | NC | 10.5 cc | NC | 8125XX |
| WKE294M815AP | 81.5 | 8:1 | 20 | 32.65 | Wiseco AP | Skirt | 2618 | NC | -7.4 cc | NC | 8150XX |
| K9201D050 | 81.5 | 8.1:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 cc | NC | 815XPY |
| JE-302356 | 81.5 | 8.5:1 | 20 | 32.8 | JE FSR | NC | 2618 | FSR | -8.3 cc | 288 | NC |
| WKE186M815 | 81.5 | 8.8:1 | 20 | 32.65 | Wiseco | Skirt | 2618 | NC | -1 cc | NC | 8150XX |
| JE-302357 | 81.5 | 10.5:1 | 20 | 32.8 | JE FSR | NC | 2618 | FSR | 4.3 cc | 298 | NC |
| WKE187M815 | 81.5 | 11:1 | 20 | 32.65 | Wiseco | Skirt | 2618 | NC | 10.5 cc | NC | 8150XX |
| JE-302358 | 81.5 | 11.5:1 | 20 | 32.8 | JE FSR | NC | 2618 | FSR | 8.8 cc | 311 | NC |

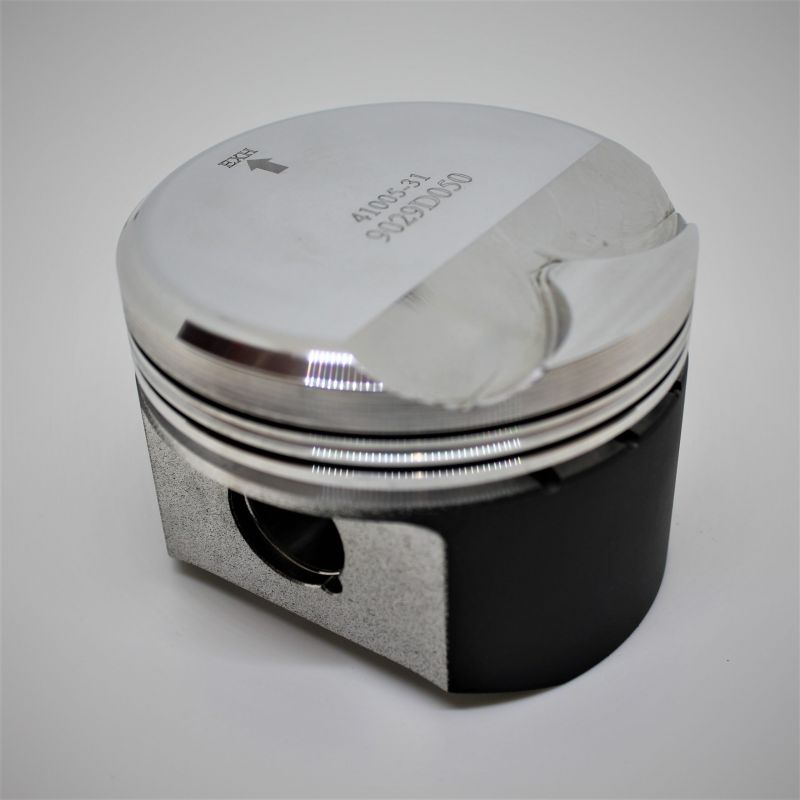

| K9029D050 | 81.5 | 12.8:1 | 20 | 33.4 | Wossner | NC | NC | Round | 11 cc | NC | 815XSY |
| WKE294M82AP | 82.0 | 8:1 | 20 | 32.65 | Wiseco AP | Skirt | 2618 | NC | -7.4 cc | NC | 8200XX |
| K9201D100 | 82.0 | 8.2:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 cc | NC | 820XPY |

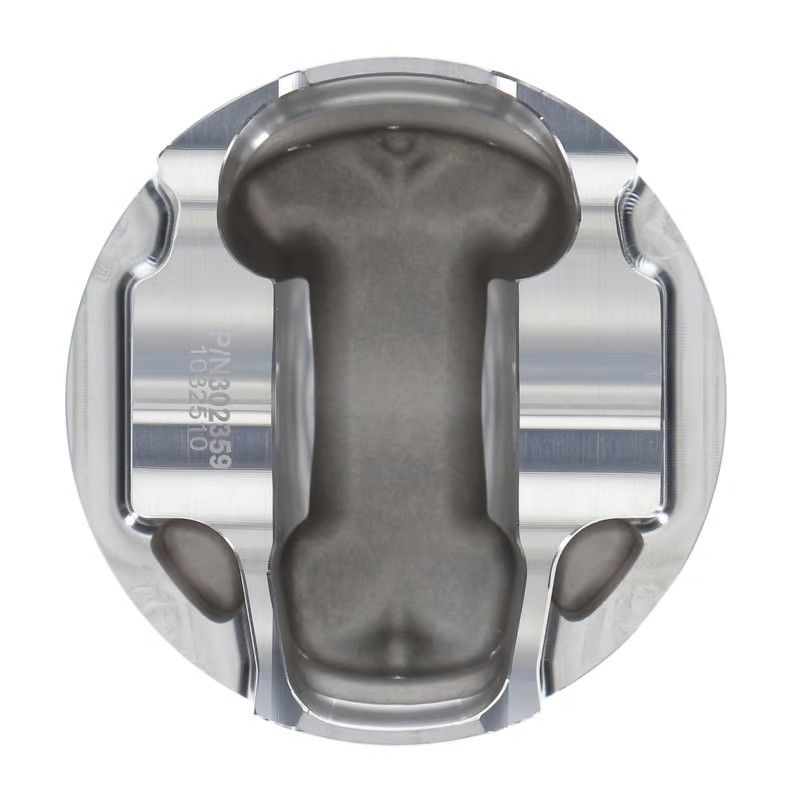

| JE-302359 | 82.0 | 8.5:1 | 20 | 32.8 | JE FSR | NC | 2618 | FSR | -9 cc | 286 | NC |
| WKE186M82 | 82.0 | 8.8:1 | 20 | 32.65 | Wiseco | Skirt | 2618 | NC | -1 cc | NC | 8200XX |
| JE-302360 | 82.0 | 10.5:1 | 20 | 32.8 | JE FSR | NC | 2618 | FSR | 3.8 cc | 301 | NC |
| WKE187M82 | 82.0 | 11:1 | 20 | 32.65 | Wiseco | Skirt | 2618 | NC | 10.5 cc | NC | 8200XX |
| JE-302361 | 82.0 | 11.5:1 | 20 | 32.8 | JE FSR | NC | 2618 | FSR | 8.4 cc | 313 | NC |
| K9029D100 | 82.0 | 13:1 | 20 | 33.4 | Wossner | NC | NC | Round | 11 cc | NC | 820XSY |
| WKE294M825AP | 82.5 | 8:1 | 20 | 32.65 | Wiseco AP | Skirt | NC | NC | -7.4 cc | NC | 8250XX |
| K9201D150 | 82.5 | 8.3:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 cc | NC | 825XPY |
| WKE187M825 | 82.5 | 11:1 | 20 | 32.65 | Wiseco | Skirt | 2618 | NC | 10.5 cc | NC | 8250XX |
| K9029D150 | 82.5 | 13.1:1 | 20 | 33.4 | Wossner | NC | NC | Round | 11 cc | NC | 825XSY |
| WKE294M83AP | 83.0 | 8:1 | 20 | 32.65 | Wiseco AP | Skirt | NC | NC | -7.4 cc | NC | 8300XX |
| K9201D200 | 83.0 | 8.4:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 cc | NC | 830XPY |
| K9029D200 | 83.0 | 13.3:1 | 20 | 33.4 | Wossner | NC | NC | Round | 11 cc | NC | 830XSY |
| K9201D250 | 83.5 | 8.4:1 | 20 | 33.4 | Wossner | NC | NC | NC | -12.3 cc | NC | 835XPY |
| K9029D250 | 83.5 | 13.4:1 | 20 | 33.4 | Wossner | NC | NC | Round | 11 cc | NC | 835XSY |
| K9029D300 | 84.0 | 13.6:1 | 20 | 33.4 | Wossner | NC | NC | Round | 11 cc | NC | 840XSY |
Compatibility (engine codes):
Original vehicles equipped with the KR 1.8 16V :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Volkswagen | Corrado 1.8 16V | KR | 136 hp | 1988 – 1992 |
| Volkswagen | Golf II GTI 16V | KR | 139 hp | 1986 – 1991 |
| Volkswagen | Passat B3 1.8 16V | KR | 136 hp | 1988 – 1993 |
OEM piston references :
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
