Reinforced ARP studs for cylinder head BMW M50B20 M50B25 M50B25TU

The BMW engines concerned

The BMW M50 (2.0 and 2.5 litres) is the cast-iron block petrol inline-six fitted to the 3 Series (E36) and 5 Series (E34). The North American E36 M3 engines (S50B30US, then S52B32US) share the same architecture.

As standard, the cylinder head is held down by 14 head bolts (reference 11 12 1 721 938, M10 x 1.5 thread), tightened by torque then angle. This method stretches them for good: they cannot be reused, and BMW requires replacement every time the head is removed.

Reinforced ARP studs for cylinder head

Cylinder head fasteners have a simple but critical job: to clamp the head onto the block with enough force to compress the gasket and contain combustion pressure, which constantly tries to push the two apart. Any loss of clamping load shows up as a head gasket leak.

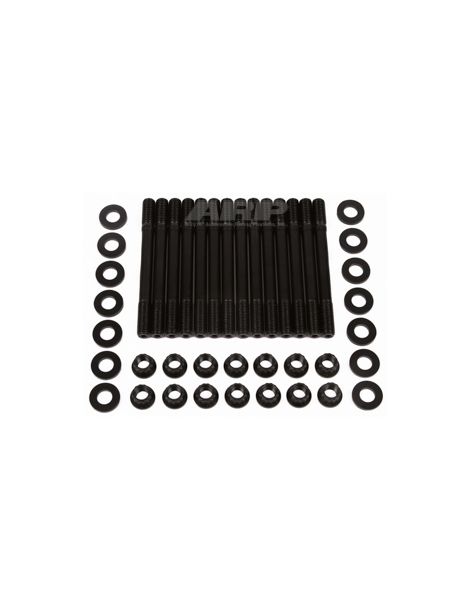

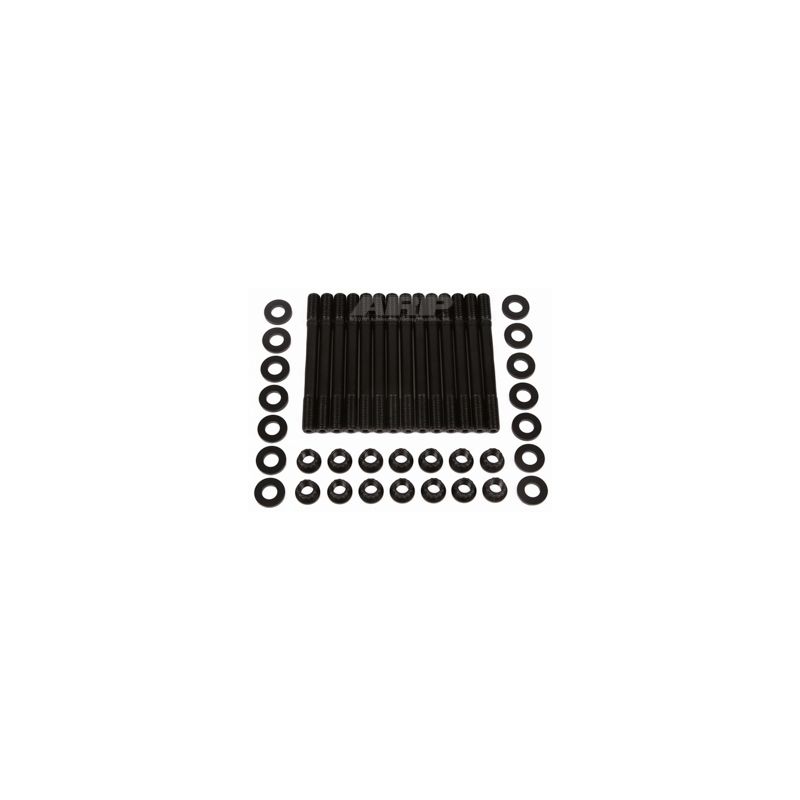

This kit replaces the original bolts with 14 ARP2000 studs and 12-point nuts. The stud is screwed hand tight into the block, the head is lowered onto it, then the nuts are torqued. The resulting preload is higher and, above all, far more consistent from one fastening point to the next, which directly improves head gasket sealing.

Technical specifications

Tightening torque

The nuts are tightened in three successive stages, following the manufacturer's recommended sequence. These figures assume the use of ARP assembly lubricant on the threads and under the nuts.

The washers must go on perfectly dry, wiped on both faces, and the seats on the cylinder head must be degreased: any trace of oil there makes the clamping load uneven.

The official ARP installation instructions, detailing the full procedure and tightening sequence, are available in the Download tab of this listing.

Technical guide

The ARP brand

Coming from the aerospace industry, Gary Holzapfel founded ARP (Automotive Racing Products) in the early 1970s to tackle a scourge of motorsport: engine failure caused by insufficiently strong fasteners. Today ARP designs and manufactures in the USA (California) thousands of part numbers, offered in several material grades according to the application. Every kit comes with its assembly grease and instructions covering the steps and tightening torque.

The ARP2000 material

ARP2000 is an alloy steel developed by ARP, heat treated to carry a tensile strength of 220,000 psi while retaining excellent fatigue strength and good resistance to stress corrosion.

On cylinder head fasteners, that strength reserve means a higher clamping force which, above all, holds over time, including through the repeated heat cycles of a modified engine. The studs do not stretch permanently when tightened, so they can be reused.

Advantages over the original bolts

Criterion	Original head bolts	ARP2000 studs
Tightening method	Torque then angle	Torque only, in 3 stages
After tightening	Permanently stretched	Returns to its original shape
Reuse	Single use	Reusable
Preload consistency	Varies from point to point	Even across all 14 points
Block threads	Stressed at every tightening	Preserved (stud fitted hand tight)
Head fitting	Positioned then bolted	Guided by the studs

When studs become necessary

The original fasteners are adequate as long as cylinder pressure stays close to the factory figure. Reinforced studs become necessary in several cases:

• Adding forced induction, or raising boost pressure on an already turbocharged engine
• Raising the compression ratio, particularly on a naturally aspirated build
• Fitting a reinforced MLS head gasket, which needs a high and even preload to seal
• An engine that has already lifted its head or blown a gasket
• Competition use, with repeated heat cycles and frequent head removals

Vehicle compatibility

OEM reference: 11 12 1 721 938

Why it is the most cost-effective solution

Every time the cylinder head comes off, the original bolts have to be replaced. ARP studs are reusable: bought once, they serve for every future removal, and they are far stronger.

Consider a reinforced head gasket

Reinforced studs show their full worth alongside a head gasket able to take the same pressure. We offer the two references matching these engines:
