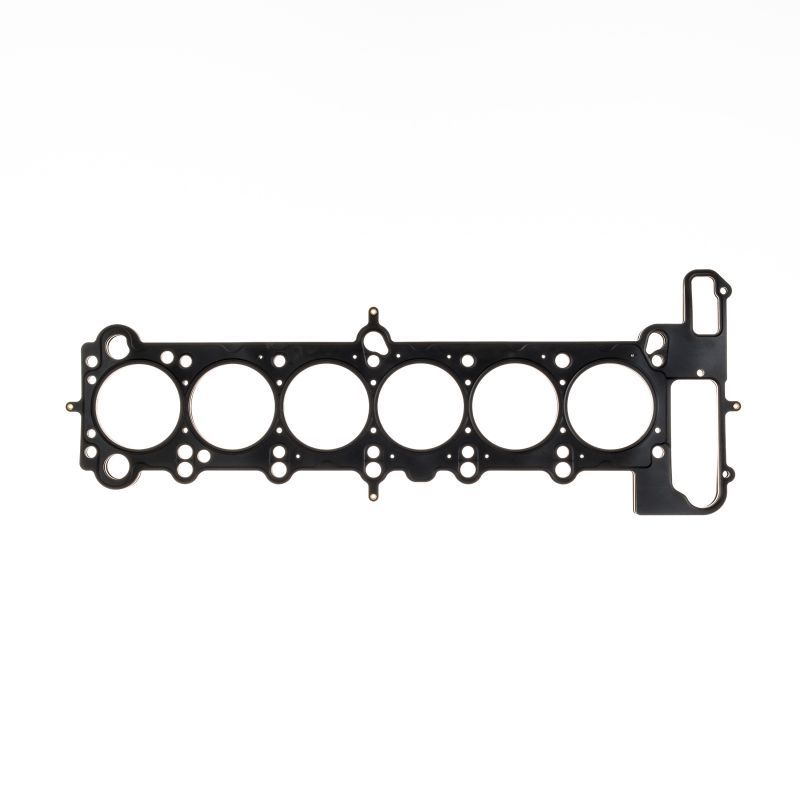

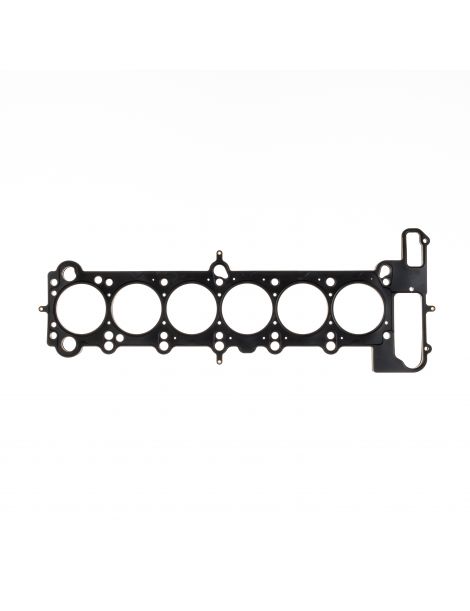

Reinforced cylinder head gasket BMW 320i E36 520i E34 M50B20

Here we offer several reinforced cylinder head gaskets for M50B20 engines, with and without COMETIC vanos, whose technical specifications you will find below.

Technical specification of the original gasket

• Engine bore: 80mm
• Compressed thickness: 1.74mm

Technical specification

• Engine bore: up to 82mm
• Gasket type: MLS
• Number of layers: 3, then 5 for gaskets from 1.78mm thickness
• Thicknesses available: 0.69, 1.14, 1.30, 1.42, 1.91, 2.34, 2.49, 3.05, 3.56mm

Founded by Bob Gorman in 1989, the Cometic brand is recognised worldwide as a leader in the design and manufacture of reinforced head gaskets. Like all of the brand's products, these are manufactured in the United States. Cometic reinforced head gaskets are made of several stamped stainless steel sheets held together by rivets. There are three types of Cometic cylinder head gasket:

MLS: equivalent to MLS Athena gaskets, these multi-layer gaskets (between 3 and 5 stainless steel sheets depending on gasket thickness) have embossing around the cylinders and fluid passages.

• MLX: this gasket has the same base as the MLS gasket, with an added reinforcement (folded sheet) around the cylinders and a special high-temperature coating.

• HP: this is an MLX gasket with an additional layer added to further reinforce the sealing of the cylinders (see below).
