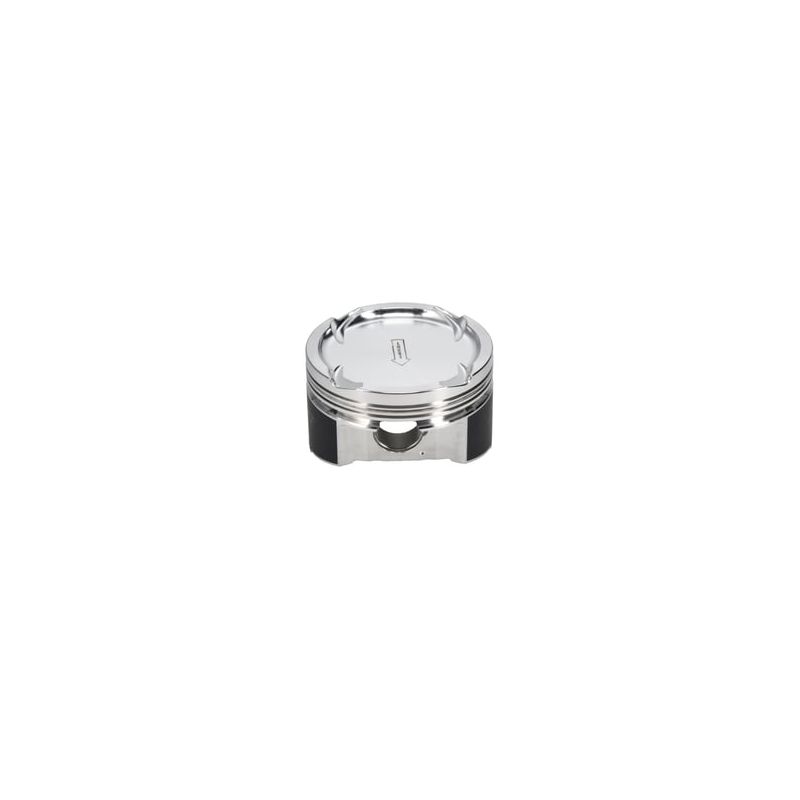

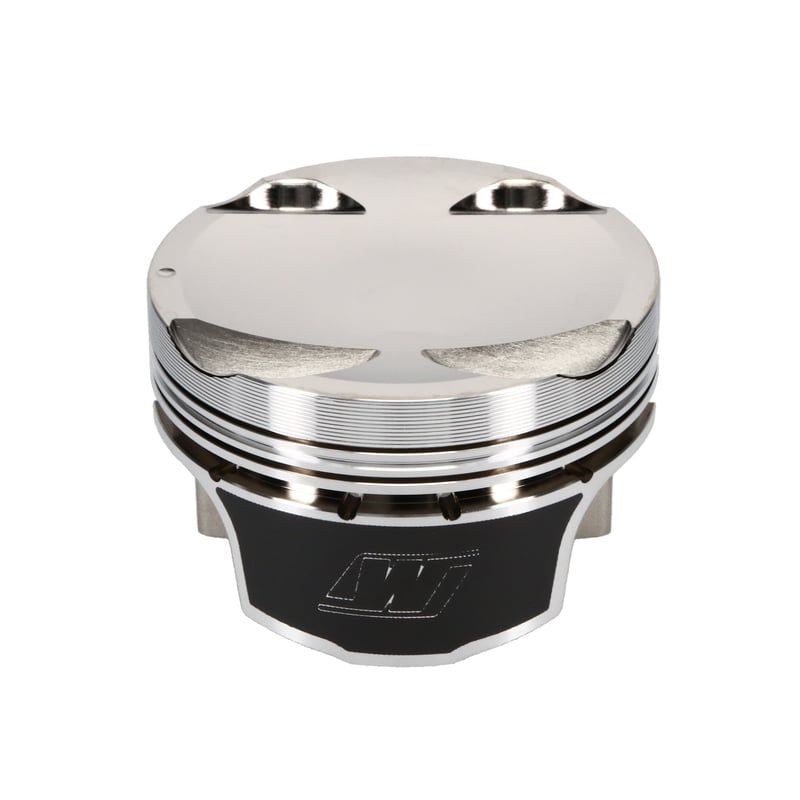

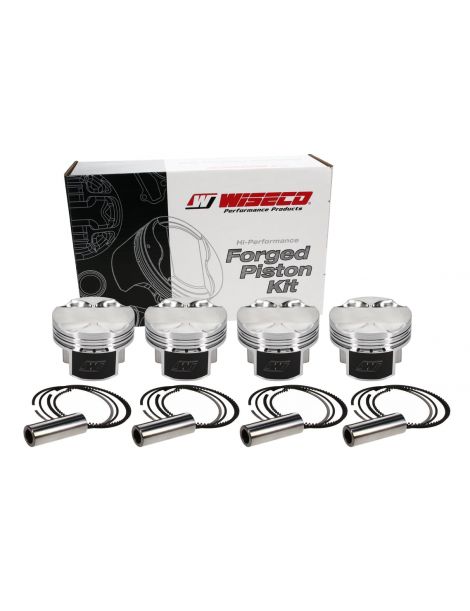

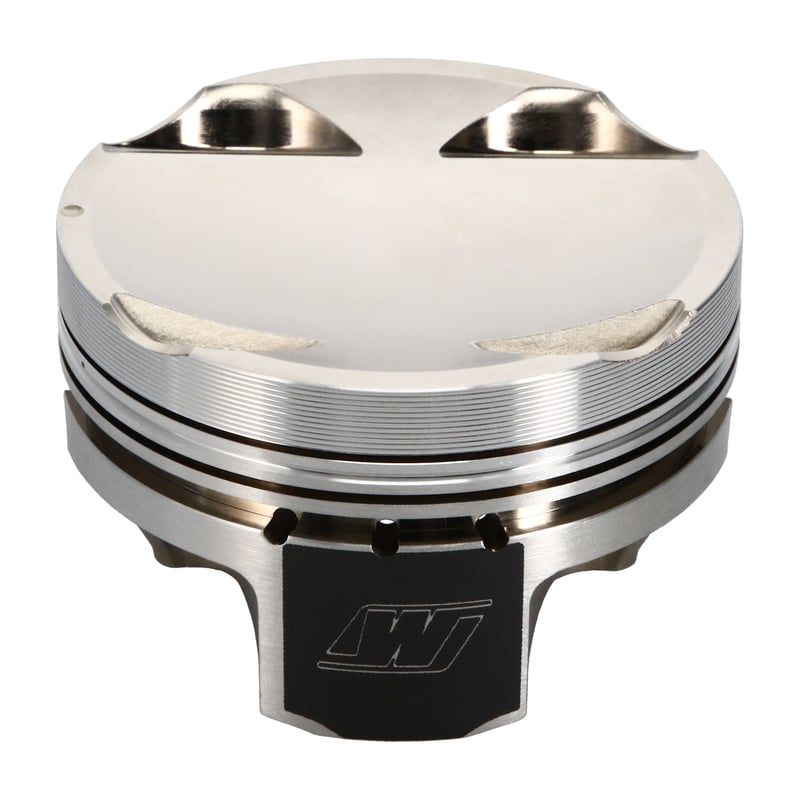

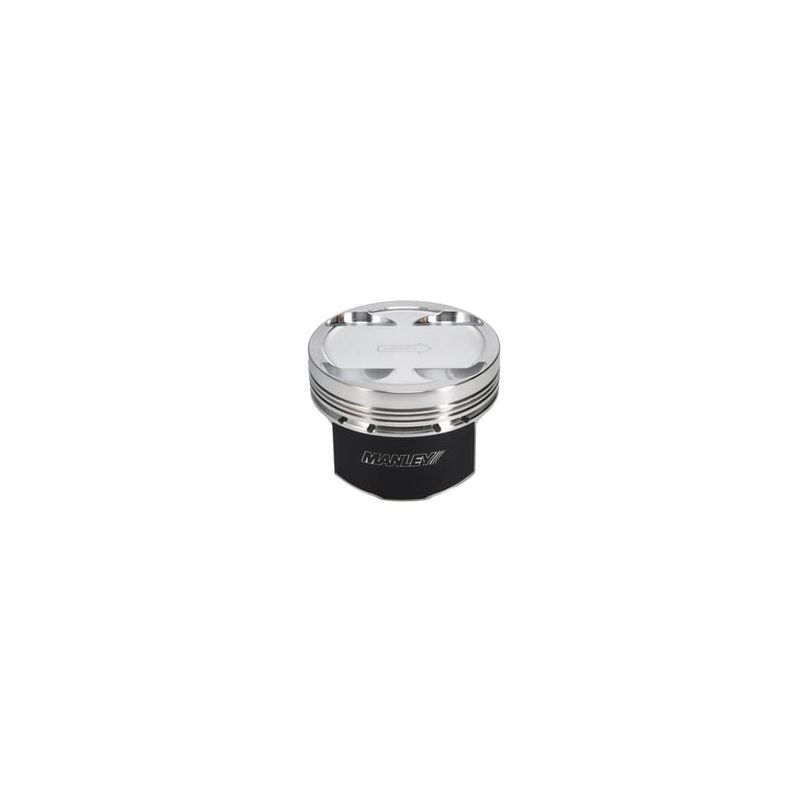

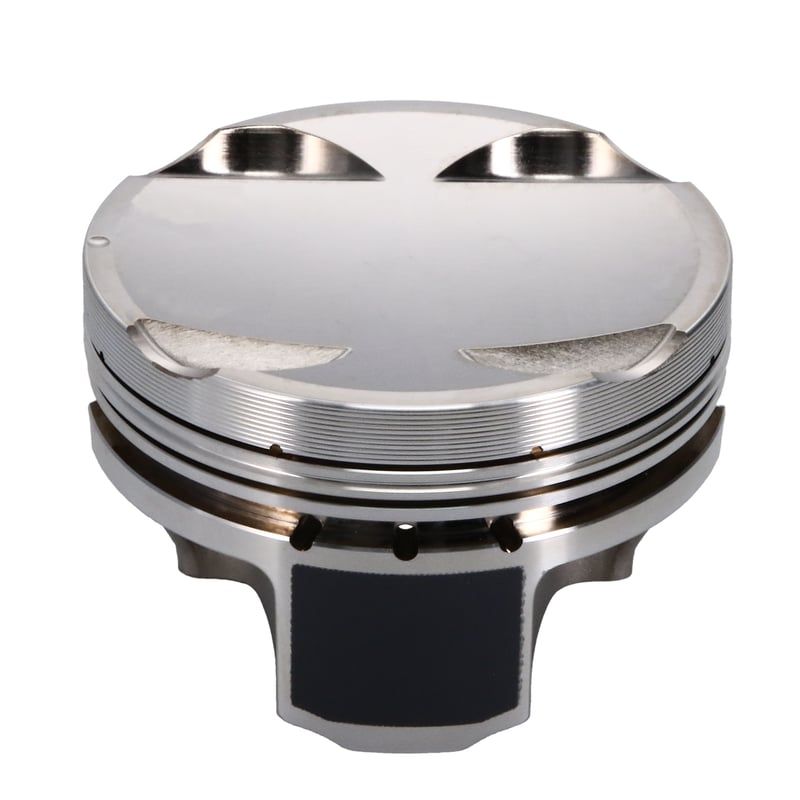

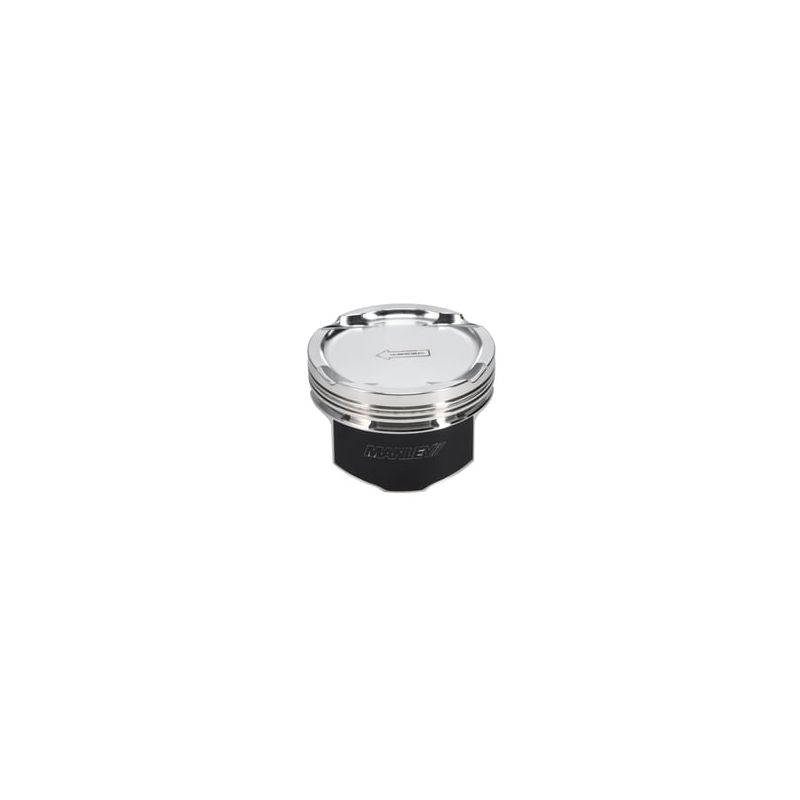

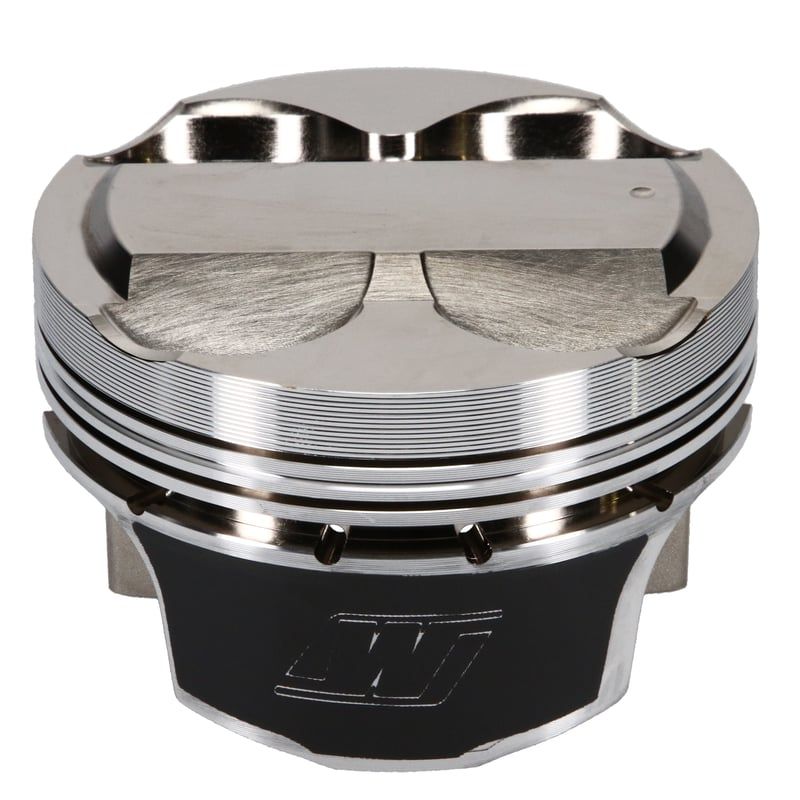

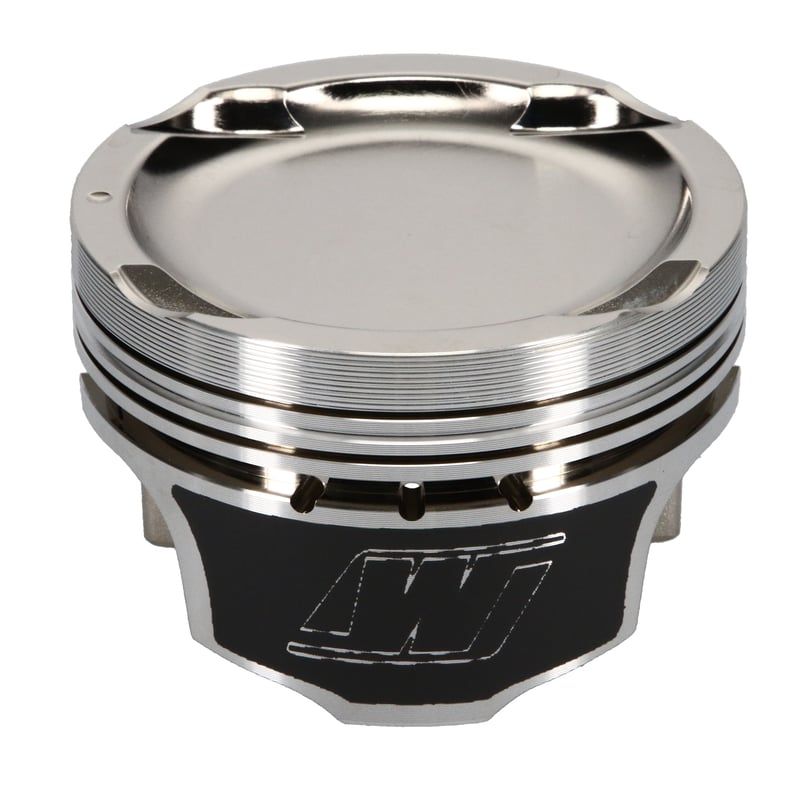

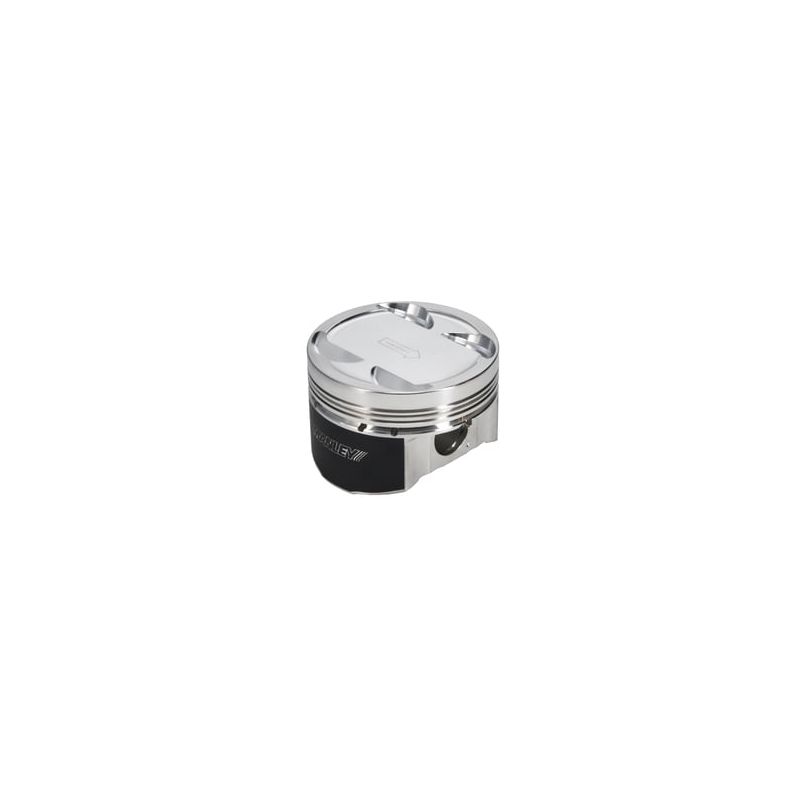

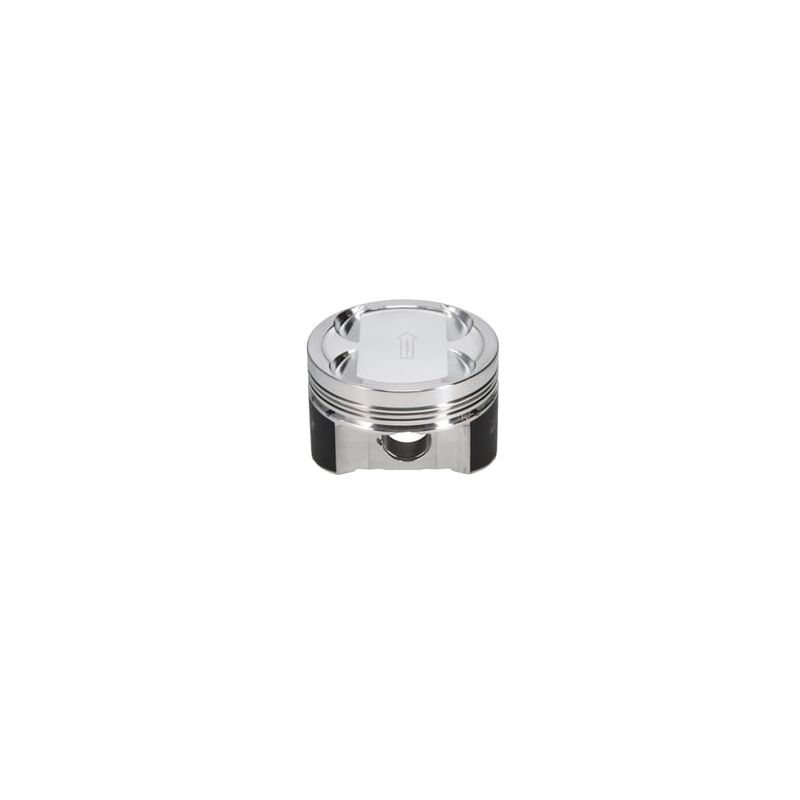

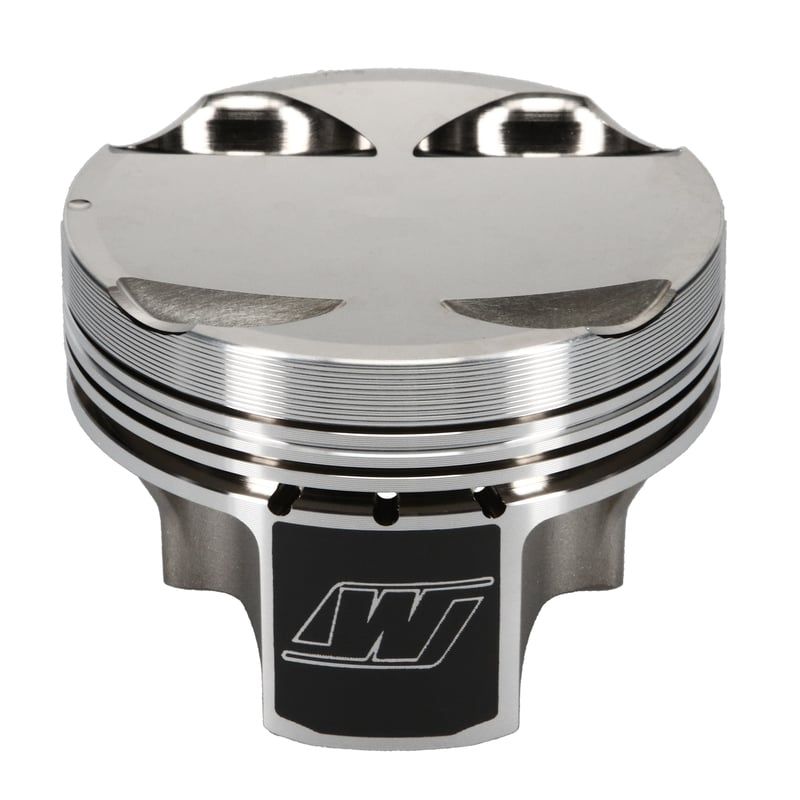

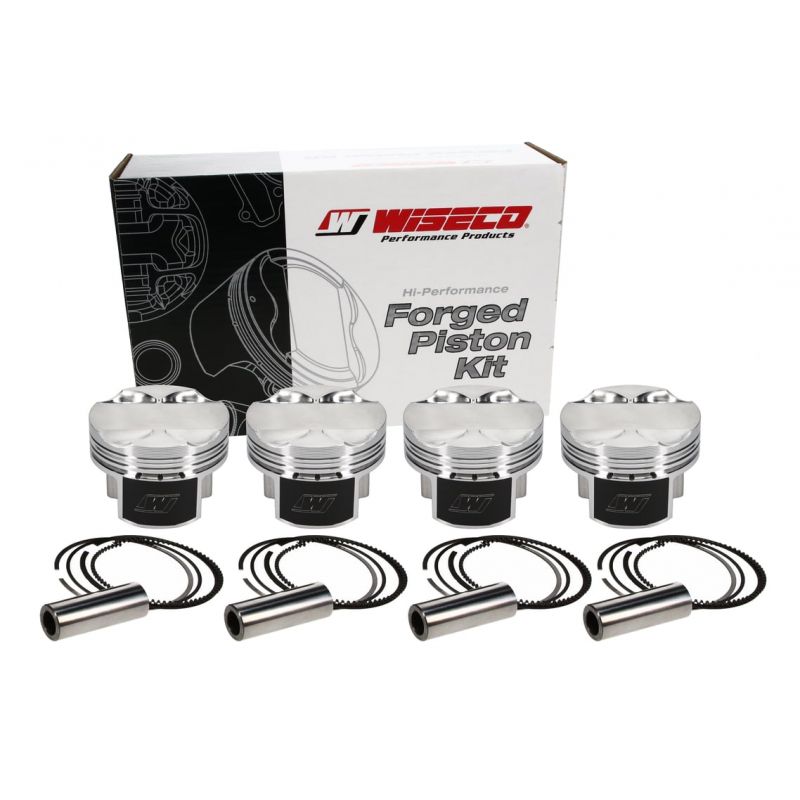

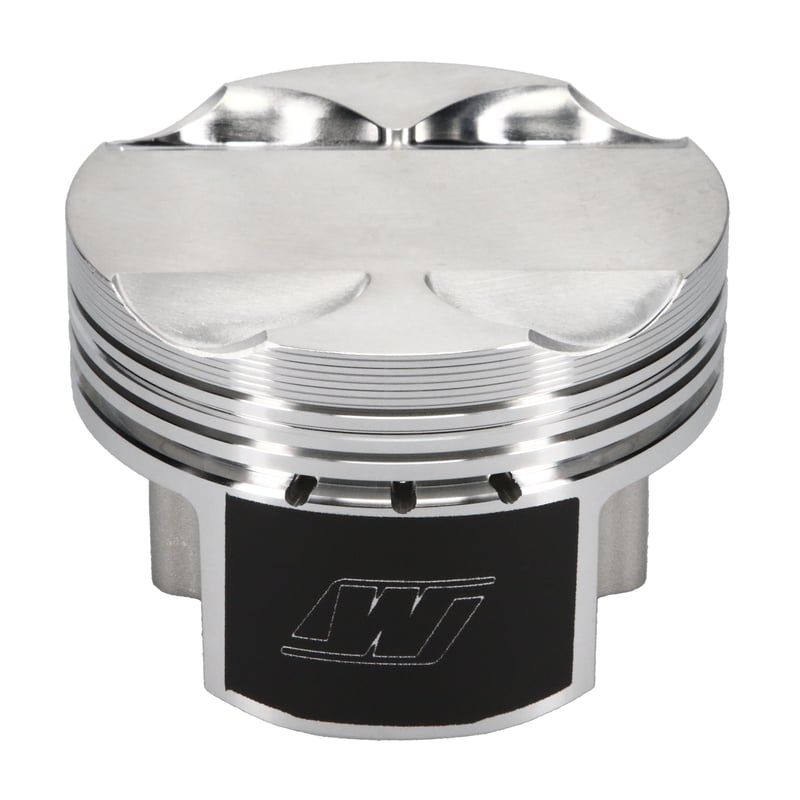

Gesmede zuigers 4G64 2,4 L (drijfstangen 156 mm) : Ø 86,5-87,5 mm, RV 8,2-11 :1, zuigerpen 22 mm.
OEM-zuigerreferenties bevestigd voor Eclipse/Galant/Outlander : MD357066 (zuiger & pen assy), MD357067 (andere graad/maat), MD357068 (graad B, stopgezet in de EPC)
Kenmerken van de gesmede zuigers voor motoren 2,4 L 16 v 4G64 met drijfstangen 156 mm :
| Referentie | Boring (mm) | CR | Pistonpen (mm) | Compressiehoogte (mm) | Serie | Coating | Aluminium | Smeedproces | Volume dome (cc) | Gewicht (g) | Zuigerveren |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WK675M865 | 86,50 | 10 :1 | 22 | 28,70 | Wiseco | Mantel | 2618.0 | — | -10,30 | — | 8650XX+GLS33 |
| WK675M865AP | 86,50 | 10 :1 | 22 | 28,70 | Wiseco AP | Mantel | 2618.0 | — | -10,30 | — | 8650XX+GLS33 |
| 617015C-4 | 86,50 | 10,5 :1 | — | 28,70 | Wiseco | Mantel | — | — | -12 | — | — |
| 617015CE-4 | 86,50 | 10,5 :1 | — | 28,70 | Wiseco | Mantel | — | — | -12 | — | — |
| WK676M865AP | 86,50 | 11 :1 | 22 | 28,70 | Manley | Mantel | 2618.0 | — | -22 | — | 8650XX+GLS33 |
| WK676M865 | 86,50 | 11 :1 | 22 | 28,70 | Wossner | — | 2618.0 | — | -5,20 | — | 8650XX+GLS33 |
| WK667M865 | 86,50 | 8,2 :1 | 22 | 28,87 | Wiseco | Mantel | 2618.0 | — | -4 | — | 8650XX+GLS33 |
| WK667M865AP | 86,50 | 8,2 :1 | 22 | 28,87 | Wiseco AP | Mantel | 2618.0 | — | -4 | — | 8650XX+GLS33 |
| WK669M865 | 86,50 | 9 :1 | 22 | 28,87 | Wiseco | Mantel | 2618.0 | — | 1,90 | — | 8650XX+GLS33 |
| WK674M865 | 86,50 | 9 :1 | 22 | 28,70 | Wiseco | Mantel | 2618.0 | — | -17,30 | — | 8650XX+GLS33 |
| 608015C-4 | 86,50 | 9 :1 | — | 28,70 | Wiseco | Mantel | — | — | -21 | — | — |
| 608015CE-4 | 86,50 | 9 :1 | — | 28,70 | Wiseco | Mantel | — | — | -21 | — | — |
| WK669M865AP | 86,50 | 9 :1 | 22 | 28,87 | Wiseco AP | Mantel | 2618.0 | — | 1,90 | — | 8650XX+GLS33 |
| WK674M865AP | 86,50 | 9 :1 | 22 | 28,70 | Wiseco AP | Mantel | 2618.0 | — | -17,30 | — | 8650XX+GLS33 |
| WK667M8675 | 86,75 | 8,2 :1 | 22 | 28,87 | Manley | Mantel | 2618.0 | — | -22 | — | 8675XX+GLS34 |
| WK667M8675AP | 86,75 | 8,2 :1 | 22 | 28,87 | Manley | Mantel | 2618.0 | — | -12 | — | 8675XX+GLS34 |
| WK669M8675 | 86,75 | 9 :1 | 22 | 28,87 | Manley | Mantel | 2618.0 | — | -12 | — | 8675XX+GLS34 |
| WK669M8675AP | 86,75 | 9 :1 | 22 | 28,87 | Manley | Mantel | 2618.0 | — | -12 | — | 8675XX+GLS34 |
| WK675M87 | 87 | 10 :1 | 22 | 28,70 | Wiseco | Mantel | 2618.0 | — | 1,90 | — | 8700XX+GLS33 |
| WK675M87AP | 87 | 10 :1 | 22 | 28,70 | Wiseco AP | Mantel | 2618.0 | — | 1,90 | — | 8700XX+GLS33 |
| 617020C-4 | 87 | 10,5 :1 | — | 28,70 | JE | — | — | — | -21,70 | — | — |
| 617020CE-4 | 87 | 10,5 :1 | — | 28,70 | JE | — | — | — | -12,50 | — | — |
| WK676M87 | 87 | 11 :1 | 22 | 28,70 | Wiseco | Mantel | 2618.0 | — | -17 | — | 8700XX+GLS34 |
| WK676M87AP | 87 | 11 :1 | 22 | 28,70 | Wiseco AP | Mantel | 2618.0 | — | -17 | — | 8700XX+GLS34 |
| WK667M87 | 87 | 8,2 :1 | 22 | 28,87 | Wiseco | Mantel | 2618.0 | — | -21 | — | 8700XX+GLS34 |
| WK667M87AP | 87 | 8,2 :1 | 22 | 28,87 | Wiseco AP | Mantel | 2618.0 | — | -21 | — | 8700XX+GLS34 |
| WK627M87 | 87 | 8,5 :1 | 22 | 28,70 | Wiseco | Mantel | 2618.0 | — | -21 | — | 8700XX+GLS34 |
| WK627M87AP | 87 | 8,5 :1 | 22 | 28,70 | Wiseco AP | Mantel | 2618.0 | — | -21 | — | 8700XX+GLS34 |
| 608020C-4 | 87 | 9 :1 | — | 28,70 | Manley | Mantel | 4032.0 | — | -2,50 | 307 | — |
| WK669M87 | 87 | 9 :1 | 22 | 28,87 | Wiseco | Mantel | 2618.0 | — | -12 | — | 8700XX+GLS34 |
| WK674M87 | 87 | 9 :1 | 22 | 28,70 | Wiseco | Mantel | 2618.0 | — | -4 | — | 8700XX+GLS50 |
| WK669M87AP | 87 | 9 :1 | 22 | 28,87 | Wiseco AP | Mantel | 2618.0 | — | -12 | — | 8700XX+GLS34 |
| WK674M87AP | 87 | 9 :1 | 22 | 28,70 | Wiseco AP | Mantel | 2618.0 | — | -4 | — | 8700XX+GLS50 |
| 608020CE-4 | 87 | 9 :1 | — | 28,70 | Wossner | — | — | — | -14 | — | — |
| WK627M875 | 87,50 | 8,5 :1 | 22 | 28,70 | Wiseco | Mantel | 2618.0 | — | -10 | — | 8750XX+GLS34 |
| WK627M875AP | 87,50 | 8,5 :1 | 22 | 28,70 | Wiseco AP | Mantel | 2618.0 | — | -10 | — | 8750XX+GLS34 |
Compatibele voertuigen :
| Fabrikant | Model | Jaren |
|---|---|---|
| Mitsubishi | Eclipse (3G) RS/GS – 2.4 4G64 16v | 2000–2005 |
| Mitsubishi | Galant (8G/9G) – 2.4 4G64 16v | 1999–2003 |
| Mitsubishi | Outlander (CU) – 2.4 4G64 16v | 2003–2006 |
OEM zuiger referenties :
Fabrikantreferenties voor zuigers (kaal of uitgerust met zuigerveren). Bevestig altijd via VIN (grade / dimension).
| Fabrikant | Model | Referentie | Aanduiding |
|---|---|---|---|
| Mitsubishi | Eclipse 3G 2.4 4G64 (2000–2005) | MD357066 | Zuiger & pen assy – Standard (incl. pin) |
| Mitsubishi | Galant 2.4 4G64 (1999–2003) | MD357066 | Zuiger & pen assy – Standard (incl. pin) |
| Mitsubishi | Outlander CU 2.4 4G64 (2003–2006) | MD357066 | Zuiger & pen assy – Standard (incl. pin) |
| Mitsubishi | Eclipse/Galant/Outlander 2.4 4G64 | MD357067 | Zuiger & pen assy – (andere klasse / fabrieksmaat) |
| Mitsubishi | Eclipse/Galant/Outlander 2.4 4G64 | MD357068 | Zuiger & pen assy – (grade B, niet meer leverbaar afhankelijk van EPC) |
Let op : Controleer voor de montage altijd de integriteit en conformiteit van elk onderdeel van de zuigerkit en de conformiteit van de montage in de motor; eventuele garantie is strikt beperkt tot de onderdelen van de zuigerkit.
