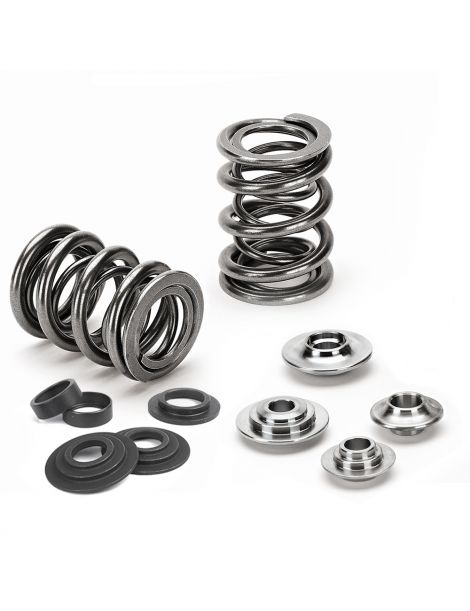

Reduced price! Ressorts soupapes renforcés SUPERTECH / CATCAMS VAG 1.8T 20V View larger

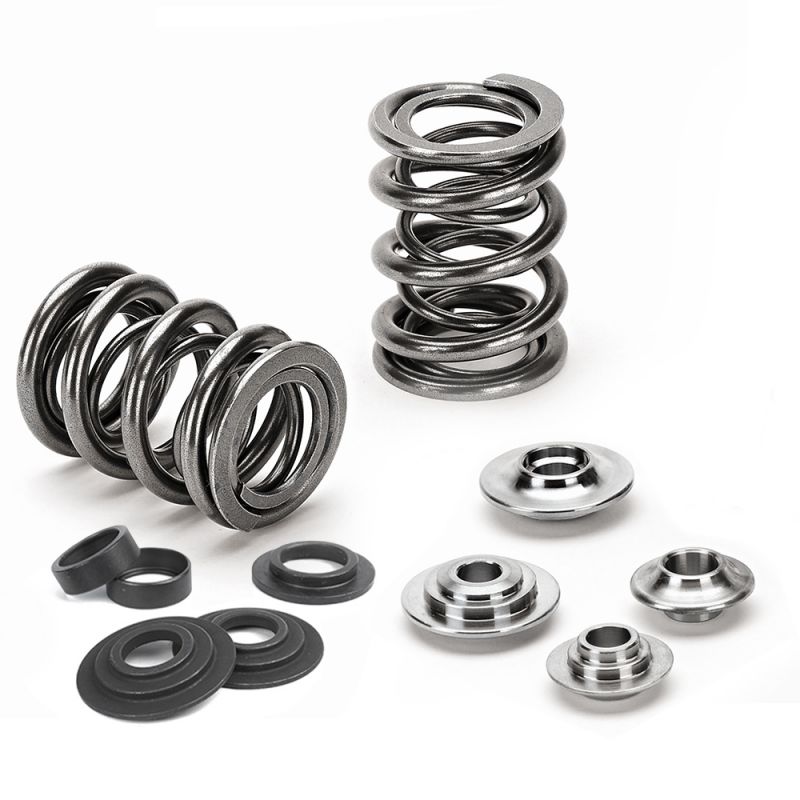

Performance valve springs VAG 1.8T 20V

New product

Performance valve springs SUPERTECH / FERREA for VAG 1.8T 20V engines, codes AEB, AGU, AJL, AJQ, AMK, ANB, APH, APP, APU, APX, APY, AQA, AQX, ARK, ARX, ARY, ARZ, AUL, AUM, AUQ, AVC, AVJ, AWP, AWT, AWU, AWV, AYP, BAM, BBU, BEX, BFB:

  • AUDI A3 S3 8L
  • AUDI A4 B5 B6 B7
  • AUDI TT 8N
  • SEAT Cordoba / Cupra 6K
  • SEAT Ibiza Cupra / Cupra R 6K 6L
  • SEAT Leon / Cupra R 1M
  • VW Golf 4 / GTI
  • VW Polo GTI Cup Edition

More details

708,48 € tax incl.

-20%

885,60 € tax incl.

IN STOCK

Stock NSB France : 1 Item

  • We offer here several performance valve spring kits from SUPERTECH and FERREA, whose technical specifications are given below. The price displayed is that of a complete kit.

    Technical specification SUPERTECH

    • Spring type: single at the intake / dual at the exhaust
    • Outer diameter of the single spring (intake): 14.40mm
    • Outer diameter of the inner spring (exhaust): 20.50mm
    • Inner diameter of the inner spring (exhaust): 15.50mm
    • Outer diameter of the outer spring (exhaust): 29.10mm
    • Inner diameter of the outer spring (exhaust): 21.90mm
    • Seat pressure / installed length: 36.29kg @ 33.20mm
    • Seat pressure at lift: 90.72kg @ 11.00mm
    • Max lift: 13.70mm
    • Supplied with 20 retainers and 8 spring seats (exhaust)
    • Reference: SPRK-AUDI18T

    SUPERTECH valve springs are made from a high grade chrome silicon vanadium steel alloy. That alloy delivers higher performance and reliability, above all at high revs, and it has a better structural memory. SUPERTECH performance valve springs are computer designed so that harmonics stay under control and stress levels stay within the material fatigue diagrams.

    SUPERTECH retainers are made from a titanium alloy and CNC machined for the best possible fit.



    Technical specification FERREA

    • Spring type: single at the intake / dual at the exhaust
    • Outer diameter of the single spring (intake): 21.50mm
    • Inner diameter of the single spring (intake): 15.10mm
    • Outer diameter of the inner spring (exhaust): 22.75mm
    • Inner diameter of the inner spring (exhaust): 17.10mm
    • Outer diameter of the outer spring (exhaust): 29.50mm
    • Inner diameter of the outer spring (exhaust): 22.75mm
    • Seat pressure / installed length: 29.48kg @ 37.95mm (intake) / 36.29kg @ 34.35mm (exhaust)
    • Seat pressure at lift: 65.77kg @ 27.95mm (intake) / 81.65kg @ 24.35mm (exhaust)
    • Max lift: 11.00mm (intake) / 12.00mm (exhaust)
    • Supplied with 20 retainers and 20 spring seats (exhaust)
    • Reference: KT4040

    As with SUPERTECH, FERREA performance valve springs are made from chrome vanadium steel and are heat treated. These FERREA springs are developed so that harmonics and fatigue at high revs stay under control, which keeps the springs from going into resonance; they bring stability and reduce wear on the cylinder head components. Their design also limits pressure loss.

    CNC machined, FERREA retainers are made from titanium.
