SUPERTECH exhaust valve stem seals VAG 1.8T 20V, 1.8 2.0 TFSI EA113 Gen.1/Gen.2 EA888 Gen.1/Gen.2/Gen.3

Audi, Volkswagen, Seat, Skoda and KTM engines concerned

This set suits the exhaust side of two families of VAG turbo four-cylinders with a 6 mm stem. First the 1.8T 20V, with five valves per cylinder, found in the Audi A3 8L, A4 B5, B6 and B7, A6 C5 and TT 8N, the Volkswagen Golf IV, Bora, New Beetle, Passat B5 and Polo IV, the Seat Leon 1M, Toledo II, Ibiza, Cordoba and Alhambra, the Skoda Octavia I and Superb I and the VW Sharan, codes AEB, AGU, AJH, AJL, AJQ, AMB, AMK, AMU, ANB, APH, APP, APU, APX, APY, AQA, AQX, ARK, ARX, ARY, ARZ, ATC, ATW, AUG, AUL, AUM, AUQ, AVC, AVJ, AWC, AWD, AWM, AWP, AWT, AWU, AWV, AWW, AYP, BAM, BBU, BEA, BEK, BEX, BFB, BFV, BJX, BKF, BKV, BLZ, BNU, BVP, BVR. Then the 16-valve 2.0 TFSI and 1.8 TFSI EA113 and EA888, codes AXX, BWA, BPY, BYD, BHZ, BUL, BYT, BZB, CABA, CABB, CAEA, CAEB, CAWA, CAWB, CBFA, CCTA, CCTB, CCZA, CCZB, CCZC, CCZD, CDAA, CDAB, CDHA, CDHB, CDLA, CDLB, CDLC, CDLF, CDLG, CDLH, CDLJ, CDLK, CDNB, CDNC, CDND, CESA, CETA, CFKA, CHHA, CHHB, CJXA, CJXB, CJXC, CJXD, CJXE, CJXF, CJXG, CJXH, CNTC, CULC, CYFB, DJHA.

All these heads carry 8 exhaust valves, two per cylinder. The original seal caps the guide and meters the stem oil; Volkswagen supplies it as 036 109 675 A, 20 per 1.8T 20V engine and 16 per 2.0 TFSI, some versions taking 057 109 675, the same seal being used on the intake.

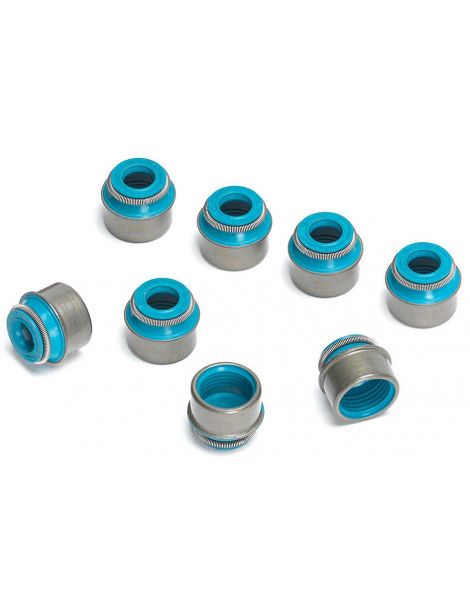

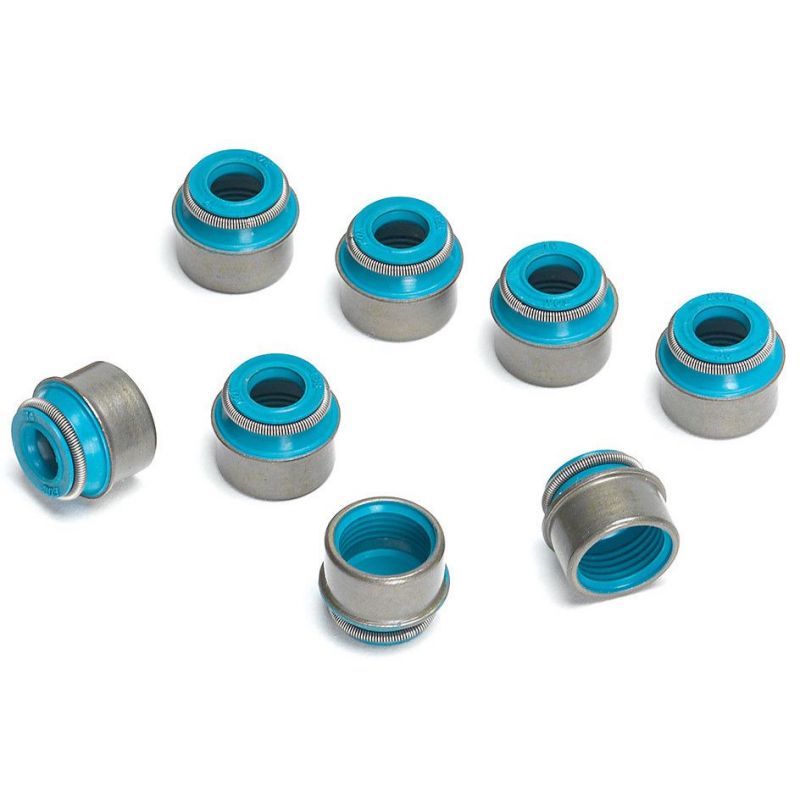

SUPERTECH exhaust valve stem seals

Fitted on the exhaust, this seal sits next to the valve that takes the most heat. Once it goes hard or splits, it can no longer stop the oil: it runs along the stem to burn in the chamber, so the level drops, blue smoke appears and carbon builds up on valve heads and in the port. A fine oil film must still get through, or stem and guide would wear.

For the exhaust, SUPERTECH moulds its seals from Viton (FKM), a compound for high heat picked because it lasts against the warmth radiated by these valves: according to the brand, this material lets them face higher temperatures, up to 204 °C (400 °F) continuous. Their seat is an 8.8 mm outside diameter guide, the stem measuring 6 mm. With 8 pieces, the set fits the whole exhaust of the head; polyacrylate (ACM) intake seals come as a separate set.

Stem seal technical specifications

Stem seal installation

Technical guide

The brand offered

Born in San Jose, in California's Silicon Valley, SUPERTECH has designed racing valvetrain parts for over 30 years. Every new part goes through finite element calculation, then a trial by renowned engine builders, from drag strip to rally stage and track.

Why two different materials?

Both seals have identical dimensions; what separates them is heat, as the exhaust side gets far hotter. So SUPERTECH reserves the tougher Viton (FKM) for the exhaust (VS-VBM6-E) and fits polyacrylate (ACM) at the intake (VS-VBM6-I). These heads need 8 per side.

When valve stem seals must be replaced

• Blue smoke, oil used up fast
• Valves pulled, head being rebuilt
• New valve guides installed
• Uprated springs or valves going in

Vehicle compatibility

Audi

Seat

Skoda

Volkswagen

KTM

OEM part number (VAG exhaust stem seal): 036 109 675 A ; 057 109 675

Remember the inlet valve stem seals

Change the intake seals during the same job too, as they share this head. Here are the SUPERTECH intake seals for the 1.8T 20V:
