Reduced price! Soupapes échappement renforcées SUPERTECH / FERREA VAG 1.8T 20V View larger

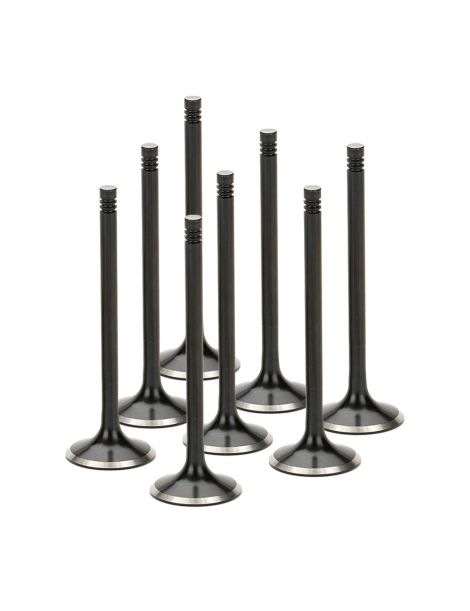

Performance exhaust valves, set of 12, VAG 1.8T 20V

New product

Set of 12 SUPERTECH/FERREA performance exhaust valves for 1.8T 20V engines: AEB, AGU, AJL, AJQ, AMK, ANB, APH, APP, APU, APX, APY, AQA, AQX, ARK, ARX, ARY, ARZ, AUL, AUM, AUQ, AVC, AVJ, AWP, AWT, AWU, AWV, AYP, BAM, BBU, BEX, BFB

  • AUDI A3 S3 8L
  • AUDI A4 B5 B6 B7
  • AUDI TT 8N
  • SEAT Cordoba / Cupra 6K
  • SEAT Ibiza Cupra / Cupra R 6K 6L
  • SEAT Leon / Cupra R 1M
  • VW Golf 4 / GTI
  • VW Polo GTI Cup Edition
  • ...

More details

232,99 € tax incl.

-20%

291,24 € tax incl.

IN STOCK

Stock NSB France : 4 Items

  • The kits of 12 reinforced exhaust valves from SUPERTECH and FERREA for 1.8T 20V engines consist of 12 valves.

    Find below (click on the images) the accessories for the 1.8T 20V engine:


    Technical specification

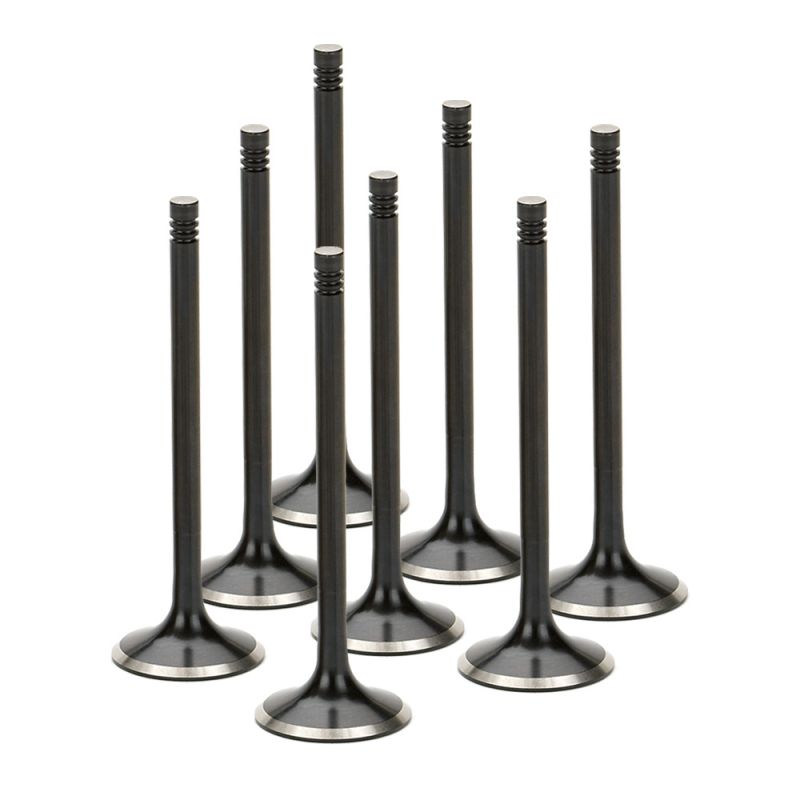

    • Head diameter: 29.90mm (OEM) or 30.90mm (+1mm)
    • Stem diameter: 5.94mm
    • Valve length: 103.90mm
    • Materials: stainless steel or Inconel or sodium Inconel
    • Number of groove(s): 1 or 3
    • References: AEVI-1103 AEVI-1106

    SUPERTECH valves are made from a forged blank that is then CNC machined for optimal precision. They then receive a heat treatment (which varies according to the valve's application) and are ground again (super-finishing process). SUPERTECH valves are checked by various means such as ultrasound, X-rays, laser measurement...

    For more than three decades, SUPERTECH has strived to find the most suitable materials for each valve and each application in order to increase reliability. There are therefore different valve materials such as stainless steel, Inconel, titanium, sodium (the latter is present in the valve stem and allows better heat dissipation).

    Technical specification Ferrea.jpg

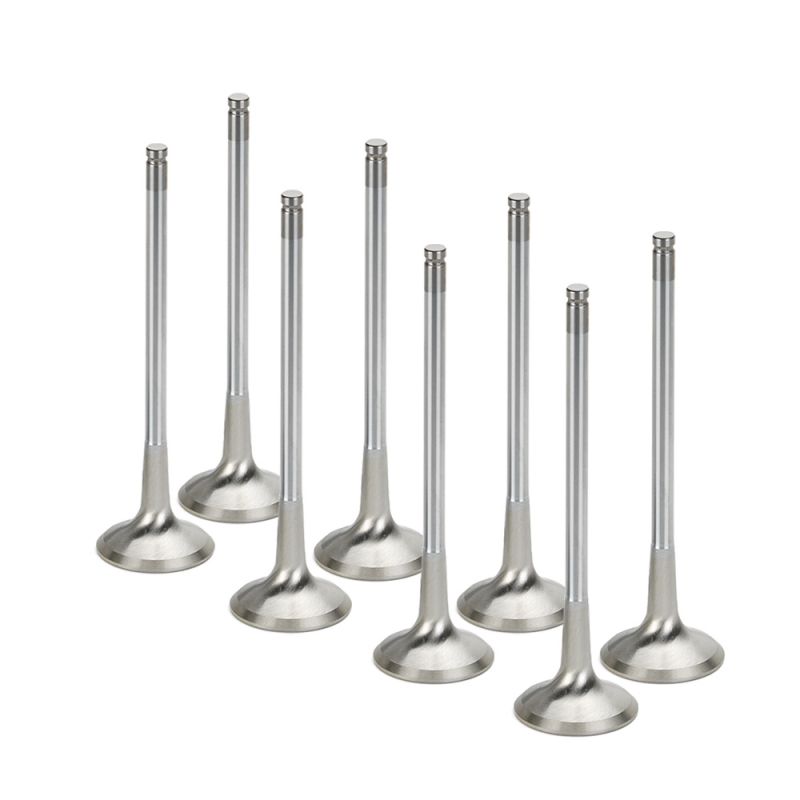

    • Head diameter: 29.90mm (OEM) or 30.90mm (+1mm)
    • Stem diameter: 5.96mm
    • Valve length: 103.92mm
    • Materials: stainless steel
    • Number of grooves: 3
    • References: F1554P F1555P

    The manufacturing processes of FERREA Racing Components valves are similar to those of SUPERTECH: slow two-stage forging, heat treatment and stress relieving over 48 hours, and CNC machining. These valves are designed to achieve better reliability in all circumstances but also to improve flow with a thinner stem at the valve head (Superflow Valve). FERREA develops different ranges/materials of valves to respond as closely as possible to the constraints of each engine and each application (naturally aspirated, turbo or nitrous applications).
