Mechanical tappets VAG 1.8T 20V

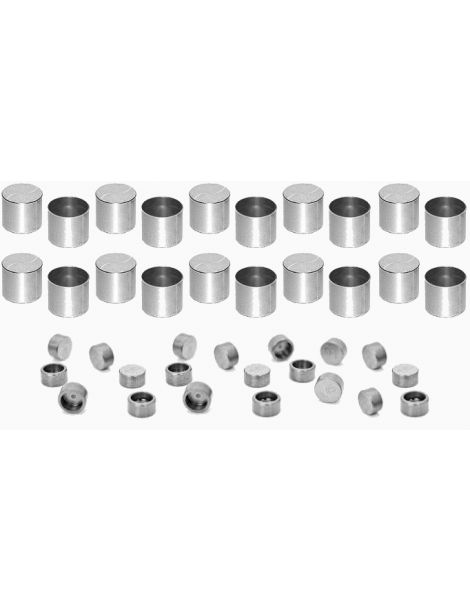

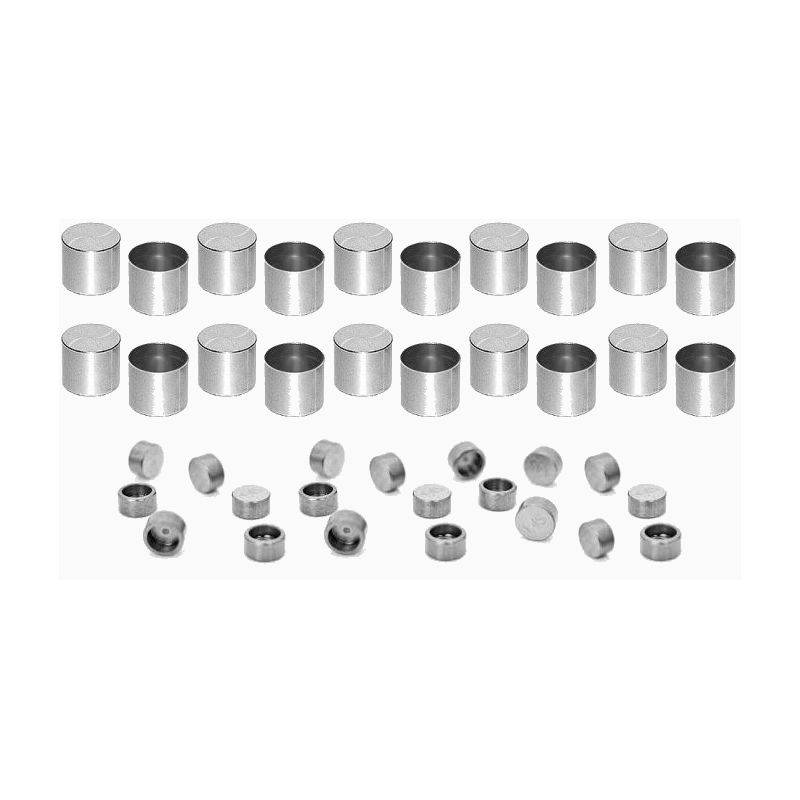

This mechanical tappets kit for VAG 1.8T 20V engine is made up of12 Mechanical tappets Catcams CC016, 8 Mechanical tappets Catcams CC019 and 20 tablets CATCAMS TS101.

After placing your order, we will send you an e-mail to find out the thickness of the tablets you want.

Mechanical tappets Catcams CC016:

• Outer diameter: 23.97mm
• Inner diameter: 22.10mm
• Contact surface diameter with pad: 6.00mm
• Total exterior height: 24.20mm
• Interior height (between contactACT Camshaft/Tappet and contactACT Tappet/pellet): 15.00mm
• Thickness (between CONTACT Camshaft/Tappet and the hollow of the Tappet): 2.5mm
• Weight: 25grs

Mechanical tappets Catcams CC019:

• Outer diameter: 33.47mm
• Inner diameter: 31.60mm
• Contact surface diameter with the pad: 7.00mm
• Total exterior height: 26.00mm
• Interior height (between contactACT Camshaft/Tappet and contactACT Tappet/pellet): 15.00mm
• Thickness (between CONTACT Camshaft/Tappet and the hollow of the Tappet): 2.9mm
• Weight: 45 grams

Catcams TS101 pellets for Valve stem diameter 6mm:

• Thickness: according to your needs
• Outer diameter: 9mm
