Reduced price! NISSAN référence R-NIS-006-I Kit 6 bielles forgées en I ZRP avec vis ARP View larger

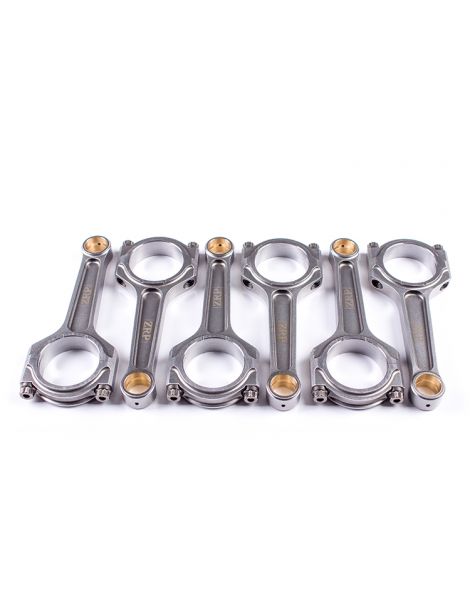

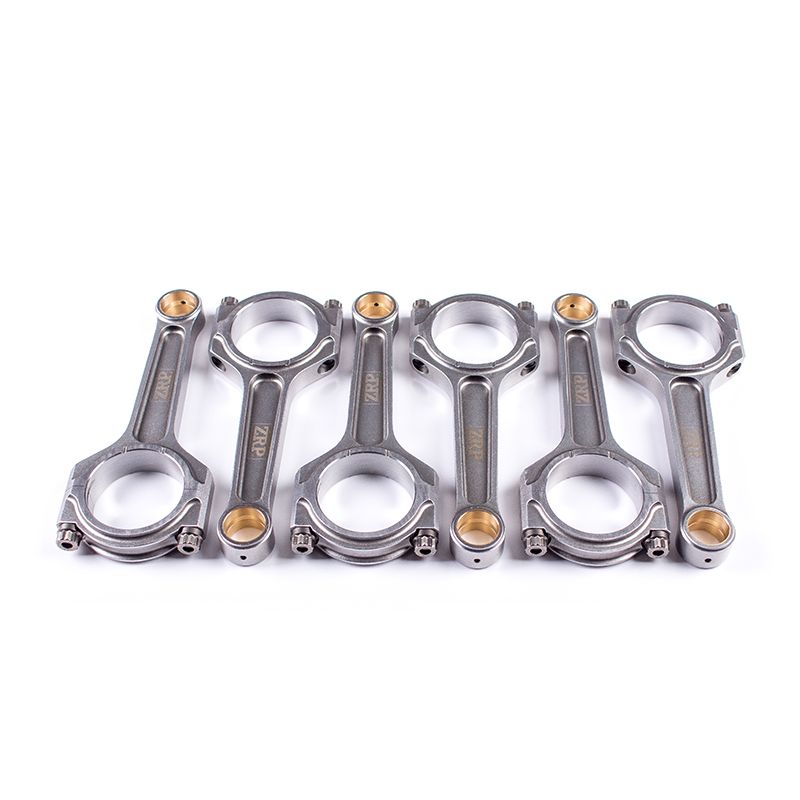

ZRP Heavy Duty I-Forged Connecting Rods NISSAN GT-R R35 VR38DETT

R-NIS-006-I (147947)

New product

High-quality ZRP Heavy Duty I-Forged Connecting Rods NISSAN GT-R R35 VR38DETT (ZRP Heavy Duty I-Forged Connecting Rods NISSAN GT-R) for reliable fitment and performance.

More details

856,80 € tax incl.

-30%

1 224,00 € tax incl.

  • The ZRP brand is the subsidiary of DRAKOS ENGEERING renowned for its eXperience in high-performance mechanical part designs. ZRP specializes exclusively in forged engine parts and has designed Connecting rods forged in 4340 High Tensile Steel for your NISSAN GT-R R35 3.8 24V VR38DETT to accept high boosts on your VR38DETT engine and ARP2000 Rod bolts for significant increases in engine speed.

    The head of the ZRP forged Connecting rods for NISSAN GT-R R35 3.8 24V VR38DETT is equipped with a ring machined from hot extruded cuPro-aluminum alloy patented AMPCO 18 before being ground to ensure maintenance of the oil film with your Piston pin / Gudgeon pin.

    This Connecting rod is reinforced which allows it to withstand an increase in engine compression rates.

    The design of this ZRP forged I-shaped Connecting rod for NISSAN GT-R R35 3.8 VR38DETT gives it exceptional resistance to significant increases in power and torque through high boost pressures, as well as to extreme uses as we encounter with our customers whom we equip for their preparation for forged Drift engines and forged Run Dragster engines.

    Features:

    • Input Pin: 165.00mm
    • Foot diameter: 59.00mm
    • Foot width: 22.80mm
    • Piston pin / Gudgeon pin diameter: 23.00mm
    • Rod bolts supplied: ARP2000
    • Thread of screws provided: 3/8"
    • Weight: 743gr
    • Maximum admissible power: 1200hp

    Lexicon:

    1)Small End
    2) Foot diameter
    3) Connecting rod CoRPS
    4) Rod bolt
    5) Big End
    6) Nut
    7) Connecting rod cap
    8) Head diameter
    9) EntrPin

    When you upgrade your VR38DETT engine to a forged engine, it is recommended to mount forged Connecting rods with tri-metal Connecting rod bearings, in addition to replacing your original Pistons with forged Pistons.

    Find the Forged Pistons for your NISSAN GT-R R35 3.8 24V VR38DETT (if your engine has more than 50,000km, it is recommended to take an extra cost and carry out a repair of the cylinders followed by honing of the barrels):

    Forged pistons

    Find the Connecting rods Bearings for your ZRP forged Connecting rods for your NISSAN GT-R R35 3.8 24V VR38DETT:

    BearingS of Connecting rodS

    Find this kit with reinforced rod bolts ARP L19 and ARP 625+ for your NISSAN GT-R R35 3.8 24V VR38DETT:

    Connecting rodS ForgeES ZRP WITH SCREWS ARP L19 OR 625+

Pack content
