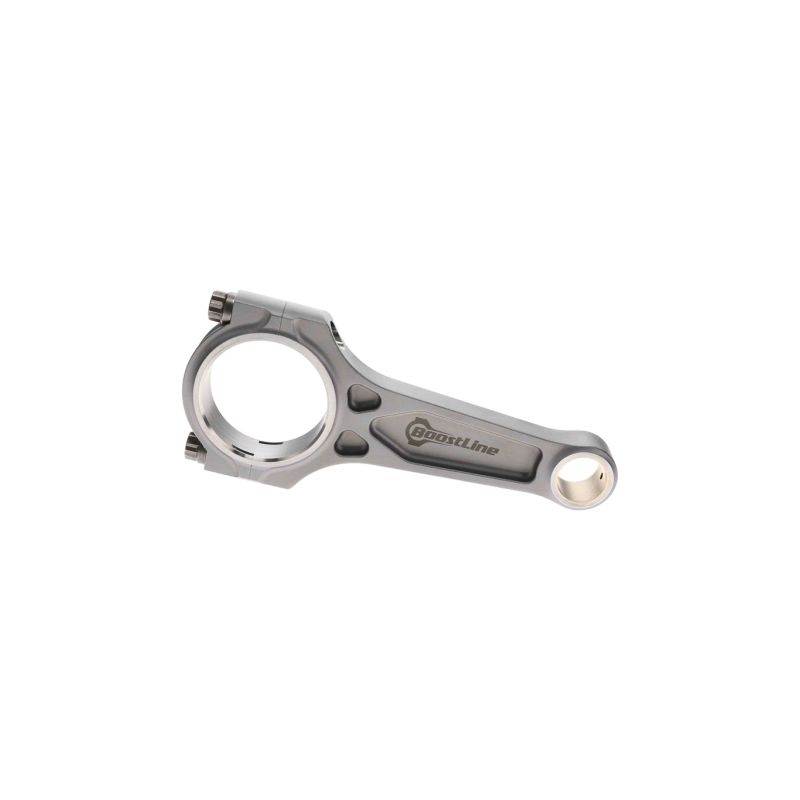

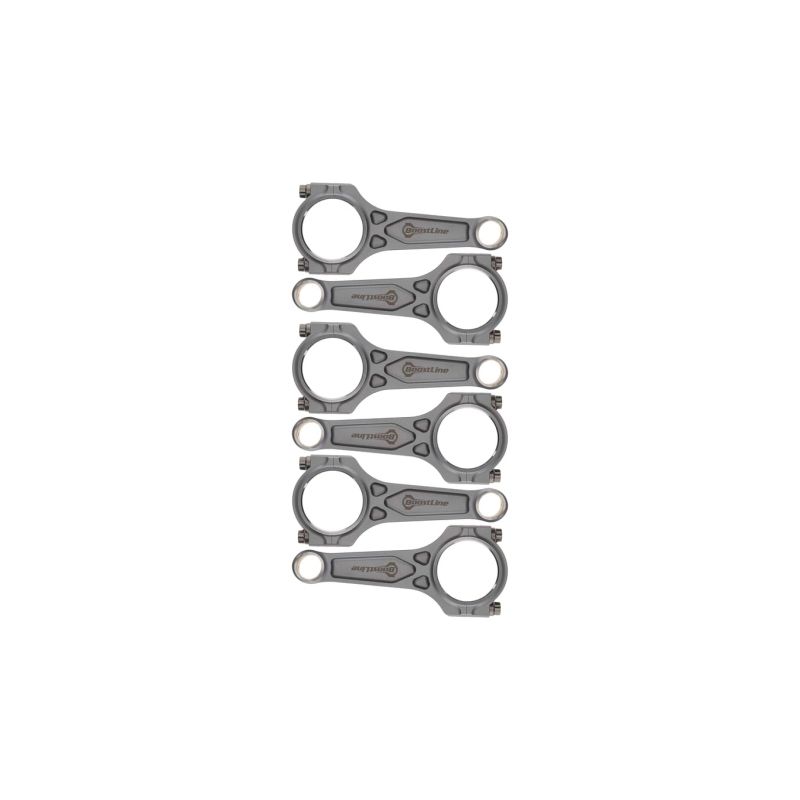

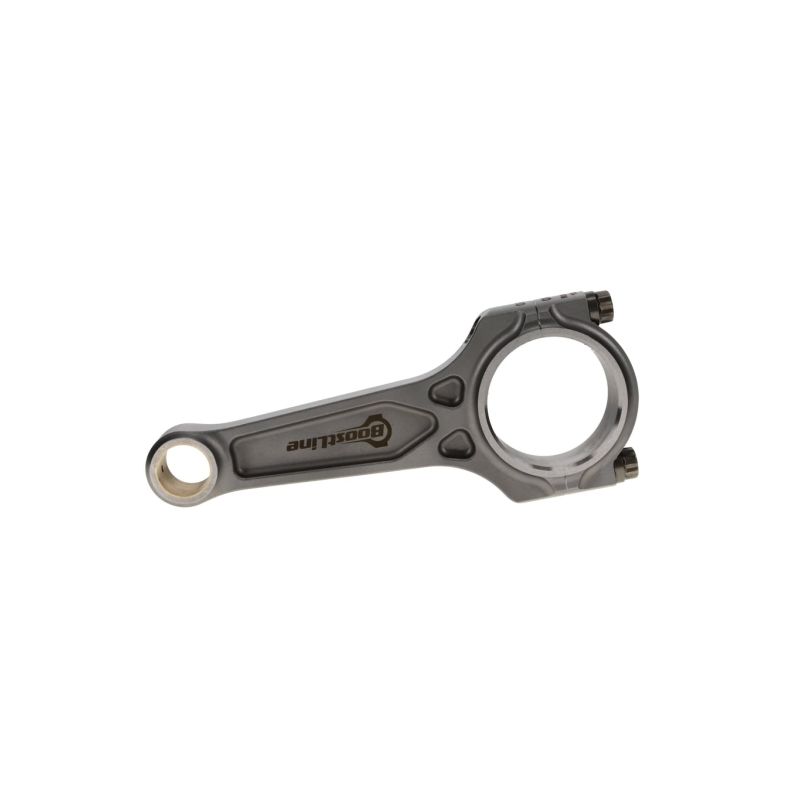

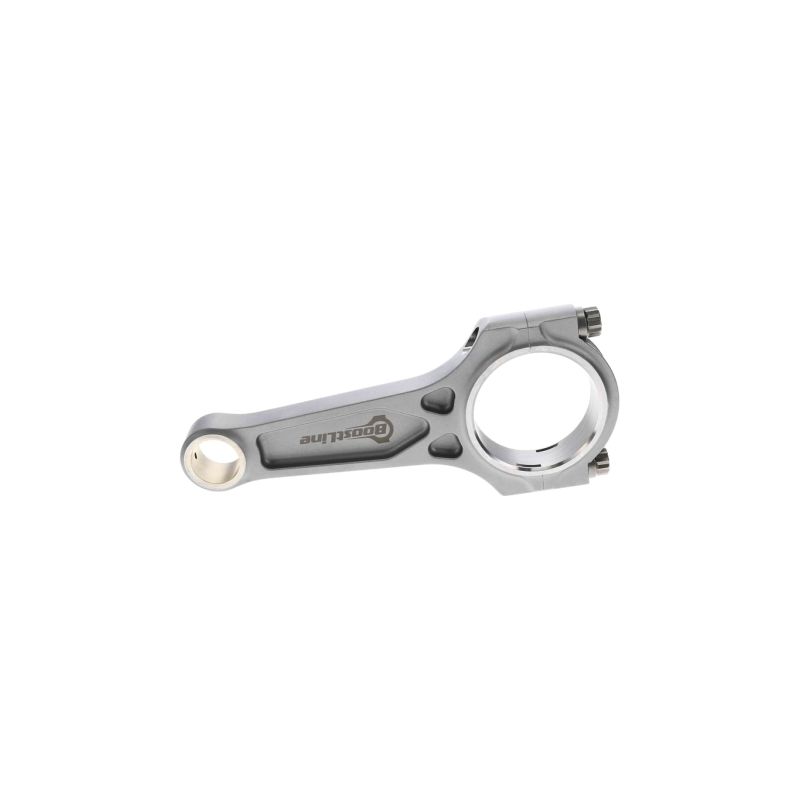

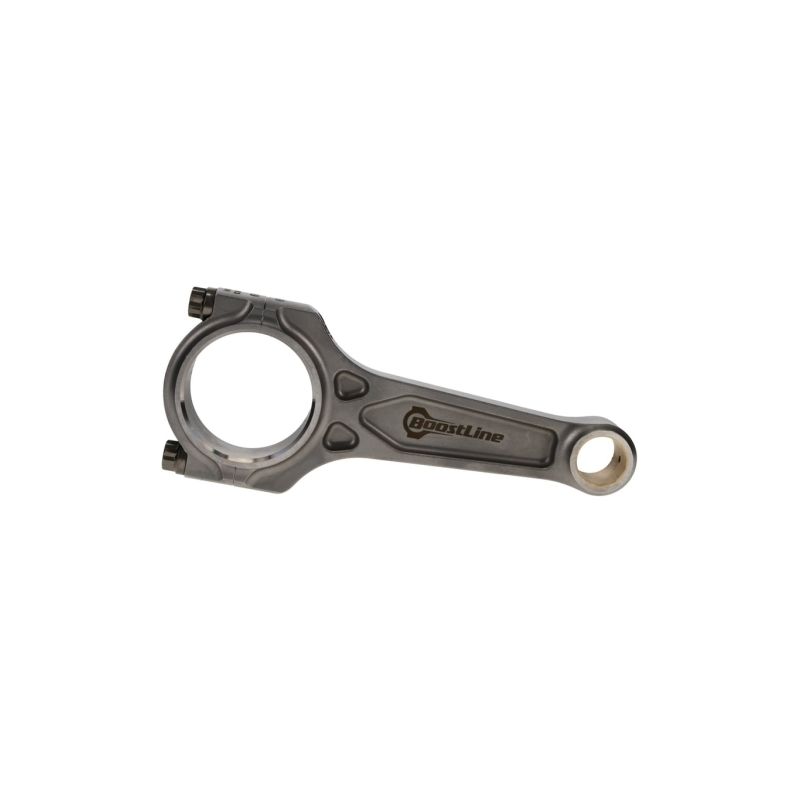

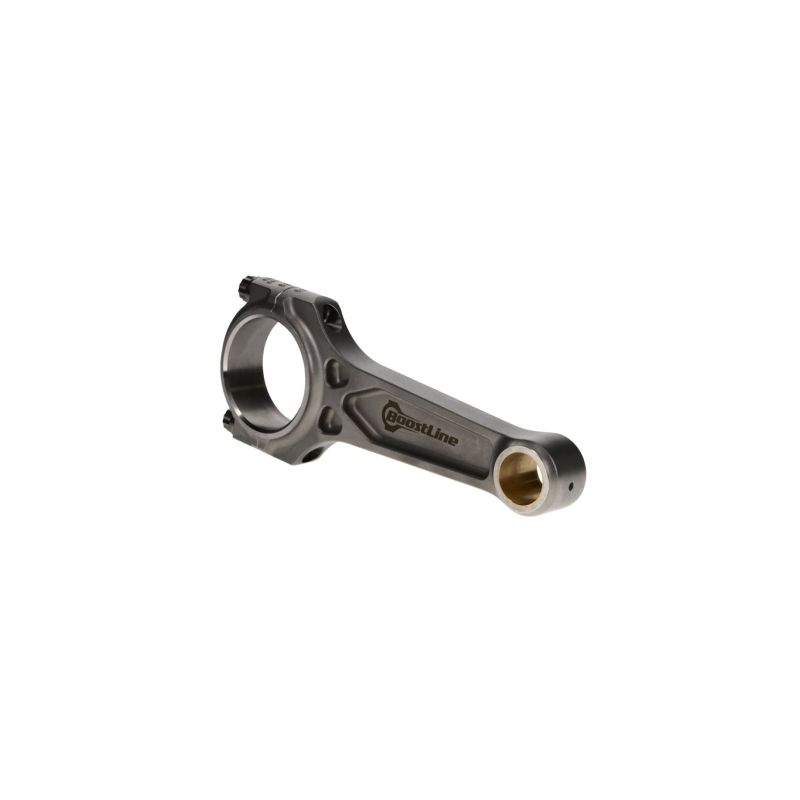

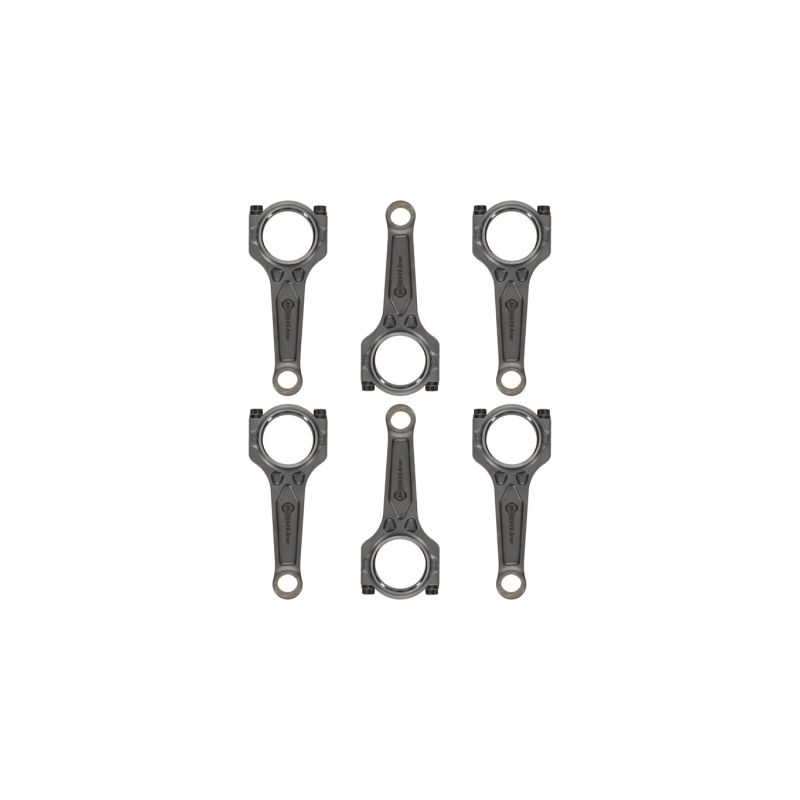

Set of 6 forged 4340-steel connecting rods for BMW 3.2L 24V S54B32.
The S54B32 is the last naturally aspirated straight-six developed by BMW's M division. This 3,246 cc unit (87 mm bore, 91 mm stroke), with double overhead camshafts and 24 valves, combines six individual throttle bodies and the double-VANOS system to deliver 343 hp at 7,900 rpm, with a redline close to 8,000 rpm. Its specific output is around 105 hp per litre, a benchmark for a production naturally aspirated engine. Built from 2000 to 2008, it powers the M3 (E46), the M3 CSL (360 hp), the Z3 M and the Z4 M.
Built around a forged crankshaft and a high-rigidity block, the S54B32 revs very high and withstands heavy mechanical loads. Under tuning, sustained high-rpm use, increased cylinder pressure or a forced-induction conversion, the rotating assembly becomes the decisive link. Forged 4340-steel connecting rods then provide the strength margin needed to fully exploit the engine's potential in high-performance and competition use.

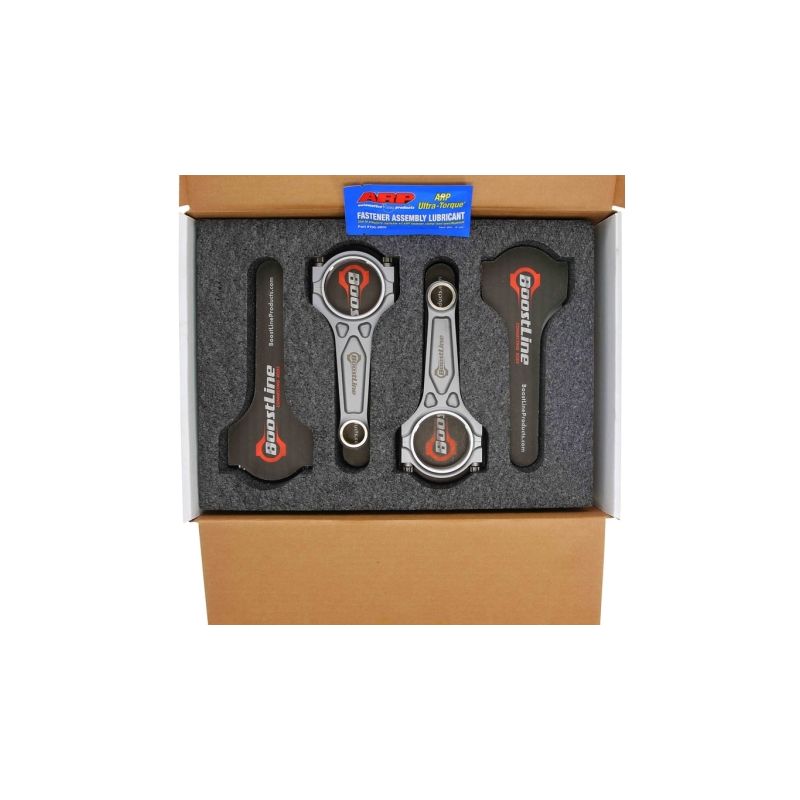

A forged connecting rod is shaped by compressing a billet of steel heated to high temperature: the metal grain follows the part's geometry, producing a dense, homogeneous rod free of porosity, far more durable than a cast or sintered rod. Precision-machined, shot-peened and balanced, the rods offered here ship as a complete set, ready to fit, with ARP hardware included. They push back the limits of engine speed and cylinder pressure while securing bottom-end reliability.
| Reference | Brand | Profile | Hardware | Pin diameter OEM 21 mm | Small-end width | Big-end diameter OEM 53 mm | Big-end width | Center-to-center OEM 139 mm | Weight per rod |
|---|---|---|---|---|---|---|---|---|---|
| BM5472-827 | Boostline | I-3P | ARP 2000-3/8"-38mm | 21 | 20 | 53 | 19.9 | 139 | 593 g |
| BM5472-827+ | Boostline | I-3P | ARP CA625+-3/8"-38mm | 21 | 20 | 53 | 19.9 | 139 | 595 g |
| R-BMW-012-I | ZRP | I | ARP 2000-3/8"-38mm | 21 | 53 | 19.9 | 139 | 502 g | |
| R-BMW-012-I-L19 | ZRP | I | ARP L19-3/8"-38mm | 21 | 53 | 19.9 | 139 | 502 g |
| Rod | Hardware | Max. torque (without gauge) | Expected stretch (with gauge) |
|---|---|---|---|
| Boostline (BM5472-827) | ARP 2000 | 75 N·m | 0.130 to 0.140 mm |
| Boostline (BM5472-827+) | ARP CA625+ | 115 N·m | 0.170 to 0.180 mm |
| ZRP (R-BMW-012-I) | ARP 2000 | 61 N·m | 0.140 to 0.152 mm |
| ZRP (R-BMW-012-I-L19) | ARP L19 | 67,8 N·m | 0.152 to 0.165 mm |
Manufacturers recommend the stretch-gauge method as the reference: the instructions supplied with the kit always prevail. The torque figures assume assembly with ARP lubricant.
|
 | I-Beam : a slim, ribbed beam optimised for low weight and high-rpm response. This is the profile chosen by ZRP for this kit. |

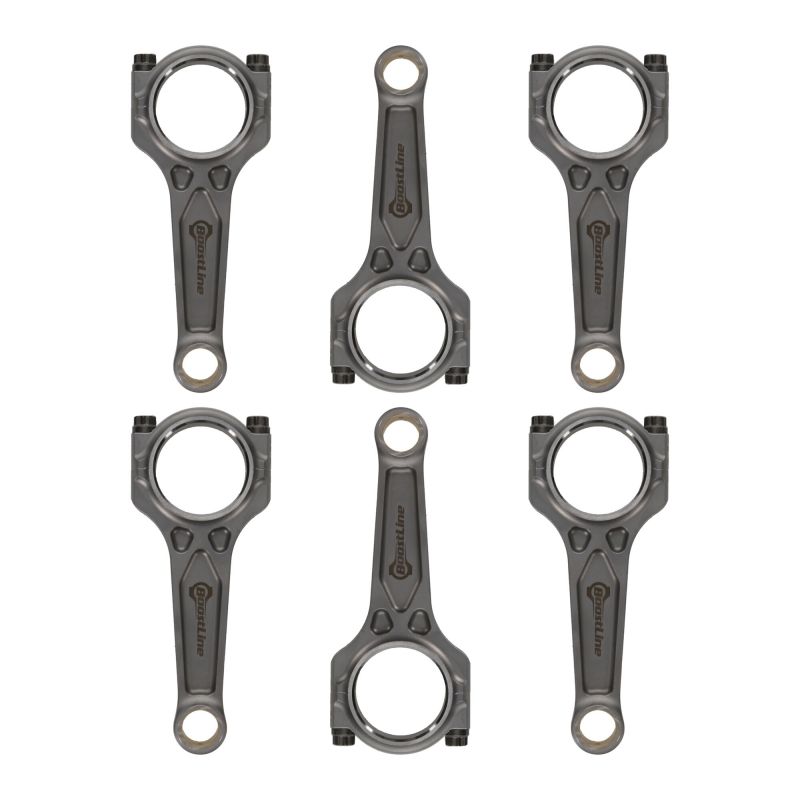

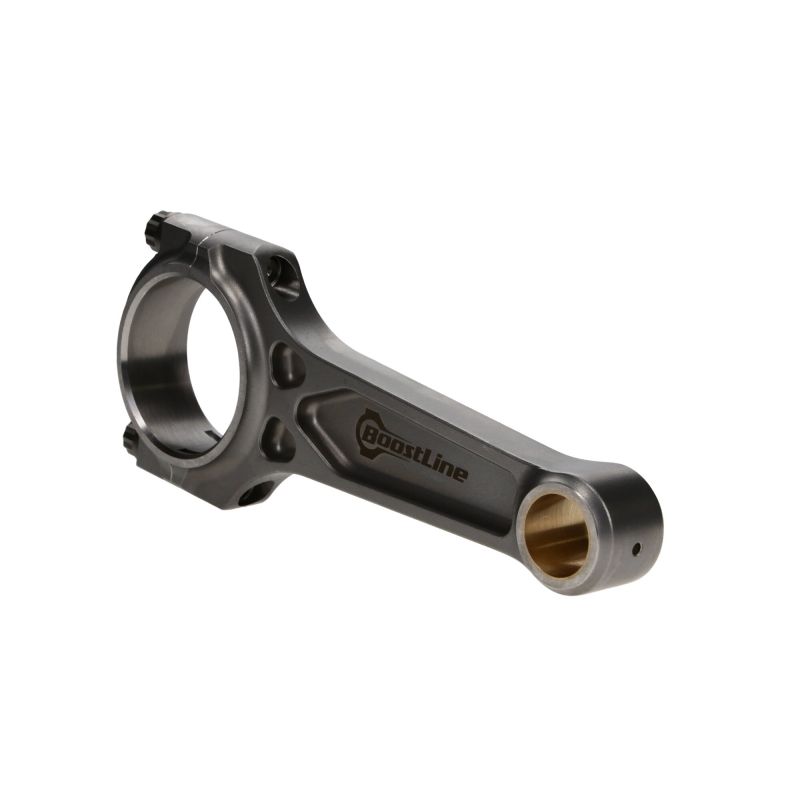

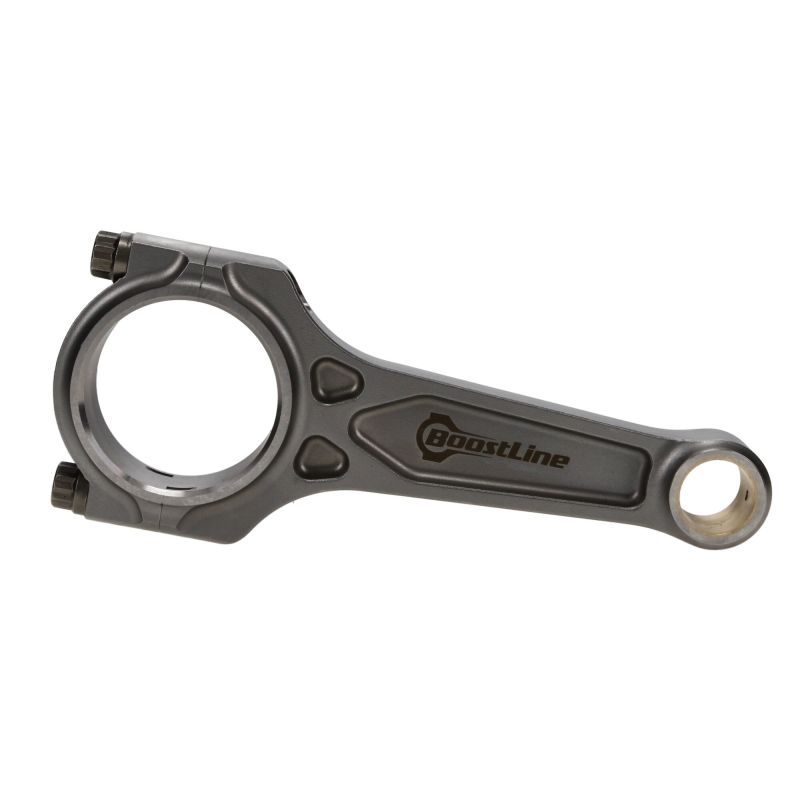

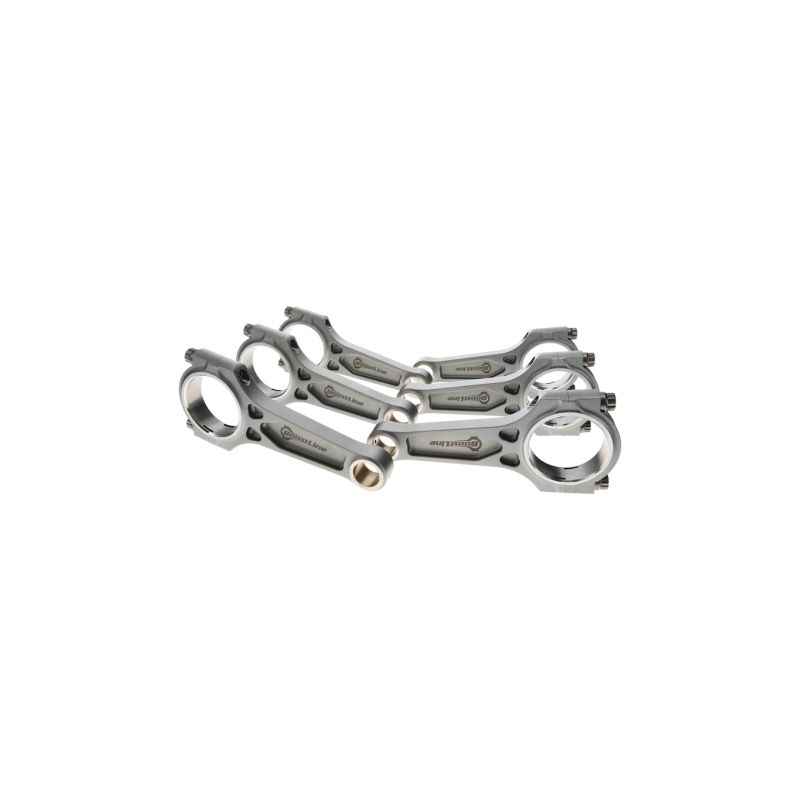

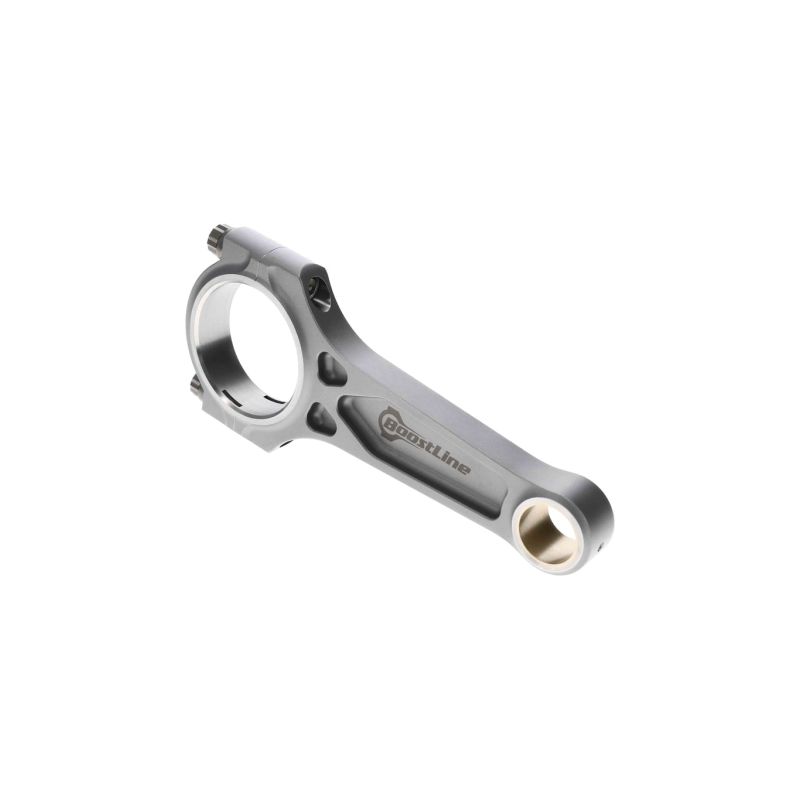

 | I-3P profile (Boostline): an I-beam optimised with three machined faces, stiffening the rod beam without adding weight. A trade-off tailored for high power. |
 | ARP 2000 : high-performance hardware with no storage constraints. It covers up to 200 hp per cylinder in 3/8" and a maximum of 8,500 rpm. A robust, versatile choice for track, trackday, drift, rally, drag and hillclimb. |
 | ARP L19 : designed for engines pushed to the extreme (high boost pressure, sustained high rpm, high cylinder pressure). It handles up to 250 hp per cylinder in 3/8" and 10,000 rpm. Sensitive to corrosion and hydrogen embrittlement, it must be stored and fitted oiled. The choice for big-power builds: drag, drift, rally and track. |
 | ARP Custom Age 625+ : a premium alloy, beyond 250 hp per cylinder in 3/8" and 10,000 rpm. Immune to hydrogen, it offers the best corrosion and oxidation resistance, with no storage constraints. |
| Measuring bolt stretch is the most reliable way to guarantee correct preload, as it is unaffected by thread friction. A dedicated dial gauge fits onto the bolt and reads its actual elongation: tighten until you reach the stretch value recommended by the manufacturer. |

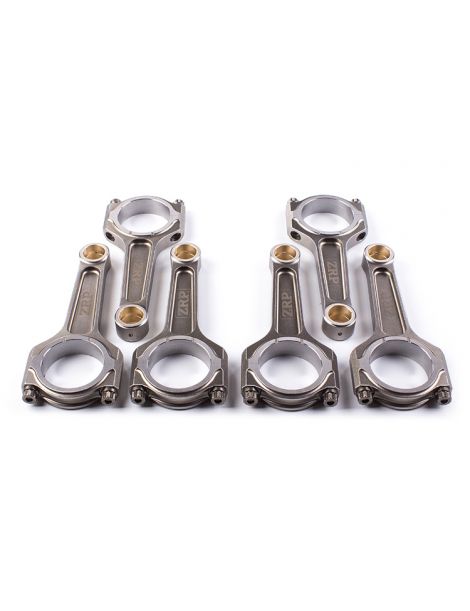

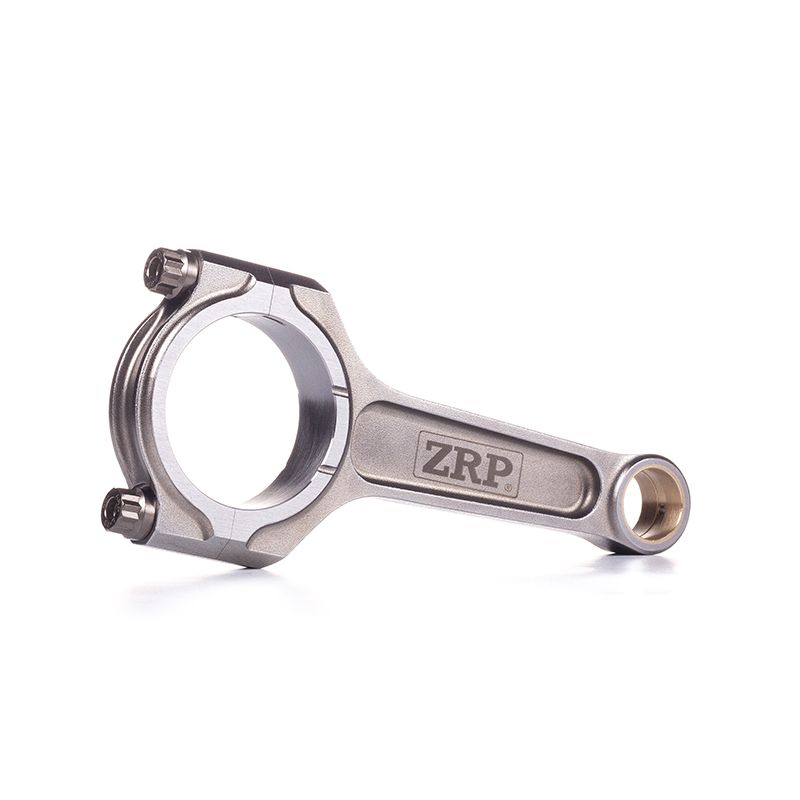

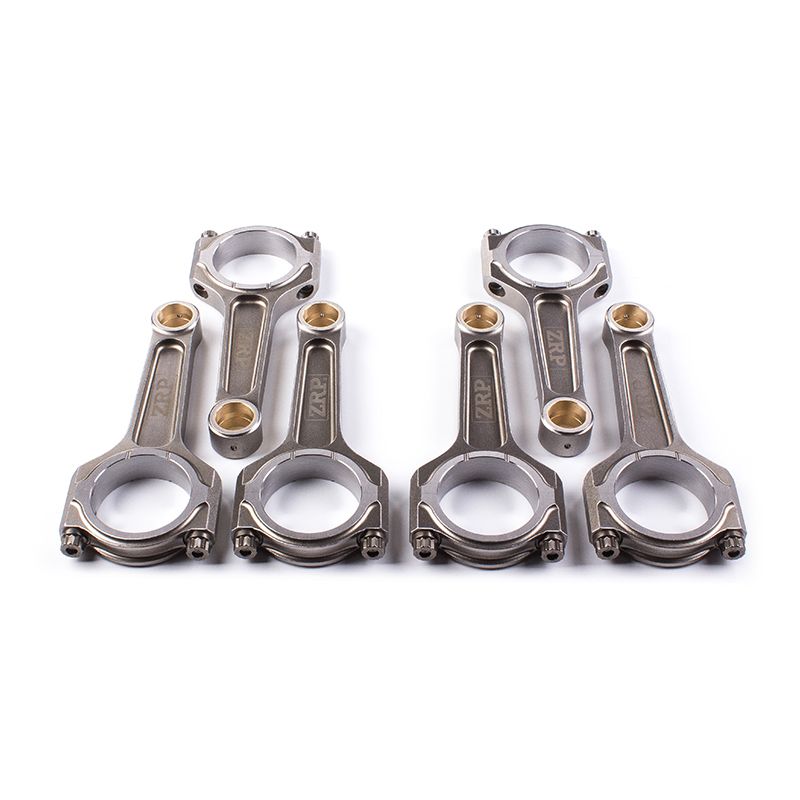

 | ZRP, a Greek brand of high-performance forged connecting rods, designed by Alex Drakos in Athens. Each rod is forged from 4340 steel, precision-machined and balanced to ±1 g to stay reliable at high rpm. Available in I-beam or H-beam profile with ARP 2000, L19 or Custom Age 625+ bolts, they are designed and inspected in Greece, and proven in rally, on circuit and in drift. |
 | 1) Small end 2) Small-end diameter 3) Rod beam 4) Rod bolt 5) Big end 6) Rod nut / bolt 7) Rod cap 8) Big-end diameter 9) Center-to-center |
| Brand | Model (chassis) | Engine code | Power | Years |
|---|---|---|---|---|
| BMW | M3 (E46) | S54B32 | 343 hp | 2000–2006 |
| BMW | M3 CSL (E46) | S54B32 | 360 hp | 2003 |
| BMW | Z3 M (E36/7–E36/8) | S54B32 | 325 hp | 2001–2003 |
| BMW | Z4 M (E85–E86) | S54B32 | 343 hp | 2006–2008 |
OEM reference: 11 24 7 834 437
Rebuilding the bottom end of an S54B32 is a significant investment in parts and labour. Fitting forged rods when the engine is already open avoids a second job: you secure the rotating assembly once and for all, protect the crankshaft and the block, and safeguard the money already spent. It's the assurance of an engine able to handle the intended build without a return to the workshop.
