3.0L 24v - S50B30
Manufacturers
3.0L 24v - S50B30
Warning: Last items in stock!
New product

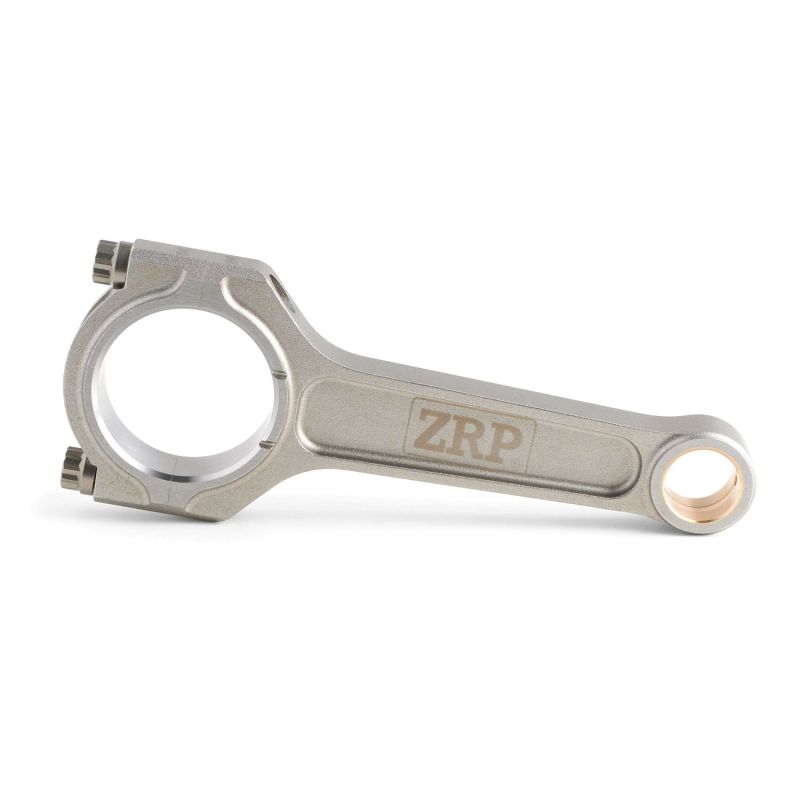

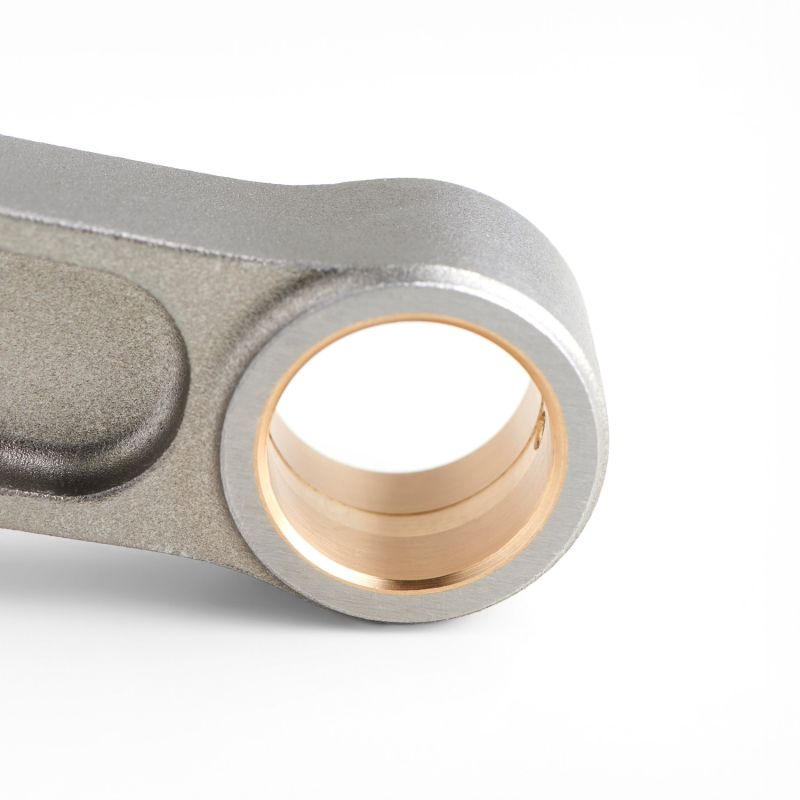

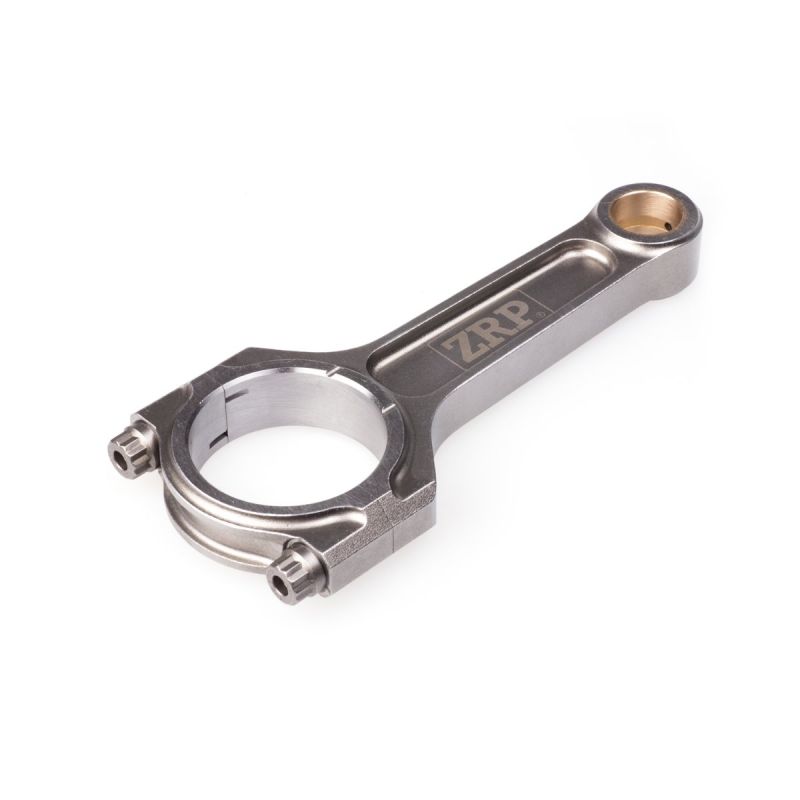

Set of 6 forged 4340 steel connecting rods for BMW M3 E36 3.0L 24V S50B30.
The BMW S50B30 opened the line of M engines built for the M3 in 1992, on the E36 body. This naturally aspirated 3.0-litre straight-six displaces 2,990 cc with an 86 mm bore and an 85.8 mm stroke, an almost square layout that allows high engine speeds without giving up torque. A 24-valve head, intake VANOS and in-house engine management give 286 hp at 7,000 rpm and 320 Nm. It was the first BMW production engine to pass the symbolic 95 hp per litre mark, and it left a lasting mark on the brand.
Built until 1995, when the S50B32 took over, this engine is still widely used in club motorsport for its flexibility and its appetite for revs. Its standard connecting rods, however, are sized for factory output: raising the limiter, reworking intake and exhaust, adding forced induction or running repeated track days moves the stress onto the bottom end. A set of forged 4340 steel rods, combined with forged pistons, gives the bottom end the margin it lacks.
Forged and then machined from heat-treated 4340 steel, these rods replace mass-production parts designed above all for road use. Forging aligns the metal grain with the load path, which clearly improves fatigue life, the factor that decides whether a bottom end survives hours above 7,000 rpm.
Shot-peened, individually inspected and weight-matched to ±1 g across the six rods in the set, they preserve the balance of the straight-six. They suit every discipline the M3 E36 is used in, from circuit racing and track days to hillclimb, drift, rally, drag and time attack, and they support Stage 1, Stage 2 and Stage 3 builds up to full race engines. The ARP bolts supplied lock the assembly at high rpm.
| Reference | Brand | Profile | Bolts | Pin diameter OEM 21 mm | Small-end width | Big-end diameter OEM 53 mm | Big-end width | Center-to-center OEM 142 mm | Weight per rod |
|---|---|---|---|---|---|---|---|---|---|
| R-BMW-005-I | ZRP | I | ARP 2000-3/8"-38mm | 21 | 53 | 21.9 | 142 | 522 | |
| R-BMW-005-I-L19 | ZRP | I | ARP L19-3/8"-38mm | 21 | 53 | 21.9 | 142 | 522 |
| Rod | Bolts | Torque | Recommended stretch |
|---|---|---|---|
| ZRP (R-BMW-005-I) | ARP 2000 | 61 N·m | 0.140 – 0.152 mm |
| ZRP (R-BMW-005-I-L19) | ARP L19 | 67,8 N·m | 0.152 – 0.165 mm |
Tightening the rods of an S50B30 should be prepared as a batch: same operator, same tools, same lubricant, from the first cap to the last, and no interruption halfway through. What is at stake is the evenness of preload across the six rods, far more than the absolute figure shown on the wrench. The torque values and stretch ranges in the table above are the bolt manufacturer’s, one line for ARP 2000, another for ARP L19, and they apply with no transfer from one grade to the other. Because torque mixes friction and tensioning, stretch measured with a dial gauge remains the reference check: it is what certifies preload, bolt after bolt, across the engine’s twelve bolts. Cleaned threads, an even film of ARP assembly lubricant, load raised in alternating stages. The instruction sheet supplied with the kit remains the only source that decides.
| 4340 is a nickel-chromium-molybdenum steel that combines high mechanical strength with good ductility, a rare pairing. Against the factory sintered metal, it improves by about +19% in yield strength, +8% in tensile strength and +19 to +37% in fatigue endurance. In short: less deformation, better resistance to pressure peaks and a markedly longer service life in competition. |
 | I-Beam profile. Its slimmer central section lightens the part and cuts reciprocating mass: less inertia, less load on the bearings and a sharper climb through the rev range, which directly benefits a 3.0-litre naturally aspirated engine working beyond 7,000 rpm. Material is concentrated where it actually carries load, so stiffness remains well suited to track use. It is the only profile offered for this engine, and the one most in keeping with its character. |
The rod bolt is the most heavily loaded part of the assembly: on every revolution it takes the inertial force trying to pull the cap away from the rod body, and that force rises with the square of engine speed. Two ARP grades are offered on this kit; what matters is matching the grade to real use, then following the specified torque and stretch figures exactly.
 | ARP 2000: the high-performance standard, with tensile strength around 220,000 psi (about 1,517 MPa). In 3/8" it covers builds up to 200 hp per cylinder and 8,500 rpm, which leaves a comfortable margin on an S50B30, even a tuned one taken high in the rev range. It is found in circuit racing and track days, drift, rally, drag and hillclimb, chosen for its strength and versatility, with no special storage requirements. |
 | ARP L19: reserved for engines pushed to the extreme, with tensile strength around 260,000 psi (about 1,793 MPa). In 3/8" it allows up to 250 hp per cylinder and 10,000 rpm, which makes it the choice for heavily tuned, boosted or race-used S50B30 engines, where revs stay very high for long periods. The trade-off: the alloy is sensitive to corrosion and hydrogen embrittlement, and must be stored and fitted oiled, away from moisture. |
| Beyond torque tightening, measuring bolt stretch with a dial indicator remains the most reliable way to reach correct preload. The instructions supplied with the kit always take precedence. |
 | ZRP, the Greek manufacturer of high-performance forged connecting rods run by Alex Drakos in Athens. Every rod is forged from 4340 steel, precision machined and then weight-matched to preserve the balance of a straight-six. For the S50B30 the range is limited to the I-Beam profile, with ARP 2000 or ARP L19 bolts depending on the power and rpm targeted. Design, machining and inspection all take place in Greece, and the rods are proven in rally, drift and circuit racing. |
 | 1) Small end 2) Small-end diameter 3) Rod beam 4) Rod bolt 5) Big end 6) Rod nut / bolt 7) Rod cap 8) Big-end diameter 9) Center-to-center |
These forged connecting rods are compatible with the factory BMW S50B30 engine and its builds. Vehicles concerned:
| Brand | Model (chassis) | Engine code | Power | Years |
|---|---|---|---|---|
| BMW | M3 (E36) | S50B30 | 286 hp | 1992–1995 |
OEM reference: 11 24 1 402 389 (rod set).
On an S50B30, a failed rod rarely causes limited damage: a marked crankshaft, a scored bore and often a cylinder head that needs work. This engine has long been out of production: original parts are scarce, prices climb and the car stays off the road, all to end up back at the original limits.
For a comparable budget, sometimes less, a set of forged 4340 steel rods combined with forged pistons brings a far greater margin of strength, lasting fatigue life at high rpm and the freedom to develop the build without opening the bottom end again. On an M3 E36 that is now as much a collector car as a track car, it is also a way of protecting its value.
For the same budget: more reliability, more potential, more longevity.
