3.0L 24v - 2JZ-GTE
Manufacturers
3.0L 24v - 2JZ-GTE
Warning: Last items in stock!
New product

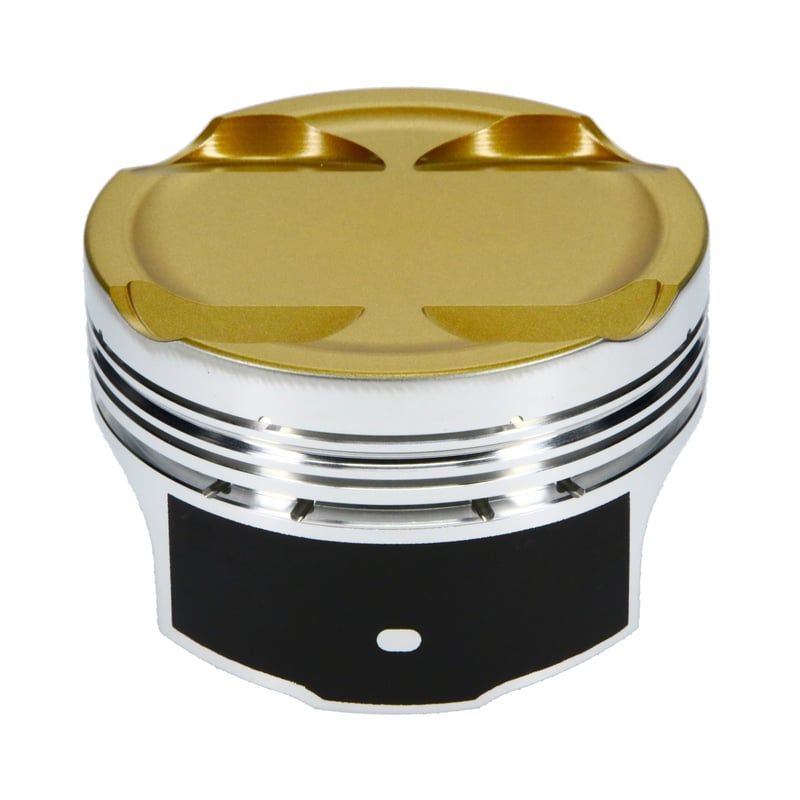

Toyota 2JZ-GTE 3.0L forged pistons: O86 mm, Pin 22 mm, CH 34.0 mm. Sorted table + compatibilities (Supra JZA80, Aristo JZS147/JZS161) and OEM references.

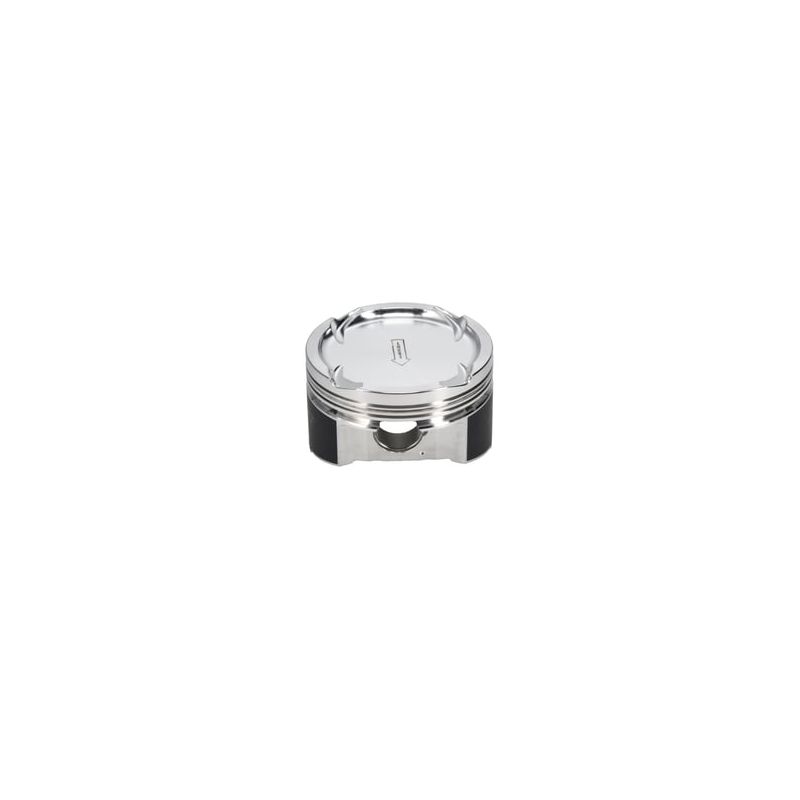

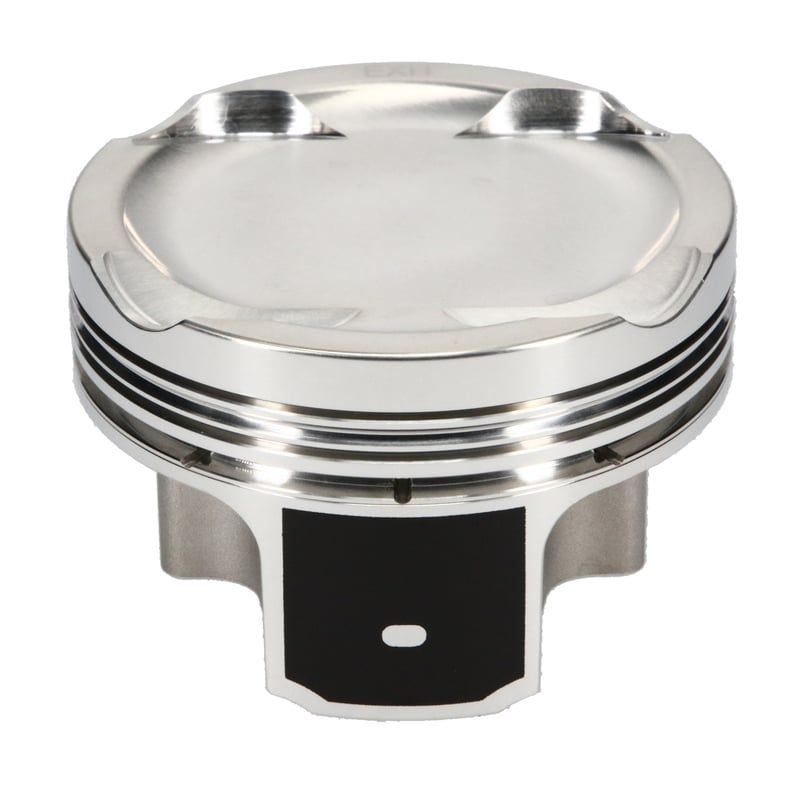

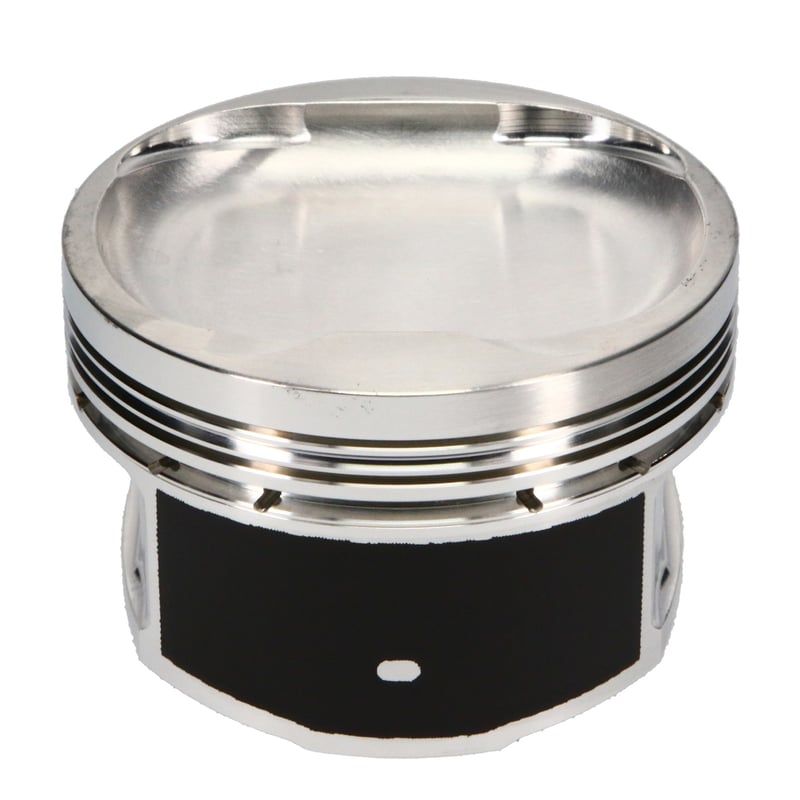

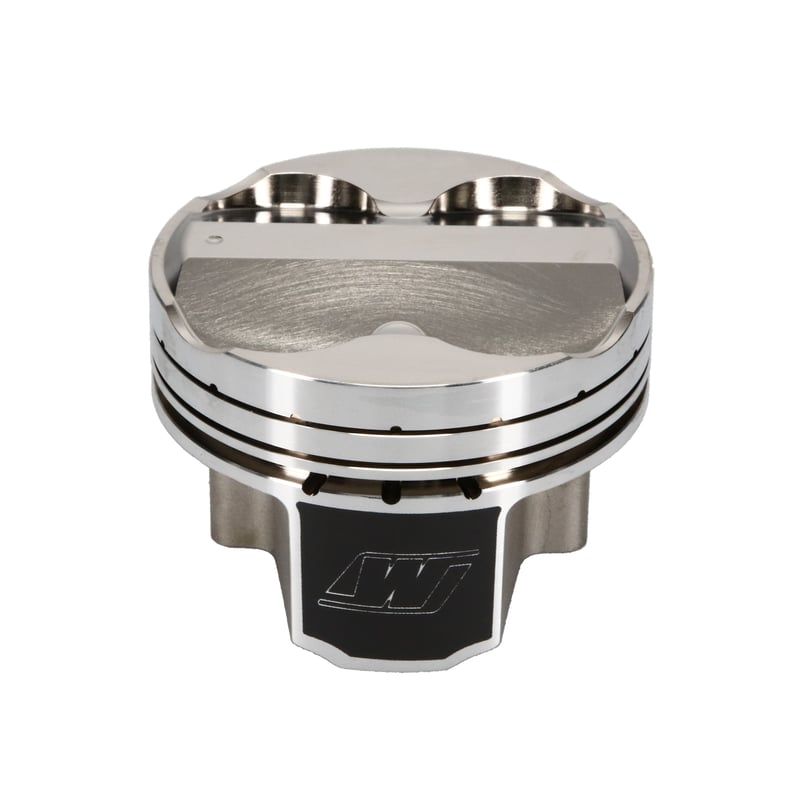

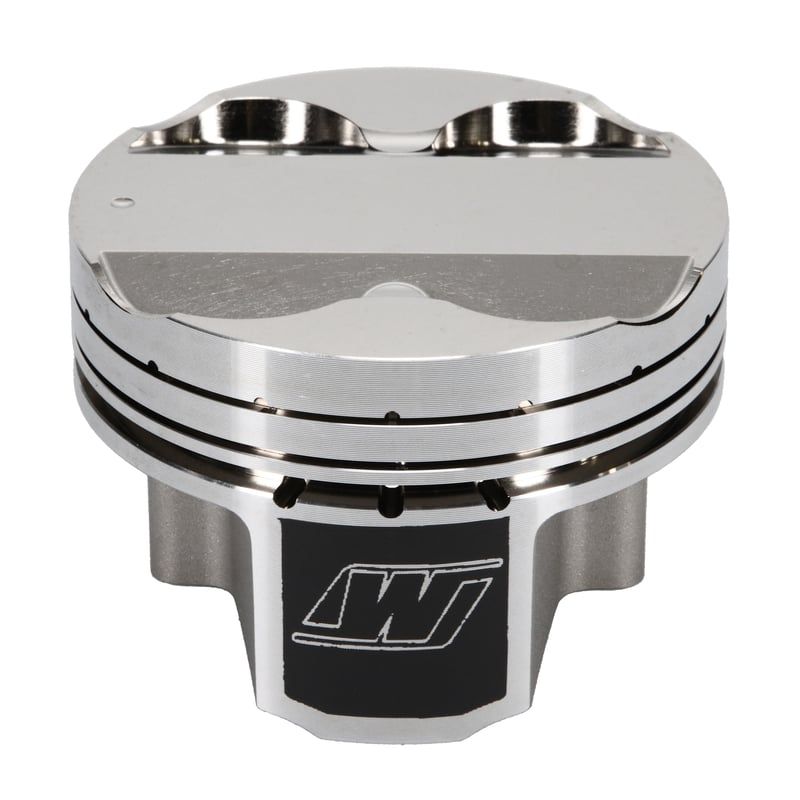

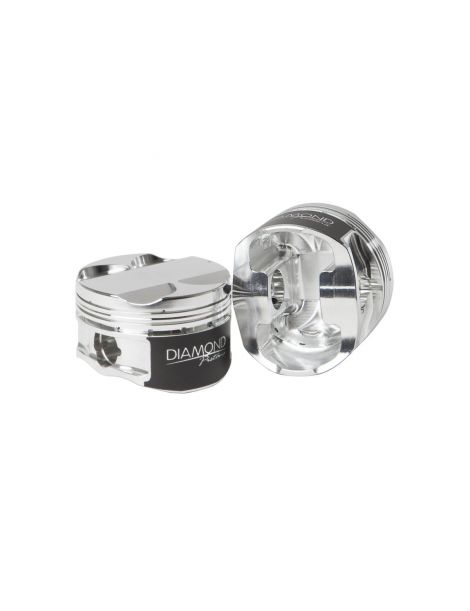

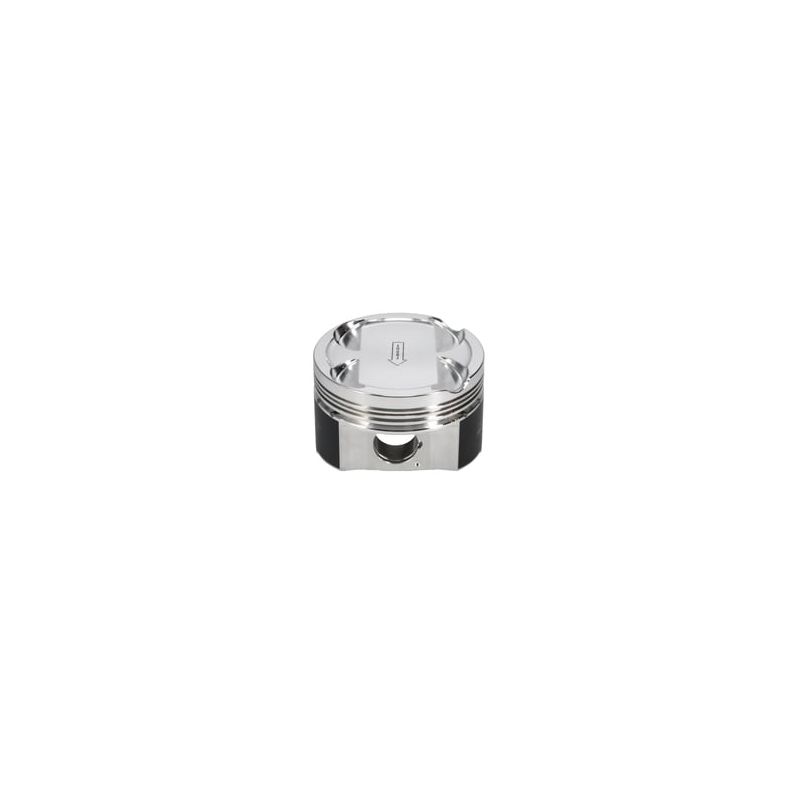

Characteristics of the forged pistons offered by NSB Concept for Toyota 3.0 L 24 V 2JZ GTE:
| Reference | Bore OEM 86.00mm | CR OEM | Pin OEM 22mm | OEM Pin Height 34.00mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|

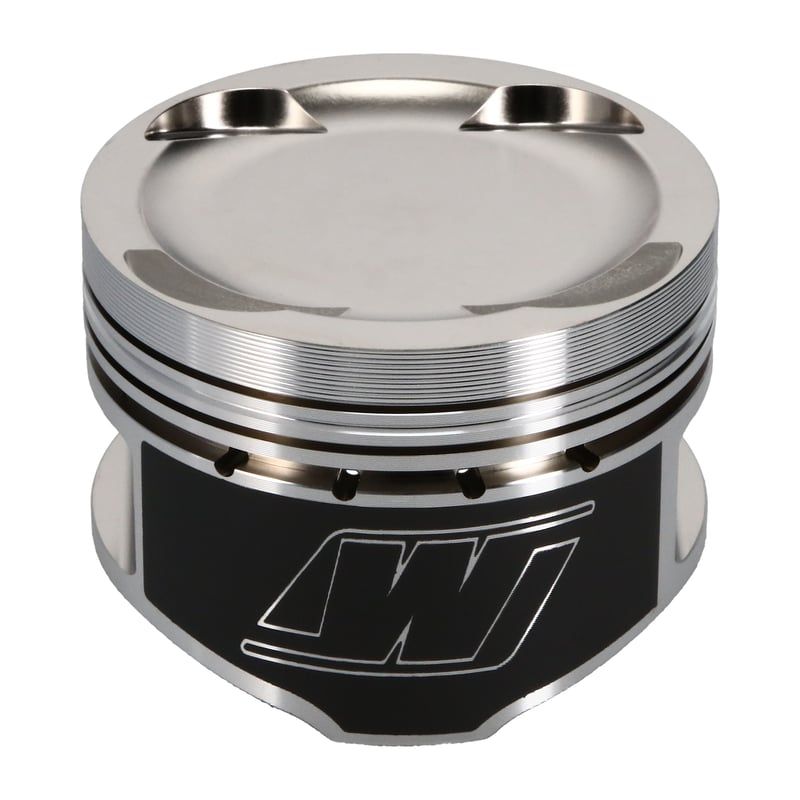

| WK550M86 | 86.00 | 8.3:1 | 22.0 | 34.0 | Wiseco | Skirt | 2618 | NC | -14.8 | NC | 8600XX |
| WK550M86AP | 86.00 | 8.3:1 | 22.0 | 34.0 | Wiseco AP | Skirt | 2618 | NC | -14.8 | NC | 8600XX |

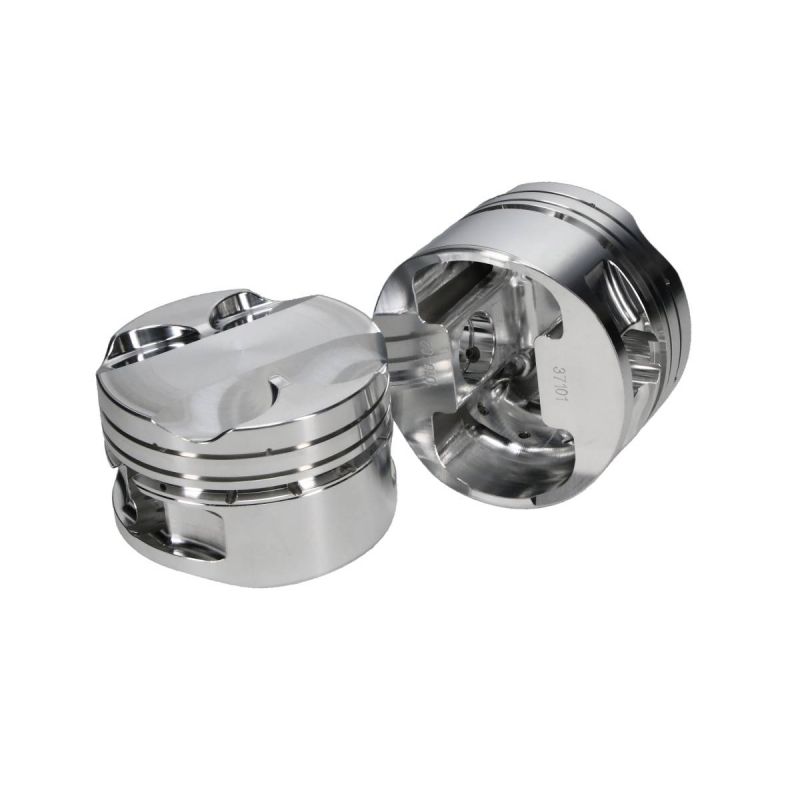

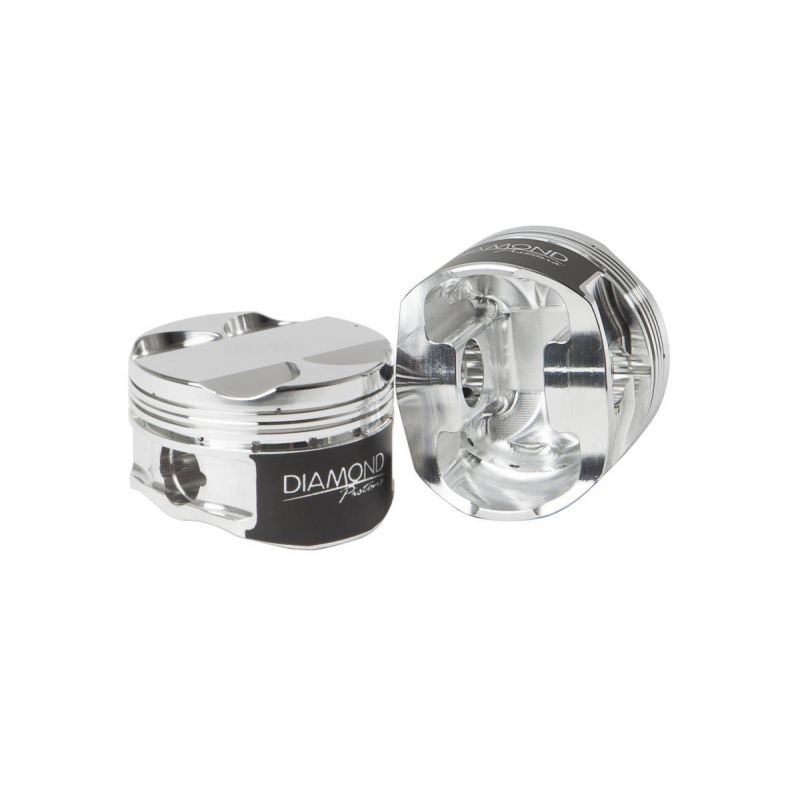

| DIA-37000-6 | 86.00 | 8.5:1 | 22.0 | 33.99 | Diamond | Skirt | 2618 | NC | -14.5 | NC | NC |
| DIA-37009-6 | 86.00 | 8.5:1 | 22.0 | 29.97 | Diamond | Skirt | 2618 | NC | -20.7 | NC | NC |
| DIA-37000-6-H | 86.00 | 8.5:1 | 22.0 | 33.99 | Diamond HD | Skirt | 2618 | NC | -14.5 | NC | NC |
| DIA-37009-6-H | 86.00 | 8.5:1 | 22.0 | 29.97 | Diamond HD | Skirt | 2618 | NC | -20.7 | NC | NC |

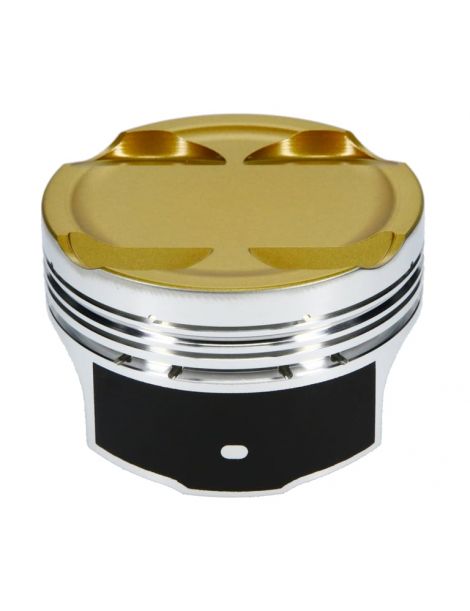

| JE-314301 | 86.00 | 8.5:1 | 22.0 | 34.0 | JE FSR | NC | 2618 | FSR | -15.5 | 312.0 | NC |
| JE-326320 | 86.00 | 8.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -21.9 | 290.0 | NC |
| JE-326320 | 86.00 | 8.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -21.9 | 290.0 | NC |
| DIA-37003-6 | 86.00 | 9:1 | 22.0 | 33.99 | Diamond | Skirt | 2618 | NC | -10.4 | NC | NC |
| DIA-37012-6 | 86.00 | 9:1 | 22.0 | 29.97 | Diamond | Skirt | 2618 | NC | -16.2 | NC | NC |
| DIA-37003-6-H | 86.00 | 9:1 | 22.0 | 33.99 | Diamond HD | Skirt | 2618 | NC | -10.4 | NC | NC |
| DIA-37012-6-H | 86.00 | 9:1 | 22.0 | 29.97 | Diamond HD | Skirt | 2618 | NC | -16.2 | NC | NC |
| JE-361341 | 86.00 | 9:1 | 22.0 | 34.0 | JE Ultra Series | Head + Skirt | 2618 | FSR | -9.80 | 354.0 | NC |

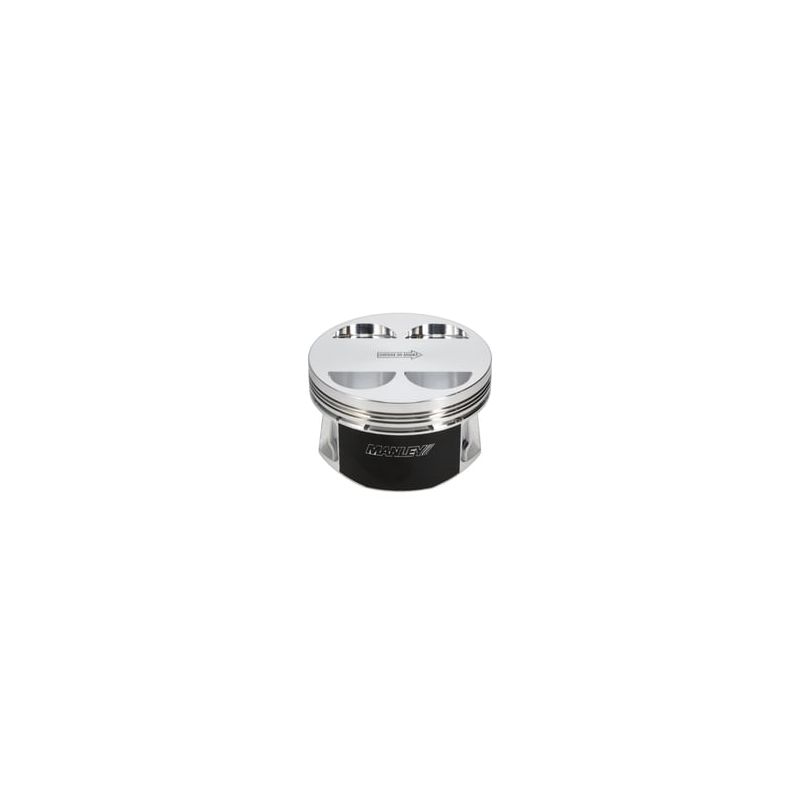

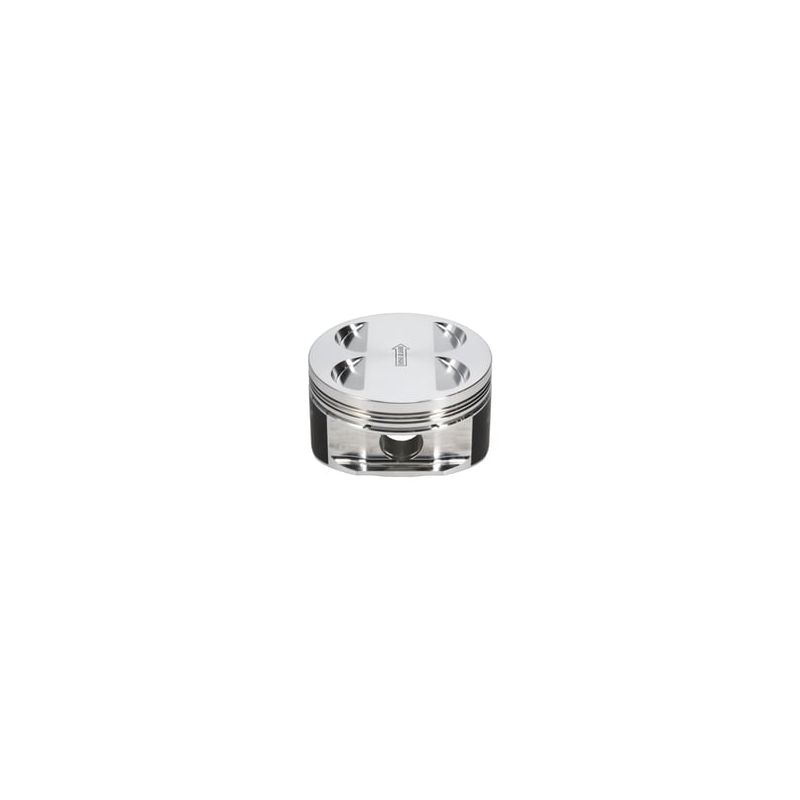

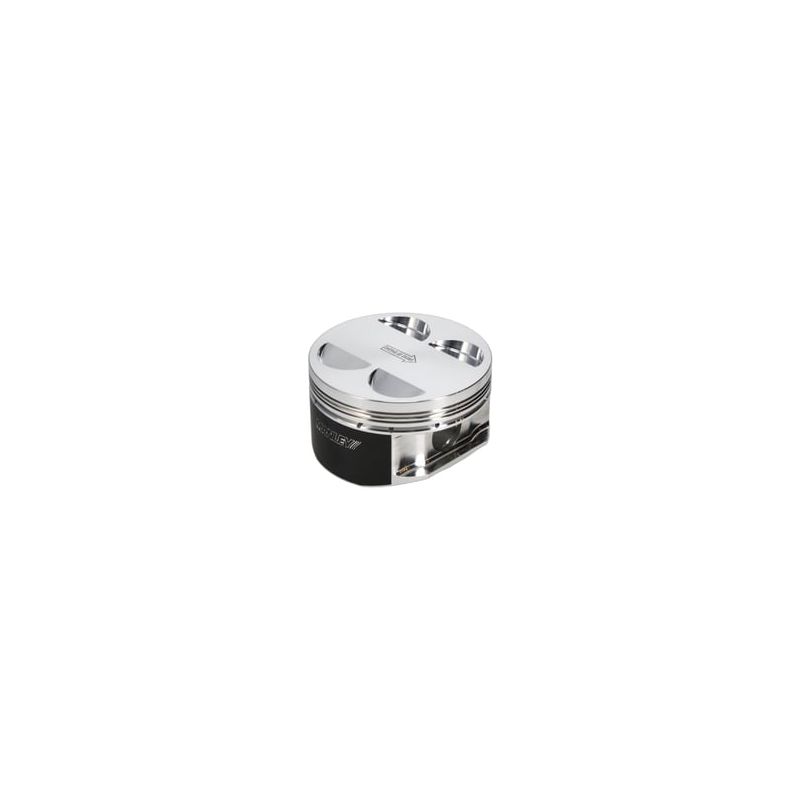

| 609000C-6 | 86.00 | 9:1 | NC | 33.99 | Manley | Skirt | 4032 | NC | -10 | 347.0 | NC |
| 629100C-6 | 86.00 | 9:1 | NC | 29.97 | Manley | Skirt | 4032 | NC | -16 | 315.0 | NC |
| 629100C-6 | 86.00 | 9:1 | NC | 29.97 | Manley | Skirt | 4032 | NC | -16 | 315.0 | NC |
| 609000CE-6 | 86.00 | 9:1 | NC | 33.99 | Manley HD | Skirt | 2618 | NC | -10 | 347.0 | NC |
| 629100CE-6 | 86.00 | 9:1 | NC | 29.97 | Manley HD | Skirt | 2618 | NC | -16 | 315.0 | NC |
| 629100CE-6 | 86.00 | 9:1 | NC | 29.97 | Manley HD | Skirt | 2618 | NC | -16 | 315.0 | NC |

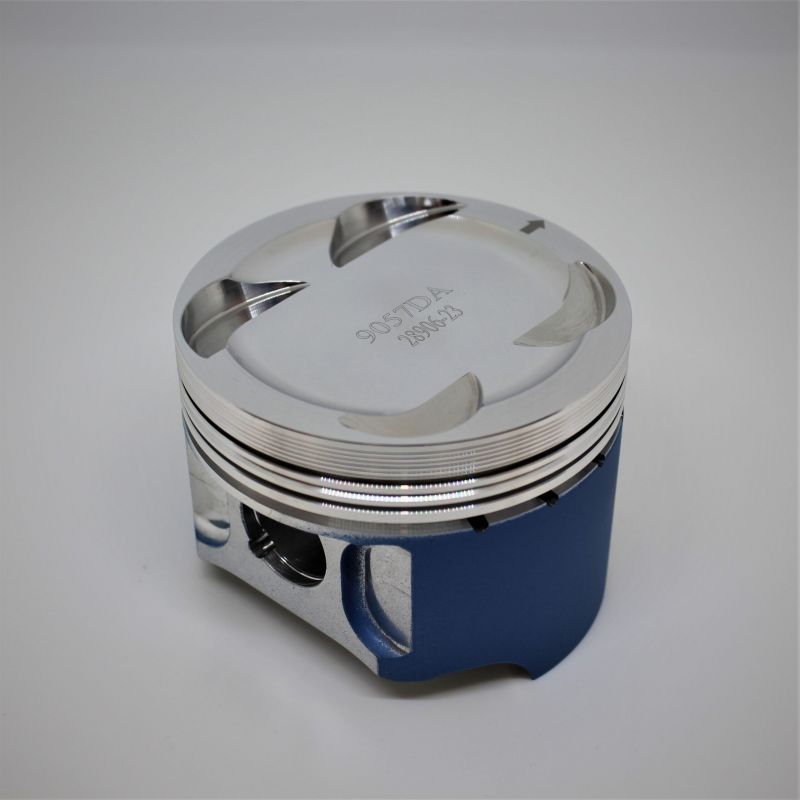

| K9057DA | 86.00 | 9:1 | 22.0 | 34.0 | Wossner | NC | NC | Round | -10.58 | NC | 860XPY |
| K9500DA | 86.00 | 9:1 | 22.0 | 30.0 | Wossner | NC | NC | Round | -16.39 | NC | 860XPY |
| DIA-37103-6 | 86.00 | 9.5:1 | 22.0 | 33.99 | Diamond Rebel Series | Skirt | 2618 | NC | -6.5 | NC | NC |
| DIA-37109-6 | 86.00 | 9.5:1 | 22.0 | 29.97 | Diamond Rebel Series | Skirt | 2618 | NC | -12 | NC | NC |
| JE-314302 | 86.00 | 9.5:1 | 22.0 | 34.0 | JE FSR | NC | 2618 | FSR | -7.7 | 330.0 | NC |
| JE-337050 | 86.00 | 9.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -13.3 | NC | NC |
| JE-337050 | 86.00 | 9.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -13.3 | NC | NC |
| P6-T2JZ-86-CR9.5-6 | 86.00 | 9.5:1 | 22.0 | 34.0 | Supertech | Head + Skirt | 2618 | NC | -7.2 | NC | W8600XX |
| WK677M86AP | 86.00 | 9.5:1 | 22.0 | 34.0 | Wiseco AP | Skirt | 2618 | NC | -5.3 | NC | 8600XX |
| DIA-37006-6 | 86.00 | 9.6:1 | 22.0 | 33.99 | Diamond | Skirt | 2618 | NC | -5.6 | NC | NC |
| DIA-37006-6-H | 86.00 | 9.6:1 | 22.0 | 33.99 | Diamond HD | Skirt | 2618 | NC | -5.6 | NC | NC |
| DIA-37015-6 | 86.00 | 10:1 | 22.0 | 29.97 | Diamond | Skirt | 2618 | NC | -8.6 | NC | NC |
| DIA-37018-6 | 86.00 | 10:1 | 22.0 | 33.99 | Diamond | Skirt | 2618 | NC | -3.5 | NC | NC |
| DIA-37015-6-H | 86.00 | 10:1 | 22.0 | 29.97 | Diamond HD | Skirt | 2618 | NC | -8.6 | NC | NC |
| DIA-37018-6-H | 86.00 | 10:1 | 22.0 | 33.99 | Diamond HD |
