3.0L 24v - 2JZ-GTE
Fabricants
3.0L 24v - 2JZ-GTE
Attention : dernières pièces disponibles !
Neuf

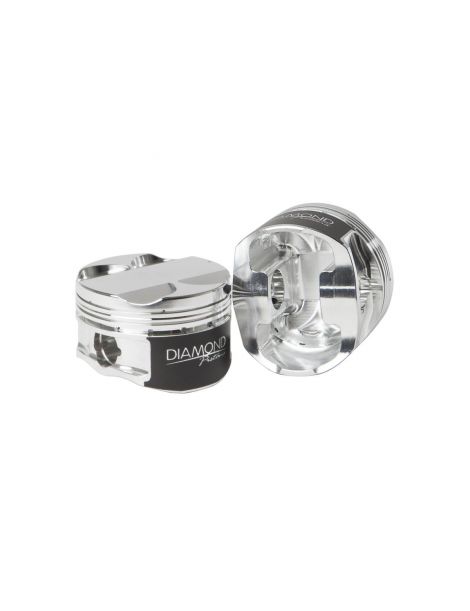

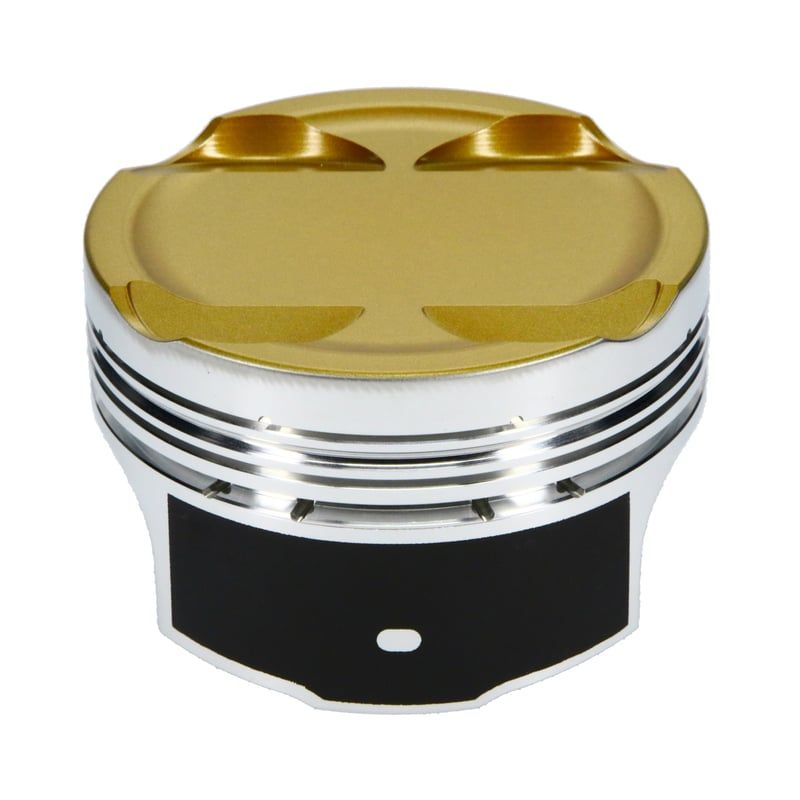

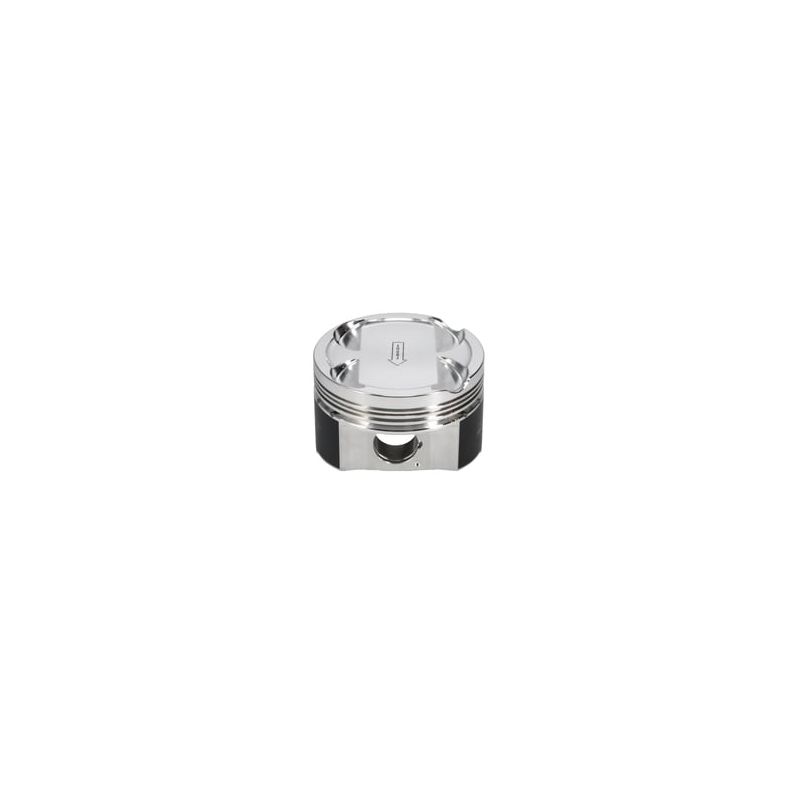

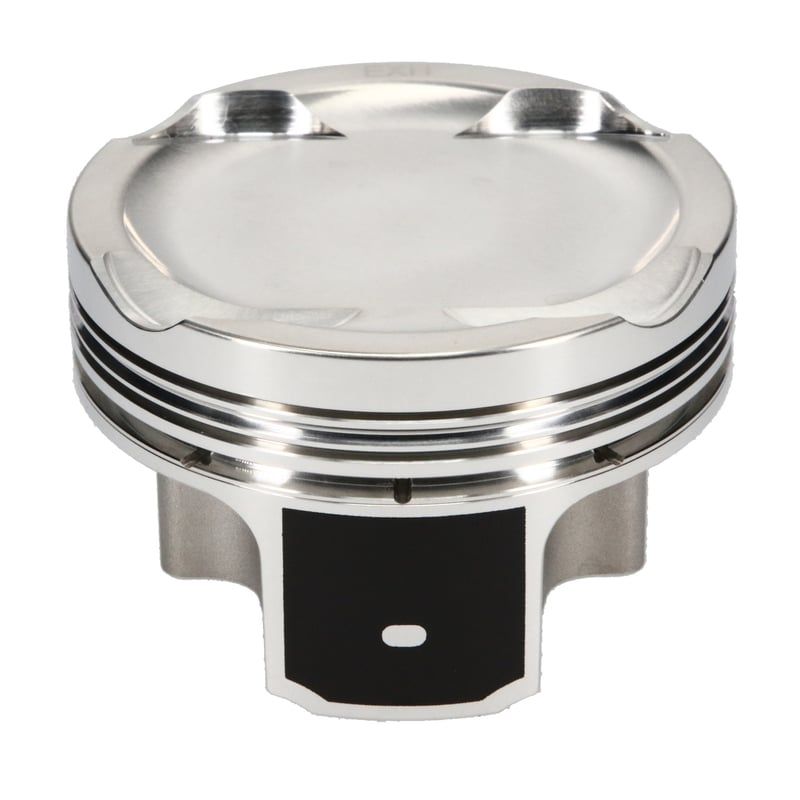

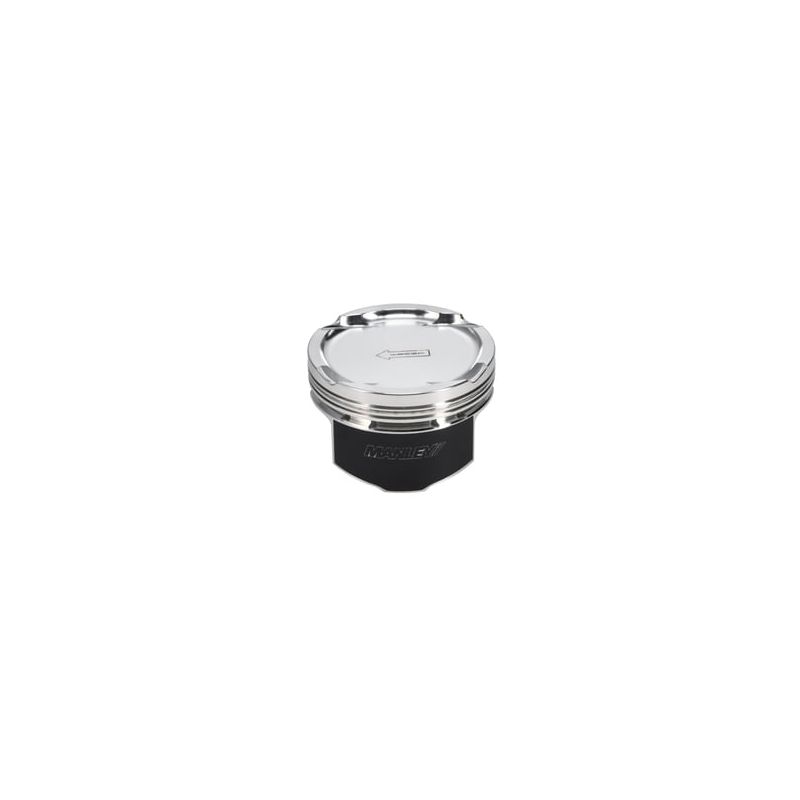

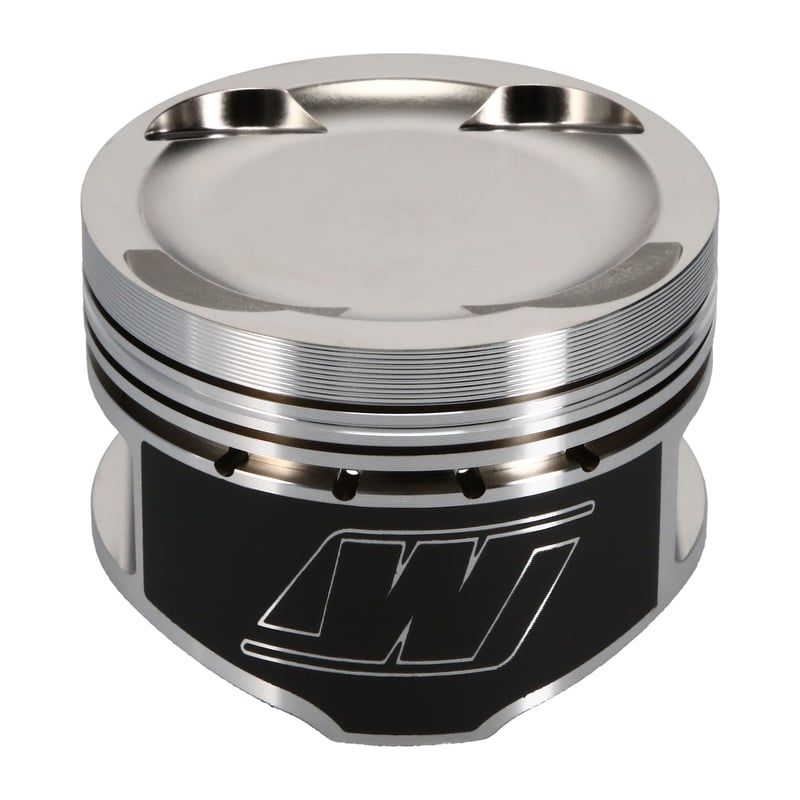

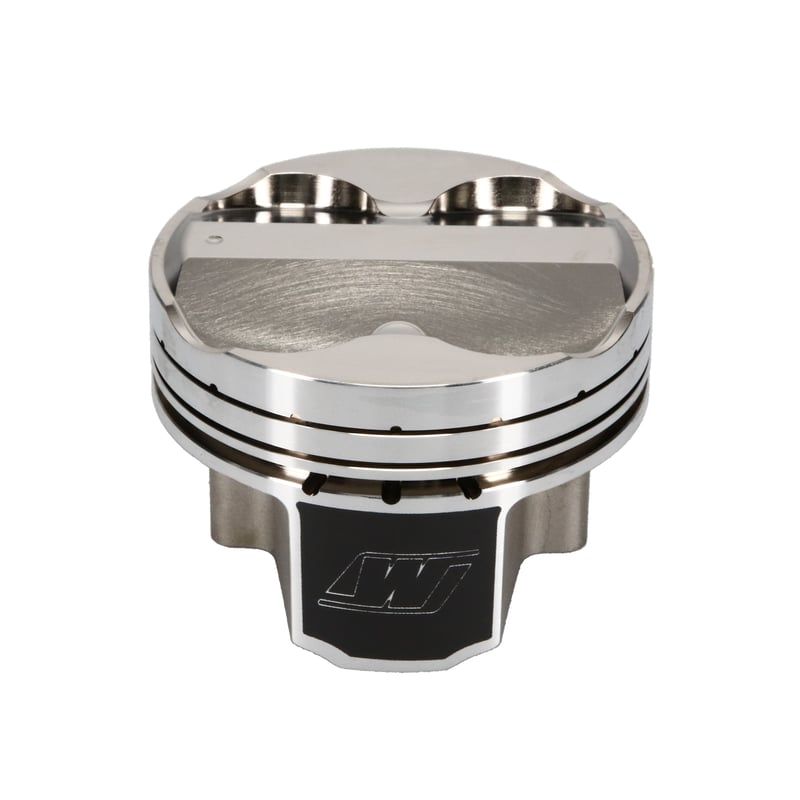

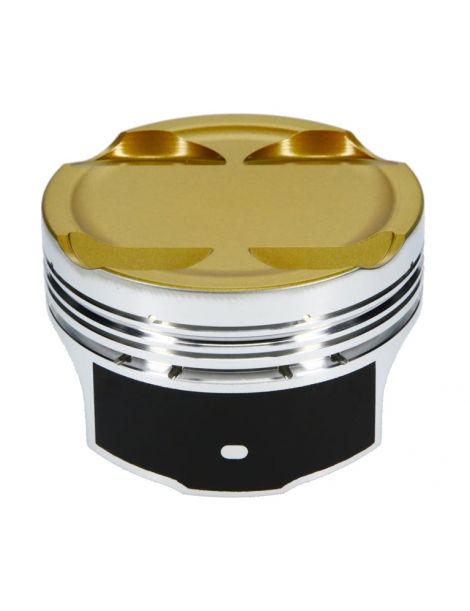

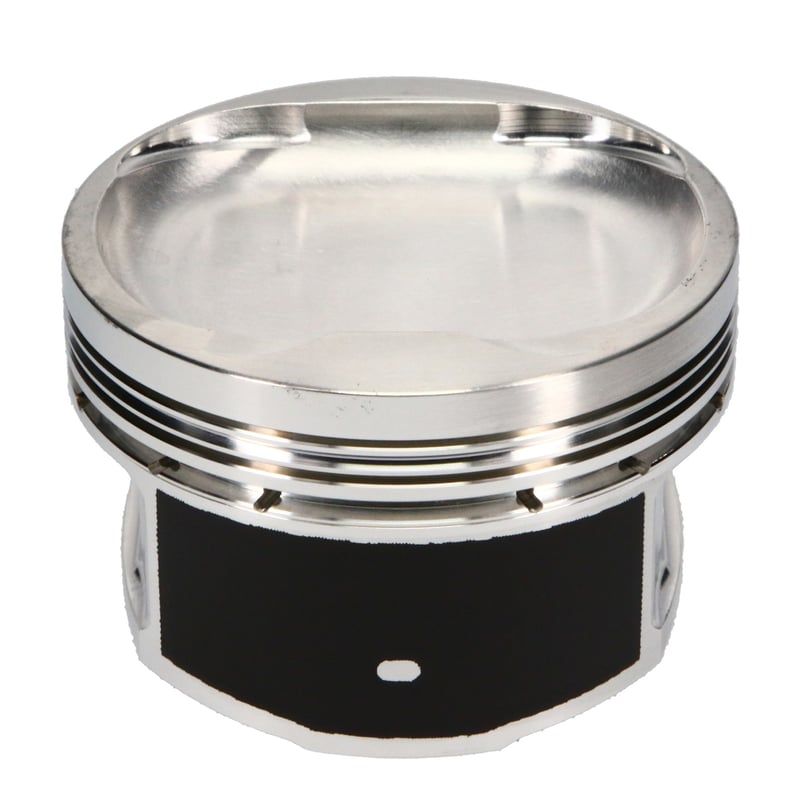

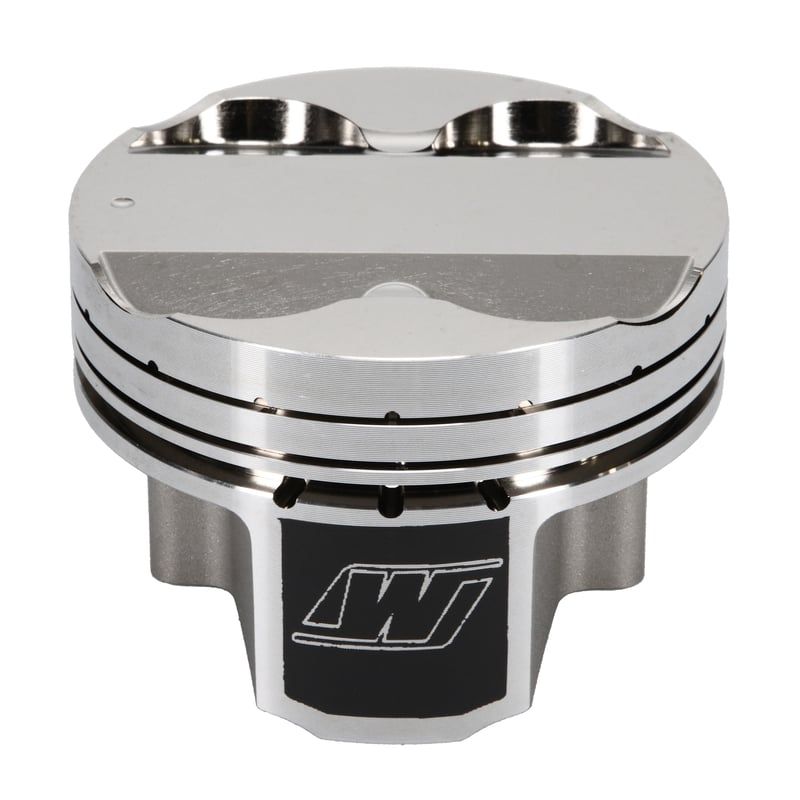

Pistons forgés Toyota 2JZ-GTE 3.0L : Ø86 mm, axe 22 mm, CH 34,0 mm. Tableau trié + compatibilités (Supra JZA80, Aristo JZS147/JZS161) et références OEM.
Caractéristiques des pistons forgés proposés par NSB Concept pour Toyota 3.0 L 24 V 2JZ‑GTE :
| Référence | Alésage OEM 86,00 mm | RV OEM 8,5 :1 (non‑VVT‑i) / 9,0 :1 (VVT‑i) | Axe OEM 22 mm | Hauteur Axe OEM 34,00 mm | Gamme | Traitement | Aluminium | Forging | Dôme | Poids | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WK550M86 | 86.00 | 8.3:1 | 22.0 | 34.0 | Wiseco | Jupe | 2618 | NC | -14.8 | NC | 8600XX |
| WK550M86AP | 86.00 | 8.3:1 | 22.0 | 34.0 | Wiseco AP | Jupe | 2618 | NC | -14.8 | NC | 8600XX |

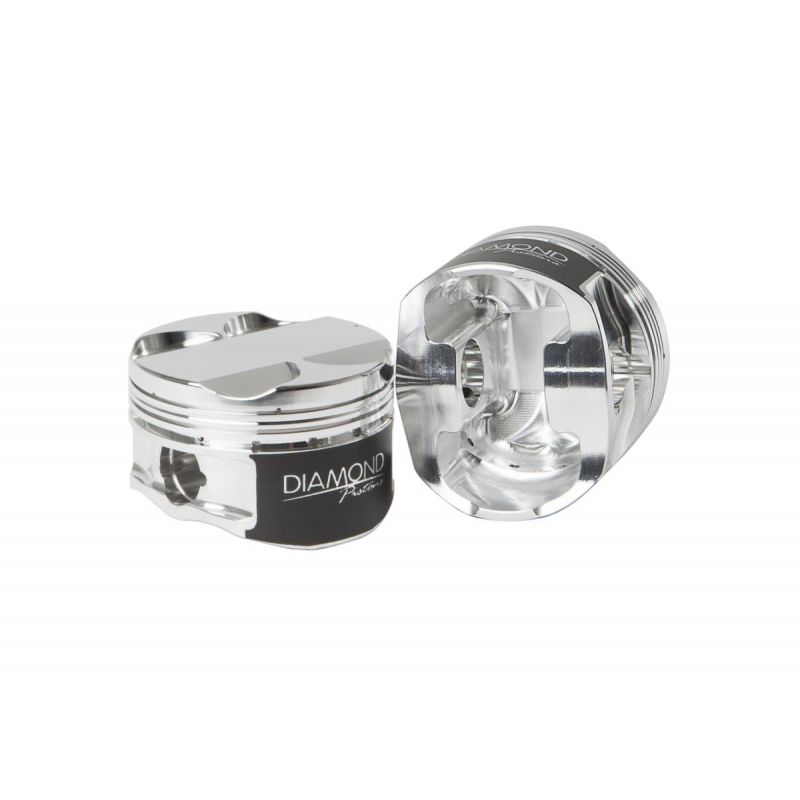

| DIA-37000-6 | 86.00 | 8.5:1 | 22.0 | 33.99 | Diamond | Jupe | 2618 | NC | -14.5 | NC | NC |
| DIA-37009-6 | 86.00 | 8.5:1 | 22.0 | 29.97 | Diamond | Jupe | 2618 | NC | -20.7 | NC | NC |
| DIA-37000-6-H | 86.00 | 8.5:1 | 22.0 | 33.99 | Diamond HD | Jupe | 2618 | NC | -14.5 | NC | NC |
| DIA-37009-6-H | 86.00 | 8.5:1 | 22.0 | 29.97 | Diamond HD | Jupe | 2618 | NC | -20.7 | NC | NC |

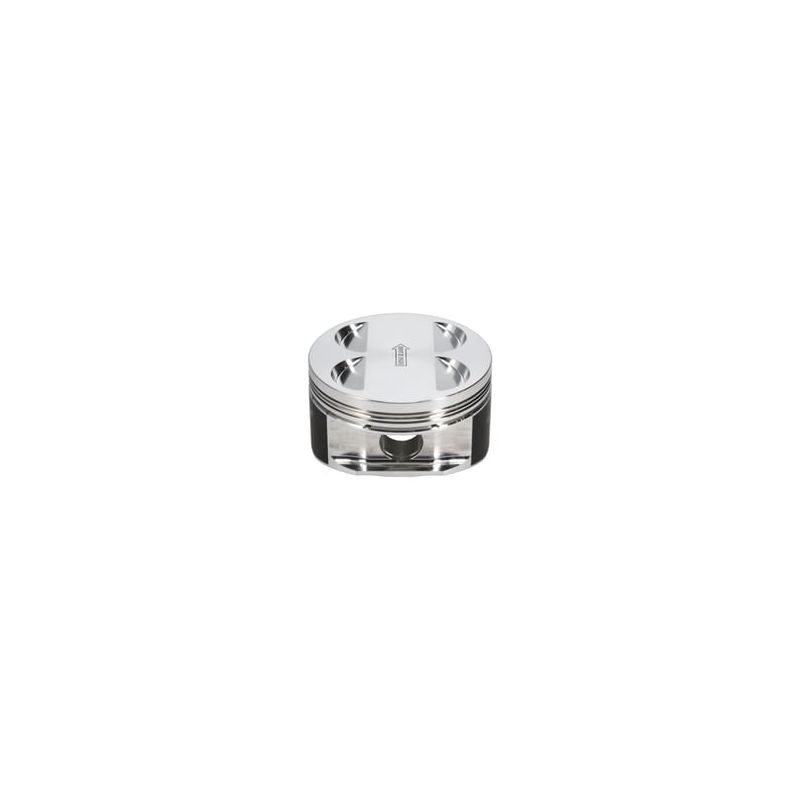

| JE-314301 | 86.00 | 8.5:1 | 22.0 | 34.0 | JE FSR | NC | 2618 | FSR | -15.5 | 312.0 | NC |
| JE-326320 | 86.00 | 8.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -21.9 | 290.0 | NC |
| JE-326320 | 86.00 | 8.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -21.9 | 290.0 | NC |
| DIA-37003-6 | 86.00 | 9:1 | 22.0 | 33.99 | Diamond | Jupe | 2618 | NC | -10.4 | NC | NC |
| DIA-37012-6 | 86.00 | 9:1 | 22.0 | 29.97 | Diamond | Jupe | 2618 | NC | -16.2 | NC | NC |
| DIA-37003-6-H | 86.00 | 9:1 | 22.0 | 33.99 | Diamond HD | Jupe | 2618 | NC | -10.4 | NC | NC |
| DIA-37012-6-H | 86.00 | 9:1 | 22.0 | 29.97 | Diamond HD | Jupe | 2618 | NC | -16.2 | NC | NC |

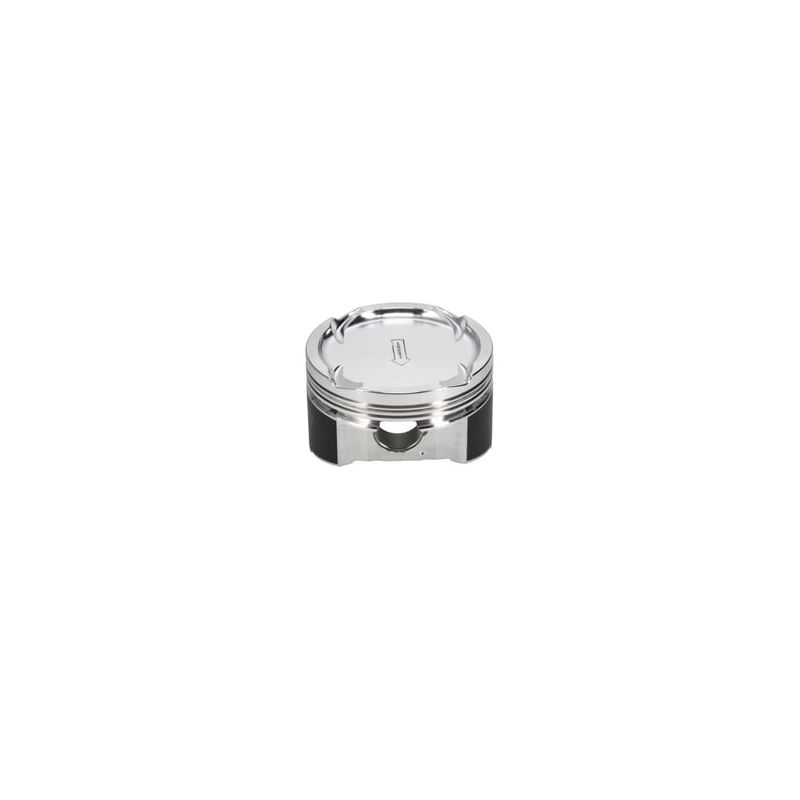

| JE-361341 | 86.00 | 9:1 | 22.0 | 34.0 | JE Ultra Series | Tête + Jupe | 2618 | FSR | -9.80 | 354.0 | NC |

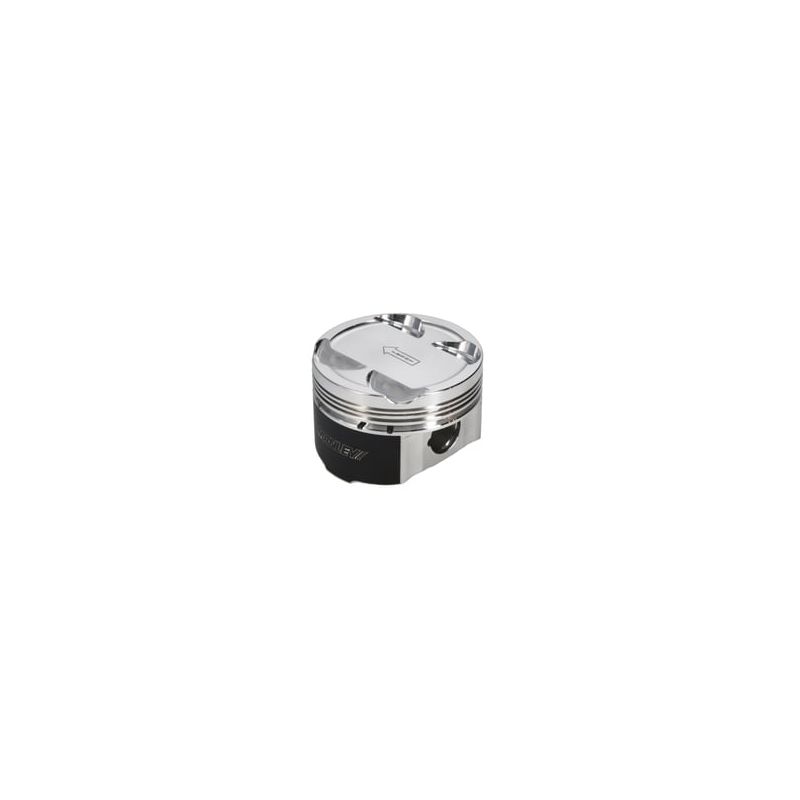

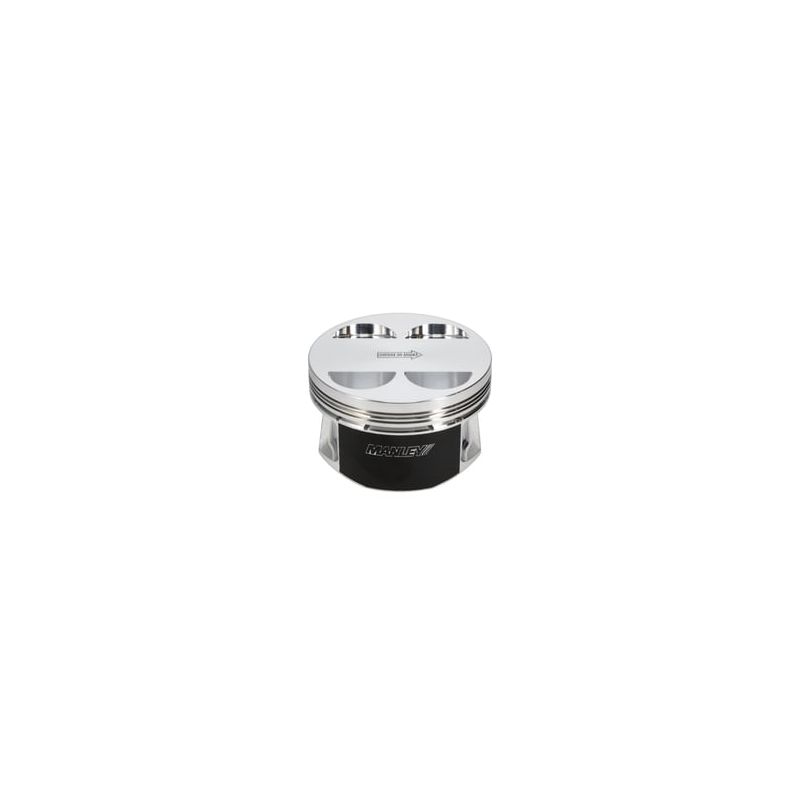

| 609000C-6 | 86.00 | 9:1 | NC | 33.99 | Manley | Jupe | 4032 | NC | -10 | 347.0 | NC |
| 629100C-6 | 86.00 | 9:1 | NC | 29.97 | Manley | Jupe | 4032 | NC | -16 | 315.0 | NC |
| 629100C-6 | 86.00 | 9:1 | NC | 29.97 | Manley | Jupe | 4032 | NC | -16 | 315.0 | NC |

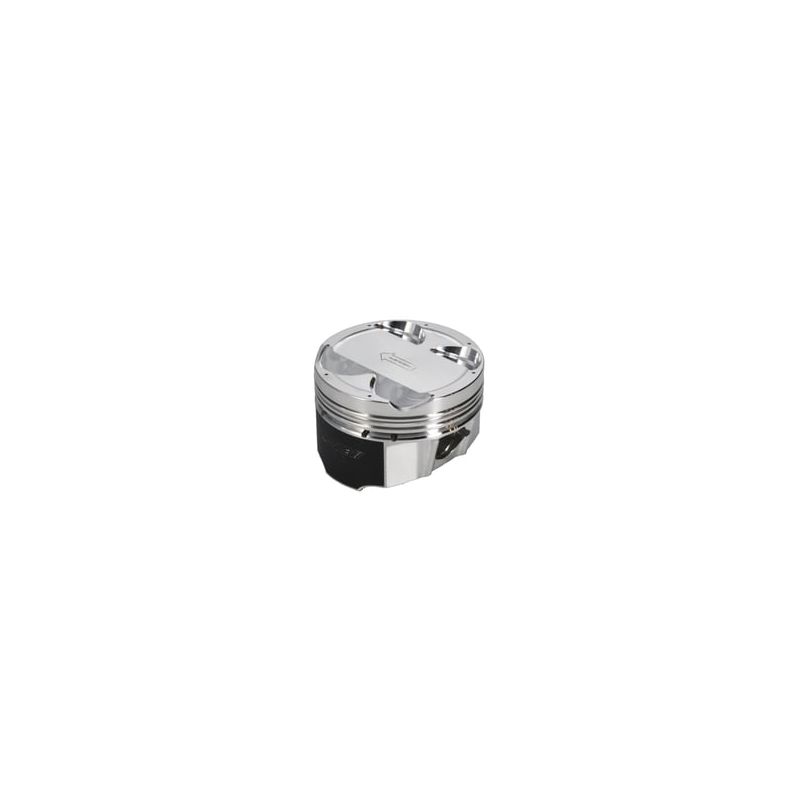

| 609000CE-6 | 86.00 | 9:1 | NC | 33.99 | Manley HD | Jupe | 2618 | NC | -10 | 347.0 | NC |
| 629100CE-6 | 86.00 | 9:1 | NC | 29.97 | Manley HD | Jupe | 2618 | NC | -16 | 315.0 | NC |
| 629100CE-6 | 86.00 | 9:1 | NC | 29.97 | Manley HD | Jupe | 2618 | NC | -16 | 315.0 | NC |

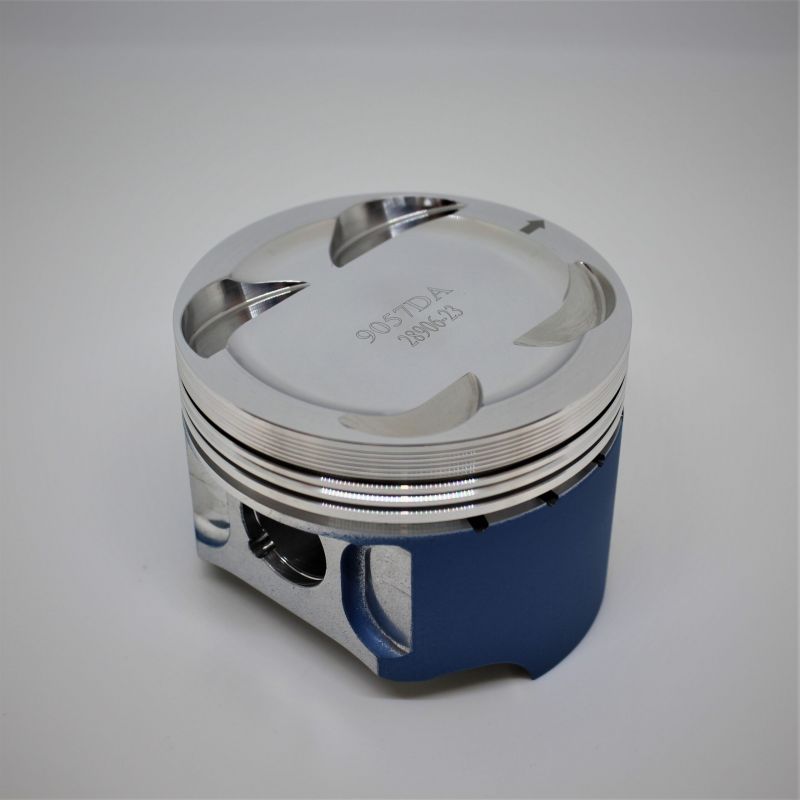

| K9057DA | 86.00 | 9:1 | 22.0 | 34.0 | Wossner | NC | NC | Round | -10.58 | NC | 860XPY |
| K9500DA | 86.00 | 9:1 | 22.0 | 30.0 | Wossner | NC | NC | Round | -16.39 | NC | 860XPY |
| DIA-37103-6 | 86.00 | 9.5:1 | 22.0 | 33.99 | Diamond Rebel Series | Jupe | 2618 | NC | -6.5 | NC | NC |
| DIA-37109-6 | 86.00 | 9.5:1 | 22.0 | 29.97 | Diamond Rebel Series | Jupe | 2618 | NC | -12 | NC | NC |
| JE-314302 | 86.00 | 9.5:1 | 22.0 | 34.0 | JE FSR | NC | 2618 | FSR | -7.7 | 330.0 | NC |
| JE-337050 | 86.00 | 9.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -13.3 | NC | NC |
| JE-337050 | 86.00 | 9.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -13.3 | NC | NC |
| P6-T2JZ-86-CR9.5-6 | 86.00 | 9.5:1 | 22.0 | 34.0 | Supertech | Tête + Jupe | 2618 | NC | -7.2 | NC | W8600XX |
| WK677M86AP | 86.00 | 9.5:1 | 22.0 | 34.0 | Wiseco AP | Jupe | 2618 | NC | -5.3 | NC | 8600XX |
| DIA-37006-6 | 86.00 | 9.6:1 | 22.0 | 33.99 | Diamond | Jupe | 2618 | NC | -5.6 | NC | NC |
| DIA-37006-6-H | 86.00 | 9.6:1 | 22.0 | 33.99 | Diamond HD | Jupe | 2618 | NC | -5.6 | NC | NC |
| DIA-37015-6 | 86.00 | 10:1 | 22.0 | 29.97 | Diamond | Jupe | 2618 | NC | -8.6 | NC | NC |
| DIA-37018-6 | 86.00 | 10:1 | 22.0 | 33.99 | Diamond | Jupe | 2618 | NC | -3.5 | NC | NC |
| DIA-37015-6-H | 86.00 | 10:1 | 22.0 | 29.97 | Diamond HD | Jupe | 2618 | NC | -8.6 | NC | NC |
| DIA-37018-6-H | 86.00 | 10:1 | 22.0 | 33.99 | Diamond HD | Jupe | 2618 | NC | -3.5 | NC | NC |
| DIA-37100-6 | 86.00 | 10:1 | 22.0 | 33.99 | Diamond Rebel Series | Jupe | 2618 | NC | -3.5 | NC | NC |
| DIA-37106-6 | 86.00 | 10:1 | 22.0 | 29.97 | Diamond Rebel Series | Jupe | 2618 | NC | -8.5 | NC | NC |
| 609100C-6 | 86.00 | 10:1 | NC | 33.99 | Manley | Jupe | 4032 | NC | -2,5 | 347.0 | NC |
| 629000C-6 | 86.00 | 10:1 | NC | 29.97 | Manley | Jupe | 4032 | NC | -8 | 315.0 | NC |
| 629000C-6 | 86.00 | 10:1 | NC | 29.97 | Manley | Jupe | 4032 | NC | -8 | 315.0 | NC |
| 609100CE-6 | 86.00 | 10:1 | NC | 33.99 | Manley HD | Jupe | 2618 | NC | -2,5 | 347.0 | NC |
| 629000CE-6 | 86.00 | 10:1 | NC | 29.97 | Manley HD | Jupe | 2618 | NC | -8 | 315.0 | NC |
| 629000CE-6 | 86.00 | 10:1 | NC | 29.97 | Manley HD | Jupe | 2618 | NC | -8 | 315.0 | NC |
| WK678M86AP | 86.00 | 10.5:1 | 22.0 | 34.0 | Wiseco AP | Jupe | 2618 | NC | 0.8 | NC | 8600XX |
| WK550M8625 | 86.25 | 8.3:1 | 22.0 | 34.0 | Wiseco | Jupe | 2618 | NC | -14.8 | NC | 8625XX |
| WK550M8625AP | 86.25 | 8.3:1 | 22.0 | 34.0 | Wiseco AP | Jupe | 2618 | NC | -14.8 | NC | 8625XX |
| JE-361333 | 86.25 | 8.5:1 | 22.0 | 34.0 | JE FSR | NC | 2618 | FSR | -15.9 | NC | NC |
| JE-361335 | 86.25 | 8.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -22.1 | NC | NC |
| JE-361335 | 86.25 | 8.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -22.1 | NC | NC |
| JE-361335 | 86.25 | 8.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -22.1 | NC | NC |
| JE-361342 | 86.25 | 9:1 | 22.0 | 34.0 | JE Ultra Series | Tête + Jupe | 2618 | FSR | -10.10 | 356.0 | NC |
| 609202CE-6 | 86.25 | 9:1 | NC | 33.73 | Manley HD | Jupe | 2618 | NC | -8 | 368.0 | NC |
| 629202CE-6 | 86.25 | 9:1 | NC | 29.72 | Manley HD | Jupe | 2618 | NC | -14 | 340.0 | NC |
| 629202CE-6 | 86.25 | 9:1 | NC | 29.72 | Manley HD | Jupe | 2618 | NC | -14 | 340.0 | NC |
| JE-361334 | 86.25 | 9.5:1 | 22.0 | 34.0 | JE FSR | NC | 2618 | FSR | -8.0 | NC | NC |
| JE-361336 | 86.25 | 9.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -13.6 | NC | NC |
| JE-361336 | 86.25 | 9.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -13.6 | NC | NC |
| JE-361336 | 86.25 | 9.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -13.6 | NC | NC |
| WK677M8625AP | 86.25 | 9.5:1 | 22.0 | 34.0 | Wiseco AP | Jupe | 2618 | NC | -5.3 | NC | 8625XX |
| 609302CE-6 | 86.25 | 10:1 | NC | 33.73 | Manley HD | Jupe | 2618 | NC | -1 | 377.0 | NC |
| 629302CE-6 | 86.25 | 10:1 | NC | 29.72 | Manley HD | Jupe | 2618 | NC | -6 | 344.0 | NC |
| 629302CE-6 | 86.25 | 10:1 | NC | 29.72 | Manley HD | Jupe | 2618 | NC | -6 | 344.0 | NC |
| WK678M8625AP | 86.25 | 10.5:1 | 22.0 | 34.0 | Wiseco AP | Jupe | 2618 | NC | 0.8 | NC | 8625XX |
| JE-252059 | 86.50 | 8:1 | 22.0 | 34.0 | JE Round | NC | 2618 | Round | -20.8 | 332.0 | NC |
| WK550M865 | 86.50 | 8.4:1 | 22.0 | 34.0 | Wiseco | Jupe | 2618 | NC | -14.8 | NC | 8650XX |
| WK550M865AP | 86.50 | 8.4:1 | 22.0 | 34.0 | Wiseco AP | Jupe | 2618 | NC | -14.8 | NC | 8650XX |
| JE-296932 | 86.50 | 8.5:1 | 22.0 | 34.0 | JE FSR | NC | 2618 | FSR | -16.4 | 321.0 | NC |
| JE-326321 | 86.50 | 8.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -22.7 | 293.0 | NC |
| JE-326321 | 86.50 | 8.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -22.7 | 293.0 | NC |
| DIA-37001-6 | 86.50 | 8.6:1 | 22.0 | 33.99 | Diamond | Jupe | 2618 | NC | -14.5 | NC | NC |
| DIA-37010-6 | 86.50 | 8.6:1 | 22.0 | 29.97 | Diamond | Jupe | 2618 | NC | -20.7 | NC | NC |
| DIA-37001-6-H | 86.50 | 8.6:1 | 22.0 | 33.99 | Diamond HD | Jupe | 2618 | NC | -14.5 | NC | NC |
| DIA-37010-6-H | 86.50 | 8.6:1 | 22.0 | 29.97 | Diamond HD | Jupe | 2618 | NC | -20.7 | NC | NC |
| JE-361343 | 86.50 | 9:1 | 22.0 | 34.0 | JE Ultra Series | Tête + Jupe | 2618 | FSR | -10.40 | 358.0 | NC |
| 609005C-6 | 86.50 | 9:1 | NC | 33.99 | Manley | Jupe | 4032 | NC | -10 | 353.0 | NC |
| 629105C-6 | 86.50 | 9:1 | NC | 29.97 | Manley | Jupe | 4032 | NC | -16 | 322.0 | NC |
| 629105C-6 | 86.50 | 9:1 | NC | 29.97 | Manley | Jupe | 4032 | NC | -16 | 322.0 | NC |
| 609005CE-6 | 86.50 | 9:1 | NC | 33.99 | Manley HD | Jupe | 2618 | NC | -10 | 353.0 | NC |
| 609205CE-6 | 86.50 | 9:1 | NC | 33.73 | Manley HD | Jupe | 2618 | NC | -8 | 371.0 | NC |
| 629105CE-6 | 86.50 | 9:1 | NC | 29.97 | Manley HD | Jupe | 2618 | NC | -16 | 322.0 | NC |
| 629105CE-6 | 86.50 | 9:1 | NC | 29.97 | Manley HD | Jupe | 2618 | NC | -16 | 322.0 | NC |
| 629205CE-6 | 86.50 | 9:1 | NC | 29.72 | Manley HD | Jupe | 2618 | NC | -14 | 343.0 | NC |
| 629205CE-6 | 86.50 | 9:1 | NC | 29.72 | Manley HD | Jupe | 2618 | NC | -14 | 343.0 | NC |
| K9500D050 | 86.50 | 9:1 | 22.0 | 30.0 | Wossner | NC | NC | Round | -16.39 | NC | 865XPY |
| DIA-37004-6 | 86.50 | 9.1:1 | 22.0 | 33.99 | Diamond | Jupe | 2618 | NC | -10.4 | NC | NC |
| DIA-37013-6 | 86.50 | 9.1:1 | 22.0 | 29.97 | Diamond | Jupe | 2618 | NC | -16.2 | NC | NC |
| DIA-37004-6-H | 86.50 | 9.1:1 | 22.0 | 33.99 | Diamond HD | Jupe | 2618 | NC | -10.4 | NC | NC |
| DIA-37013-6-H | 86.50 | 9.1:1 | 22.0 | 29.97 | Diamond HD | Jupe | 2618 | NC | -16.2 | NC | NC |
| K9057D050 | 86.50 | 9.1:1 | 22.0 | 34.0 | Wossner | NC | NC | Round | -10.58 | NC | 865XPY |
| JE-314303 | 86.50 | 9.5:1 | 22.0 | 34.0 | JE FSR | NC | 2618 | FSR | -8.3 | 334.0 | NC |
| JE-337051 | 86.50 | 9.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -14.0 | NC | NC |
| JE-337051 | 86.50 | 9.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -14.0 | NC | NC |
| P6-T2JZ-8650-CR9.5-6 | 86.50 | 9.5:1 | 22.0 | 34.0 | Supertech | Tête + Jupe | 2618 | NC | -7.2 | NC | W8650XX |
| DIA-37104-6 | 86.50 | 9.6:1 | 22.0 | 33.99 | Diamond Rebel Series | Jupe | 2618 | NC | -6.5 | NC | NC |
| DIA-37110-6 | 86.50 | 9.6:1 | 22.0 | 29.97 | Diamond Rebel Series | Jupe | 2618 | NC | -12 | NC | NC |
| WK677M865AP | 86.50 | 9.6:1 | 22.0 | 34.0 | Wiseco AP | Jupe | 2618 | NC | -5.3 | NC | 8650XX |
| DIA-37007-6 | 86.50 | 9.7:1 | 22.0 | 33.99 | Diamond | Jupe | 2618 | NC | -5.6 | NC | NC |
| DIA-37007-6-H | 86.50 | 9.7:1 | 22.0 | 33.99 | Diamond HD | Jupe | 2618 | NC | -5.6 | NC | NC |
| 609105C-6 | 86.50 | 10:1 | NC | 33.99 | Manley | Jupe | 4032 | NC | -2,5 | 354.0 | NC |
| 629005C-6 | 86.50 | 10:1 | NC | 29.97 | Manley | Jupe | 4032 | NC | -8 | 322.0 | NC |
| 629005C-6 | 86.50 | 10:1 | NC | 29.97 | Manley | Jupe | 4032 | NC | -8 | 322.0 | NC |
| 609105CE-6 | 86.50 | 10:1 | NC | 33.99 | Manley HD | Jupe | 2618 | NC | -2,5 | 354.0 | NC |
| 609305CE-6 | 86.50 | 10:1 | NC | 33.73 | Manley HD | Jupe | 2618 | NC | -1 | 380.0 | NC |
| 629005CE-6 | 86.50 | 10:1 | NC | 29.97 | Manley HD | Jupe | 2618 | NC | -8 | 322.0 | NC |
| 629005CE-6 | 86.50 | 10:1 | NC | 29.97 | Manley HD | Jupe | 2618 | NC | -8 | 322.0 | NC |
| 629305CE-6 | 86.50 | 10:1 | NC | 29.72 | Manley HD | Jupe | 2618 | NC | -6 | 347.0 | NC |
| 629305CE-6 | 86.50 | 10:1 | NC | 29.72 | Manley HD | Jupe | 2618 | NC | -6 | 347.0 | NC |
| DIA-37016-6 | 86.50 | 10.1:1 | 22.0 | 29.97 | Diamond | Jupe | 2618 | NC | -8.6 | NC | NC |
| DIA-37019-6 | 86.50 | 10.1:1 | 22.0 | 33.99 | Diamond | Jupe | 2618 | NC | -3.5 | NC | NC |
| DIA-37016-6-H | 86.50 | 10.1:1 | 22.0 | 29.97 | Diamond HD | Jupe | 2618 | NC | -8.6 | NC | NC |
| DIA-37019-6-H | 86.50 | 10.1:1 | 22.0 | 33.99 | Diamond HD | Jupe | 2618 | NC | -3.5 | NC | NC |

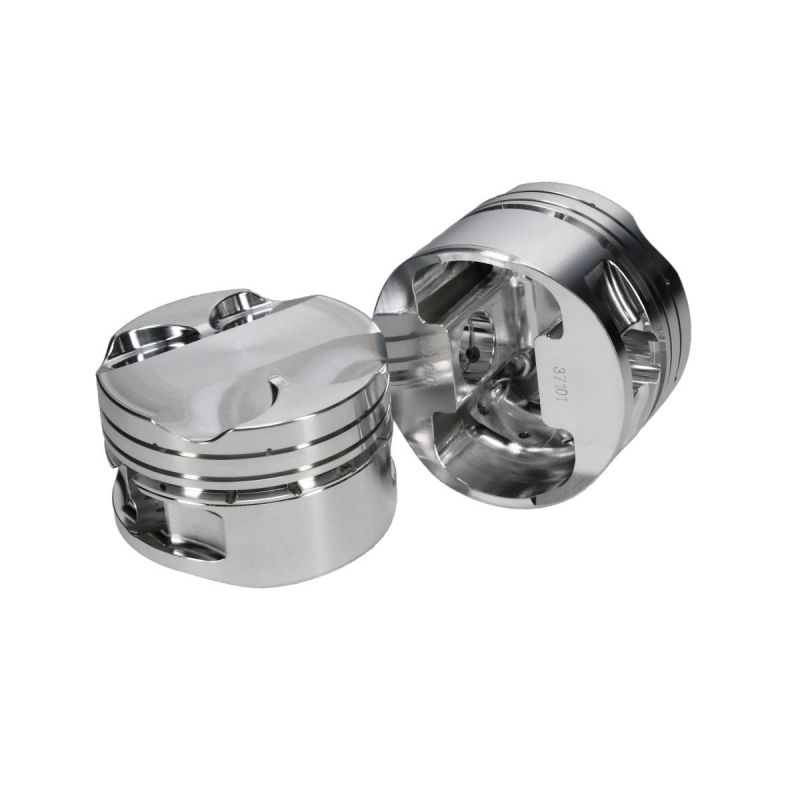

| DIA-37101-6 | 86.50 | 10.1:1 | 22.0 | 33.99 | Diamond Rebel Series | Jupe | 2618 | NC | -3.5 | NC | NC |
| DIA-37107-6 | 86.50 | 10.1:1 | 22.0 | 29.97 | Diamond Rebel Series | Jupe | 2618 | NC | -8.5 | NC | NC |
| WK678M865AP | 86.50 | 10.6:1 | 22.0 | 34.0 | Wiseco AP | Jupe | 2618 | NC | 0.8 | NC | 8650XX |
| 609307CE-6 | 86.75 | 10:1 | NC | 33.73 | Manley HD | Jupe | 2618 | NC | -1 | 383.0 | NC |
| 629307CE-6 | 86.75 | 10:1 | NC | 29.72 | Manley HD | Jupe | 2618 | NC | -6 | 350.0 | NC |
| 629307CE-6 | 86.75 | 10:1 | NC | 29.72 | Manley HD | Jupe | 2618 | NC | -6 | 350.0 | NC |
| JE-296933 | 87.00 | 8.5:1 | 22.0 | 34.0 | JE FSR | NC | 2618 | FSR | -17.1 | 326.0 | NC |
| JE-326322 | 87.00 | 8.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -23.4 | 296.0 | NC |
| JE-326322 | 87.00 | 8.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -23.4 | 296.0 | NC |
| WK550M87 | 87.00 | 8.5:1 | 22.0 | 34.0 | Wiseco | Jupe | 2618 | NC | -14.8 | NC | 8700XX |
| WK550M87AP | 87.00 | 8.5:1 | 22.0 | 34.0 | Wiseco AP | Jupe | 2618 | NC | -14.8 | NC | 8700XX |
| DIA-37002-6 | 87.00 | 8.7:1 | 22.0 | 33.99 | Diamond | Jupe | 2618 | NC | -14.5 | NC | NC |
| DIA-37011-6 | 87.00 | 8.7:1 | 22.0 | 29.97 | Diamond | Jupe | 2618 | NC | -20.7 | NC | NC |
| DIA-37002-6-H | 87.00 | 8.7:1 | 22.0 | 33.99 | Diamond HD | Jupe | 2618 | NC | -14.5 | NC | NC |
| DIA-37011-6-H | 87.00 | 8.7:1 | 22.0 | 29.97 | Diamond HD | Jupe | 2618 | NC | -20.7 | NC | NC |
| JE-361344 | 87.00 | 9:1 | 22.0 | 34.0 | JE Ultra Series | Tête + Jupe | 2618 | FSR | -11.00 | 369.0 | NC |
| 609015C-6 | 87.00 | 9:1 | NC | 33.99 | Manley | Jupe | 4032 | NC | -10 | 359.0 | NC |
| 629115C-6 | 87.00 | 9:1 | NC | 29.97 | Manley | Jupe | 4032 | NC | -16 | 329.0 | NC |
| 629115C-6 | 87.00 | 9:1 | NC | 29.97 | Manley | Jupe | 4032 | NC | -16 | 329.0 | NC |
| 609015CE-6 | 87.00 | 9:1 | NC | 33.99 | Manley HD | Jupe | 2618 | NC | -10 | 359.0 | NC |
| 609210CE-6 | 87.00 | 9:1 | NC | 33.73 | Manley HD | Jupe | 2618 | NC | -8 | 377.0 | NC |
| 629115CE-6 | 87.00 | 9:1 | NC | 29.97 | Manley HD | Jupe | 2618 | NC | -16 | 329.0 | NC |
| 629115CE-6 | 87.00 | 9:1 | NC | 29.97 | Manley HD | Jupe | 2618 | NC | -16 | 329.0 | NC |
| 629210CE-6 | 87.00 | 9:1 | NC | 29.72 | Manley HD | Jupe | 2618 | NC | -14 | 349.0 | NC |
| 629210CE-6 | 87.00 | 9:1 | NC | 29.72 | Manley HD | Jupe | 2618 | NC | -14 | 349.0 | NC |
| K9500D100 | 87.00 | 9:1 | 22.0 | 30.0 | Wossner | NC | NC | Round | -16.39 | NC | 870XPY |
| DIA-37005-6 | 87.00 | 9.2:1 | 22.0 | 33.99 | Diamond | Jupe | 2618 | NC | -10.4 | NC | NC |
| DIA-37014-6 | 87.00 | 9.2:1 | 22.0 | 29.97 | Diamond | Jupe | 2618 | NC | -16.2 | NC | NC |
| DIA-37005-6-H | 87.00 | 9.2:1 | 22.0 | 33.99 | Diamond HD | Jupe | 2618 | NC | -10.4 | NC | NC |
| DIA-37014-6-H | 87.00 | 9.2:1 | 22.0 | 29.97 | Diamond HD | Jupe | 2618 | NC | -16.2 | NC | NC |
| K9057D100 | 87.00 | 9.2:1 | 22.0 | 34.0 | Wossner | NC | NC | Round | -10.58 | NC | 870XPY |
| JE-314304 | 87.00 | 9.5:1 | 22.0 | 34.0 | JE FSR | NC | 2618 | FSR | -8.9 | 337.0 | NC |
| JE-337052 | 87.00 | 9.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -14.7 | NC | NC |
| JE-337052 | 87.00 | 9.5:1 | 22.0 | 30.0 | JE FSR | NC | 2618 | FSR | -14.7 | NC | NC |
| P6-T2JZ-87-CR9.5-6 | 87.00 | 9.5:1 | 22.0 | 34.0 | Supertech | Tête + Jupe | 2618 | NC | -7.2 | NC | W8700XX |
| DIA-37105-6 | 87.00 | 9.7:1 | 22.0 | 33.99 | Diamond Rebel Series | Jupe | 2618 | NC | -6.5 | NC | NC |
| DIA-37111-6 | 87.00 | 9.7:1 | 22.0 | 29.97 | Diamond Rebel Series | Jupe | 2618 | NC | -12 | NC | NC |
| WK677M87AP | 87.00 | 9.7:1 | 22.0 | 34.0 | Wiseco AP | Jupe | 2618 | NC | -5.3 | NC | 8700XX |
| DIA-37008-6 | 87.00 | 9.8:1 | 22.0 | 33.99 | Diamond | Jupe | 2618 | NC | -5.6 | NC | NC |
| DIA-37008-6-H | 87.00 | 9.8:1 | 22.0 | 33.99 | Diamond HD | Jupe | 2618 | NC | -5.6 | NC | NC |
| 609115C-6 | 87.00 | 10:1 | NC | 33.99 | Manley | Jupe | 4032 | NC | -2,5 | 360.0 | NC |
| 629015C-6 | 87.00 | 10:1 | NC | 29.97 | Manley | Jupe | 4032 | NC | -8 | 328.0 | NC |
| 629015C-6 | 87.00 | 10:1 | NC | 29.97 | Manley | Jupe | 4032 | NC | -8 | 328.0 | NC |
| 609115CE-6 | 87.00 | 10:1 | NC | 33.99 | Manley HD | Jupe | 2618 | NC | -2,5 | 360.0 | NC |
| 609310CE-6 | 87.00 | 10:1 | NC | 33.73 | Manley HD | Jupe | 2618 | NC | -1 | 386.0 | NC |
| 629015CE-6 | 87.00 | 10:1 | NC | 29.97 | Manley HD | Jupe | 2618 | NC | -8 | 328.0 | NC |
| 629015CE-6 | 87.00 | 10:1 | NC | 29.97 | Manley HD | Jupe | 2618 | NC | -8 | 328.0 | NC |
| 629310CE-6 | 87.00 | 10:1 | NC | 29.72 | Manley HD | Jupe | 2618 | NC | -6 | 353.0 | NC |
| 629310CE-6 | 87.00 | 10:1 | NC | 29.72 | Manley HD | Jupe | 2618 | NC | -6 | 353.0 | NC |
| DIA-37017-6 | 87.00 | 10.2:1 | 22.0 | 29.97 | Diamond | Jupe | 2618 | NC | -8.6 | NC | NC |
| DIA-37020-6 | 87.00 | 10.2:1 | 22.0 | 33.99 | Diamond | Jupe | 2618 | NC | -3.5 | NC | NC |
| DIA-37017-6-H | 87.00 | 10.2:1 | 22.0 | 29.97 | Diamond HD | Jupe | 2618 | NC | -8.6 | NC | NC |
| DIA-37020-6-H | 87.00 | 10.2:1 | 22.0 | 33.99 | Diamond HD | Jupe | 2618 | NC | -3.5 | NC | NC |
| DIA-37102-6 | 87.00 | 10.2:1 | 22.0 | 33.99 | Diamond Rebel Series | Jupe | 2618 | NC | -3.5 | NC | NC |
| DIA-37108-6 | 87.00 | 10.2:1 | 22.0 | 29.97 | Diamond Rebel Series | Jupe | 2618 | NC | -8.5 | NC | NC |
| WK678M87AP | 87.00 | 10.7:1 | 22.0 | 34.0 | Wiseco AP | Jupe | 2618 | NC | 0.8 | NC | 8700XX |
Compatibilités (codes moteur) :
Véhicules d’origine équipés du 2JZ‑GTE :
| Marque | Modèle | Code moteur | Puissance | Années |
|---|---|---|---|---|
| Toyota | Aristo 3.0V (JZS147) | 2JZ‑GTE | 280 ch (JDM) | 1991 – 1997 |
| Toyota | Aristo V300 (JZS161) | 2JZ‑GTE (VVT‑i) | 280 ch (JDM) | 1997 – 2004 |
| Toyota | Supra RZ / GZ (JZA80) | 2JZ‑GTE | 280 ch (JDM) / 321 ch (US) | 1993 – 2002 |
Références pistons constructeur (OEM) :
Toujours confirmer via EPC avec le VIN et la rectification éventuelle (STD/0.50/1.00).
Attention : avant tout montage, veuillez impérativement vérifier l’intégrité et la conformité de chaque composant du kit pistons ainsi que la conformité de l'assemblage dans le moteur; toute garantie éventuelle est strictement limitée aux seules pièces du kit piston.
