Forged connecting rods Audi / Volkswagen - 1.8L & 2.0L 16V TFSI - EA888 for forged pistons

The AUDI / VOLKSWAGEN 1.8 / 2.0 TFSI EA888 engine

The EA888 is the Volkswagen-Audi Group's turbocharged four-cylinder petrol engine, launched in 2007 to replace the 1.8T 20V. Available in 1.8 and 2.0 TFSI direct-injection versions, it powers a broad family of sporty models: Audi A4 (8K) and A5 (8T), Volkswagen Golf GTI V and VI, and the Scirocco III, with factory outputs ranging from 120 to 220 hp.

The 1.8 TFSI displaces 1,798 cc (bore 82.5 mm, stroke 84.1 mm); the 2.0 TFSI versions share the same short block and, above all, the same rod geometry (148 mm centre-to-centre, 21 mm piston pin). Renowned for its strength, the EA888 responds very well to tuning: a remap, a larger turbo and forged pistons quickly raise cylinder pressure, pushing the stock rod beyond its safety margin.

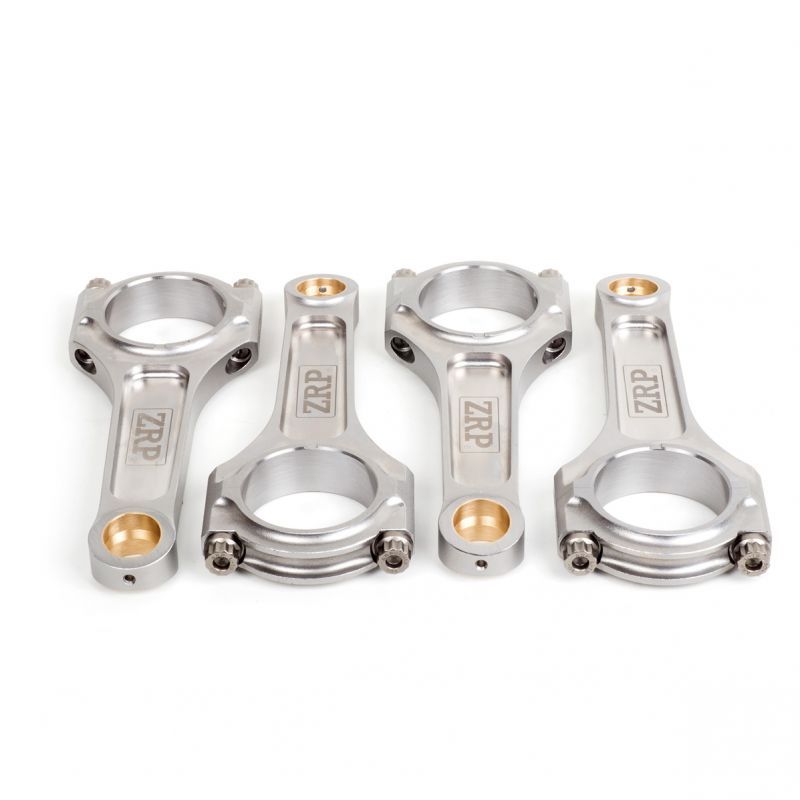

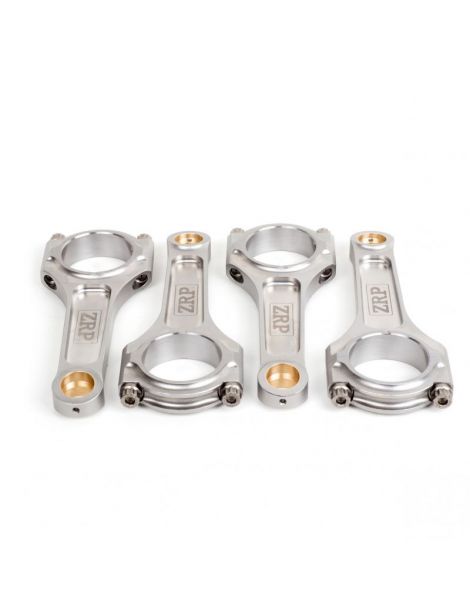

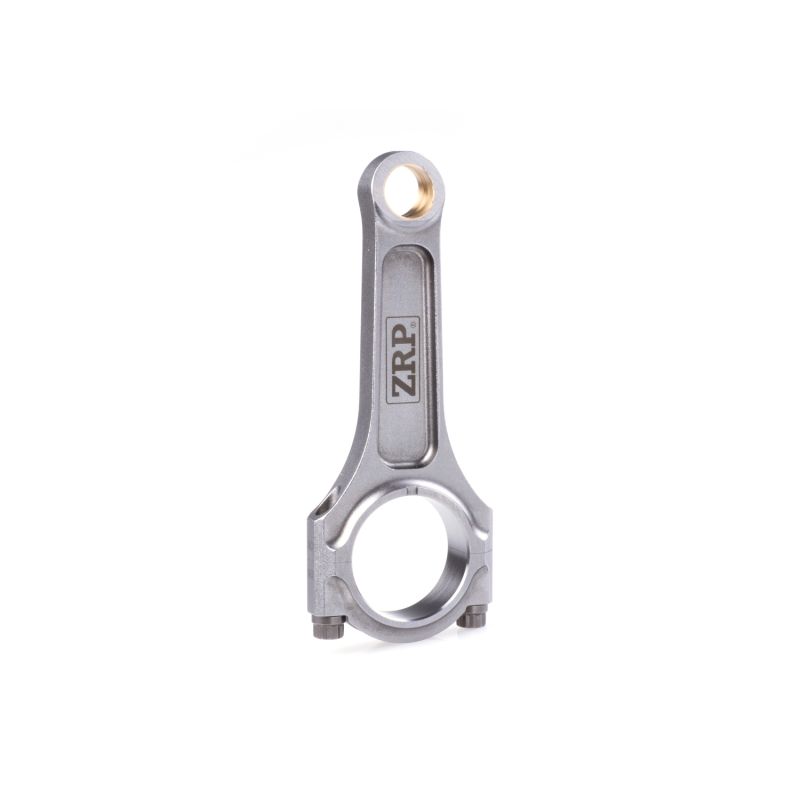

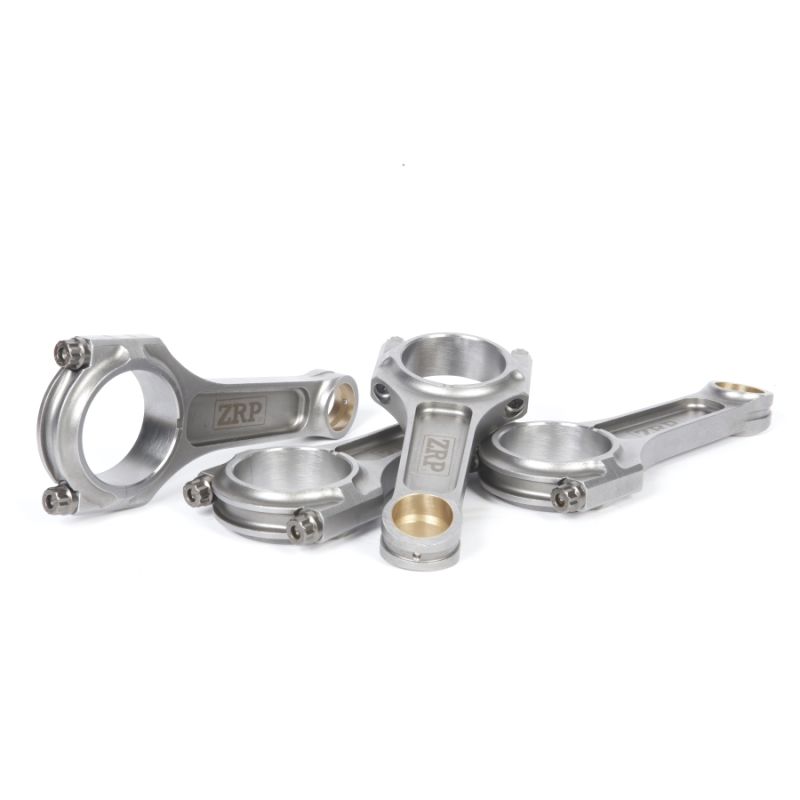

Forged connecting rods

Machined from high-strength 4340 steel, these reinforced forged connecting rods secure the bottom end as soon as power rises. They become essential when fitting forged pistons, raising the rev limit, increasing boost pressure or gaining displacement, all cases where the original EA888 rod reaches its limits.

Designed to absorb the heavy loads of tuned engines, turbo as well as supercharged, they cover every discipline, from rally to drift, drag, circuit and track days, hill climb and time attack, and support Stage 2, Stage 3 and Stage 4+ builds, right up to competition engines.

Technical specifications of the EA888 1.8 / 2.0 TFSI forged connecting rods

Torque and bolt stretch

One thing often overlooked when rebuilding an EA888: the torque values in the table only hold with the assembly lubricant specified by the bolt manufacturer. Switching to engine oil, or fitting the bolts dry, changes the friction and therefore the torque needed to reach the same stretch, so you believe the tightening is right when the bolt is actually under-loaded. That is exactly why measurement comes first: apply the torque and stretch figures given, ARP 2000 or ARP L19 in 3/8" 38 mm depending on the variant, scrupulously, then check on the gauge, the only reference method for knowing where you stand.

Technical guide

4340 forged steel: what is it?

Connecting rod profiles

I profile. Its slimmer central section makes the rod lighter: less inertia and freer revving. It is the profile of choice on modern turbo engines such as the EA888, where it offers the best compromise between lightness and strength, securing the bottom end while preserving responsiveness.

How to choose your rod bolts?

Two rod bolts of the same size can have very different service lives: everything depends on the steel and the process. The grade sets the yield strength and the tensile strength, heat treatment carried through the section ensures a uniform structure, and rolling the threads after hardening work-hardens the thread root, where fatigue cracks start. The chemistry of the alloy then decides corrosion resistance and sensitivity to hydrogen, hence the storage conditions. On this EA888 the hardware is offered in 3/8"-38 mm in two grades; choose according to target boost pressure and engine speed, then tighten by measured stretch rather than by torque alone.

ARP 2000 (tensile strength around 220,000 psi, i.e. about 1,517 MPa) is the high-performance standard. Suitable for builds up to 200 hp per cylinder in 3/8", and up to 8,500 rpm, it is the most common grade in circuit, track day, drift, rally, drag and hill climb, valued for its robustness, reliability and versatility, with no particular storage constraint.

L19 is the grade obtained with a distinctly richer alloy and a more tightly run quench and temper cycle: tensile strength reaches about 260,000 psi, i.e. ~1,793 MPa, for 250 hp per cylinder in 3/8" and up to 10,000 rpm. It is made for very high boost pressure, sustained high engine speeds and high cylinder pressure, in other words big power in drag, drift, rally and circuit, which matches serious EA888 builds. Its metallurgy has one requirement: sensitive to corrosion and to hydrogen embrittlement, L19 must be stored and fitted oiled, away from moisture.

Measuring bolt stretch

Buy the ARP stretch gauge →

The brands offered

ZRP is a Greek brand of high-performance forged connecting rods, designed by Alex Drakos in Athens. Each rod is forged from 4340 steel, precision-machined and balanced to ±1 g to stay reliable at high rpm. Offered here in the I profile with ARP 2000 or L19 bolts, they are designed and inspected in Greece, and proven in rally, on circuit and in drift.

Glossary

1) Small end 2) Small-end diameter 3) Rod beam 4) Rod bolt 5) Big end 6) Rod nut / bolt 7) Rod cap 8) Big-end diameter 9) Center-to-center

Vehicle compatibility for the EA888 1.8 / 2.0 TFSI engine

These forged connecting rods are compatible with all vehicles fitted with the EA888 1.8 / 2.0 TFSI engine (148 mm centre-to-centre, 21 mm pin):

OEM reference: 06H198401A / 06J198401D (set of 4 rods).

Why it’s the most cost-effective solution?

When an original bottom end fails (broken rod, scored crank, block to rebuild), the bill climbs fast, yet without guaranteeing better durability than standard.

For an equivalent, or even lower, budget, fitting forged 4340 connecting rods together with forged pistons brings far greater reliability and safety margin, plus genuine room for power growth. It is the solution chosen by European tuners.

At the same budget: more reliability, more potential and more resale value.
