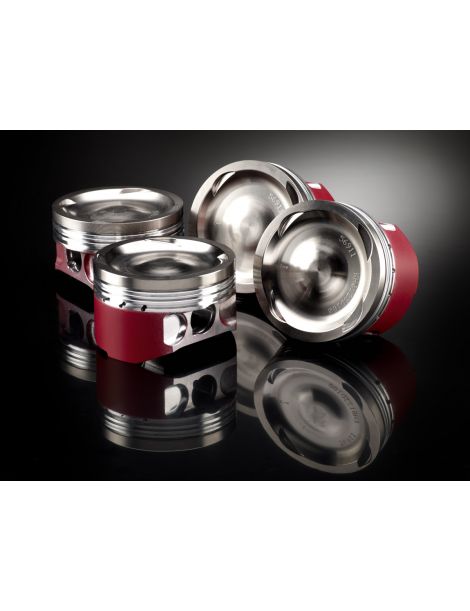

Forged Pistons 1.8L 16v EA888 Audi Seat VW

Marque Pistons Forgés

Condition: New product

Forged pistons JE / compatible with A3/A4/TT, Passat, Leon, Octavia.

More details

More info
Reviews (0)

Characteristics of the forged pistons offered by NSB Concept for VW/Audi 1.8 L 16 V EA888:

Reference	Bore OEM 82.50mm	OEM CR OEM	Pin OEM 21 23mm	Original Pin Height 29.80mm	Range	Coating	Aluminium	Forging	Dome	Weight	Rings
K9507DA	82.5	9.2:1	21	29.3	Wossner	NC	NC	Round	-4.7	NC	825XPY
JE-379037C*4	82.5	9.6:1	21	29.85	JE	NC	NC	NC	NC	NC	NC
K9507D050	83.0	9.3:1	21	29.3	Wossner	NC	NC	Round	-4.7	NC	830XPY
JE-354655C*4	83.0	9.6:1	21	29.85	JE	NC	NC	NC	0.9	NC	NC

COMPatibilities (engine codes):

EA888 1.8 TSI/TFSI BYT, BZB (Gen1)
EA888 1.8 TSI/TFSI CDAA, CDAB (Gen2)
EA888 1.8 TFSI CDHB (A4/A3/TT), CJEB (A4/A5), CPKA/CPRA (Passat NMS, US)

Original vehicles equipped with the 1.8 TSI/TFSI EA888:

Brand	Model	Engine Code	Power	Years
Audi	A3 8P 1.8 TFSI	BYT/BZB	160 hp	2006 2012
Audi	A4 B8 1.8 TFSI	CDHB	160 hp	2008 2012
Audi	A4 B8 1.8 TFSI	CJEB	170 hp	2012 2015
Audi	A5 8T 1.8 TFSI	CJEB	170 hp	2011 2016
Audi	TT 8J 1.8 TFSI	BZB	160 hp	2008 2014
SEAT	Exeo 1.8 TSI	CABA/CDHB	160 hp	2008 2013
SEAT	Leon Mk2 (1P) 1.8 TSI	CDAA	160 hp	2007 2012
Volkswagen	Passat B7 (NMS US) 1.8 TSI	CPKA/CPRA	170 hp	2014 2015
Skoda	Octavia II (1Z) 1.8 TSI	CDAA/CDAB	160 152 hp	2007 2013
Skoda	Superb II (3T) 1.8 TSI	CDAA	160 hp	2008 2015
Skoda	Yeti 1.8 TSI	CDAA/CDAB	152 160 hp	2009 2017

Pistons manufacturer references (OEM):

06H 107 065 DL Piston STD 82.51 mm (EA888 1.8 TFSI/CDAB & co., with Rings/pin according to kit).
06H 107 065(variable suffixes, e.g. AM/AT/DK/DL) Pistons according to vintage and revision.

Attention:before any assembly, please check the integrity and conformity of each component of the Pistons kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the Piston kit only.
