1.6L 16v - 4A-GE
Manufacturers
1.6L 16v - 4A-GE
Warning: Last items in stock!
New product
Forged pistons Toyota 4A-GE 1.6 16v: O81-82 mm, Pin 18-20 mm, CH 30.5 mm. Compatibilities AE86, MR2 AW11, Corolla AE82/AE92. Sorted table + OEM references.

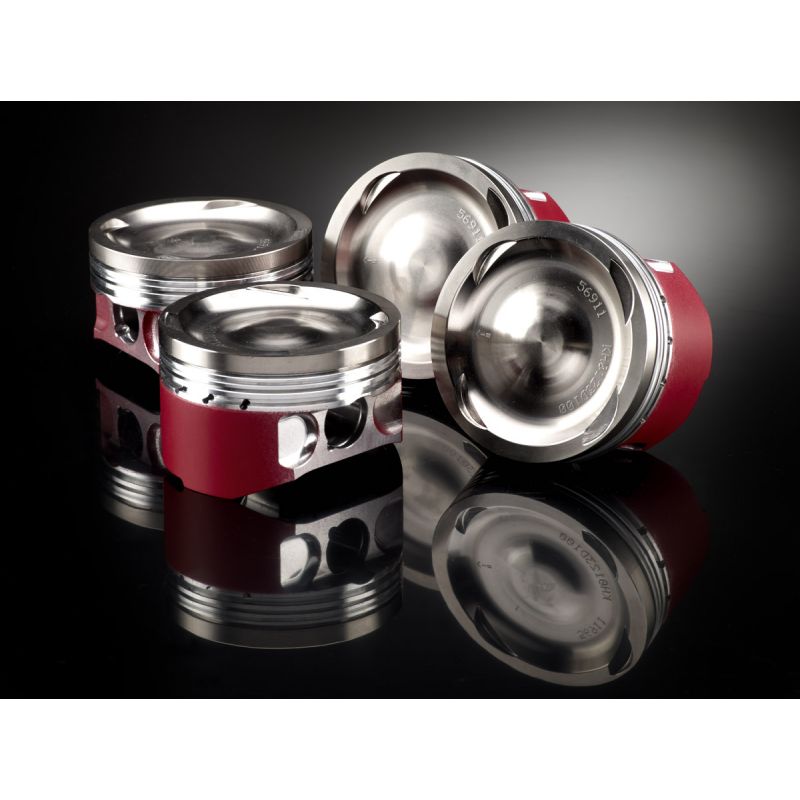

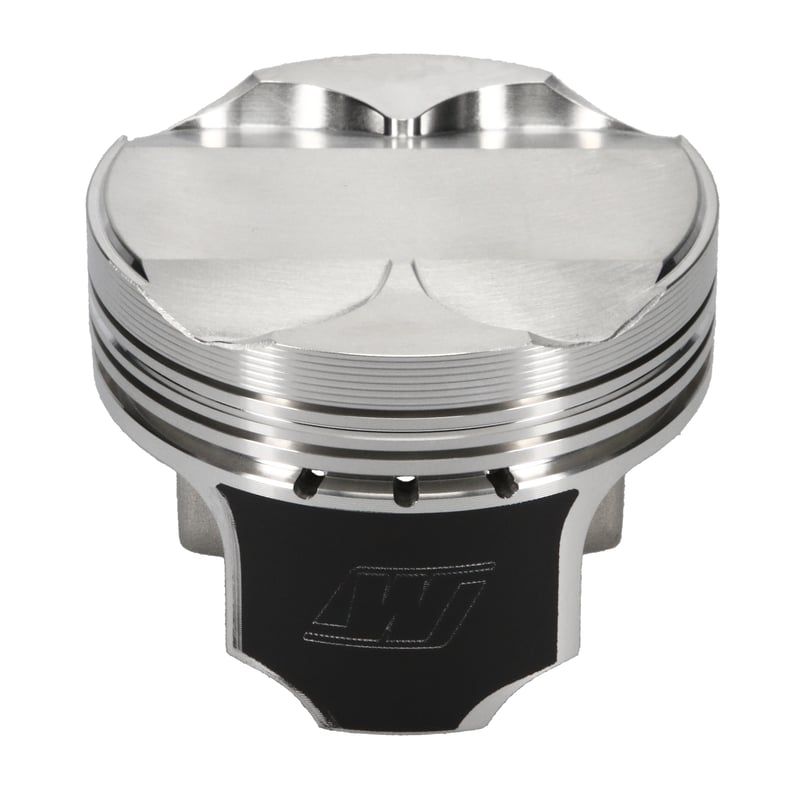

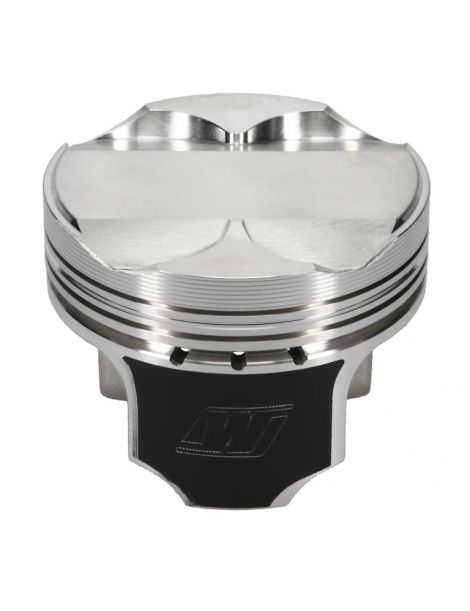

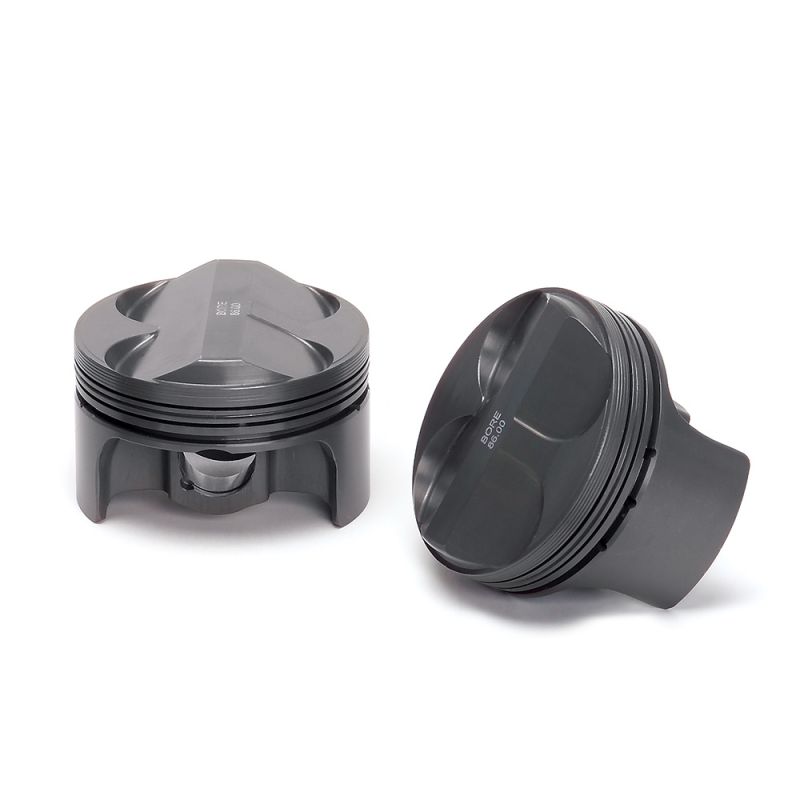

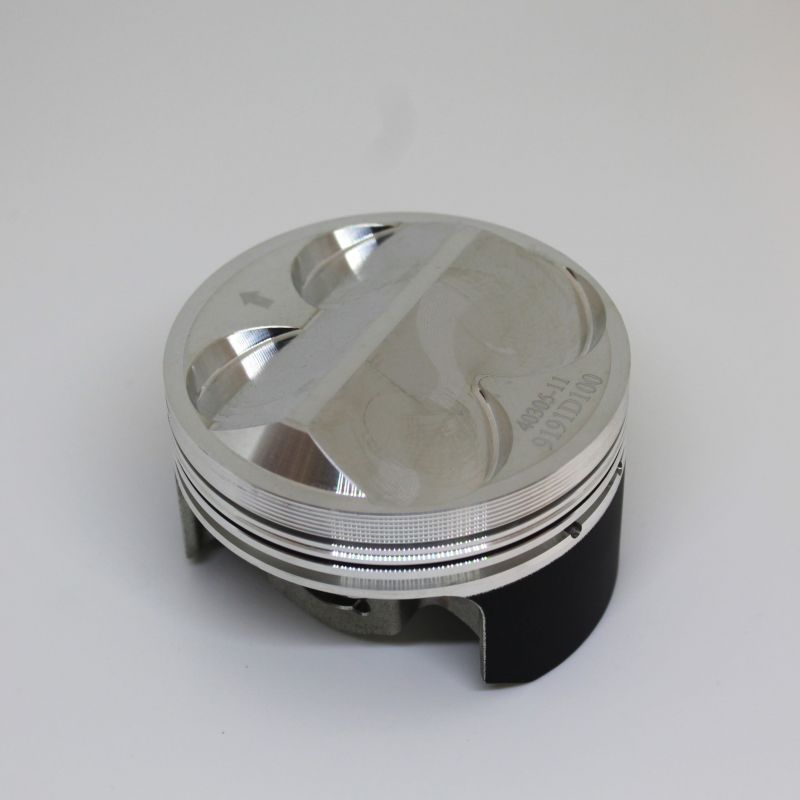

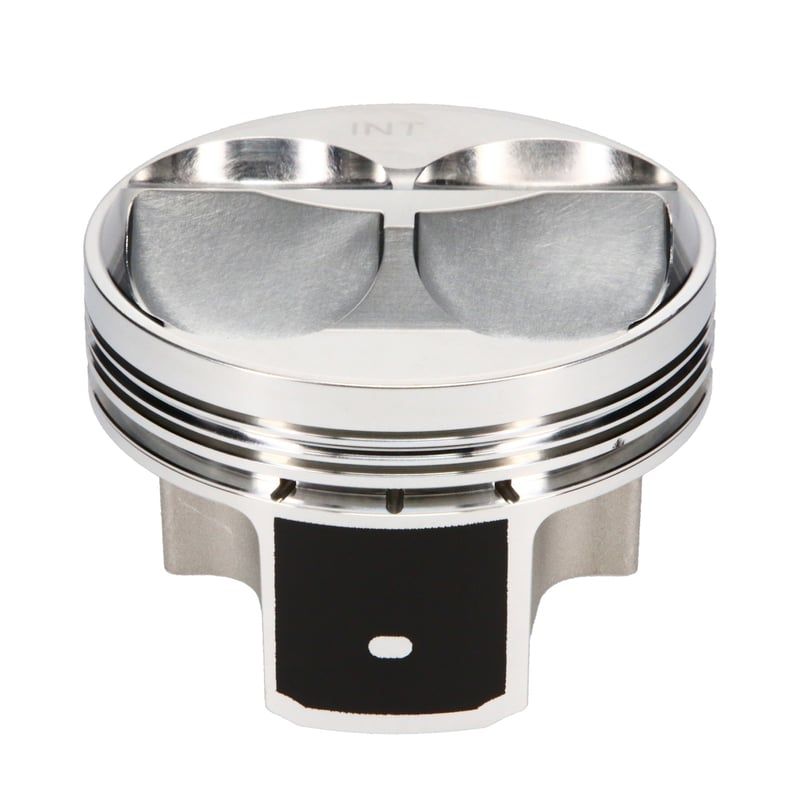

Specifications of the forged pistons offered by NSB Concept for Toyota 1.6 L 16 V 4A-GE :
| Reference | OEM Bore 81,00 mm | OEM CR 9,4 – 10,3 :1 | OEM Pin 18 – 20 mm (depending on generation) | Height OEM Pin ≈ 30,5 – 30,7 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-361470 | 81.0 | 11:1 | 20 | 30.5 | JE FSR | NC | 2618 | FSR | 3.2 | 290.0 | NC |
| P4-T4AG16-20-81-CR11-4 | 81.0 | 11:1 | 20 | 30.5 | Supertech | Crown + Skirt | 4032 | NC | 3.1 | 260.0 | W8100XX |
| K9035DA | 81.0 | 11.8:1 | 20 | 30.6 | Wossner | NC | NC | Slipper | 4.9 | NC | GNH81.00 |
| K9191DA | 81.0 | 11.8:1 | 18 | 30.6 | Wossner | NC | NC | NC | 4.9 | NC | 810XSY |
| WK505M815 | 81.5 | 10.5:1 | 19 | 30.68 | Wiseco | Skirt | 4032 | NC | 5.9 | NC | 8150XX |
| WK506M815 | 81.5 | 10.5:1 | 20 | 30.68 | Wiseco | Skirt | 4032 | NC | 5.9 | NC | 8150XX |
| WK533M815 | 81.5 | 10.5:1 | 18 | 30.68 | Wiseco | Skirt | 4032 | NC | 5.9 | NC | 8150XX |
| WK533M815 | 81.5 | 10.5:1 | 18 | 30.68 | Wiseco | Skirt | 4032 | NC | 5.9 | NC | 8150XX |
| JE-361471 | 81.5 | 11:1 | 20 | 30.5 | JE FSR | NC | 2618 | FSR | 2.7 | 291.0 | NC |
| P4-T4AG16-20-81.5-CR11-4 | 81.5 | 11:1 | 20 | 30.5 | Supertech | Crown + Skirt | 4032 | NC | 3.1 | 265.0 | W8150XX |
| P4-T4AG16-81.5-CR11.5-4 | 81.5 | 11.5:1 | 18 | 30.7 | Supertech | Crown + Skirt | 4032 | NC | 3.1 | 260.0 | W8150XX |
| K9035D050 | 81.5 | 11.9:1 | 20 | 30.6 | Wossner | NC | NC | Slipper | 4.9 | NC | GNH81.50 |
| K9191D050 | 81.5 | 11.9:1 | 18 | 30.6 | Wossner | NC | NC | NC | 4.9 | NC | 815XSY |
| WK506M82 | 82.0 | 10.5:1 | 20 | 30.68 | Wiseco | Skirt | 4032 | NC | 5.9 | NC | 8200XX |
| WK533M82 | 82.0 | 10.5:1 | 18 | 30.68 | Wiseco | Skirt | 4032 | NC | 5.9 | NC | 8200XX |
| WK533M82 | 82.0 | 10.5:1 | 18 | 30.68 | Wiseco | Skirt | 4032 | NC | 5.9 | NC | 8200XX |
| JE-361472 | 82.0 | 11:1 | 20 | 30.5 | JE FSR | NC | 2618 | FSR | 2.3 | 293.0 | NC |
| P4-T4AG16-20-82-CR11-4 | 82.0 | 11:1 | 20 | 30.5 | Supertech | Crown + Skirt | 4032 | NC | 3.1 | 265.0 | W8200XX |
| P4-T4AG16-82-CR11.5-4 | 82.0 | 11:1 | 18 | 30.7 | Supertech | Crown + Skirt | 4032 | NC | 3.1 | 265.0 | W8200XX |
| K9035D100 | 82.0 | 12.1:1 | 20 | 30.6 | Wossner | NC | NC | Slipper | 4.9 | NC | GNH82.00 |
| K9191D100 | 82.0 | 12.1:1 | 18 | 30.6 | Wossner | NC | NC | NC | 4.9 | NC | 820XSY |
Compatibility (engine codes):
Original vehicles equipped with the 4A-GE 16v :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Toyota | Corolla AE92 GTi 16 | 4A-GE | 124–129 hp | 1987 – 1992 |
| Toyota | Corolla FX16 (AE82) | 4A-GE | 115 hp | 1987 – 1988 |
| Toyota | Corolla Levin/Sprinter Trueno AE86 | 4A-GE | 120–128 hp | 1983 – 1987 |
| Toyota | MR2 AW11 | 4A-GE | 112–130 hp | 1984 – 1989 |
OEM piston references :
4A-GE 16v (early, 18 mm pin): 13101-16020 / 13101-16021 (to be confirmed depending on market).
4A-GE 16v (late smallport, 20 mm pin): 13101-16210 / 13101-16211 (to be confirmed depending on market).
STD ring sets Ø81: 13011-16070; correction +0.50: 13013-16040 (references to be validated).
indicative references; to check depending on VIN, grade (A/B), generation (bigport/smallport), market (EU/US/JPN) and rectification possible.
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
