Reduced price! SUBARU référence R-SUB-001-IP Kit 4 bielles forgées en I ZRP avec vis ARP View larger

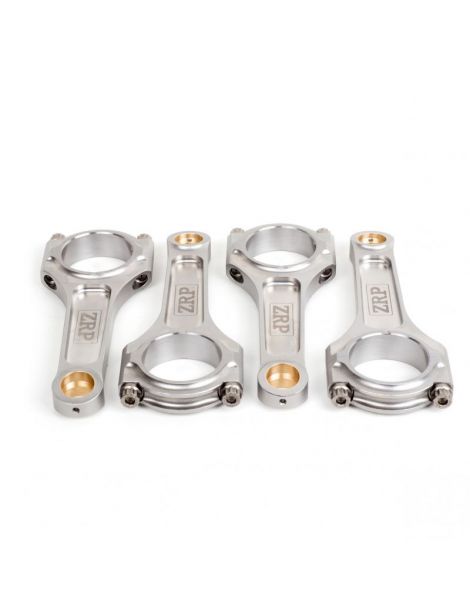

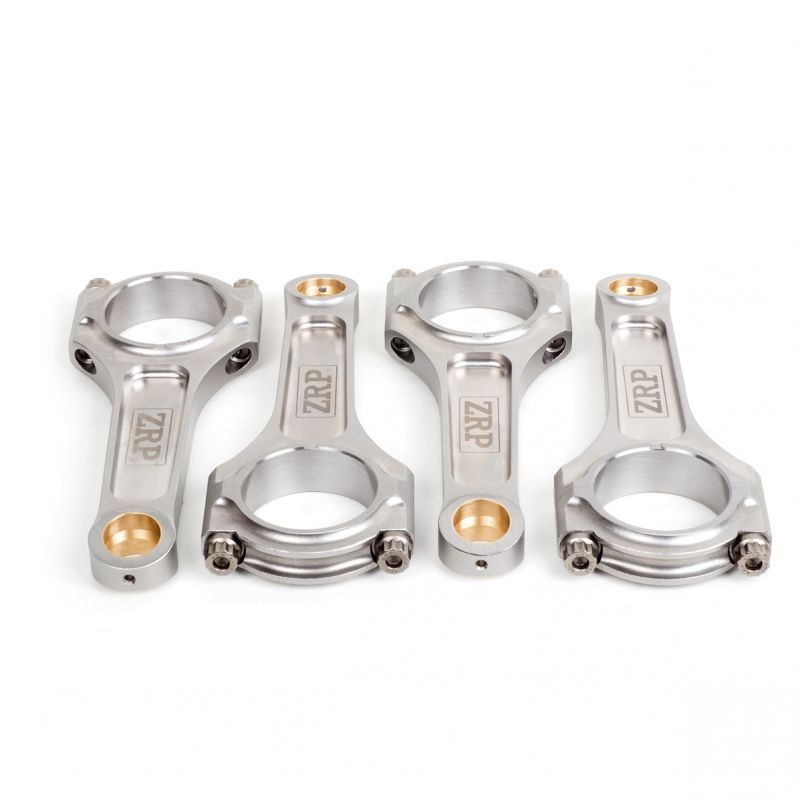

SUBARU part number R-SUB-001-IP kit of 4 forged ZRP I-beam connecting rods with ARP bolts

New product

SUBARU part number R-SUB-001-IP kit of 4 forged I-beam ZRP connecting rods with ARP bolts and aluminum-bronze silicone bushing connecting rod small end

More details

612,96 € tax incl.

-30%

875,65 € tax incl.

IN STOCK

Stock NSB France : 1 Item

  • SUBARU reference R-SUB-001-IP kit of 4 ZRP forged I-beam connecting rods with ARP bolts with aluminum-bronze silicone bushing connecting rod foot

    The ZRP brand is a subsidiary of DRAKOS ENGINEERING, renowned for its experience in the design of high-performance mechanical parts. ZRP specializes exclusively in forged engine parts and has designed R-SUB-001-IP forged connecting rods for your SUBARU EJ20, EJ205, EJ25, EJ257, and EJ22and engines. These rods are made of high-strength 4340 steel and feature reinforced ARP connecting rod bolts to withstand the increased inertia associated with higher engine speeds. Available in three ranges: - ARP 2000: resistant up to 220,000 psi (15,000 bar) - ARP L19: resistant up to 260,000 psi (15,000 bar) 18000 bars)

    - ARP 625+: resistant up to 280000 psi (or 19000 bars)

    The ZRP R-SUB-001-IP forged connecting rod head for SUBARU EJ20, EJ205, EJ25, EJ257, EJ22and engines is equipped with a machined aluminum-bronze silicon bushing before being ground to ensure oil film retention with your piston pin.

    The design of this ZRP R-SUB-001-IP forged I-beam connecting rod for SUBARU EJ20, EJ205, EJ25, EJ257 engines, EJ22and gives it exceptional resistance to significant increases in power and torque from high boost pressures, as well as extreme uses such as those we encounter with our customers whom we equip for their forged Drift and Run Dragster engine preparation.

    Specifications:

    • Connecting rod small end profile: flat
    • Center distance: 130.50mm
    • Small end diameter: 55.00mm
    • Small end width: 17.00mm
    • Piston pin diameter: 23.00mm
    • Connecting rod bolts supplied: ARP2000, ARP L1 or ARP 625+ (choose)
    • Thread of the Screws supplied: 525g
    • Maximum permissible power: 800hp

    Glossary:

    1) Connecting rod foot
    2) Foot diameter
    3) Connecting rod body
    4) Connecting rod bolt
    5) Connecting rod big end
    6) Nut
    7) Connecting rod cap
    8) Big end diameter
    9) Center distance

    When you install your SUBARU engine EJ20, EJ205, EJ25, EJ257, For the EJ22and engine with forged pistons, it is recommended to install forged connecting rods with tri-metal connecting rod bearings, in addition to replacing your original pistons with forged pistons.
