2.5L 24v - M52B25 (1 vanos)
Manufacturers
2.5L 24v - M52B25 (1 vanos)
Warning: Last items in stock!
New product

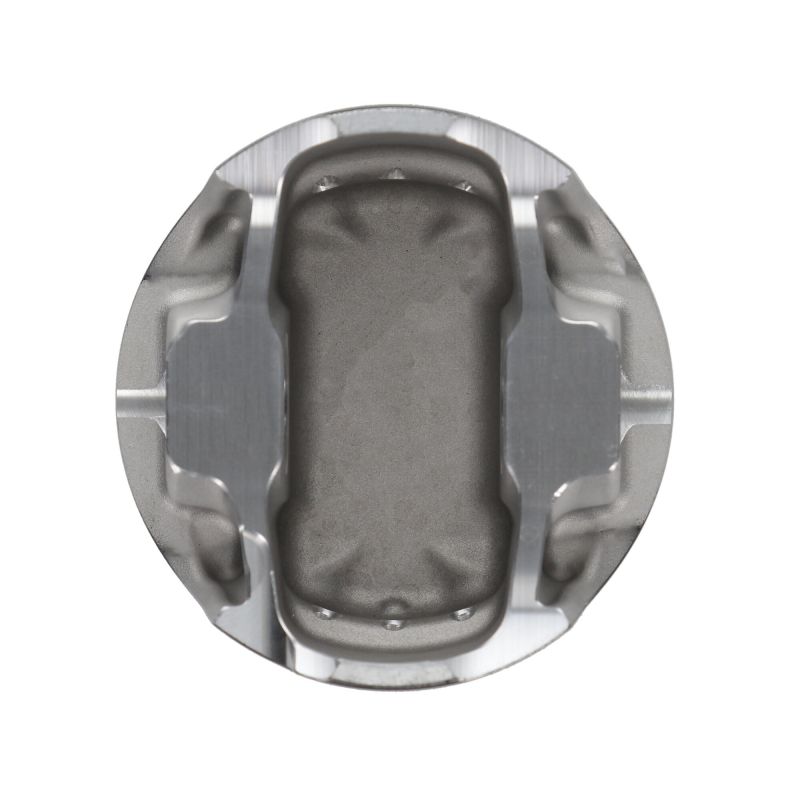

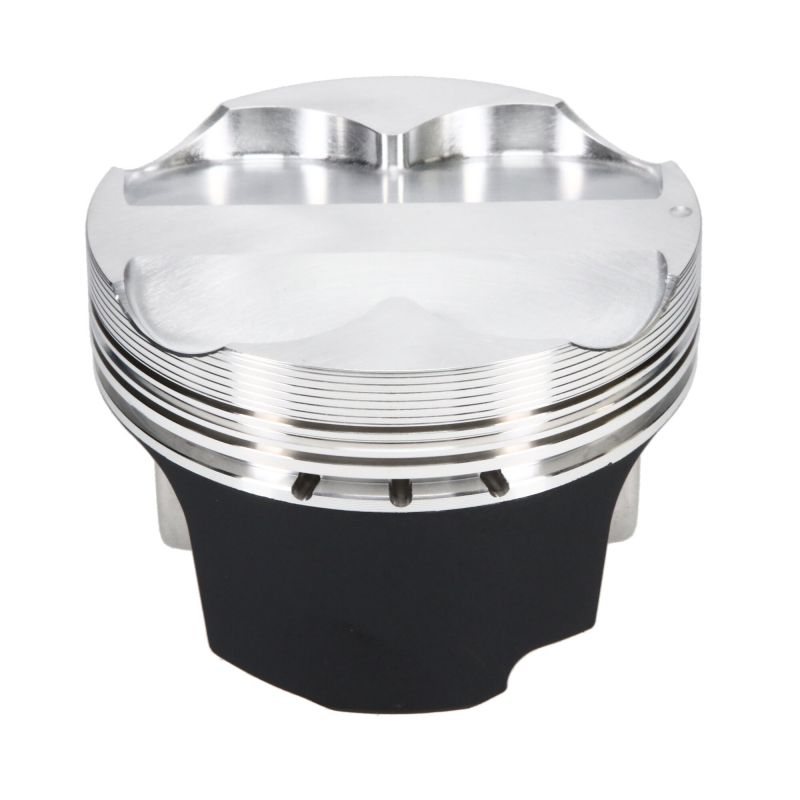

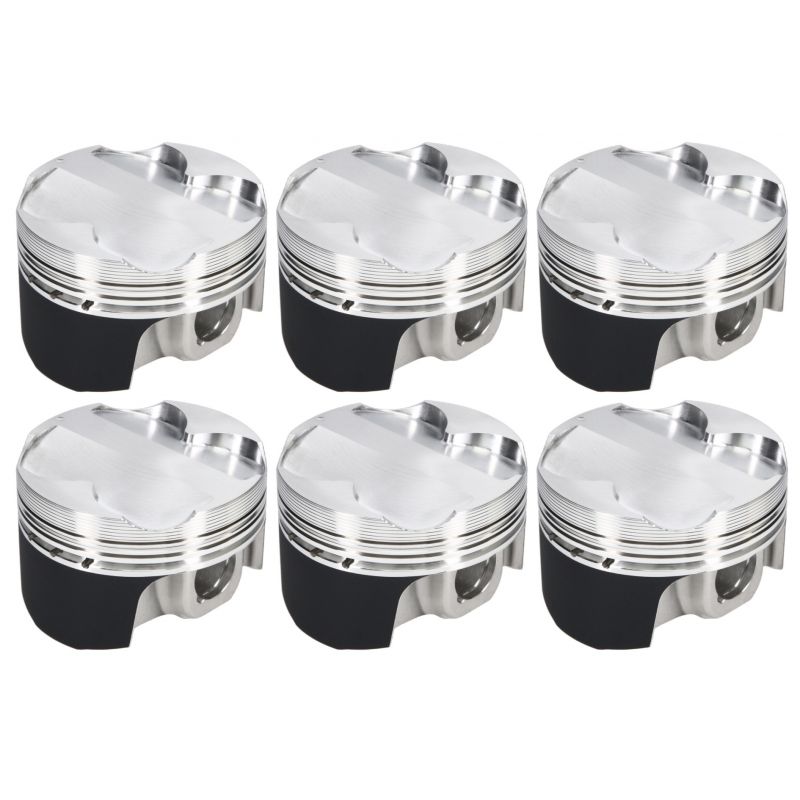

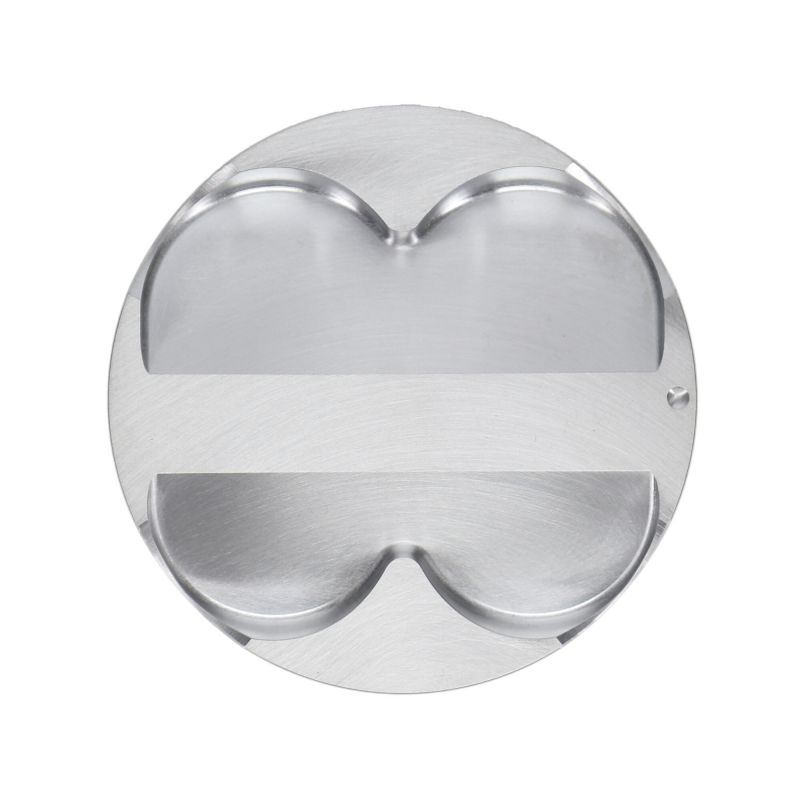

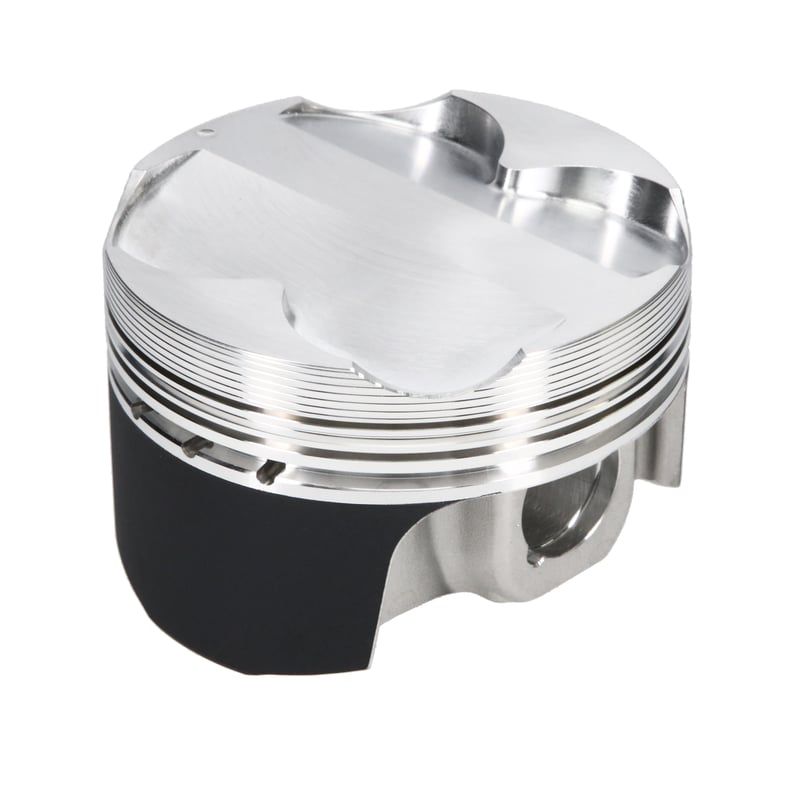

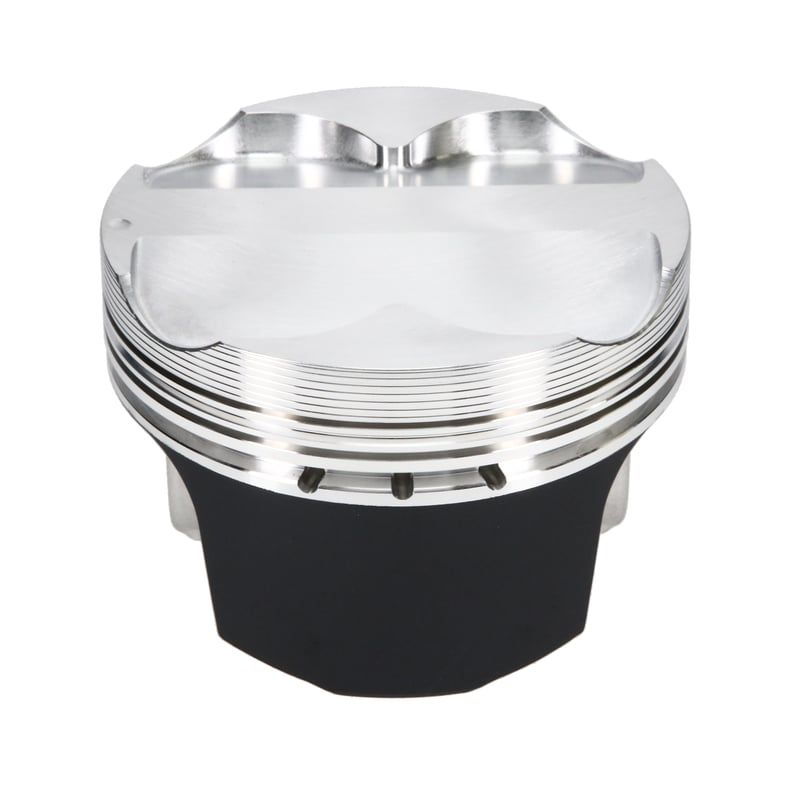

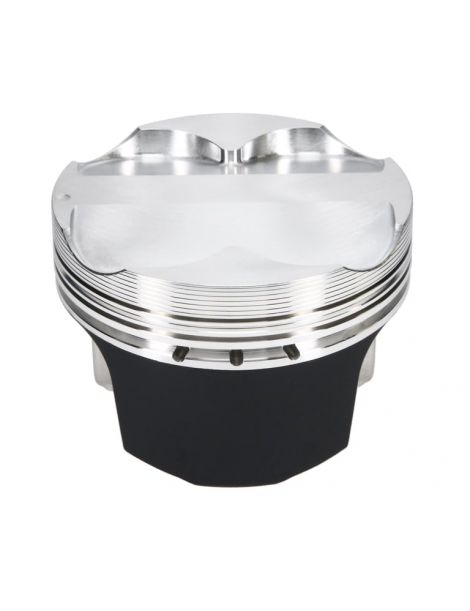

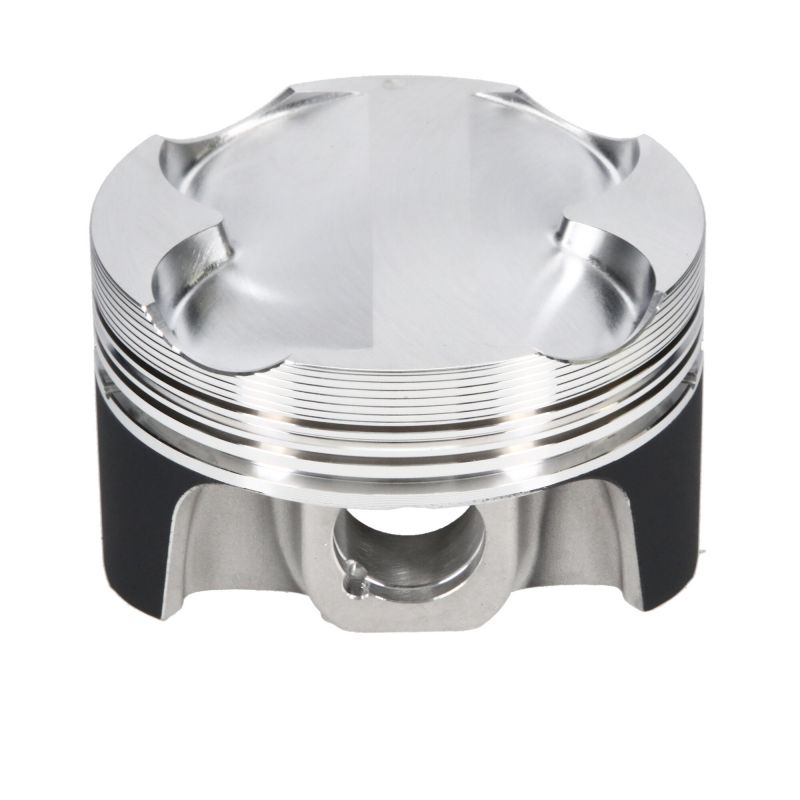

Wiseco forged piston kit for BMW M52B25: bores 84.0 ⌀85.0 mm, RV 8.8:1 (ideal turbo or ethanol), axle O 22 mm, CH 32.7 mm, dome ⌀5 cc, segments included.
Specifications of the forged pistons offered by NSB Concept for BMW 2,5 L 24 V M50B25 TU (with VANOS) :
| Reference | OEM Bore 84,00 mm | OEM CR 10,5 :1 | OEM Pin 22 mm | Height OEM Pin 33,2 mm | Range | Coating | Aluminium | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE314M84 | 84,00 | 11,0 :1 | 22 | 33,2 | Wiseco | Skirt | 2618 | NC | -1,5 | NC | 8400XX |
| WKE315M84 | 84,00 | 8,8 :1 | 22 | 33,2 | Wiseco | Skirt | 2618 | NC | -13,5 | NC | 8400XX |
| WKE314M8425 | 84,25 | 11,0 :1 | 22 | 33,2 | Wiseco | Skirt | 2618 | NC | -1,5 | NC | 8425XX |
| WKE315M8425 | 84,25 | 8,8 :1 | 22 | 33,2 | Wiseco | Skirt | 2618 | NC | -13,5 | NC | 8425XX |
| WKE314M845 | 84,50 | 11,0 :1 | 22 | 33,2 | Wiseco | Skirt | 2618 | NC | -1,5 | NC | 8450XX |
| WKE315M845 | 84,50 | 8,8 :1 | 22 | 33,2 | Wiseco | Skirt | 2618 | NC | -13,5 | NC | 8450XX |
| WKE314M85 | 85,00 | 11,0 :1 | 22 | 33,2 | Wiseco | Skirt | 2618 | NC | -1,5 | NC | 8500XX |
| WKE315M85 | 85,00 | 8,8 :1 | 22 | 33,2 | Wiseco | Skirt | 2618 | NC | -13,5 | NC | 8500XX |
Compatibility engines :
M50B25TU (2,5 L 24 V BMW – VANOS)
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| BMW | 3 Series E36 325i / 325is / 325ix | M50B25TU | 192 hp | 1993 – 1995 |
| BMW | 5 Series E34 525i / 525ix | M50B25TU | 192 hp | 1992 – 1996 |
Reference piston manufacturer (OEM) :
